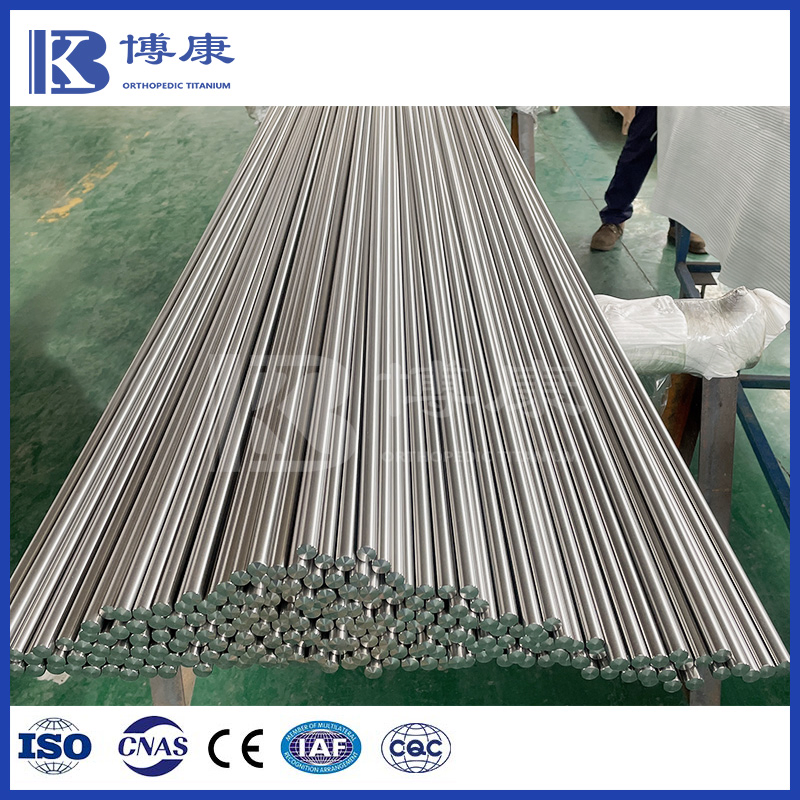

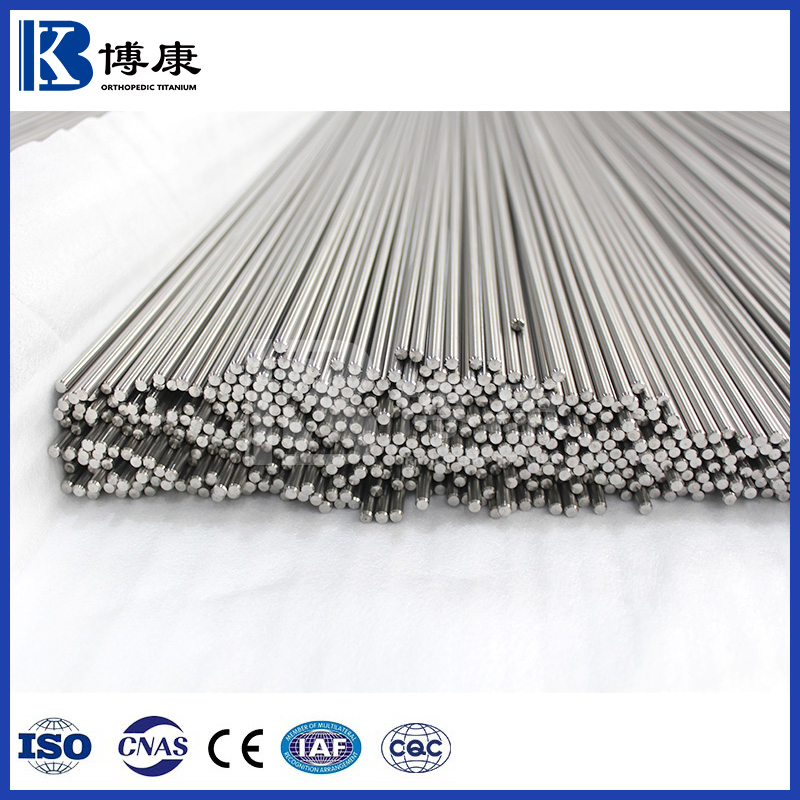

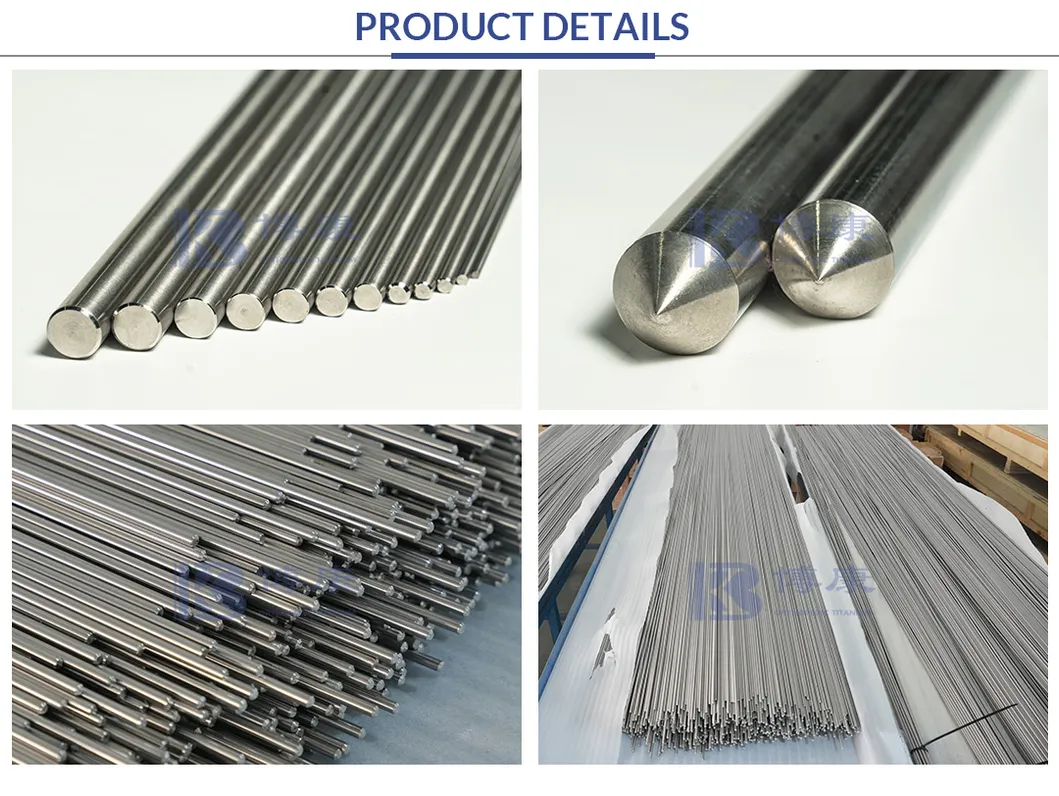

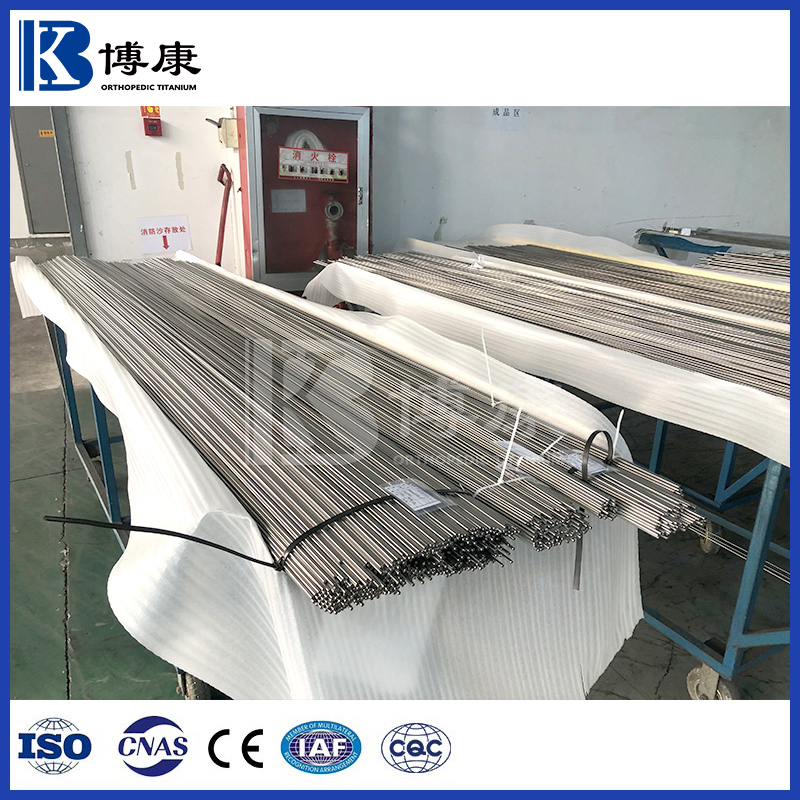

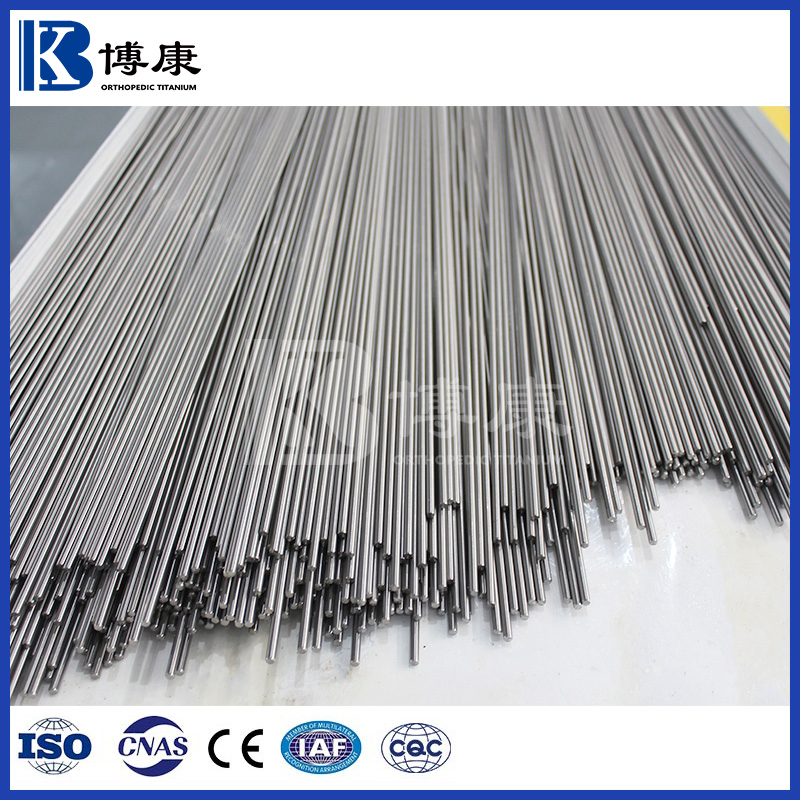

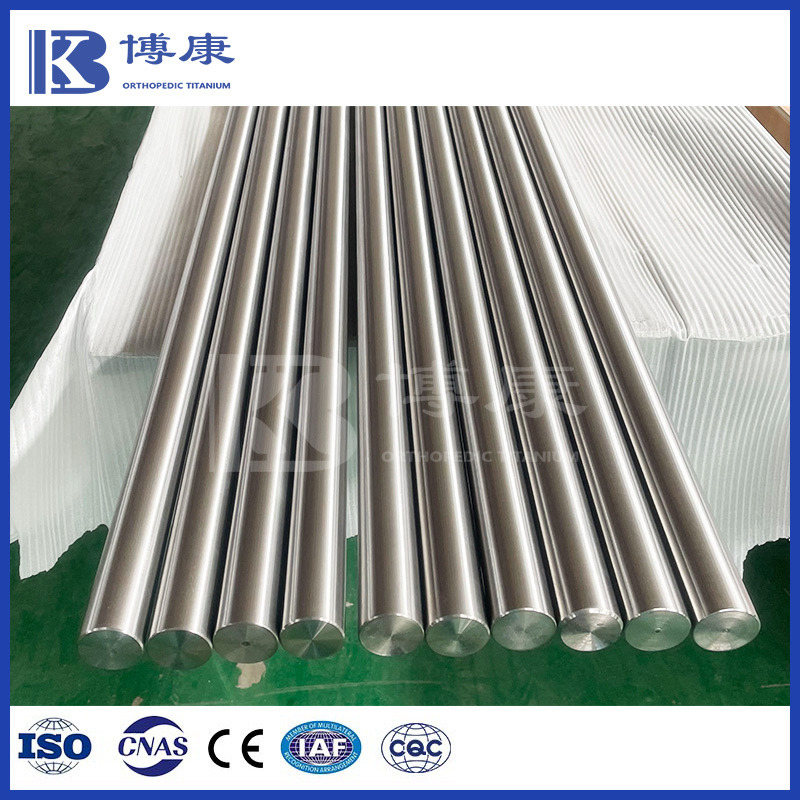

High-Quality Titanium Rods - Pure & Alloy Options Available
Specializing in pure titanium rods (Gr1, Gr2, Gr3, Gr4) and titanium alloy rods (Gr5, Gr9, Gr23, etc.), offering premium-grade materials for medical, aerospace, and industrial applications.
| Parameter | Details |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9, Gr23, etc. |
| Standard | ASTM F67; ASTM F136; ISO5832-2/3; AMS4928; ASTM B348 |
| Diameter (mm) | 1.0 ~ 101.6mm |
| Tolerance | h6, h7, h8, h9 |
| Surface | Bright Surface |

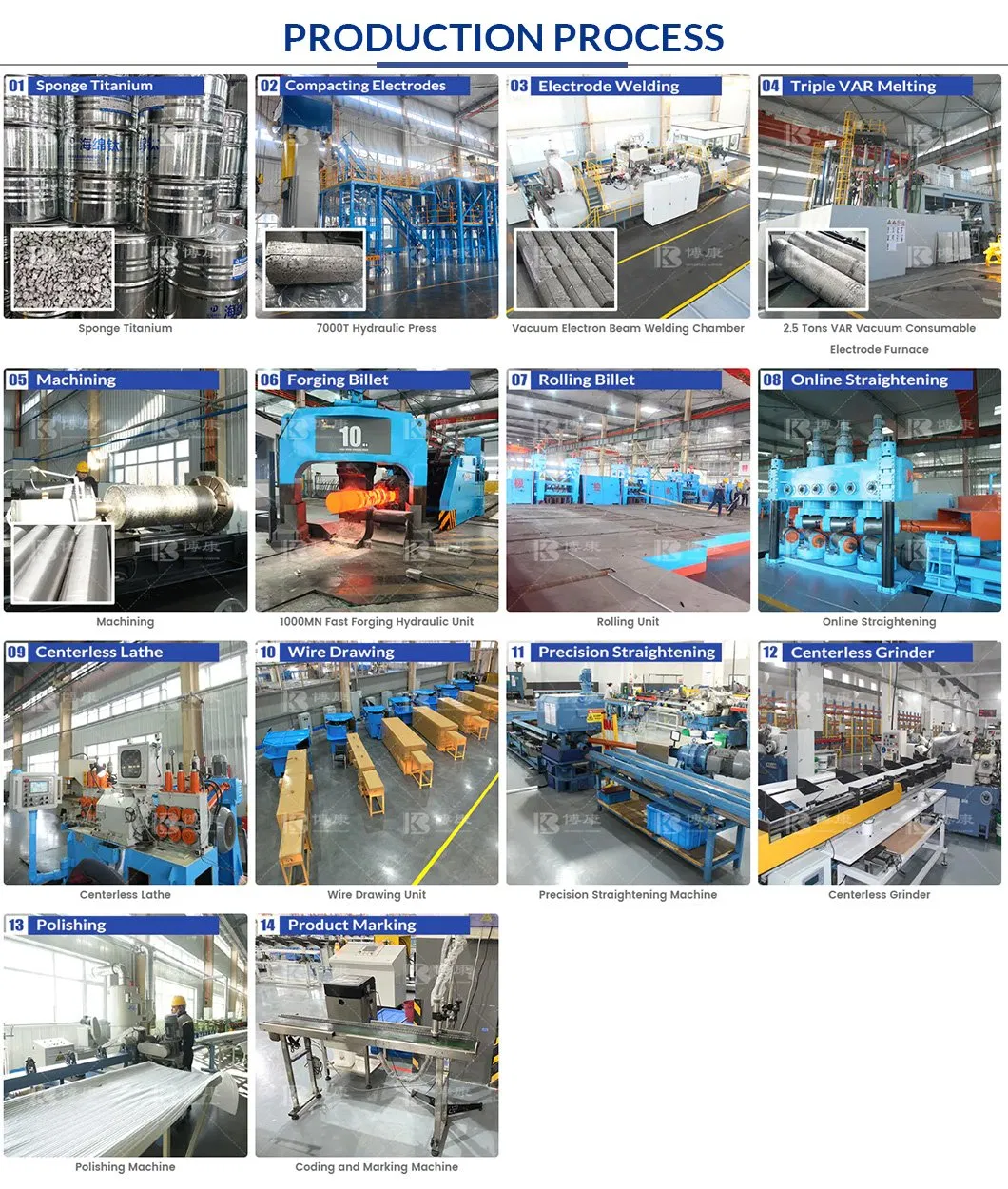

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical test → Microstructure test → Centerless Grinder → Eddy Current Test → Polishing → Visual Inspection → Packaging → Delivery

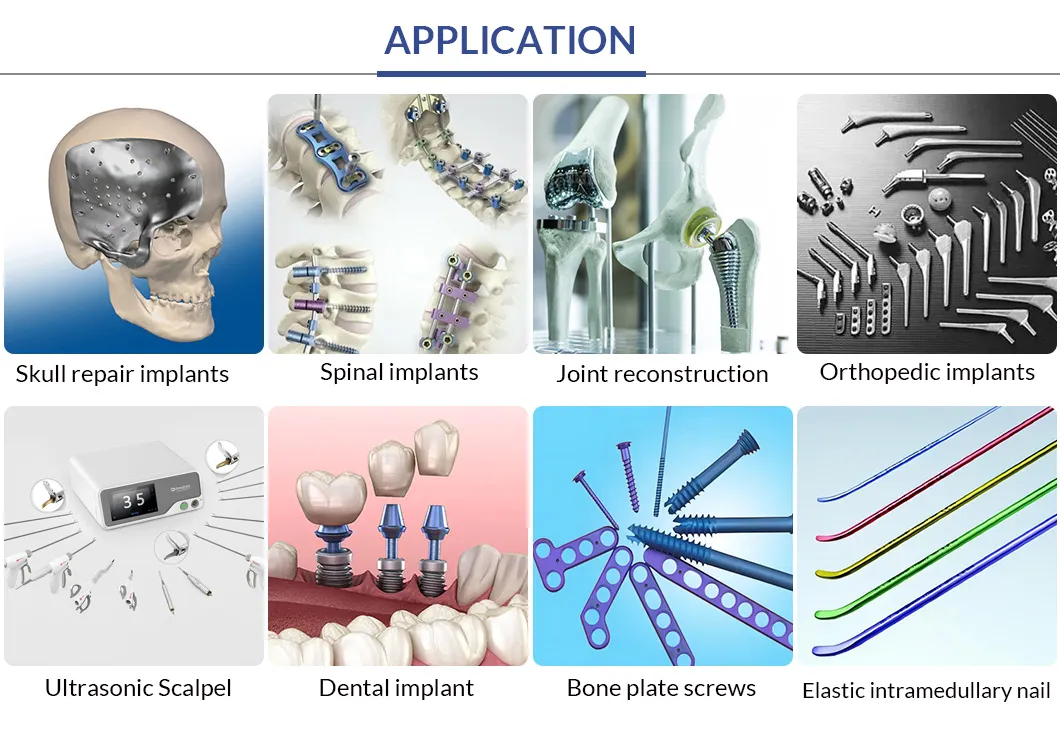

Titanium rods provide exceptional strength, biocompatibility, and corrosion resistance for:
Orthopedic Implants - Hip and knee replacements.
Dental Implants - Long-term biocompatible solutions.
Surgical Tools - Ultrasonic scalpels and staplers.
| Element | Composition % (mass/mass) |
|---|---|
| Nitrogen (Max) | 0.05 |
| Carbon (Max) | 0.08 |
| Hydrogen (Max) | 0.012 |
| Iron (Max) | 0.25 |
| Oxygen (Max) | 0.13 |
| Aluminum | 5.5-6.50 |
| Vanadium | 3.5-4.5 |
| Titanium | Balance |

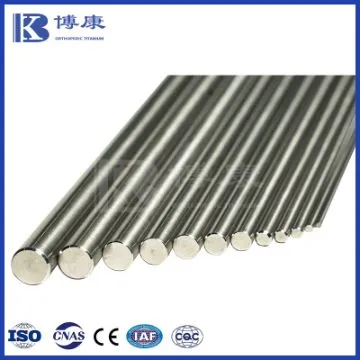

Titanium Bar/Rod

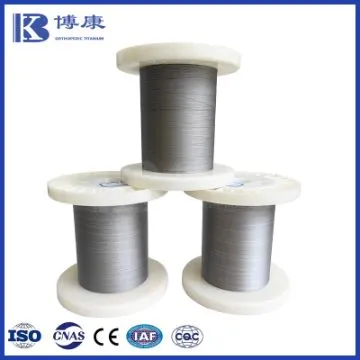

Titanium Wire

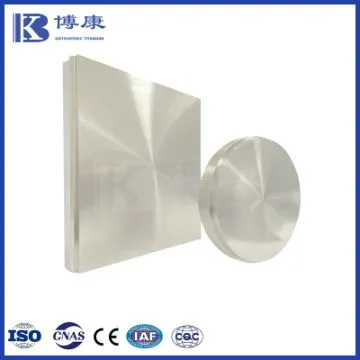

Titanium Disc

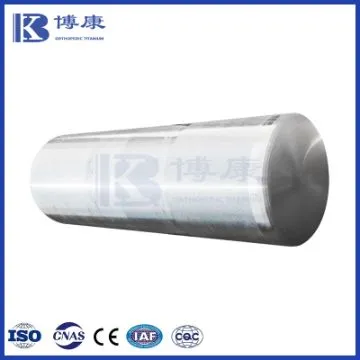

Titanium Ingot

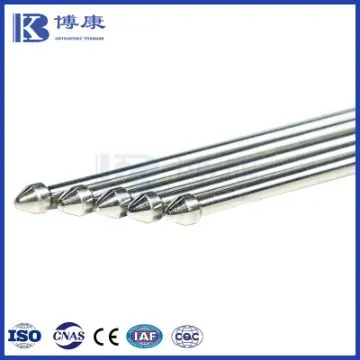

Nitinol Alloy

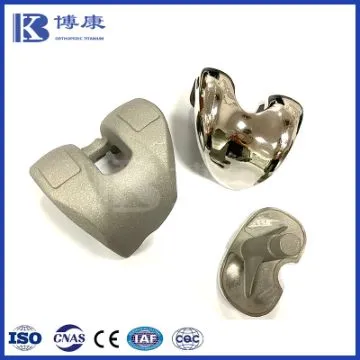

Joint Castings
