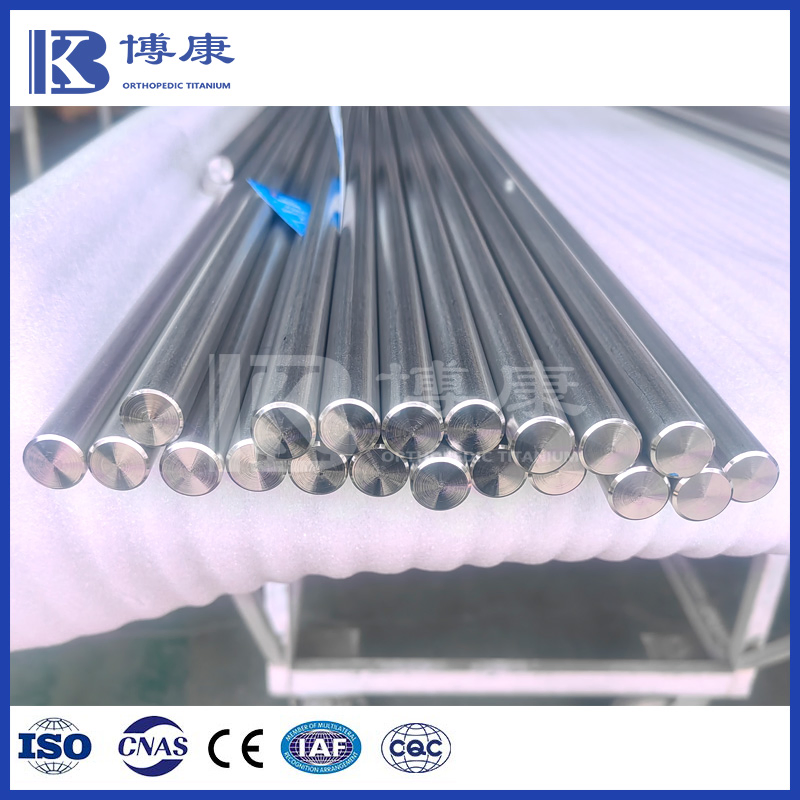

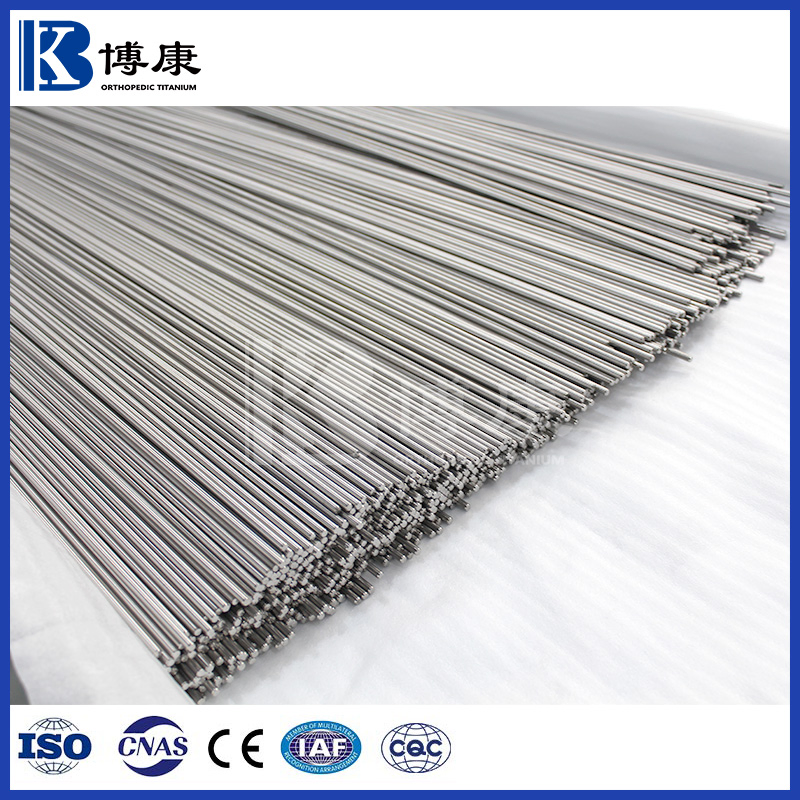

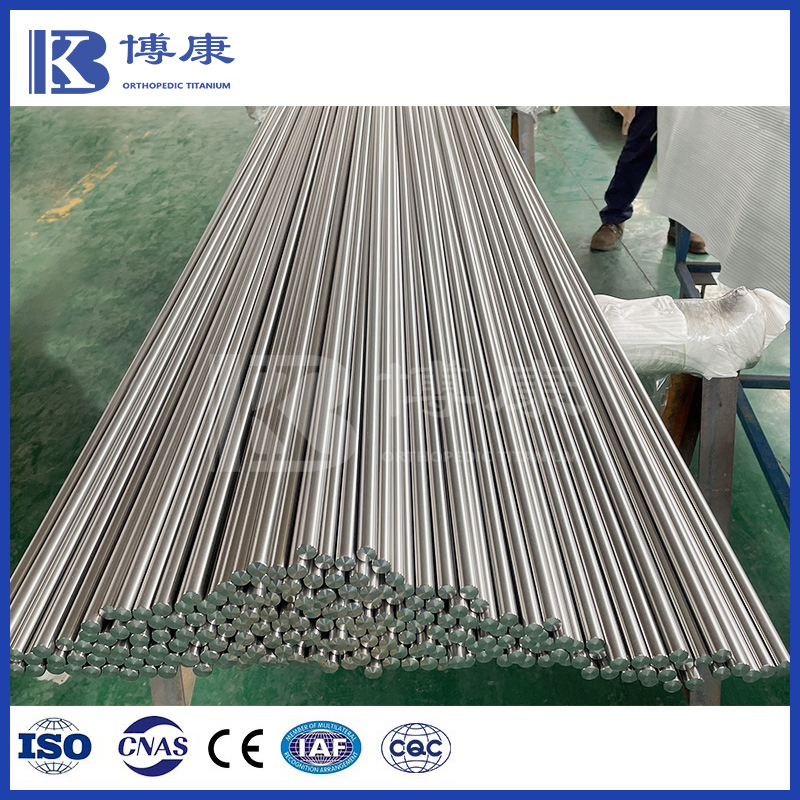

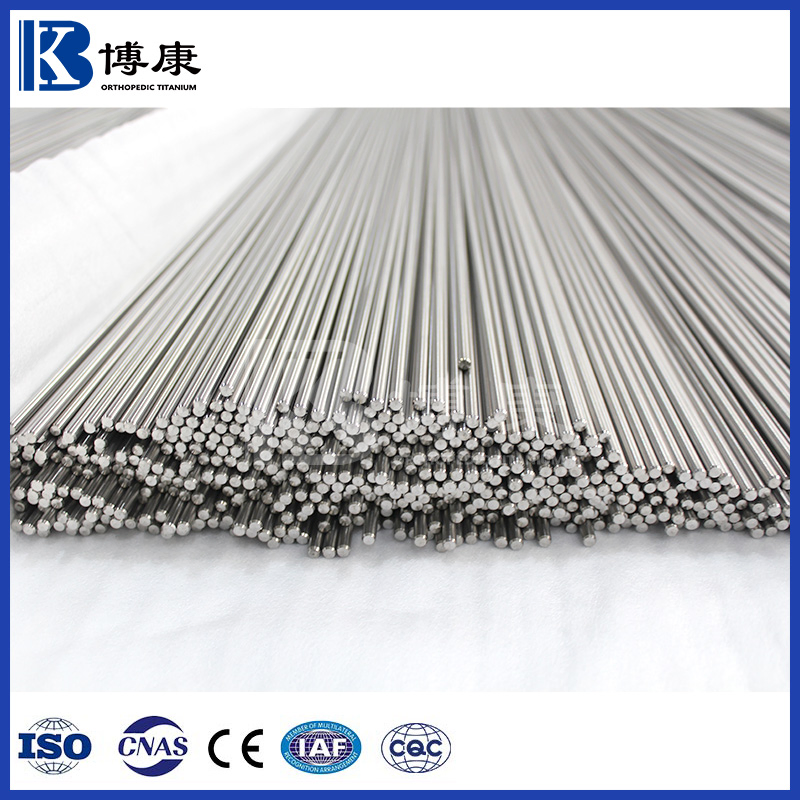

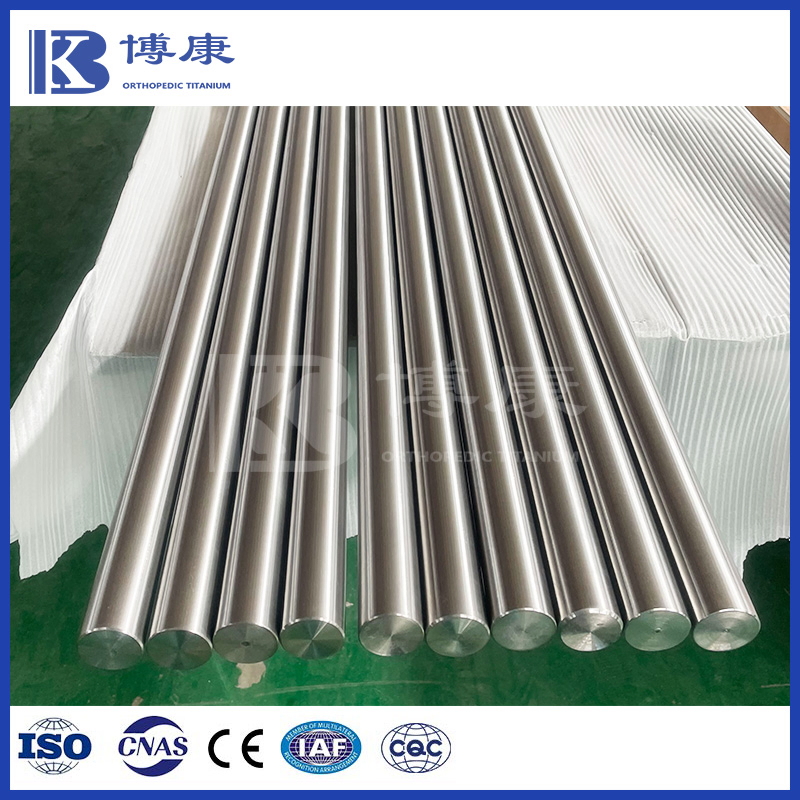

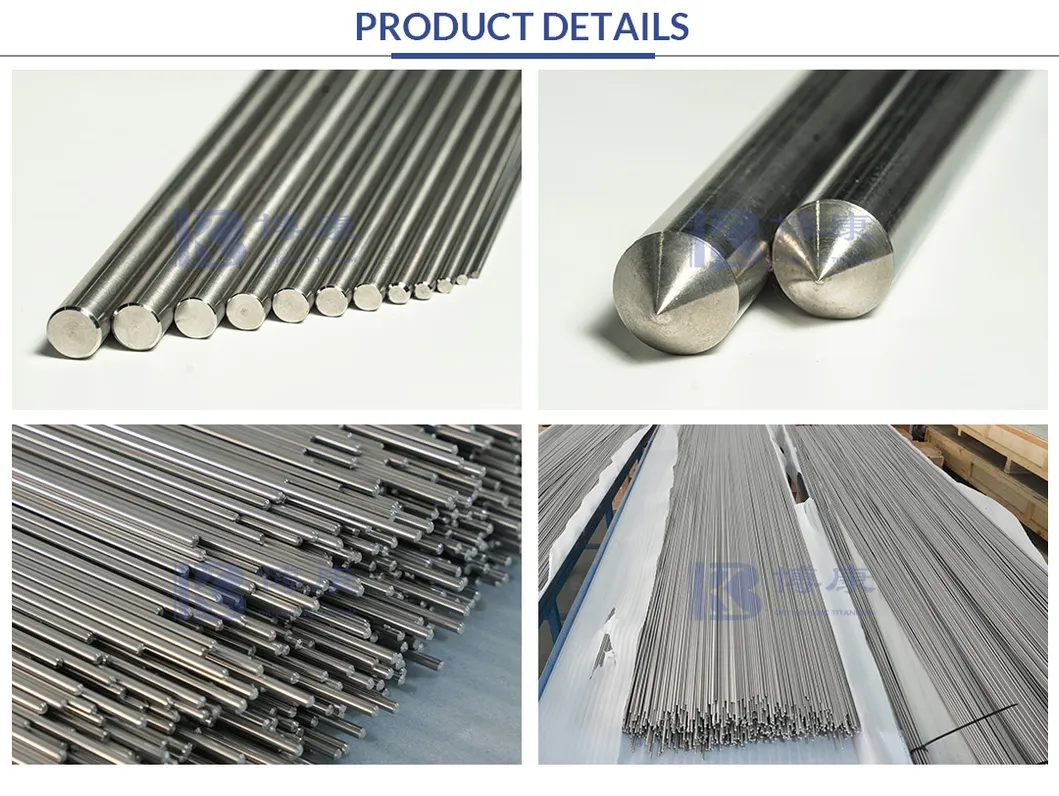

High-Quality Titanium Rods - Pure & Alloy Options Available
Specializing in pure titanium rods (Gr1, Gr2, Gr3, Gr4) and titanium alloy rods (Gr5, Gr9, Gr23, etc.), we offer premium-grade materials for medical, aerospace, and industrial applications.
| Parameter | Specifications |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI) |
| Standard | ASTM F67, ASTM F136, ISO5832-2, ISO5832-3, AMS4928, ASTM B348 |
| Diameter | 1.0 ~ 101.6 mm |
| Length | 500 - 4000 mm |
| Surface | Bright Surface |

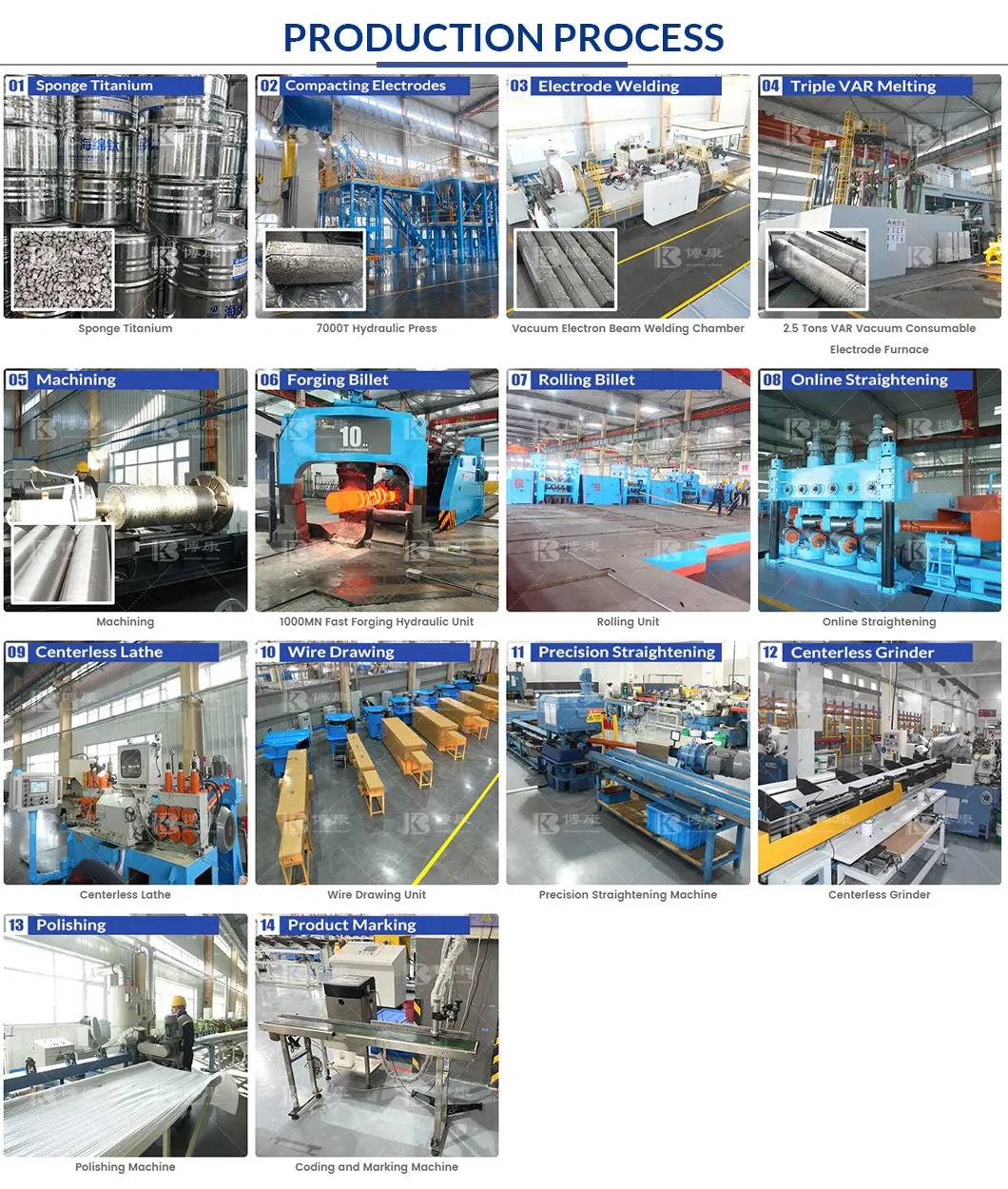

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Wire Drawing → Heat Treatment → Mechanical & Microstructure Test → Polishing → Packaging
Titanium rods are extensively used in the medical industry, providing exceptional strength, biocompatibility, and corrosion resistance.
Chemical Composition (%)
| Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Aluminum | Vanadium | Titanium |
|---|---|---|---|---|---|---|---|
| 0.05 max | 0.08 max | 0.012 max | 0.25 max | 0.13 max | 5.5-6.5 | 3.5-4.5 | Balance |

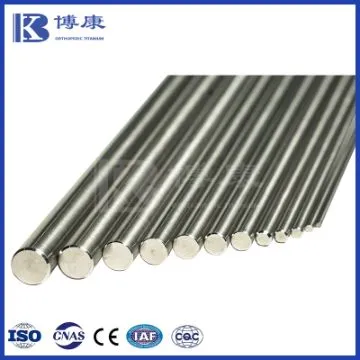

Titanium Bar/Rod

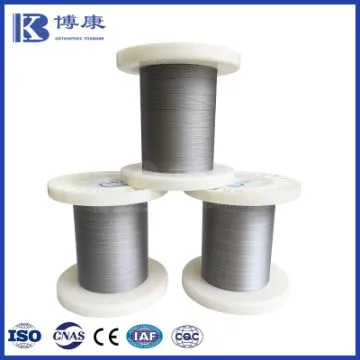

Titanium Wire

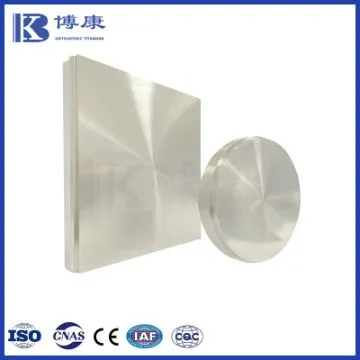

Titanium Disc

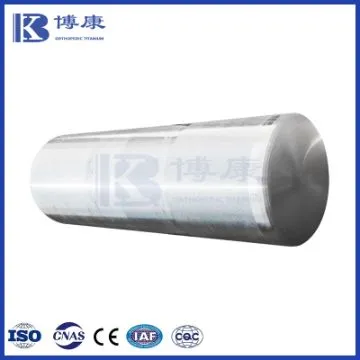

Titanium Ingot
Nitinol Alloys

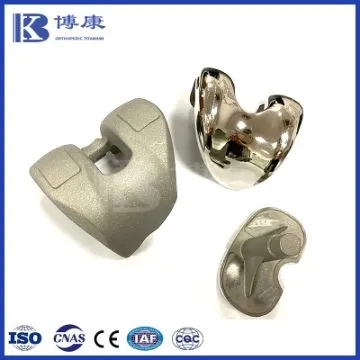

Artificial Joint Castings
