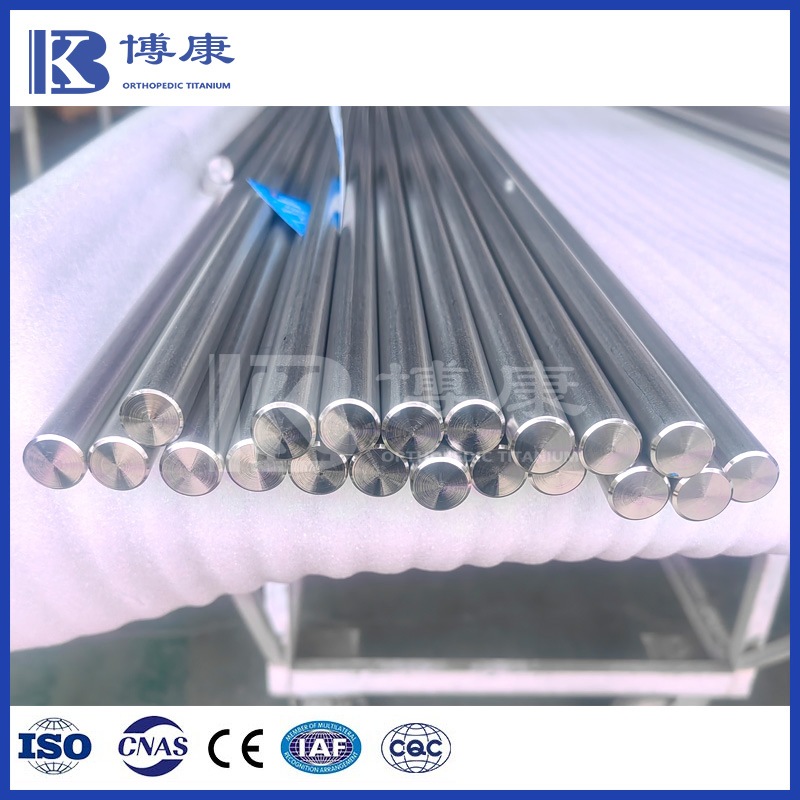

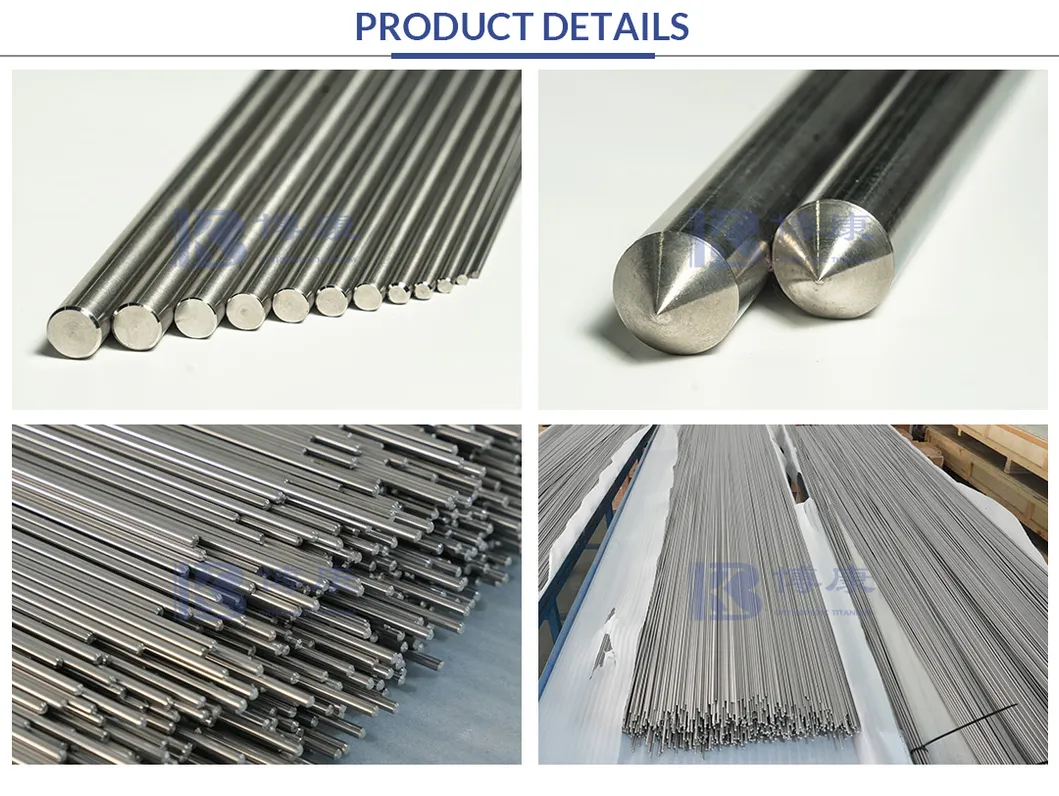

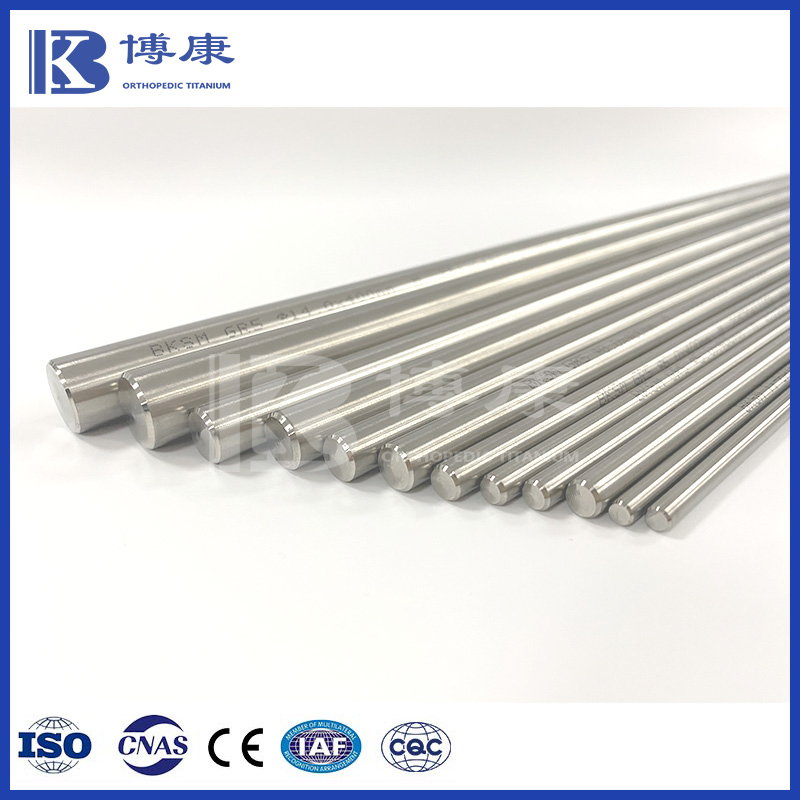

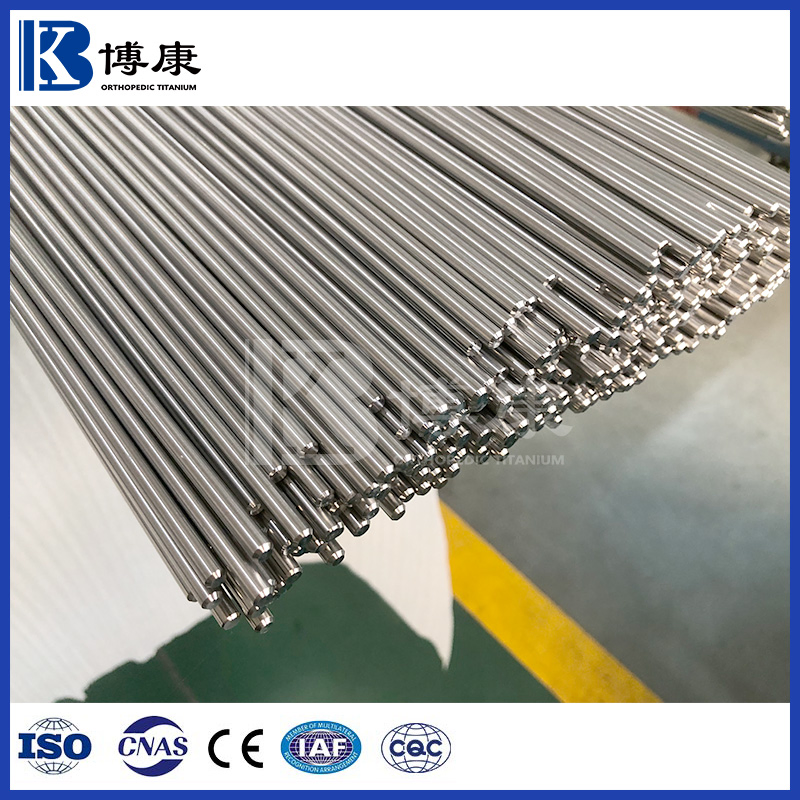

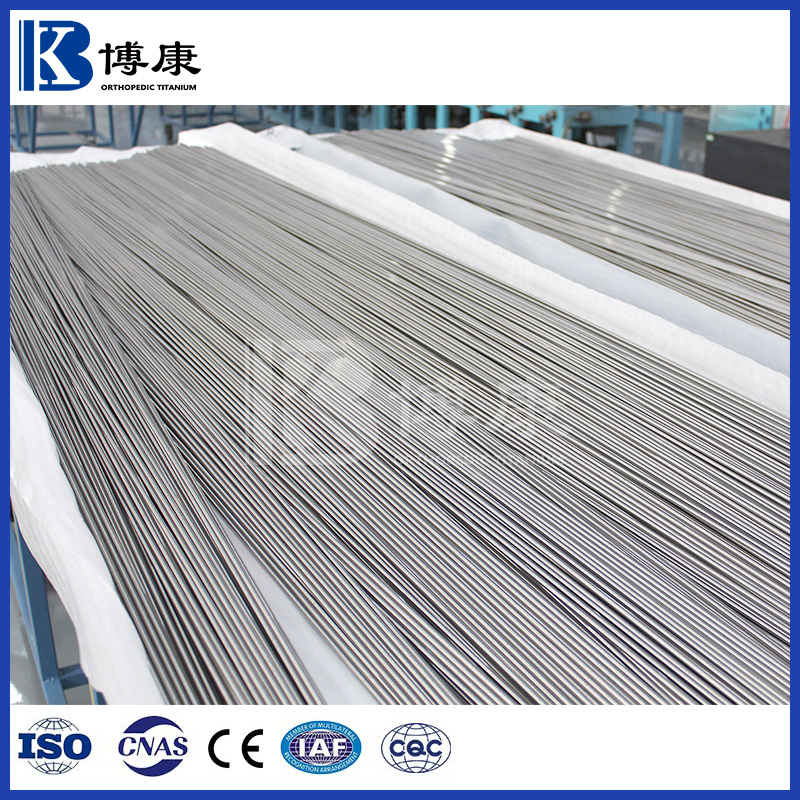

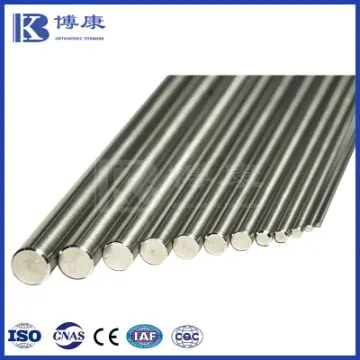

Titanium rods are categorized into pure titanium rods and titanium alloy rods. For pure titanium rods, we mainly offer grades Gr1, Gr2, Gr3, Gr4, etc. For titanium alloy rods, we offer grades Gr5, Gr9, Gr23 and so on.

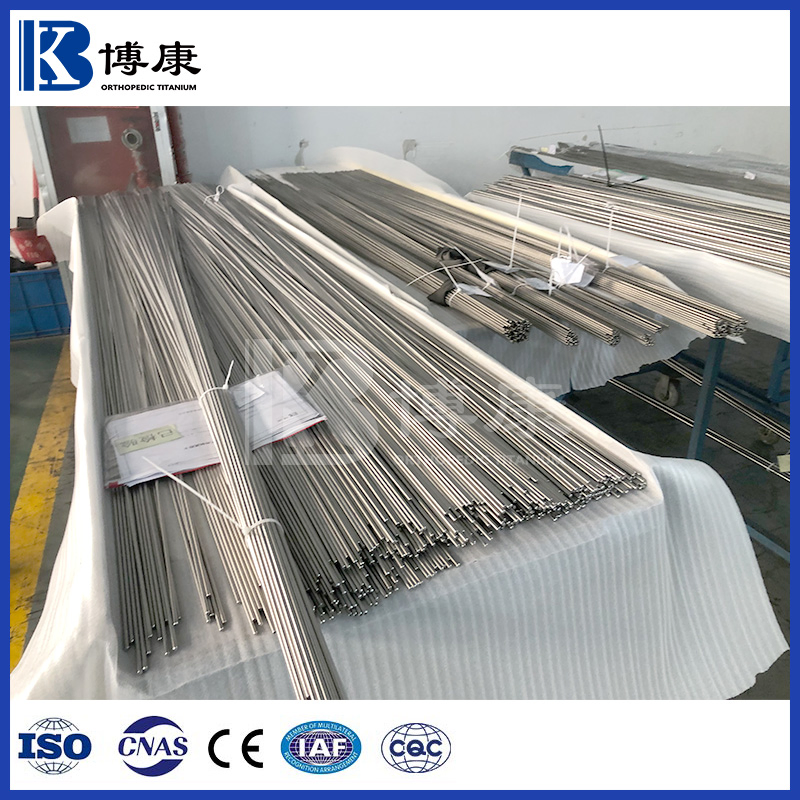

We provide titanium rods in a variety of grades and sizes for several industries, including medical titanium rods (orthopedic, dental, medical devices), aerospace (fasteners, profiles, forgings), and industrial titanium rods.
With a full process production line including melting, all titanium rods can be customized. Our production is certified to ISO 13485:2016, ISO 9001 and ISO/IEC 17025:2017 for medical use, complying with ASTM, ISO, AMS, ASM, JIS, DIN and other international standards.
| Titanium Bar Specifications | |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI), etc |
| Standard | ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; AMS4965; AMS4967; ASTM B348; ASTM B863 |
| Diameter(mm) | 1.0~101.6mm |
| Length(mm) | 500-4000 |
| Tolerance | h6, h7, h8, h9 |
| Surface | Bright Surface |

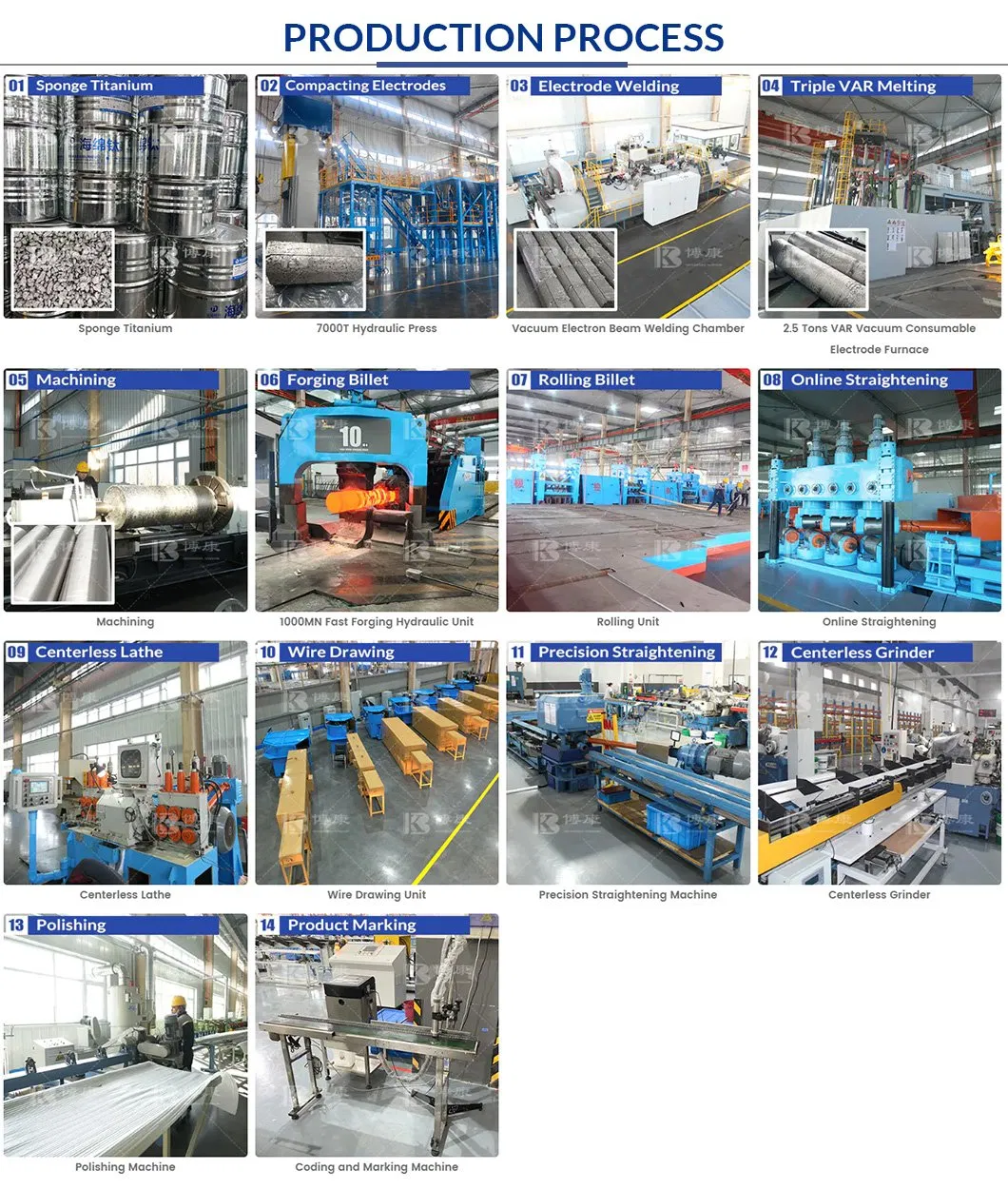

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical test → Microstructure test → Centerless Grinder → Eddy Current Test → Polishing → Visual and dimension inspection → Product Marking → Packaging → Delivery
Titanium rods are widely used in the medical field. They are used to manufacture orthopedic implants (e.g., hip and knee replacements), dental implants, ultrasonic scalpels, surgical staplers, and other surgical instruments.
| Element | Grade 1 | Grade 2 | Grade 3 | Grade 4 |
|---|---|---|---|---|
| Nitrogen, max | 0.03 | 0.03 | 0.05 | 0.05 |
| Carbon, max | 0.08 | 0.08 | 0.08 | 0.08 |
| Hydrogen, max | 0.015 | 0.015 | 0.015 | 0.015 |
| Iron, max | 0.2 | 0.3 | 0.3 | 0.5 |
| Oxygen, max | 0.18 | 0.25 | 0.35 | 0.4 |
| Titanium | balance | balance | balance | balance |
| Grade | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation % min | Reduction of Area % min |
|---|---|---|---|---|
| 1 | 240 | 170 | 24 | 30 |
| 2 | 345 | 275 | 20 | 30 |
| 3 | 450 | 380 | 18 | 30 |
| 4 | 550 | 483 | 15 | 25 |
Titanium Bar/Rod

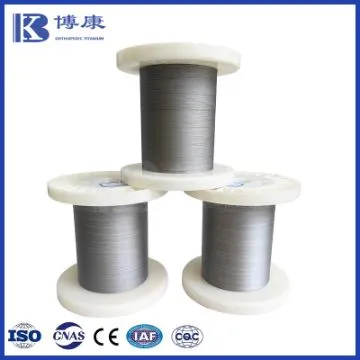

Titanium Wire

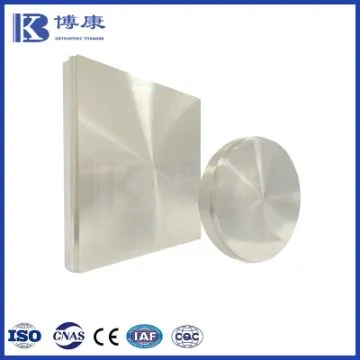

Titanium Disc

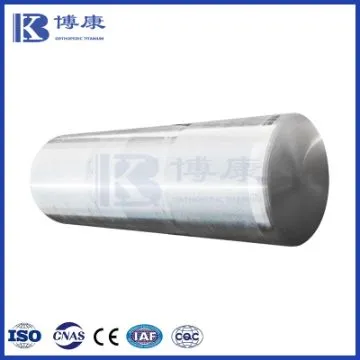

Titanium Ingot

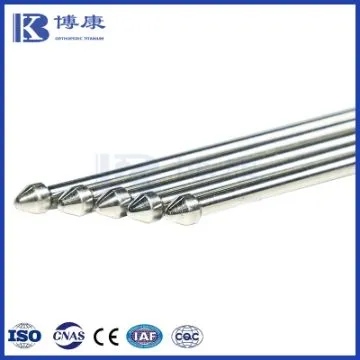

Nitinol/Nickel Titanium

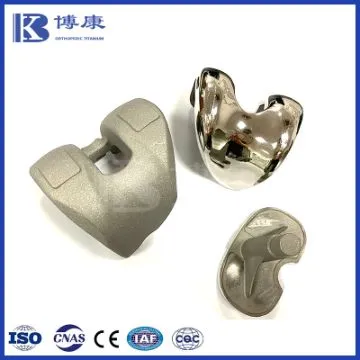

Artificial Joint Castings
