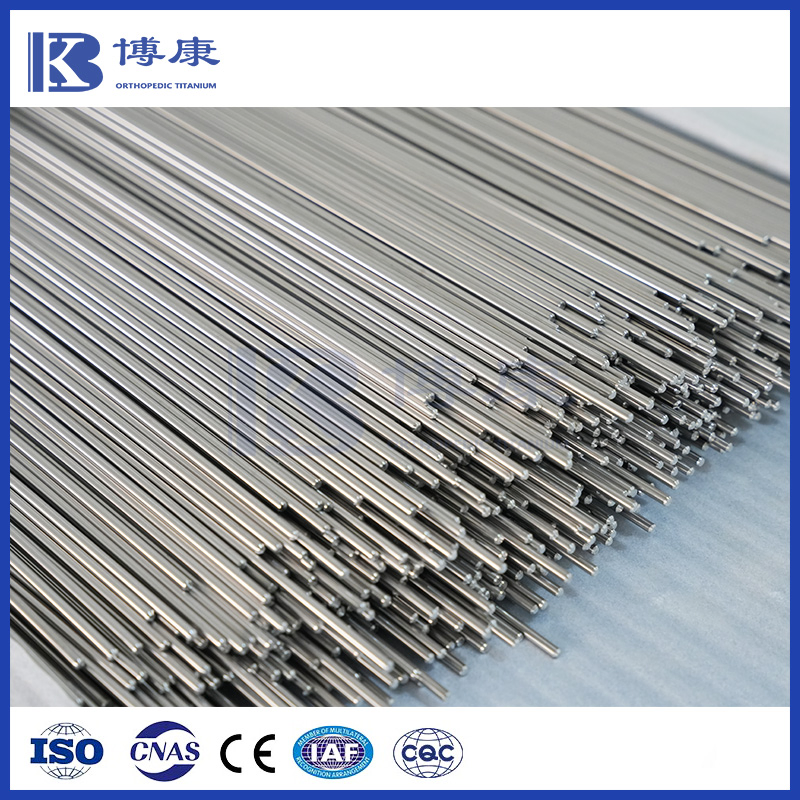

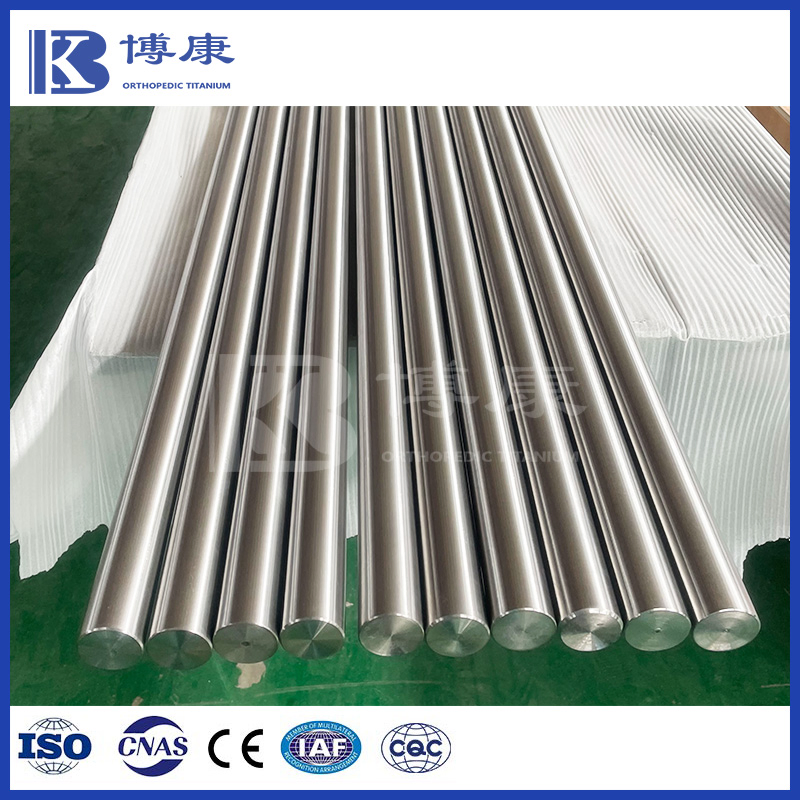

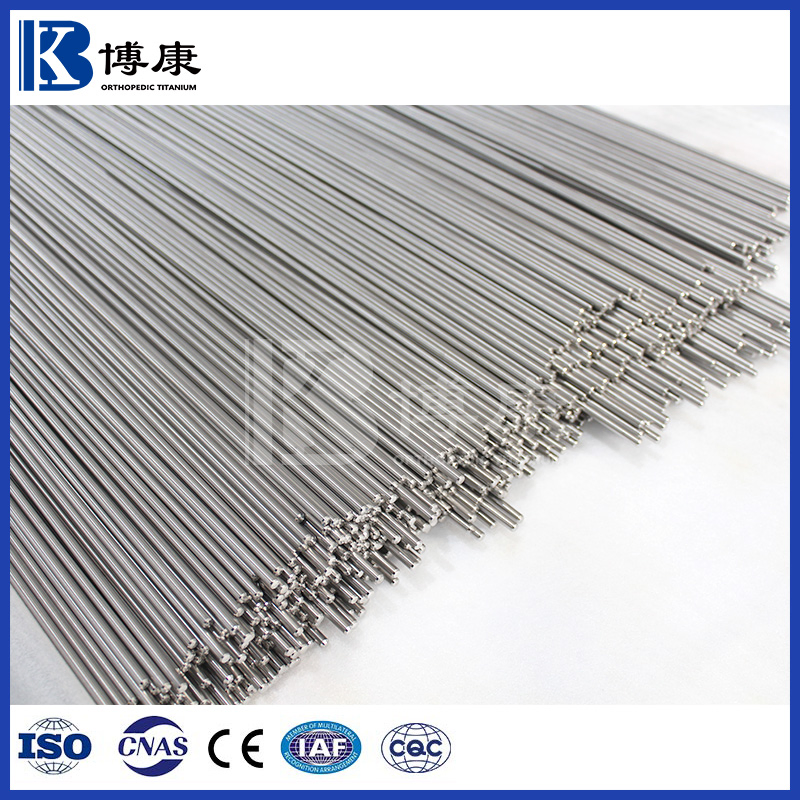

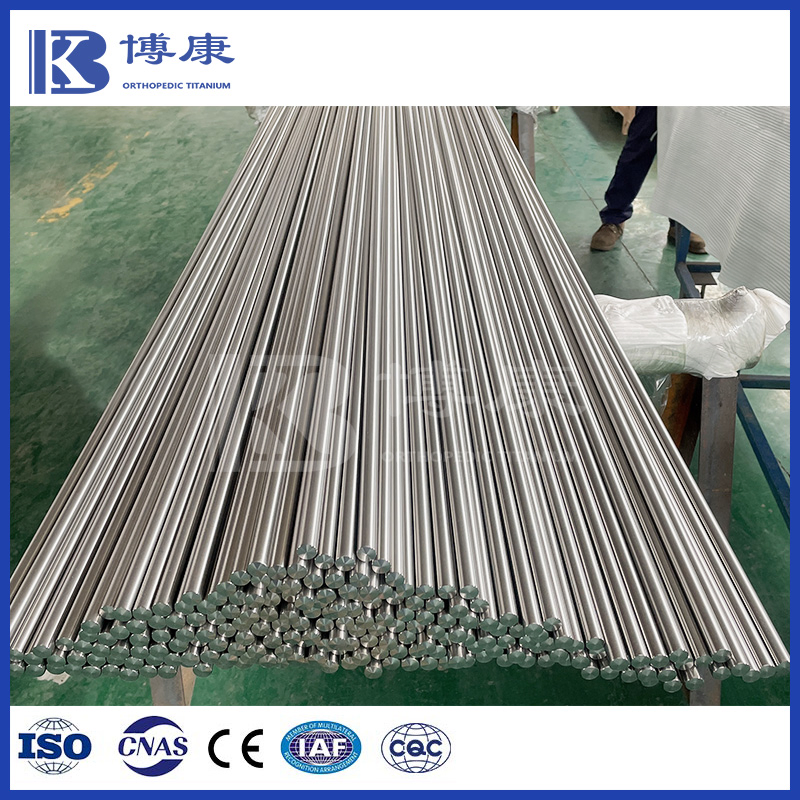

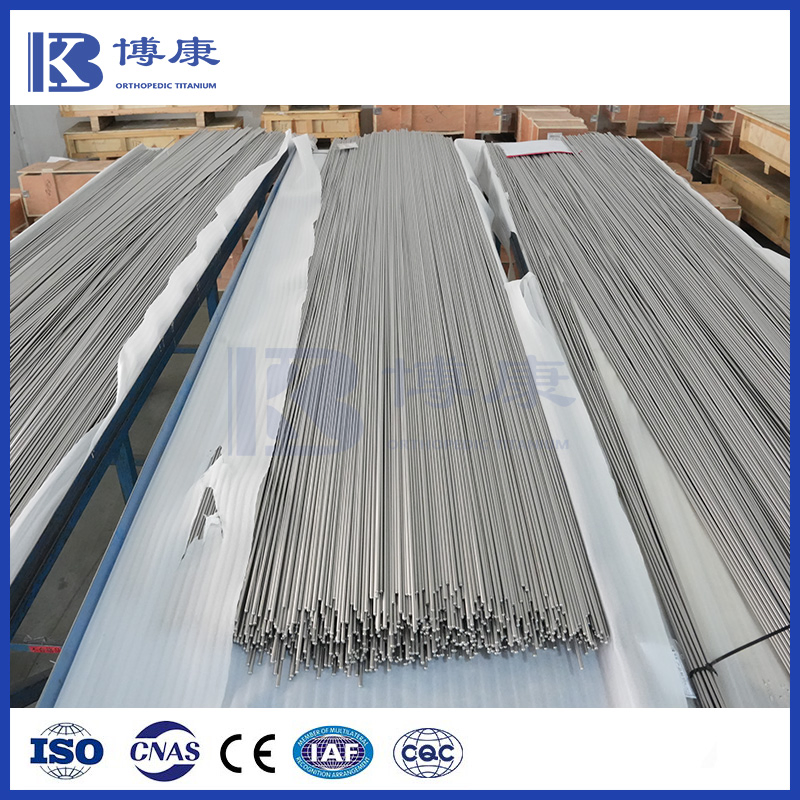

Grade5 Grade23 Super Precision Surgical Implant Alloy Bar Medical Grade Titanium

Basic Information

Model NO.BKTR-M

TechniqueHot Rolled

GradeGr1, Gr2, Gr3, Gr4, Gr5, Gr9, Gr23

ShapeRound

MaterialPure Titanium / Titanium Alloy

StandardASTM, ISO, AMS, JIS, DIN

ToleranceH6, H7, H8, H9

ConditionAnnealed (M), Cold Rolled(Y), Hot Rolled(R)

SurfaceBright

Length2800-3000mm, Customized

MOQ1kg

Specification4.75~101.6mm

HS Code8108901090

Capacity200 tons/Year

Product Description

Titanium rods are categorized into pure titanium rods and titanium alloy rods. For pure titanium rods, we mainly offer grades Gr1, Gr2, Gr3, Gr4. For titanium alloy rods, we offer grades Gr5, Gr9, Gr23, and more. We provide titanium rods in a variety of grades and sizes for industries including medical (orthopedic, dental, medical devices), aerospace (fasteners, profiles, forgings), and industrial applications.

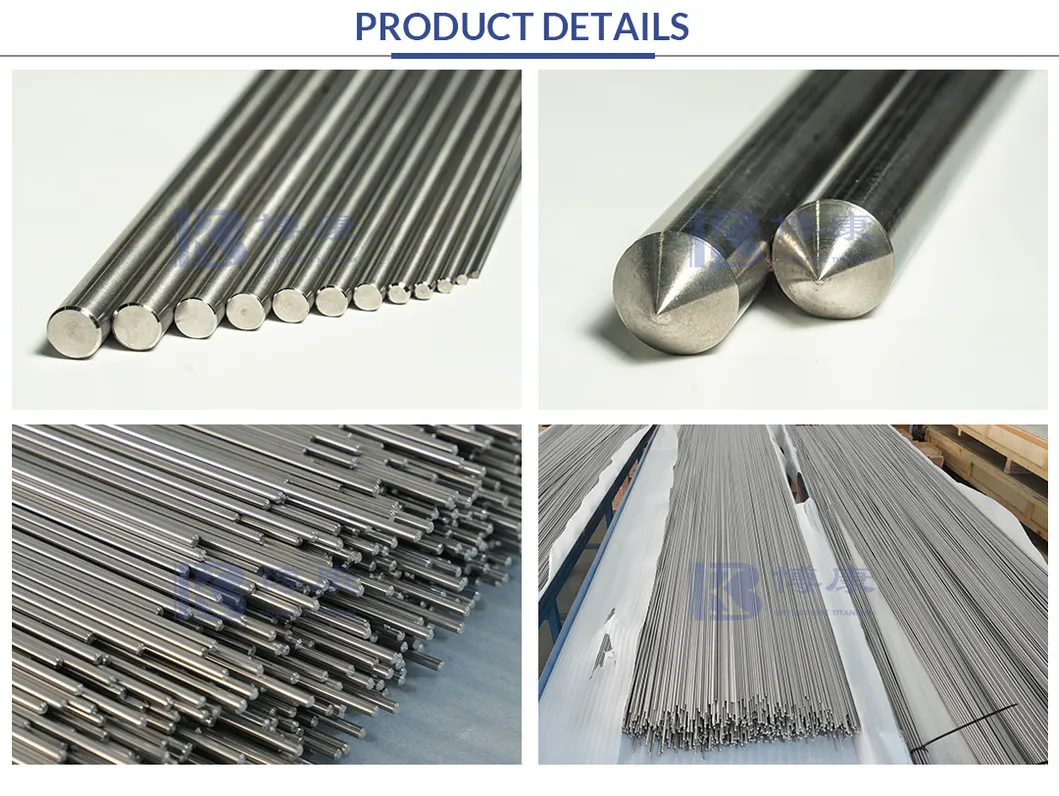

Titanium Round Bar Features

High Surface Finish
Good Roundness
Small Tolerances
High Dimensional Consistency
Stable Performance
Uniform Composition
Fine Grain Organization
Long Fatigue Life

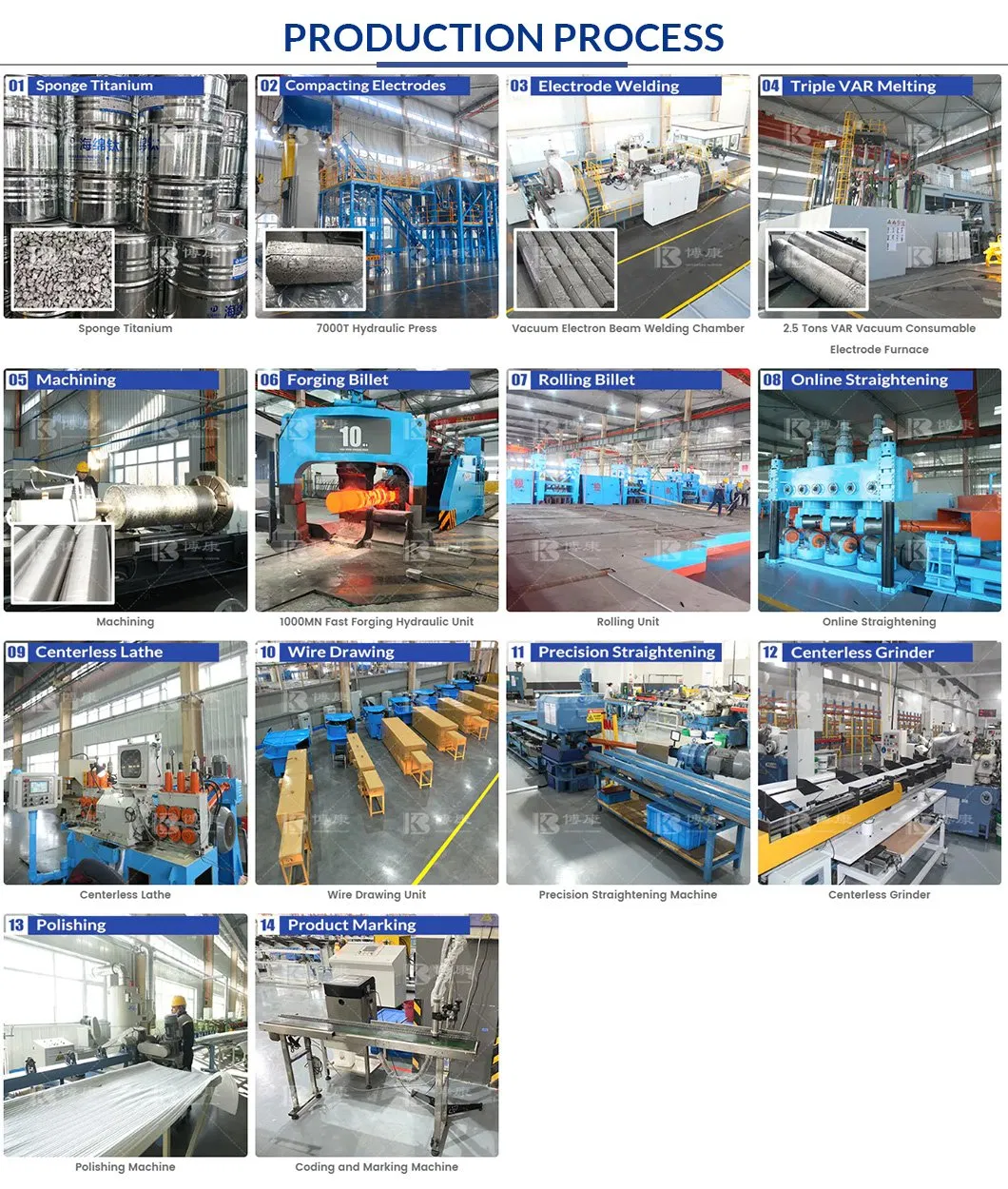

Production Process

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical test → Microstructure test → Centerless Grinder → Eddy Current Test → Polishing → Visual and dimension inspection → Product Marking → Packaging → Delivery

Applications

Titanium rods are widely used in the medical field: manufacture of orthopedic implants (e.g., hip and knee replacements), dental implants, ultrasonic scalpels, surgical staplers, and other surgical instruments.

Product Parameters

Titanium Bar Specifications
Grade	Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI)
Standard	ASTM F67, ASTM F136, ISO5832-2/3, AMS4928, ASTM B348
Diameter	4.75 ~ 101.6mm
Length	2800 - 3000mm
Tolerance	h6, h7, h8, h9
Surface	Bright Surface

Chemical Composition (ASTM F136 Ti-6Al-4V ELI)

Element	Composition, % (mass/mass)
Nitrogen (Max)	0.05
Carbon (Max)	0.08
Hydrogen (Max)	0.012
Iron (Max)	0.25
Oxygen (Max)	0.13
Aluminum	5.5 - 6.50
Vanadium	3.5 - 4.5
Titanium	Balance

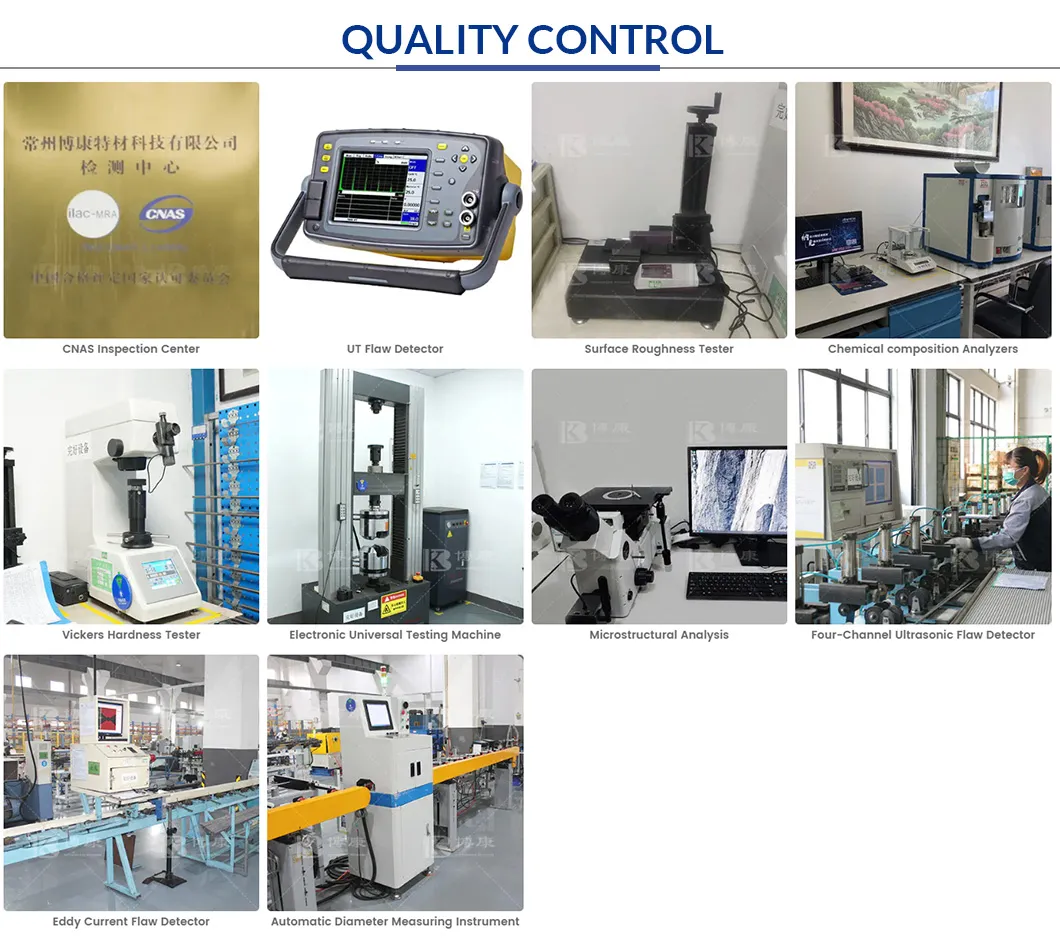

Quality Assurance & Facility

Frequently Asked Questions

Q: Are you a direct manufacturer or trading company?

A: We are a manufacturer with more than 18 years of professional production experience in titanium materials.

Q: Do you offer free samples?

A: Usually, our samples are free, but we require the customer to cover the freight costs.

Q: What is the minimum quantity per order (MOQ)?

A: Our MOQ is 1 kg. For regular standard medical and aerospace materials, we maintain a stock inventory to meet urgent requirements.

Q: Can you provide customized products?

A: Yes, we support customized products according to the customers' specific drawings or samples.

Q: How do you guarantee the quality of your goods?

A: We ensure quality by inspecting every process and using advanced testing equipment to conduct comprehensive checks, ensuring finished products meet international standards.

Q: What are your common payment terms?

A: For mass production, the common way is T/T (30% deposit and 70% balance against documents). L/C is also acceptable.
