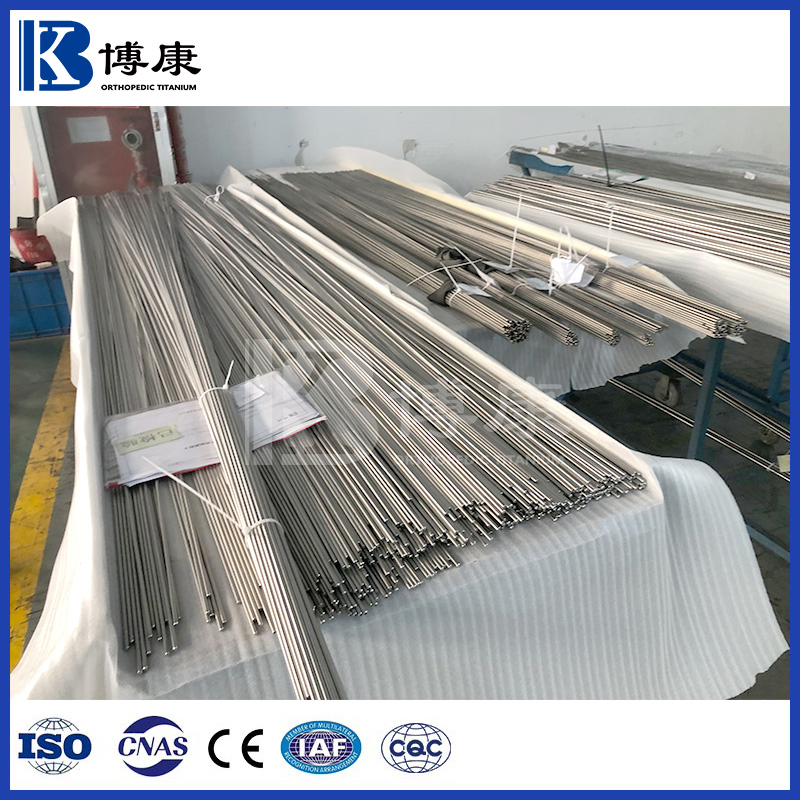

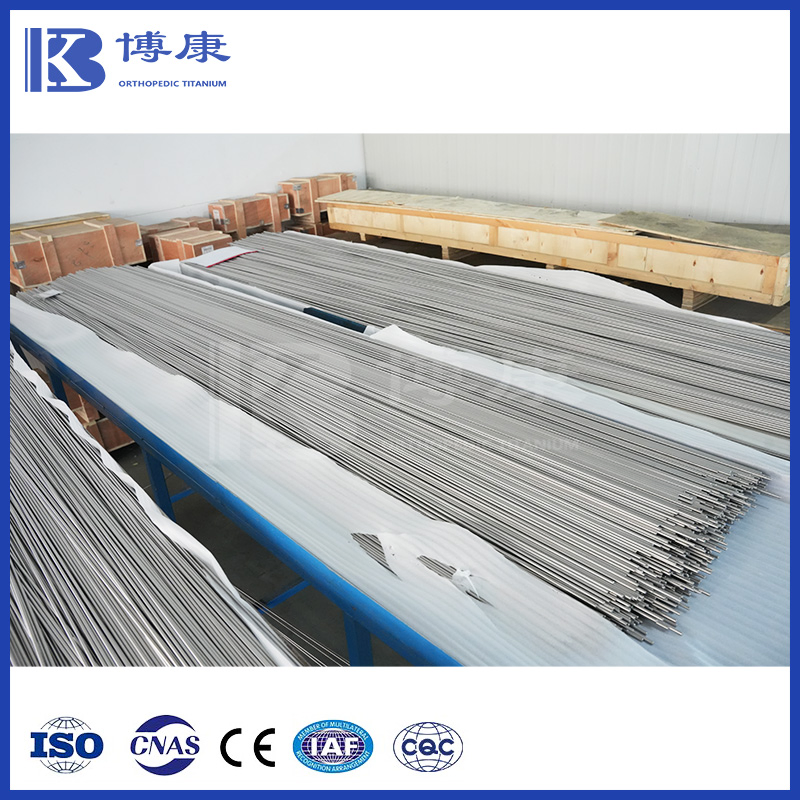

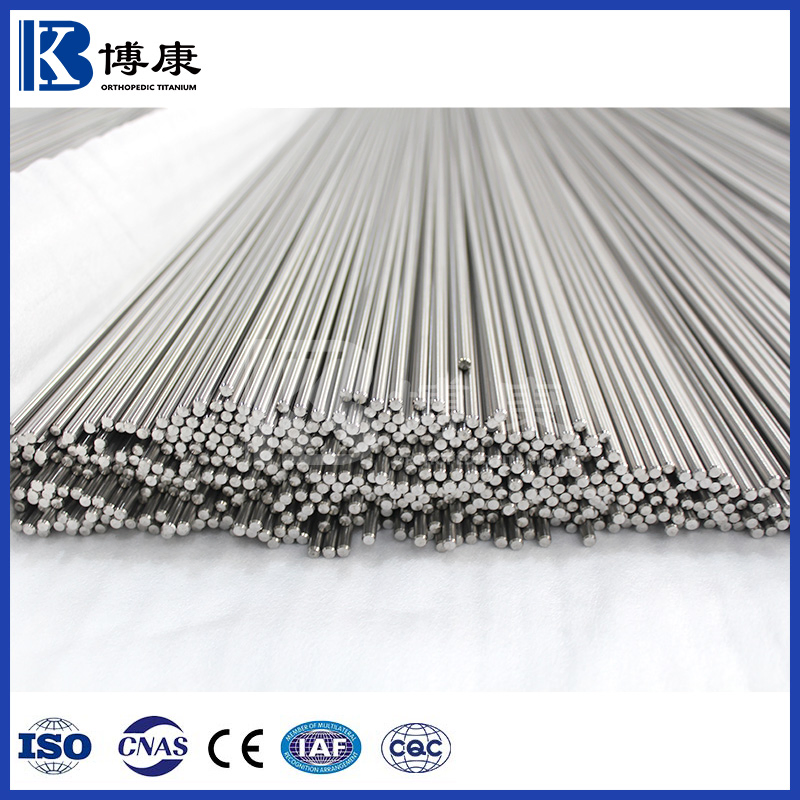

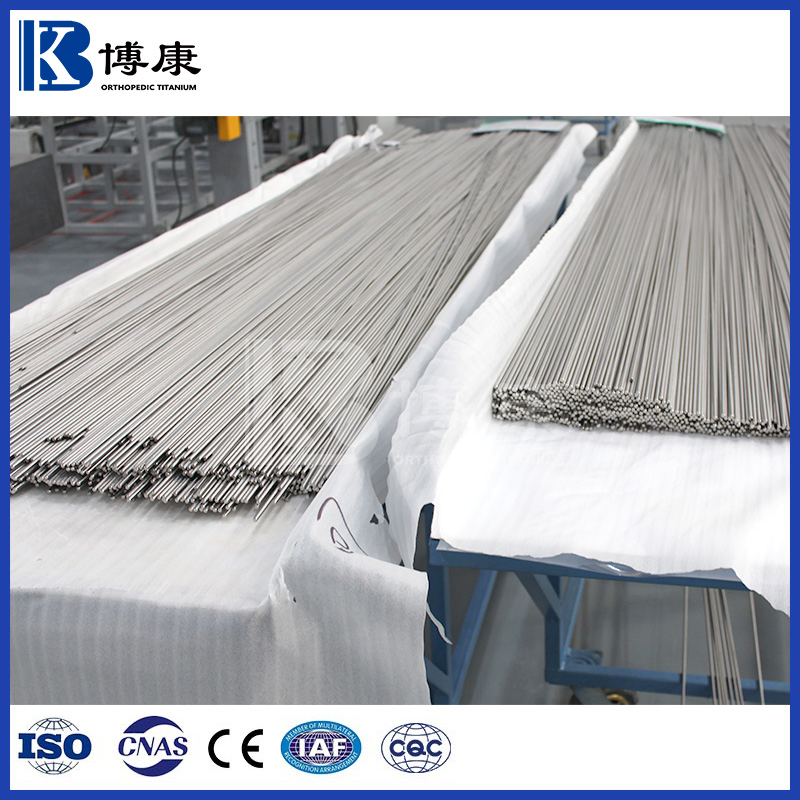

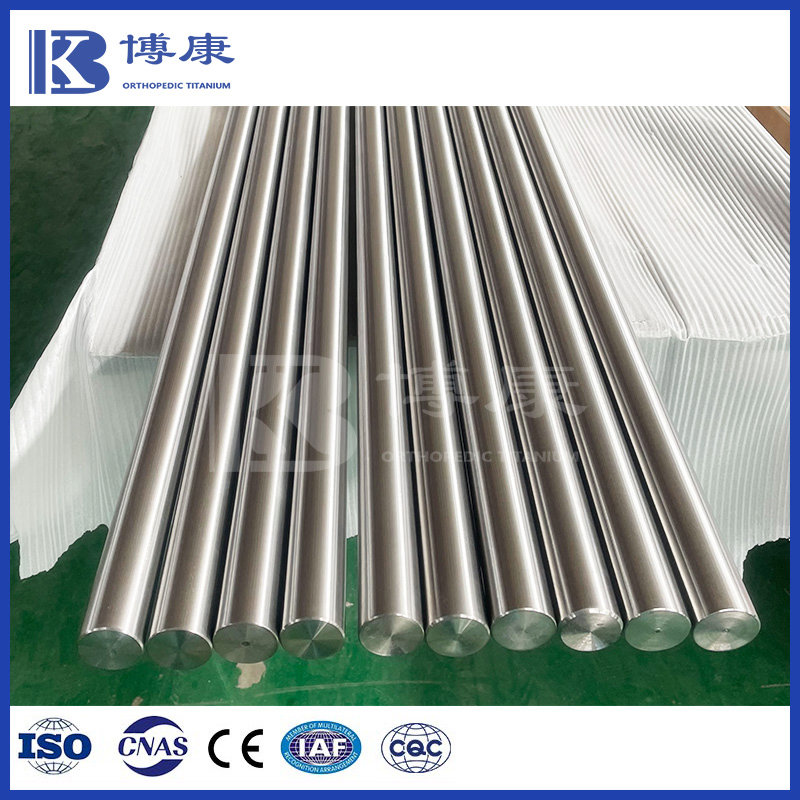

High-Quality Titanium Rods - Pure & Alloy Options Available

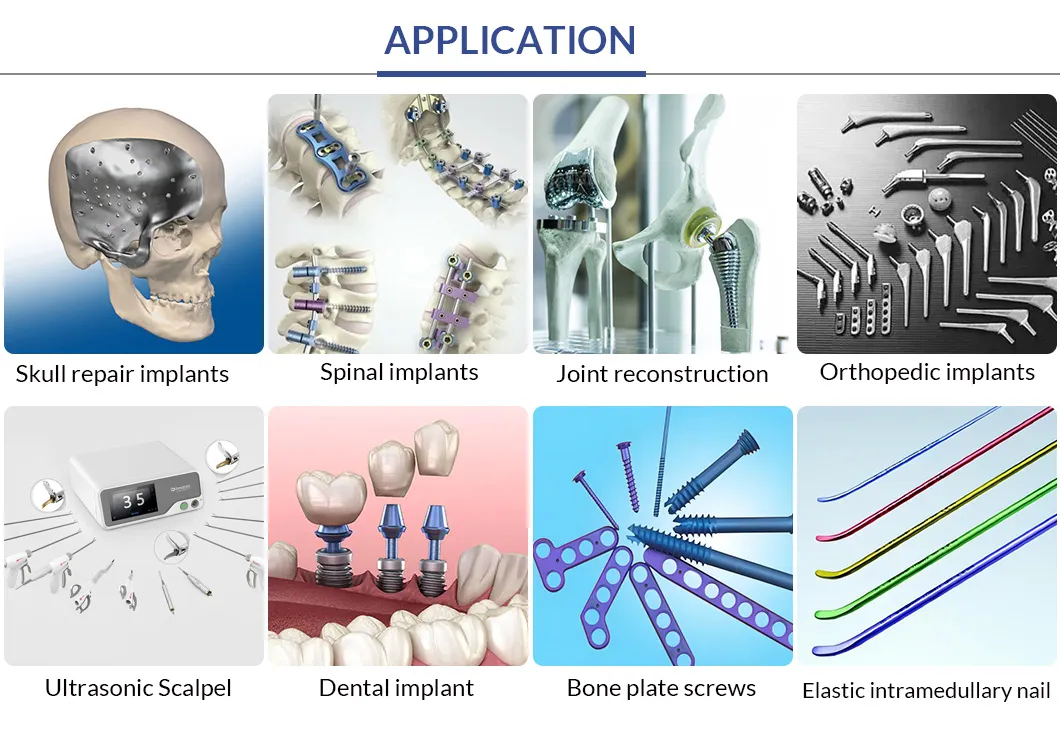

We specialize in pure titanium rods (Gr1, Gr2, Gr3, Gr4) and titanium alloy rods (Gr5, Gr9, Gr23, etc.), offering premium-grade materials for medical, aerospace, and industrial applications.
| Titanium Bar Specifications | |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI), etc |
| Standard | ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; ASTM B348; ASTM B863 |
| Diameter (mm) | 1.0 ~ 101.6mm |
| Tolerance | h6, h7, h8, h9 |
| Surface | Bright Polished Surface |
| Element | Composition, % (mass/mass) |
|---|---|
| Nitrogen (Max) | 0.05 |
| Carbon (Max) | 0.08 |
| Hydrogen (Max) | 0.012 |
| Iron (Max) | 0.25 |
| Oxygen (Max) | 0.13 |
| Aluminum | 5.5 - 6.50 |
| Vanadium | 3.5 - 4.5 |
| Titanium | Balance |
| Diameter (mm) | Tensile Strength Min (MPa) | Yield Strength Min (MPa) | Elongation Min (%) |
|---|---|---|---|
| < 4.75mm | 860 | 795 | 10 |
| 4.75 - 44.45mm | 860 | 795 | 10 |
| 44.45 - 63.50mm | 825 | 760 | 8 |
| 63.50 - 101.60mm | 825 | 760 | 8 |

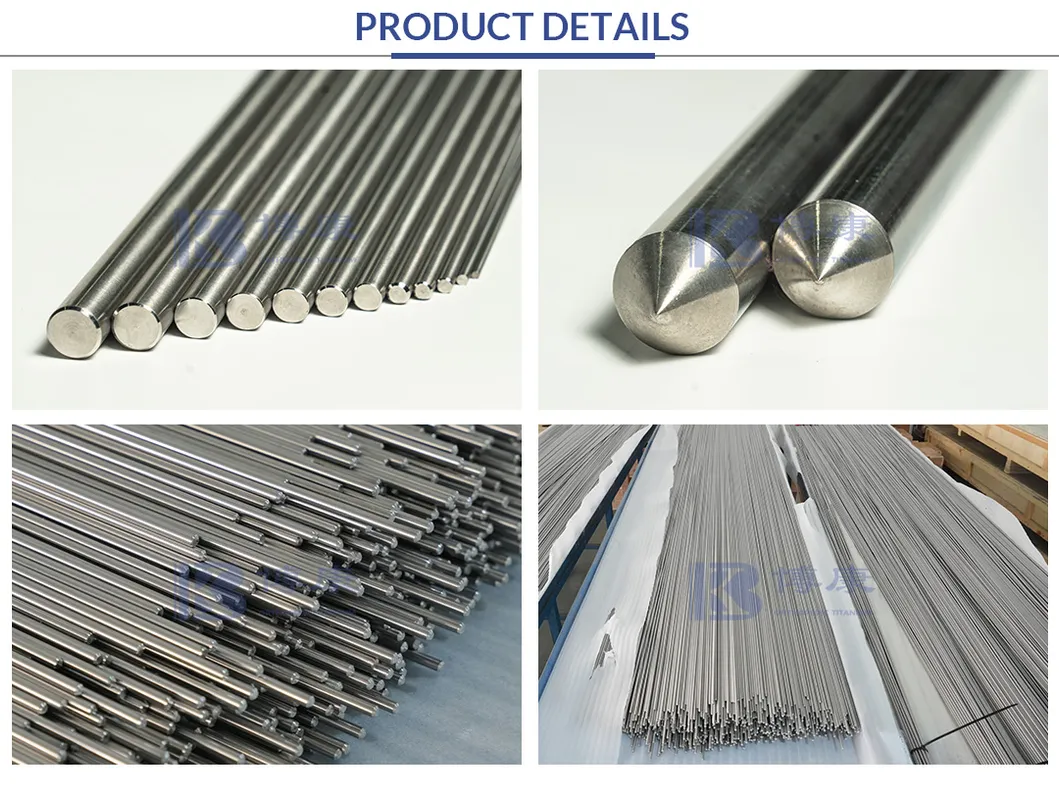

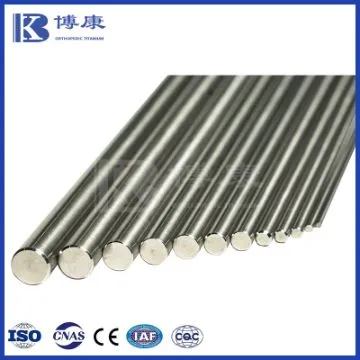

Titanium Bar/Rod

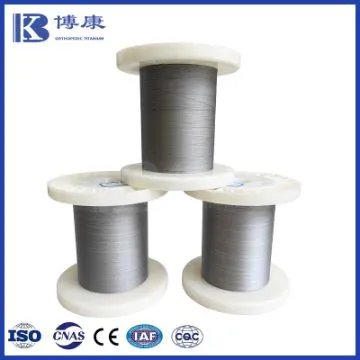

Titanium Wire

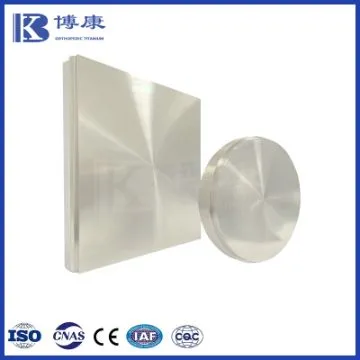

Titanium Disc

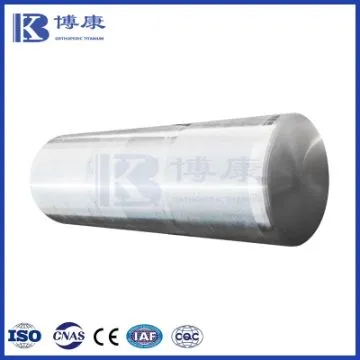

Titanium Ingot

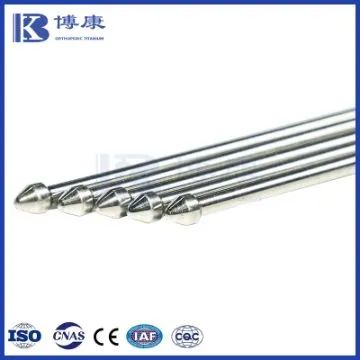

Nitinol Alloys

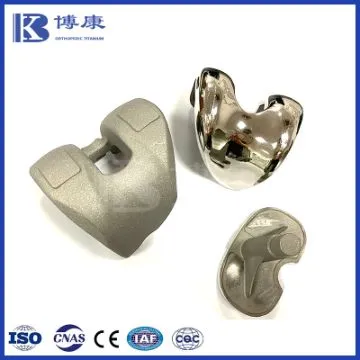

Artificial Joint Castings
