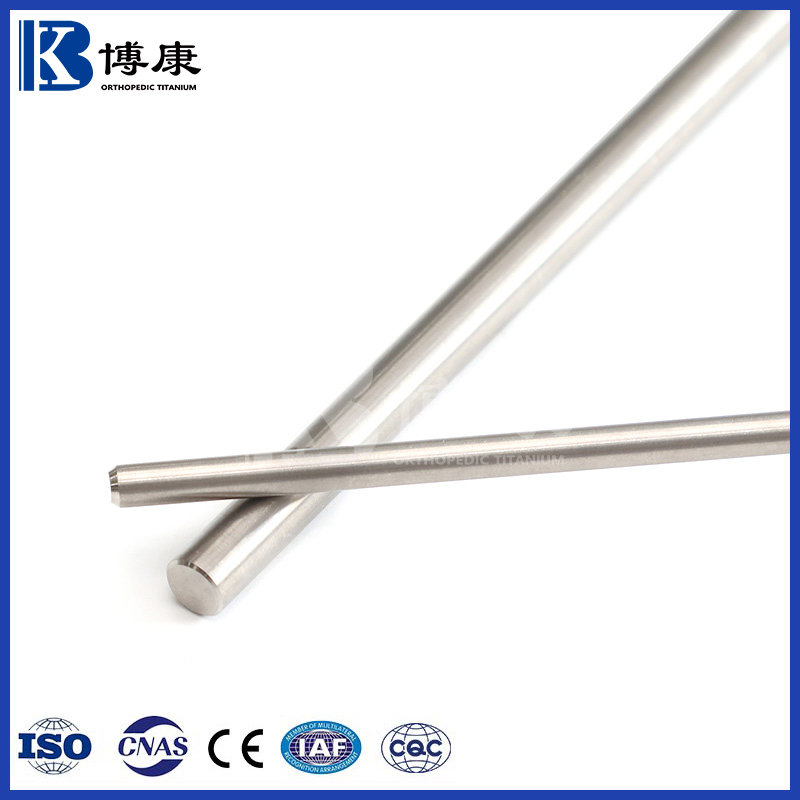

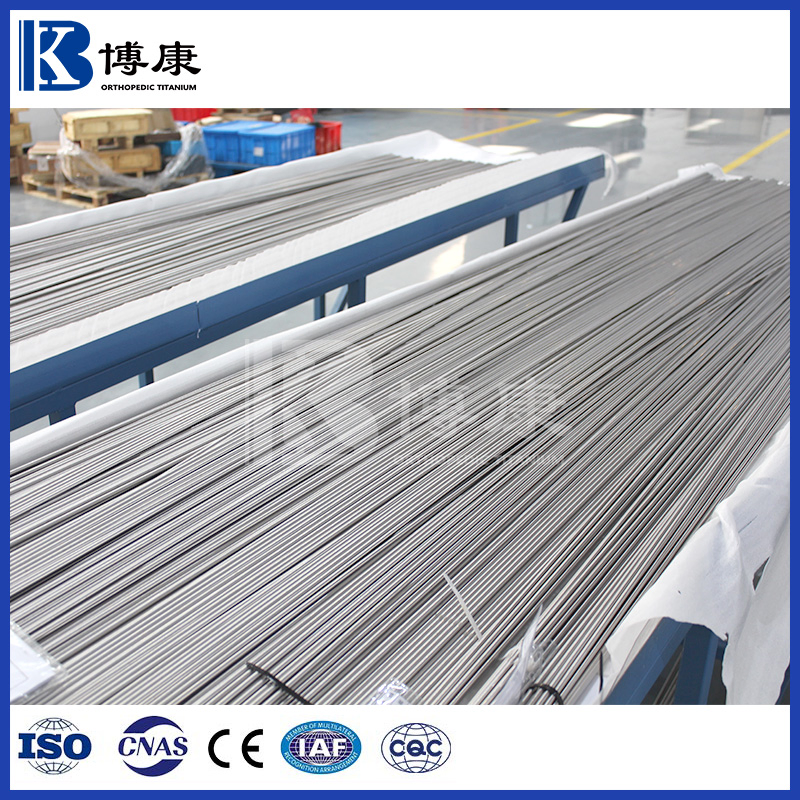

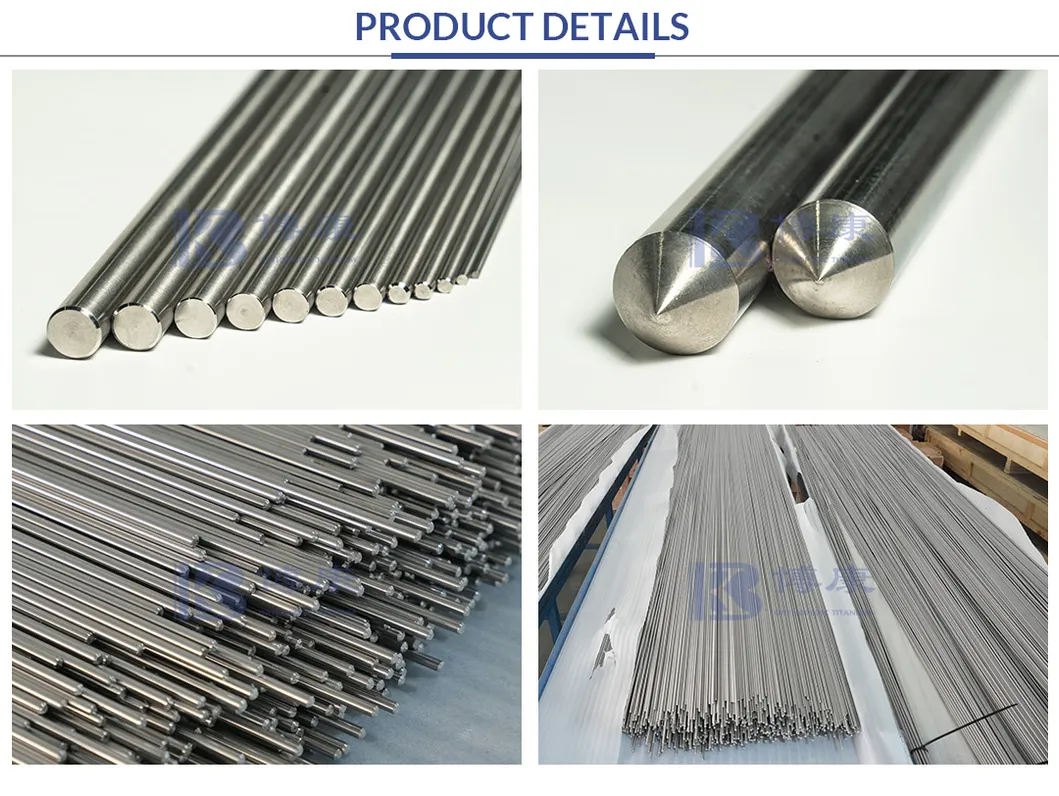

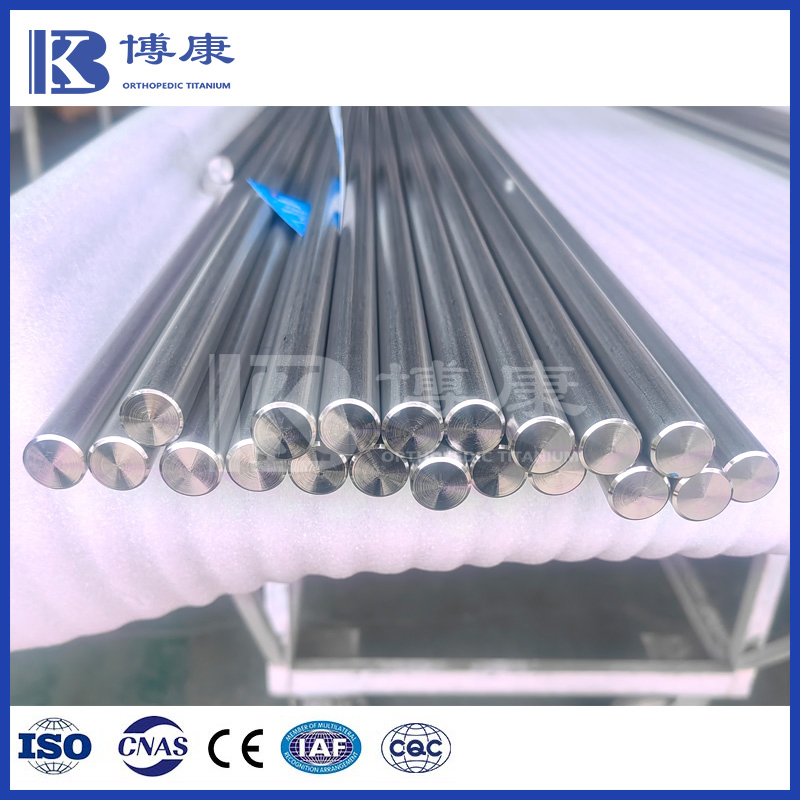

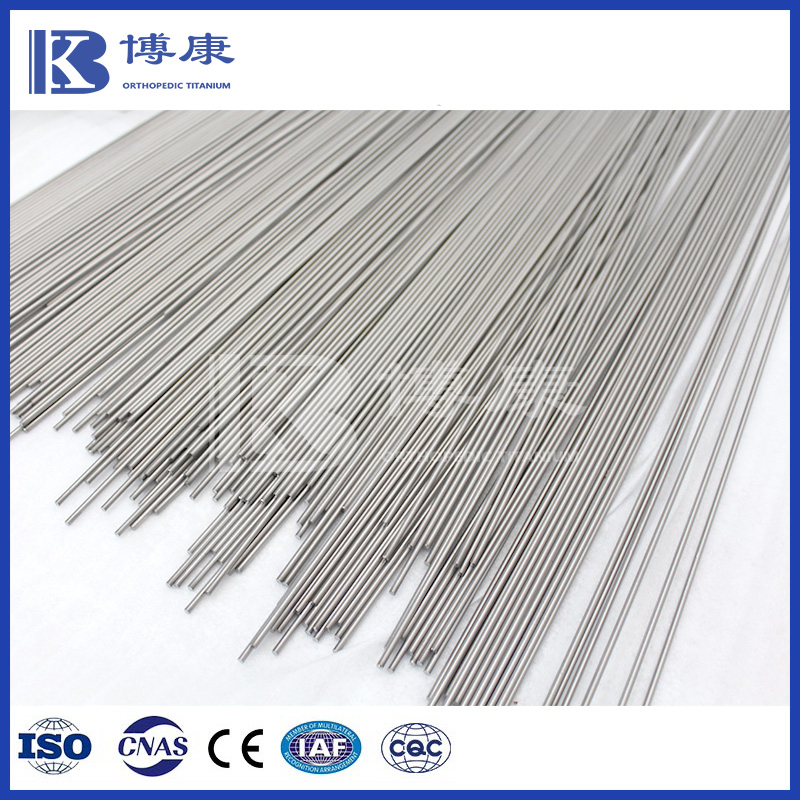

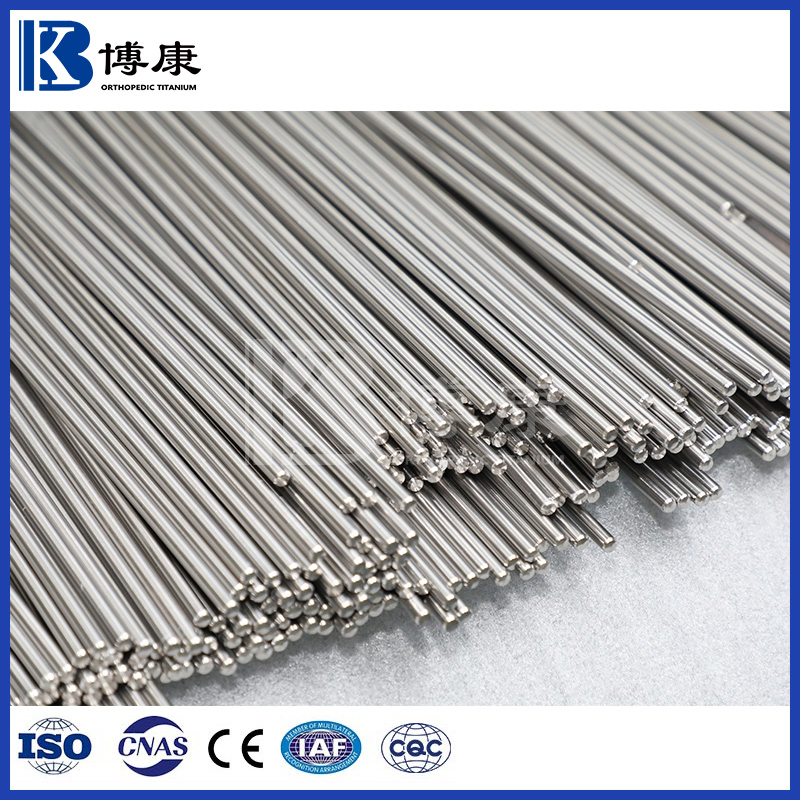

Titanium rods are categorized into pure titanium rods and titanium alloy rods. For pure titanium rods, we mainly offer grades Gr1, Gr2, Gr3, Gr4, etc. For titanium alloy rods, we offer grades Gr5, Gr9, Gr23 and so on.
We provide titanium rods in various grades and sizes for several industries, including medical titanium rods (orthopedic, dental, medical devices), aerospace (fasteners, profiles, forgings), and industrial applications.
Note: All titanium rods can be customized. Production is certified to ISO 13485:2016, ISO 9001 and ISO/IEC 17025:2017. Products comply with ASTM, ISO, AMS, ASM, JIS, DIN and other international standards.
| Grade | Standard | Diameter(mm) | Tolerance |
|---|---|---|---|
| Gr1,Gr2,Gr3,Gr4,Gr5,Gr9,Gr23, etc | ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; ASTM B348 | 1.0~101.6mm | h6, h7, h8, h9 |
| Element | Composition, % (mass/mass) |
|---|---|
| Nitrogen (Max) | 0.05 |
| Carbon (Max) | 0.08 |
| Hydrogen (Max) | 0.012 |
| Iron (Max) | 0.25 |
| Oxygen (Max) | 0.13 |
| Aluminum | 5.5-6.50 |
| Vanadium | 3.5-4.5 |
| Titanium | Balance |
| Diameter in(mm) | Tensile Strength Min (MPa) | Yield Strength Min (MPa) | Elongation Min (%) |
|---|---|---|---|
| <0.187 (<4.75mm) | 860 | 795 | 10 |
| 0.187~1.75 (4.75~44.45mm) | 860 | 795 | 10 |
| >1.75~2.50 (44.45~63.50mm) | 825 | 760 | 8 |
| >2.50~4.00 (63.50~101.60mm) | 825 | 760 | 8 |

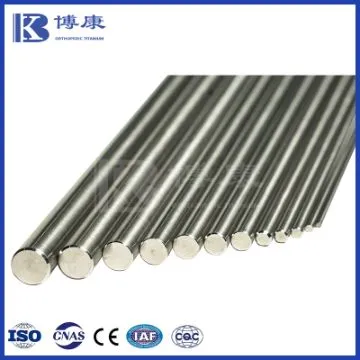

Titanium Bar/Rod

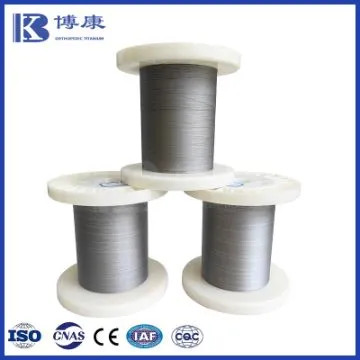

Titanium Wire

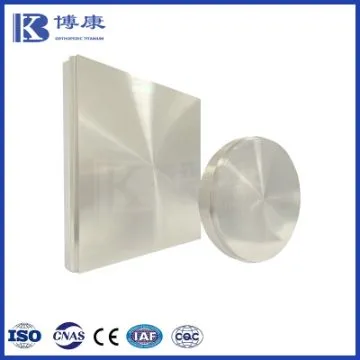

Titanium Disc

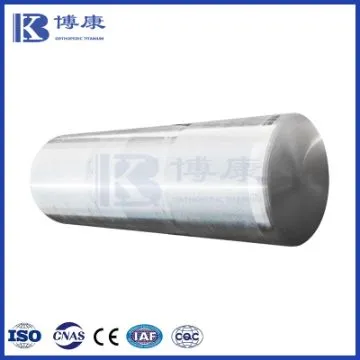

Titanium Ingot
Nitinol / Nickel Titanium

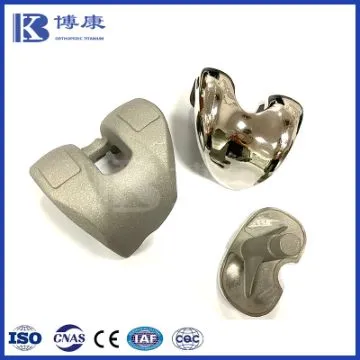

Artificial Joint Castings
