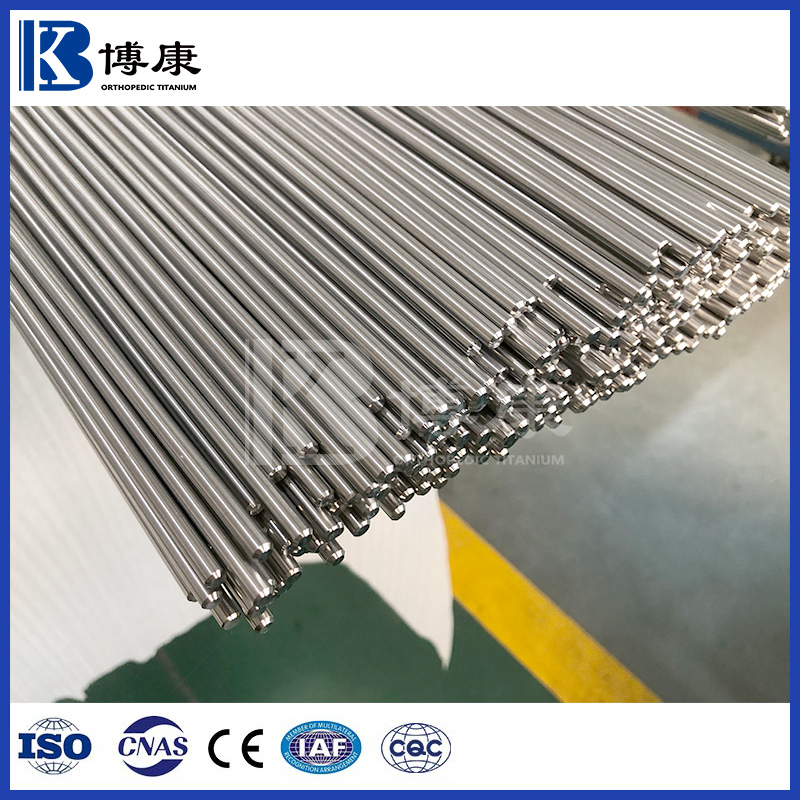

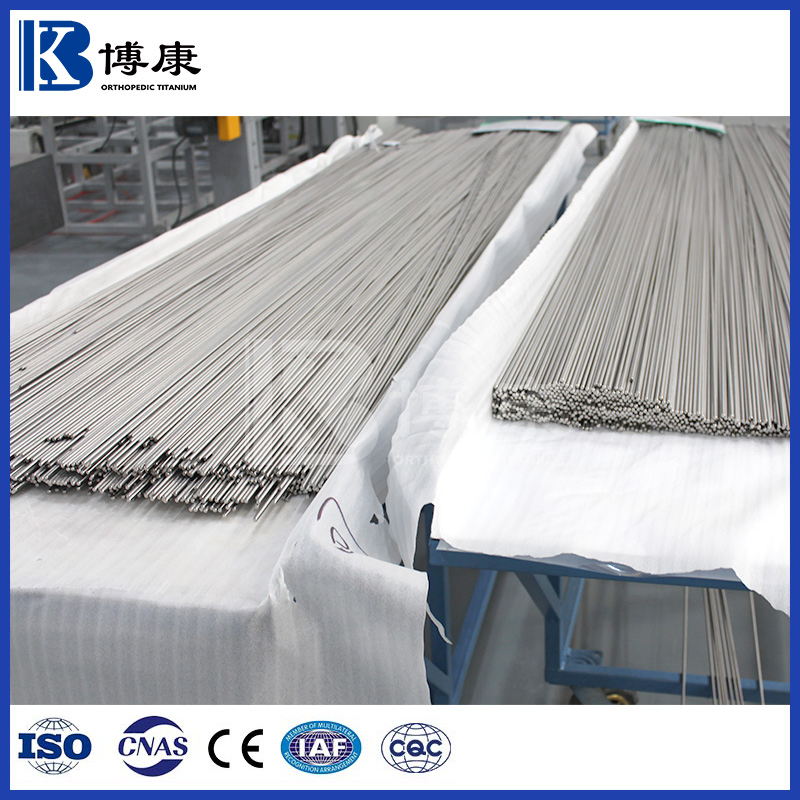

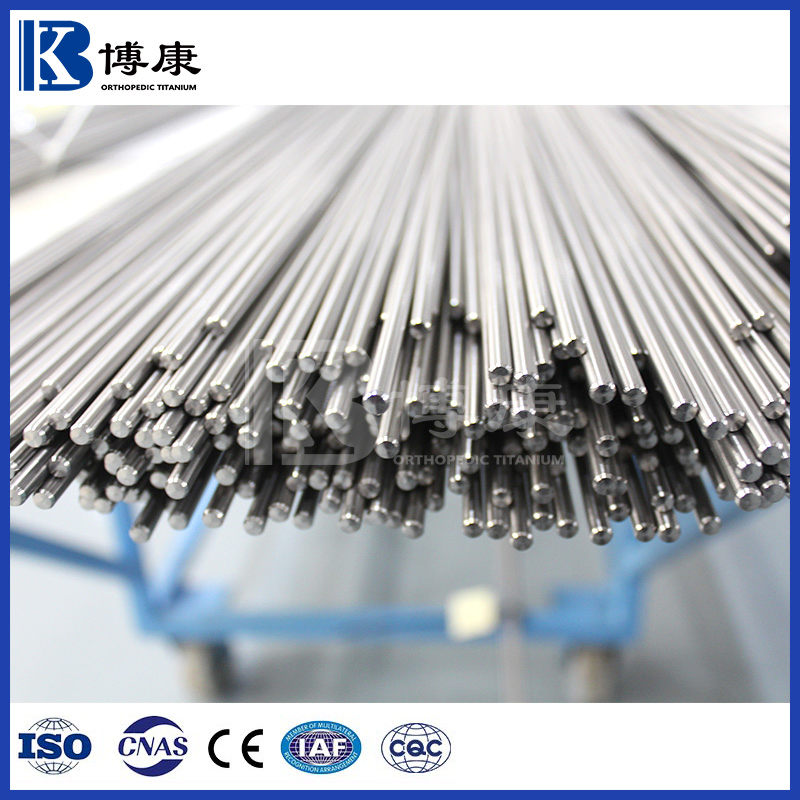

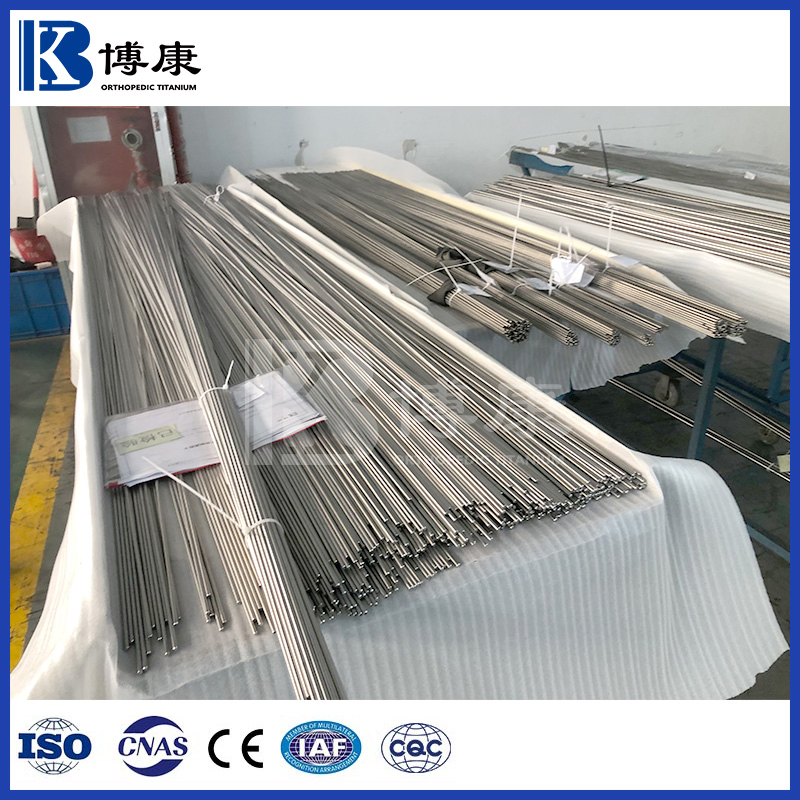

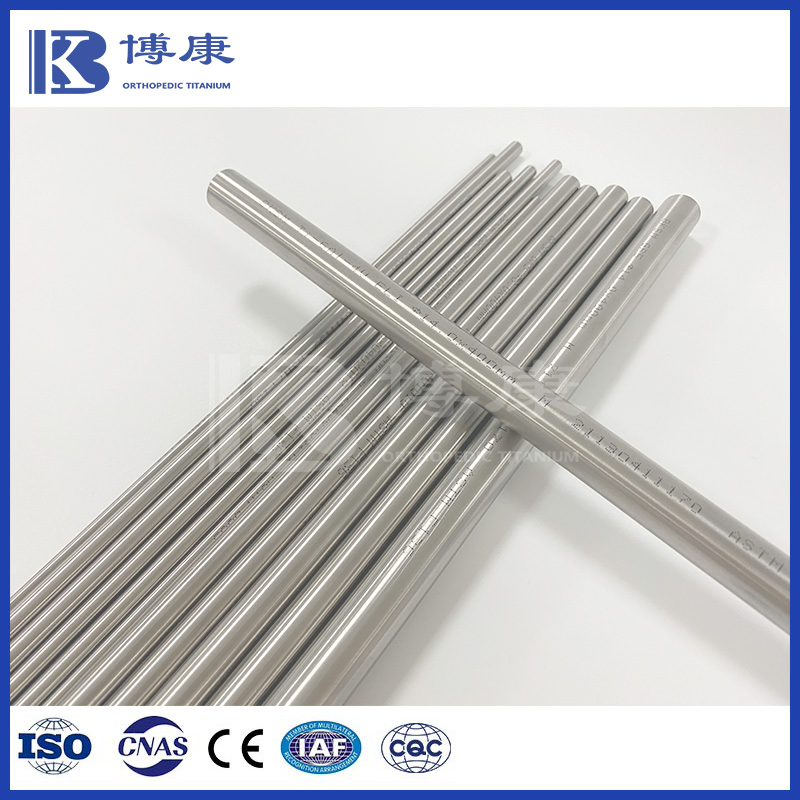

Surgical Implants Titanium Products Medical Grade Round Titanium Alloy Bars

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	BKTR-M	Technique	Hot Rolled
Grade	Gr1, Gr2, Gr3, Gr4, Gr5, Gr9, Gr23	Shape	Round
Material	Pure Titanium and Titanium Alloy	Surface Treatment	Polishing
Standard	ASTM, ISO, AMS, JIS, DIN	Tolerance	H6, H7, H8, H9
Condition	Annealed (M), Cold Rolled(Y), Hot Rolled(R)	Surface	Bright
Length	500-4000mm	MOQ	1kg

🔍 Product Description

High-Quality Titanium Rods - Pure & Alloy Options Available

Our facility specializes in pure titanium rods (Gr1, Gr2, Gr3, Gr4) and titanium alloy rods (Gr5, Gr9, Gr23, etc.), offering premium-grade materials for medical, aerospace, and industrial applications.

✔ Medical Titanium Rods - Ideal for orthopedic implants, dental applications, and medical devices.

✔ Aerospace Titanium Rods - Used in fasteners, profiles, and high-strength forgings.

✔ Industrial Titanium Rods - Engineered for high-performance industrial needs.

With a complete in-house production process, including melting and customization, we ensure precision and reliability. Our production is ISO 13485:2016, ISO 9001, and ISO/IEC 17025:2017 certified, and our titanium rods meet ASTM, ISO, AMS, ASM, JIS, DIN standards.

⚙️ Titanium Bar Specifications

Property	Details
Grade	Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI), etc
Standard	ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; AMS4965; AMS4967; ASTM B348; ASTM B863
Diameter(mm)	1.0~101.6mm
Length(mm)	500-4000
Tolerance	h6, h7, h8, h9
Condition	Annealed (M), Cold rolled(Y), Hot rolled(R)

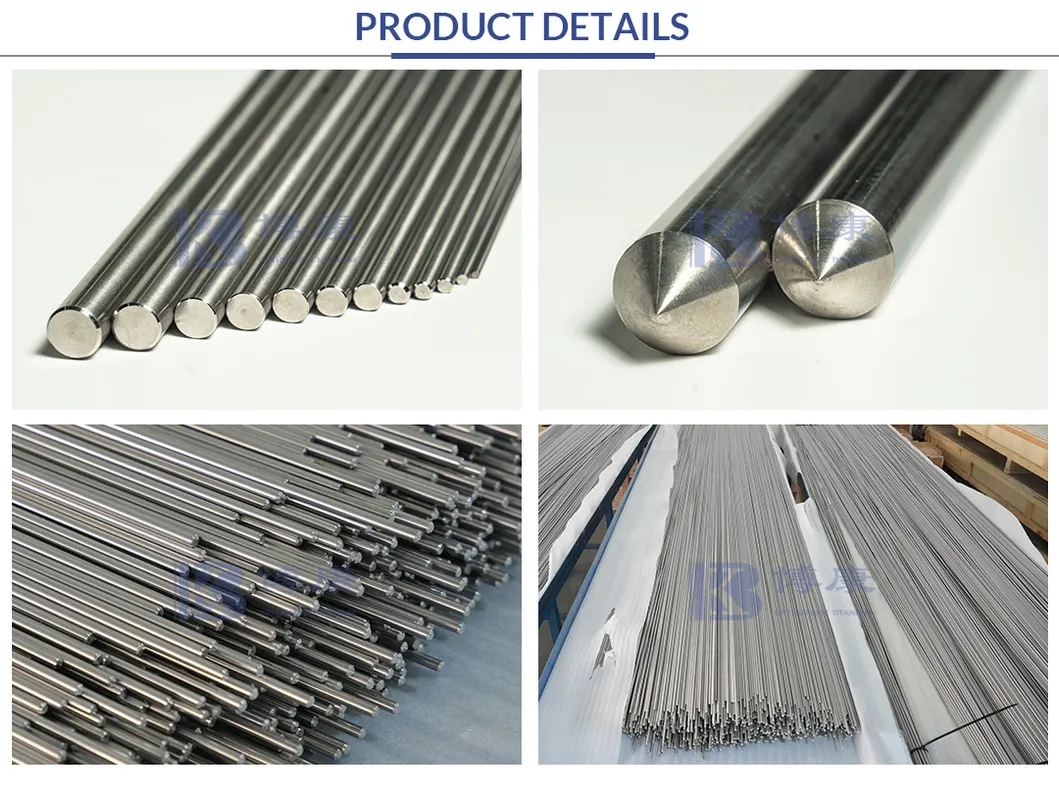

⭐ Titanium Round Bar - Key Features

• Superior Surface Finish

• Excellent Roundness

• Tight Tolerances

• High Dimensional Stability

• Consistent Composition

• Fine Grain Structure

• Extended Fatigue Life

• Exceptional Performance

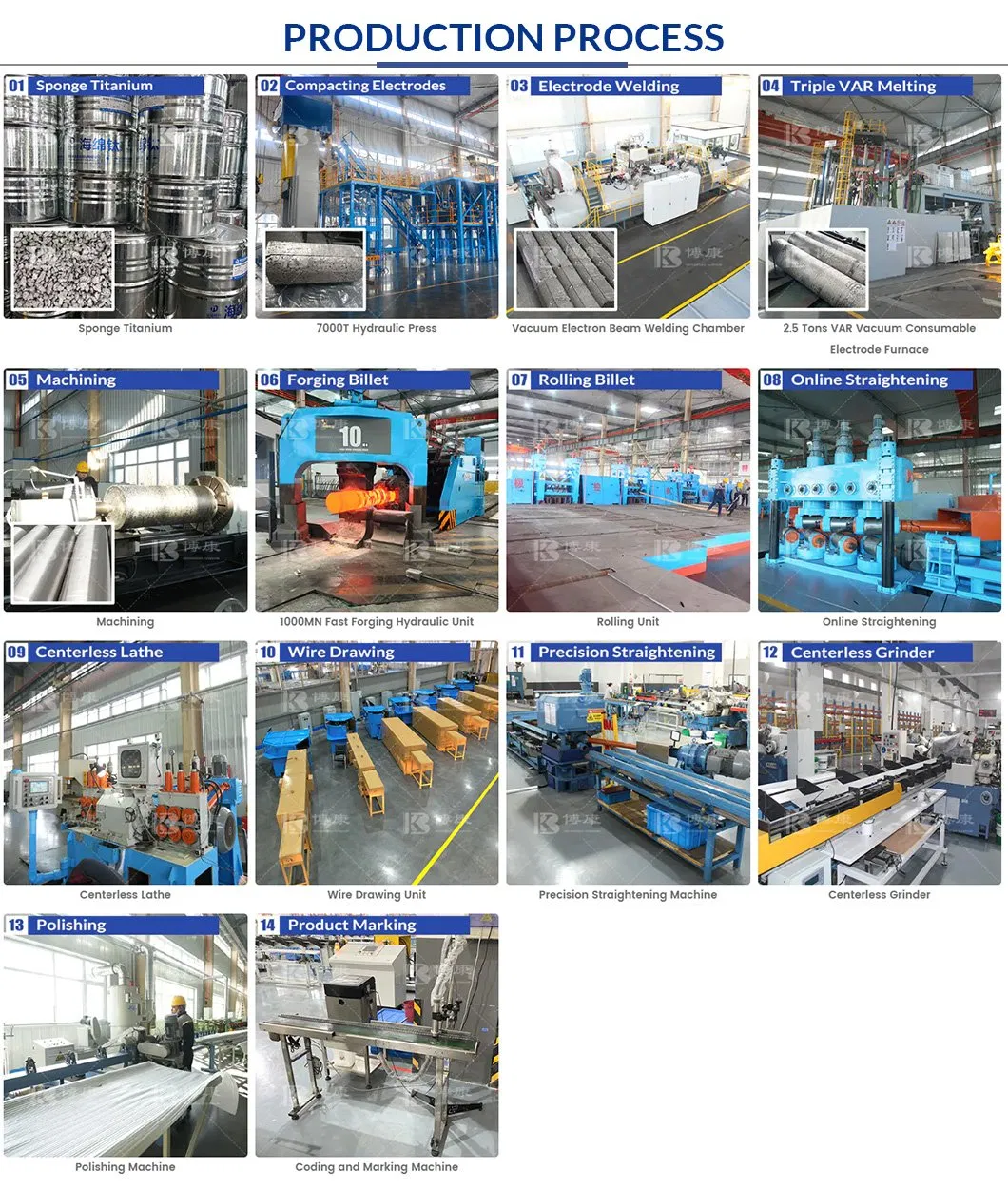

🔄 Production Process

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical test → Microstructure test → Centerless Grinder → Eddy Current Test → Polishing → Visual and dimension inspection → Product Marking → Packaging → Delivery

🔬 Chemical & Mechanical Properties

ASTM F136 Ti-6Al-4V ELI

Element	Composition, % (mass/mass)
Nitrogen (Maximum)	0.05
Carbon (Maximum)	0.08
Hydrogen (Maximum)	0.012
Iron (Maximum)	0.25
Oxygen (Maximum)	0.13
Aluminum	5.5-6.50
Vanadium	3.5-4.5
Titanium	Balance

📏 Mechanical Properties (Annealed)

Diameter (mm)	Tensile Strength Min (MPa)	Yield Strength Min (MPa)	Elongation Min (%)	Reduction of Area Min (%)
< 4.75	860	795	10	-
4.75 ~ 44.45	860	795	10	25
44.45 ~ 63.50	825	760	8	20
63.50 ~ 101.60	825	760	8	15

📦 Product Categories

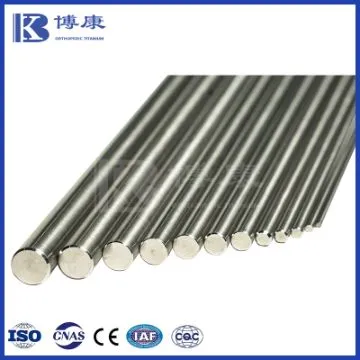

Titanium Bar/Rod

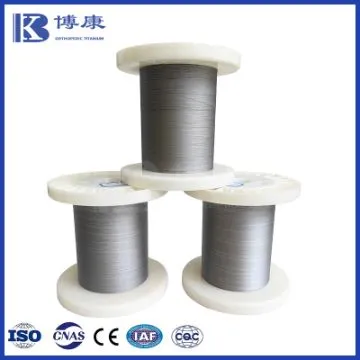

Titanium Wire

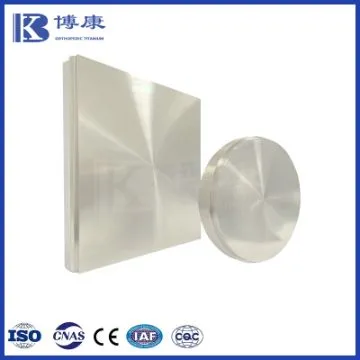

Titanium Disc

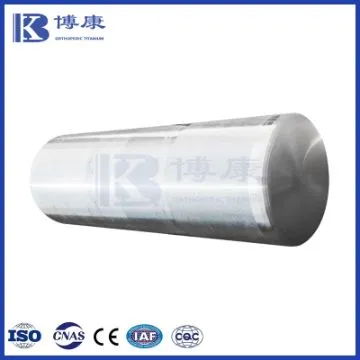

Titanium Ingot

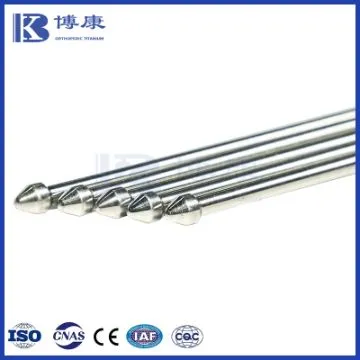

Nitinol Alloys

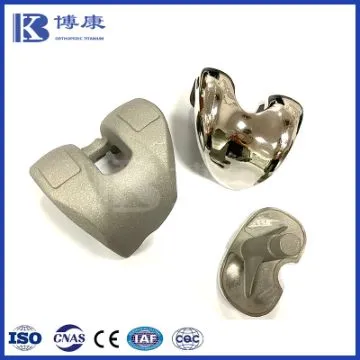

Artificial Joint Castings

🏅 Certifications & Manufacturing

❓ Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a direct manufacturer with over 18 years of specialized experience in titanium production.

Q: What is the minimum order quantity (MOQ)? A: Our MOQ is 1 kg. We maintain a 20-ton monthly production capacity to ensure consistent stock for medical and aerospace requirements.

Q: What industries do your products serve? A: Our titanium and nitinol alloys are extensively used in the medical, aerospace, and high-performance industrial sectors.

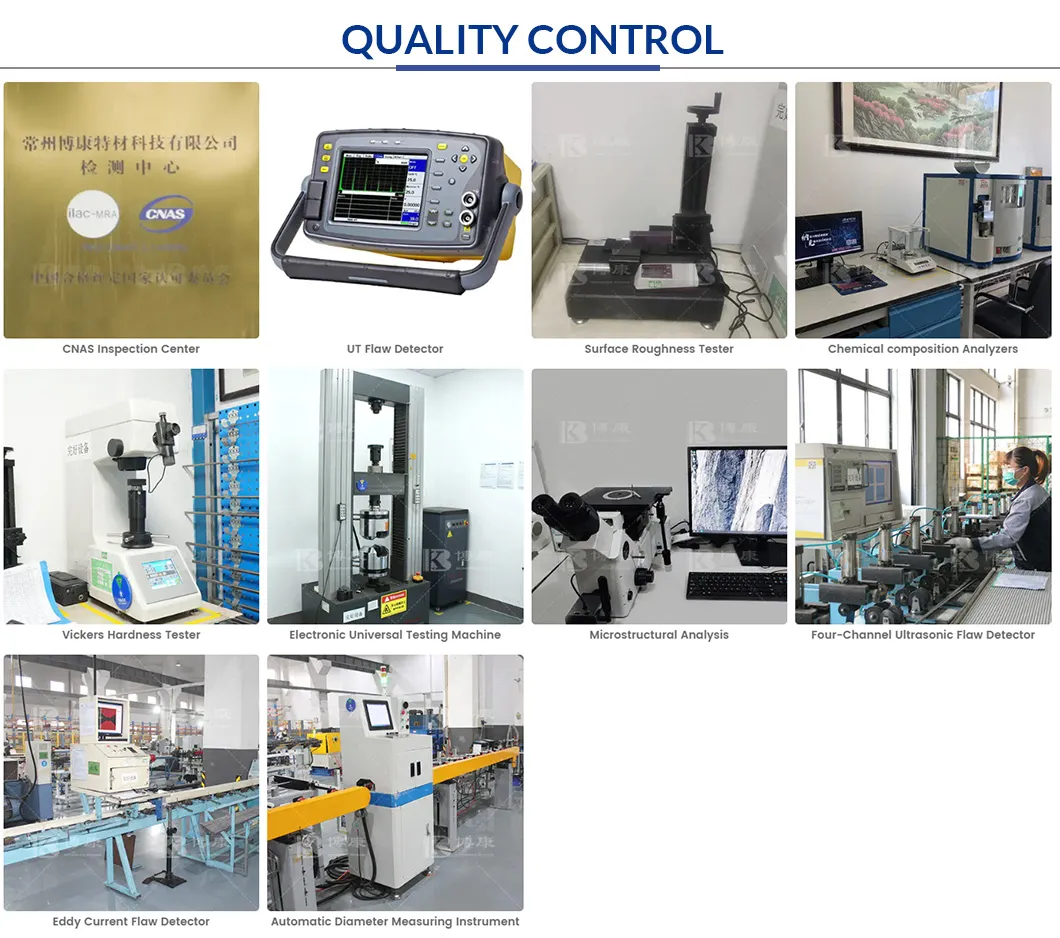

Q: How do you ensure product quality? A: We implement rigorous quality control at every production stage, utilizing advanced testing equipment to comply with international standards like ASTM and ISO.

Q: Do you offer custom manufacturing? A: Yes, we provide customized titanium products tailored to specific customer drawings or samples.

Q: What details are needed for a price quote? A: Please provide the Product Name, Standard, Material Grade, Dimensions, and Quantity for an accurate quote.
