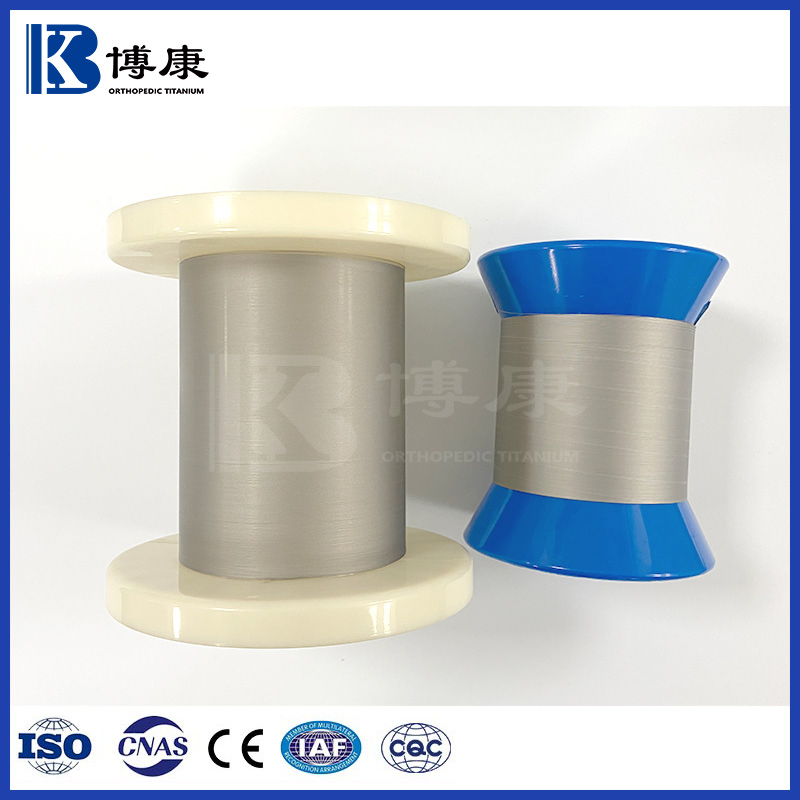

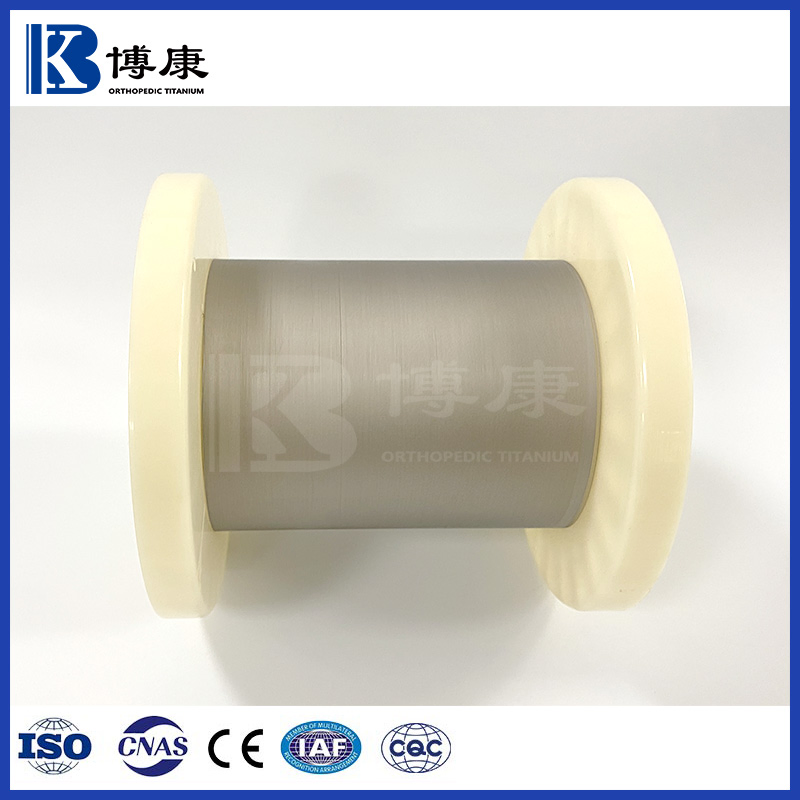

Medical Implant-Grade Pure Titanium Wire ASTM F67 for Surgical Use

1 / 5

Medical Implant-Grade Pure Titanium Wire ASTM F67 for Surgical Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📌 Basic Information

Model NO.	BKTW-M	Technique	Hot Rolled
Grade	Gr1, Gr2, Gr3, Gr4	Shape	Round
MOQ	1kg	Standard	ASTM, ISO, AMS, JIS, DIN
Surface	Bright	Diameter Tolerance	±0.005mm
Supply Form	Spool Wound	Transport Package	Wooden Case
Specification	0.2~1.0mm	Production Capacity	200tons/Year

📋 Product Description

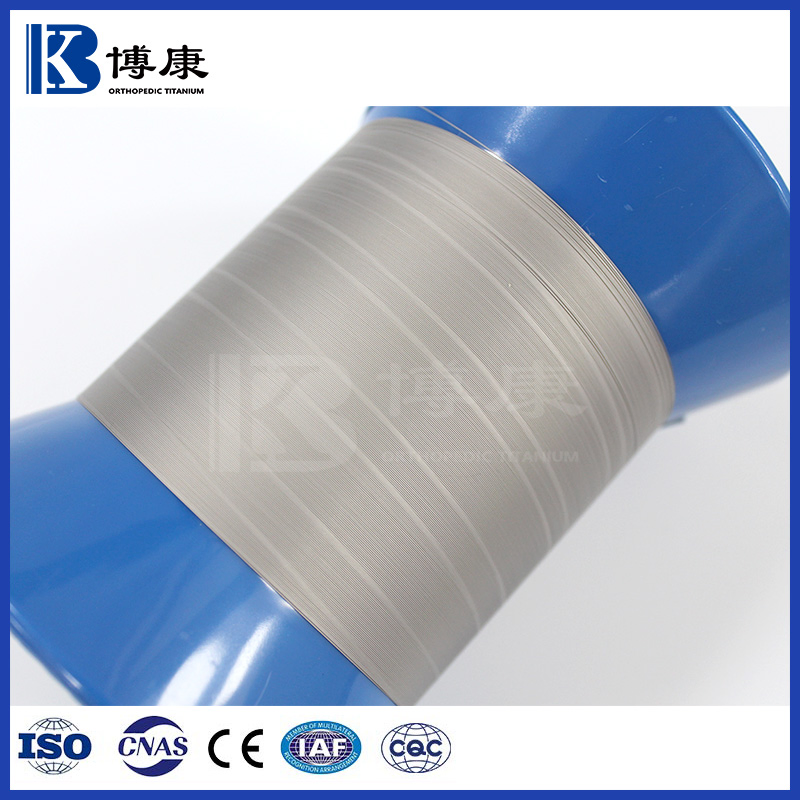

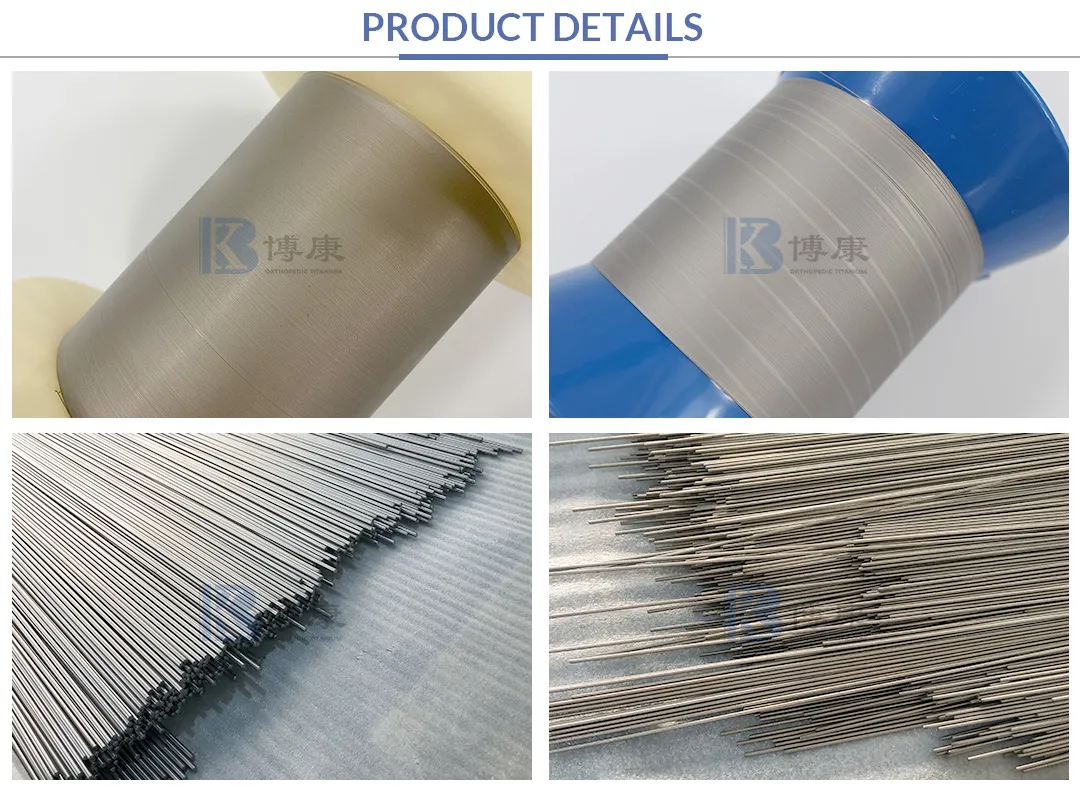

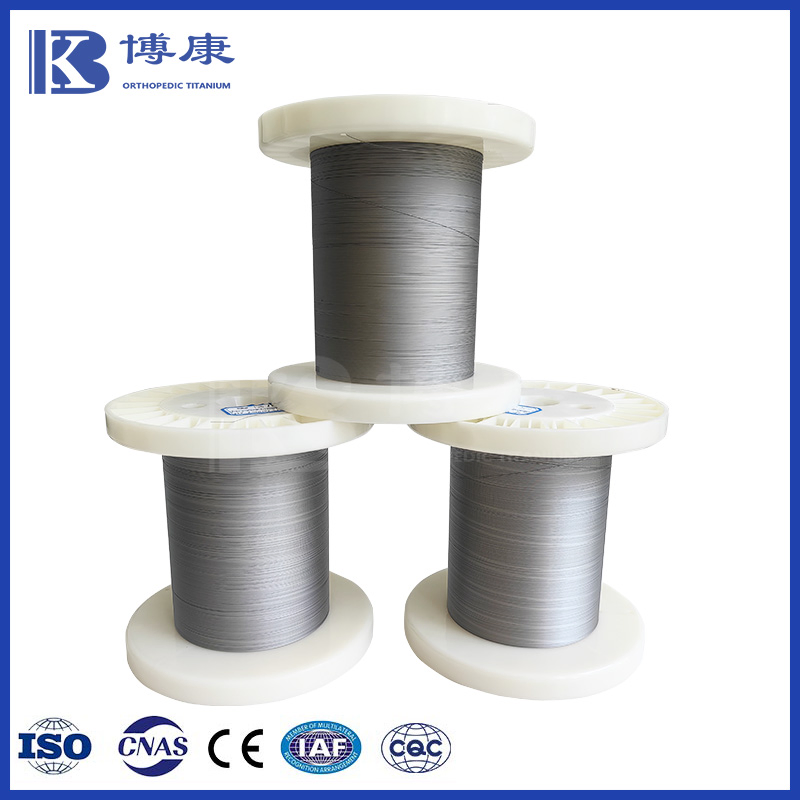

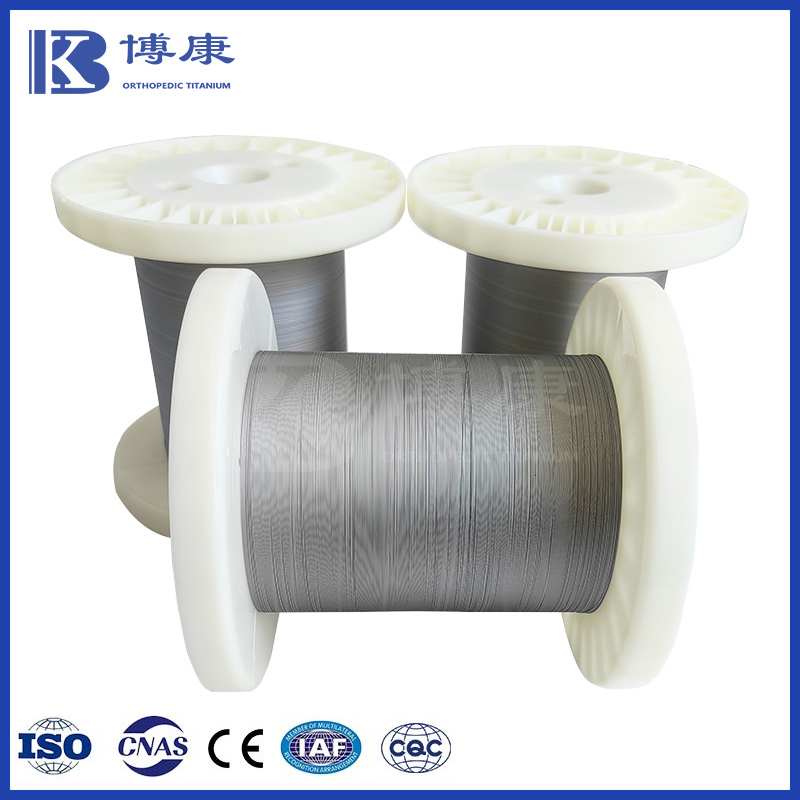

Medical Implant-Grade Pure Titanium Wire

Medical Grade Pure Titanium Wire

High-quality medical grade titanium wire made from pure titanium Grade 1, Grade 2, Grade 3, Grade 4, in full compliance with ASTM F67 and ISO5832-2 standards. These titanium wires are widely used in surgical stapler titanium pins, titanium clips for surgical instruments, and titanium suture wire for medical implantation due to outstanding biocompatibility, strength, and corrosion resistance.

Product Advantages

Fully Independent Processing: In-house production ensures full control over quality and customization.
Excellent Formability: Outstanding plasticity allows for easy shaping into complex medical components.
High Stability & Consistency: Reliable performance in batch-to-batch production for precision medical use.
Uniform Composition: Chemically consistent material throughout, ensuring predictable results.
Customizable Strength: Mechanical properties can be tailored to meet specific surgical or medical device requirements.

📏 Specification

Parameter	Details
Grade	GR1, GR2, GR3, GR4
Standard	ASTM F67, ISO5832-2, GB/T13810-2017, QB/ZHSM-AX
Diameter (mm)	φ0.2-1.0
Common Sizes	φ0.20, φ0.21, φ0.23, φ0.28, φ0.3, φ0.6, φ0.8, φ1.0
Tolerance	±0.005mm
Surface Finish	Bright

Chemical Composition (ASTM F67)

Element	Grade 1	Grade 2	Grade 3	Grade 4
Nitrogen, max	0.03	0.03	0.05	0.05
Carbon, max	0.08	0.08	0.08	0.08
Hydrogen, max	0.015	0.015	0.015	0.015
Iron, max	0.2	0.3	0.3	0.5
Oxygen, max	0.18	0.25	0.35	0.4
Titanium	balance	balance	balance	balance

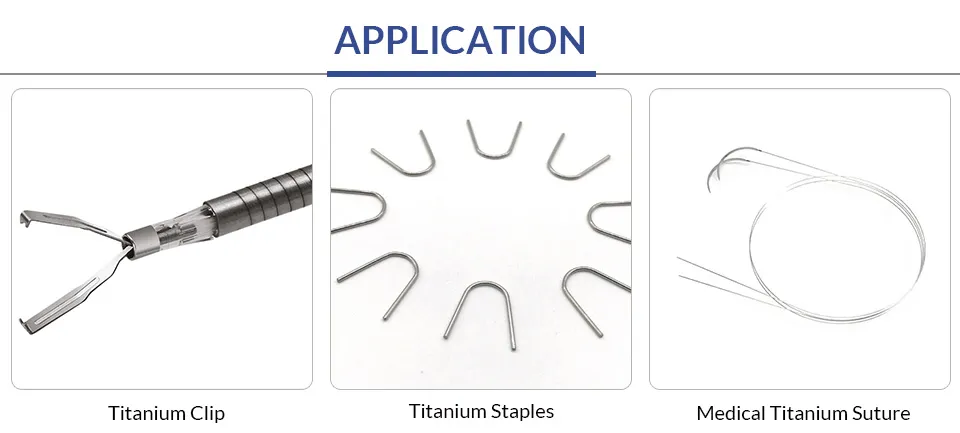

🚀 Application

Medical-grade pure titanium wire is utilized in various surgical and implant applications:

Implant-grade suture wire: Ideal for long-term soft tissue closure.
Surgical stapler pins: Ensures stable wound closure in minimally invasive procedures.
Surgical clips: Used for vessel ligation and tissue fixation in laparoscopic surgeries.

🏆 Certifications

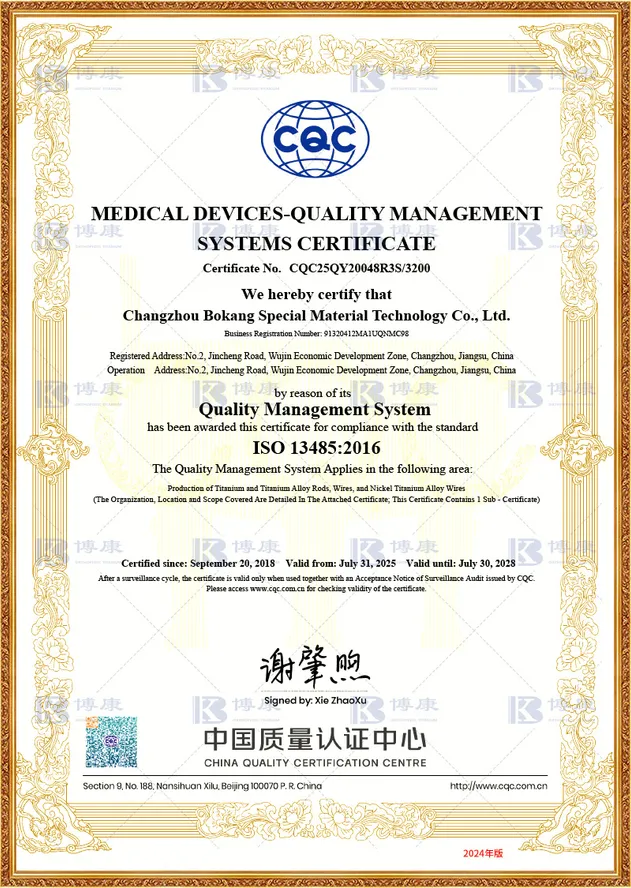

ISO 13485

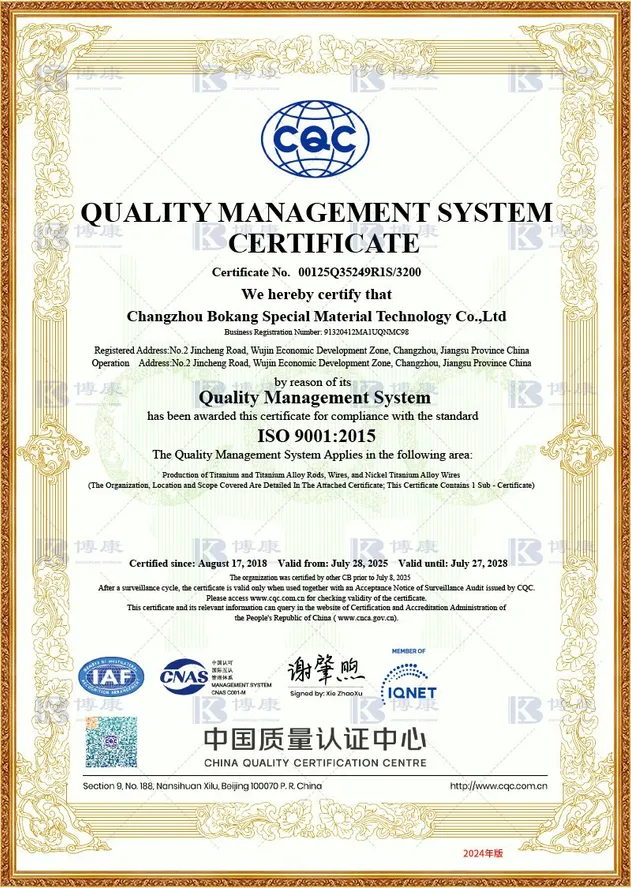

ISO 9001

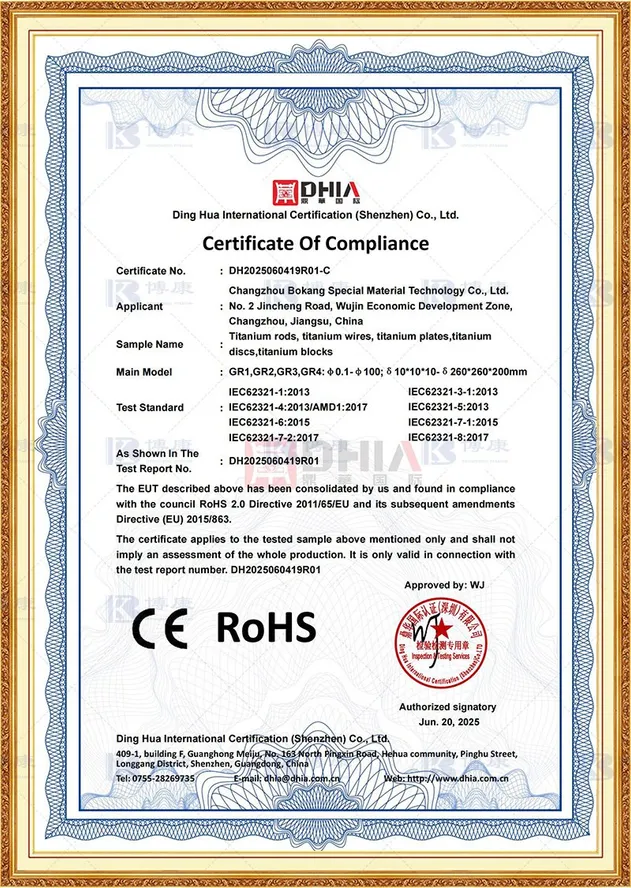

RoHS Pure Titanium

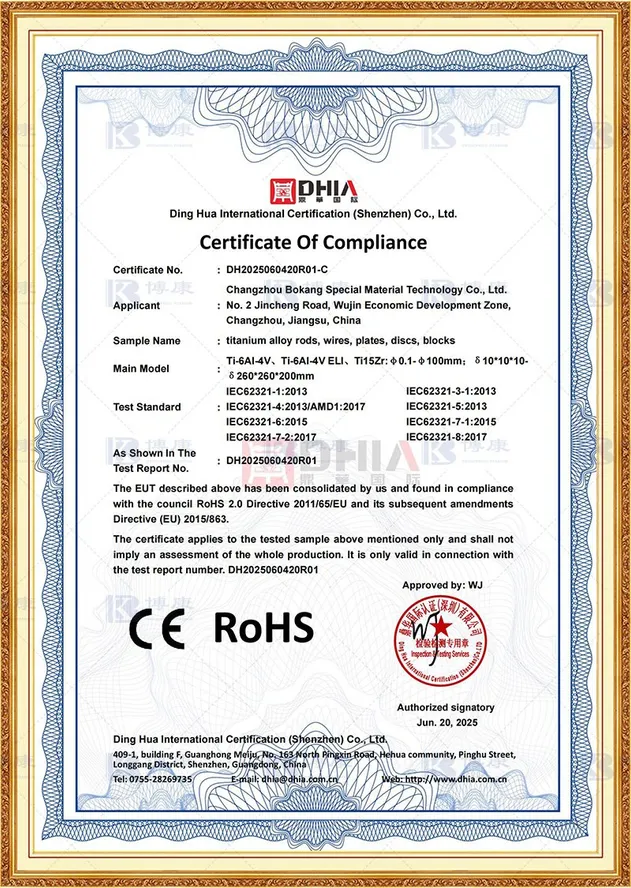

RoHS Titanium Alloy

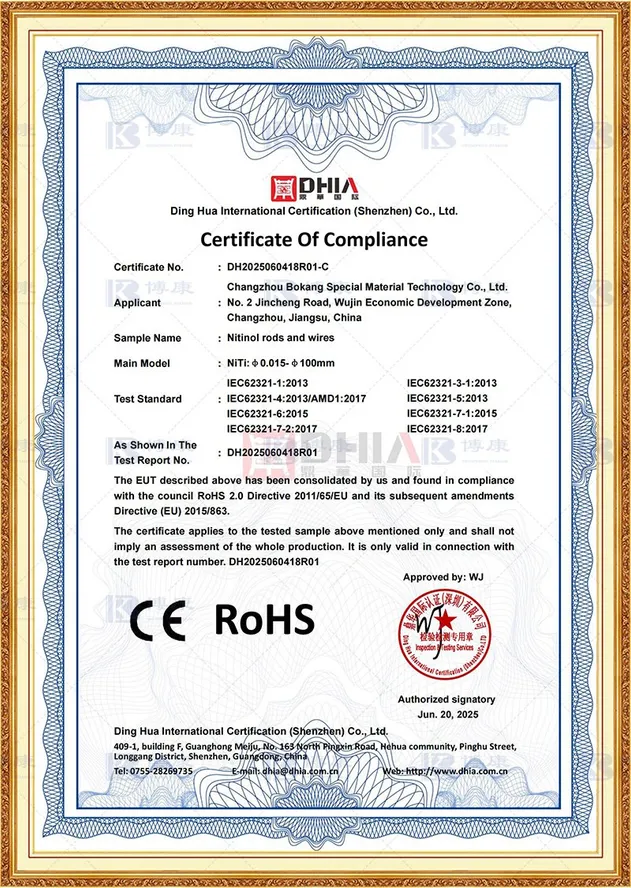

RoHS Nitinol

⚙️ Production and Quality Control

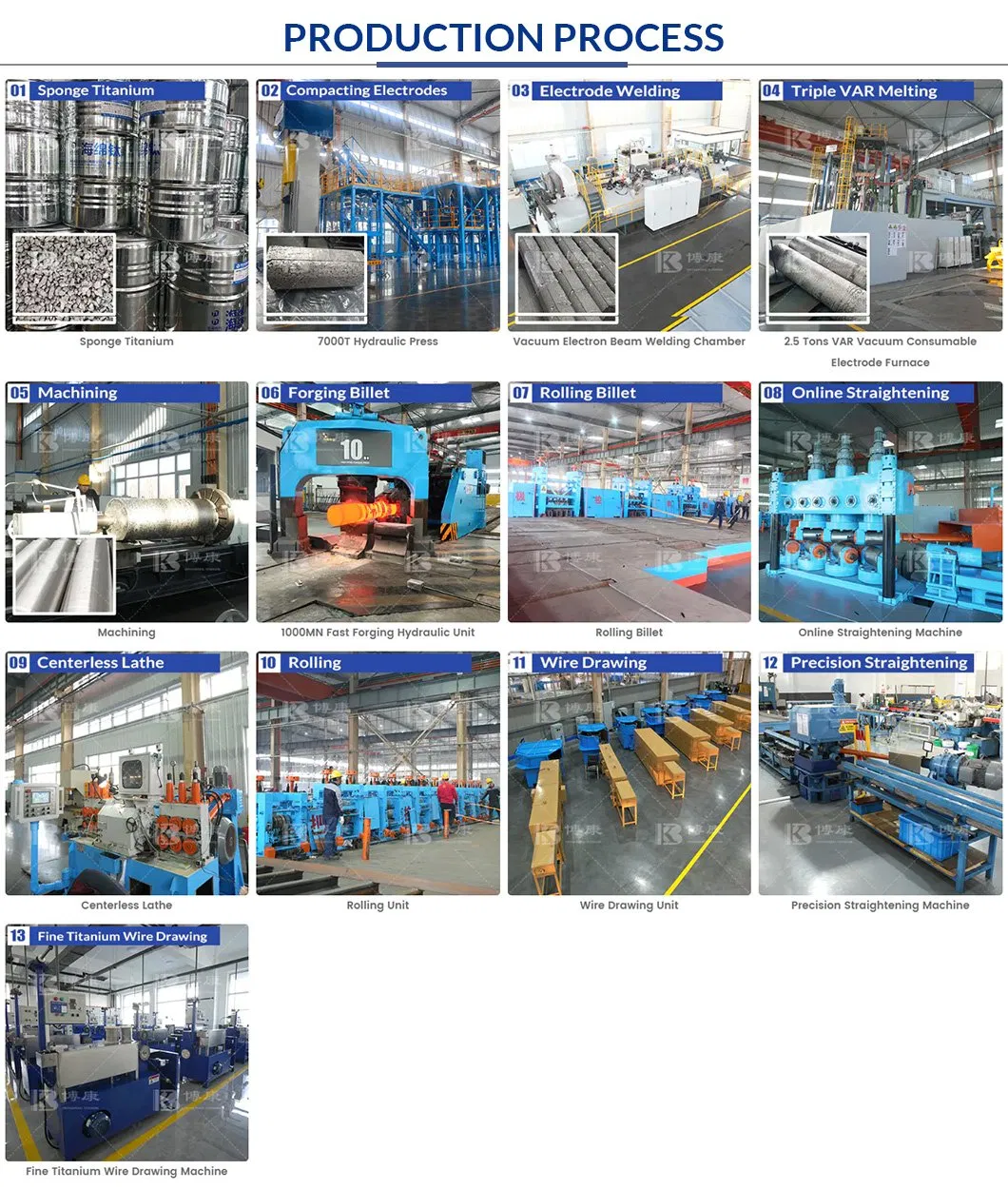

Titanium Wire Production Flow: Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical & Microstructure tests → Polishing → Visual & Dimension inspection → Packaging.

📦 Related Product Categories

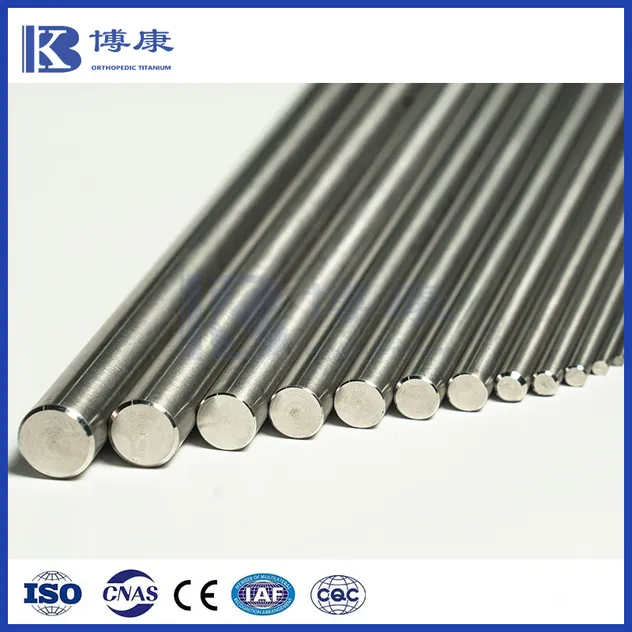

Titanium Bars Rods

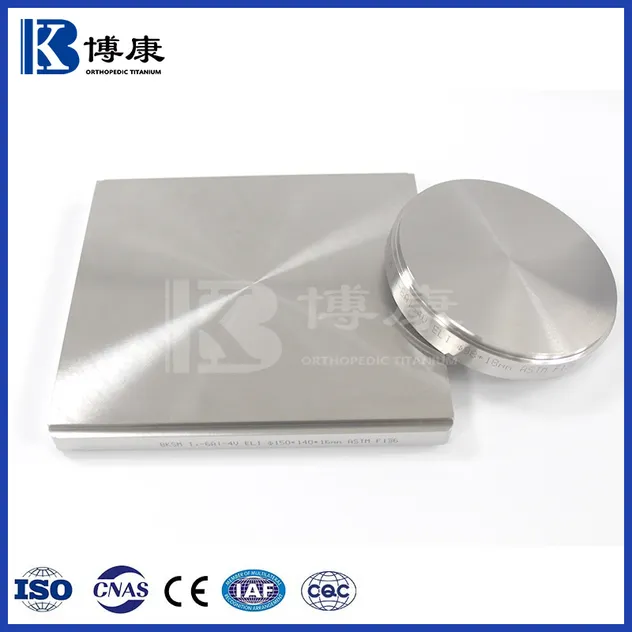

Titanium Disc

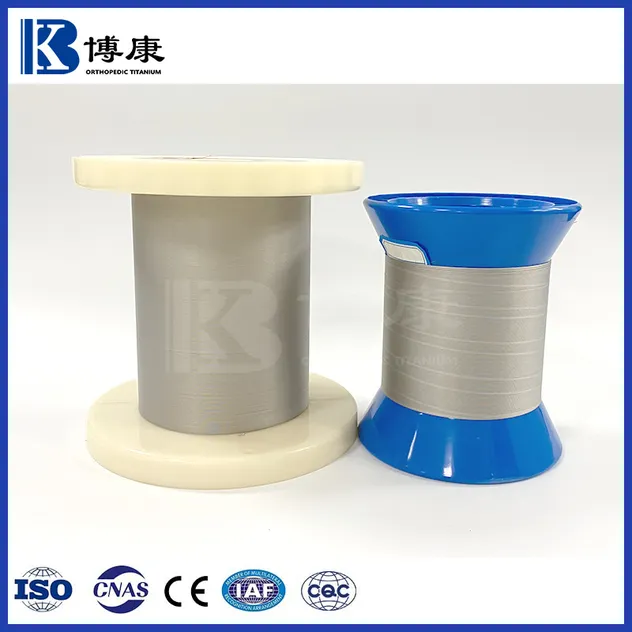

Titanium Wire

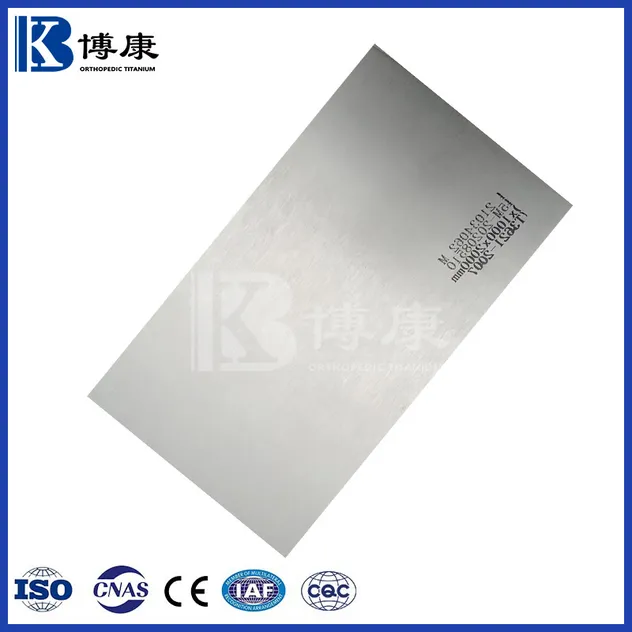

Titanium Plates

Nitinol Wire

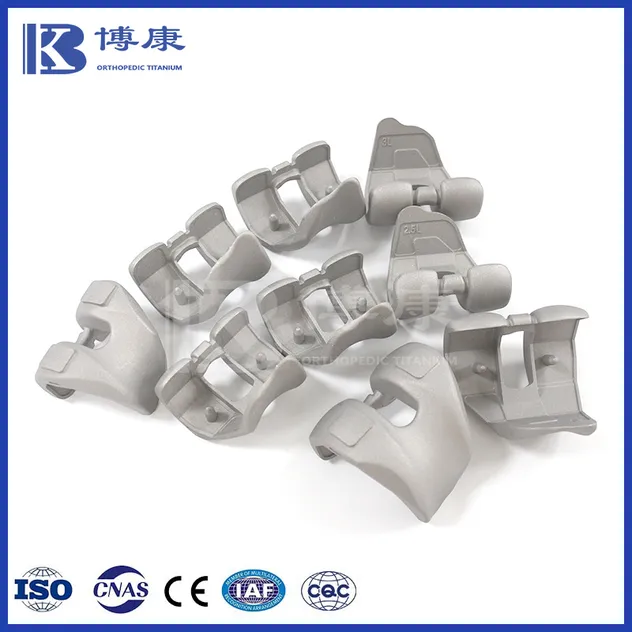

CoCrMo Castings

🏢 Facility Overview

❓ Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a direct manufacturer with over 18 years of specialized experience in titanium production.

Q: What is the minimum order quantity (MOQ)? A: Our standard MOQ is 1 kg. We maintain a robust production capacity to support both small samples and large-scale industrial orders.

Q: Do you provide samples for testing? A: Yes, we provide free samples for quality verification. However, customers are requested to cover the shipping costs.

Q: Which industries do your titanium products serve? A: Our high-purity titanium and nitinol alloys are widely used in medical implants, aerospace engineering, and precision industrial applications.

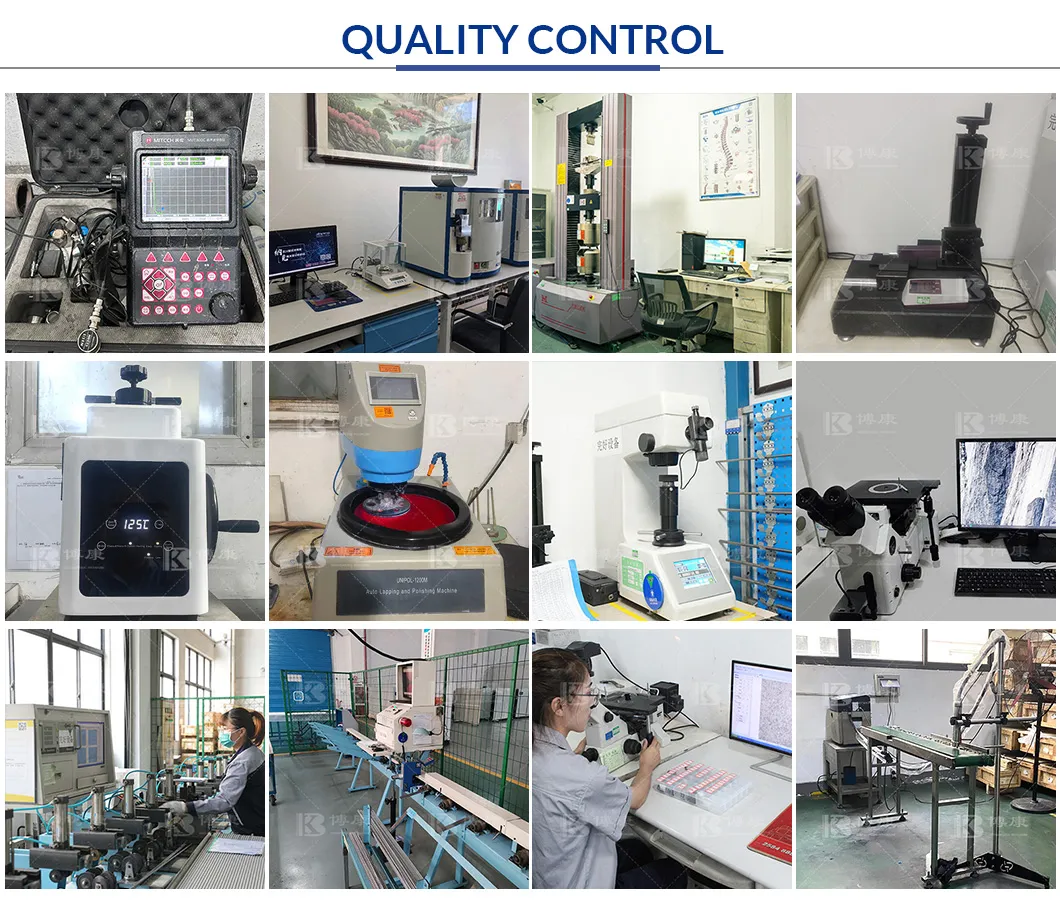

Q: How do you ensure the quality of medical-grade materials? A: We implement rigorous quality control at every stage, from raw sponge titanium to final polishing, using advanced UT and mechanical testing to meet international standards.

Q: Do you offer custom manufacturing based on drawings? A: Yes, we specialize in customized titanium products tailored to specific customer drawings, dimensions, or technical samples.
