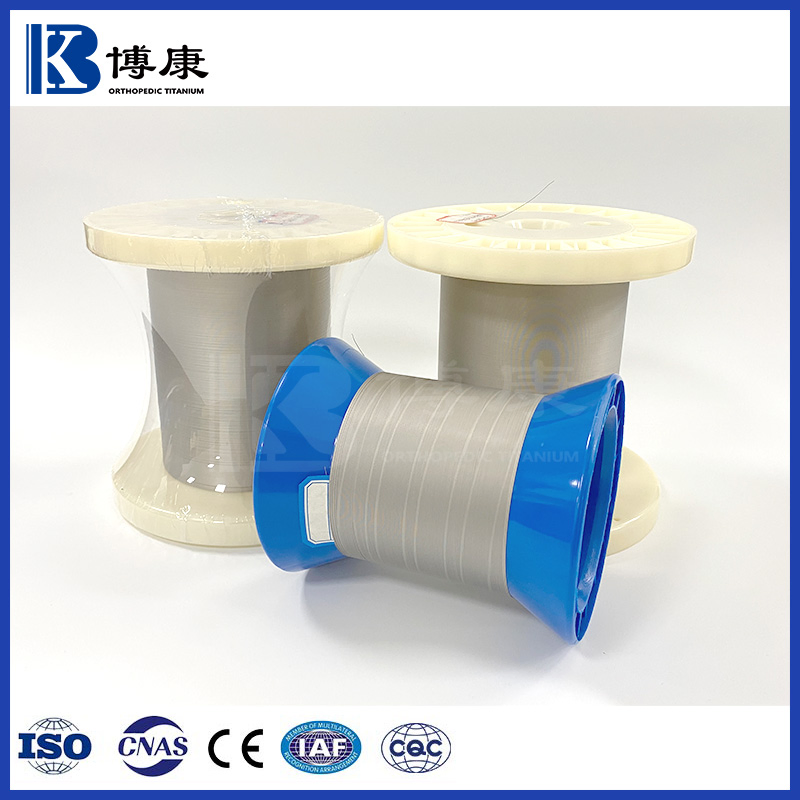

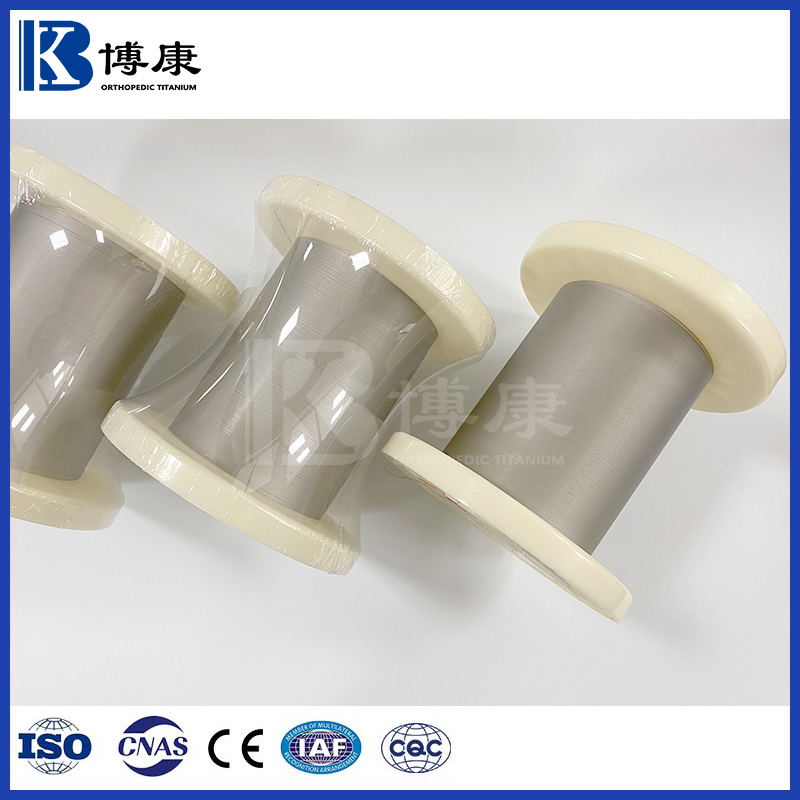

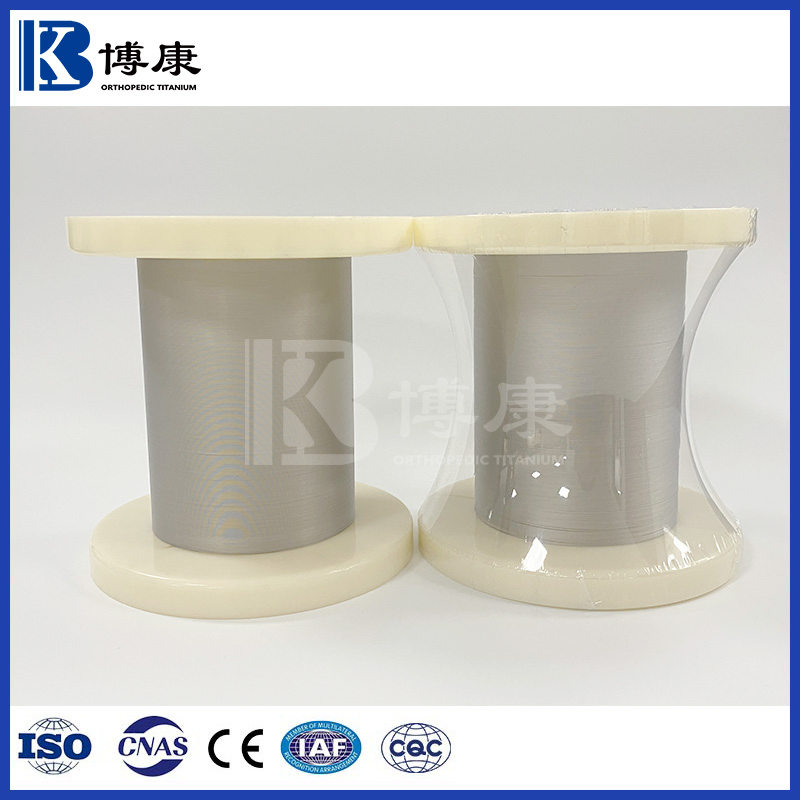

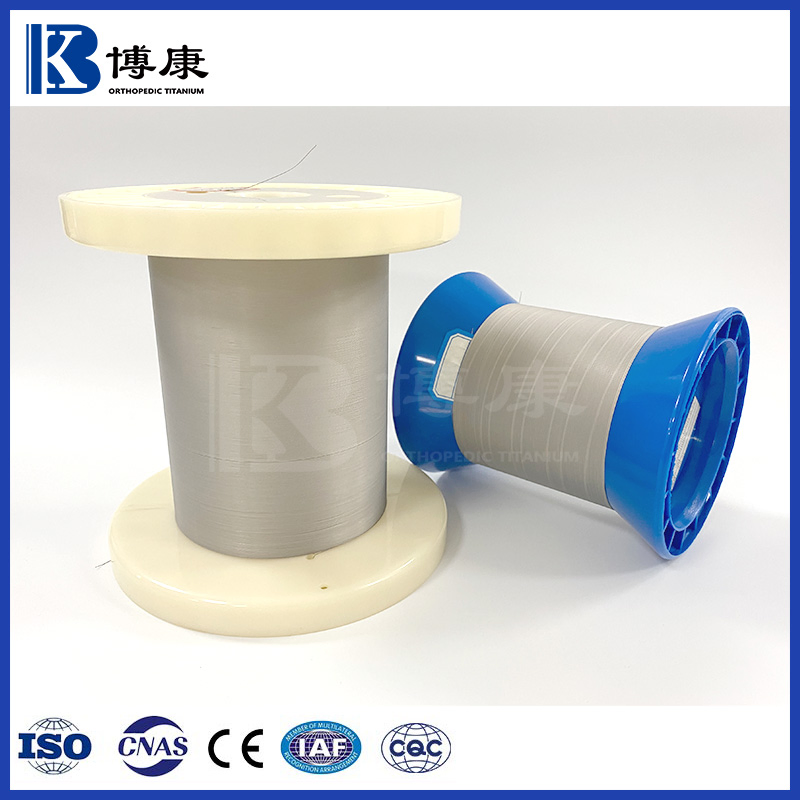

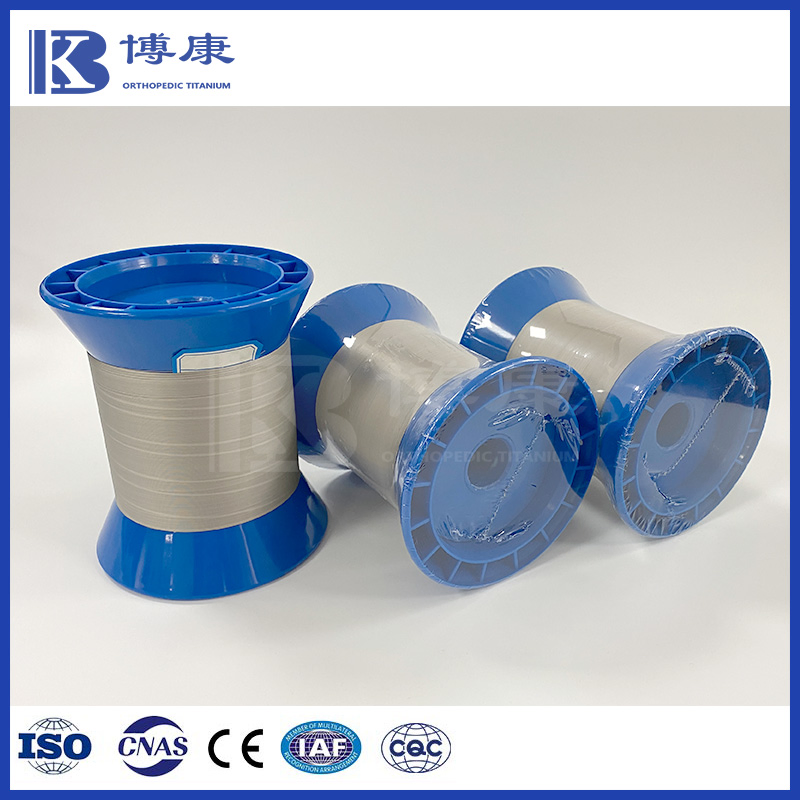

Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
1 / 5
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments
Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments

Medical Grade Pure Titanium Wire for Titanium Clip Surgical Instruments

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.BKTW-M
TechniqueHot Rolled
GradeGr1, Gr2, Gr3, Gr4, Gr5, Gr9, Gr23
ShapeRound
ToleranceH6, H7, H8, H9
ConditionAnnealed (M), Cold Rolled(Y), Hot Rolled(R)
SurfaceBright Surface
StandardASTM, ISO, AMS, JIS, DIN
MOQ1kg
MaterialPure Titanium
HS Code8108901090
Capacity200tons/Year
🔬 Product Description
Titanium Wire

Titanium wires are manufactured through rigorous multiple drawing processes. We provide a diverse range of titanium and titanium alloy wires, including specialized 0.20-0.28 wires for surgical staplers, 0.8-4.0 straight wires for orthopedic and dental applications, as well as industrial welding wires.

Key Features:
High Surface Finish Good Roundness Small Tolerances Stable Performance Uniform Composition Long Fatigue Life

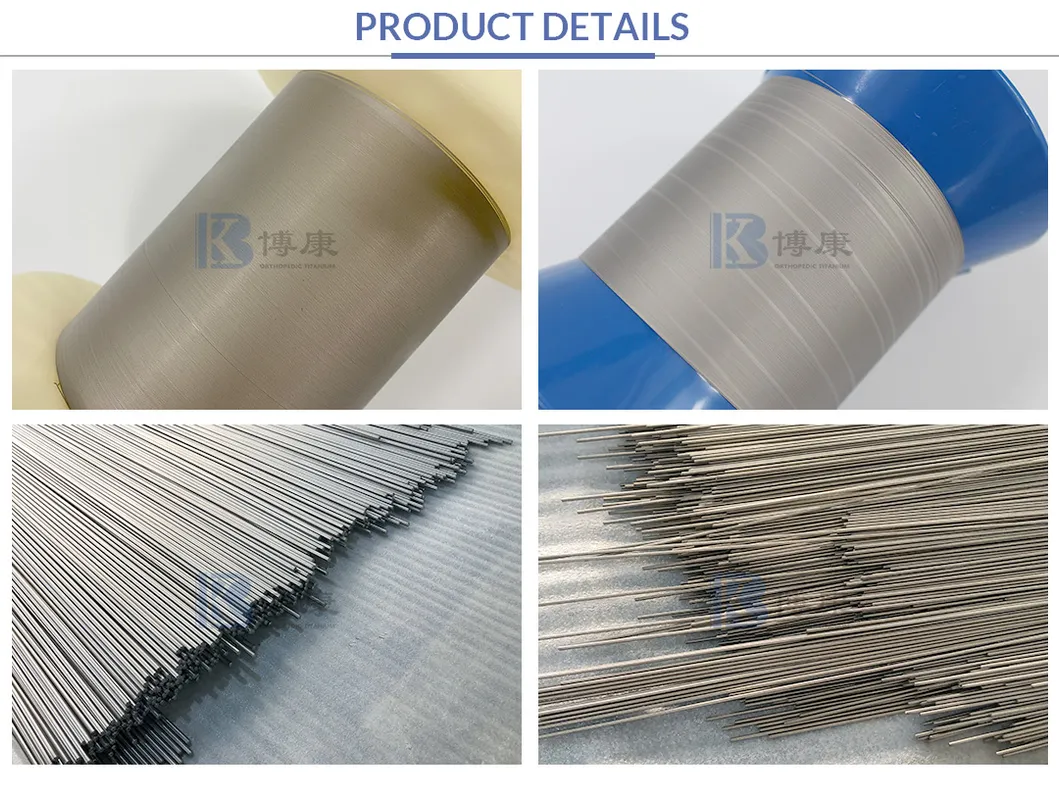

Titanium Wire Features
⚙️ Production Process

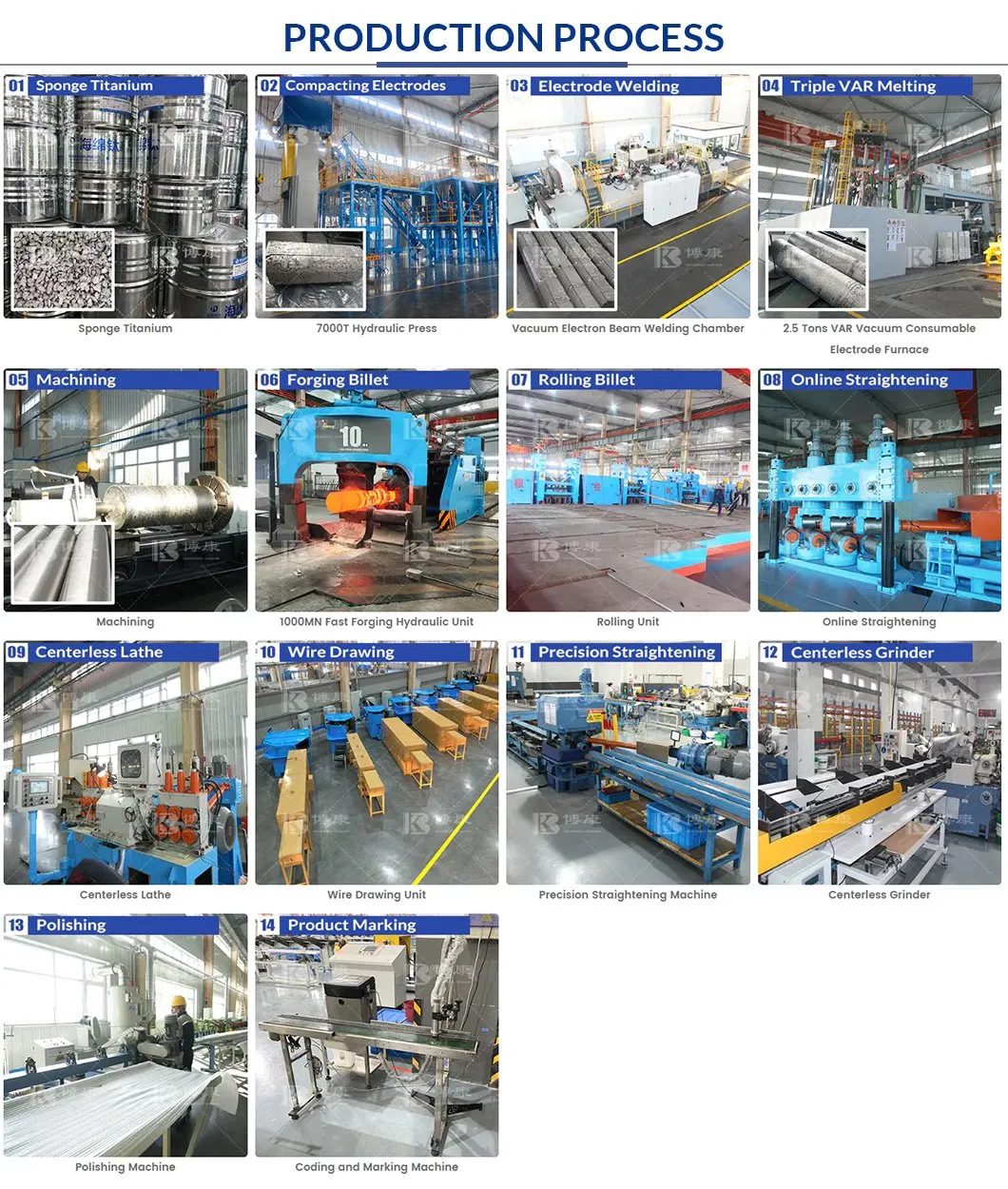

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical test → Microstructure test → Centerless Grinder → Eddy Current Test → Polishing → Visual and dimension inspection → Product Marking → Packaging → Delivery
Production Process

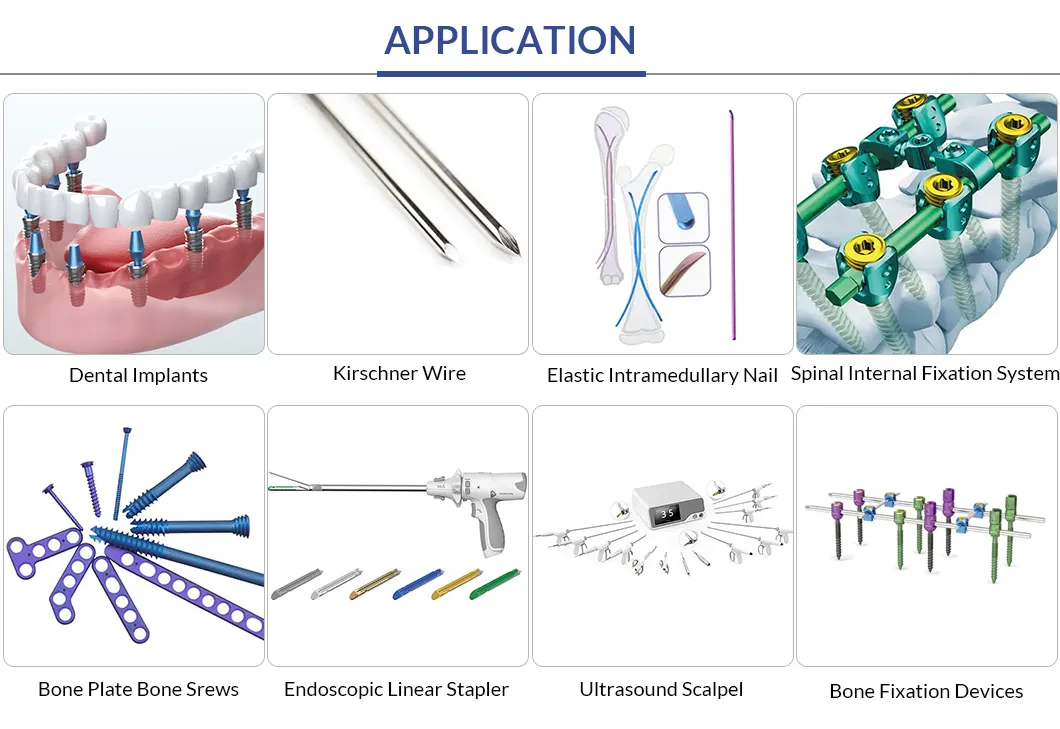

🚀 Applications

Our titanium wires are versatile and widely used in:

  • Medical implants
  • Surgical instruments
  • Aerospace alloys
  • Automotive parts
  • Optical frames
  • Architectural cladding
  • Bolts & nuts
  • Corrosion netting
Applications
📊 Technical Parameters
Parameter Specifications
GradeGr1, Gr2, Gr3, Gr4, Gr5, Gr9, Gr23, etc
StandardASTM F67, ASTM F136, ISO5832, AMS4928, ASTM B863
Diameter0.1 ~ 4.75mm
ShapeStraight wires, Coils, Spools
ConditionAnnealed (M), Cold rolled(Y), Hot rolled(R)
SurfaceBright Surface
ASTM F67 Chemical Composition (%)
  • Hydrogen, max
    • Element Grade 1 Grade 2 Grade 3 Grade 4
    Nitrogen, max0.030.030.050.05
    Carbon, max0.080.080.080.08
    0.0150.0150.0150.015
    Iron, max0.20.30.30.5
    Oxygen, max0.180.250.350.4
    TitaniumBalanceBalanceBalanceBalance
    📸 Factory & Certifications
    Certifications

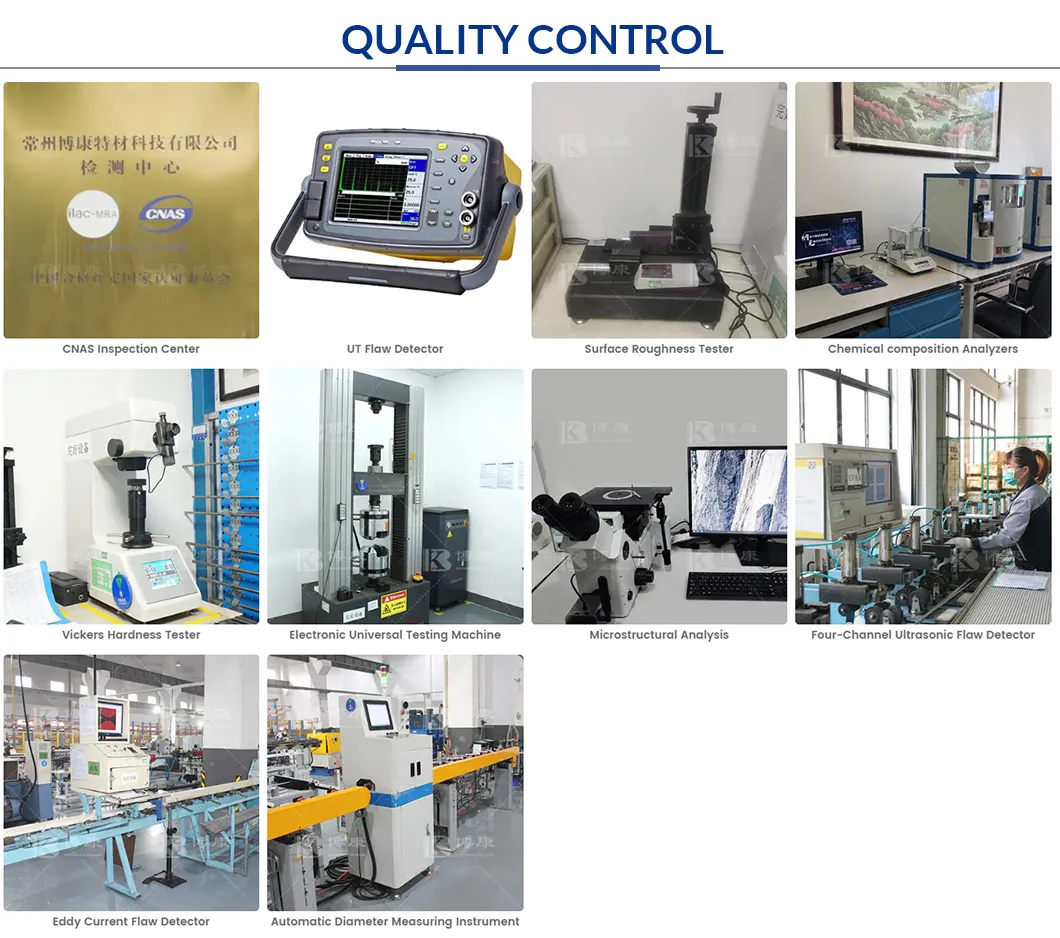

    Factory View 1 Factory View 2 Factory View 3
    Advantage 1 Advantage 2
    ❓ Frequently Asked Questions
    Are you a direct manufacturer or trading company?
    We are a professional manufacturer with over 18 years of specialized production experience in the titanium industry.
    What is the minimum order quantity (MOQ)?
    Our MOQ is 1 kg. We maintain a significant inventory of regular medical and aerospace materials to meet urgent requirements.
    Do you offer free samples?
    Generally, samples are free of charge; however, customers are expected to cover the shipping/freight costs.
    How do you ensure the quality of your products?
    We inspect every stage of the production process and utilize advanced testing equipment to ensure all finished products meet international standards.
    What materials and products do you specialize in?
    We specialize in pure titanium, titanium alloys, nitinol alloys, and produce them in forms such as rods, wires, discs, and customized parts.
    Can you provide customized products?
    Yes, we fully support custom production based on specific customer drawings or provided samples.
