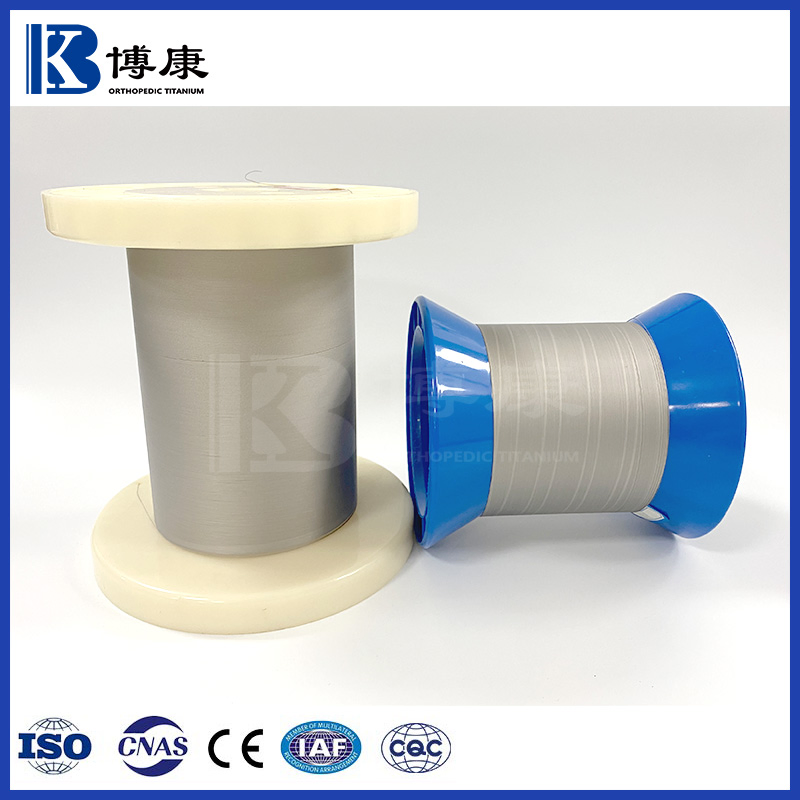

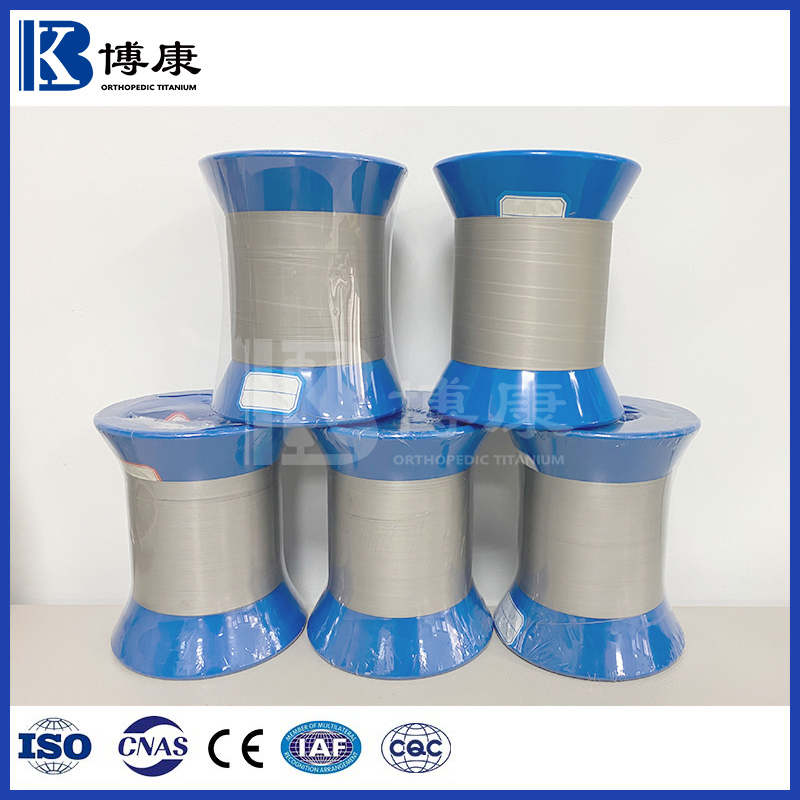

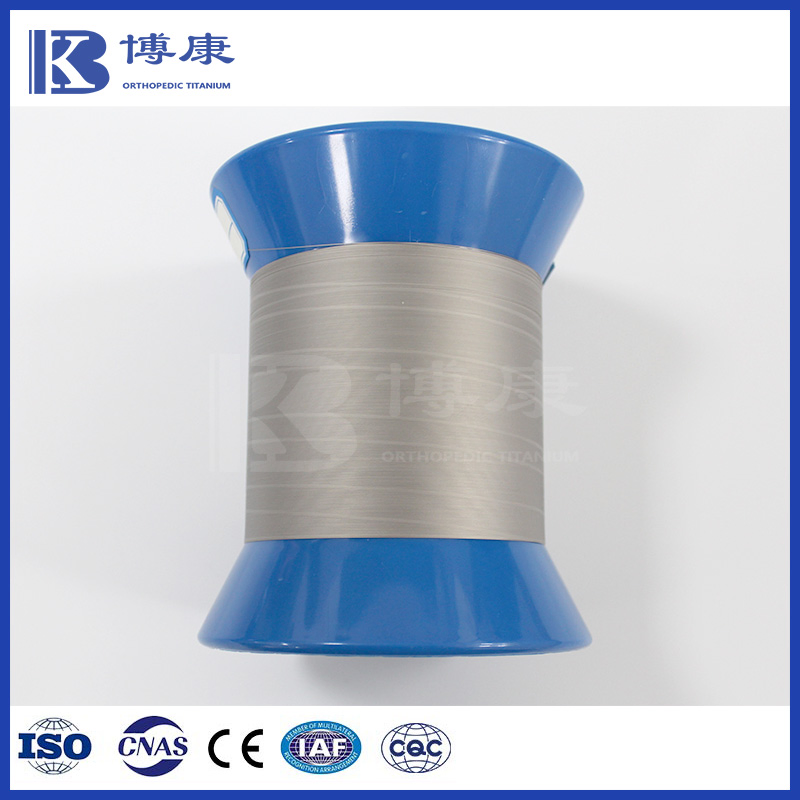

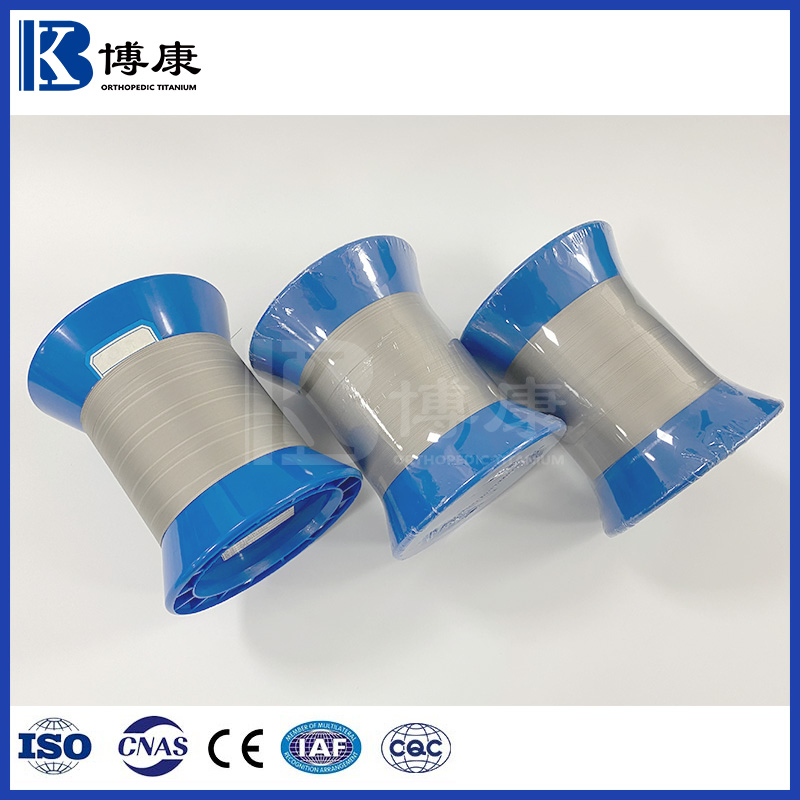

0.20mm Medical Grade Pure Titanium Thin Wire for Surgical Stapler Pin Manufacturing

1 / 5

0.20mm Medical Grade Pure Titanium Thin Wire for Surgical Stapler Pin Manufacturing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

BKTW-M

Technique

Hot Rolled

Grade

Gr1, Gr2, Gr3, Gr4

Shape

Round

MOQ

1kg

Standard

ASTM, ISO, AMS, JIS, DIN

Surface

Bright

Diameter Tolerance

±0.005mm

Supply Form

Spool Wound

Transport Package

Wooden Case

Specification

0.2~1.0mm

Origin

Changzhou, China

HS Code

8108901090

Production Capacity

200tons/Year

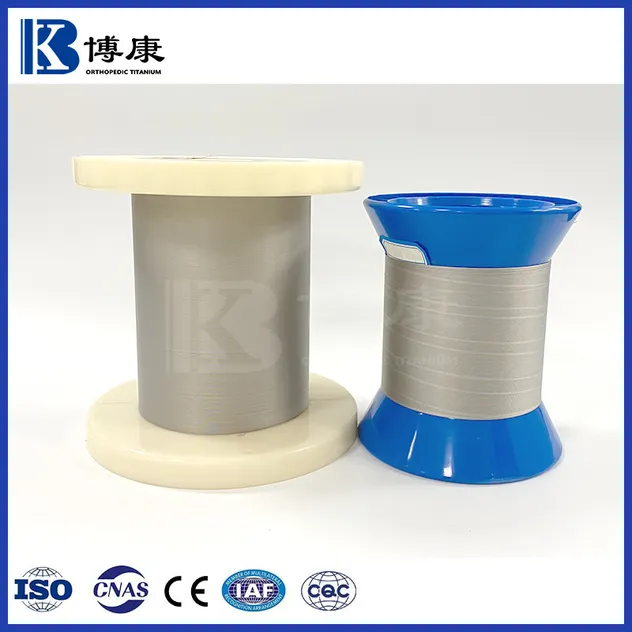

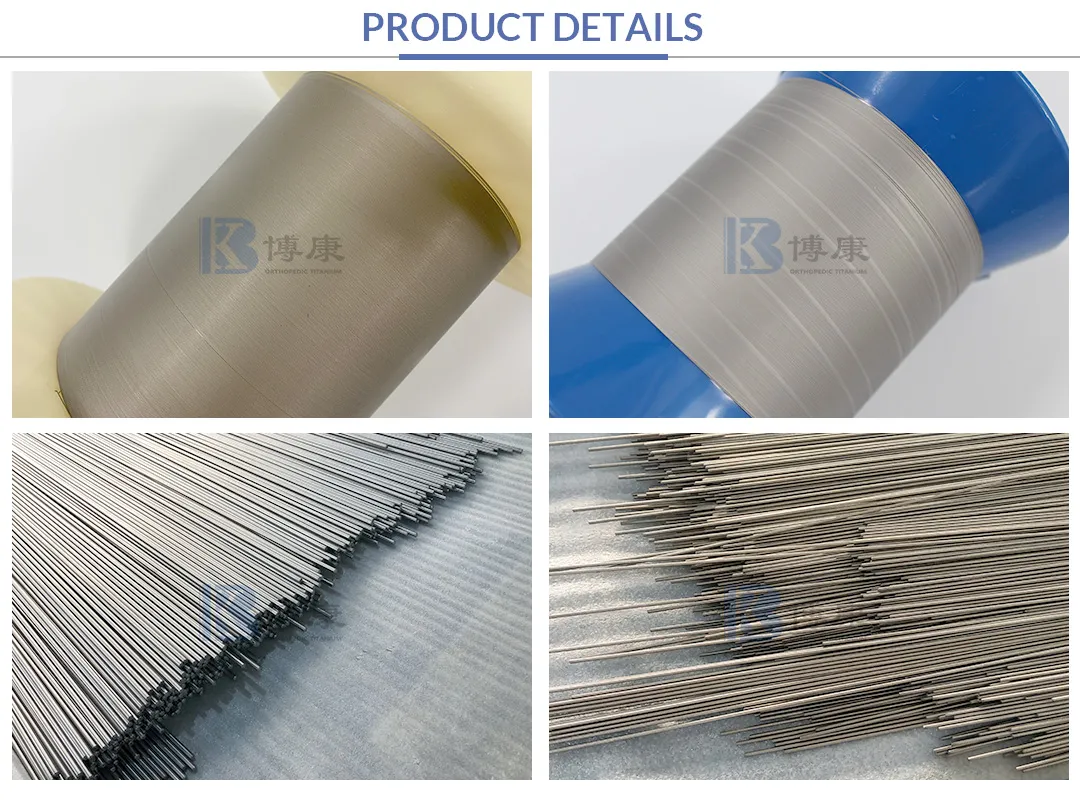

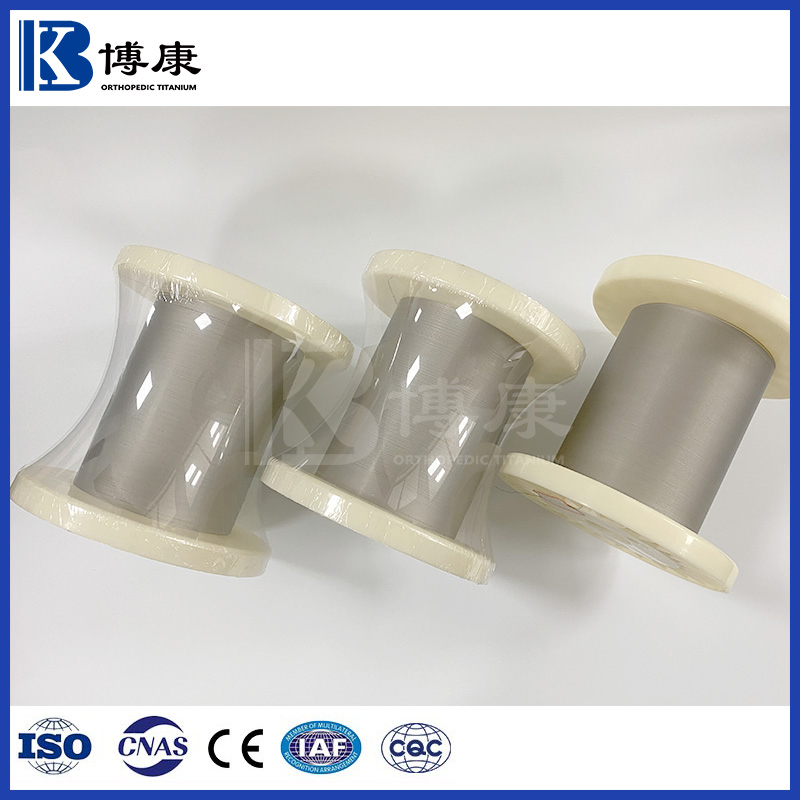

Medical Grade Pure Titanium Wire

We supply high-quality medical grade titanium wire made from pure titanium Grade 1, Grade 2, Grade 3, Grade 4, in full compliance with ASTM F67, ISO5832-2 standards. Our titanium wires are widely used in surgical stapler titanium pins, titanium clips for surgical instruments, and titanium suture wire for medical implantation due to its outstanding biocompatibility, strength, and corrosion resistance.

Product Advantages

Fully Independent Processing: In-house production ensures full control over quality and customization.
Excellent Formability: Outstanding plasticity allows for easy shaping into complex medical components.
High Stability & Consistency: Reliable performance in batch-to-batch production for precision medical use.
Uniform Composition: Chemically consistent material throughout, ensuring predictable results.
Customizable Strength: Mechanical properties can be tailored to meet specific surgical or medical device requirements.

Material Characteristics

High-Purity Raw Material: Precision smelted from sponge titanium with 99.9% purity.
Superior Biocompatibility: Ideal for long-term implantation with no adverse reaction.
Strong Plasticity: Suitable for coiling, bending, and cold forming.
High Surface Smoothness: Clean and bright finish, enhancing surgical precision.
Tangle-Free Winding: Uniform wire feeding, minimizing process interruption.

Technical Specifications

Grade	GR1, GR2, GR3, GR4
Standard	ASTM F67, ISO5832-2, GB/T13810-2017
Diameter(mm)	φ0.2-1.0
Common Spec (mm)	φ0.20, φ0.21, φ0.23, φ0.28, φ0.3, φ0.6, φ0.8, φ1.0
Tolerance	±0.005mm
Supply Form	Spool Wound
Surface Finish	Bright

ASTM F67 Titanium Wire Chemical Composition:

Element	Grade 1	Grade 2	Grade 3	Grade 4
Nitrogen, max	0.03	0.03	0.05	0.05
Carbon, max	0.08	0.08	0.08	0.08
Hydrogen, max	0.015	0.015	0.015	0.015
Iron, max	0.2	0.3	0.3	0.5
Oxygen, max	0.18	0.25	0.35	0.4
Titanium	balance	balance	balance	balance

Mechanical Properties:

Grade	Tensile (MPA)	Yield (MPA)	Elongation %	Reduction %
1	240	170	24	30
2	345	275	20	30
3	450	380	18	30
4	550	483	15	25

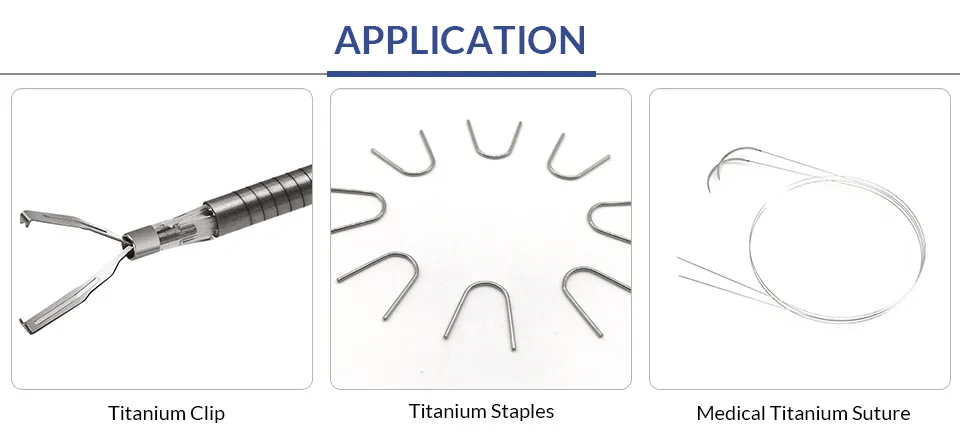

Applications

Implant-grade suture wire: Ideal for long-term implantation in soft tissue closure.
Titanium pins for surgical staplers: Ensures secure and stable wound closure.
Titanium clips for surgical instruments: Used for vessel ligation, tissue fixation, and hemostasis.

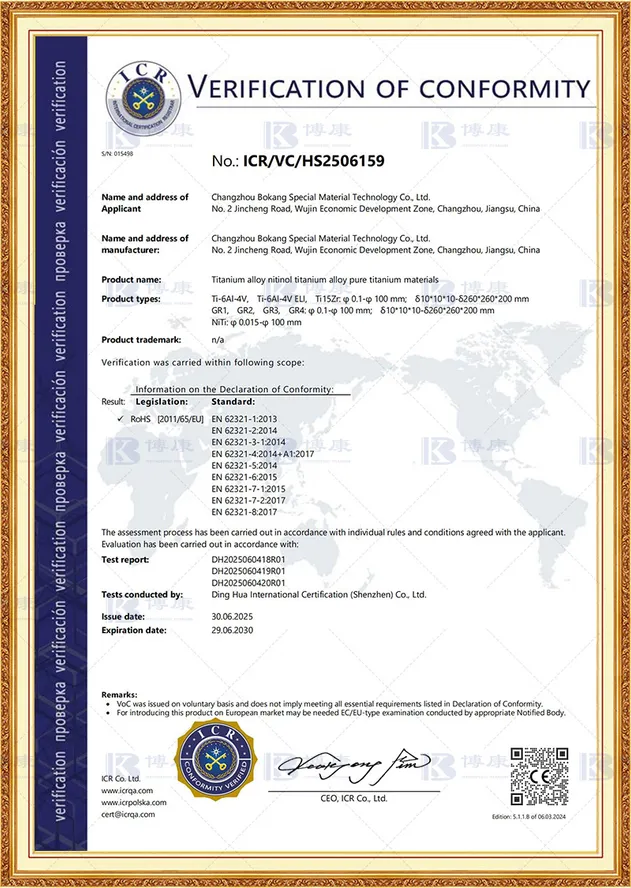

Certifications

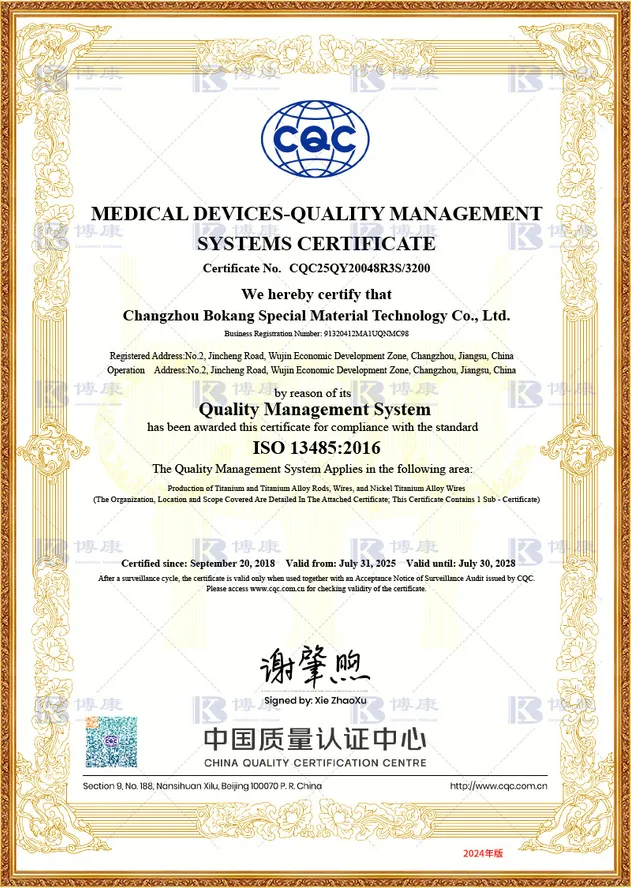

ISO 13485

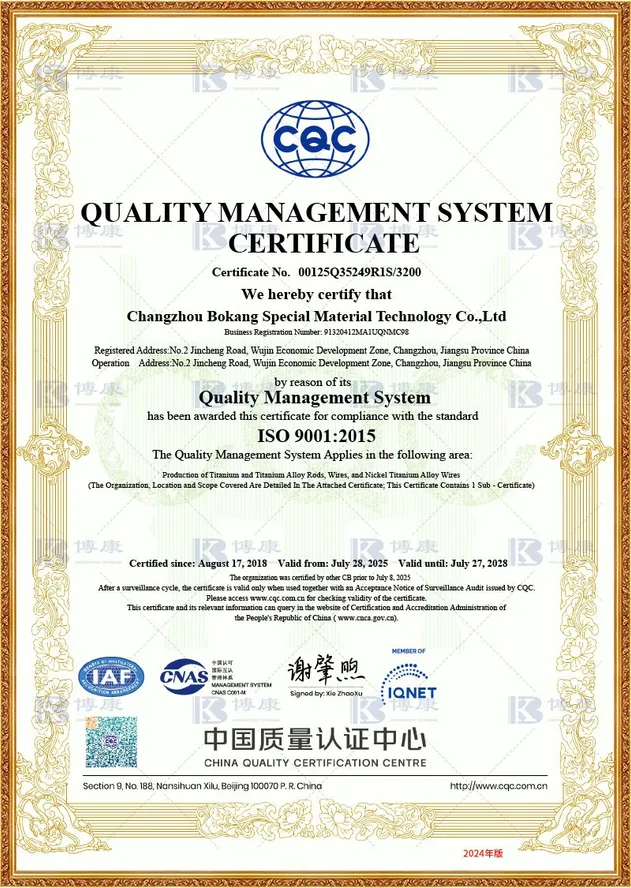

ISO 9001

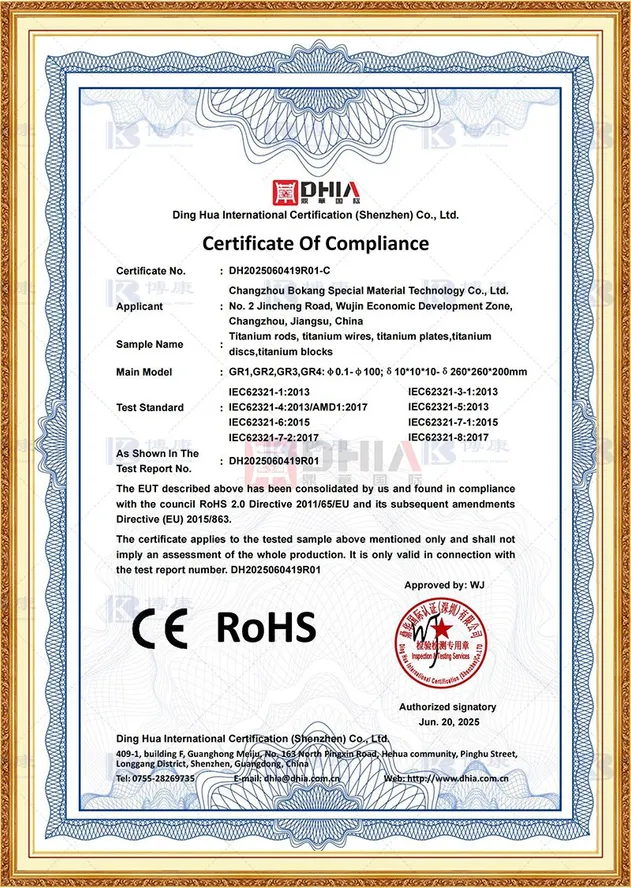

RoHS Pure Titanium

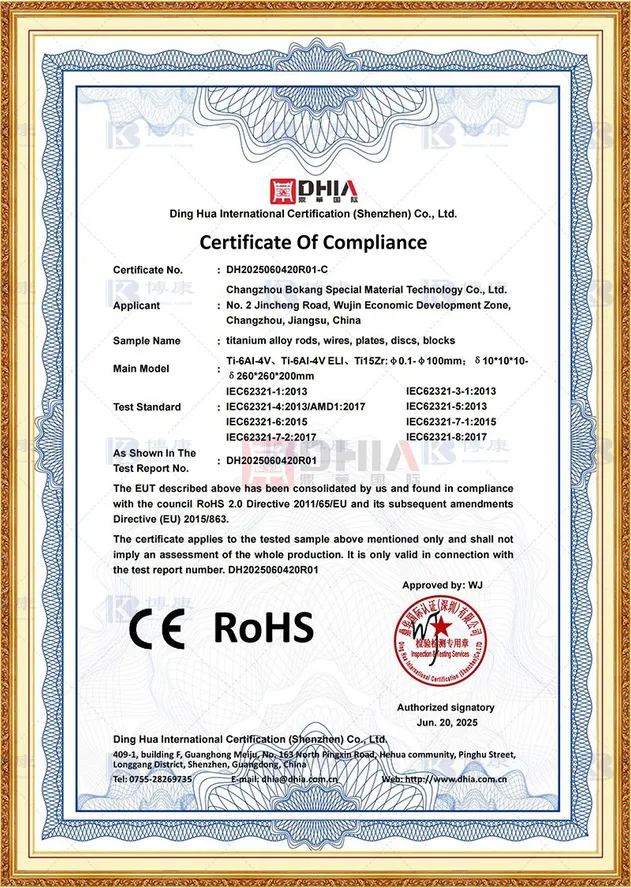

RoHS Titanium Alloy

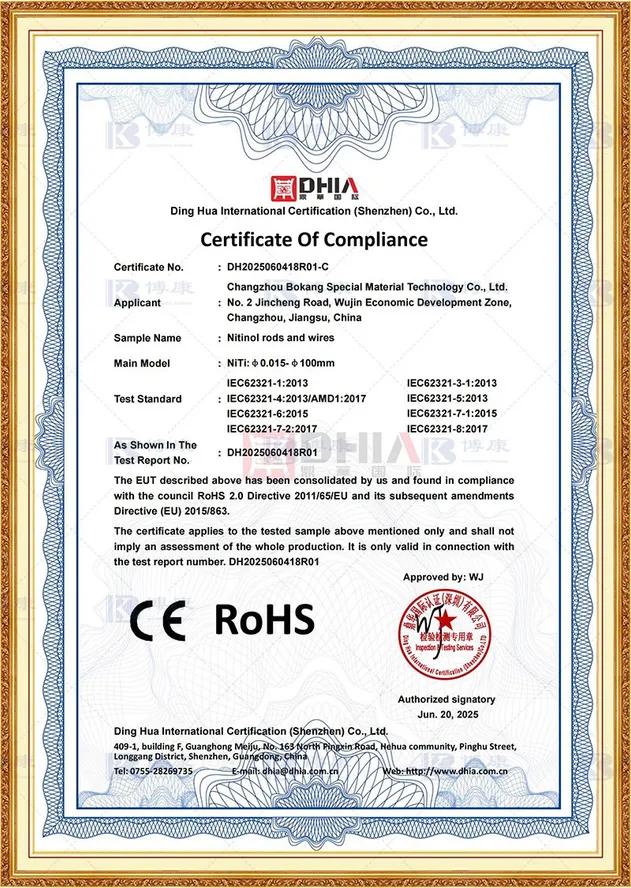

RoHS Nitinol

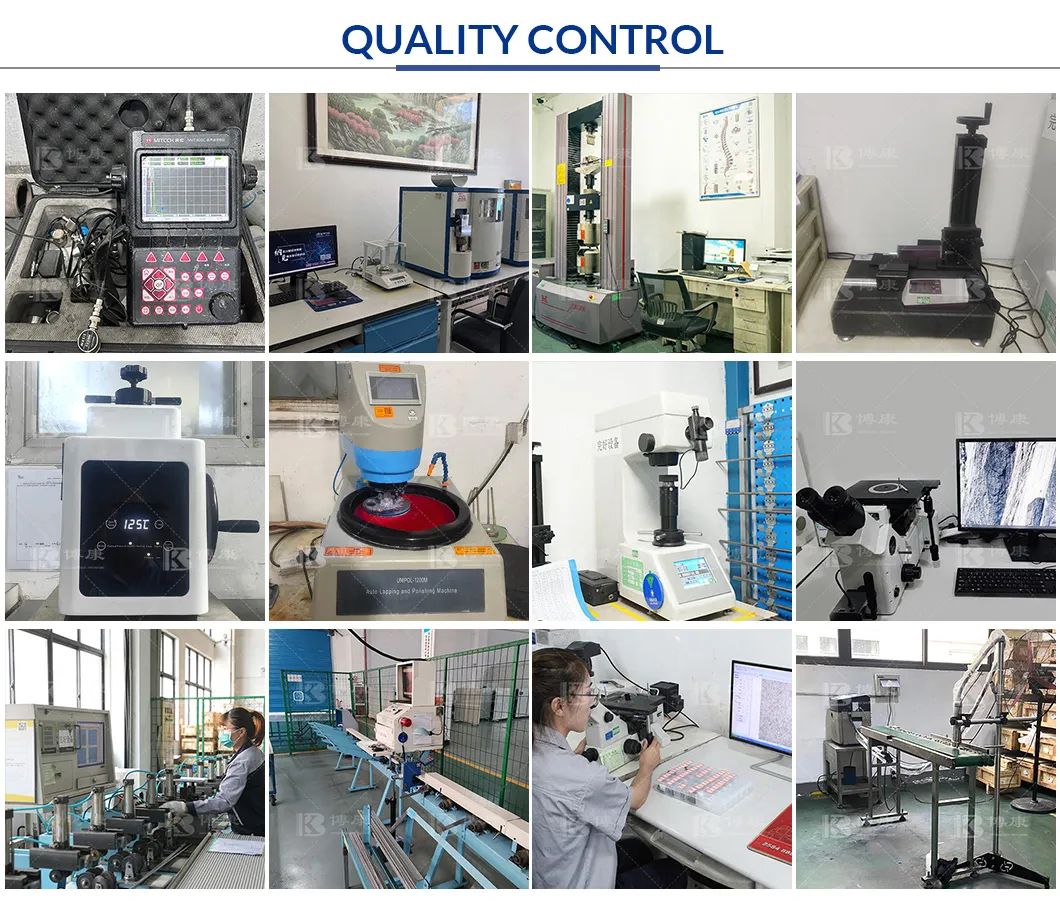

Production and Quality Control

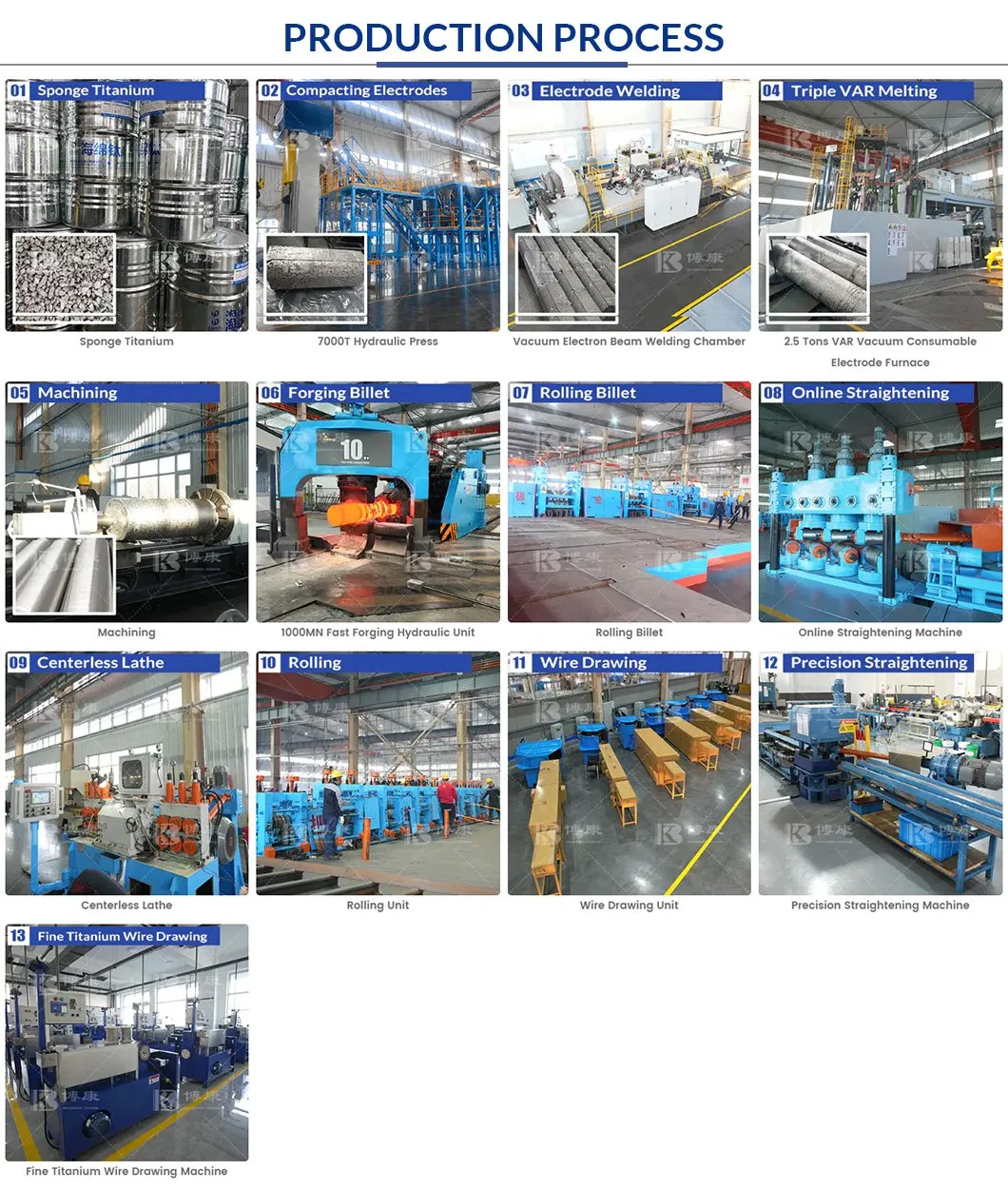

Titanium Wire Production Process:

Sponge Titanium → Compacting Electrodes → Triple VAR Melting → Forging → Rolling → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical Test → Polishing → Visual & Dimension Inspection → Packaging

Our Main Product Categories

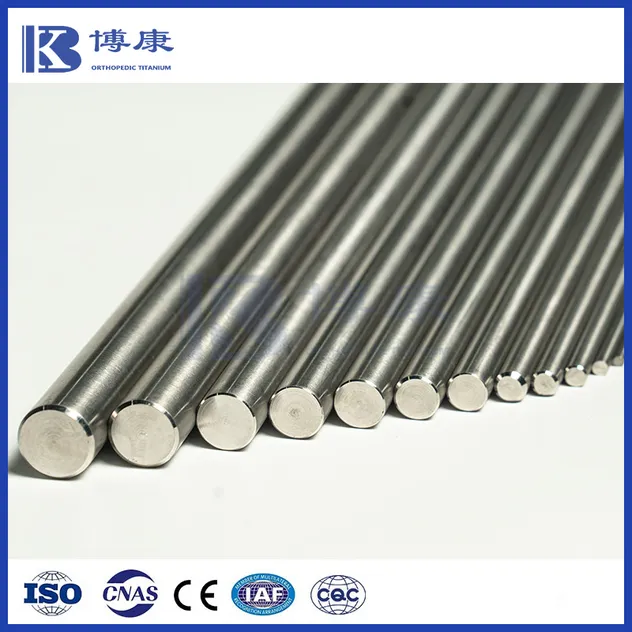

Titanium Bars Rods

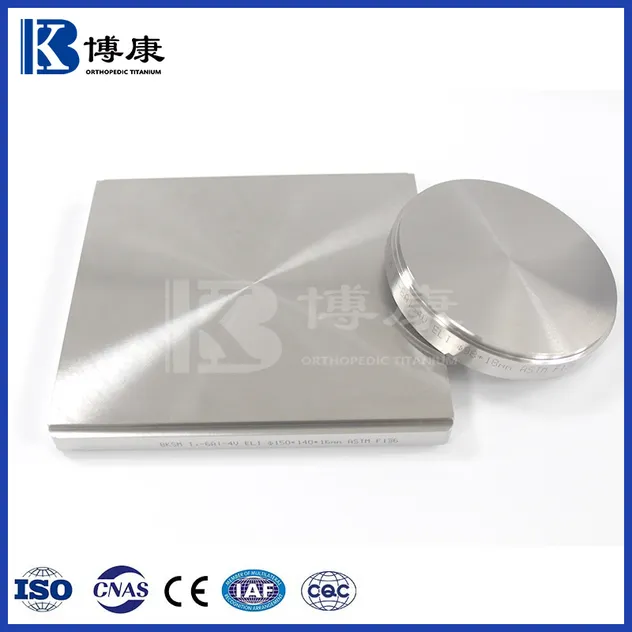

Titanium Disc

Titanium Wire

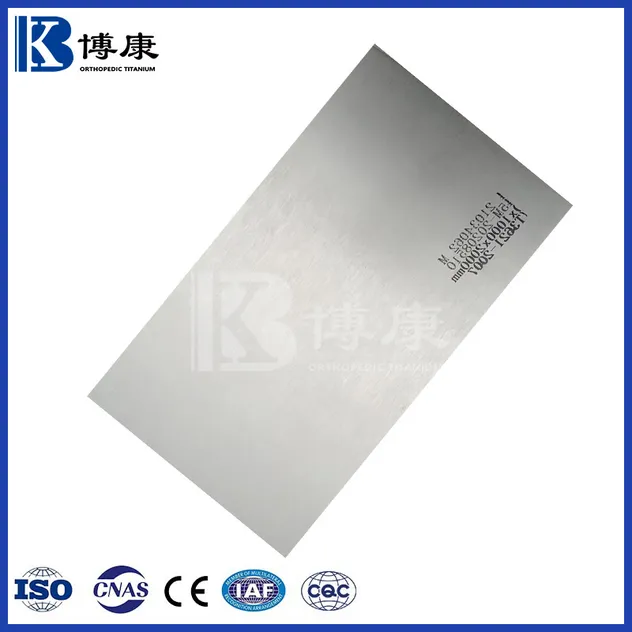

Titanium Plates/Sheets

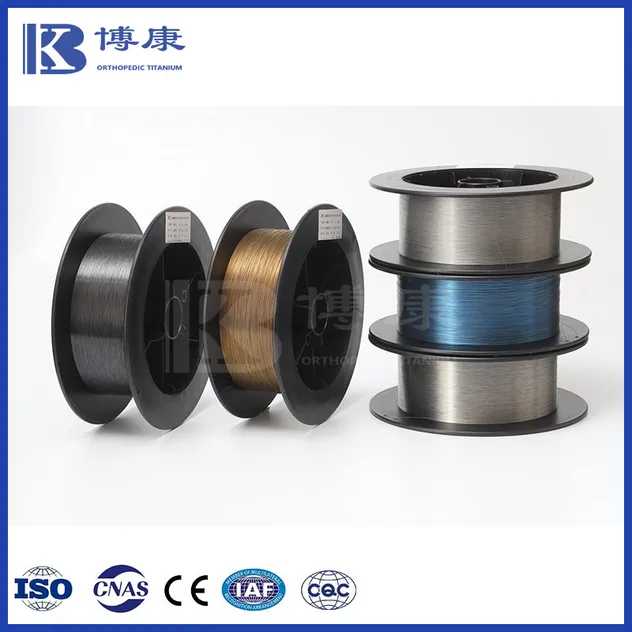

Nitinol Wire

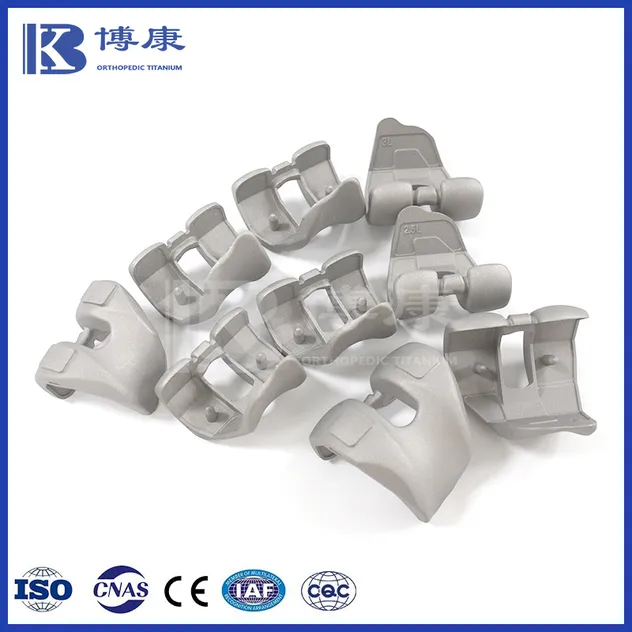

Medical CoCrMo Castings

Factory Overview

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a direct manufacturer with over 18 years of experience in titanium production, focusing on medical and industrial materials.

What is your minimum order quantity (MOQ)?

Our MOQ is 1 kg. We maintain a large production capacity of 20 tons monthly to ensure sufficient stock for standard medical materials.

Do you provide free samples for testing?

Yes, we offer free samples. However, customers are required to cover the shipping costs.

How do you ensure the quality of your titanium products?

We implement strict quality control at every stage, from sponge titanium to the final product, using advanced testing equipment and adhering to ISO and ASTM standards.

Can you provide customized titanium products?

Yes, we specialize in custom manufacturing based on specific customer drawings, dimensions, or material requirements.

What are your typical payment and shipping terms?

We accept T/T and L/C. Shipping can be arranged via sea or air. Typically, a 30% deposit is required before production, with the balance paid against shipping documents.
