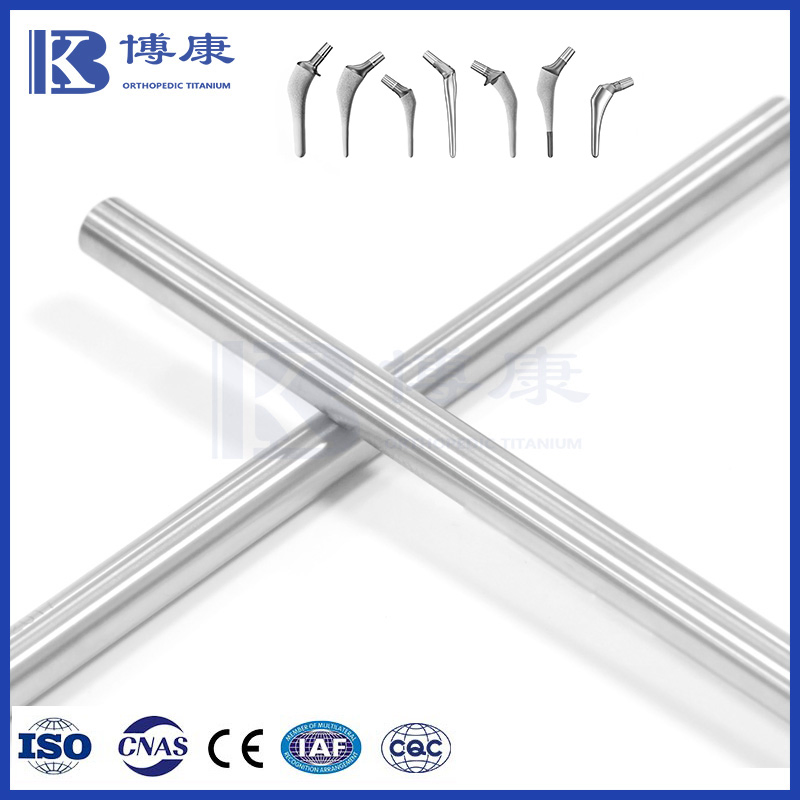

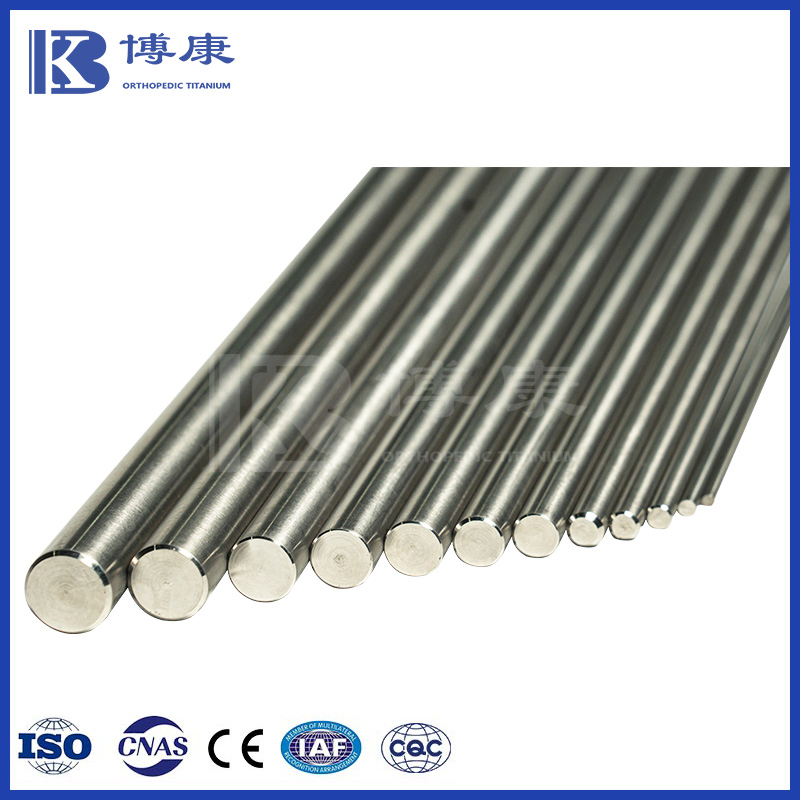

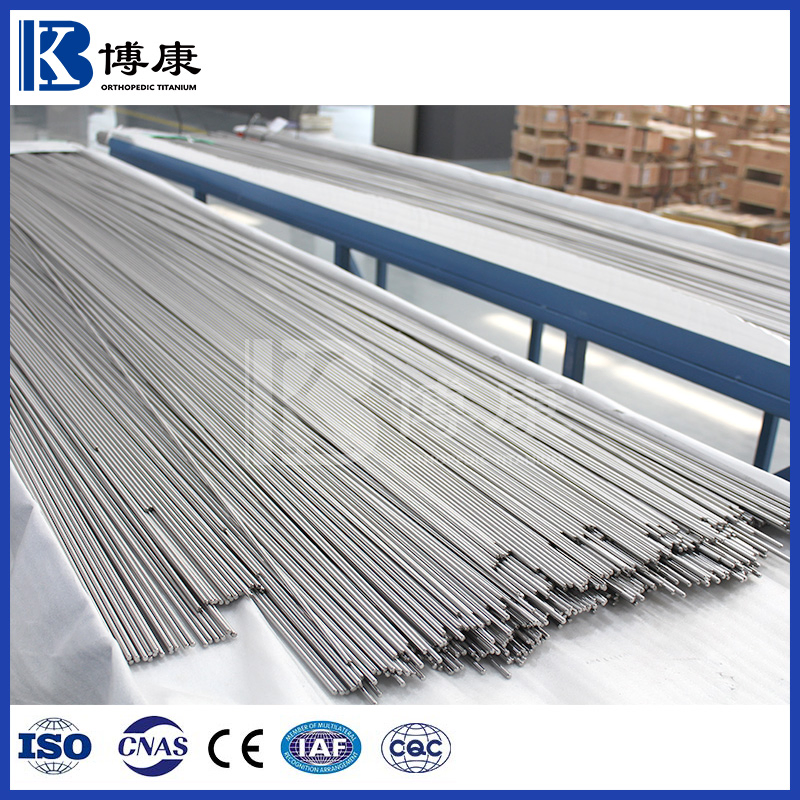

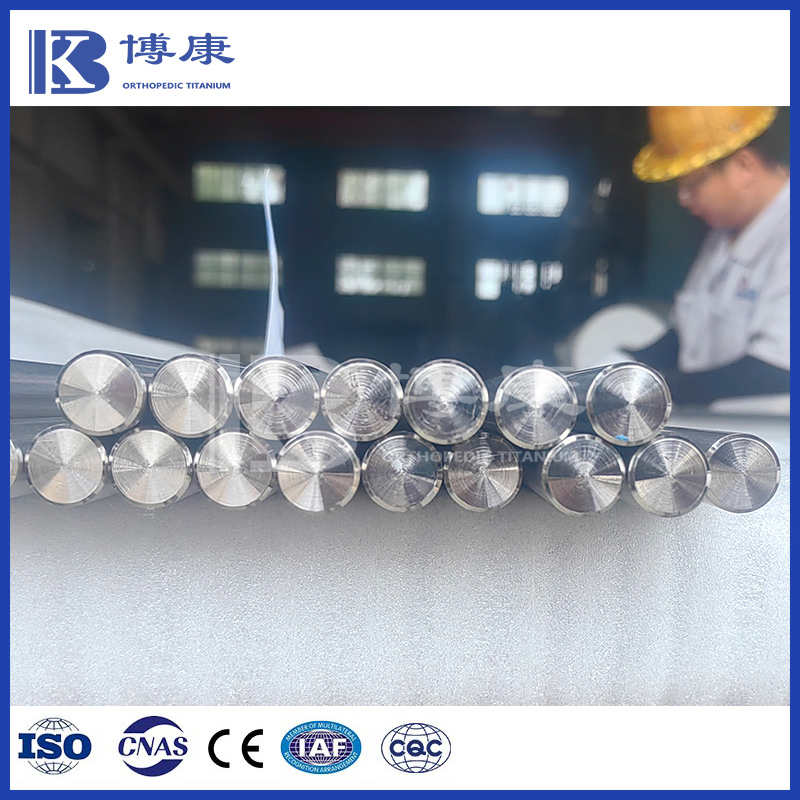

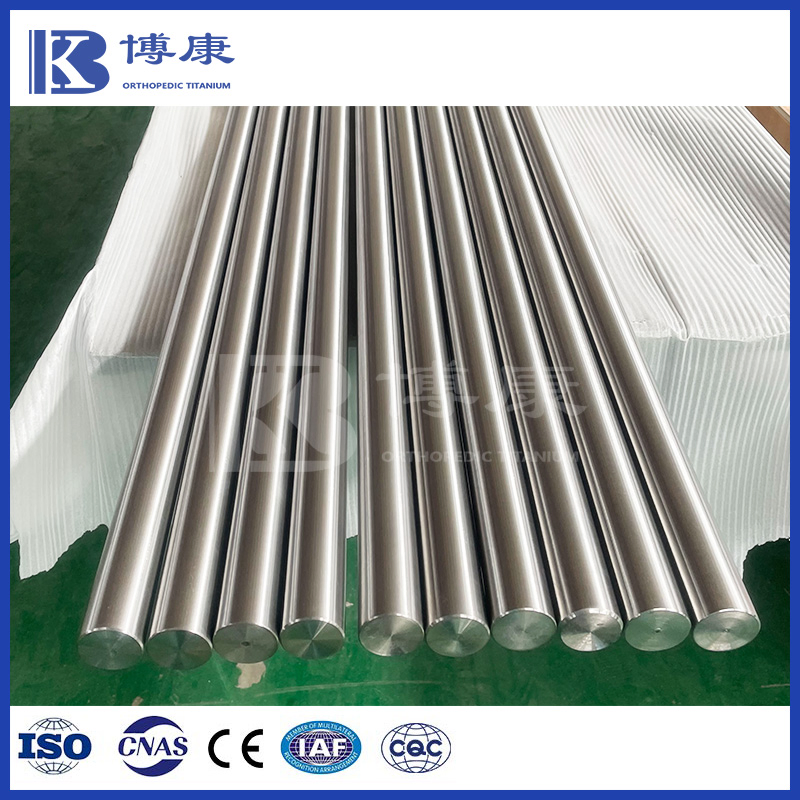

Titanium rods are categorized into pure titanium rods and titanium alloy rods. We offer various grades and sizes for several industries, including medical titanium rods (orthopedic, dental, medical devices), aerospace (fasteners, profiles, forgings), and industrial applications.
| Titanium Bar Specifications | |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI) |
| Standard | ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; AMS4965; ASTM B348 |
| Diameter(mm) | 1.0~101.6mm |
| Length(mm) | 500-4000 |
| Tolerance | h6, h7, h8, h9 |
| Shape | Round |
| Surface | Bright Surface |

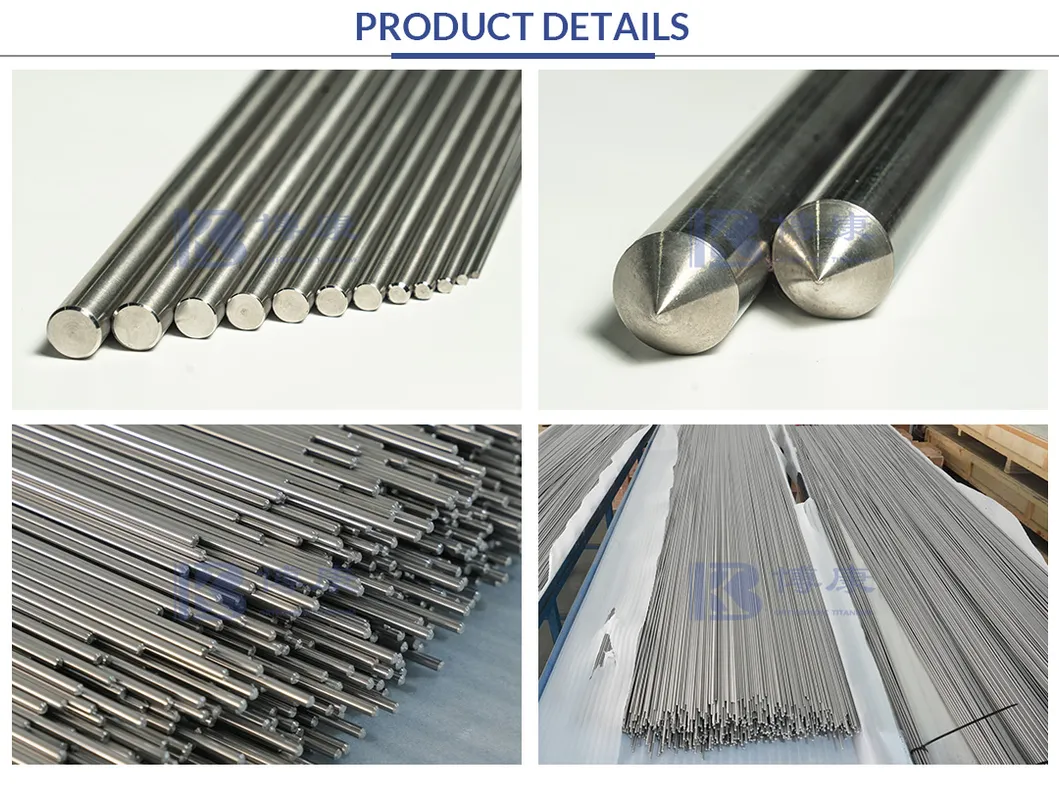

Titanium Round Bar Features:
Titanium rods are widely used in the medical field to manufacture orthopedic implants (e.g., hip and knee replacements), dental implants, ultrasonic scalpels, surgical staplers, and other specialized surgical instruments.
| Element | Composition, % (mass/mass) |
|---|---|
| Nitrogen (Max) | 0.05 |
| Carbon (Max) | 0.08 |
| Hydrogen (Max) | 0.012 |
| Iron (Max) | 0.25 |
| Oxygen (Max) | 0.13 |
| Aluminum | 5.5-6.50 |
| Vanadium | 3.5-4.5 |
| Titanium | Balance |
