Precision alloys are metal materials with special physical properties (such as magnetic, electrical, thermal and other properties). The vast majority of precision alloys are based on ferrous metals, and only a few are based on non-ferrous metals.
Usually include magnetic alloys, elastic alloys, expansion alloys, thermal bimetals, electrical alloys, hydrogen storage alloys, shape memory alloys, and magnetostrictive alloys.

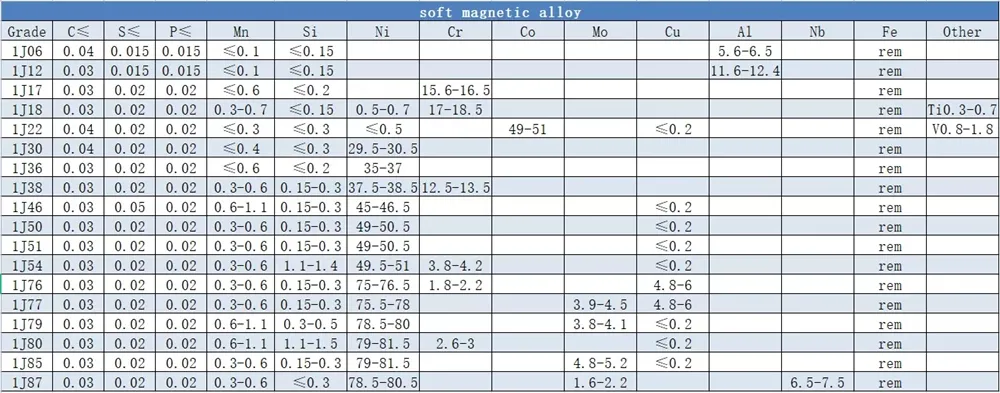

Alloys with high permeability and low coercivity in weak magnetic fields. Includes iron-silicon, iron-nickel, iron-aluminum, and iron-cobalt alloys.
Grades: 1J06, 1J12, 1J17, 1J18, 1J22, 1J30, 1J36, 1J38, 1J46, 1J50, 1J51, 1J54, 1J76, 1J77, 1J79, 1J80, 1J85, 1J87

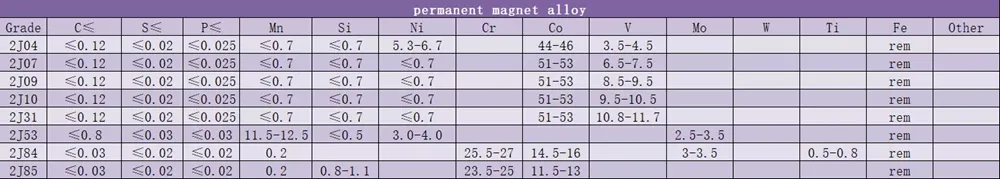

Characterized by high hardness, strong anti-demagnetization ability, and high coercivity (greater than 20kA/m). Also known as hard magnetic alloy.
Grades: 2J04, 2J07, 2J09, 2J10, 2J31, 2J53, 2J84, 2J85
Includes high elastic and constant elastic alloys for precision instruments, frequency elements, and energy storage elements.
Grades: 3J01, 3J21, 3J53

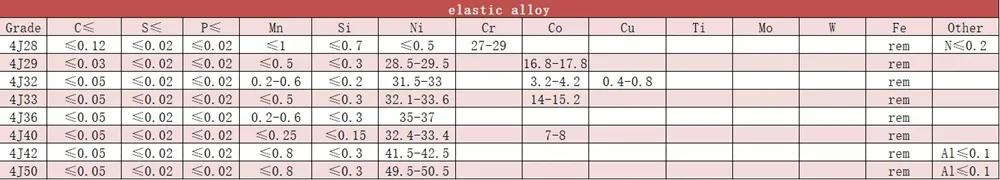

Divided into Kovar alloys, ceramic sealing alloys, low expansion, and constant expansion alloys. Used in electronics and precision tools.
Grades: 4J28, 4J29, 4J32, 4J33, 4J36, 4J40, 4J42, 4J50
| Expansion Alloy Chemical Composition | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Grade | C≤ | S≤ | P≤ | Mn | Si | Ni | Cr | Cu | Al | Fe |
| 6J10 | 0.05 | 0.01 | 0.01 | 0.3 | 0.2 | Rem | 9-10 | 0.2 | - | 0.4 |
| 6J15 | 0.05 | 0.02 | 0.03 | 1.5 | 0.4-1.3 | 55-61 | 15-18 | - | 0.3 | Rem |
| 6J20 | 0.05 | 0.01 | 0.01 | 0.7 | 0.4-1.3 | Rem | 20-23 | - | 0.3 | ≥1.5 |
| 6J22 | 0.04 | 0.01 | 0.01 | 0.5-1.5 | 0.2 | Rem | 19-21.5 | - | 2.7-3.2 | 2-3 |
| 6J23 | 0.04 | 0.01 | 0.01 | 0.5-1.5 | 0.2 | Rem | 19-21.5 | 2-3 | 2.7-3.2 | - |
| Type | Brand | Ni (%) | Mn (%) | Cu (%) |
|---|---|---|---|---|
| Constantan alloy | 6J40 | 39-41 | 1-2 | Rest |
| Manganese Copper | 6J12 | 2-3 | 11-13 | Rest |
Over the years, we have worked hard to promote and realize the modernization of alloy sales, and actively cultivated and enhanced the ability of employees' independent innovation. We hope to establish long-term partnerships and win market reputation.
We are increasing the scale of trade and customers throughout the world. With our good reputation we have won the trust of our customers. We look forward to enhancing technical exchanges with the rest of the world and creating a glorious future together.
Operating for more than 18 years since 2002, we initially focused on resistance alloys. In the past 20 years, we have researched and developed new products such as Thermocouple alloys, Inconel, Monel, Hastelloy, high-temperature alloys, and other nickel-based alloy products.
