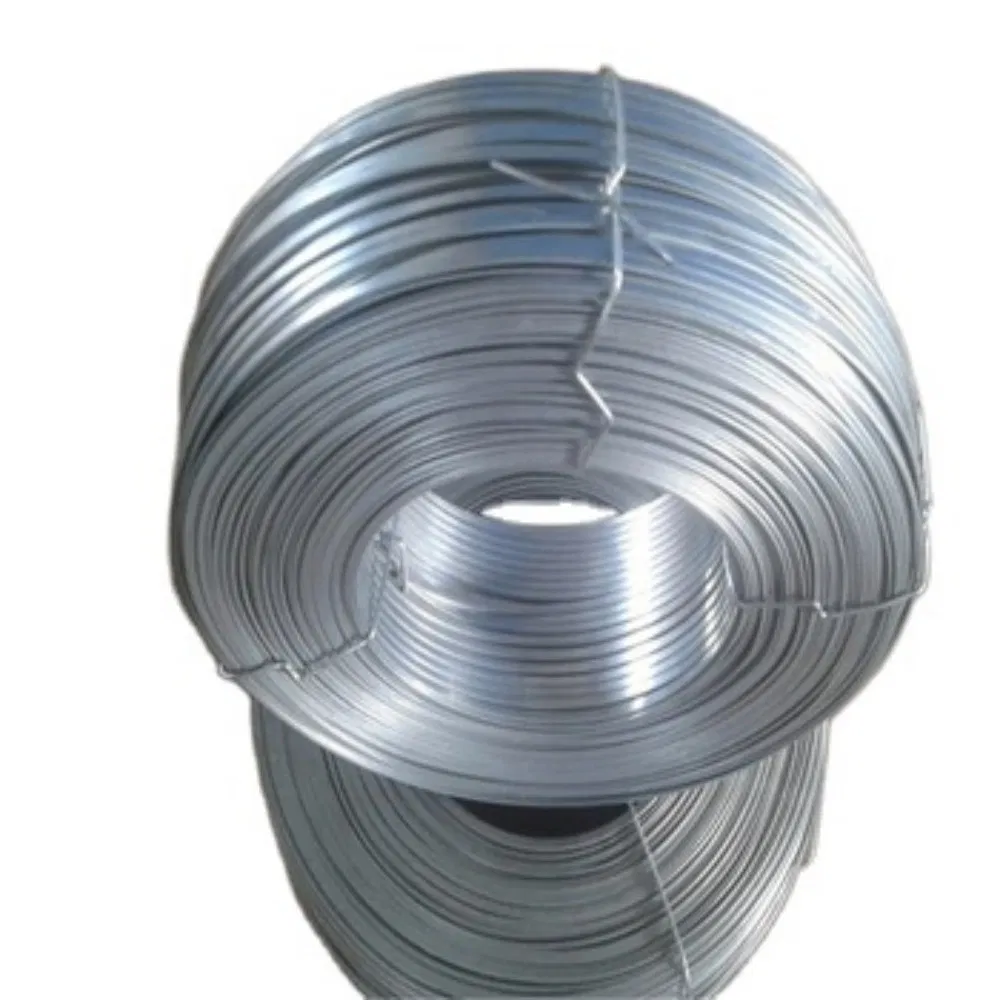

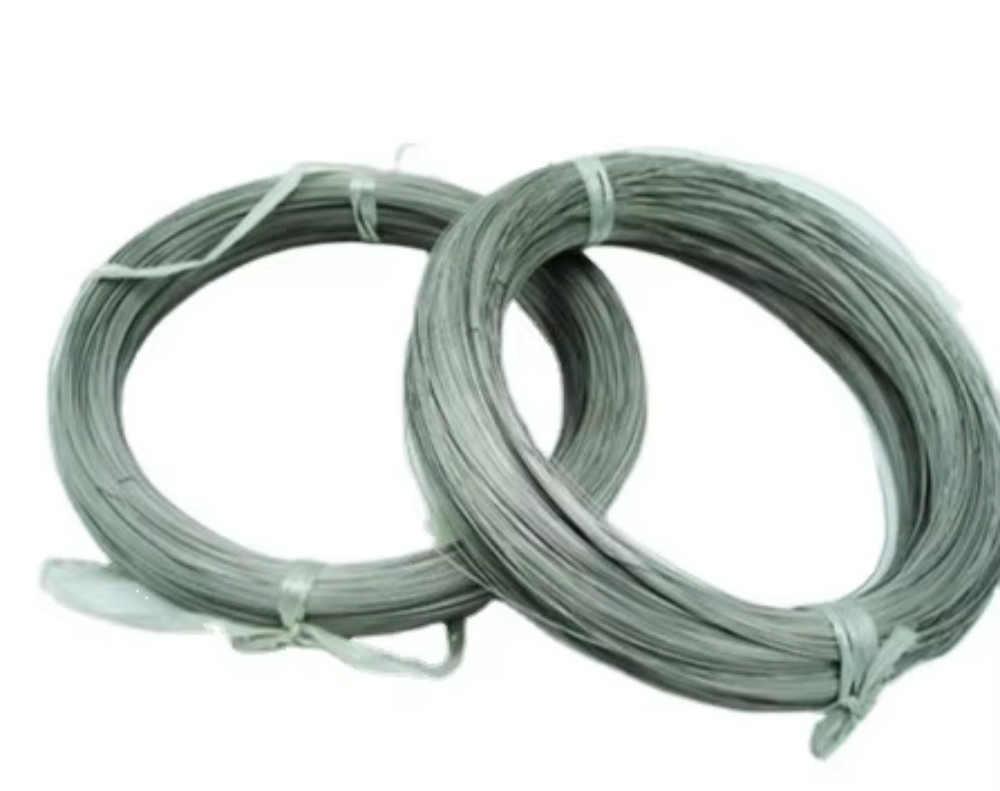

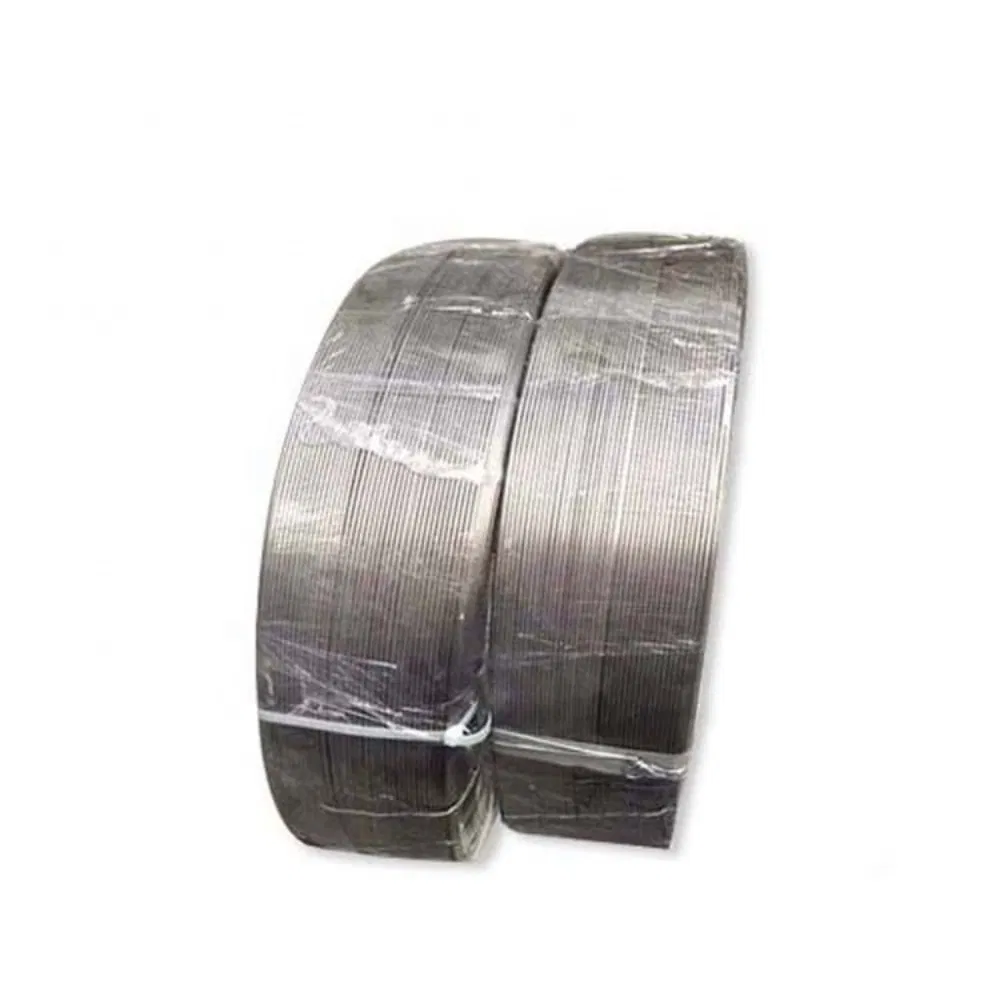

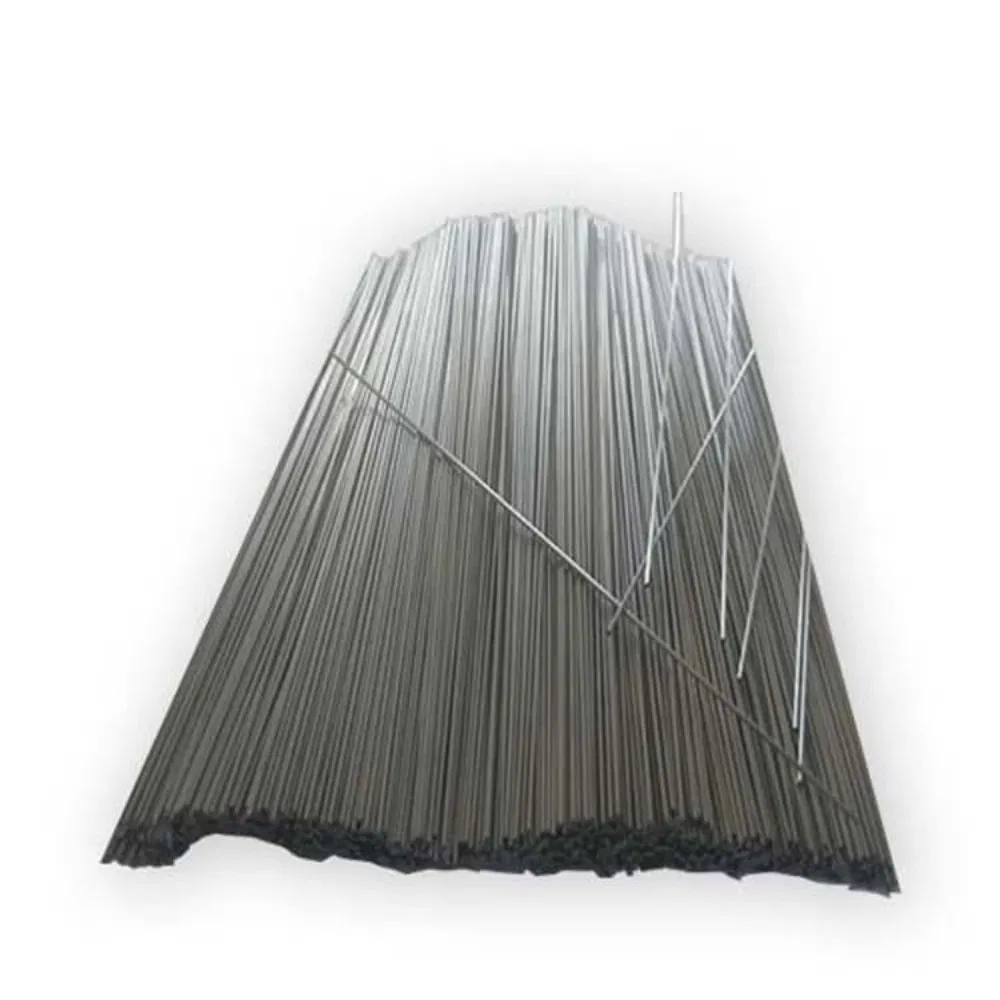

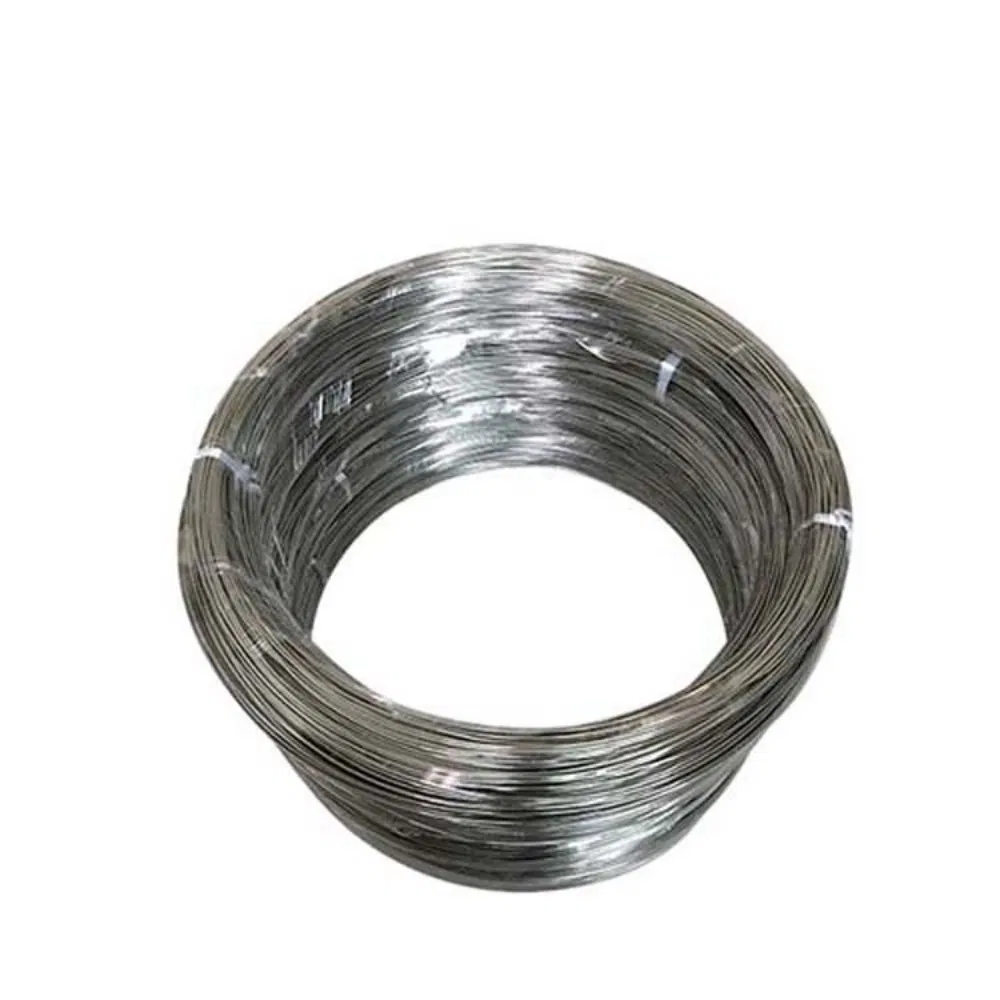

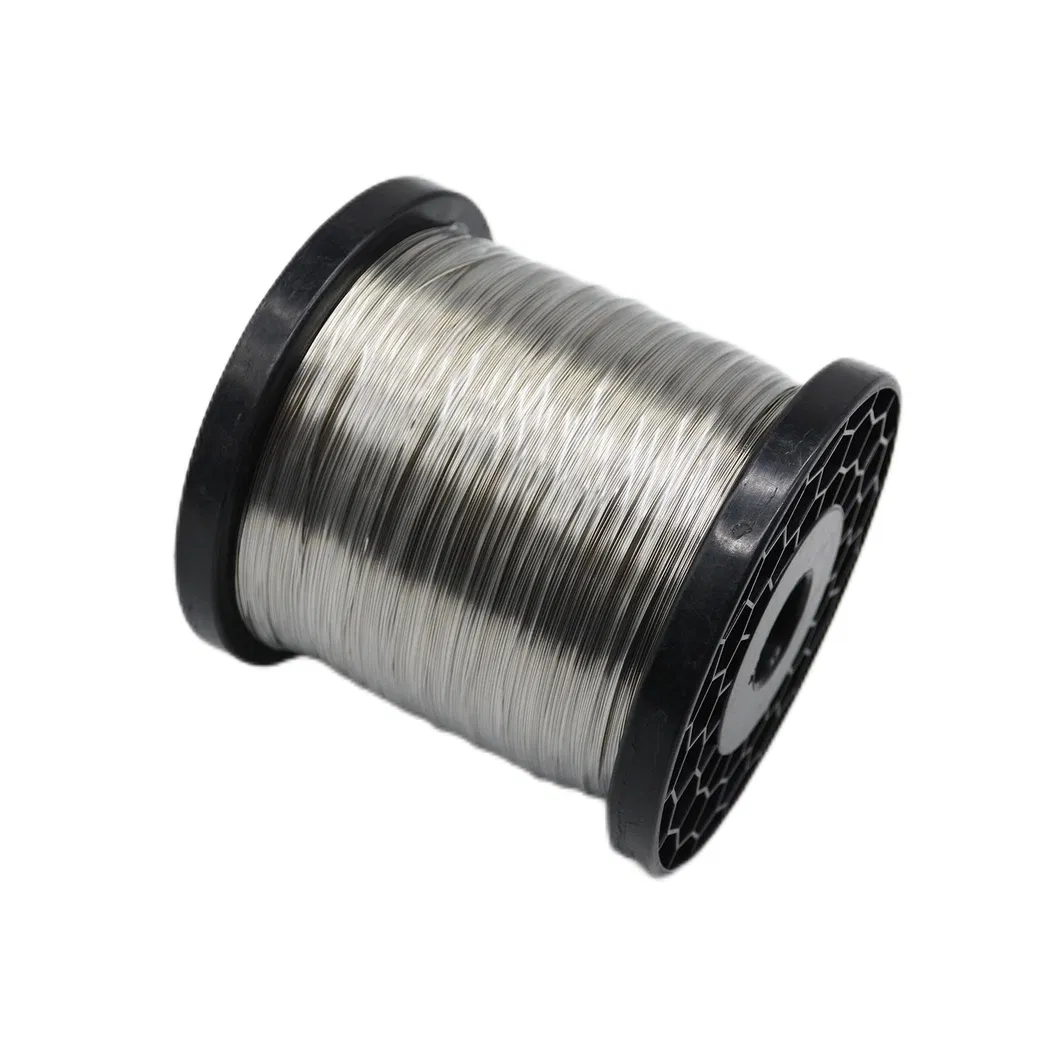

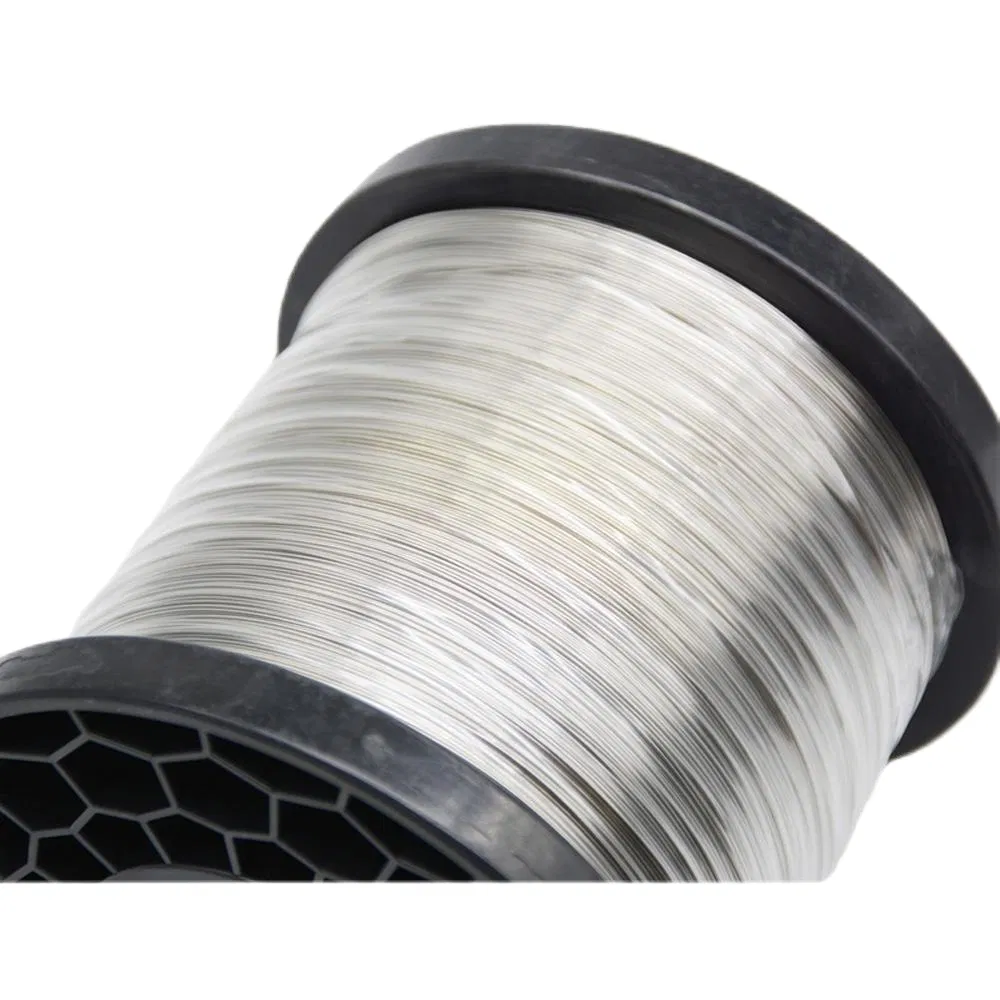

Titanium wires are manufactured through multiple drawing processes. We offer a comprehensive variety of titanium and titanium alloy wires, including specialized 0.20-0.28 wires for surgical staplers, 0.8-4.0 straight wires for orthopedic and dental applications, and industrial-grade welding wires.
| Grade | Standard | Diameter (mm) | Shape | Surface |
|---|---|---|---|---|
| Gr1, Gr2, Gr5, Gr9, Gr23 | ASTM B348, B863, F67, F136 | 0.1 ~ 4.75mm | Straight, Coils, Spools | Bright Surface |
Our high-quality titanium wires serve a wide range of industries:
| Grade | Tensile Strength (min MPa) | Yield Strength (min MPa) | Elongation (min %) |
|---|---|---|---|
| 1 | 240 | 138 | 20 |
| 2 | 345 | 275 | 18 |
| 3 | 450 | 380 | 18 |
| 5 | 895 | 828 | 10 |
| 9 | 620 | 483 | 15 |
| 23 | 793 | 759 | 10 |
| Specified Diameter (in.) | Coil/Spool Variation (in.) | Straight Length Variation (in.) |
|---|---|---|
| 0.010 to 0.045 | ±0.001 | ±0.0015 |
| Over 0.045 to 0.062 | ±0.0015 | ±0.002 |
| Over 0.062 to 0.090 | ±0.002 | ±0.0025 |
| Over 0.090 to 0.187 | ±0.003 | ±0.003 |
