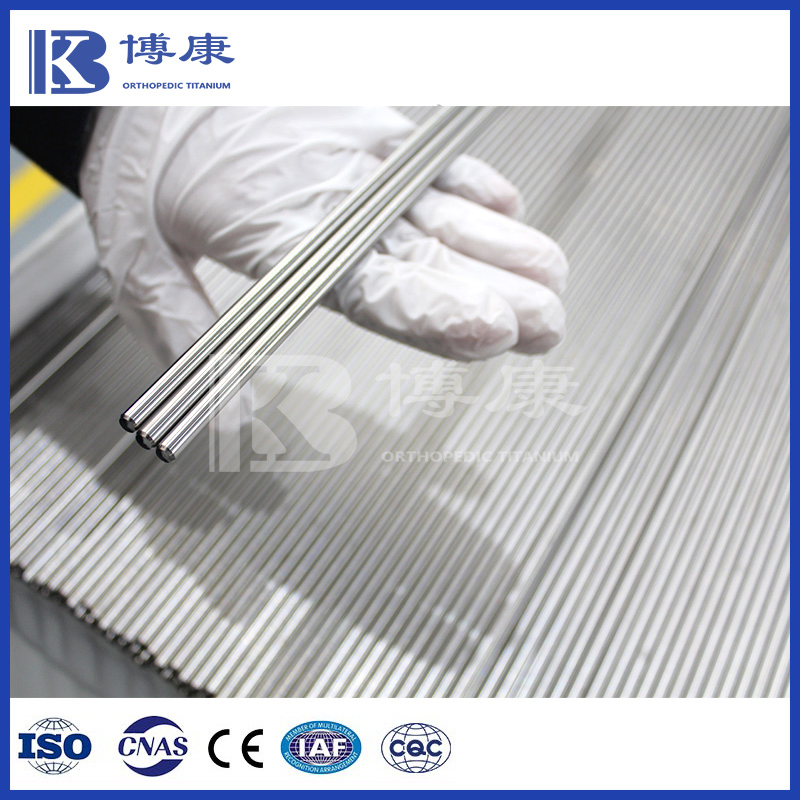

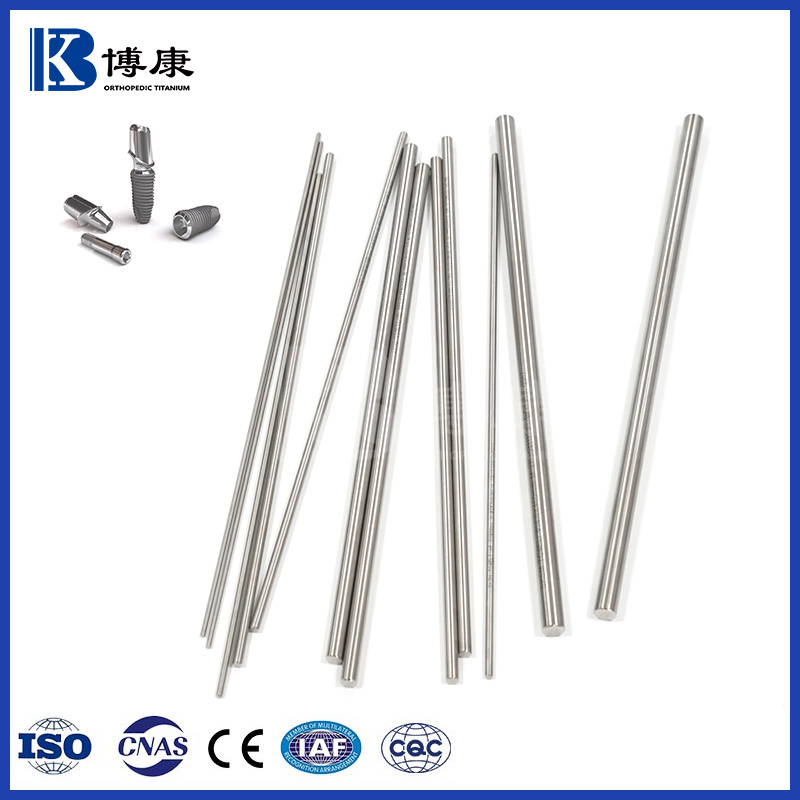

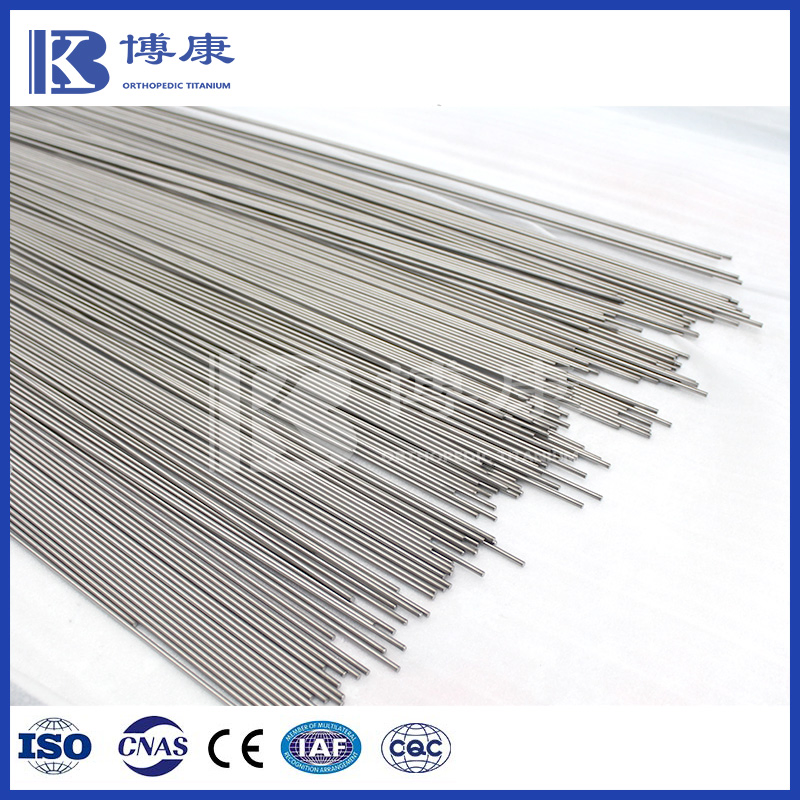

Medical-Grade Titanium-Zirconium Ti15zr Alloy Rod for Minimally Invasive Dental Implants

i

Basic Information

Model NO.:BKTZ-M

Powder:Not Powder

Usage:Medical

Alloy:Alloy

Secondary:Non-secondary

Tolerance:H6, H7, H8, H9

Shape:Round

Length:500-4000 mm

Condition:Annealed (M), Cold Rolled(Y), Hot Rolled(R)

Surface:Bright Surface

Package:Wooden Case

Capacity:500 tons/Year

D

Product Description

High-performance Titanium Zirconium (Ti15Zr) alloy materials are engineered for industries requiring enhanced mechanical strength, superior corrosion resistance, and excellent biocompatibility. The addition of zirconium significantly improves the alloy's durability and performance in both medical and industrial applications.

Key Features

Advanced Alloy Composition: Titanium alloyed with Zirconium (e.g., Ti-15Zr).
Enhanced Corrosion Resistance: Performs exceptionally well in chloride-rich and harsh chemical environments.
High Strength & Toughness: Ideal for demanding structural and load-bearing applications.
Excellent Biocompatibility: Safe for long-term implantation in the human body.
Precision Machinability: Available in precision-machined bars, rods, and discs.

Main Applications

Medical Industry: Orthopedic and dental implants, surgical instruments.
Aerospace: Lightweight, corrosion-resistant structural parts.
Chemical Processing: Heat exchangers, reactors, and pressure vessels.
Marine Engineering: Corrosion-resistant fasteners and structural components.

S

Technical Specifications

Parameter	Detail
Grade	Ti15Zr
Diameter (mm)	1.0 ~ 100
Length (mm)	500 - 4000
Tolerance	h6, h7, h8, h9
Shape	Round
Condition	Annealed (M), Cold rolled(Y), Hot rolled(R)
Surface	Bright Surface

Chemical Composition (%)

Alloy	Major Elements		Impurity Elements
Alloy	Ti	Zr	Fe	C	H	O	N
Ti-15Zr	Balance	14.5~16.5	≤0.25	≤0.10	≤0.008	≤0.20	≤0.05

Mechanical Properties

Product	Diameter (mm)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Bar	7.0 ~ 15.0	≥750	≥650	≥15
Wire	1.0 ~ 7.0	≥860	≥760	≥15

C

Certifications

ISO 13485

ISO 9001

CE

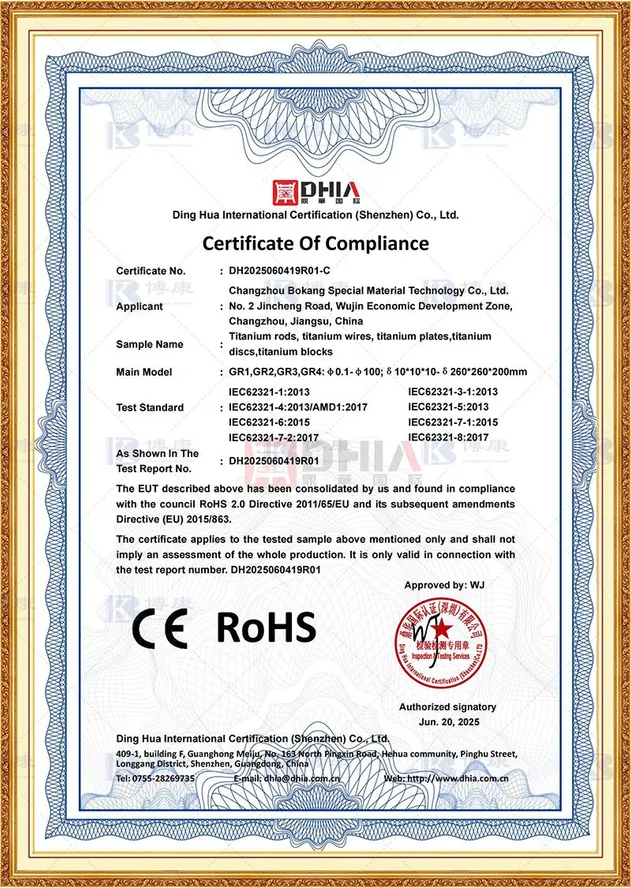

RoHS Pure Titanium

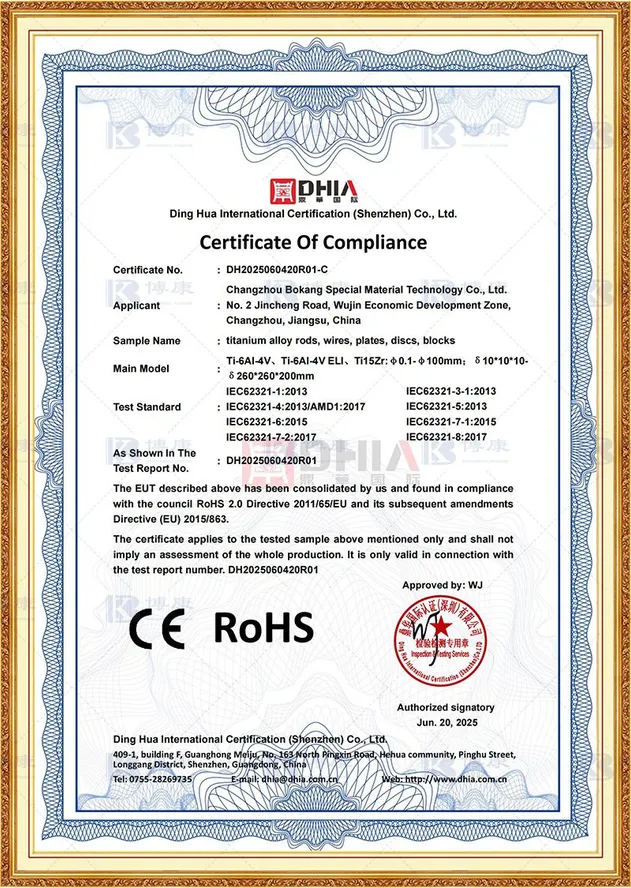

RoHS Titanium Alloy

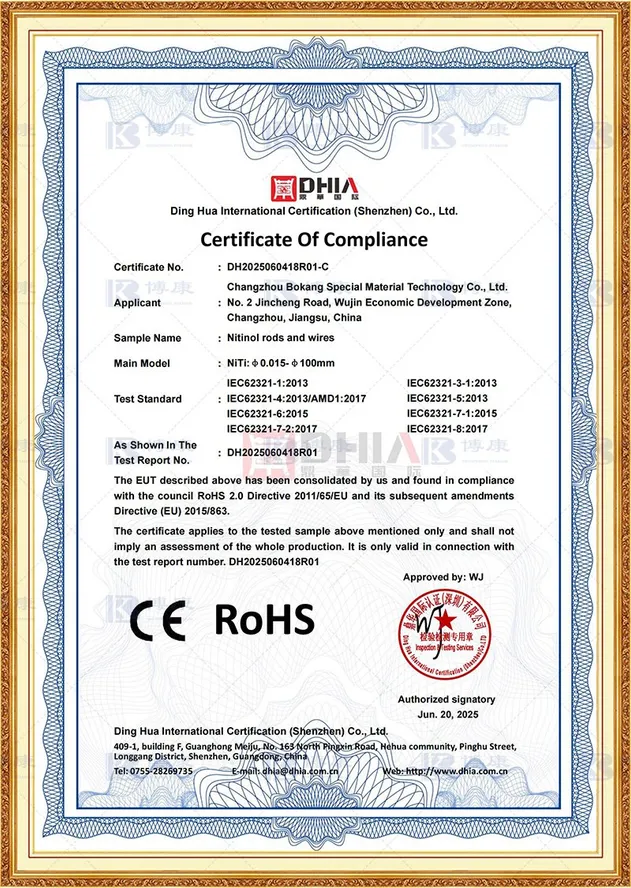

RoHS Nitinol

P

Product Category

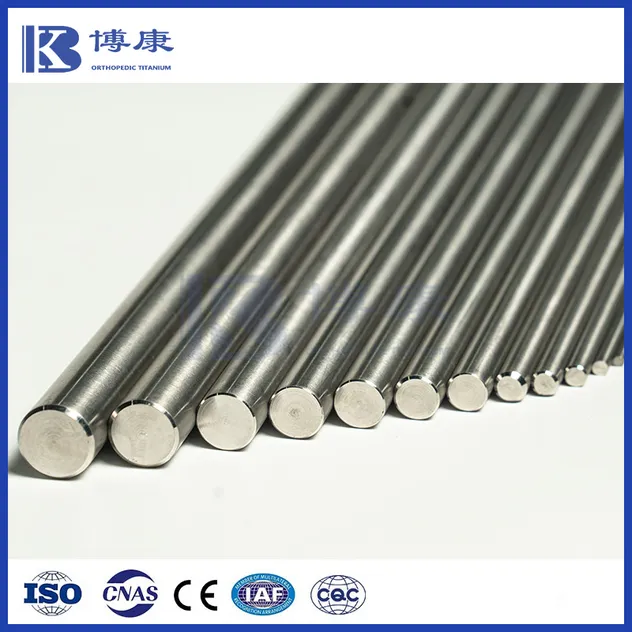

Titanium Bars Rods

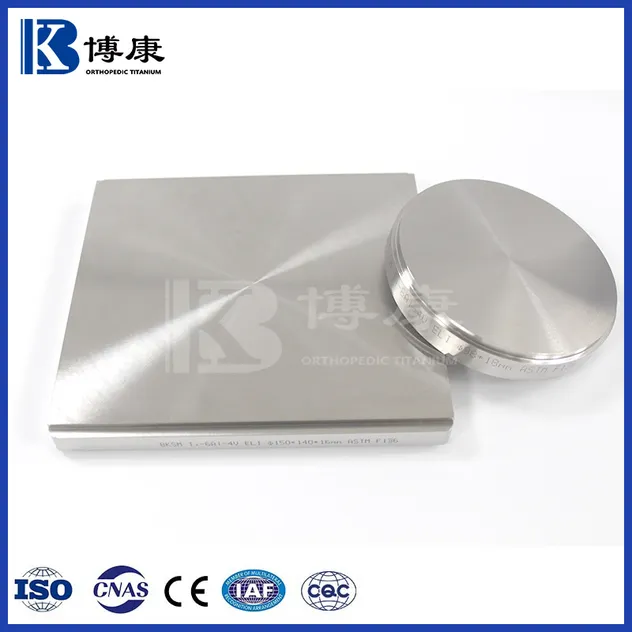

Titanium Disc

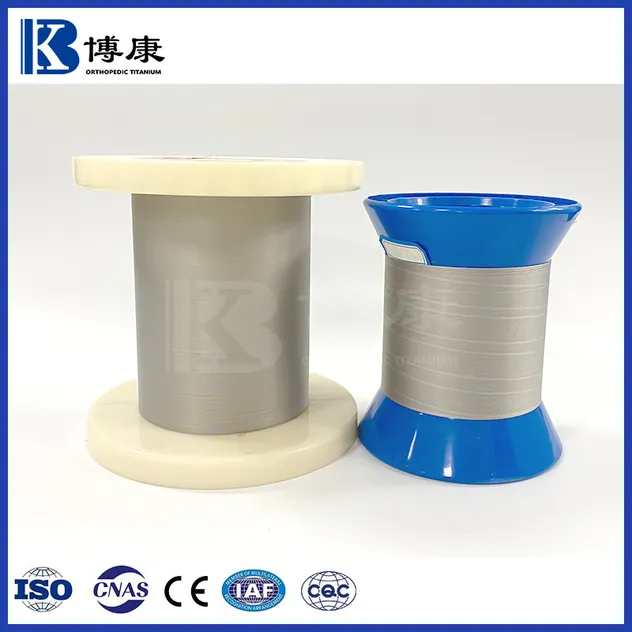

Titanium Wire

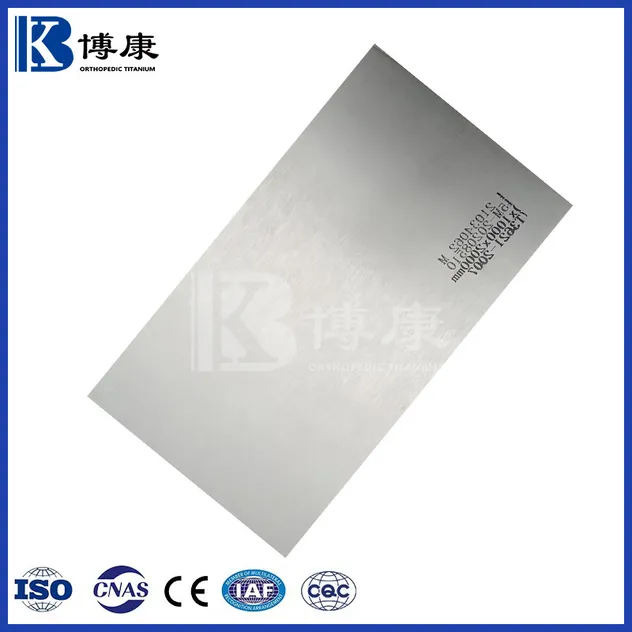

Titanium Plates/Sheets

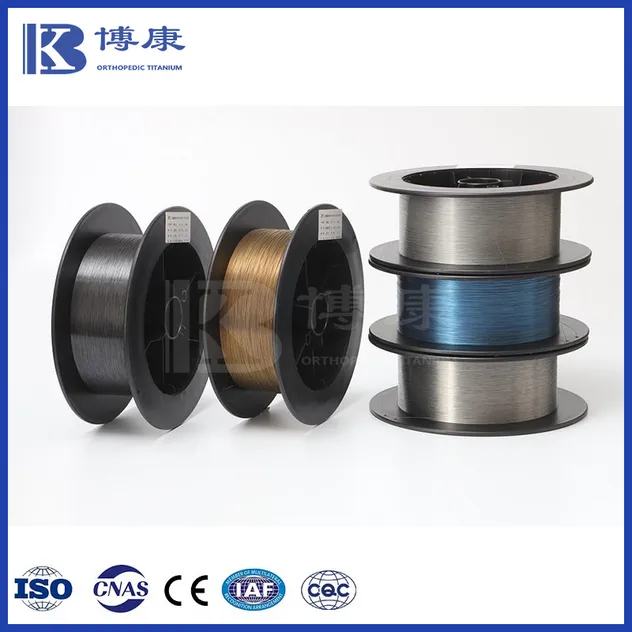

Nitinol Wire

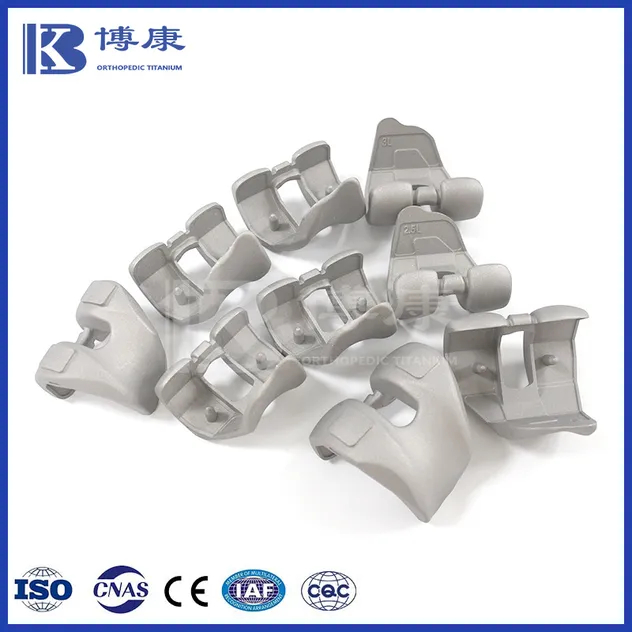

Medical-Grade CoCrMo Castings

F

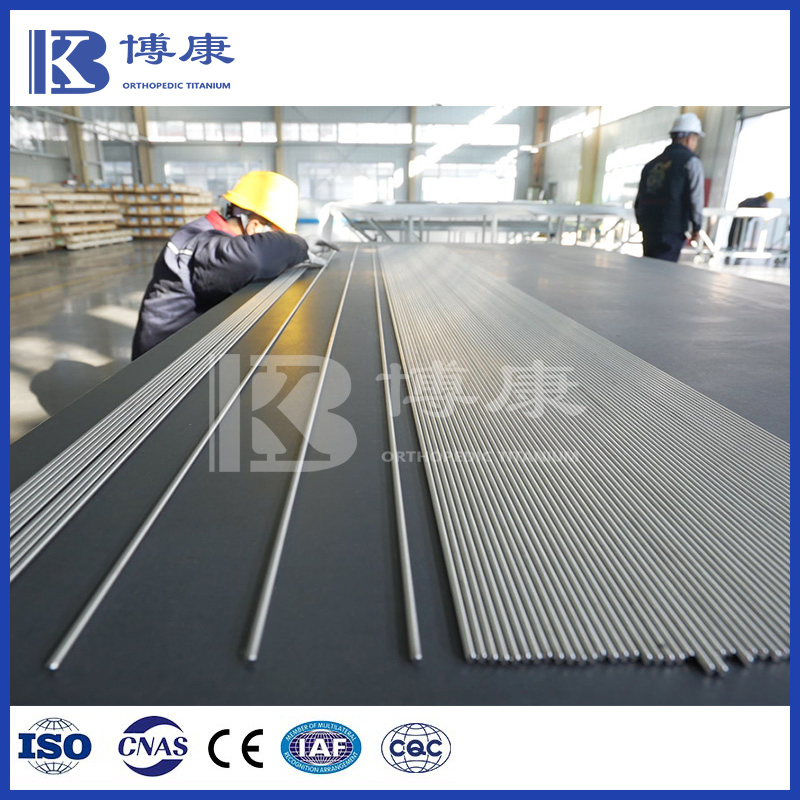

Facility Display

?

Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a direct manufacturer with over 18 years of experience in specialized titanium production.

Q: Do you provide free samples? A: Yes, we offer free samples, but customers are responsible for the shipping costs.

Q: What is the minimum order quantity (MOQ)? A: Our MOQ is 1 kg. We maintain a significant monthly production capacity to ensure stock for standard medical and aerospace materials.

Q: How do you ensure product quality? A: We implement strict quality control at every stage of production, using advanced testing equipment to meet international standards.

Q: Do you offer custom manufacturing? A: Yes! We provide customized titanium products based on specific customer drawings or samples.

Q: What information is needed for a price quote? A: Please provide the Product Name, Standard, Material Grade, Dimensions, and Quantity.
