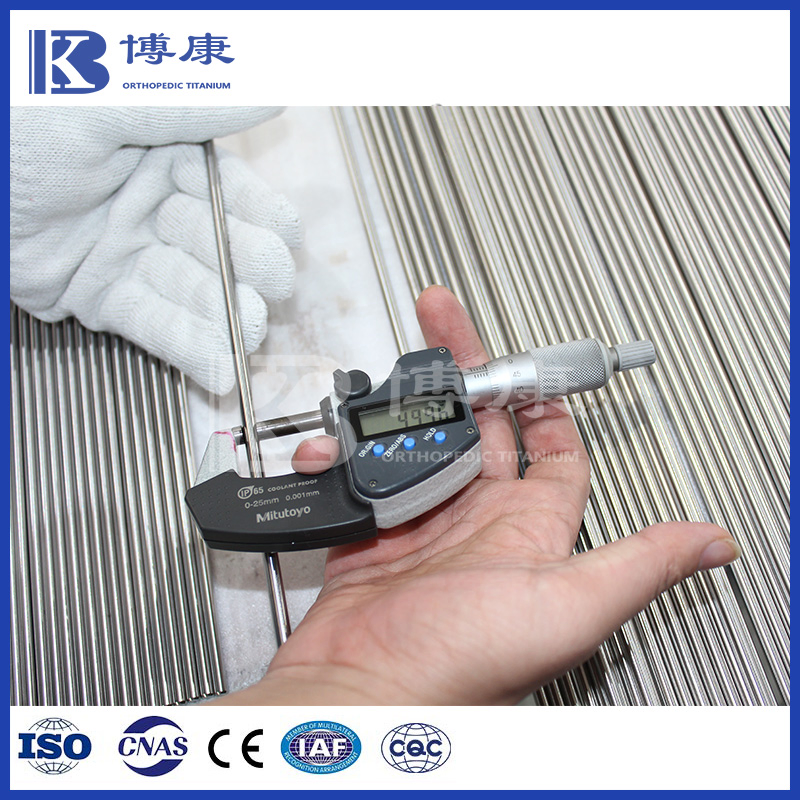

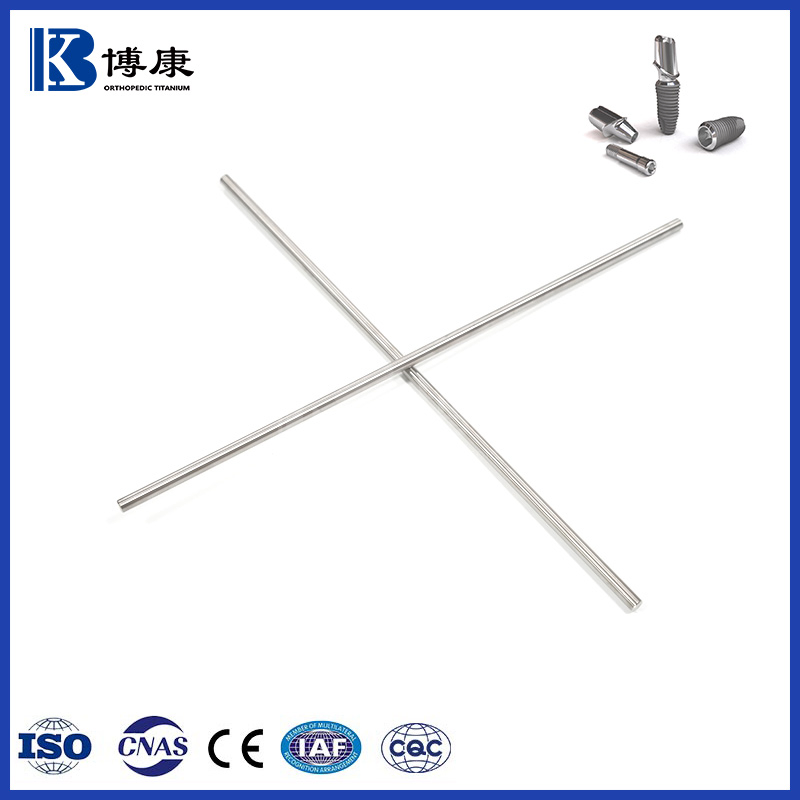

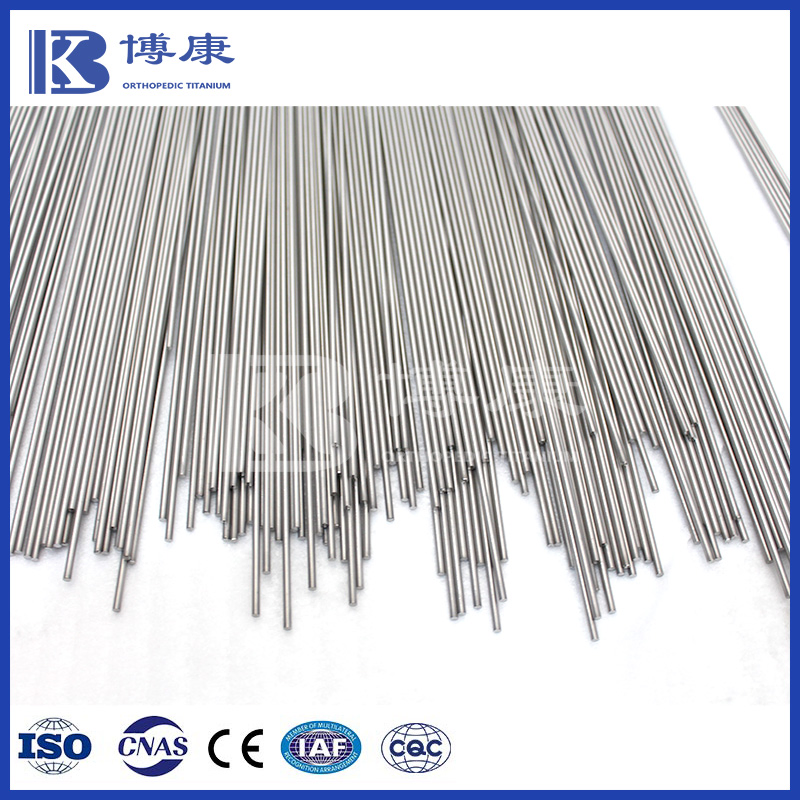

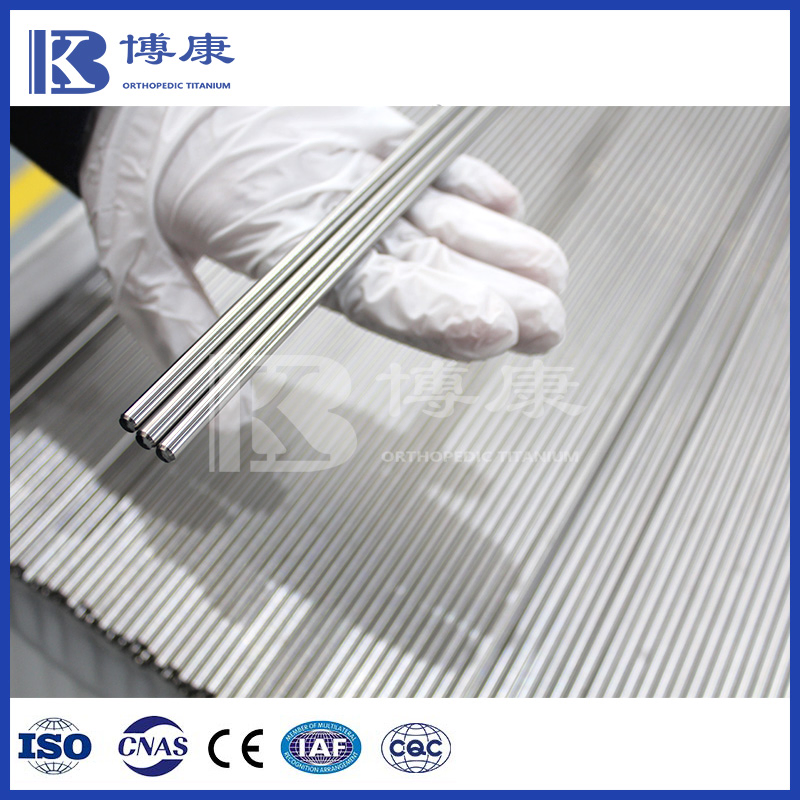

High-performance Titanium Zirconium (Ti15Zr) alloy materials are engineered for industries requiring enhanced mechanical strength, superior corrosion resistance, and excellent biocompatibility. The addition of zirconium significantly improves the alloy's durability and performance in both medical and industrial applications.
Medical Industry: Orthopedic and dental implants, surgical instruments.
Aerospace: Lightweight, corrosion-resistant structural parts.
Chemical Processing: Heat exchangers, reactors, and pressure vessels.
Marine Engineering: Corrosion-resistant fasteners and structural components.
| Grade | Diameter(mm) | Length(mm) | Tolerance | Condition |
|---|---|---|---|---|
| Ti15Zr | 1.0~100 | 500-4000 | h6, h7, h8, h9 | Annealed (M), Cold rolled(Y), Hot rolled(R) |
| Alloy | Ti | Zr | Fe | C | H | O | N |
|---|---|---|---|---|---|---|---|
| Ti-15Zr | Balance | 14.5~16.5 | ≤0.25 | ≤0.10 | ≤0.008 | ≤0.20 | ≤0.05 |
| Category | Diameter (mm) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|---|
| Bar | 7.0~15.0 | ≥750 | ≥650 | ≥15 |
| Wire | 1.0~7.0 | ≥860 | ≥760 | ≥15 |

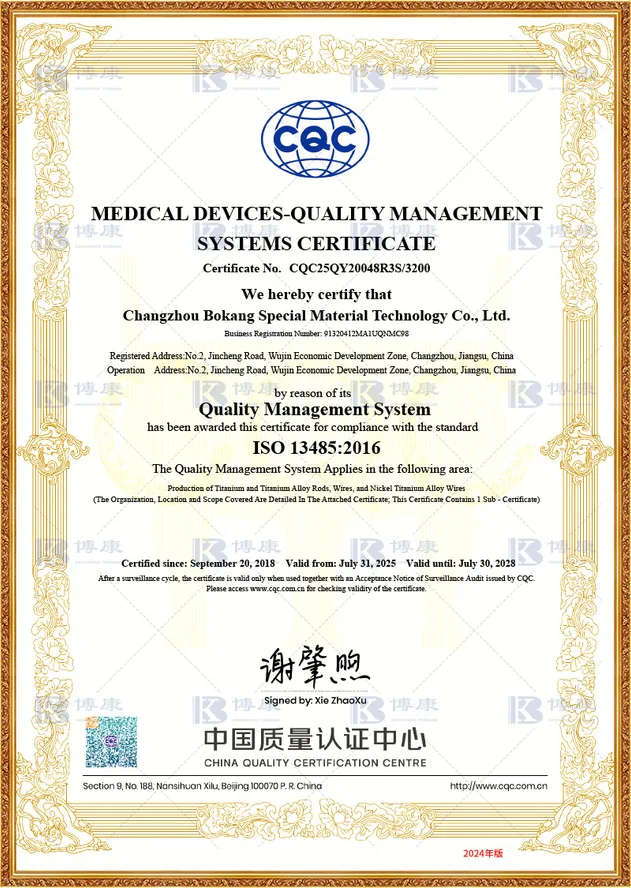

ISO 13485

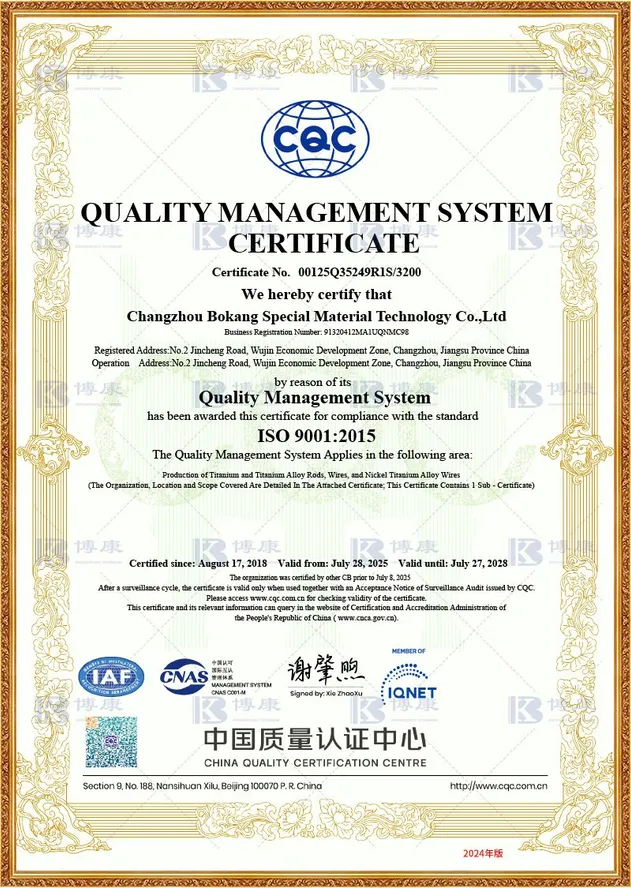

ISO 9001

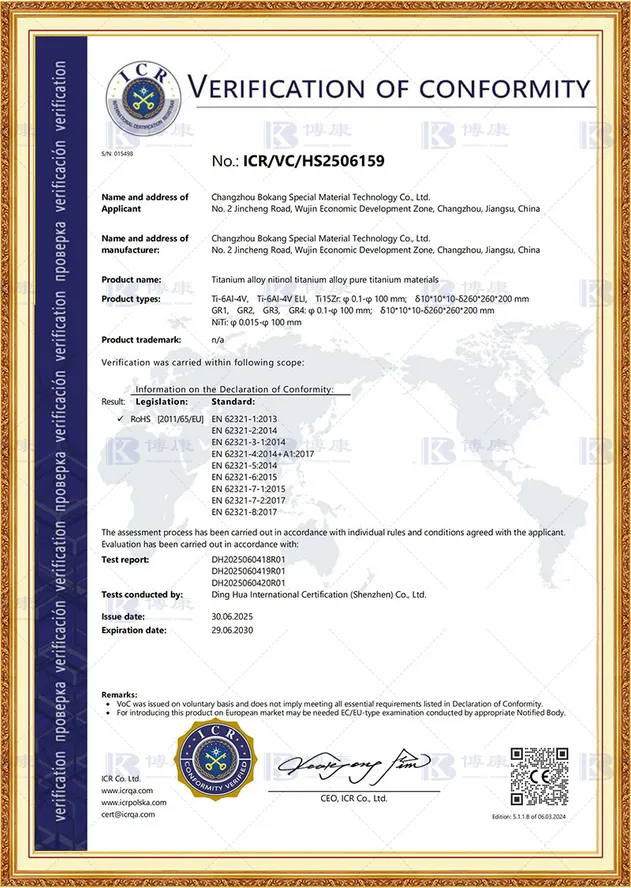

CE Certification

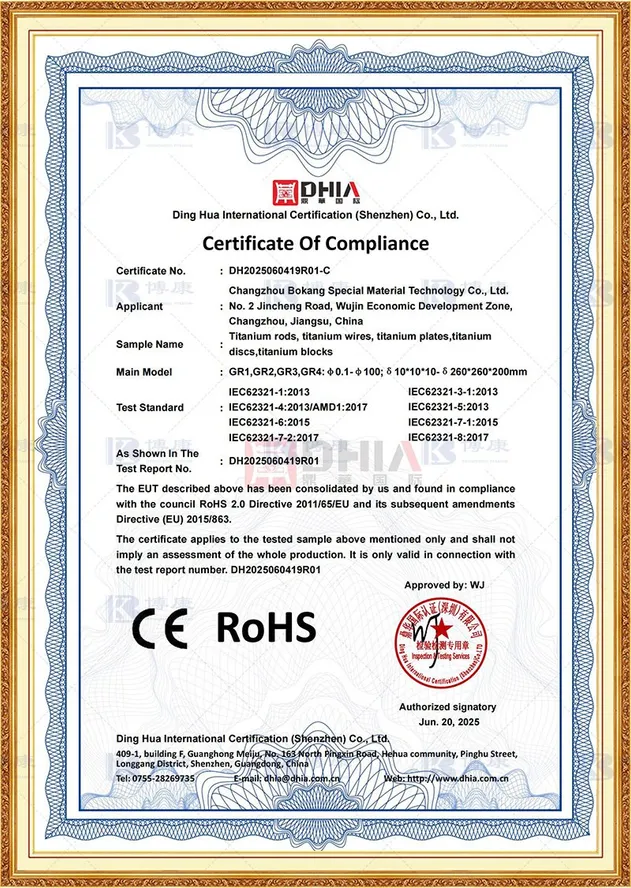

RoHS Pure Titanium

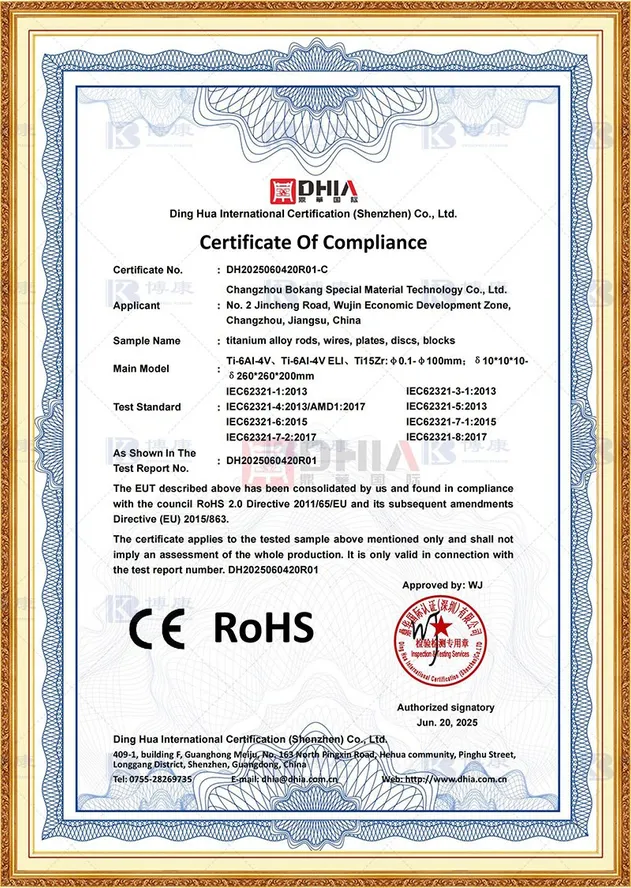

RoHS Titanium Alloy

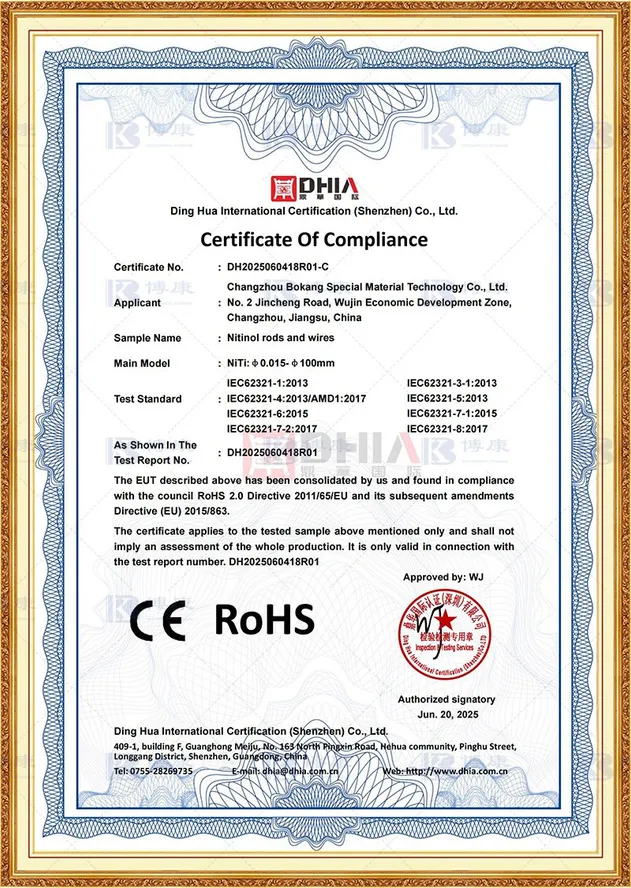

RoHS Nitinol

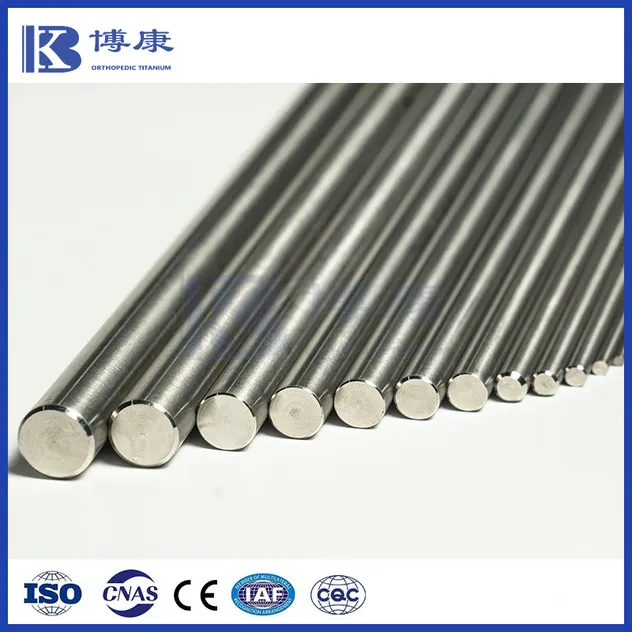

Titanium Bars Rods

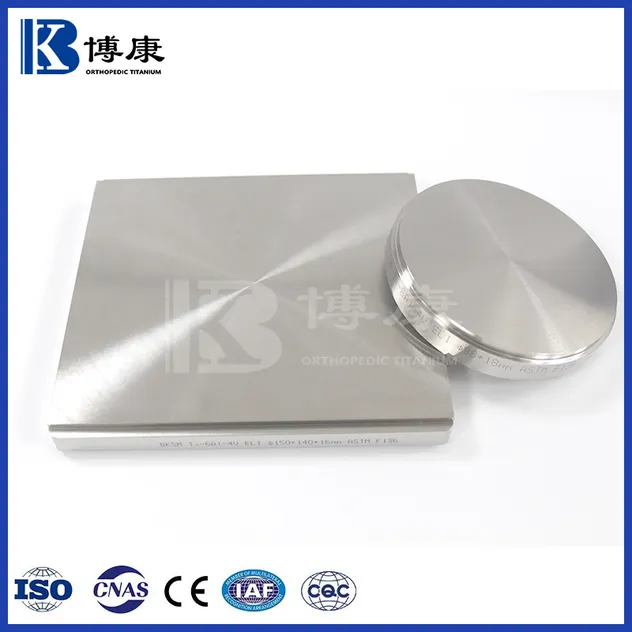

Titanium Disc

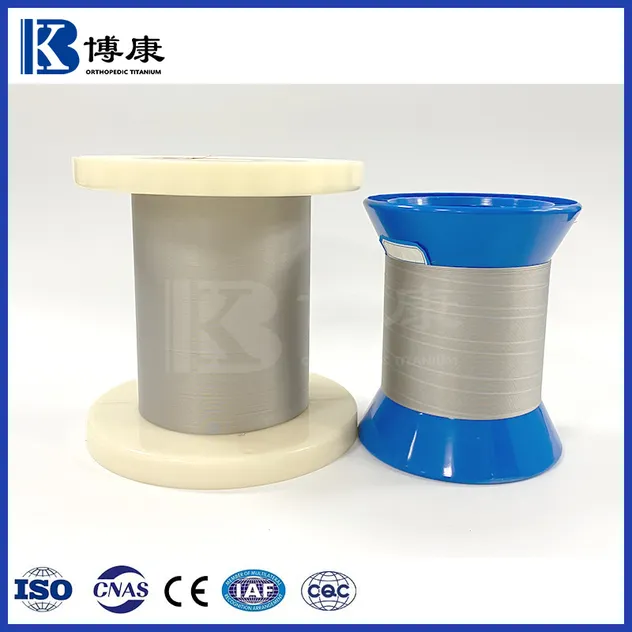

Titanium Wire

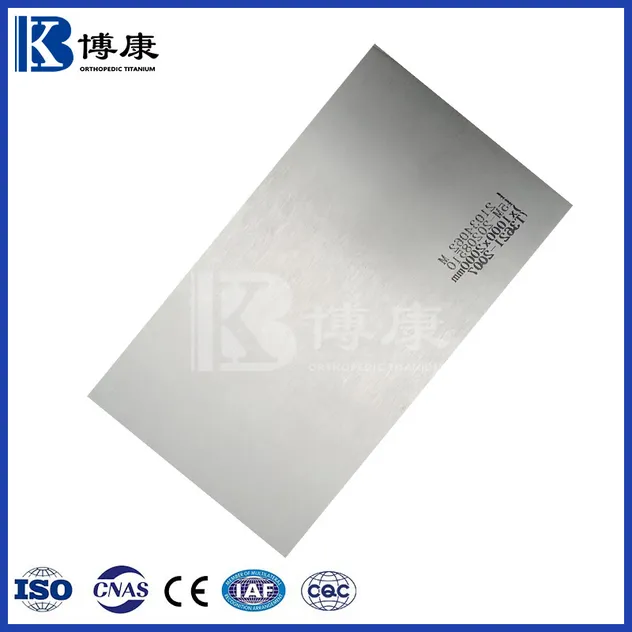

Titanium Plates/Sheets

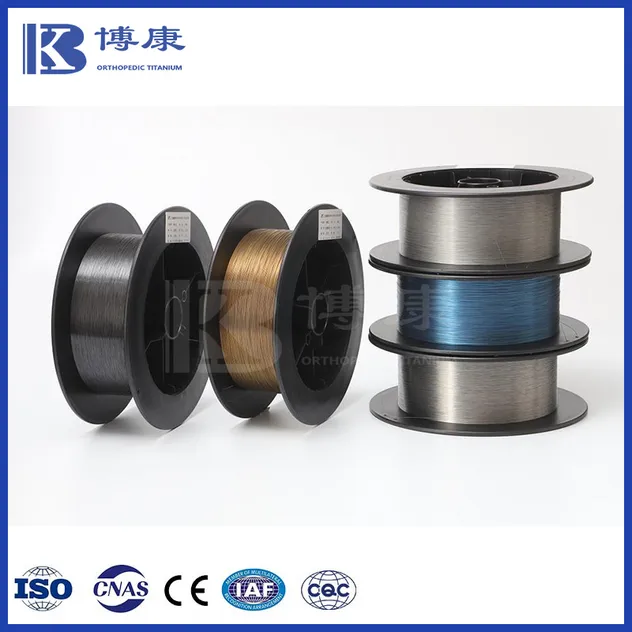

Nitinol Wire

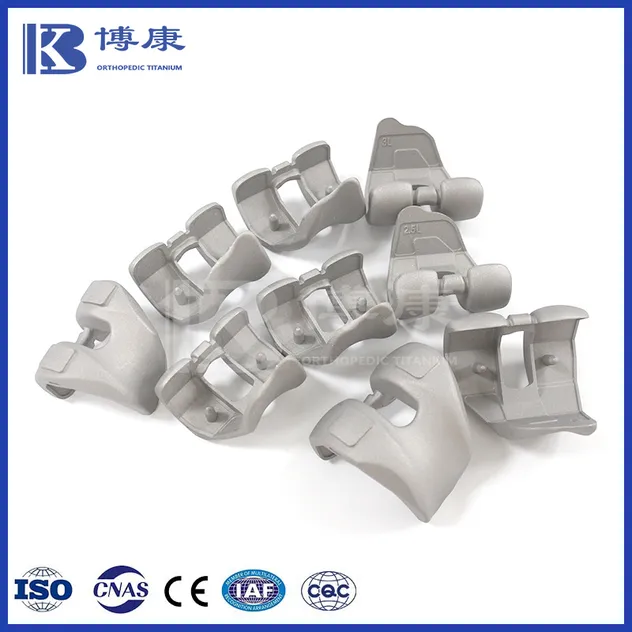

Medical-Grade CoCrMo Castings
