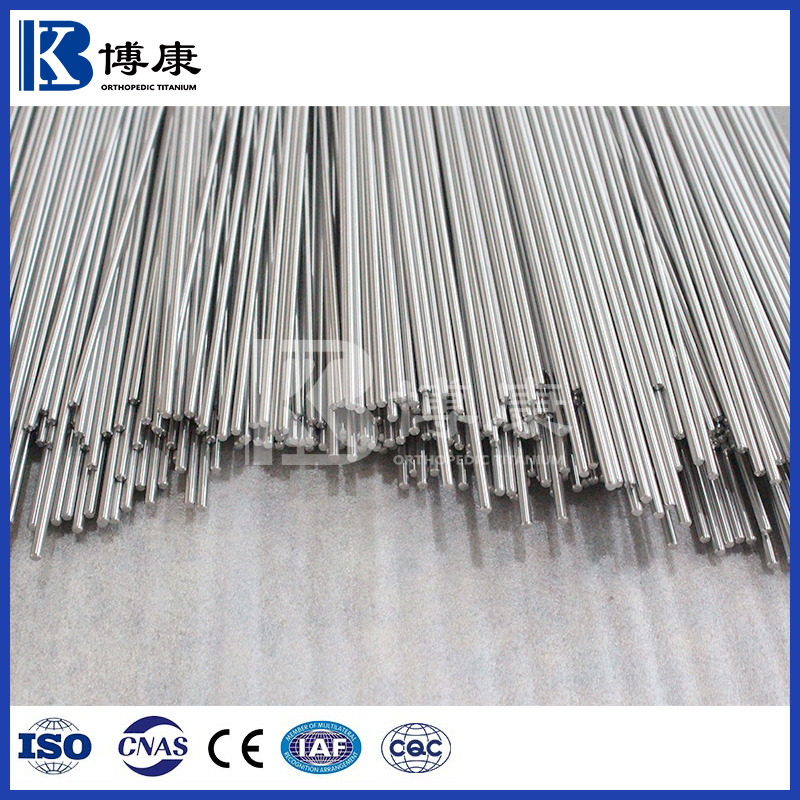

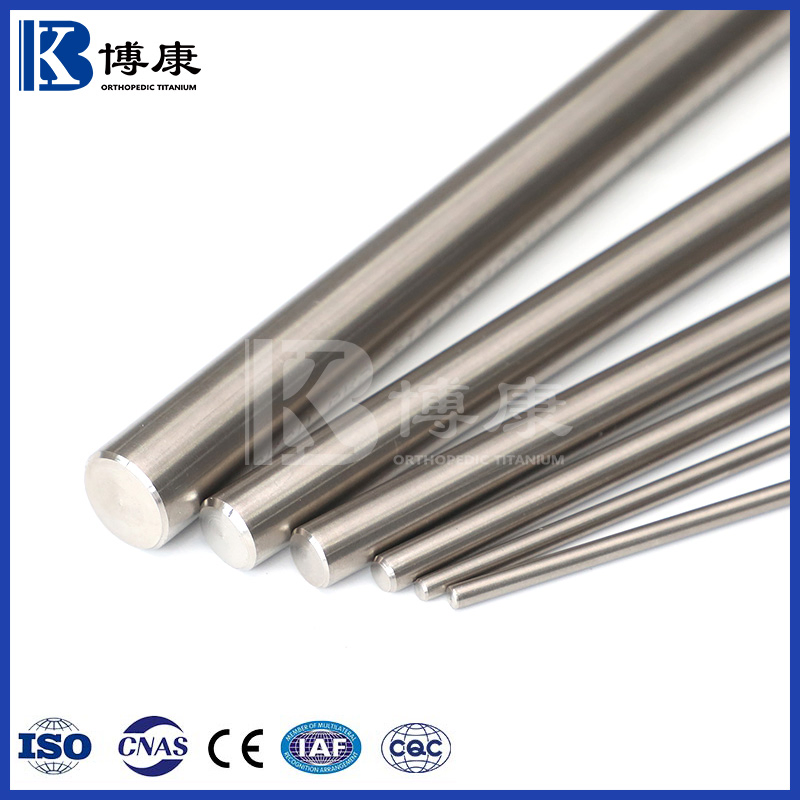

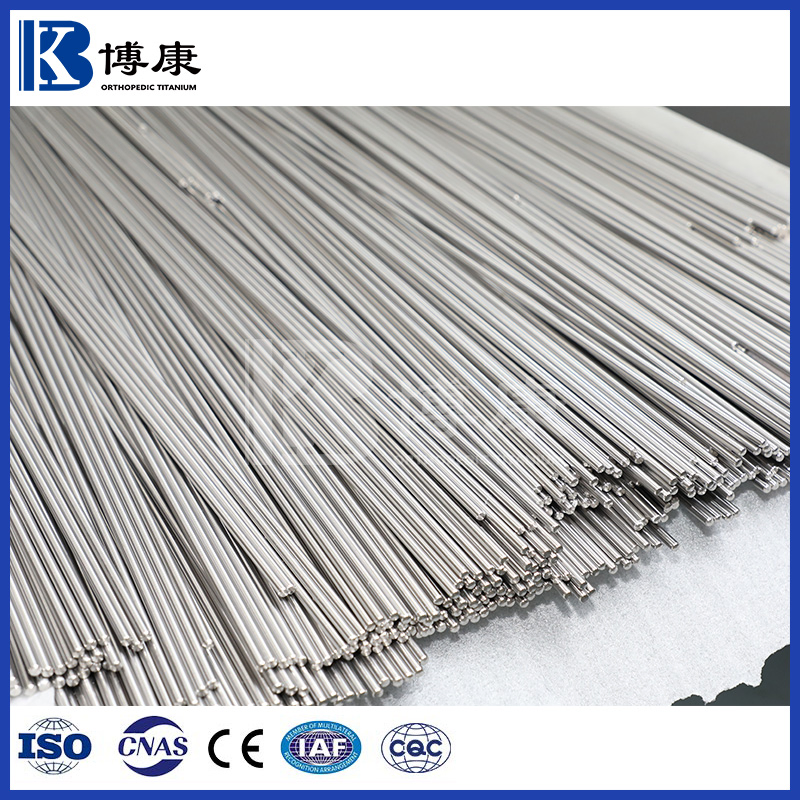

Medical Titanium Round Rod Gr5 Gr23 for Orthopedic Implants

1 / 5

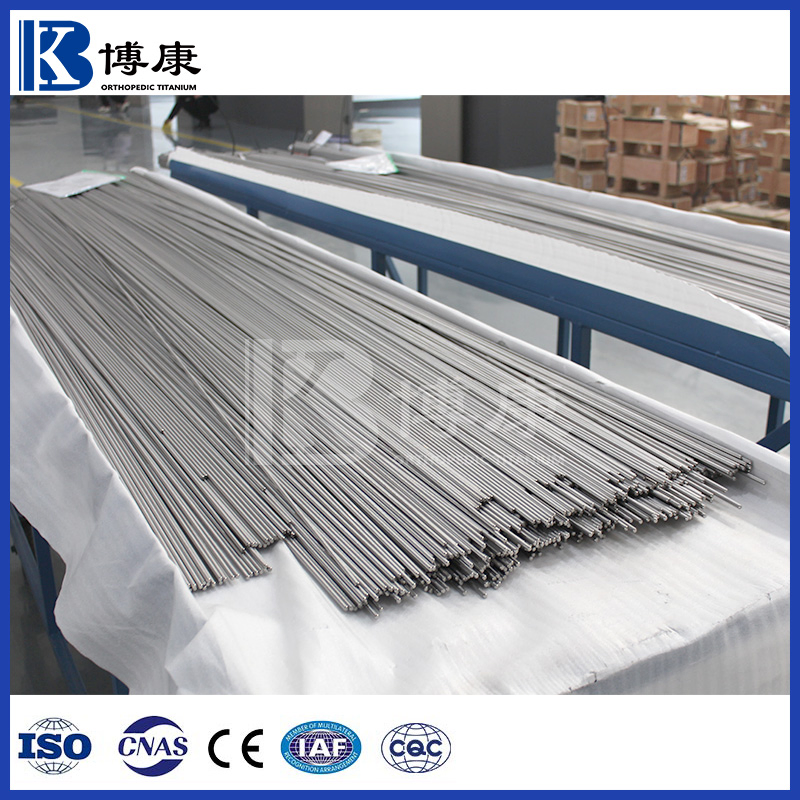

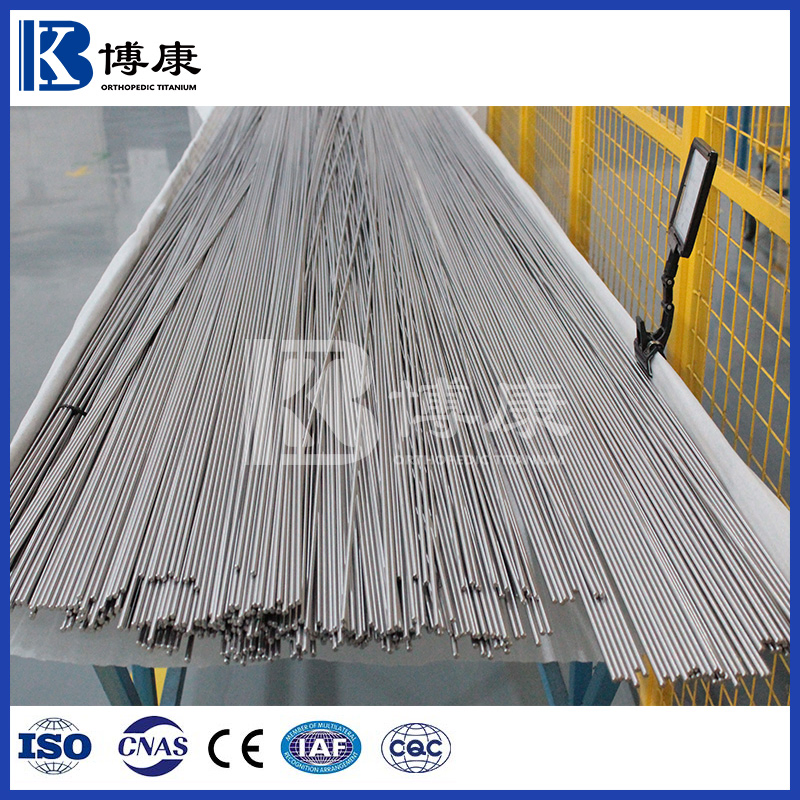

Medical Titanium Round Rod Gr5 Gr23 for Orthopedic Implants

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	BKTR-M
Technique	Hot Rolled
Grade	Gr1, Gr2, Gr3, Gr4, Gr5, Gr9, Gr23
Shape	Round
Standard	ASTM, ISO, AMS, JIS, DIN
Tolerance	H6, H7, H8, H9
Condition	Annealed (M), Cold Rolled (Y), Hot Rolled (R)
Surface	Bright
Length	500-4000mm
MOQ	1kg
Sample	Available
ODM & OEM	Acceptable
Transport Package	Wooden Case
HS Code	8108901090
Production Capacity	200 tons/Year

Product Description

High-Quality Titanium Bar & Rods | Pure Titanium & Alloy Options
Medical-grade titanium bars and rods manufactured from commercially pure titanium (Grade 1–4) and titanium alloys (Grade 5, Grade 9, Grade 23). Widely used in medical implants, surgical instruments, and medical devices where biocompatibility, stability, and reliability are critical.

Precision smelting ensures uniform chemical composition and stable performance.

Ultra-fine grain structure provides excellent consistency and reliability.

High strength with excellent machinability for precision components.

Outstanding fatigue and high-temperature resistance.

Optimized for high-frequency vibration and energy transmission.

Technical Specifications

Standards Compliance	ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; ASTM B348
Diameter (mm)	1.0 ~ 101.6
Roundness Tolerance	<0.005mm
Surface Finish	Bright Surface

Note: High-quality titanium rods with various diameters and tolerances can be customized according to requirements.

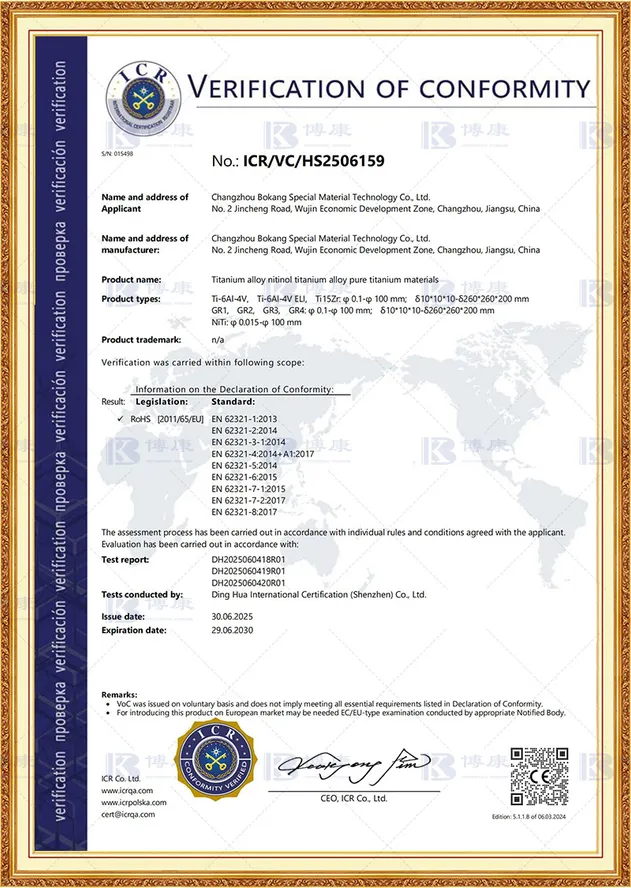

Quality Certifications

ISO 13485

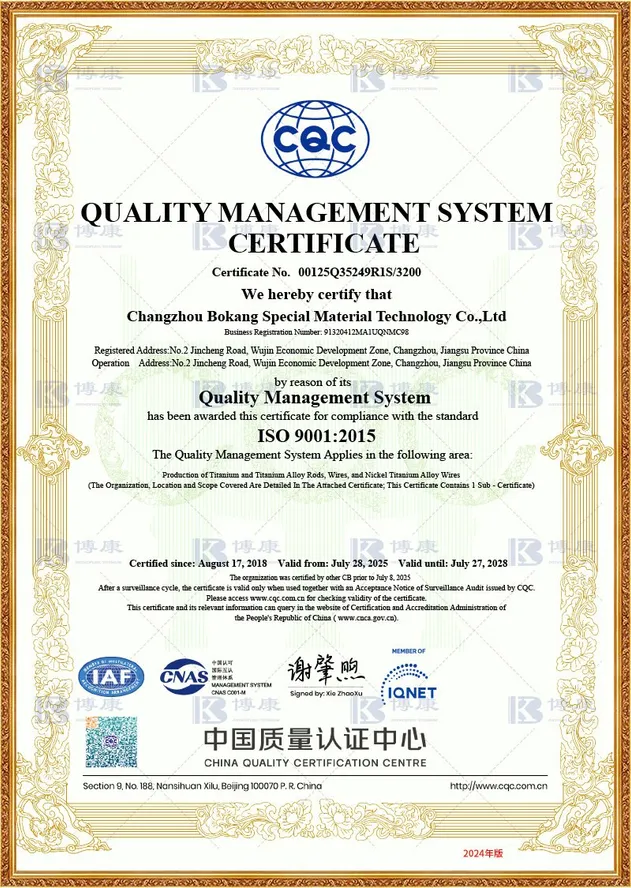

ISO 9001

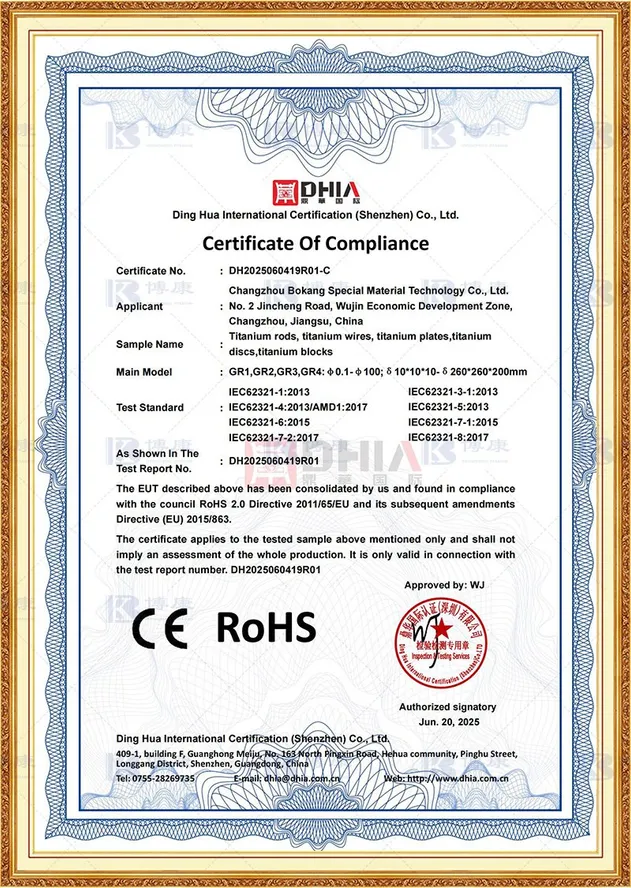

RoHS Pure Titanium

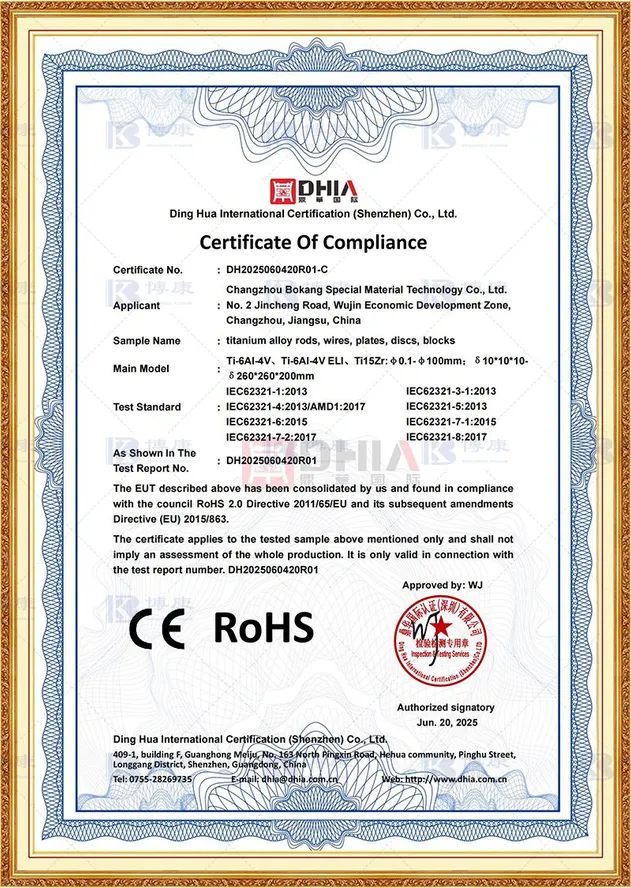

RoHS Titanium Alloy

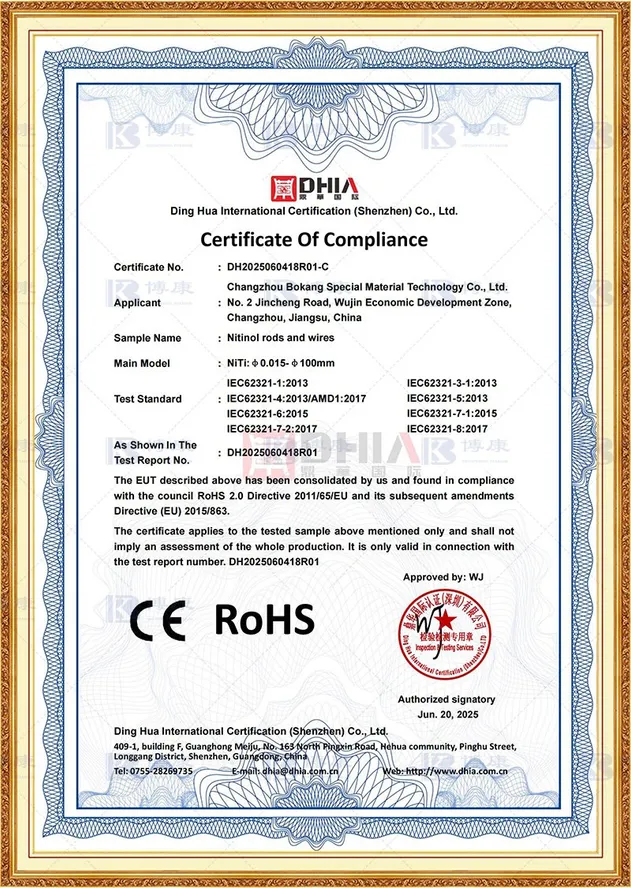

RoHS Nitinol

Industry Applications

Orthopedic Implants: Hip/knee replacements, bone plates, and fixation devices.

Dental Implants: High-strength rods for durable prosthetic components.

Surgical Instruments: Precision components for ultrasonic scalpels and staplers.

Aerospace & Industrial: Critical components requiring high strength-to-weight ratios.

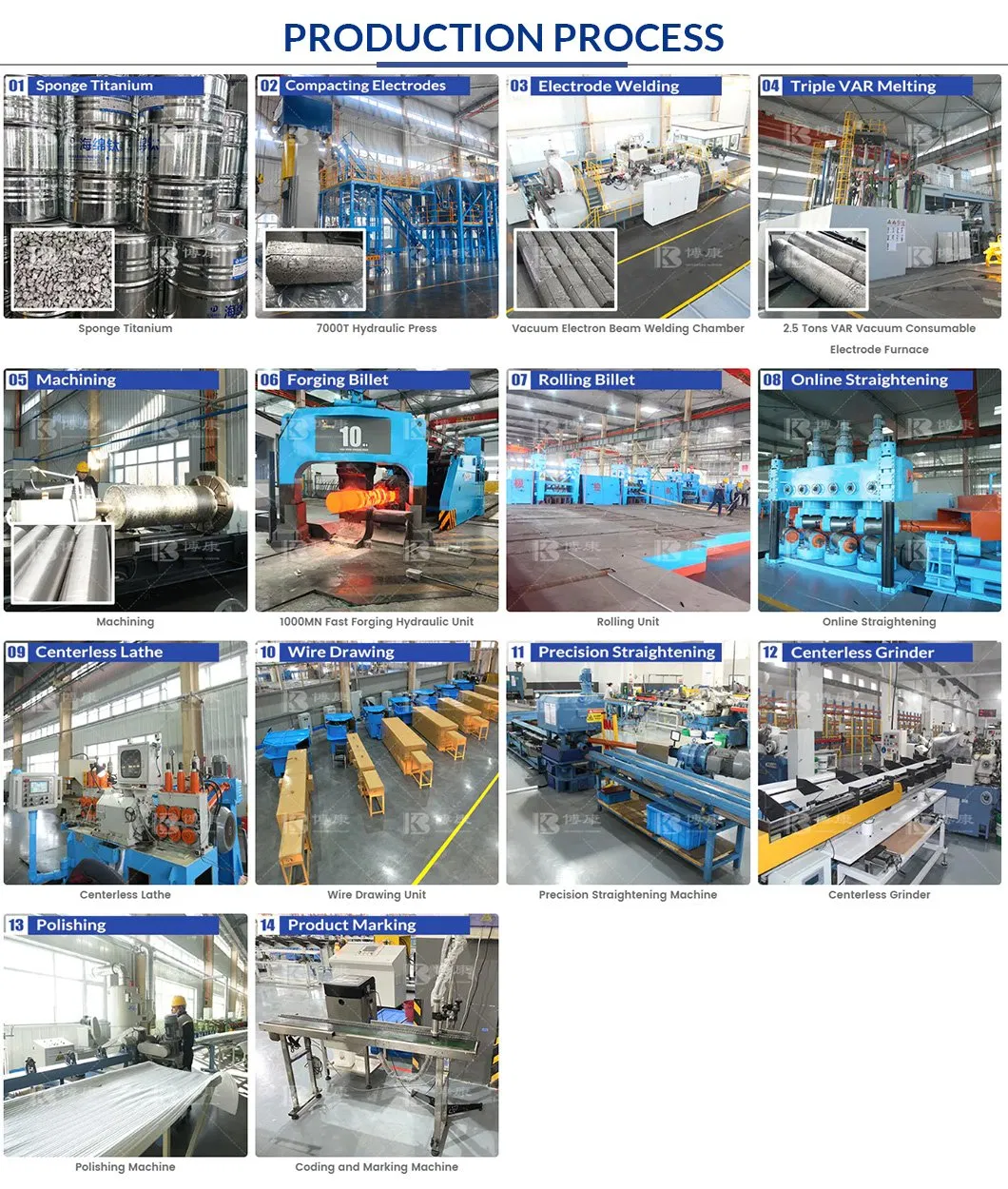

Production & Quality Control

Full-Process Manufacturing: From Sponge Titanium melting to precision centerless grinding and polishing, ensuring strict quality control at every stage.

Product Categories

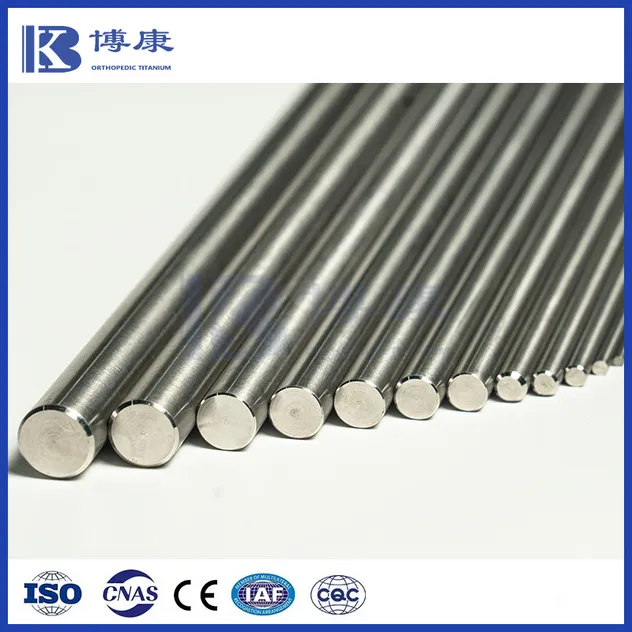

Titanium Bars Rods

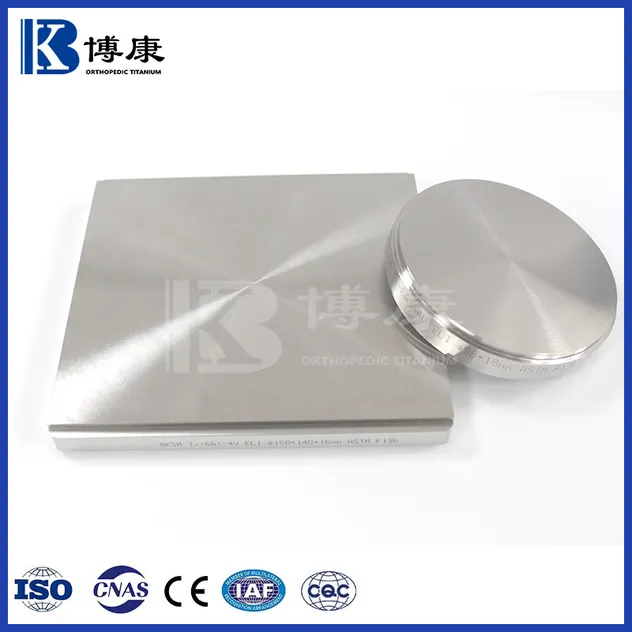

Titanium Disc

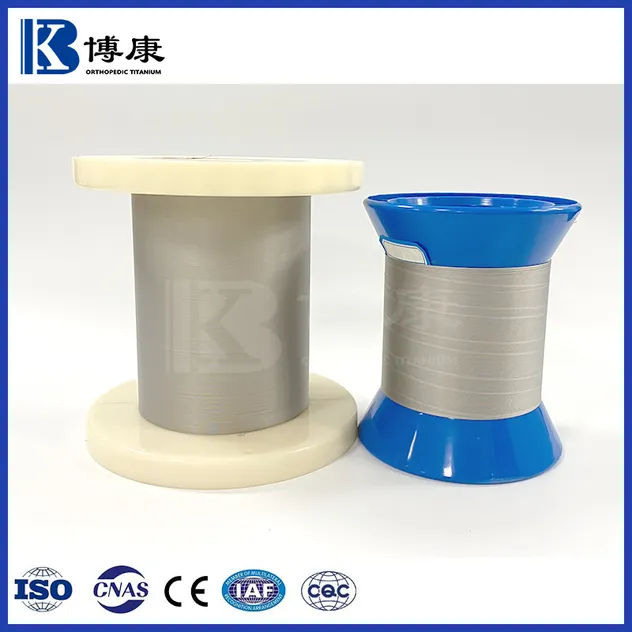

Titanium Wire

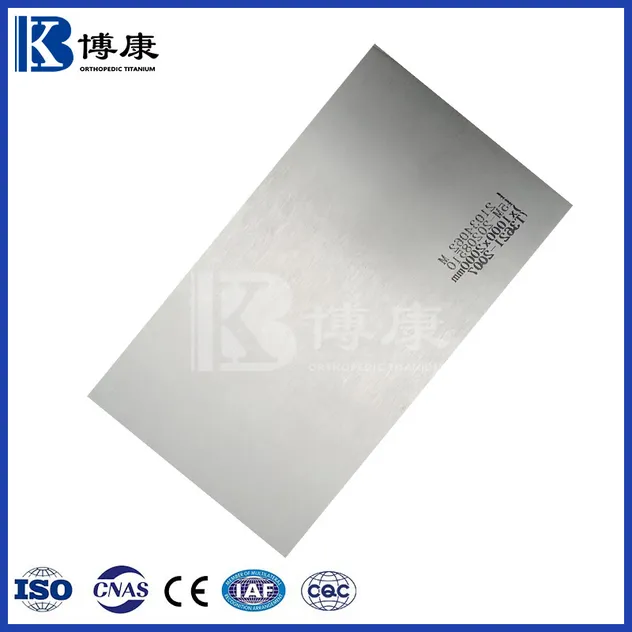

Titanium Plates/Sheets

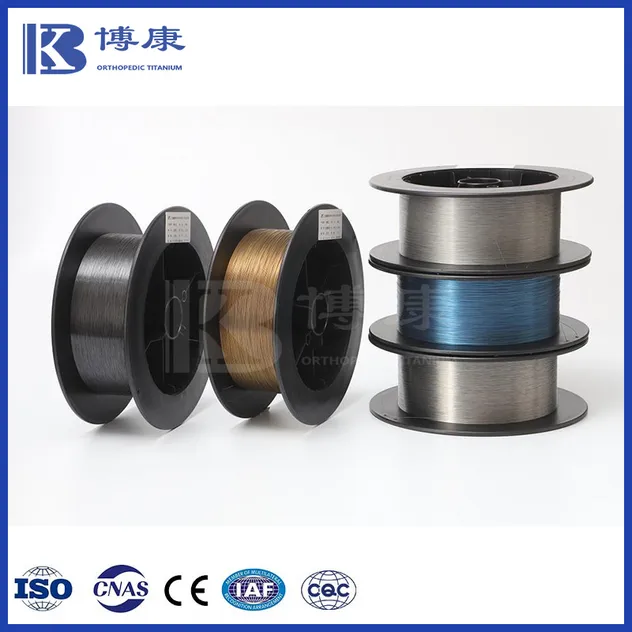

Nitinol Wire

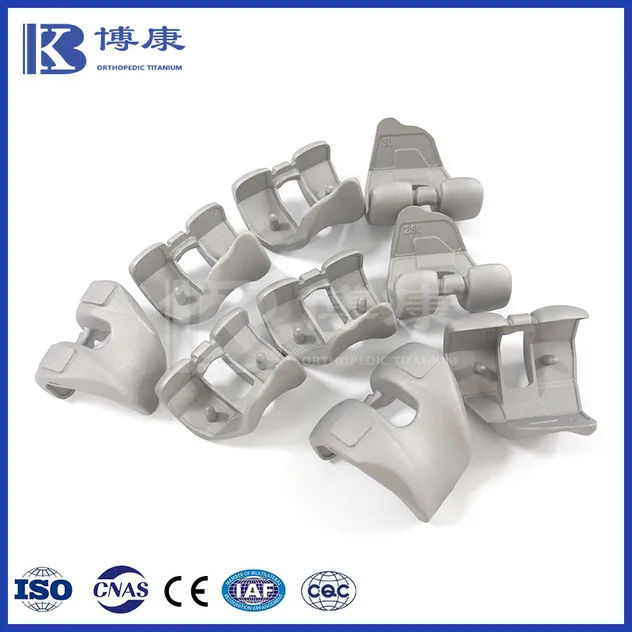

Medical-Grade CoCrMo Castings

Production Environment

Frequently Asked Questions

Q: What are the primary grades of titanium available? A: We offer commercially pure titanium (Grades 1-4) and advanced alloys including Grade 5 (Ti-6Al-4V), Grade 9, and Grade 23 (Ti-6Al-4V ELI).

Q: What standards do your medical titanium products comply with? A: All products are produced in strict compliance with ASTM F67, ASTM F136, ISO 5832, and AMS standards.

Q: Can you provide customized dimensions? A: Yes, we offer OEM/ODM services to customize diameters (1.0mm to 101.6mm), lengths, and tolerances according to your specific drawings.

Q: What is the Minimum Order Quantity (MOQ)? A: Our standard MOQ is 1 kg, allowing for both sample testing and small-batch production.

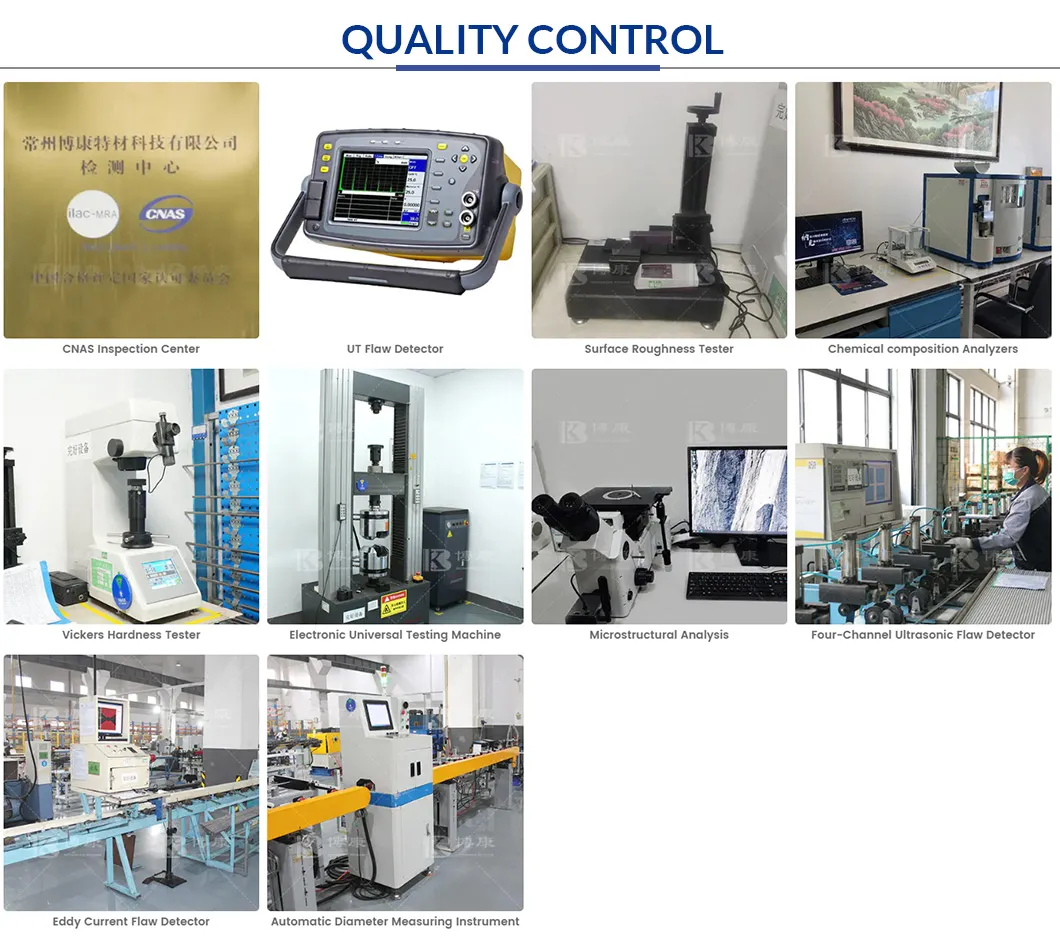

Q: How do you ensure the quality of medical-grade titanium? A: We utilize triple VAR melting for purity and implement rigorous testing in our ISO/IEC 17025 accredited laboratory.

Q: Do you offer samples for evaluation? A: Yes, free samples are available for quality testing, with customers only covering the shipping costs.
