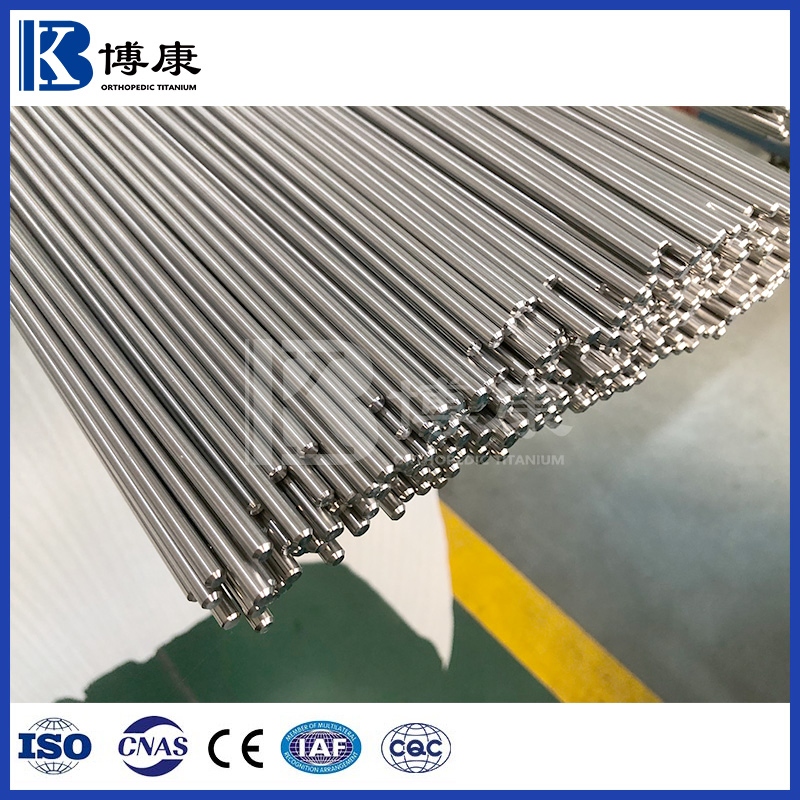

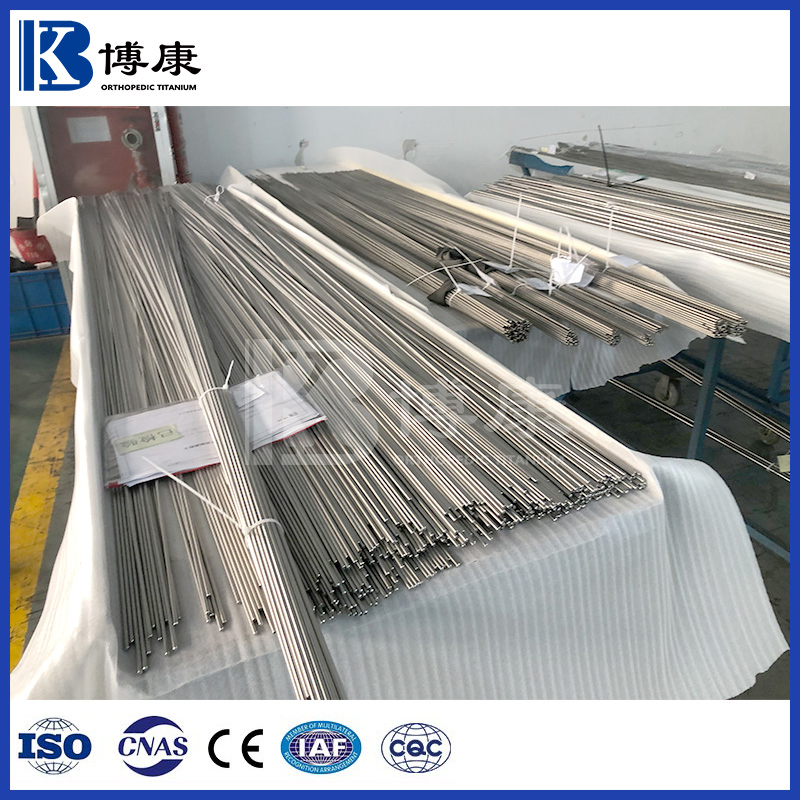

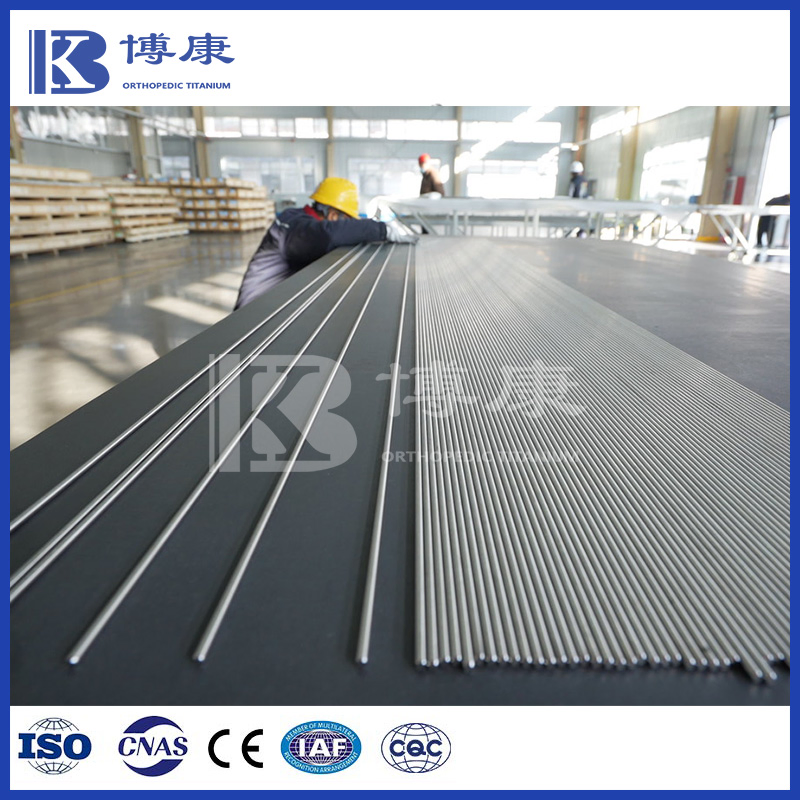

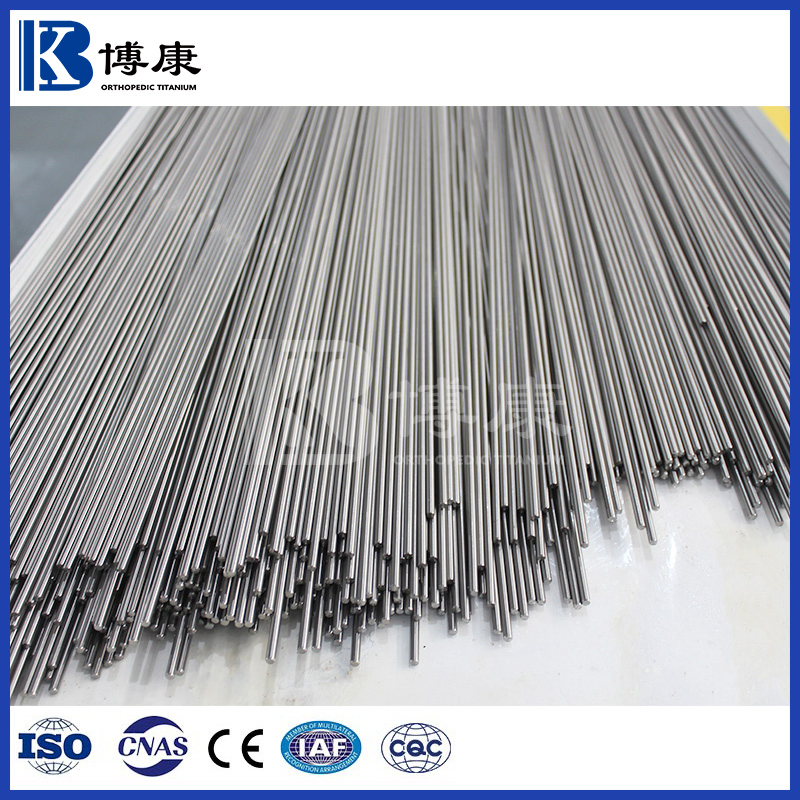

Medical Titanium Rod 17.2 18.0mm Surgical Grade Titanium for Orthopedic Implants

i

Basic Information

Model NO.BKTR-M

TechniqueHot Rolled

GradeGr1, Gr2, Gr3, Gr4, Gr5, Gr9, Gr23

ShapeRound

StandardASTM, ISO, AMS, JIS, DIN

ToleranceH6, H7, H8, H9

ConditionAnnealed (M), Cold Rolled(Y), Hot Rolled(R)

SurfaceBright

Length500-4000mm

MOQ1kg

Transport PackageWooden Case

Production Capacity200tons/Year

✓

Product Description

Medical-Grade Titanium Rods for Surgical Instruments & Implants | ASTM F67 / ASTM F136

Supplying medical-grade titanium bars and rods manufactured from commercially pure titanium (Grade 1–4) and titanium alloys (Grade 5, Grade 9, Grade 23). Widely used in medical implants, surgical instruments, and medical devices where biocompatibility, stability, and reliability are critical.

Material Characteristics

Precision smelting ensures uniform chemical composition
Ultra-fine grain structure for consistency
High strength with excellent machinability
Outstanding fatigue and high-temperature resistance
Optimized for high-frequency medical energy transmission

Manufacturing Advantages

Full-Process Independent Manufacturing
Certified to ISO 13485:2016, ISO 9001:2015, CE
18+ Years of Medical & Titanium Experience
Rigorous Inspection & Testing Laboratory
Strong Production Capacity (>500 tons/year)

⚙

Specification

Parameter	Details
Grade	Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI)
Standard	ASTM F67, ASTM F136, ISO 5832-2, ISO 5832-3, AMS4928, ASTM B348
Diameter (mm)	1.0 ~ 7.0 (Customizable up to 101.6mm)
Length (mm)	500 - 4000
Diameter Tolerance	h6, h7, h8, h9
Roundness Tolerance	<0.005mm
Surface	Bright Surface

High-quality titanium bar/rods with various diameters, tolerances and performances can be customized according to requirements.

Chemical Composition (ASTM F136 Ti-6Al-4V Eli)

Element	Composition, % (Max or Range)
N	0.05
C	0.08
H	0.012
Fe	0.25
O	0.13
Al	5.5 - 6.50
V	3.5 - 4.5
Ti	Balance

★

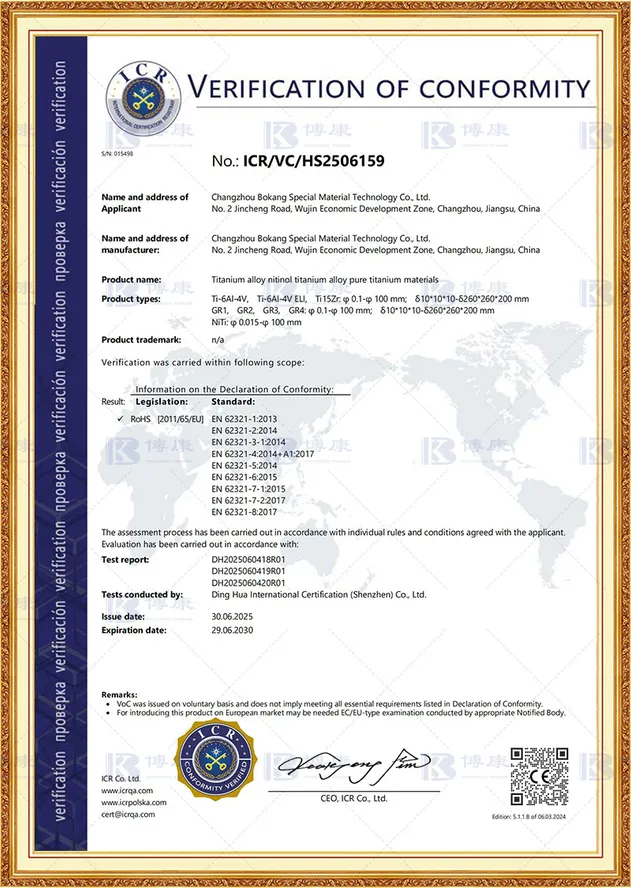

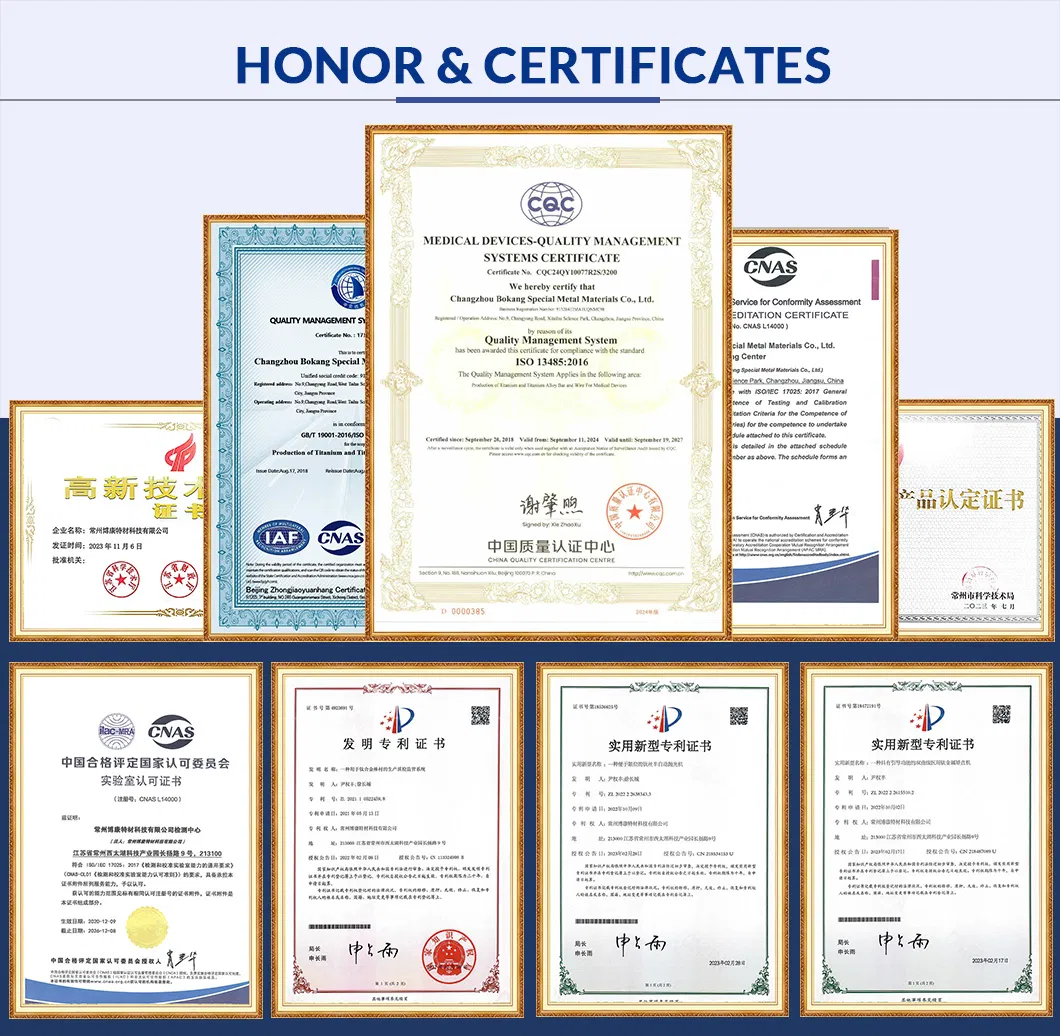

Certifications

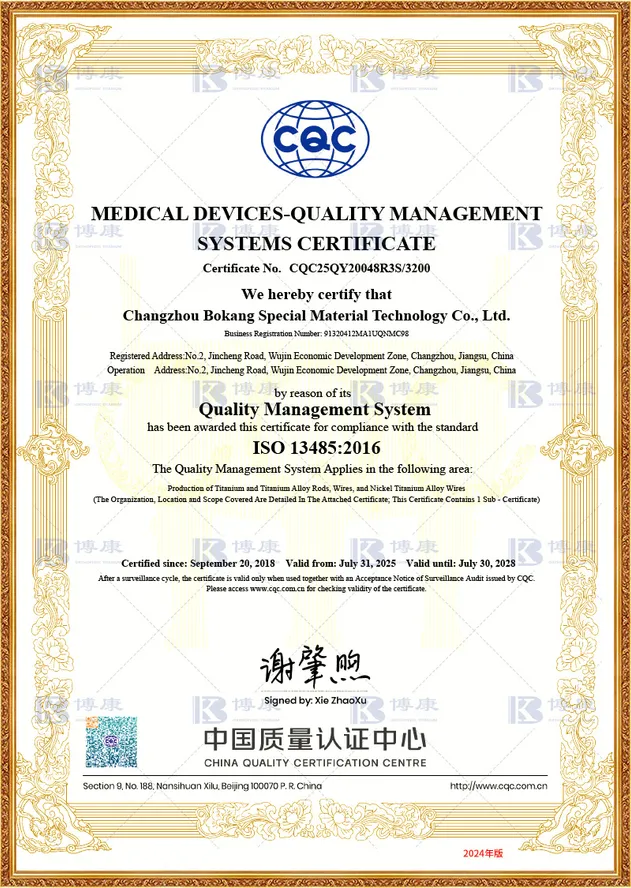

ISO 13485

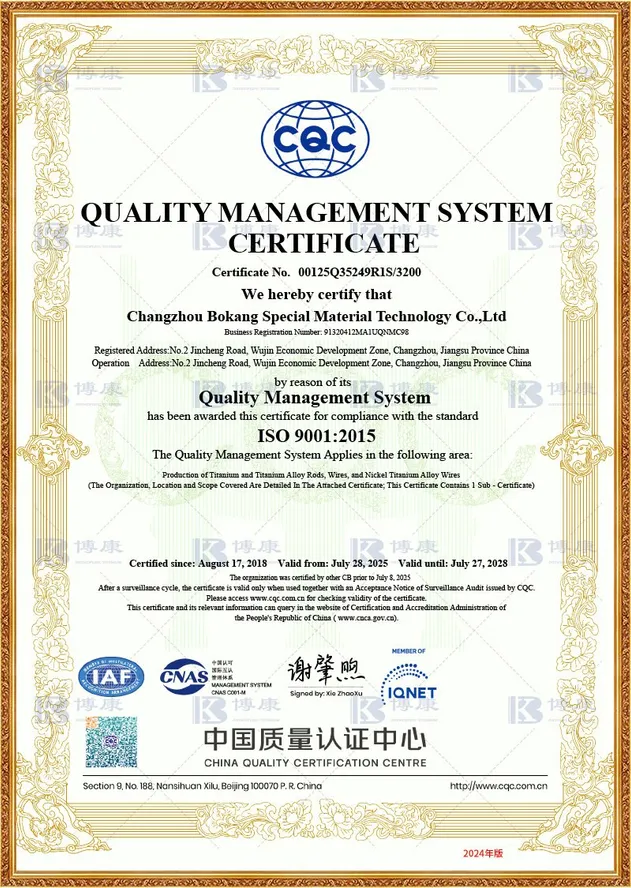

ISO 9001

CE

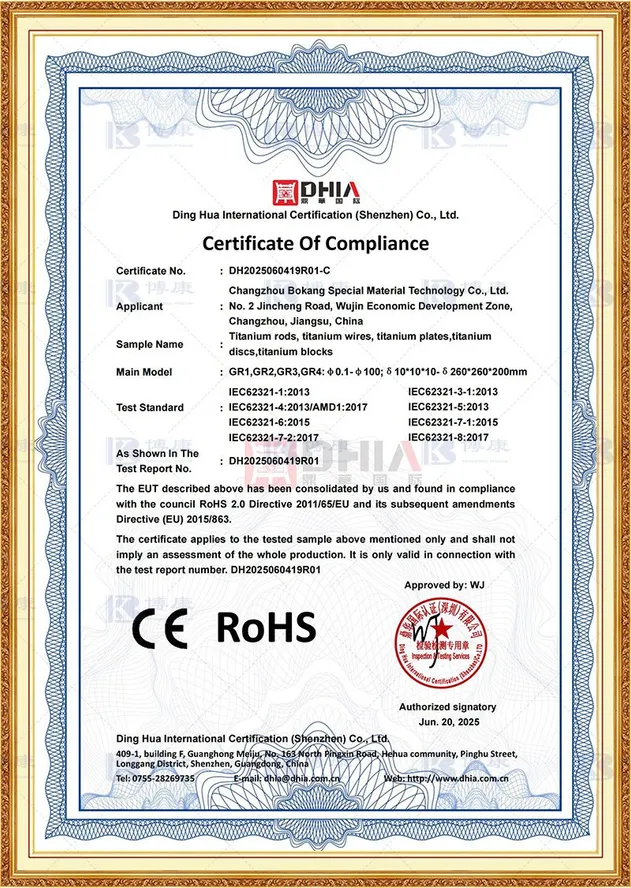

RoHS Pure Titanium

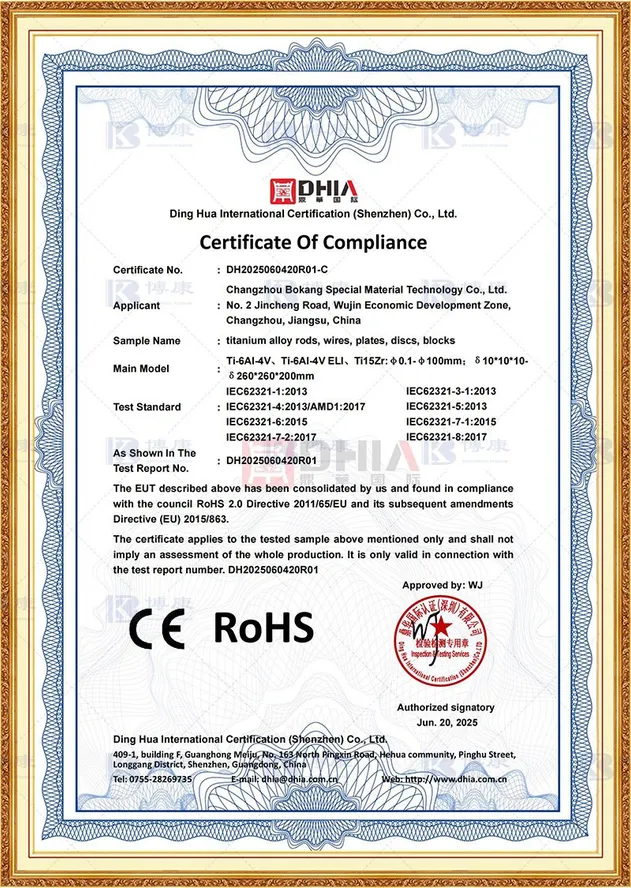

RoHS Titanium Alloy

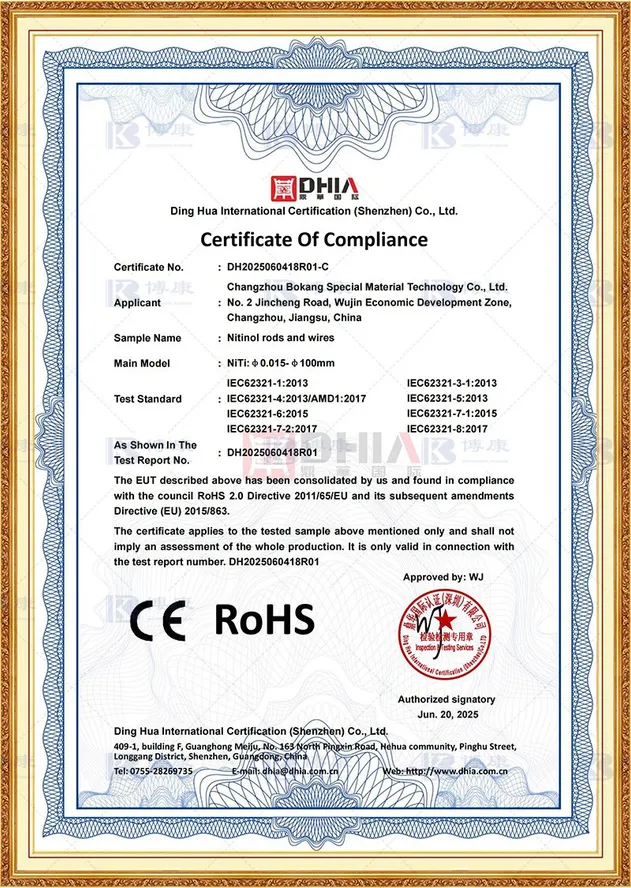

RoHS Nitinol

◈

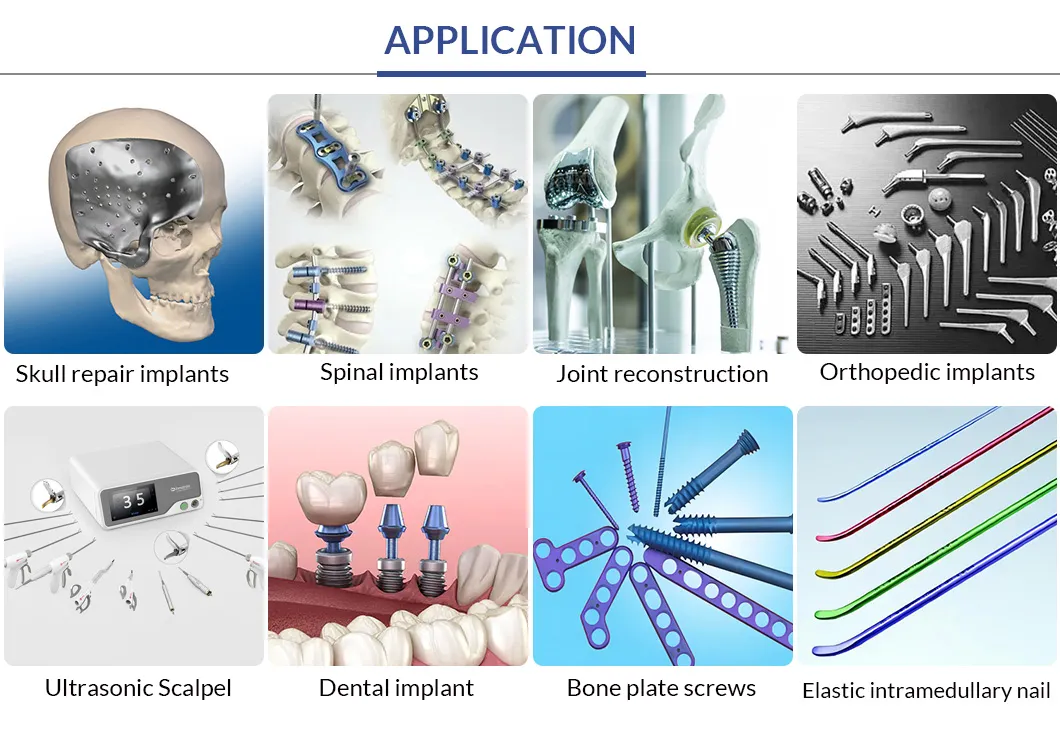

Application

Titanium rods are widely used in the medical industry due to their excellent strength, biocompatibility, and corrosion resistance:

Orthopedic Implants: Hip and knee replacements, bone plates, screws.
Dental Implants: High-strength rods for durable dental prosthetic components.
Ultrasonic Surgical Instruments: Precision components for ultrasonic scalpels.
Surgical Staplers: Reliable strength and fatigue resistance for repeated use.

⚒

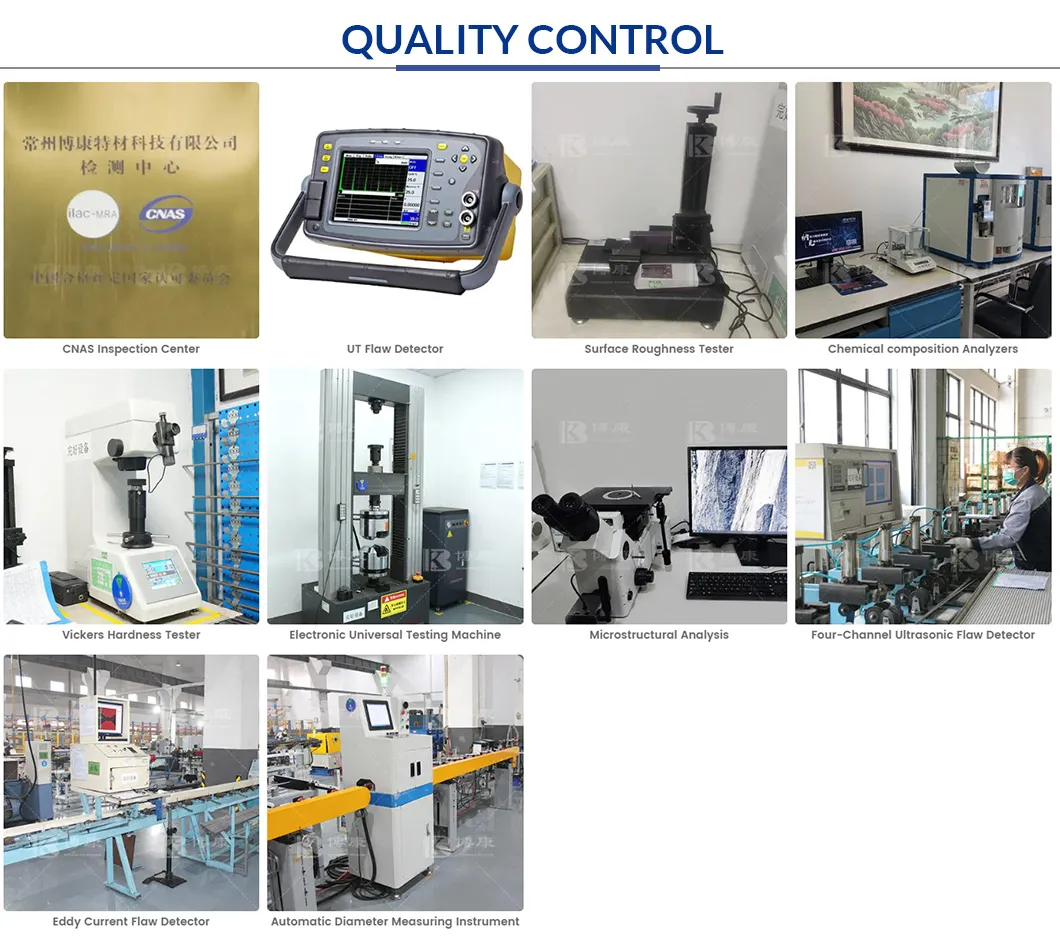

Production and Quality Control

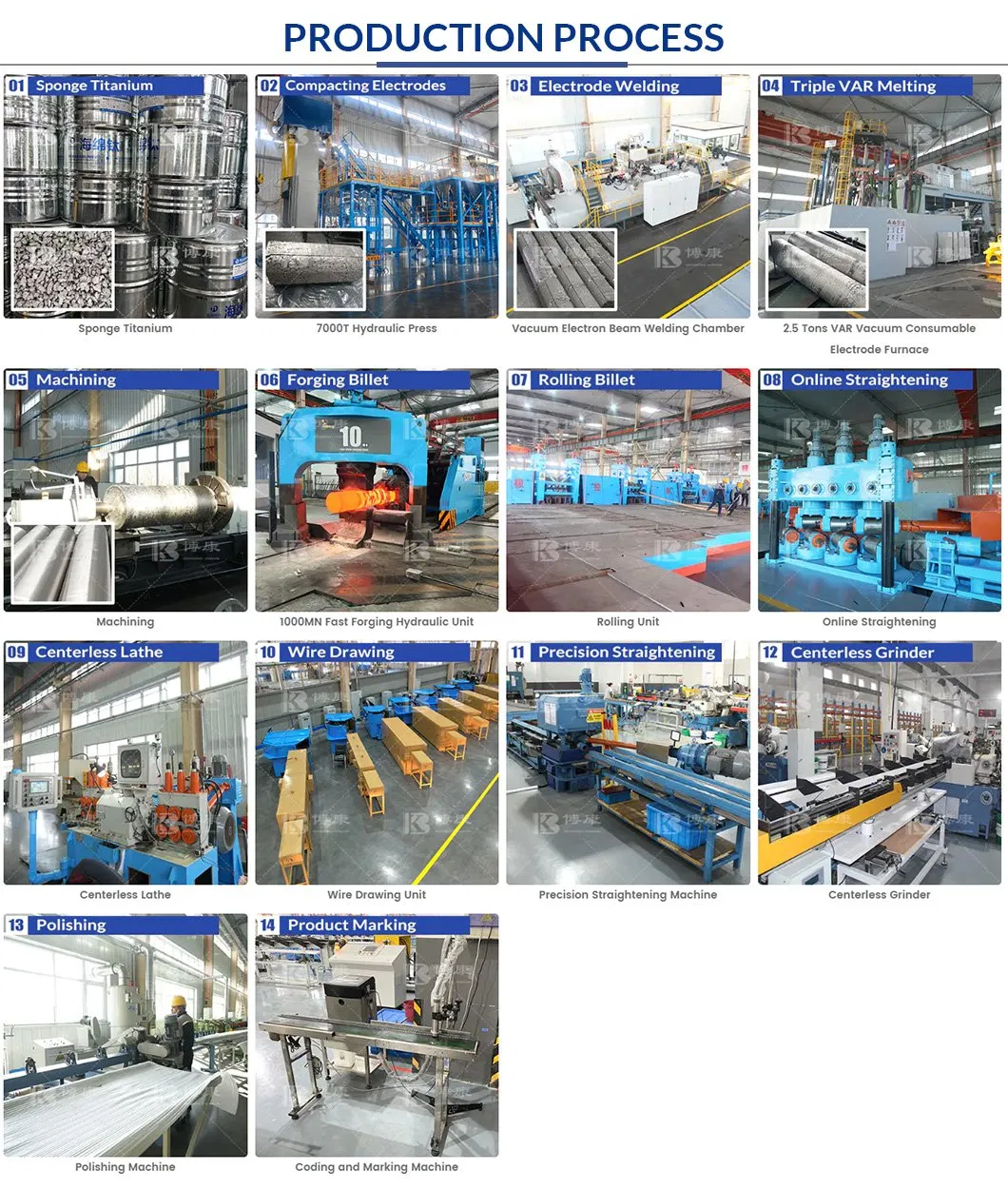

Production Process:

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → Rolling Billet → Online Straightening → Centerless Lathe → Wire Drawing → Precision Straightening → Centerless Grinder → Polishing → Packaging → Delivery

☷

Product Category

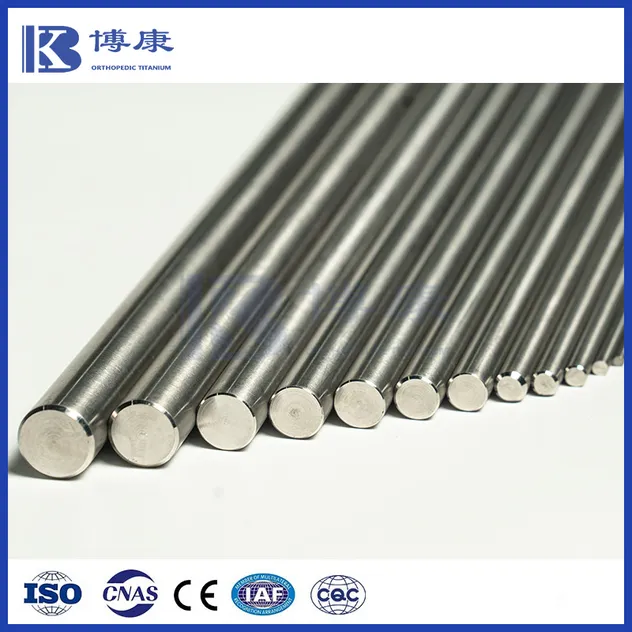

Titanium Bars Rods

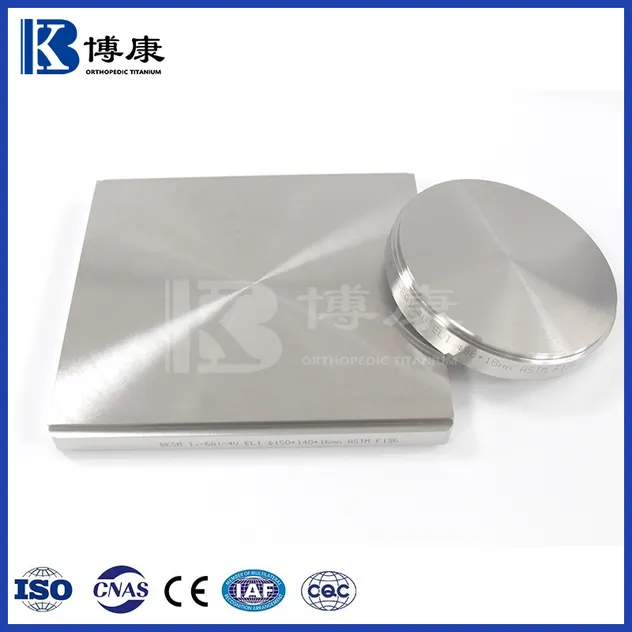

Titanium Disc

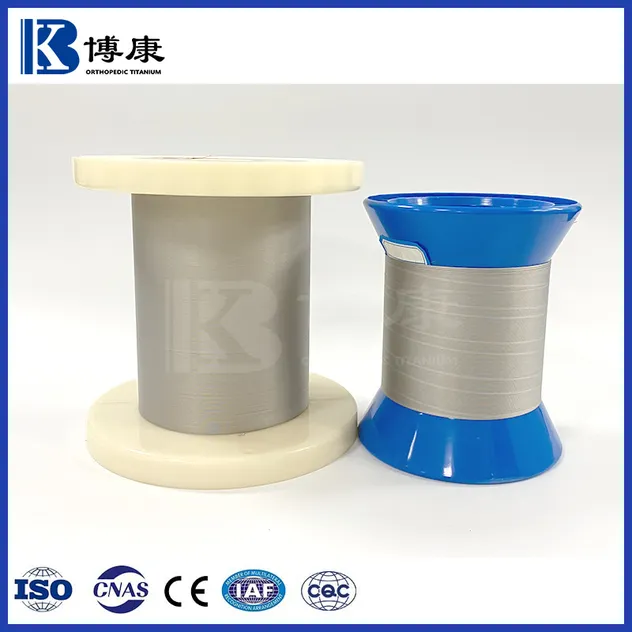

Titanium Wire

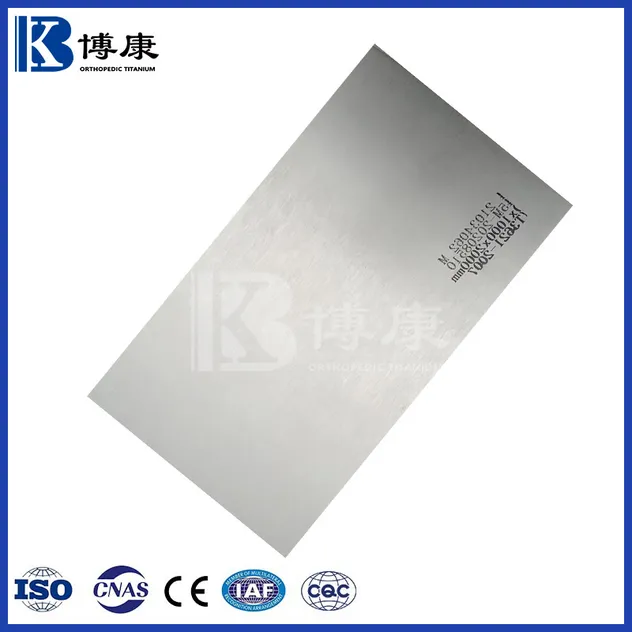

Titanium Plates/Sheets

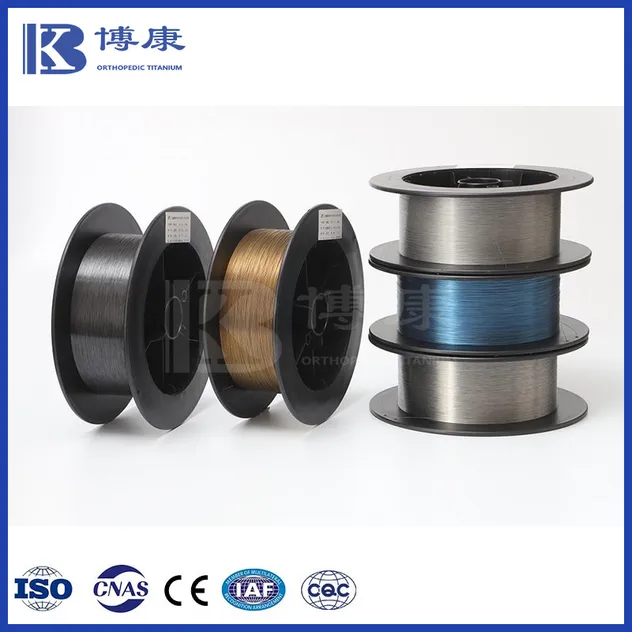

Nitinol Wire

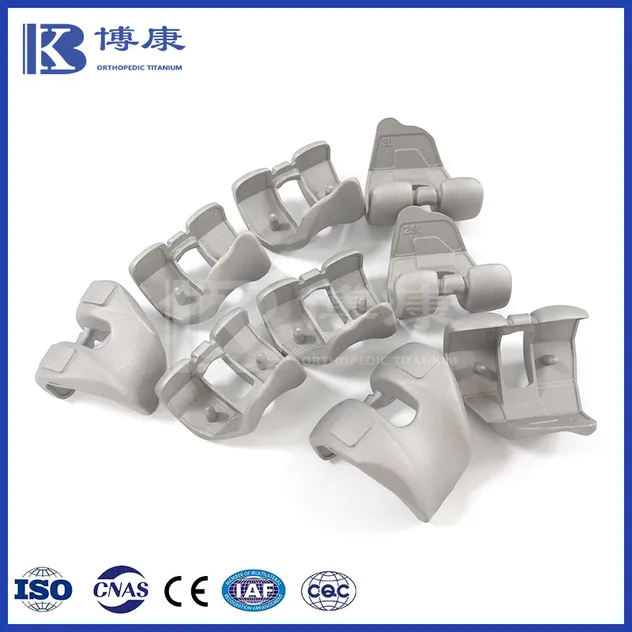

Medical-Grade CoCrMo Castings

🏢

Manufacturing Facility

?

Frequently Asked Questions

Q1: Are you a direct manufacturer of titanium products?

A: Yes, we are a direct manufacturer with over 18 years of specialized experience in titanium and Nitinol alloy production, covering the full process from raw material melting to finished products.

Q2: Can I request free samples for quality testing?

A: Yes, we provide free samples for standard specifications. Customers are only responsible for the shipping costs.

Q3: What is the Minimum Order Quantity (MOQ)?

A: Our MOQ is as low as 1 kg. We maintain a stable monthly production capacity of 20 tons to ensure quick delivery for both small and large orders.

Q4: What international medical standards do your titanium rods meet?

A: All our medical titanium products strictly comply with ASTM F67, ASTM F136, and ISO 5832 standards. We are also certified to ISO 13485 and CE.

Q5: Do you support customized manufacturing based on specific drawings?

A: Absolutely! We offer full OEM/ODM customization support. We can manufacture titanium rods, wires, and components according to your specific technical drawings or samples.

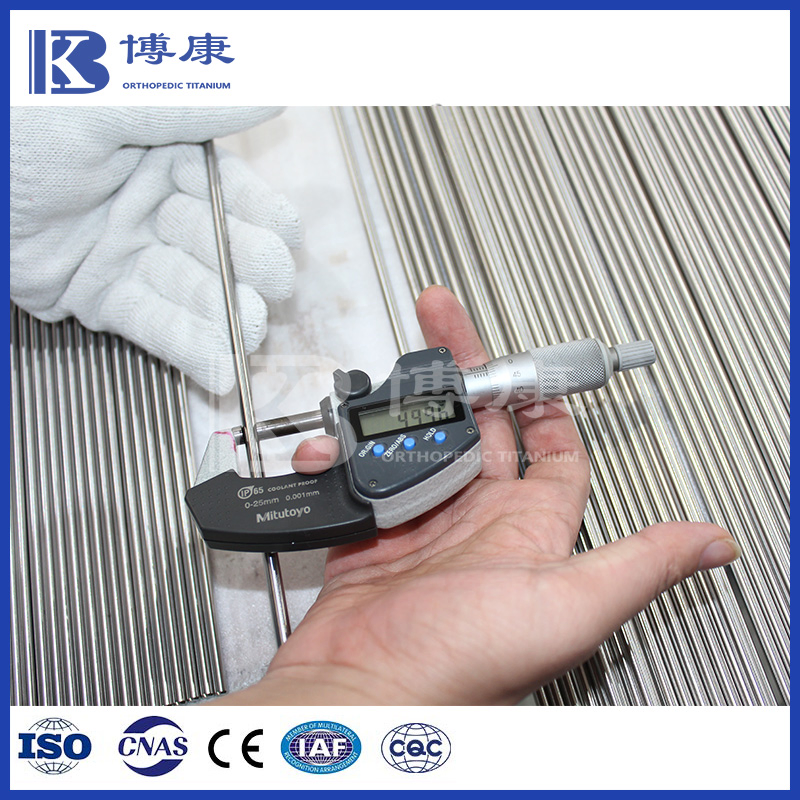

Q6: How is product quality ensured during production?

A: We implement rigorous quality control at every stage, including chemical analysis, mechanical property testing, and ultrasonic inspection in our ISO/IEC 17025 accredited laboratory.
