Titanium Clad Copper Bar Rod Manufacture

Basic Specifications

Model NO.

ETCCM01

Technique

Metallurgical Bond / Explosion Bonding

Grade

GR2

Shape

Square

Titanium

Gr2

Copper

T2, Tu2

Nickel

Ni 6

Zirconium

Zr

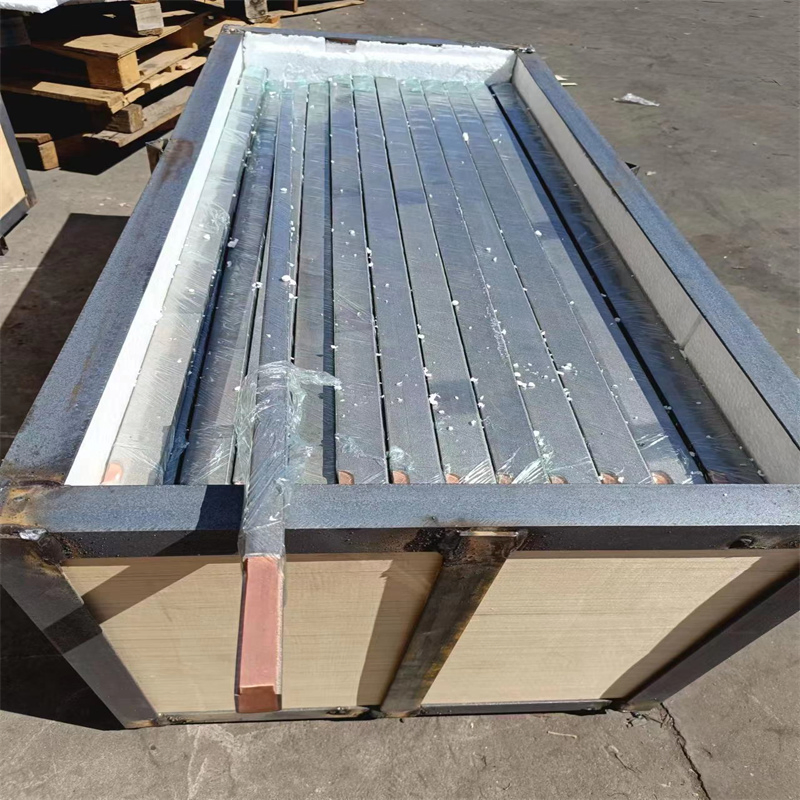

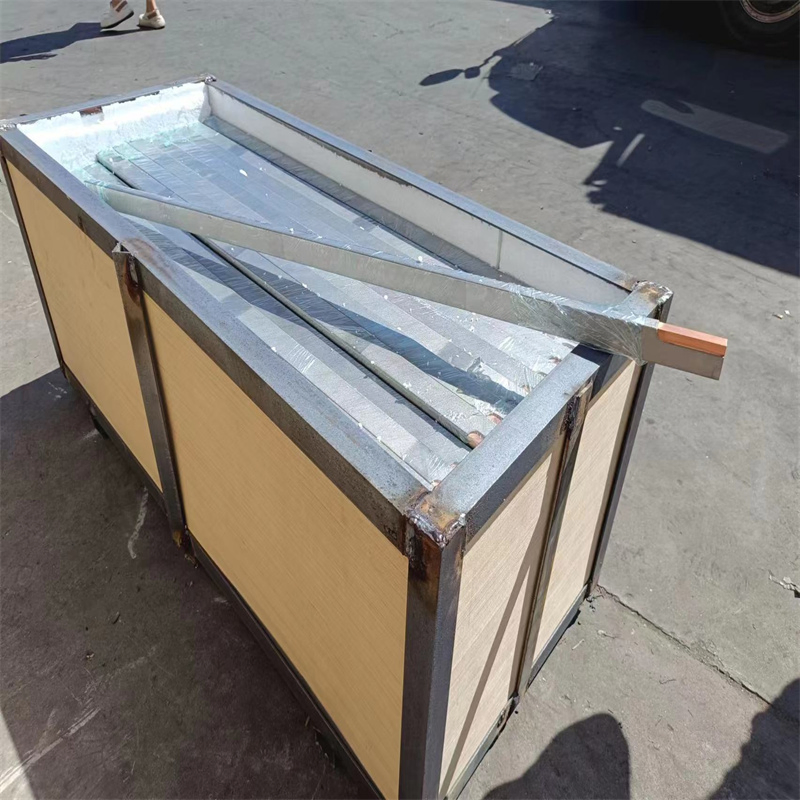

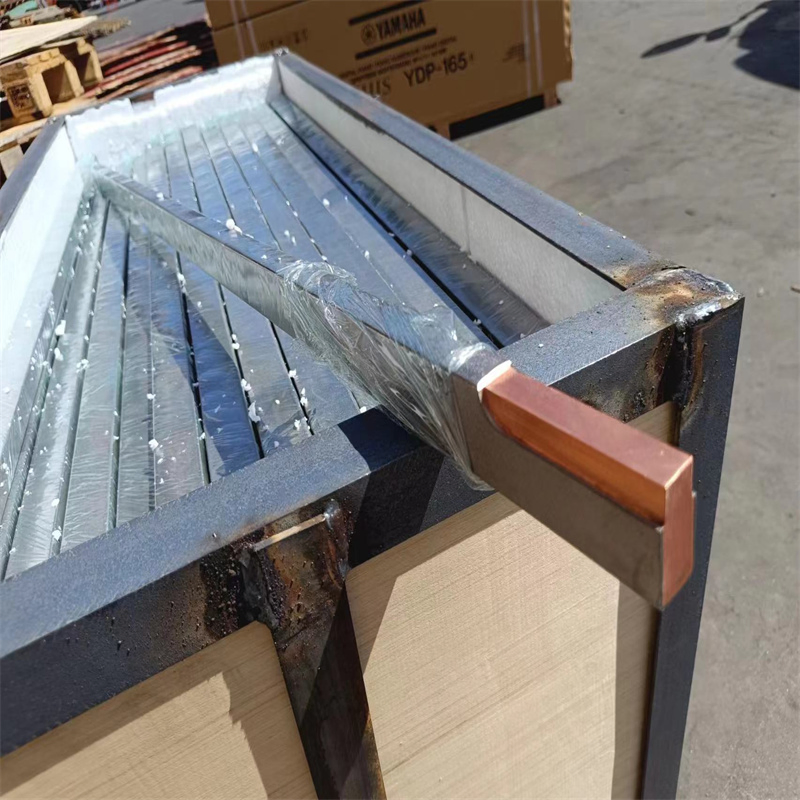

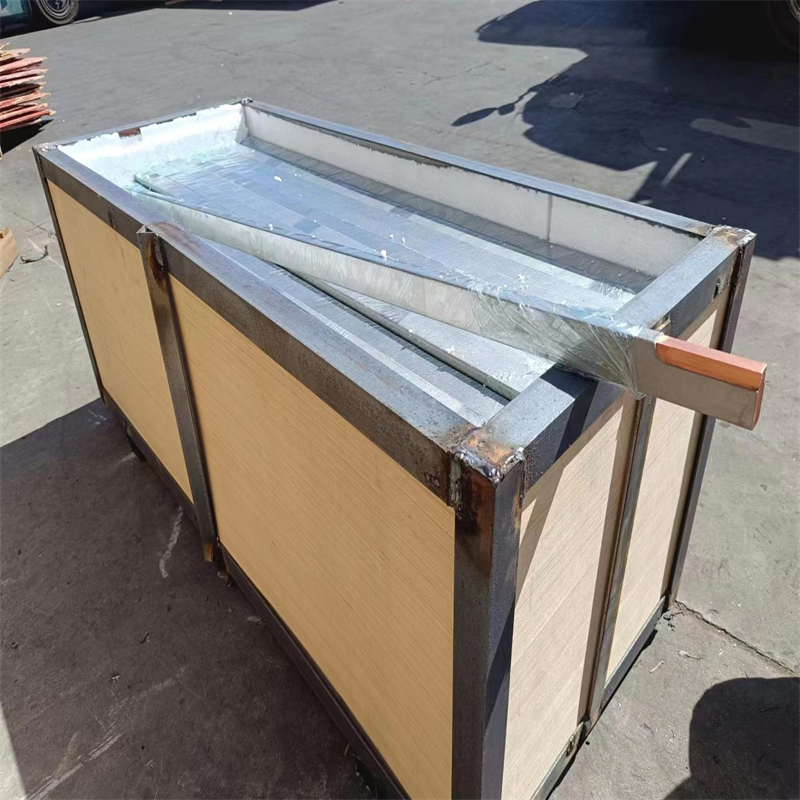

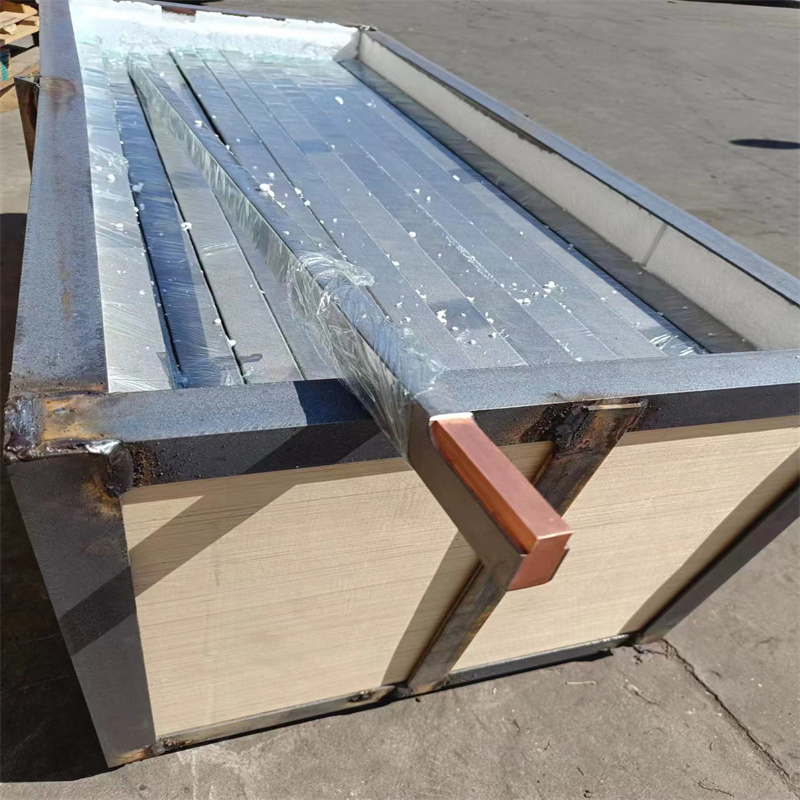

Package

Polywood Package

Production Capacity

200,000 PCS/Year

Product Overview

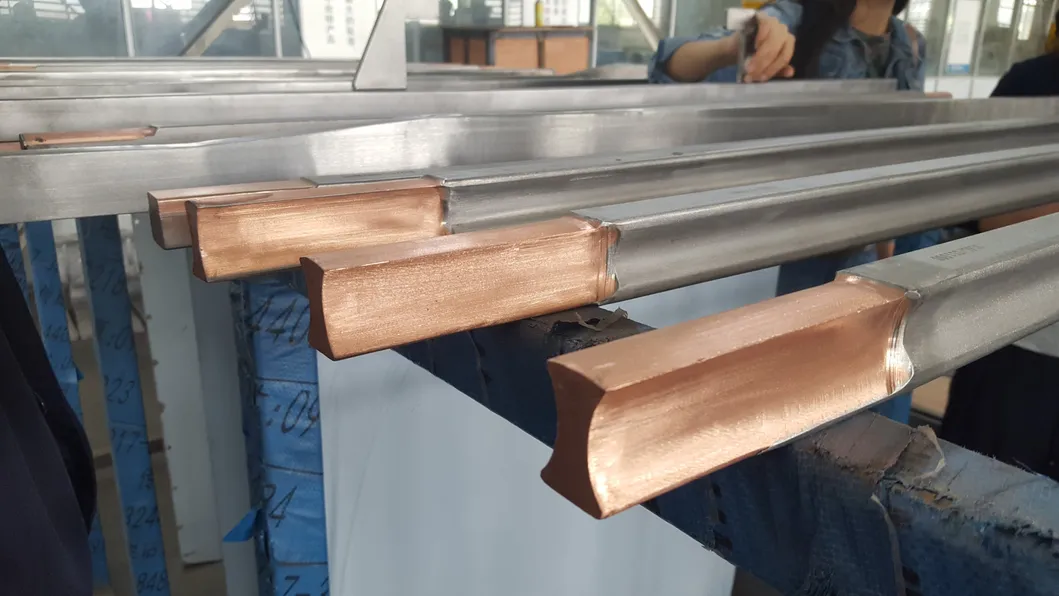

Titanium Clad Copper Bar Rod Manufacture

Gr2 Titanium clad copper bus bars anode and other non-ferrous metals clad composite materials electrodes are essential components in modern industrial processes. This composite material features a copper bar cladding with a specific thickness of titanium, primarily utilized in plating, electrolysis, and hydrometallurgy.

It combines the excellent conductive properties of copper with the superior corrosion resistance of titanium. This prevents common copper bus bar failures such as corrosion, heat generation from electrical contact resistance, and electrolyte pollution, making it the ideal choice for printed circuit makers and metal refining industries.

Key Performance Advantages

High Shear and Tensile Strength: Guaranteed in accordance with GB, ASTM, and JIS standards (≥ 130 Mpa).
Excellent Ductility: Cladding metal maintains perfect elongation during face and reverse bending.
Superior Electrical Conductivity: Explosions-rolling process ensures a 98% compact rate with micro-resistance of 7.77 × 10⁻⁶Ω.
Extreme Corrosion Resistance: The explosion bonding process ensures the integrity of clad materials in harsh environments.
Versatile Weldability: Great reliability for connecting, capping, and joining in various industrial setups.

Material Comparison & Applications

Description	Trademark Material	Specification (mm)	Standard	Application
Titanium clad 316L Steel	TA1, TA2, TA10/16 Mng, 20g, Q235	1-10/5-120X ≤ 2000X8000	GB8547-87, ASTM B898	Petrochemical, Vac Salt, PCB
316L steel clad copper	304, 321, 316L / T1, T2, T3	1-10/5-120X ≤ 2000X8000	JISG3601-92	Chemical, Metallurgy, Plating
Titanium clad Copper	TA1, TA2 / T1, T2, T3	1-10/5-50X ≤ 2000X8000	ASTM B 898-99	Power plant, Electrolysis
Ti/Ni clad material	TA1, TA2 / N2, N4, N6	1-10/5-50X ≤ 2000X8000	GB8547-87	Metallurgy

Frequently Asked Questions

What is the primary benefit of Titanium Clad Copper?

It offers the high conductivity of copper combined with the high corrosion resistance of titanium, protecting the core metal from chemical attack in electrolysis and plating environments.

What production techniques are used?

We utilize advanced processing technologies including explosive welding (bonding), rolling cladding, and explosion-rolling cladding to ensure a high bond strength.

What is the bond strength of these composite bars?

Our titanium clad copper products feature a sheared strength of ≥ 130 Mpa and a compact rate of ≥ 98%, far exceeding traditional mechanical methods.

Can you provide custom shapes?

Yes, we can supply various specifications including round, square, flat, rectangle, and drum shapes according to customer requirements.

How is the product quality verified?

Every product undergoes 100% ultrasound inspection and visual testing. Microstructure, physical, and chemical composition analyses are also conducted.
