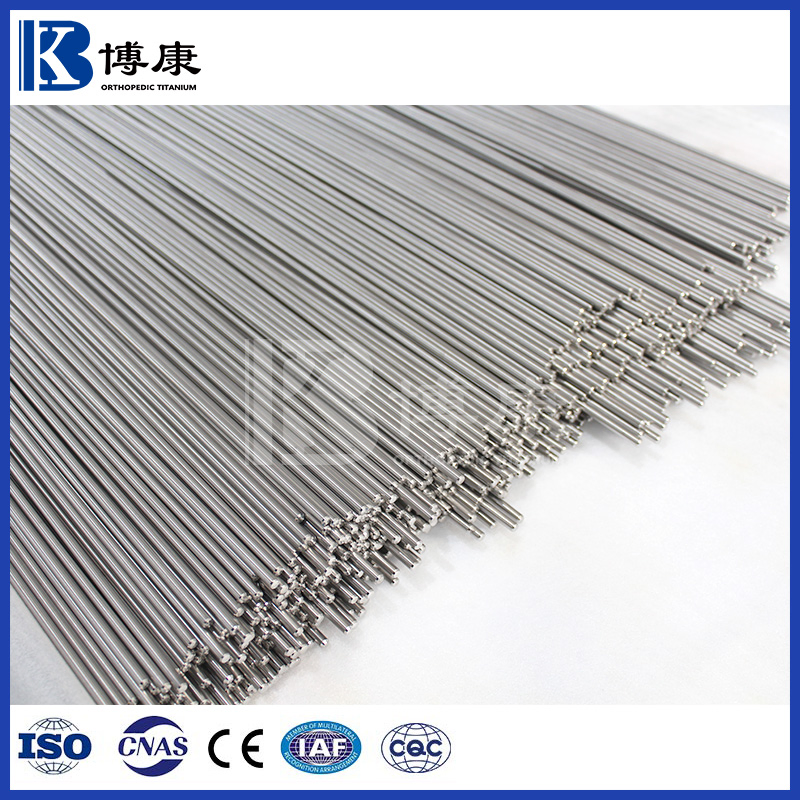

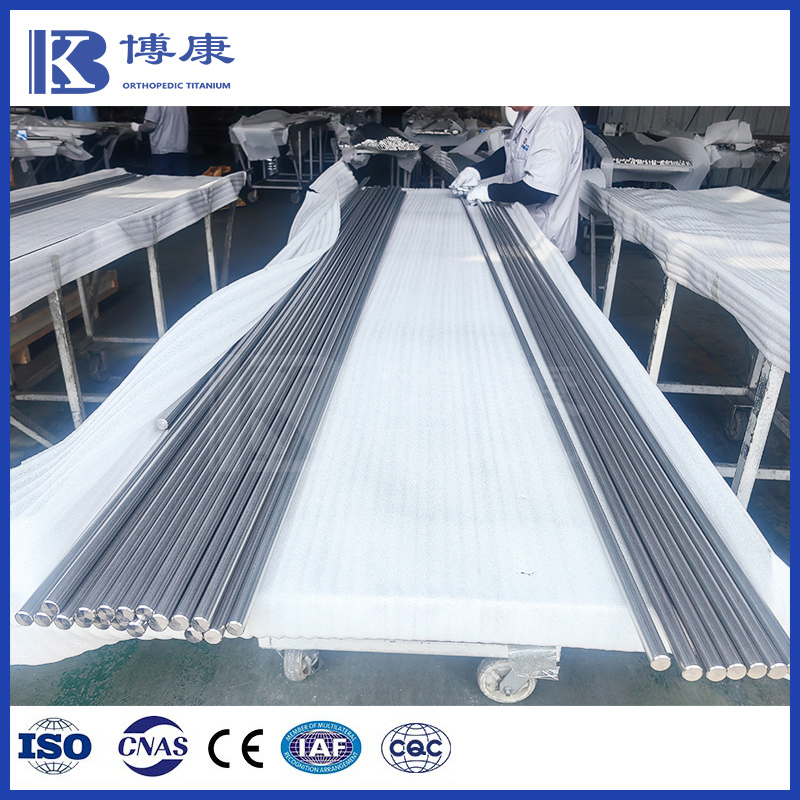

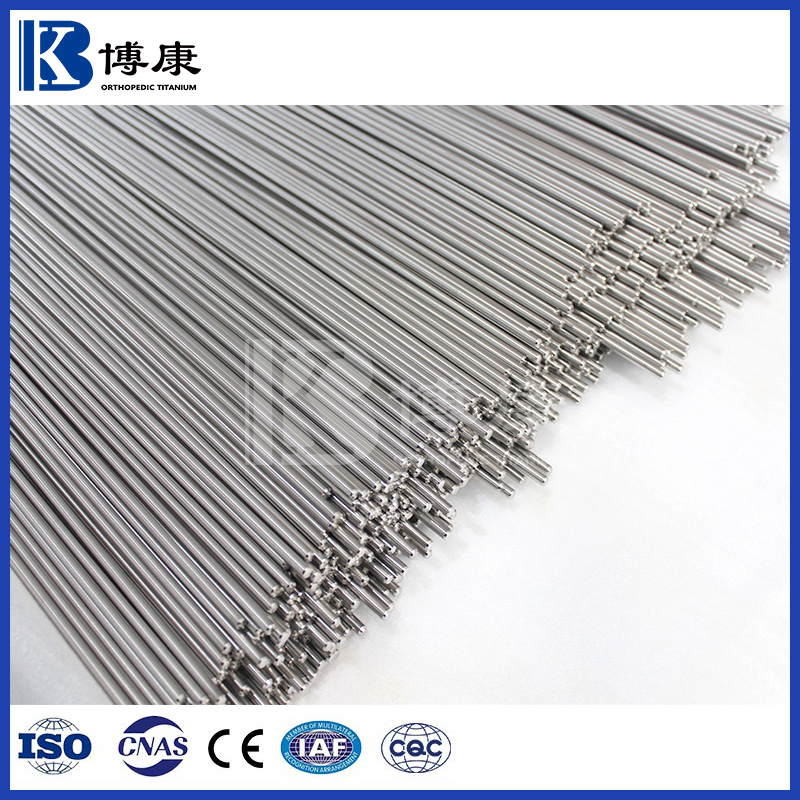

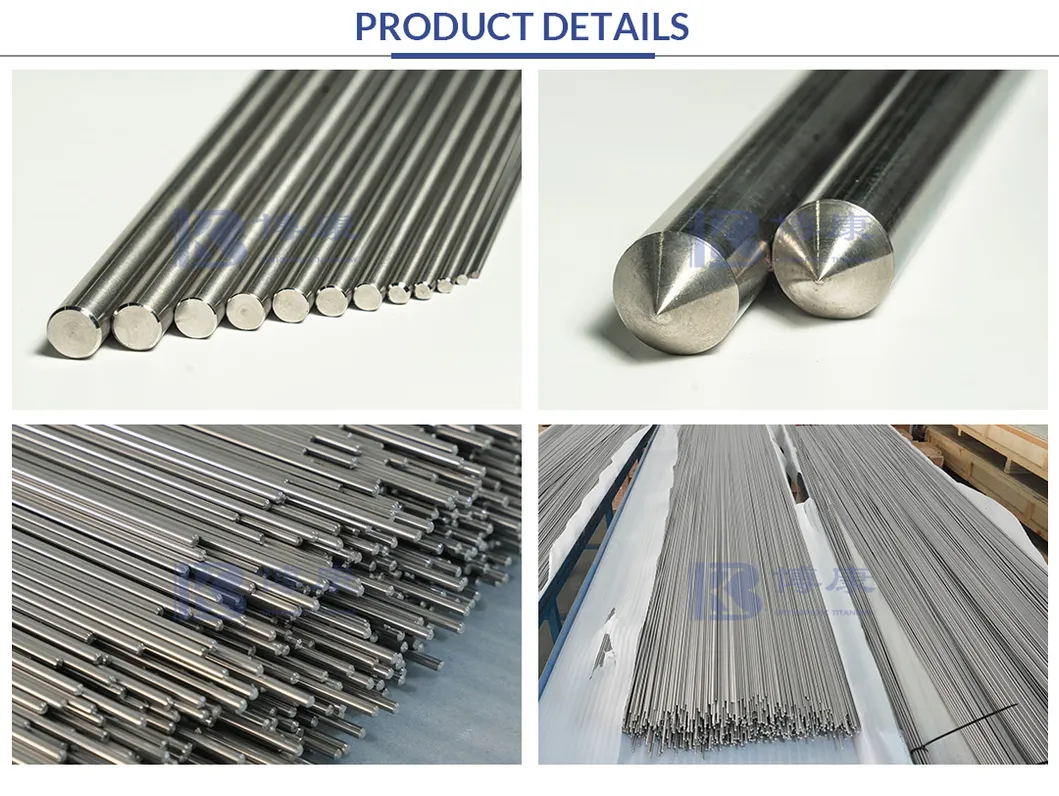

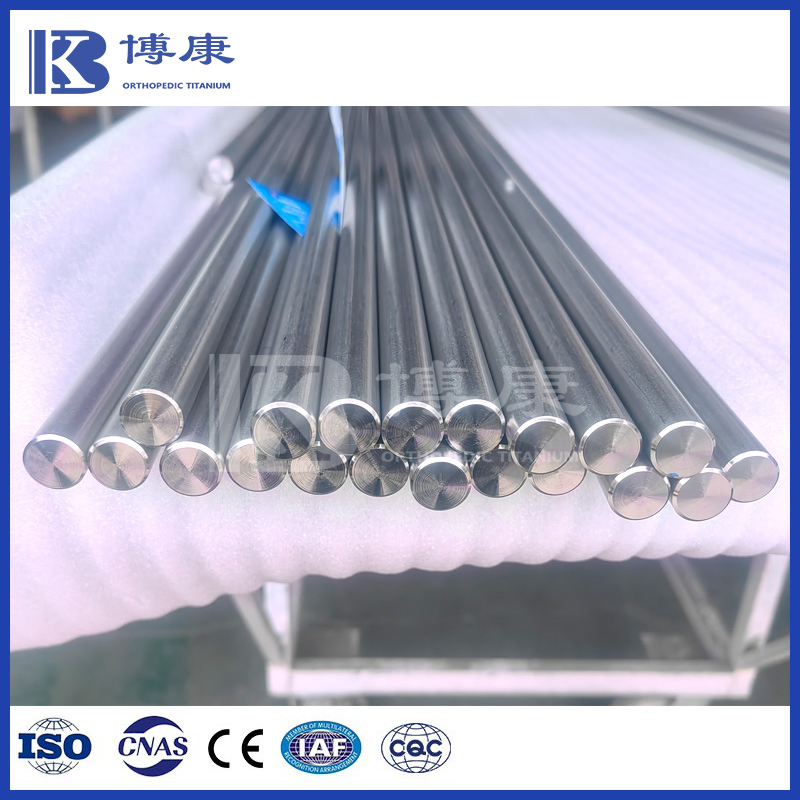

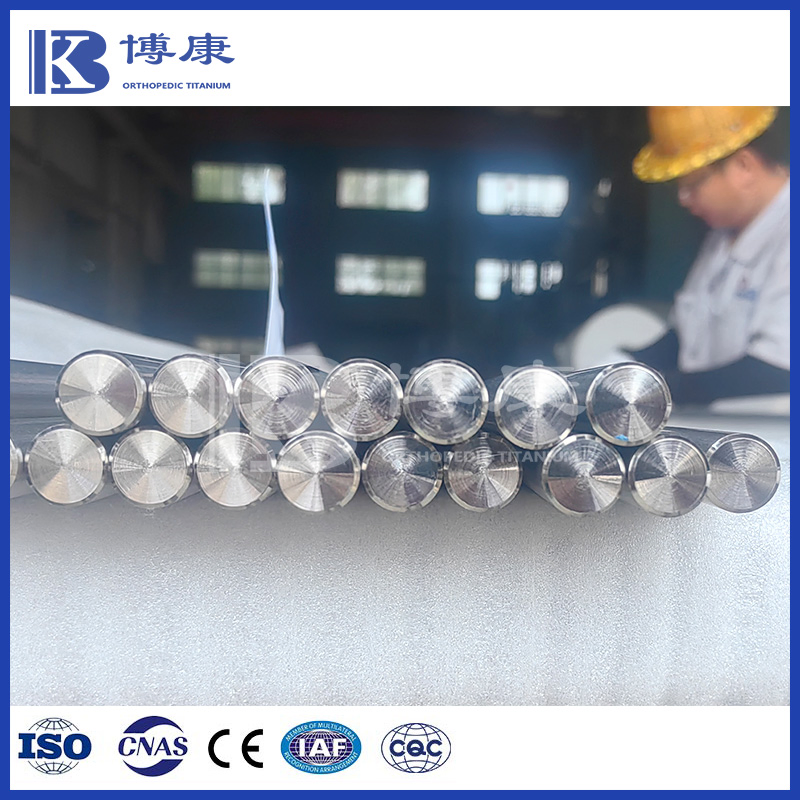

Titanium rods are categorized into pure titanium rods and titanium alloy rods. For pure titanium rods, we mainly offer grades Gr1, Gr2, Gr3, Gr4, etc. For titanium alloy rods, we provide grades Gr5, Gr9, Gr23, and more.
Our titanium rods serve multiple industries including medical (orthopedic, dental, medical devices), aerospace (fasteners, profiles, forgings), and various industrial applications.
| Titanium Bar Specifications | |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI), etc |
| Standard | ASTM F67; ASTM F136; ISO5832-2; ISO5832-3; AMS4928; AMS4965; AMS4967; ASTM B348; ASTM B863 |
| Diameter(mm) | 3.0-130.0mm |
| Length(mm) | 500-4000 |
| Tolerance | h6, h7, h8, h9 |
| Surface | Bright Surface |

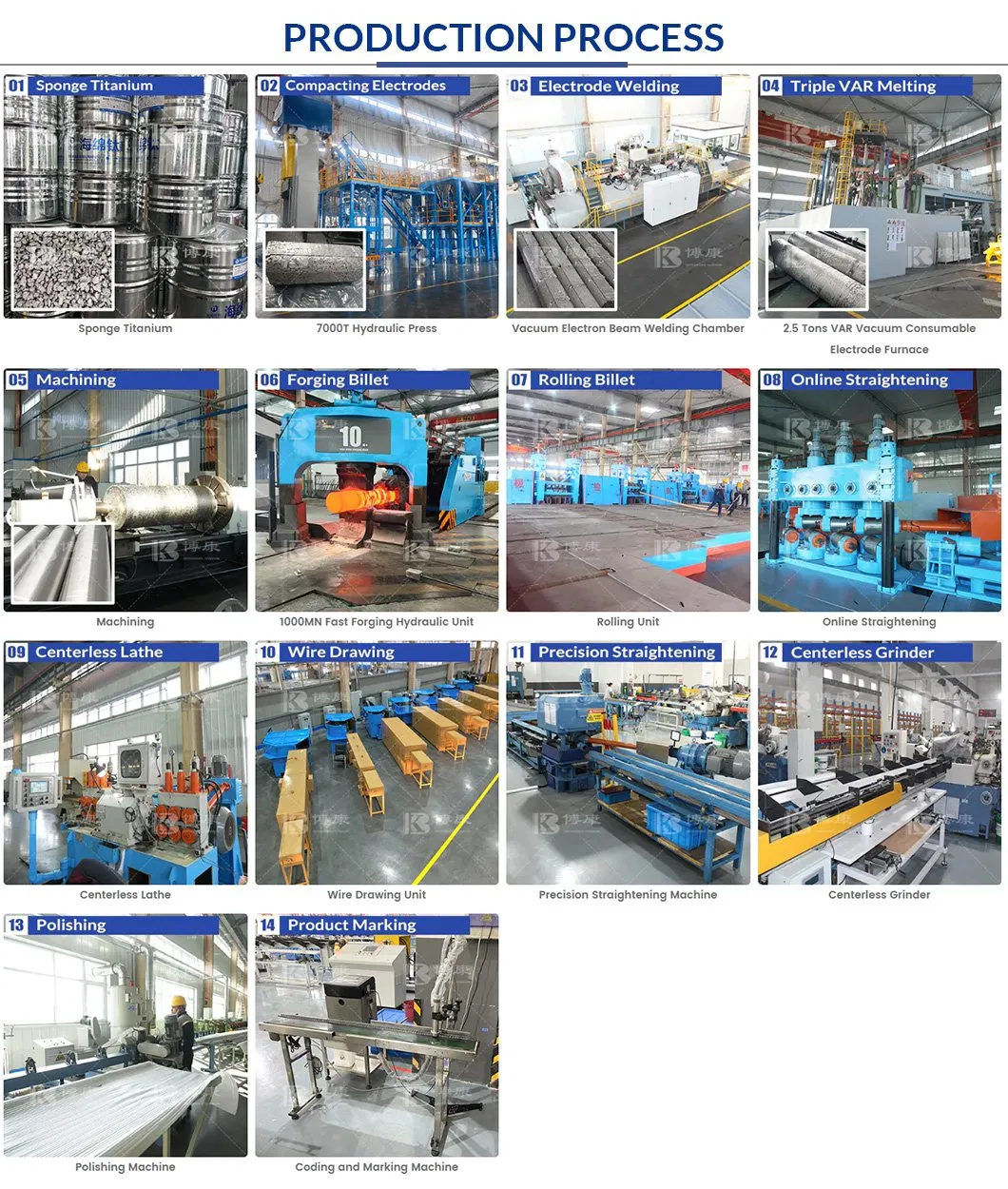

Sponge Titanium → Compacting Electrodes → Electrode Welding → Triple VAR Melting → Machining → Forging Billet → UT testing → Rolling Billet → Online Straightening → Centerless Lathe → UT testing → Rolling → Metallographic Inspection → Wire Drawing → Precision Straightening → Heat Treatment → Mechanical test → Microstructure test → Centerless Grinder → Eddy Current Test → Polishing → Visual and dimension inspection → Marking → Packaging → Delivery
| Grade | Carbon (max) | Oxygen (max) | Nitrogen (max) | Hydrogen (max) | Iron (max) | Aluminum | Vanadium |
|---|---|---|---|---|---|---|---|
| Grade 1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | ... | ... |
| Grade 2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | ... | ... |
| Grade 5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 5.5-6.75 | 3.5-4.5 |
| Grade 23 | 0.08 | 0.13 | 0.03 | 0.0125 | 0.25 | 5.5-6.5 | 3.5-4.5 |
| Grade | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Reduction of Area (%) min |
|---|---|---|---|---|
| 1 | 240 | 138 | 24 | 30 |
| 2 | 345 | 275 | 20 | 30 |
| 5 | 895 | 828 | 10 | 25 |
| 23 | 828 | 759 | 10 | 15 |

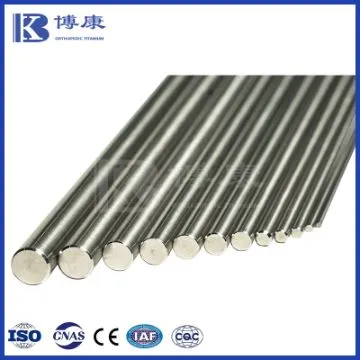

Titanium Bar/Rod

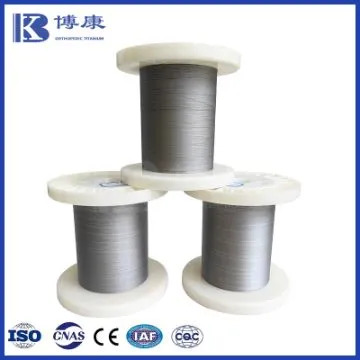

Titanium Wire

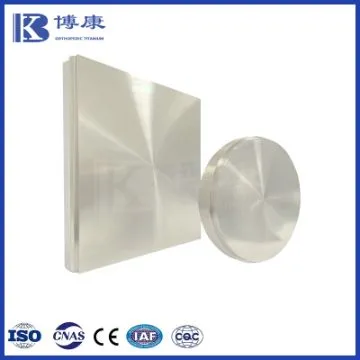

Titanium Disc

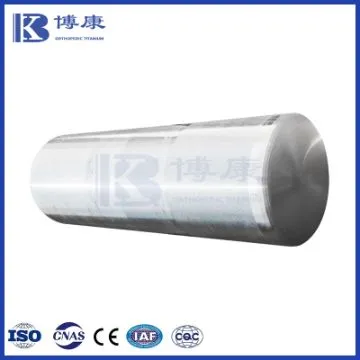

Titanium Ingot
Nitinol/Nickel Titanium

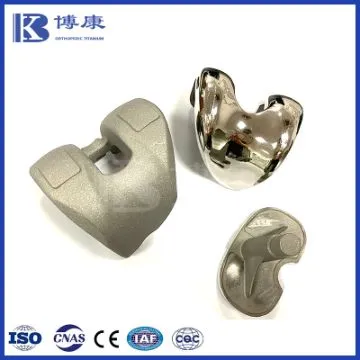

Artificial Joint Castings
