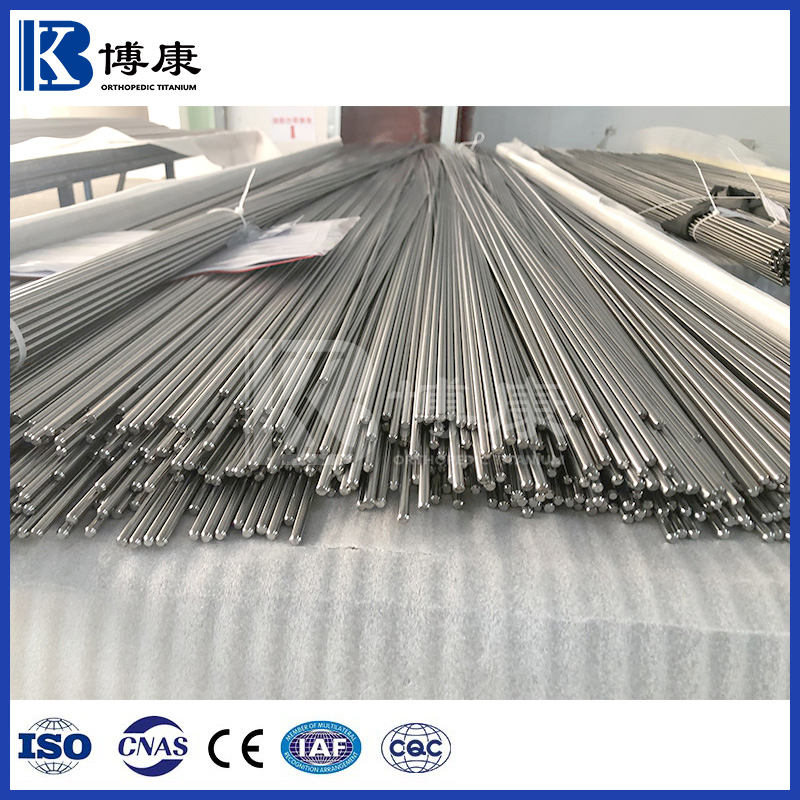

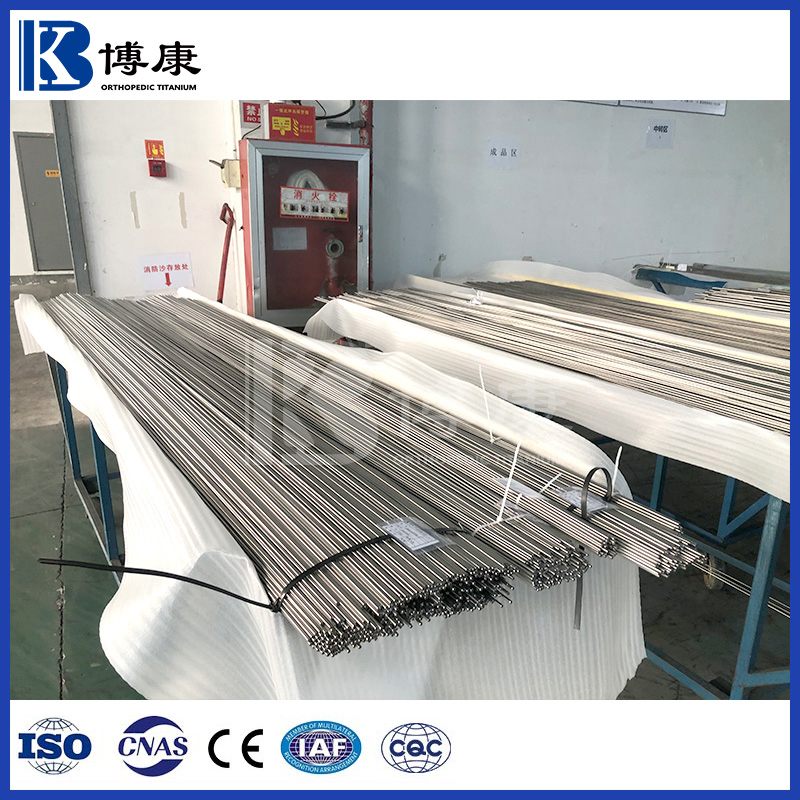

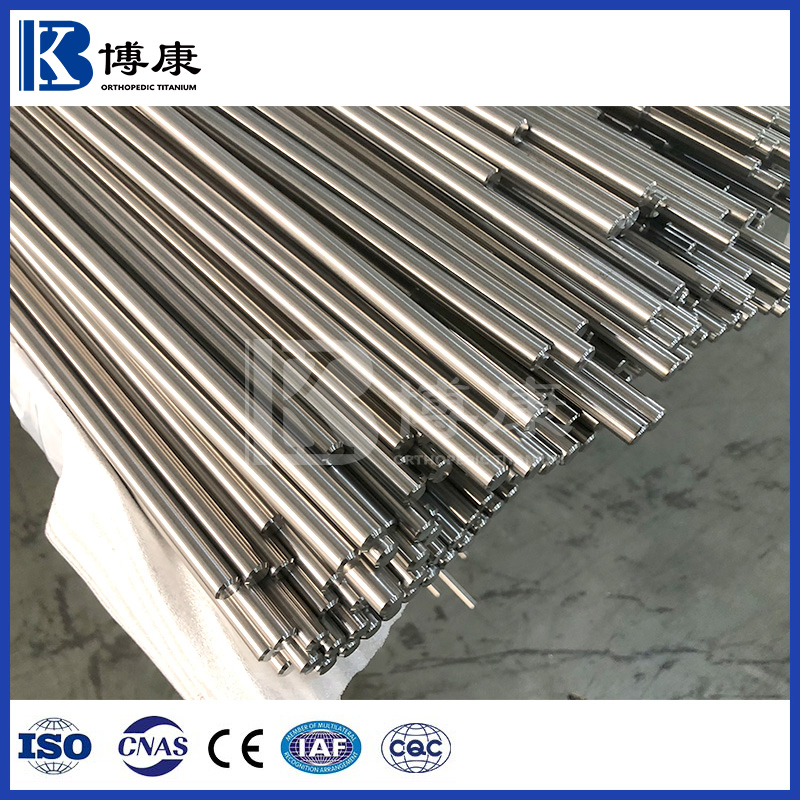

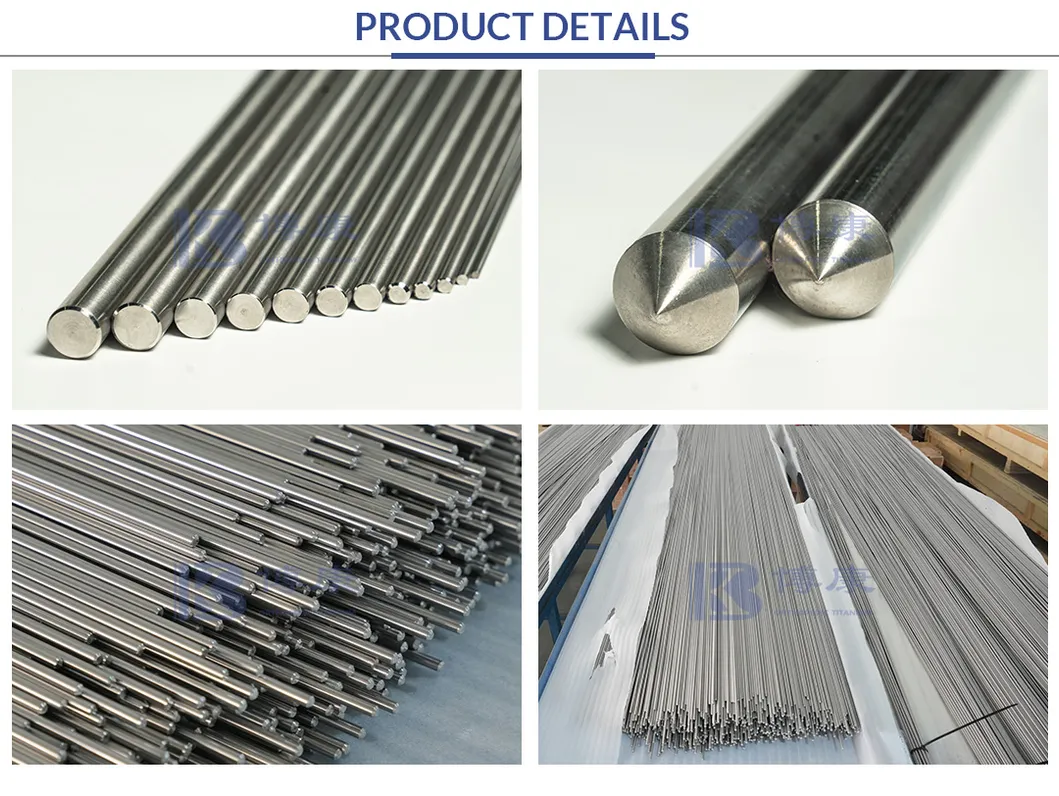

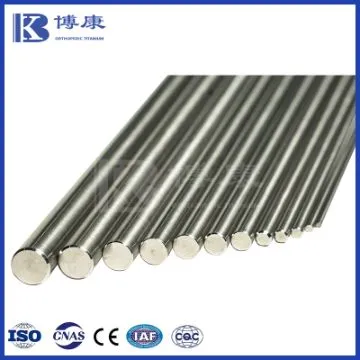

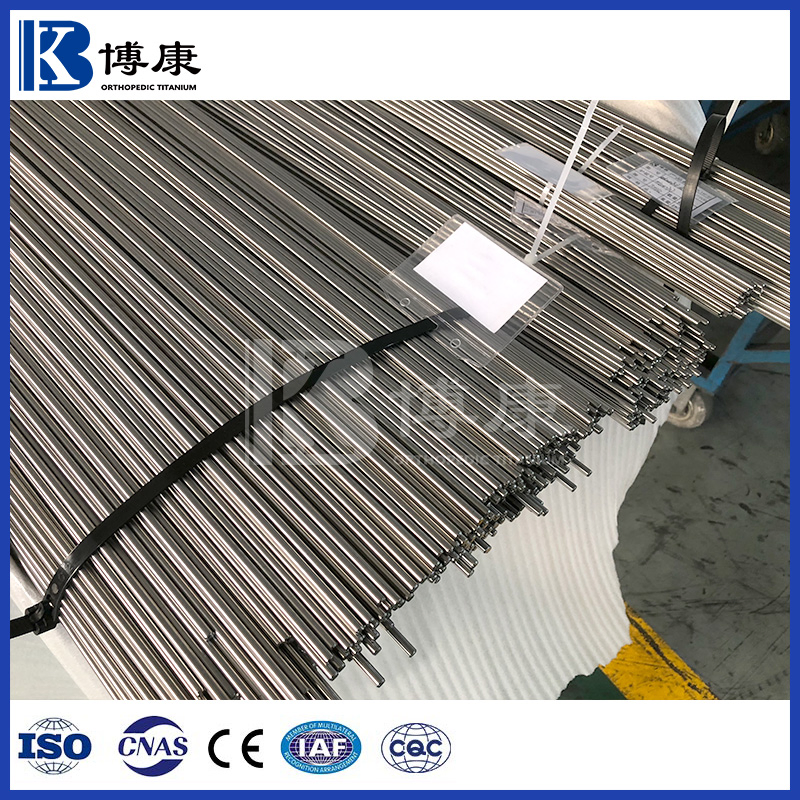

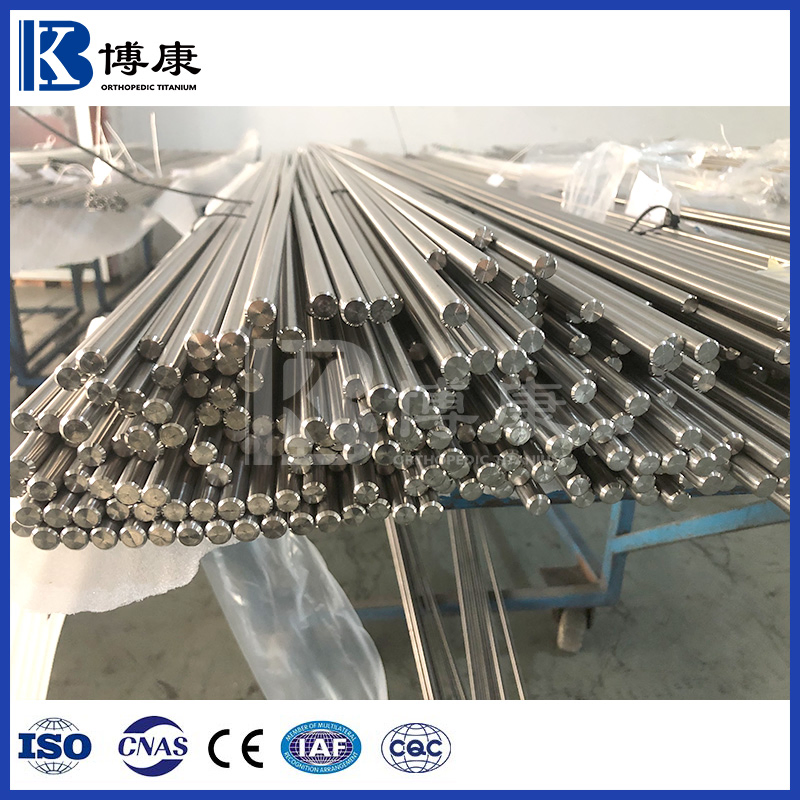

Titanium rods are categorized into pure titanium rods and titanium alloy rods. For pure titanium, we primarily offer grades Gr1, Gr2, Gr3, and Gr4. For alloy options, we provide Gr5, Gr9, Gr23, and more. These are widely used in medical (orthopedic, dental), aerospace (fasteners, forgings), and various industrial sectors.
| Titanium Bar Technical Specifications | |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5(Ti-6Al-4V), Gr9(Ti-3Al-2.5V), Gr23(Ti-6Al-4V ELI) |
| Standard | ASTM F67, F136; ISO 5832-2/3; AMS 4928, 4965; ASTM B348, B863 |
| Diameter (mm) | 3.0 - 130.0mm |
| Tolerance | h6, h7, h8, h9 |
| Surface | Bright Surface |
| Grade | Carbon (max) | Oxygen (max) | Nitrogen (max) | Iron (max) | Aluminum | Vanadium | Titanium |
|---|---|---|---|---|---|---|---|
| Grade 1 | 0.08 | 0.18 | 0.03 | 0.20 | - | - | Balance |
| Grade 2 | 0.08 | 0.25 | 0.03 | 0.30 | - | - | Balance |
| Grade 5 | 0.08 | 0.20 | 0.05 | 0.40 | 5.5-6.75 | 3.5-4.5 | Balance |
| Grade 23 | 0.08 | 0.13 | 0.03 | 0.25 | 5.5-6.5 | 3.5-4.5 | Balance |
| Grade | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Reduction of Area (%) min |
|---|---|---|---|---|
| 1 | 240 | 138 | 24 | 30 |
| 2 | 345 | 275 | 20 | 30 |
| 5 | 895 | 828 | 10 | 25 |
| 9 | 620 | 483 | 15 | 25 |
| 23 | 828 | 759 | 10 | 15 |
Titanium Bar/Rod

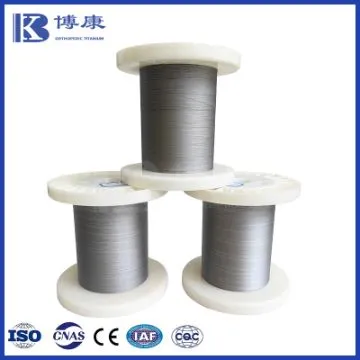

Titanium Wire

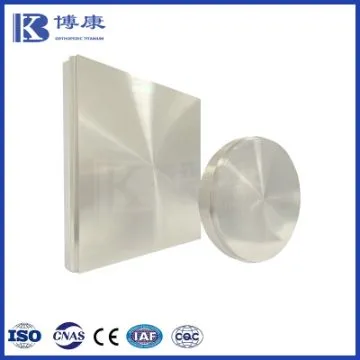

Titanium Disc
