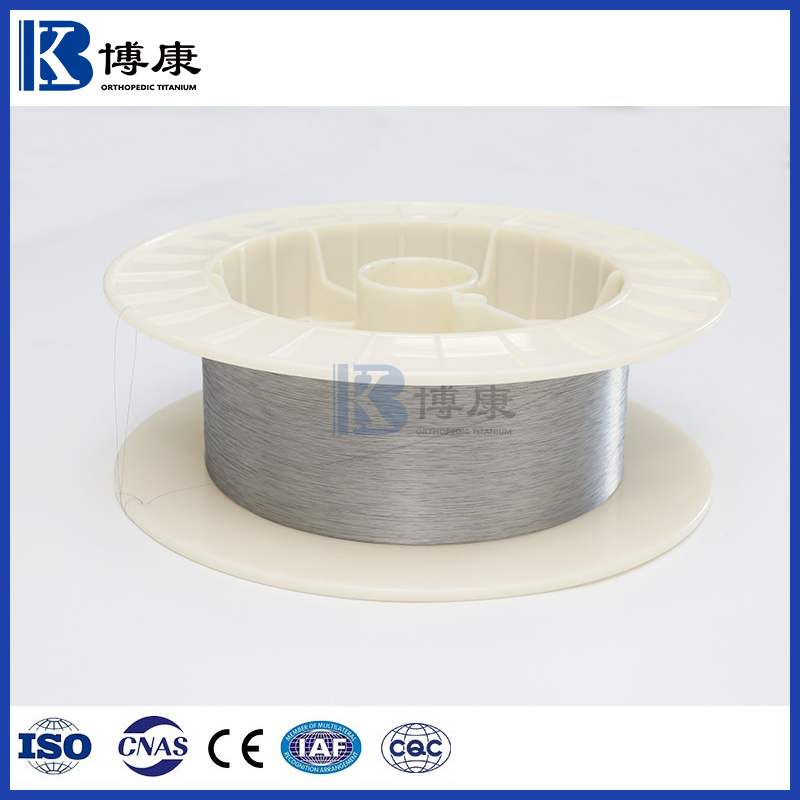

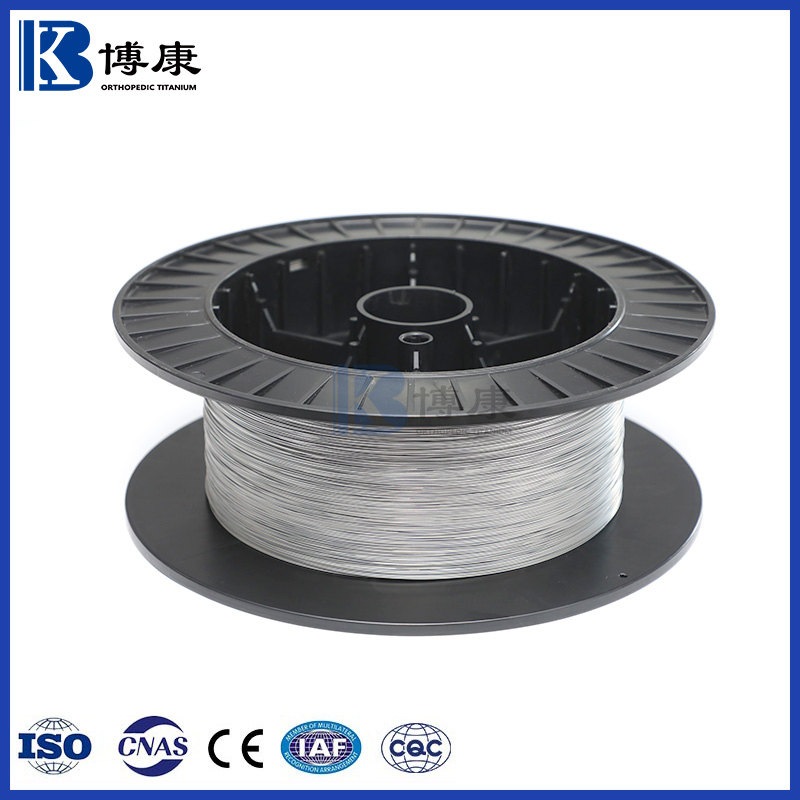

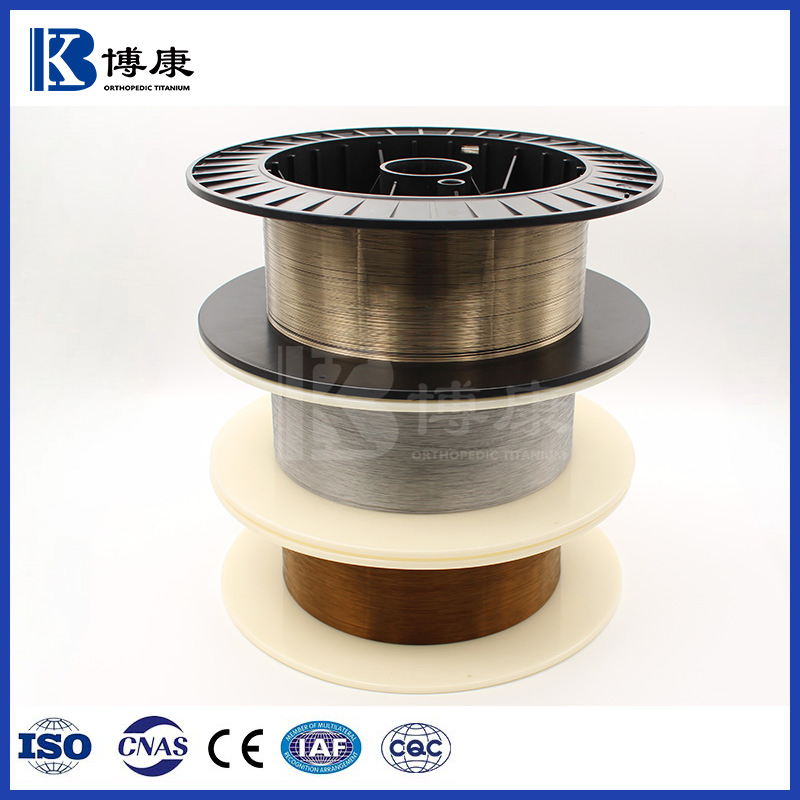

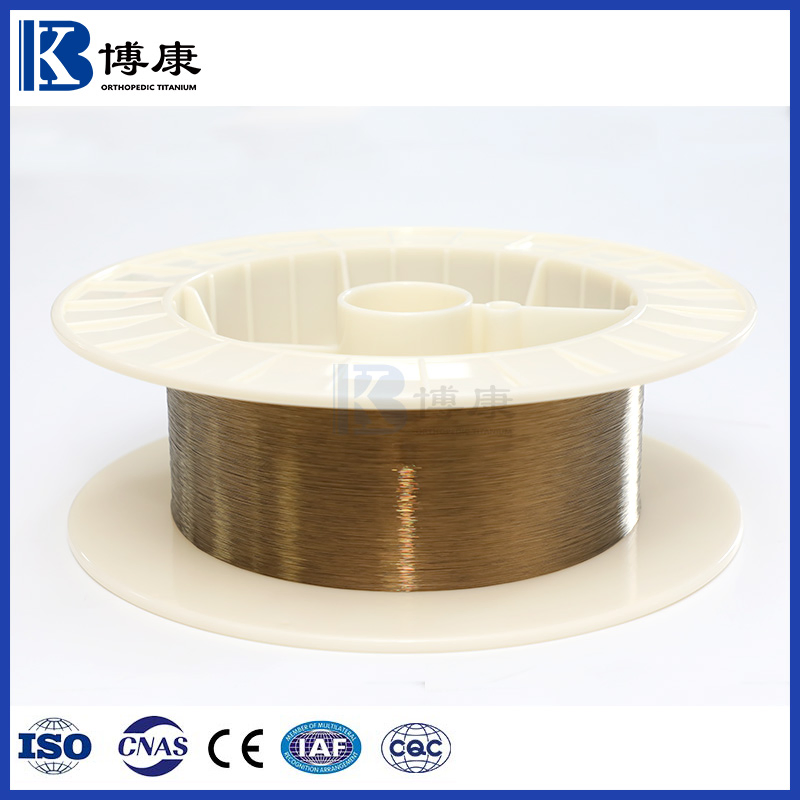

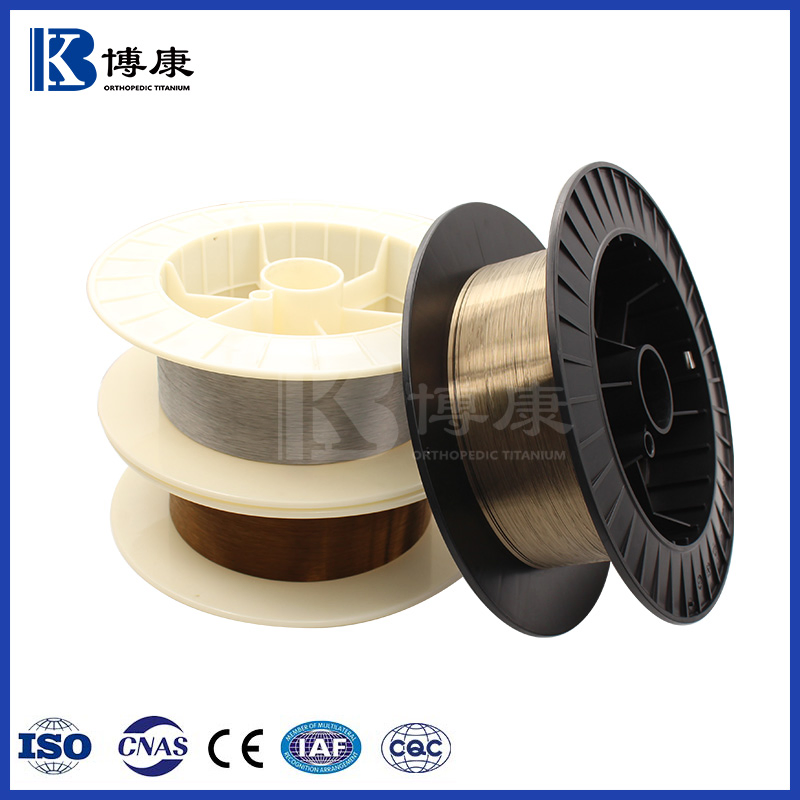

Superelastic Nitinol Wire ASTM F2063 Shape Memory Nickel Titanium Wire

Basic Information

Model NO.

BKNW-M

Alloy

Nickel-Titanium

Type

Nickel Wire

Powder

Not Powder

Diameter

0.1-2.5mm

Standards

ASTM F2063, GB/T 24627-2023

Grade

Niti

Wire Shape

Round

Surface Finish

Black Oxidized, Bright, Polished

Supply Form

Spool Wound, Straight

HS Code

9021290090

Capacity

200tons/Year

Product Description

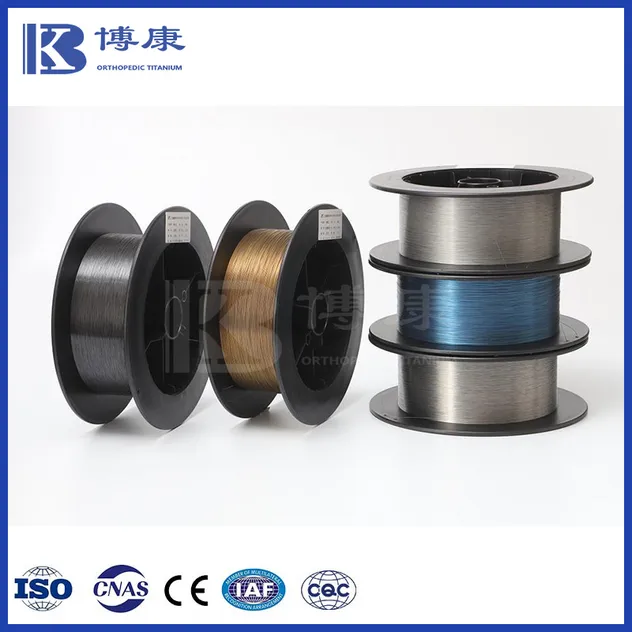

Nitinol Wire Description:
Nitinol round wire (NiTi wire) is a nickel-titanium alloy renowned for its shape memory effect, superelasticity, and excellent fatigue and corrosion resistance. When deformed, it can return to its original shape upon exposure to a specific transformation temperature. These unique characteristics make Nitinol the preferred material for minimally invasive medical devices, including braided products, orthodontic wires, guidewires, and various implantable surgical tools.

Key Features:

Fully independent processing and precision control
Customizable phase transition temperature range
Stable shape memory and superelasticity
Excellent straightness and resistance to bending
1:1 torque transmission for precise guidance

Technical Specifications

Material Grade	Diameter Range (mm)	Tolerance	Standards
NiTi	0.1 - 2.5	±0.001mm	ASTM F2063, GB/T 24627-2023

Chemical Composition: ASTM F2063

Element	Ni	C	Co	Cu	Cr	H	Fe	Ti
wt%	54.5-57.0	≤0.040	≤0.050	≤0.010	≤0.010	≤0.005	≤0.050	Balance

Product Application

Medical Applications

Medical-grade guidewires
Stone retrieval baskets
Dental endodontic files
Intrauterine devices (IUDs)
Braiding wire for vascular stents
Orthopedic implants

Non-Medical Applications

Temperature-sensitive actuators
Robotics and aerospace micro-components
High-end eyeglass frames
Springs and mobile device components
Industrial automation parts

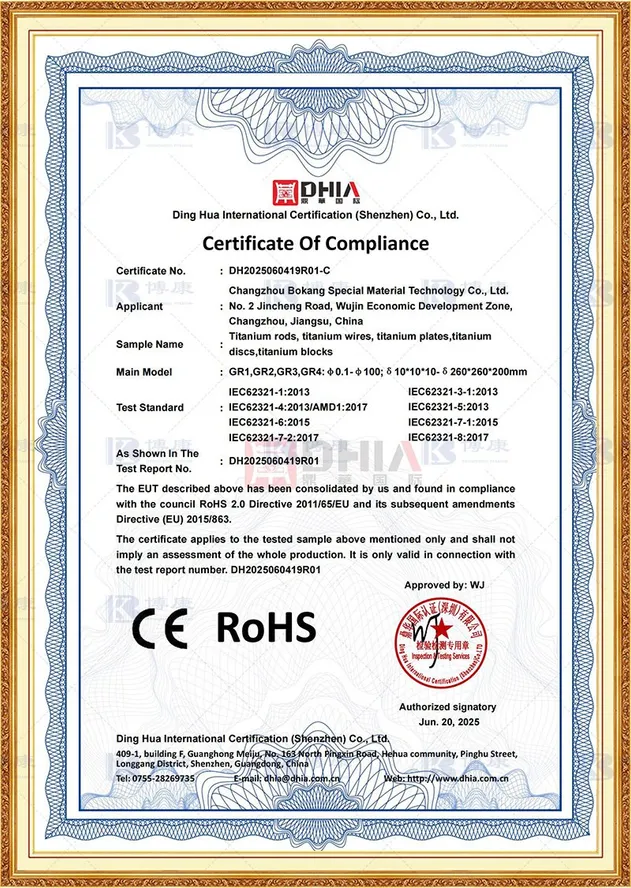

Certifications

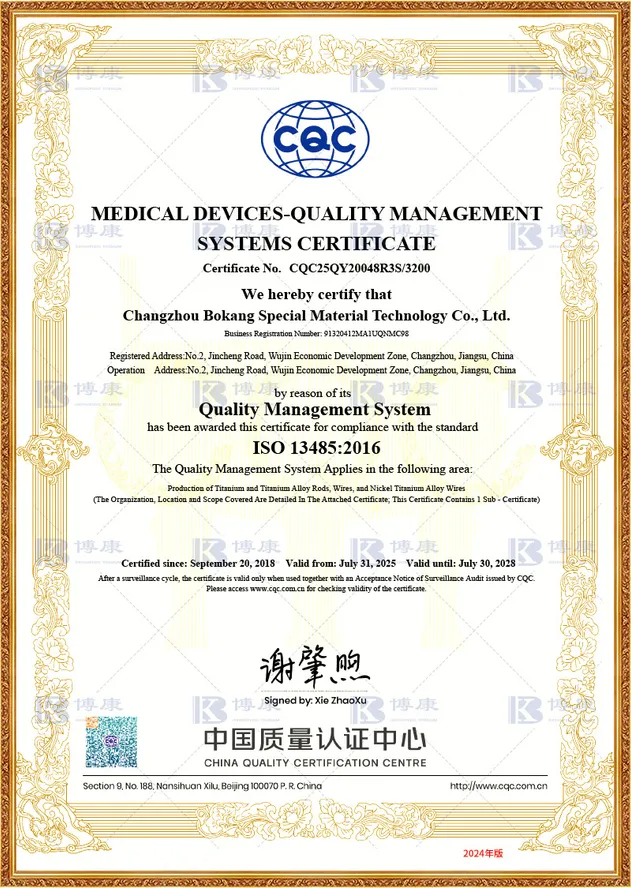

ISO 13485

ISO 9001

CE

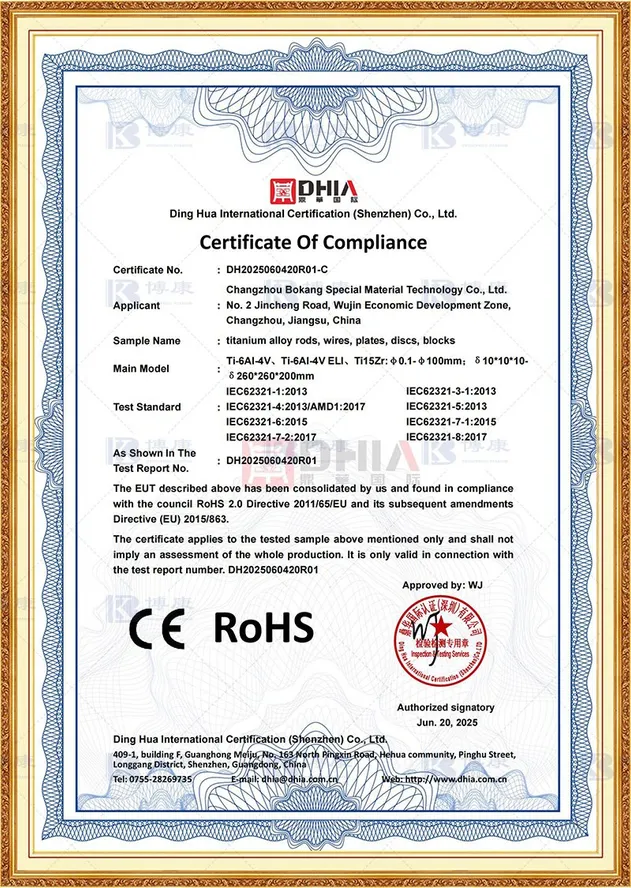

RoHS Pure Titanium

RoHS Titanium Alloy

RoHS Nitinol

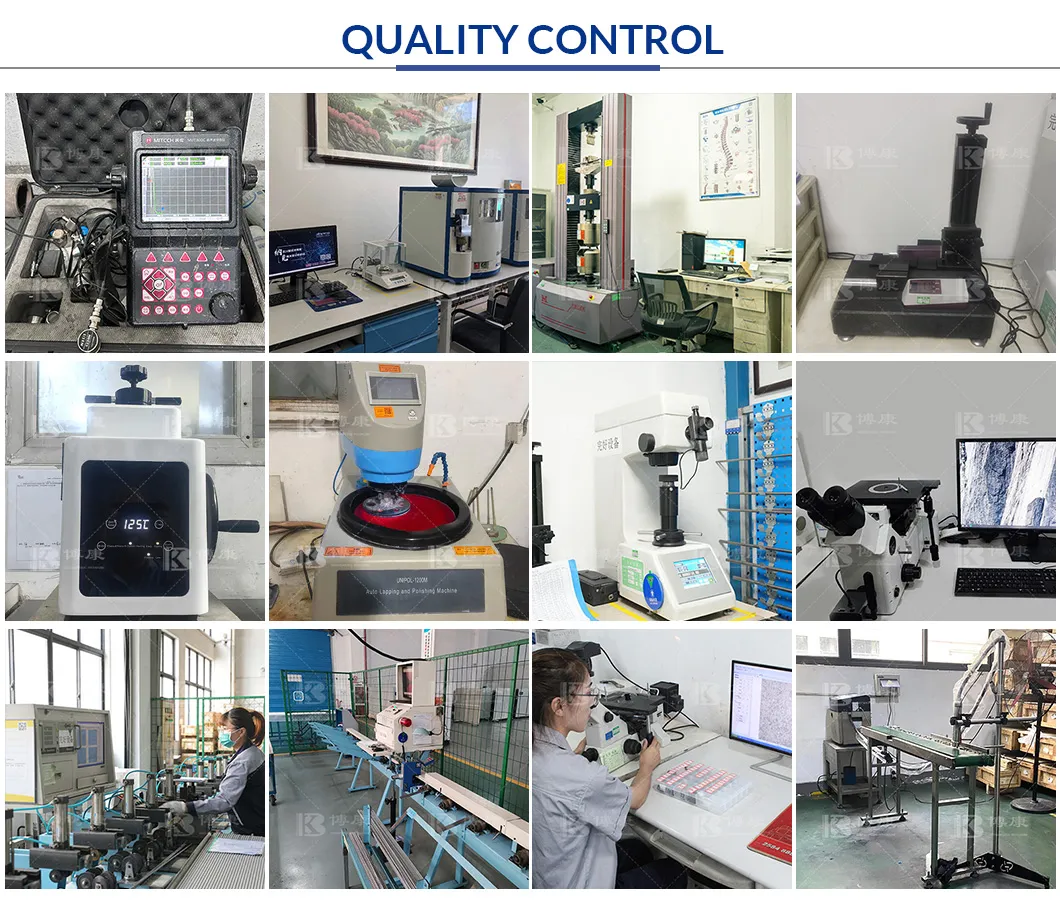

Production and Quality Control

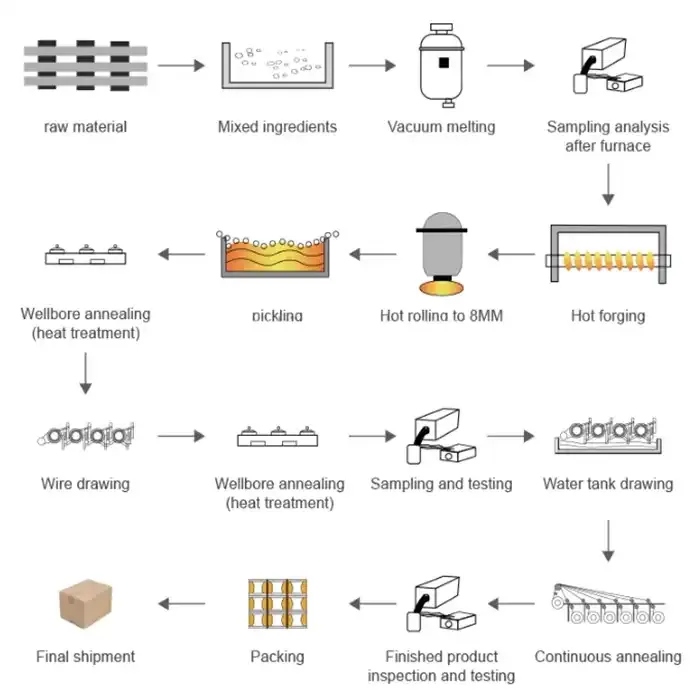

Production Process:
Raw material → Mixed ingredients → Vacuum melting → Sampling analysis → Hot forging → Hot rolling → Pickling → Annealing → Wire drawing → Testing → Packing → Final shipment.
