| C | Si | Mn | P | S | N | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 0.030 Max | 1.0 Max | 2.0 Max | 0.025 Max | 0.010 Max | 0.10 Max | 17.0-19.0 | 2.25-3.00 | 13.0-15.0 | Balance |
| Condition | Form | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|---|
| Annealed | Bars | 490≤Rm≤690 | ≥190 | ≥40 |
| Cold-Worked | Bars (≤22mm) | 860≤Rm≤1100 | ≥690 | ≥12 |
| Extra-Hard | Bars (≤8mm) | ≥1400 | -- | -- |

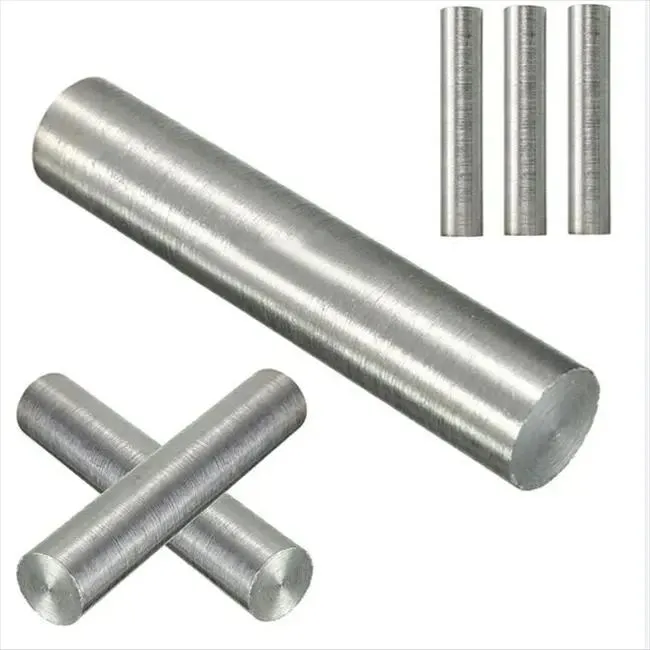

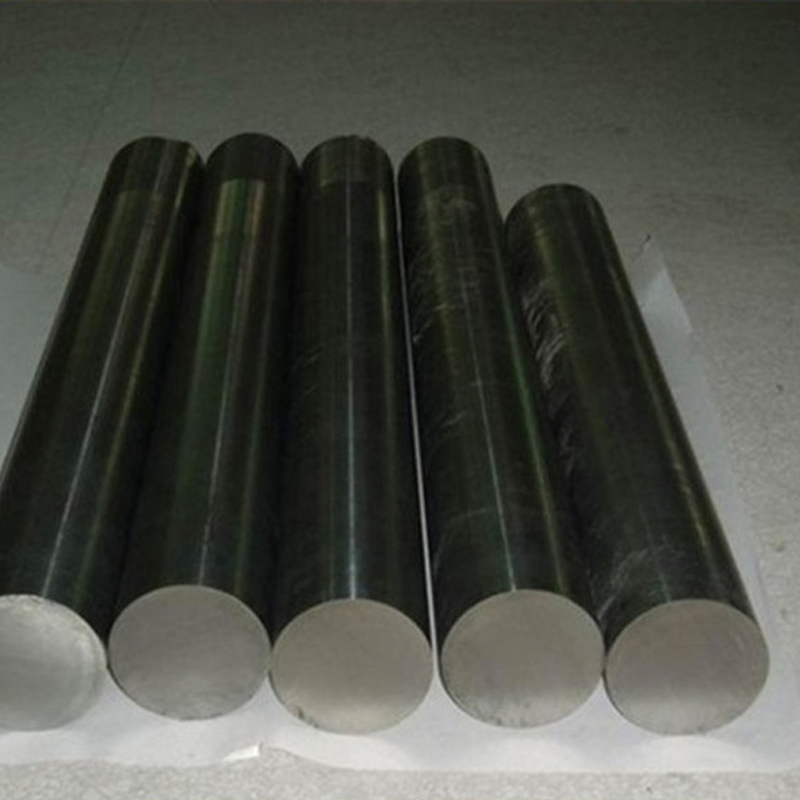

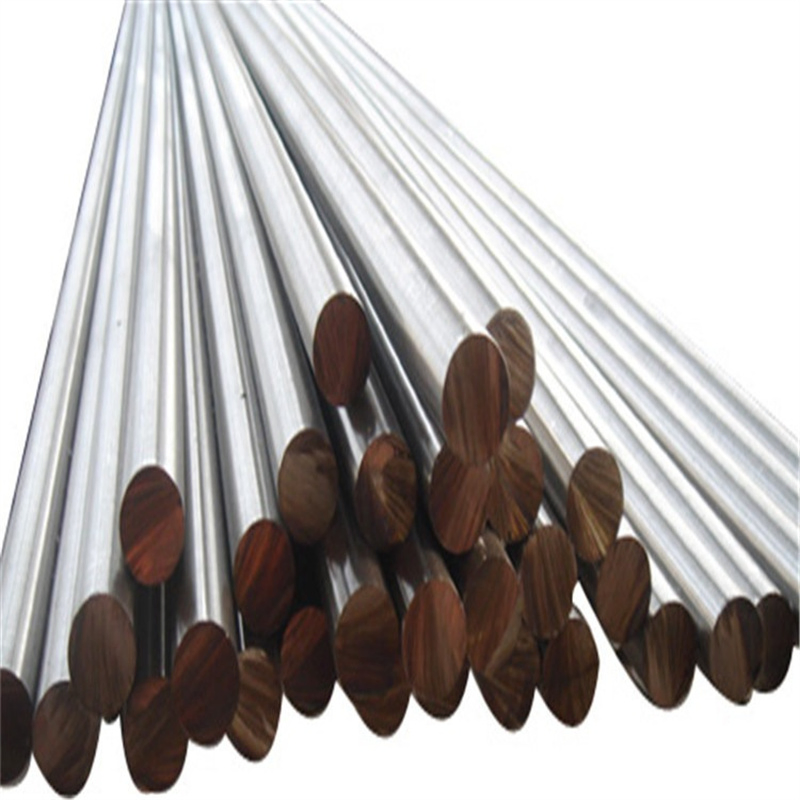

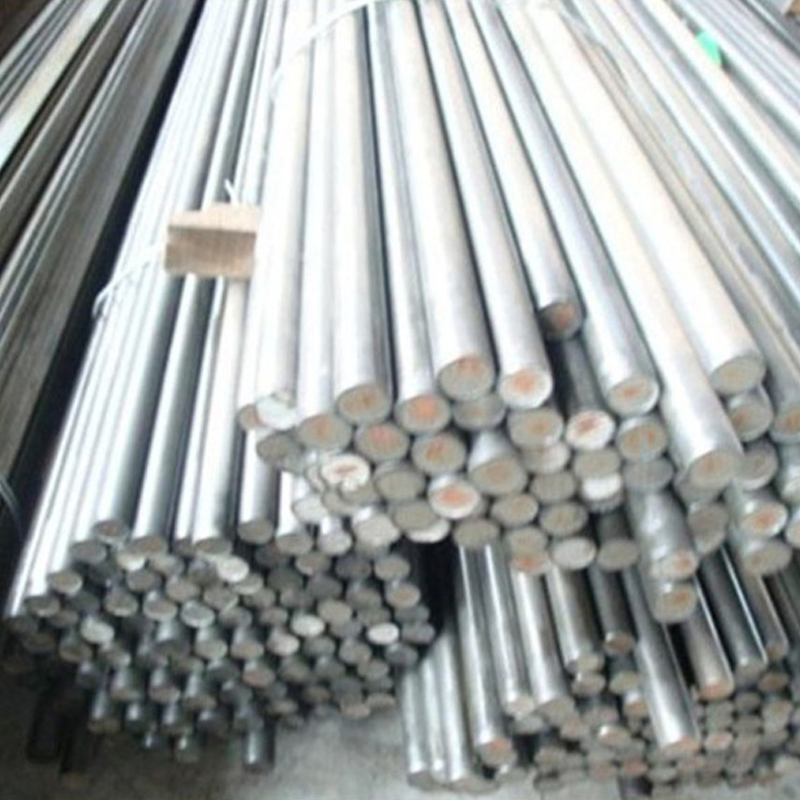

* Diameter: ø4.0mm - ø 720.0 mm
* Technique: Hot rolled/Cold drawn/Forged/Grind
* Surface: Black, Bright, Polishing, Pickling, Peeled
* Standard: ASTM A276, ASTM A484, EN 10060, EN 10278

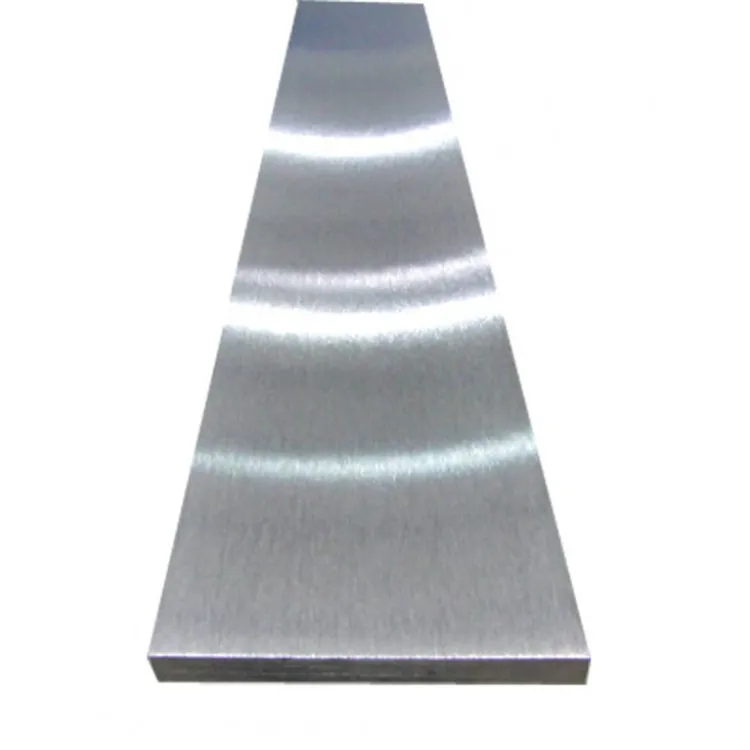

* Thickness: 0.5mm - 200.0 mm
* Width: 10.0mm - 300.0mm
* Technique: Hot rolled/Cold drawn/Forged/Cut from plate

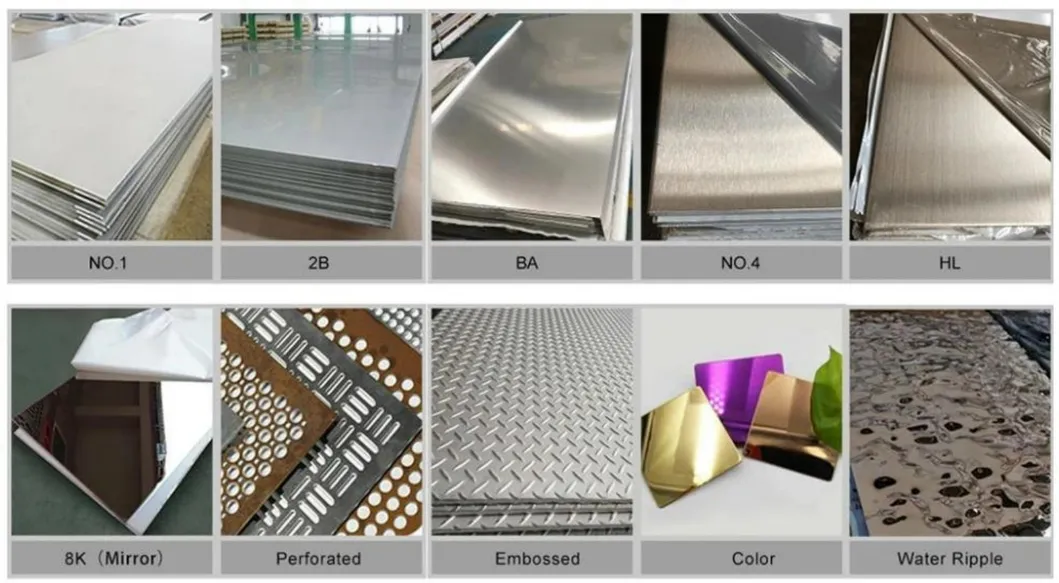

* Surface: Bright, Polishing, Pickling, Hairline

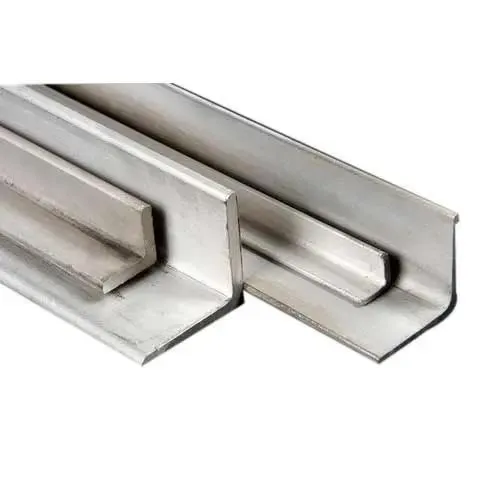

* Size: 10*10mm - 150*150 mm
* Thickness: 2.0mm - 12.0mm
* Classification: Equal and Unequal angle bars
* Standard: ASTM A276, DIN 1028, EN 10056

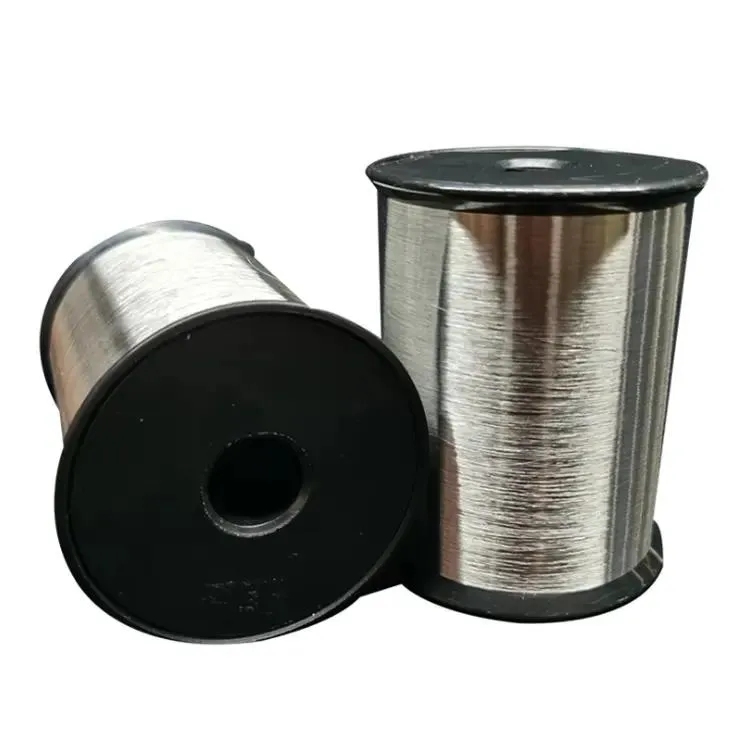

* Size: 0.02 mm - 2.0 mm
* Technique: Cold drawn
* Surface: Bright
* Grade: 304, 316, 321, 347, 631, S32205
