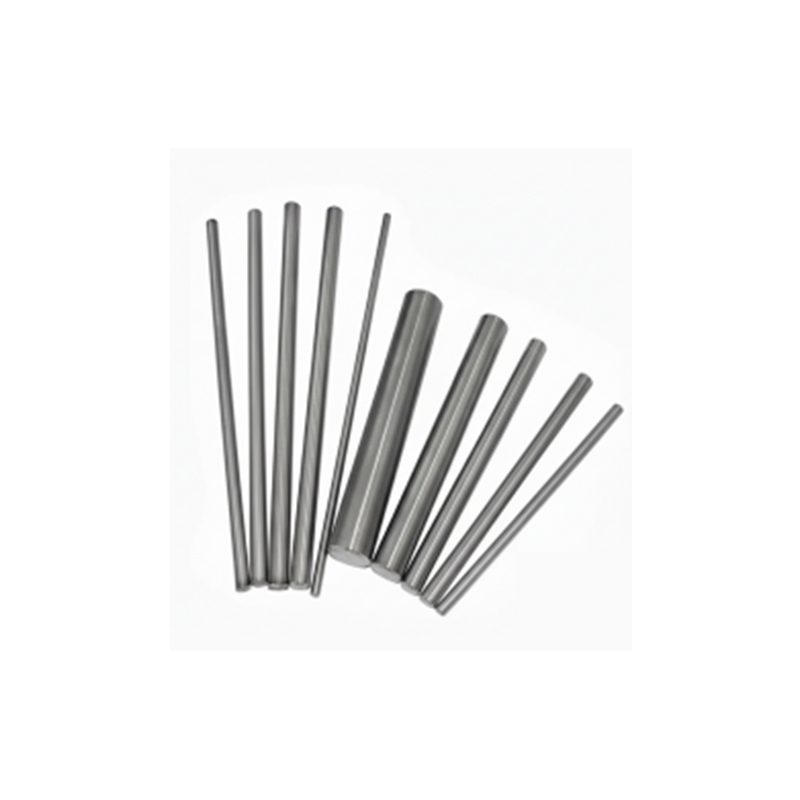

Premium Medical-Grade ASTM F138 Implant Material 316lvm Stainless Steel for Surgical Implant & Instrument Material

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO. SX-316LVM
Surface Treatment Polished
Special Use High-strength Steel Plate
Application Medical Implant
Product Name 316lvm Stainless Steel
Material Type Premium Medical-Grade Stainless Steel
Standards ASTM F138
Equivalent Grades AISI 316lvm; Uns S31726; En 1.4441
Melting Process Vacuum Arc Remelting (Var)
Micro-Cleanliness Exceptional Micro-Cleanliness
Origin China
Production Capacity 500,000kg/Month
🔬

Technical Parameters & Composition

Material Grade316LVM stainless steel
Structural HomogeneitySuperior structural homogeneity
MicrostructureFerrite-free microstructure
Carbon (C)≤0.03%
Silicon (Si)≤0.75%
Manganese (Mn)≤2.00%
Phosphorus (P)≤0.025%
Sulfur (S)≤0.01%
Nitrogen (N)≤0.1%
Chromium (Cr)17.00–19.00%
Molybdenum (Mo)2.25–3.00%
Nickel (Ni)13.00–15.00%
Copper (Cu)≤0.50%
Cobalt (Co)≤0.10%
Iron (Fe)Balance
📸

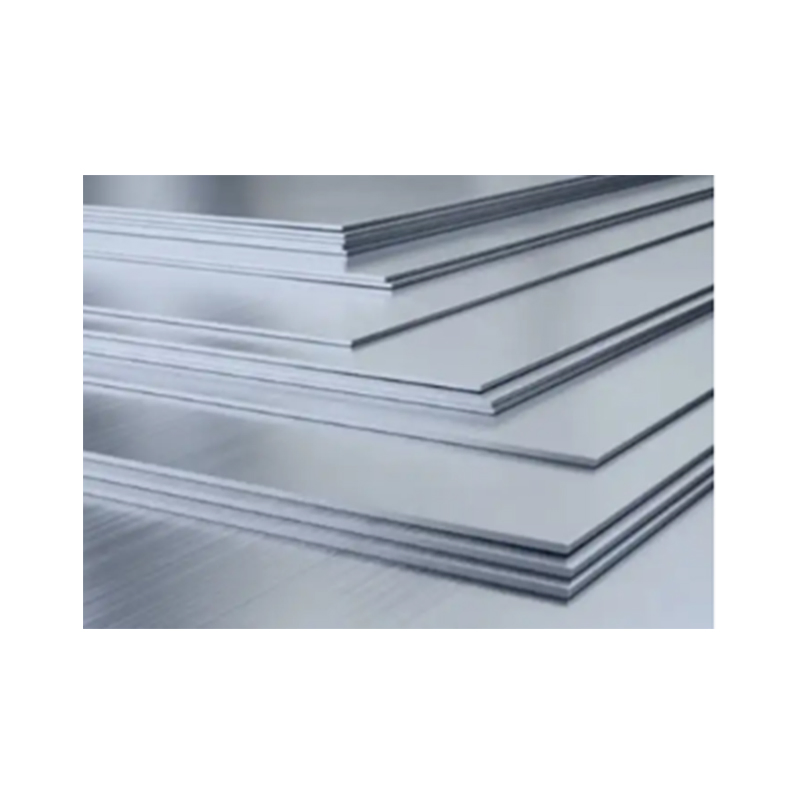

Product Showcase

316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel
316lvm Stainless Steel

Frequently Asked Questions

What is 316LVM stainless steel?
316LVM is a "Low Carbon" (L), "Vacuum Melted" (VM) version of 316 stainless steel. It is a premium medical-grade material designed for surgical implants and high-precision medical instruments.
What standards does this material meet?
Our 316LVM stainless steel strictly complies with the ASTM F138 standard, ensuring it meets the rigorous requirements for surgical implant applications.
What are the benefits of the Vacuum Arc Remelting (VAR) process?
The VAR process achieves exceptional micro-cleanliness and structural homogeneity. It removes impurities and ensures a ferrite-free microstructure, which is critical for corrosion resistance in medical environments.

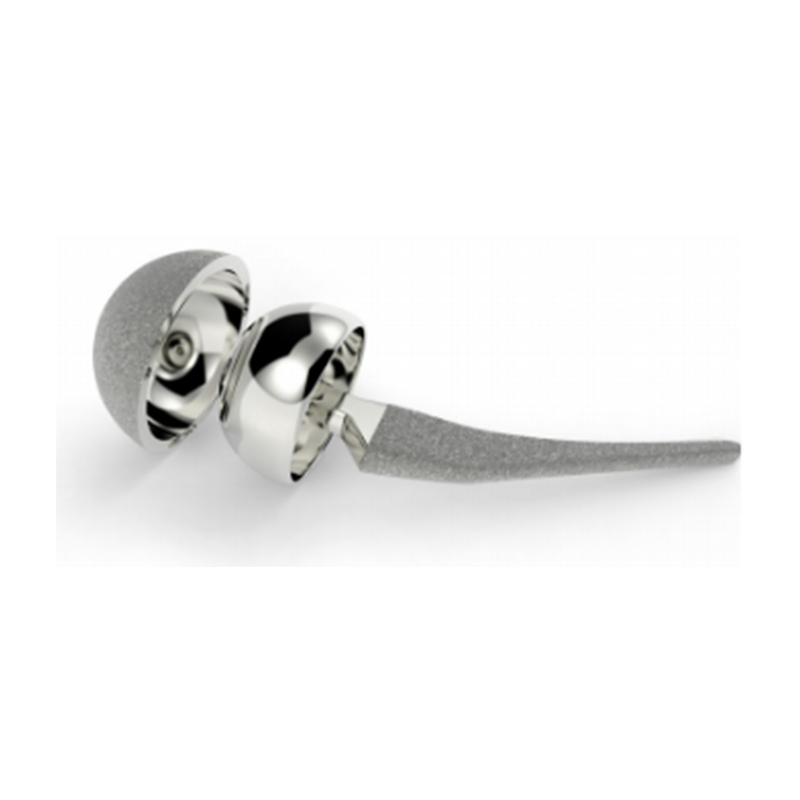

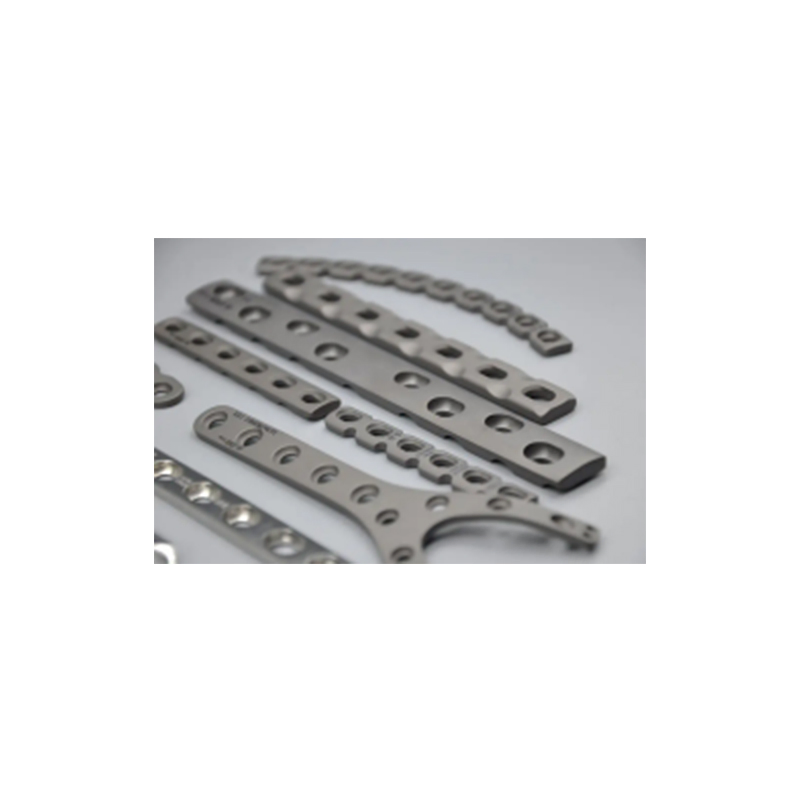

Is 316LVM suitable for permanent implants?

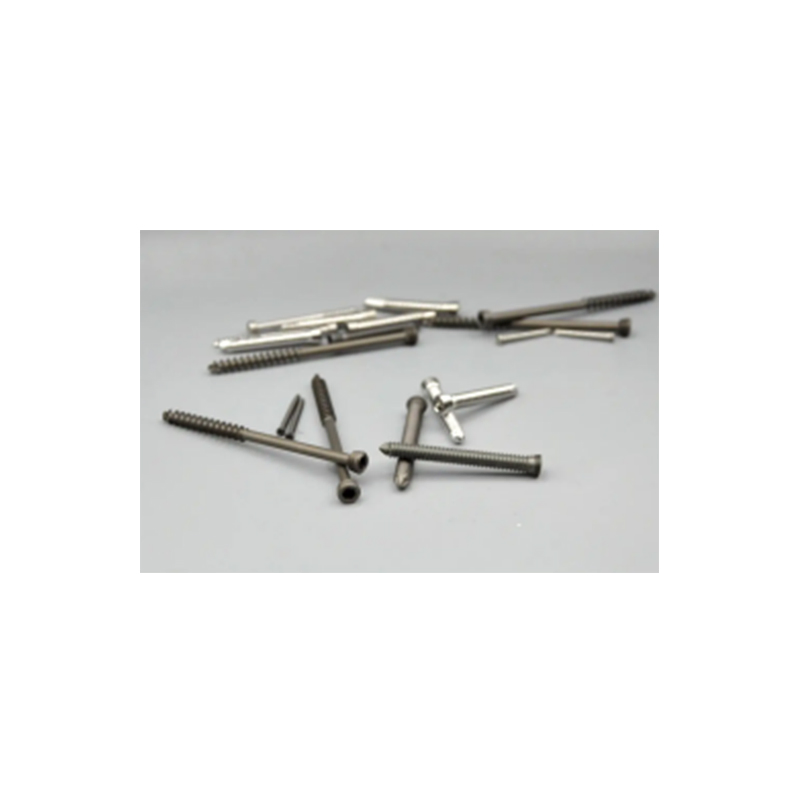

Yes, due to its superior biocompatibility and high resistance to pitting and crevice corrosion, it is widely used for permanent orthopedic implants, bone screws, and plates.
What are the equivalent grades for 316LVM?
Equivalent grades include AISI 316LVM, UNS S31726, and EN 1.4441, making it a globally recognized material for medical manufacturing.
What is the production capacity for this material?
Our facility has a robust production capacity of 500,000kg per month to support large-scale medical device manufacturing requirements.
