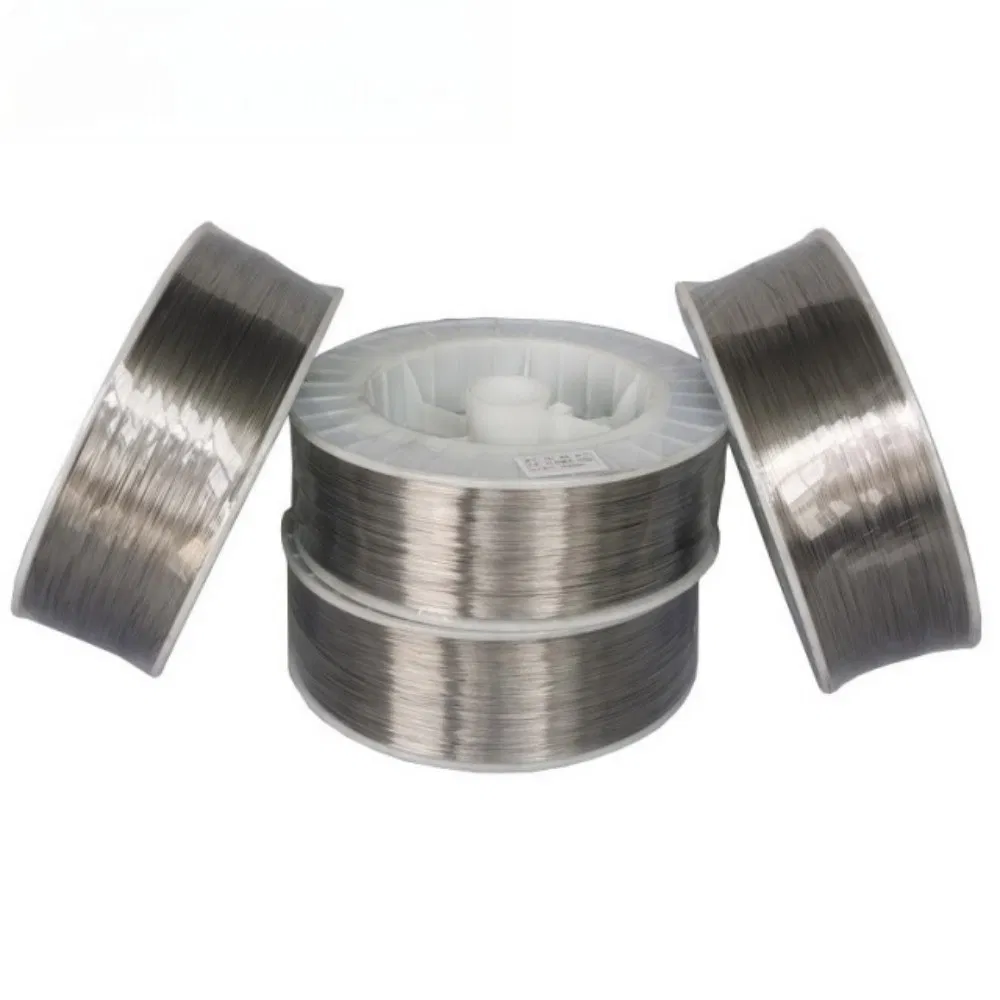

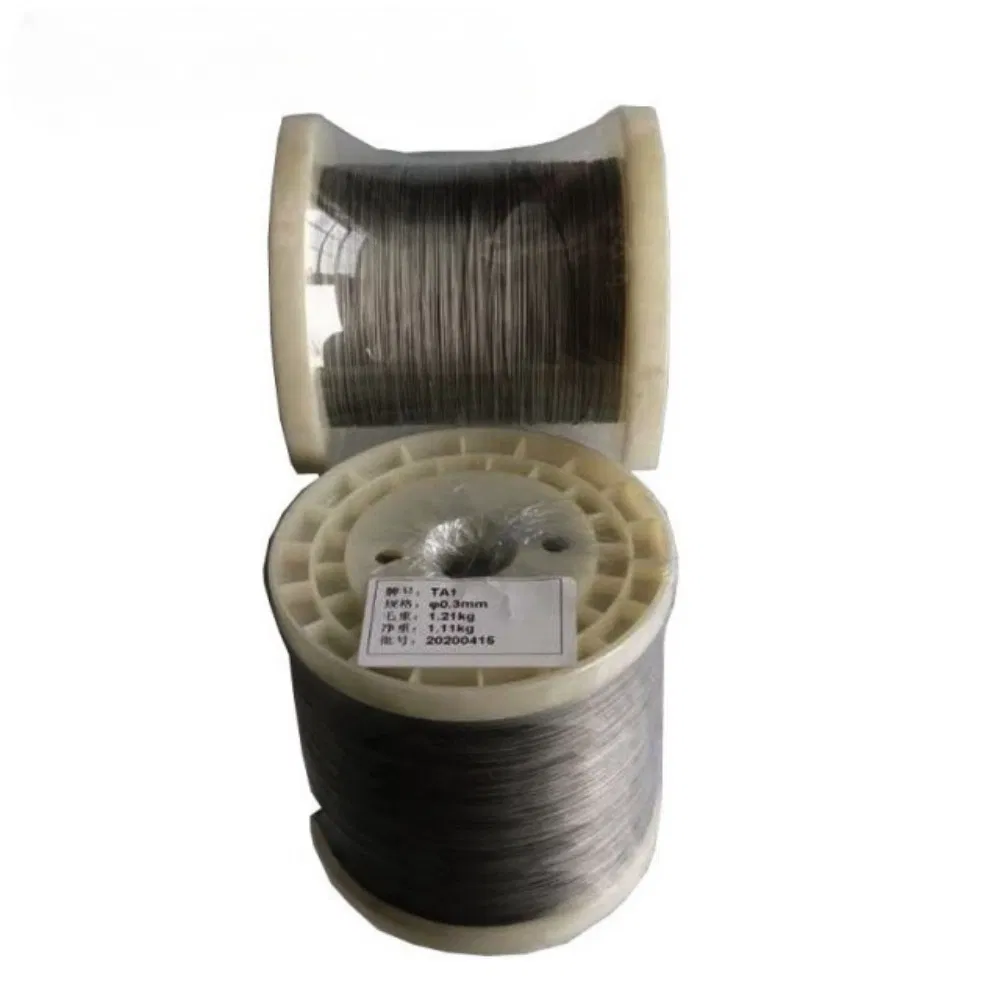

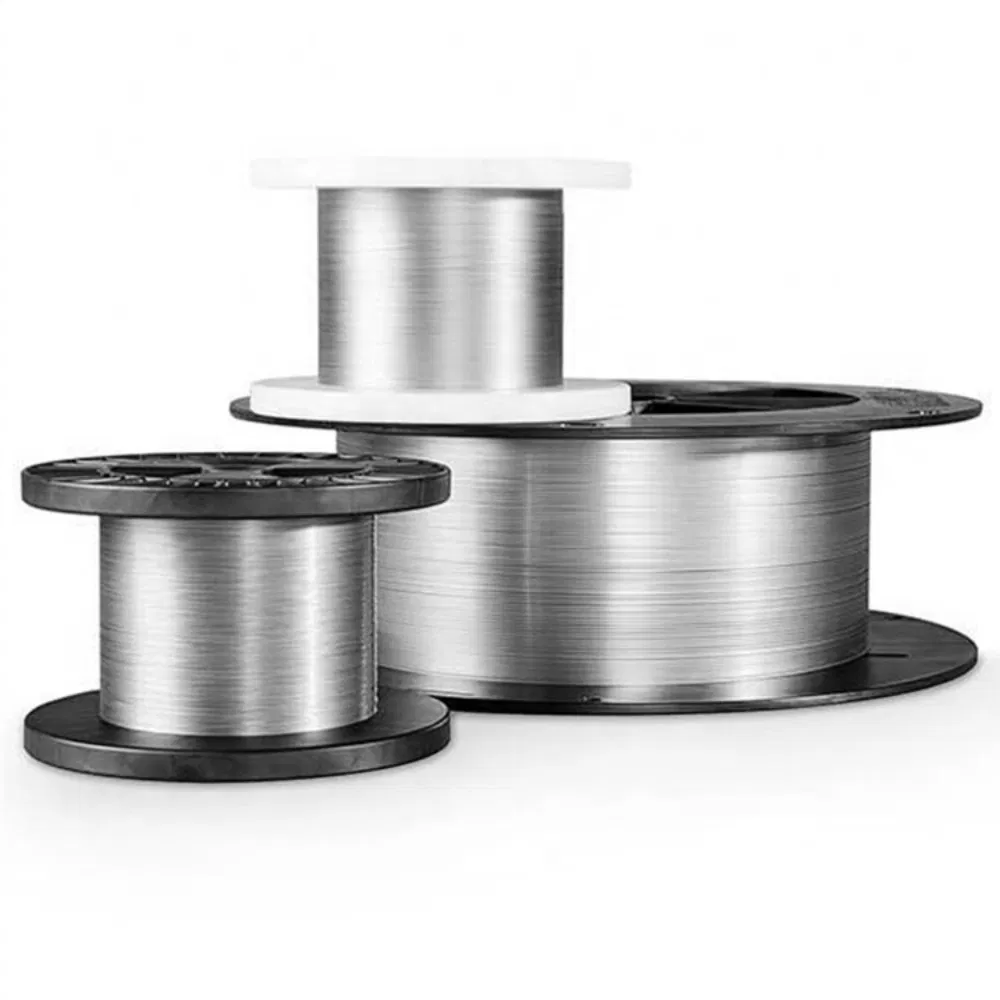

Nickel Titanium Shape Memory Alloy Wire Super Elastic Nitinol Wire

Customization:	Available
Type:	Titanium Wire
Application:	Industrial, Medical

ℹ️

Basic Information

Model NO.

Titanium wire

Technique

Hot Rolled

Grade

Gr1, Gr2, Gr3, Gr7, Gr12

Shape

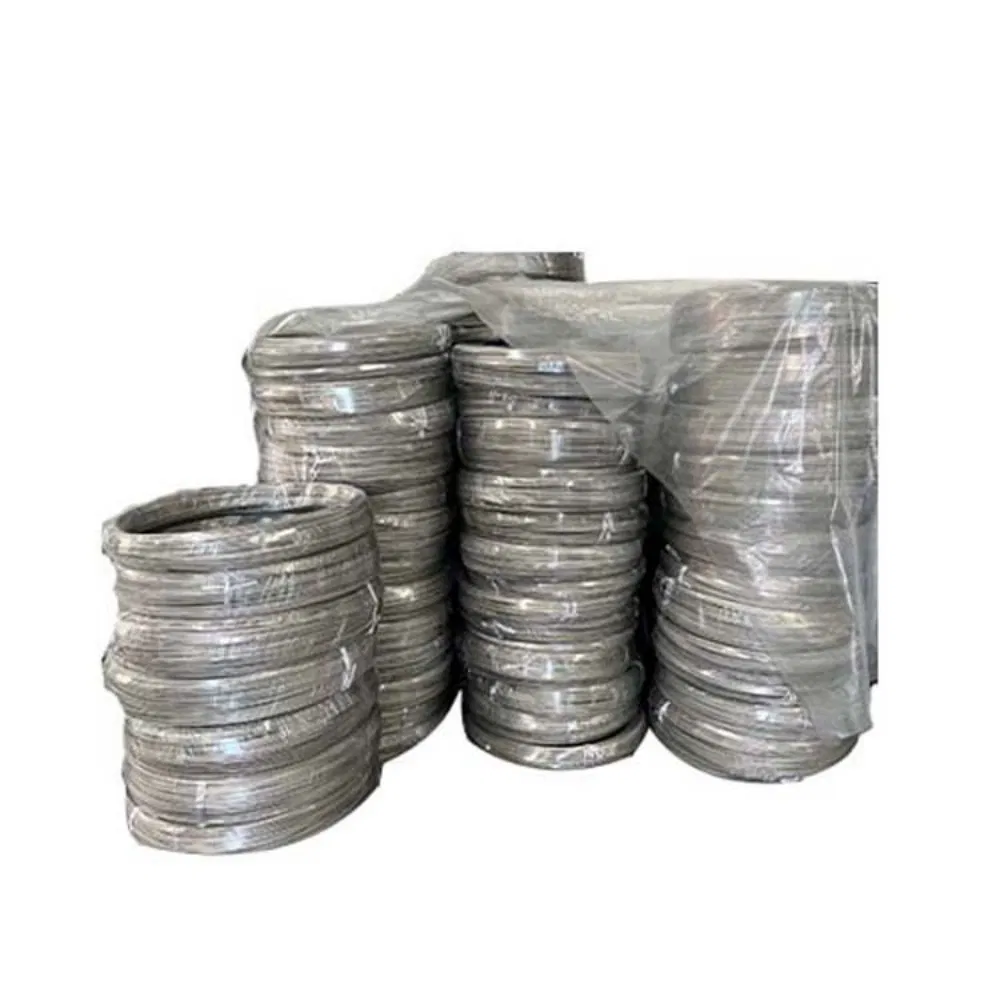

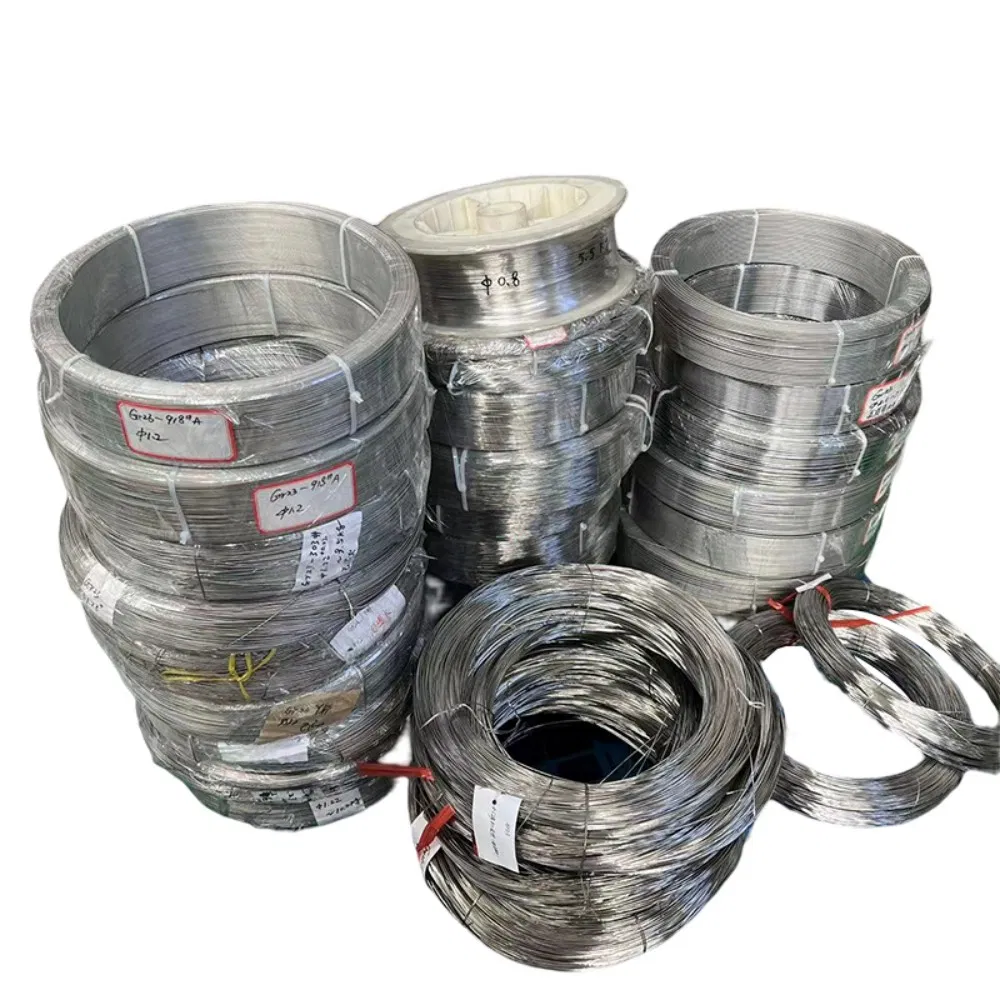

Round, Straight Wires, Coils, Spools

Processing Service

Bending, Welding, Decoiling, Cutting, Punching

Surface Treatment

Polishing, Rolled, Sand Blasted Surface

Condition

Annealed (M), Cold Rolled(Y), Hot Rolled(R)

Production Capacity

2000 Tons /Year

🛠️

Product Description

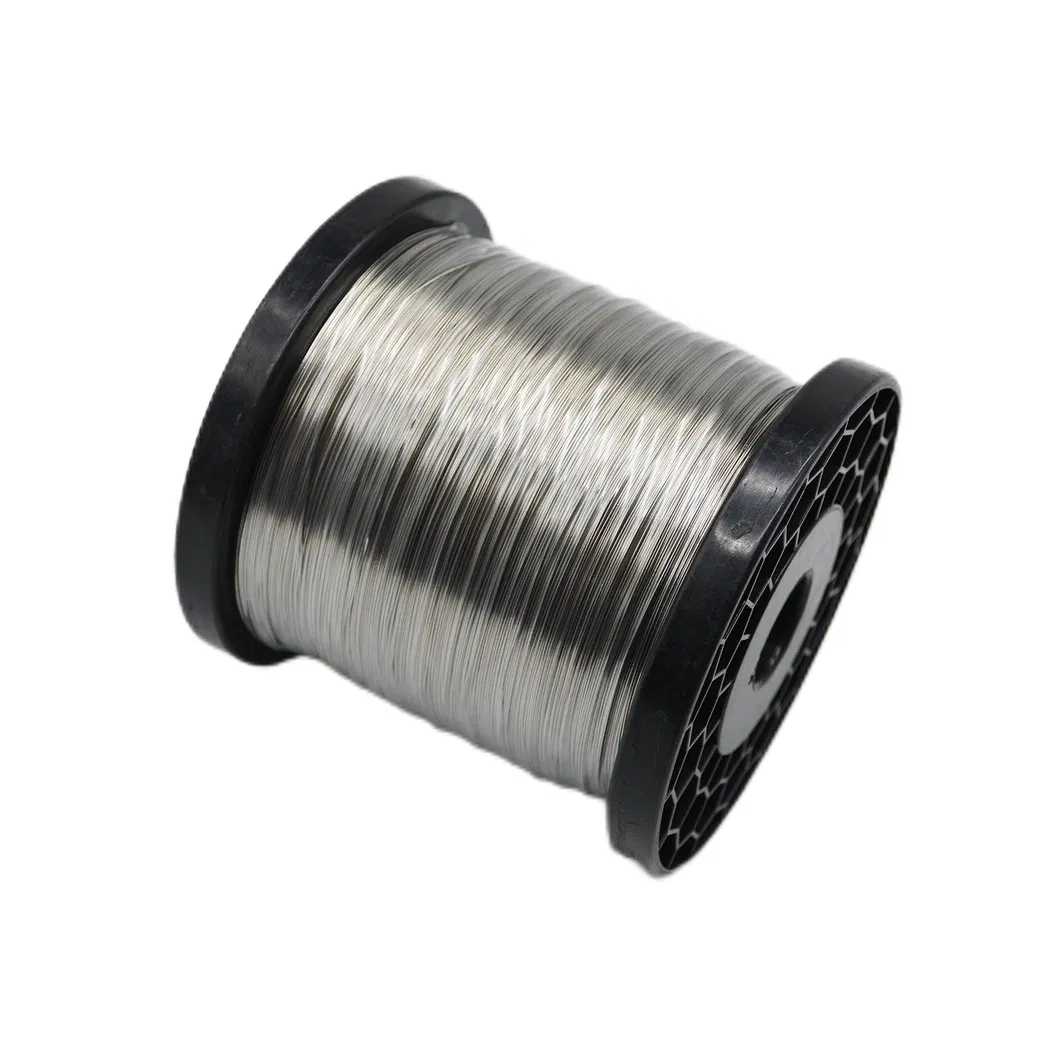

Titanium Wire Description: Titanium wires are produced through specialized drawing processes. We offer a wide range of titanium and titanium alloy wires, including 0.20-0.28 wires for surgical staplers, 0.8-4.0 straight wires for orthopedics and dentistry, industrial welding wires, and more.

Titanium Wire Specifications
Grade	Gr1, Gr2, Gr3, Gr4, Gr5 (Ti-6Al-4V), Gr9 (Ti-3Al-2.5V), Gr23 (Ti-6Al-4V ELI), etc.
Standard	ASTM F67, ASTM F136, ISO5832-2, ISO5832-3, AMS4928, ASTM B348, ASTM B863
Diameter	0.1 ~ 4.75mm
Shape	Straight, Coils, Spools
Surface	Bright Surface

⭐

Titanium Wire Features

High Surface Finish & Good Roundness
Small Tolerances & High Dimensional Consistency
Stable Performance & Uniform Composition
Fine Grain Organization
Long Fatigue Life & Excellent Overall Performance

🚀

Applications of Titanium Wires

1. Medical: Surgical implants like bone screws, dental wires, and cardiovascular stents.
2. Aerospace: Critical components like fasteners, springs, and electrical connectors.
3. Chemical Processing: Equipment for handling corrosive chemicals, such as valves and mesh screens.
4. Electronics: Wire bonding, connectors, and antennas.
5. Automotive: Lightweight exhaust systems, springs, and suspension components.
6. Sports: Bicycle frames, fishing rods, and golf club shafts.

📊

Chemical Requirements (ASTM B863)

Grade	C (max)	O (max)	N (max)	H (max)	Fe (max)	Ti
1	0.08	0.18	0.03	0.015	0.20	Balance
2	0.08	0.25	0.03	0.015	0.30	Balance
5	0.08	0.20	0.05	0.015	0.40	Balance
23	0.08	0.13	0.03	0.0125	0.25	Balance

📈

Mechanical Properties

Grade	Tensile Strength (min MPa)	Yield Strength (min MPa)	Elongation (min %)
1	240	138	20
2	345	275	18
5	895	828	10
23	793	759	10

📦

Packaging & Recommended Products

❓

Frequently Asked Questions

QHow long is your delivery time?

Our standard delivery timeframe is 5-10 days for items readily available in stock. For special orders, it typically ranges from 10 to 20 working days post-payment confirmation, depending on the quantity.

QDo you provide samples? Are they free?

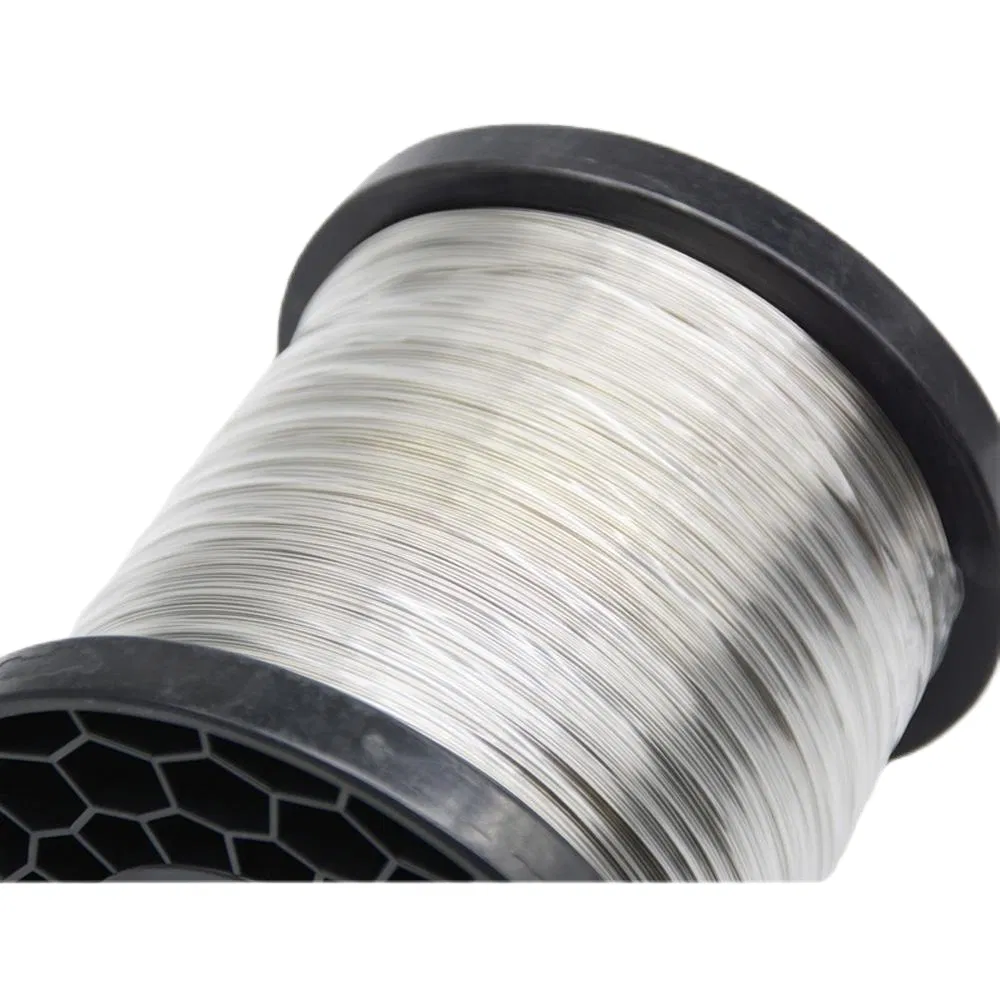

Yes, we provide free samples for evaluation. While the samples are complimentary, shipping costs are the responsibility of the client.

QWhat are your terms of payment?

We generally require a 30% T/T upfront deposit, with the balance due before dispatch. For smaller orders, we accept 100% T/T in advance or Western Union.

QCan you produce products according to specific drawings?

Absolutely. We have the capability to manufacture products tailored to your specific technical drawings to ensure the final product meets your requirements.

QHow do you ensure quality control?

Quality is our priority. We enforce rigorous quality control measures throughout the entire production process, from inception to the final completion of the order.

QCan I request changes to packaging and transportation?

Yes, we can accommodate changes to packaging and transportation methods to suit your preferences, though additional costs incurred may be at your expense.
