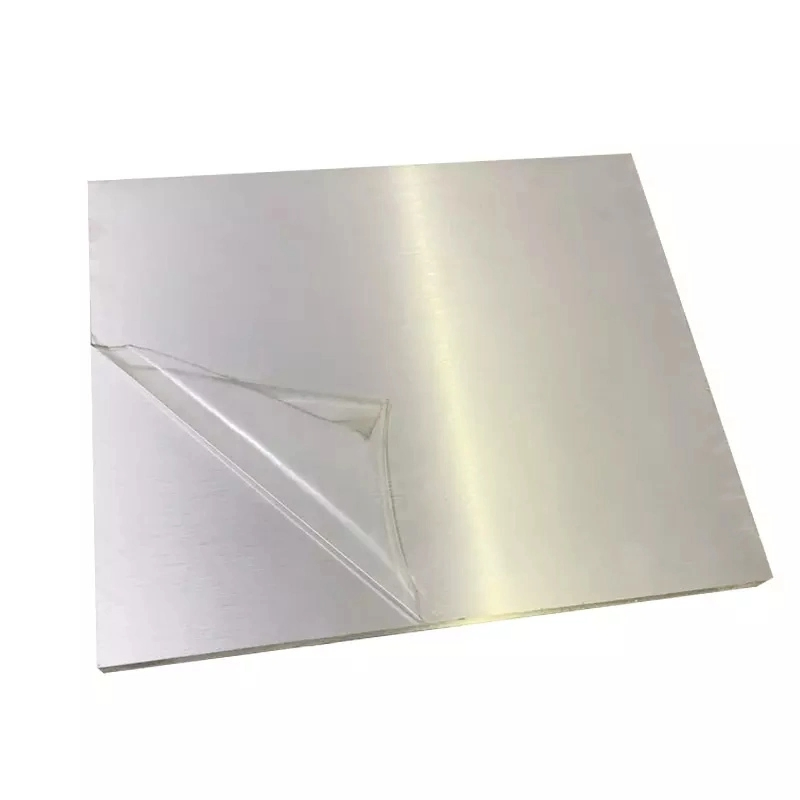

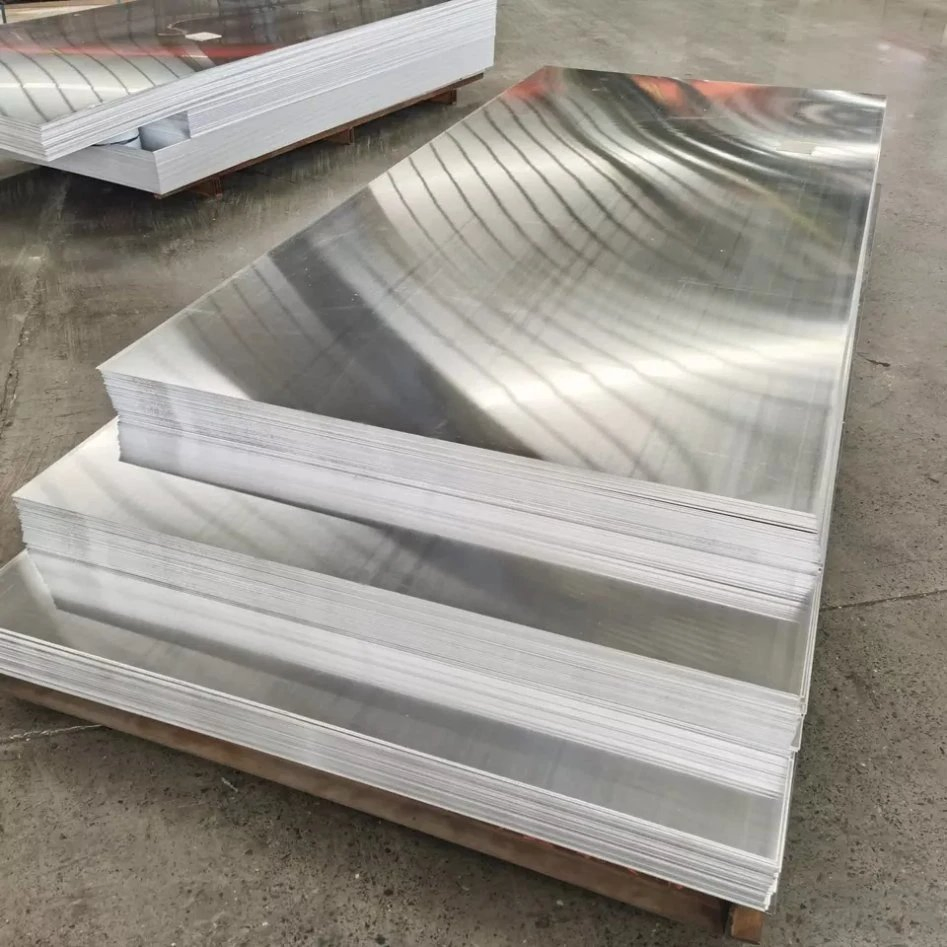

Lork Annealing S31673/ASTM F138/ASTM F139/ISO 5832 Alloy Steel Sheet Vacuum Melting Medical-Grade Surgical Implants 316lvm Stainless Steel Plate

1 / 5

Lork Annealing S31673/ASTM F138/ASTM F139/ISO 5832 Alloy Steel Sheet Vacuum Melting Medical-Grade Surgical Implants 316lvm Stainless Steel Plate

Customization:	Available
Type:	Stainless Steel Sheets
Standard:	ASTM, AISI, GB, JIS, DIN, EN

Send Inquiry

Product Description

Basic Specifications

Model NO.

316lvm sheet/plate

Grade

300 Series

Certification

ISO, AISI, ASTM, GB

Technique

Cold Rolled

Surface Treatment

Pickling

Thickness

3mm - 150.0mm

Width

1000mm - 3000mm

Diameter Tolerance

H9, H11, H13, K9, K11, K13 etc

Transport Package

Wooden Package

HS Code

7219350000

Product Description

Introduction

Regarded as 'Medical Grade', Stainless Steel 316LVM is vacuum melted to achieve the extremely high levels of purity and 'cleanliness' required for surgical implants. It has excellent resistance in physiological environments, to general and intergranular corrosion, to pitting and crevice corrosion. These characteristics make it ideal for both medical application and high precision electronics.

Key Features

Vacuum melted for extremely high purity required for surgical implants.
Excellent mechanical properties and superior corrosion resistance.
Enhanced pitting and crevice corrosion resistance compared to 302 & 304 stainless.

Designations & Specifications

Designations: W.NR 1.4441 | UNS S31673 | AWS 163
Specifications: ASTM F138 | BS 7252 Pt1 COMPOSITION D | ISO 5832 - 1

Chemical Composition (%)

Element	C	Si	Mn	P	S	N	Cr	Mo	Ni	Cu	Fe
Min %	-	-	-	-	-	-	17.00	2.25	13.00	-	Bal
Max %	0.03	1.00	2.00	0.025	0.01	0.10	19.00	3.50	15.00	0.50	-

Mechanical Properties (Annealed)

Properties	Metric	English
Tensile Strength	586 MPa	85,000 PSI
Yield Strength	434 MPa	62,900 PSI
Elongation (at break)	57%	57%
Hardness (Rockwell B)	88 HRB	88 HRB

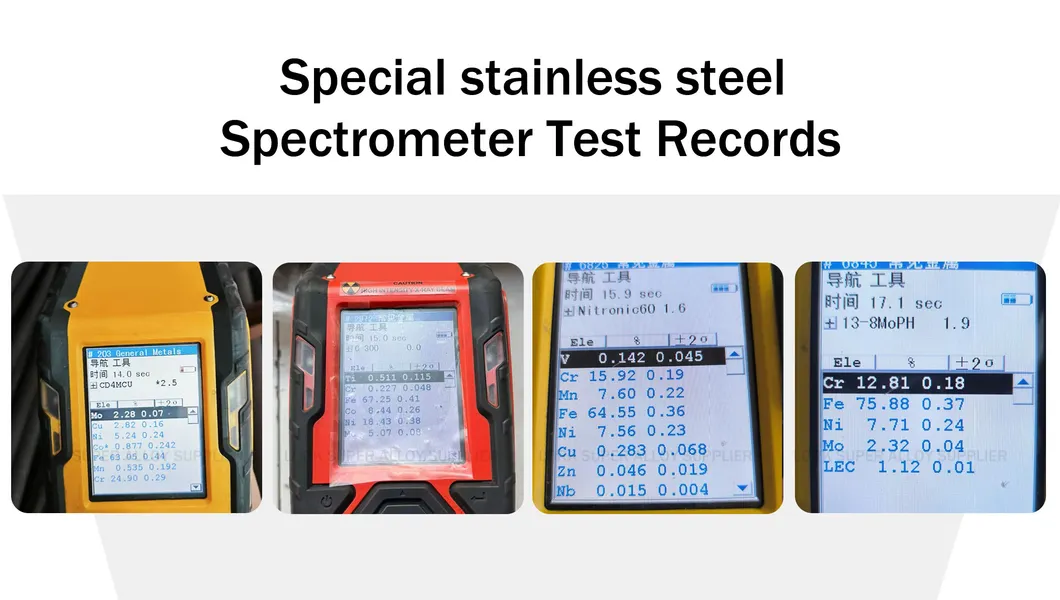

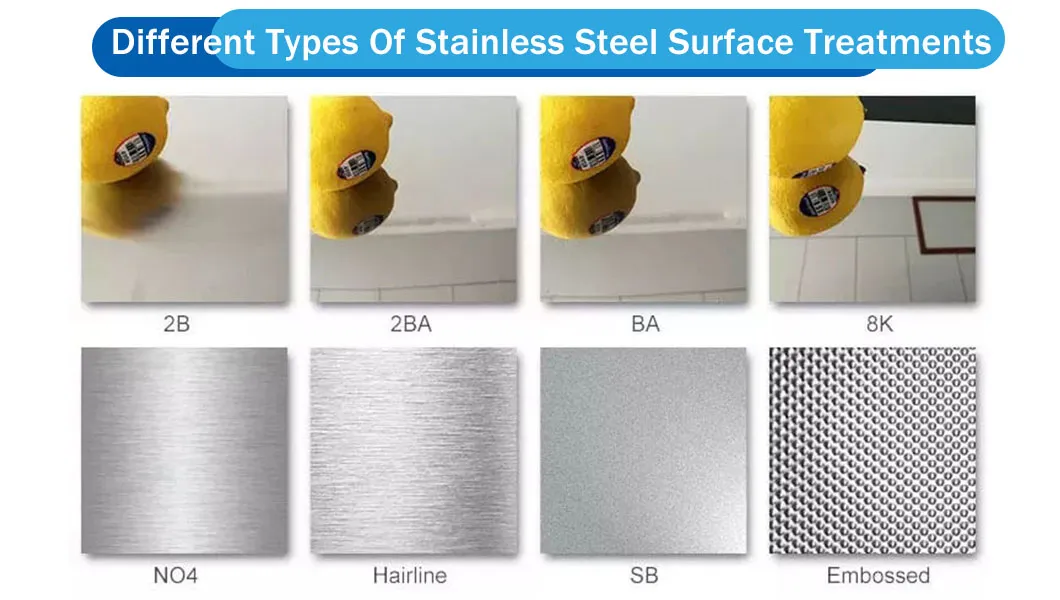

Surface Treatment & Detection

Processing & Production

Packaging & Shipping

Frequently Asked Questions

Q1: Do you accept trial orders?

A1: Yes, if we have the exact size in stock, we can deliver even 1 piece or meter.

Q2: Can I have a free sample before making orders?

A2: Yes, we can supply free samples as required. The buyer needs to pay the freight charges, which will be returned after the formal order is placed.

Q3: How do you control the quality?

A3: MTC (Mill Test Certificate) and PMI (Positive Material Identification) will be sent before shipment. Third-party inspections are available upon request.

Q4: What is your delivery time?

A4: Generally, the delivery time is approximately 15 working days.

Q5: How can I quickly get a price list?

A5: You can click "chat now" or send us an email with detailed specifications. You will typically receive an official price list within 1 hour.

Q6: What typical applications is 316LVM suitable for?

A6: It is primarily used for medical implants, surgical instruments, and high-precision machined parts.
