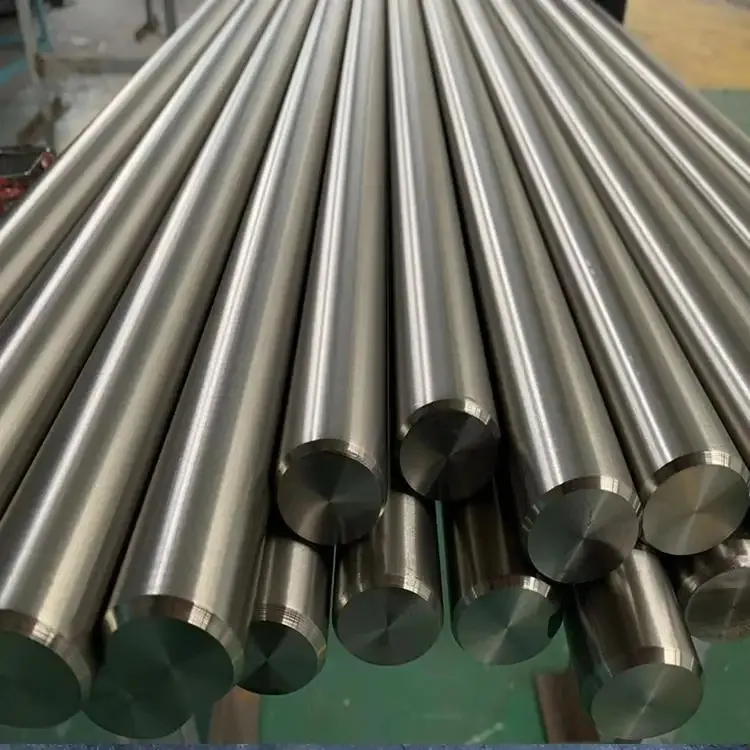

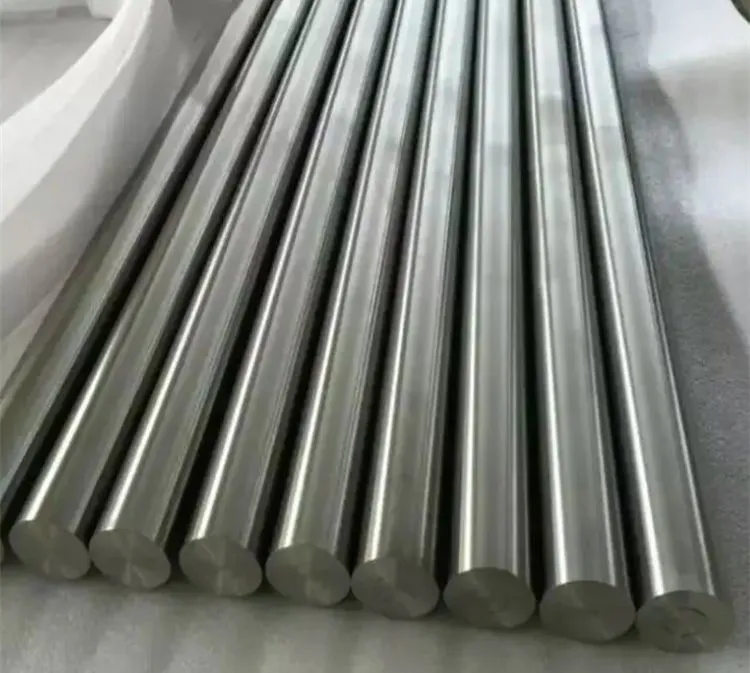

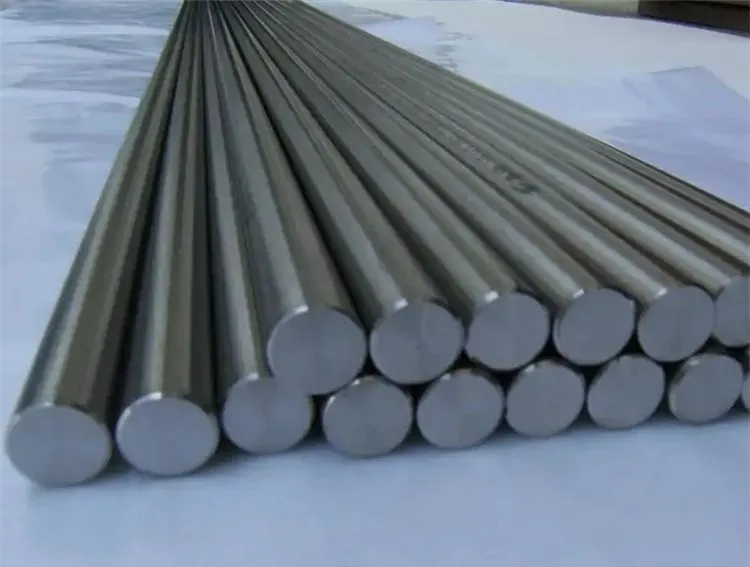

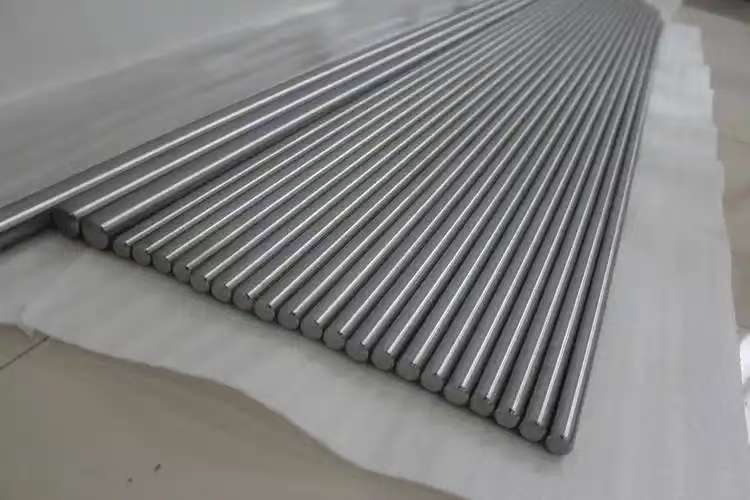

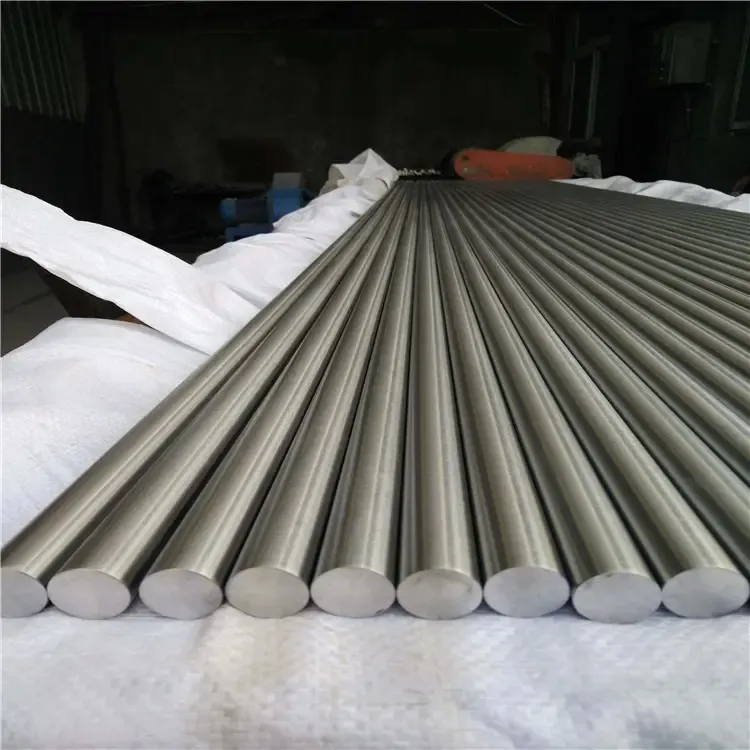

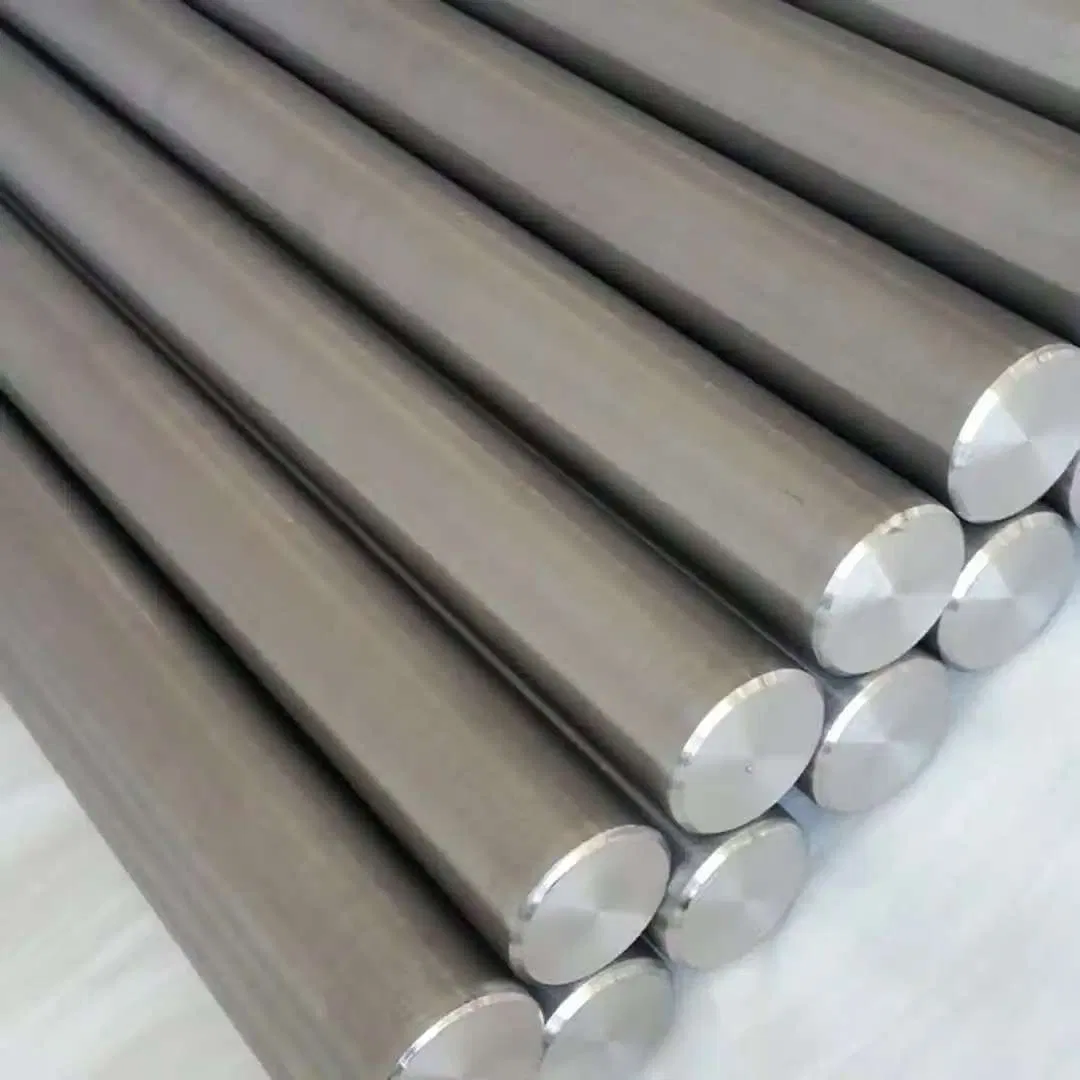

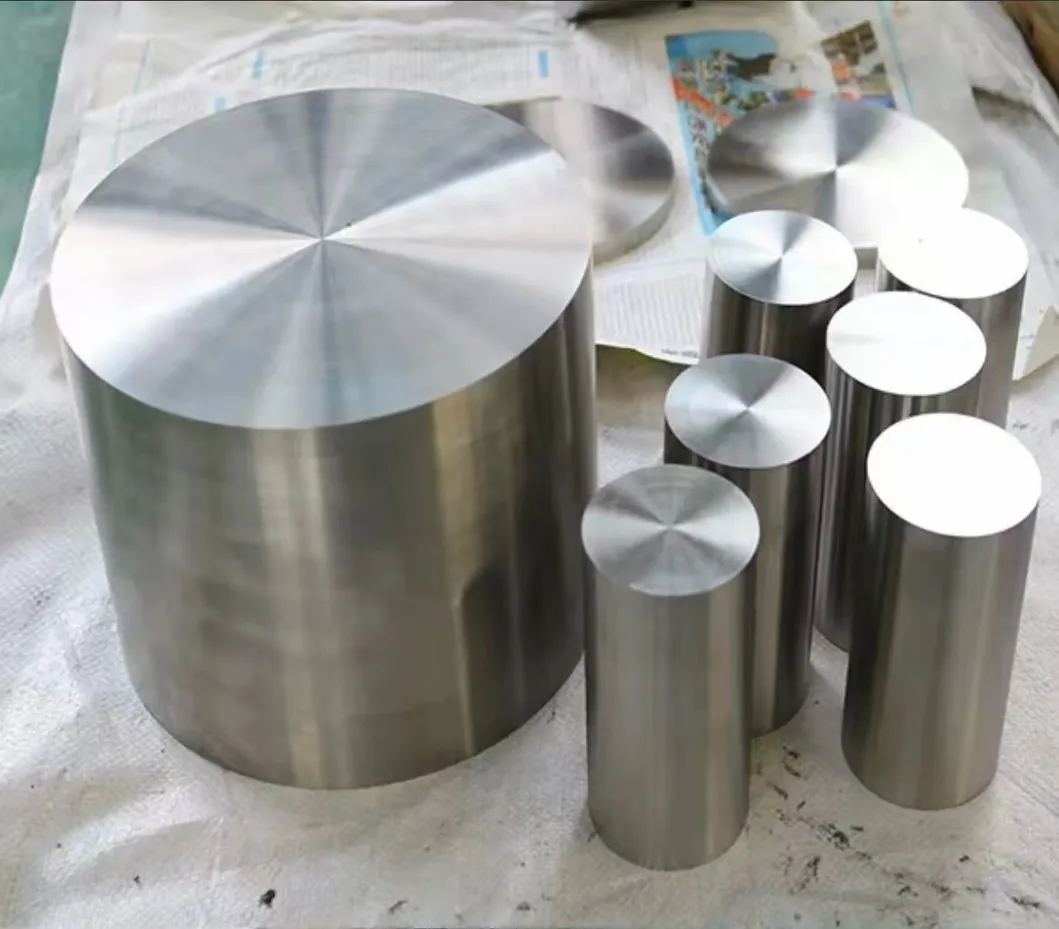

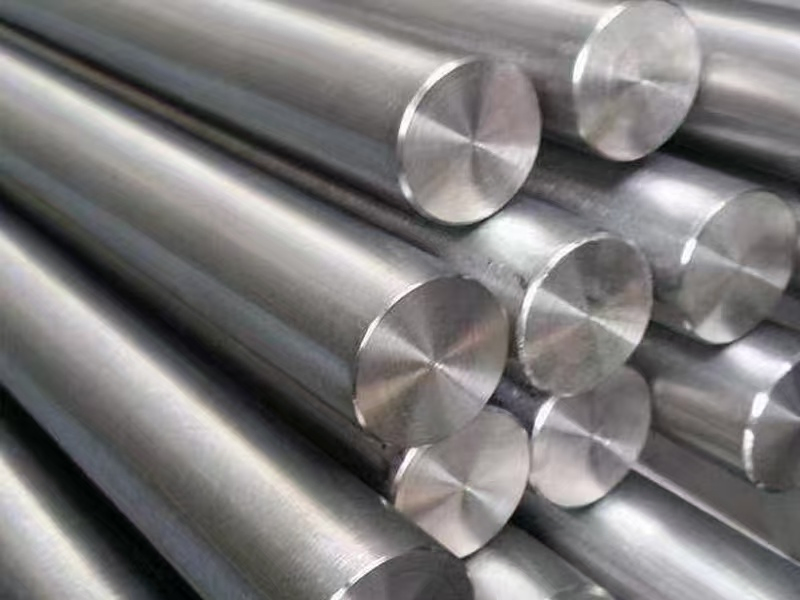

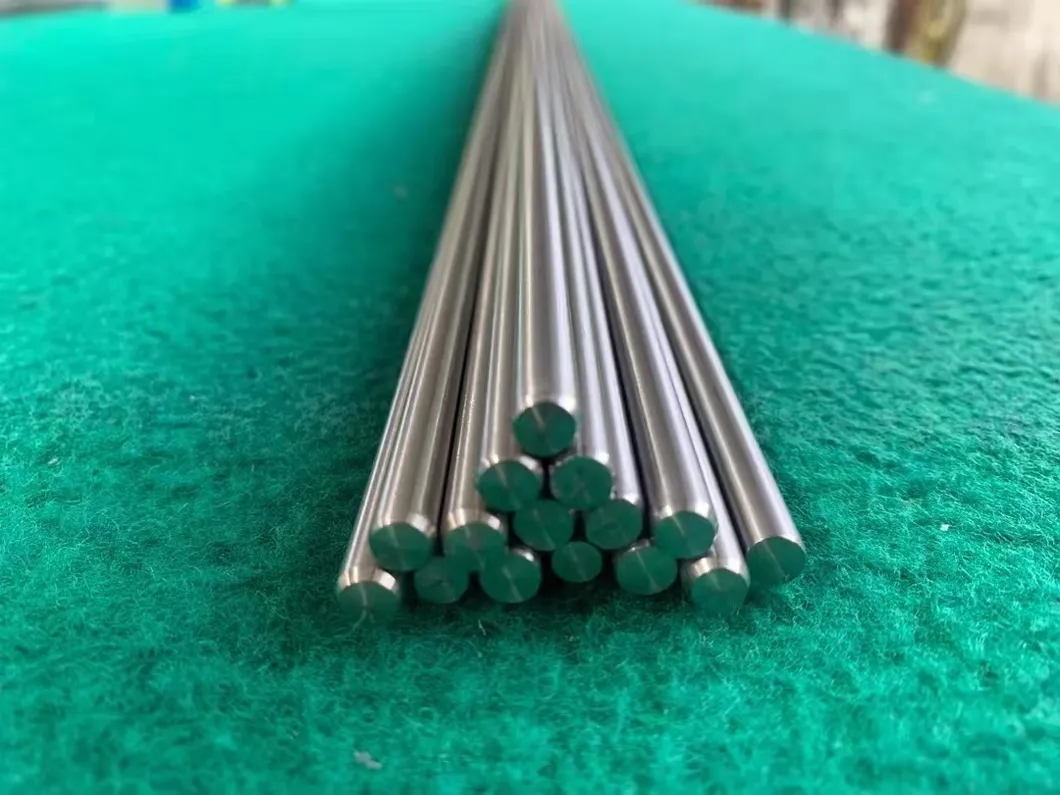

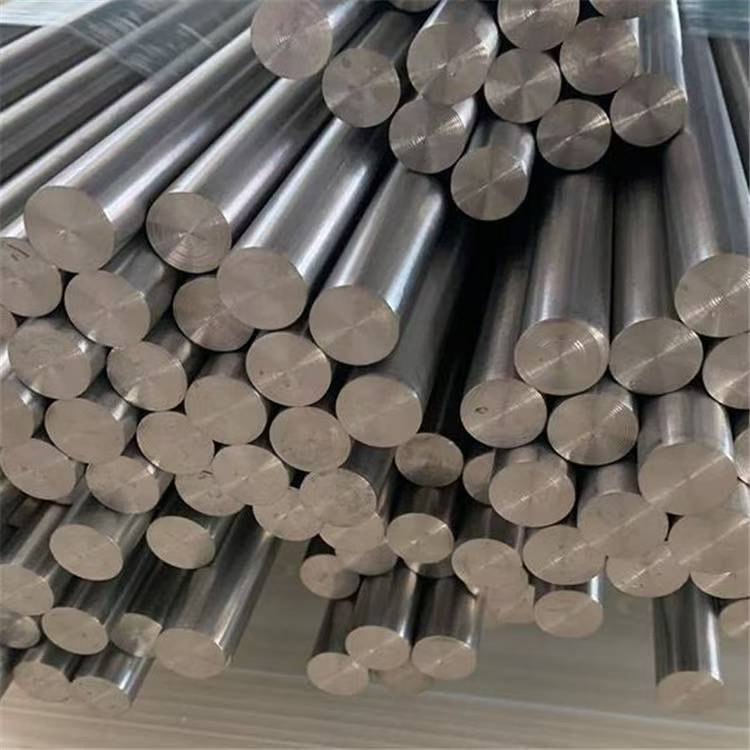

High-Quality R60702 R60705 Zirconium Rods Bars for Aerospace and Medical Use

Basic Information Overview

Model NO.

R60702 R60705

Product Name

Zirconium Rod

Usage

Metallurgy, Getter

Standard

ASTM B352, ASTM B551, JIS, DIN

Density

6.49g/cm3

Diameter

Dia 1mm - 200mm

Shape

Rod

MOQ

10kg

Delivery Time

7-15 days

Payment

T/T, Paypal, Western Union

Origin

China

Production Capacity

1200 ton/Year

Product Description

Zirconium is a rare metal with amazing corrosion resistance, an extremely high melting point, and exceptional hardness and strength. With a melting point of approximately 1800°C, it is widely utilized in aerospace, atomic energy, and various high-tech industrial fields.

Key Features:

Corrosion Resistance: Superior to titanium, approaching niobium and tantalum; resists acids, bases, and salt solutions.
High Melting Point: Melting point of 1852±2.001ºC and boiling point of 4377ºC.
High Hardness: Offers excellent structural strength for demanding industrial applications.
Plasticity: Easy to process into various shapes such as plates, wires, and rods.

Product Parameters

Specification	Details
Grade/Standard	Zr702, Zr705, Ti/Zr alloy, Nb/Zr alloy, and other custom alloys
Surface Treatment	Polishing, Sandblast, Burned, Anodizing, PVD, Nitriding
Features	Good ductility, excellent machinability, high melting point, low thermal expansion, biocompatibility
Main Applications	CD-ROM, Decoration, Flat panel displays, Optical coatings, Glass coating, Communication

Chemical Requirements

Grade	Zr+Hf (%)	Hf (%)	Fe+Cr (%)	H (%)	N (%)	C (%)	O (%)
R60702	99.2	4.5	0.2	0.005	0.025	0.05	0.16
R60704	97.5	4.5	0.2-0.4	0.005	0.025	0.05	0.18
R60705	95.5	4.5	0.2	0.005	0.025	0.05	0.18

Zirconium alloys have a low atomic thermal neutron absorption cross section and excellent compatibility with fuel in high-temperature, high-pressure environments, making them essential for water-cooled reactor core structures.

Applications

1. Chemical Industry:

Used in reaction vessels, heat exchangers, pipes, and fittings due to high stability and corrosion resistance.

2. Aerospace:

Ideal for fuel rods, engine components (blades, jet tubes), and spacecraft shells where high strength and heat resistance are required.

3. Medical Field:

Used for radiolabelled medicines (Zirconium-89), artificial joints, and dental implants owing to biocompatibility.

4. Specialized Uses:

Catalyst carriers, printing plates, and getters in vacuum and light bulb industries.

Packaging & Shipping

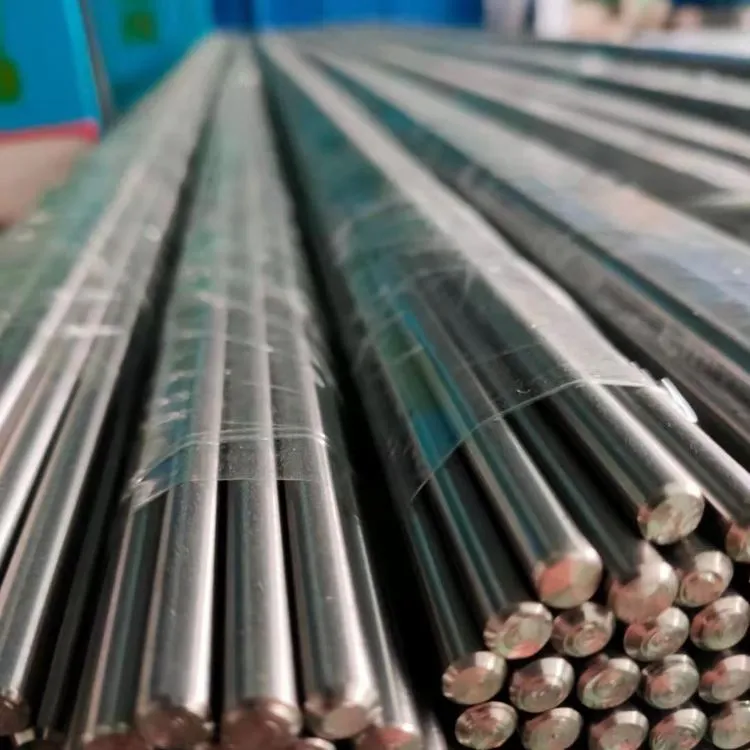

Standard packaging includes film packing, woven bag winding, carton packaging, and wooden case packing to ensure safe delivery.

Transport Modes: Shipping, Iron transportation, and Air Freight. We match the most suitable mode based on customer needs and cargo size.

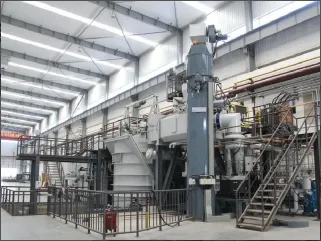

Manufacturing Capabilities

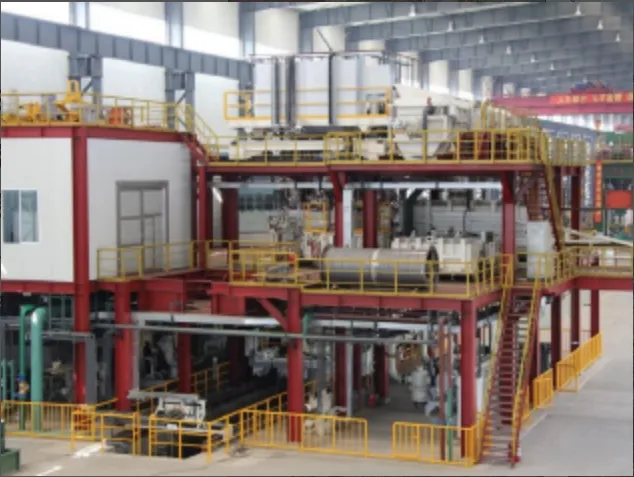

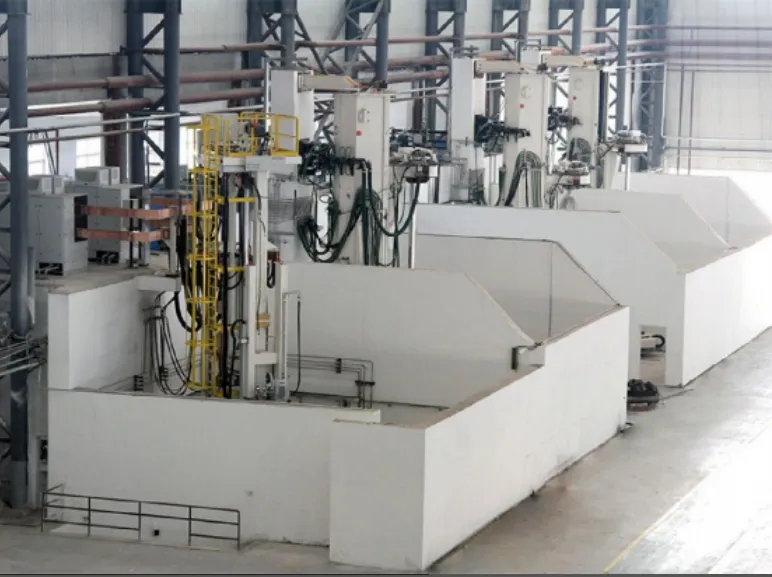

Our facilities cover 120,000 square meters, featuring advanced production equipment including vacuum induction furnaces, vacuum electric arc furnaces, and four-roll reversible mills. Testing is conducted via non-destructive testing systems, spectrum analyzers, and universal testing machines to ensure "Quality First."

Frequently Asked Questions

How about the MOQ? If my first order qty is small, will you accept?

We do our best to support trial orders. Even 1 pc or 1 kg is acceptable to start our cooperation, as we are confident in our quality for future orders.

What are your payment terms?

Commonly: 1) 30% T/T deposit, 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight. We are open to discussing other terms.

How long is your delivery time?

With an inventory exceeding 8,000 tons, common sizes can ship within 5 days. For specialized new production, delivery takes approximately 7 days.

Are samples available for free?

Yes, we provide samples before orders. Samples from stock are free. For new production samples, a reasonable cost is charged but deducted from your first order.

How do you guarantee shipment quality?

Our manufacturing processes follow ISO9001 and CE standards. We utilize premium raw materials, conduct in-house laboratory inspections, and support third-party inspections (SGS/BV).

Can product dimensions be customized?

Yes, we can customize production for various sizes, including plates up to 2.6m*16m and single pipes up to 15m in length.
