Overview & Basic Information
| Model NO. |
GR2 TA2 TC4 GR5 |
| Technique |
Hot Rolled |
| Grade |
Gr1 Gr2 Gr5 Gr7 Gr12 Gr9 Gr11 Gr3 Gr6 |
| Shape |
Round, Flat, Square, Hexagonal |
| Processing Service |
Bending, Welding, Decoiling, Cutting, Punching |
| Diameter Tolerance |
H6~H13 |
| Advantage |
Corrosion Resistance |
| Product Name |
Titanium Alloy Rod/Bar |
| MOQ |
10kg |
| Specification |
Length MAX: 6000mm |
Product Description

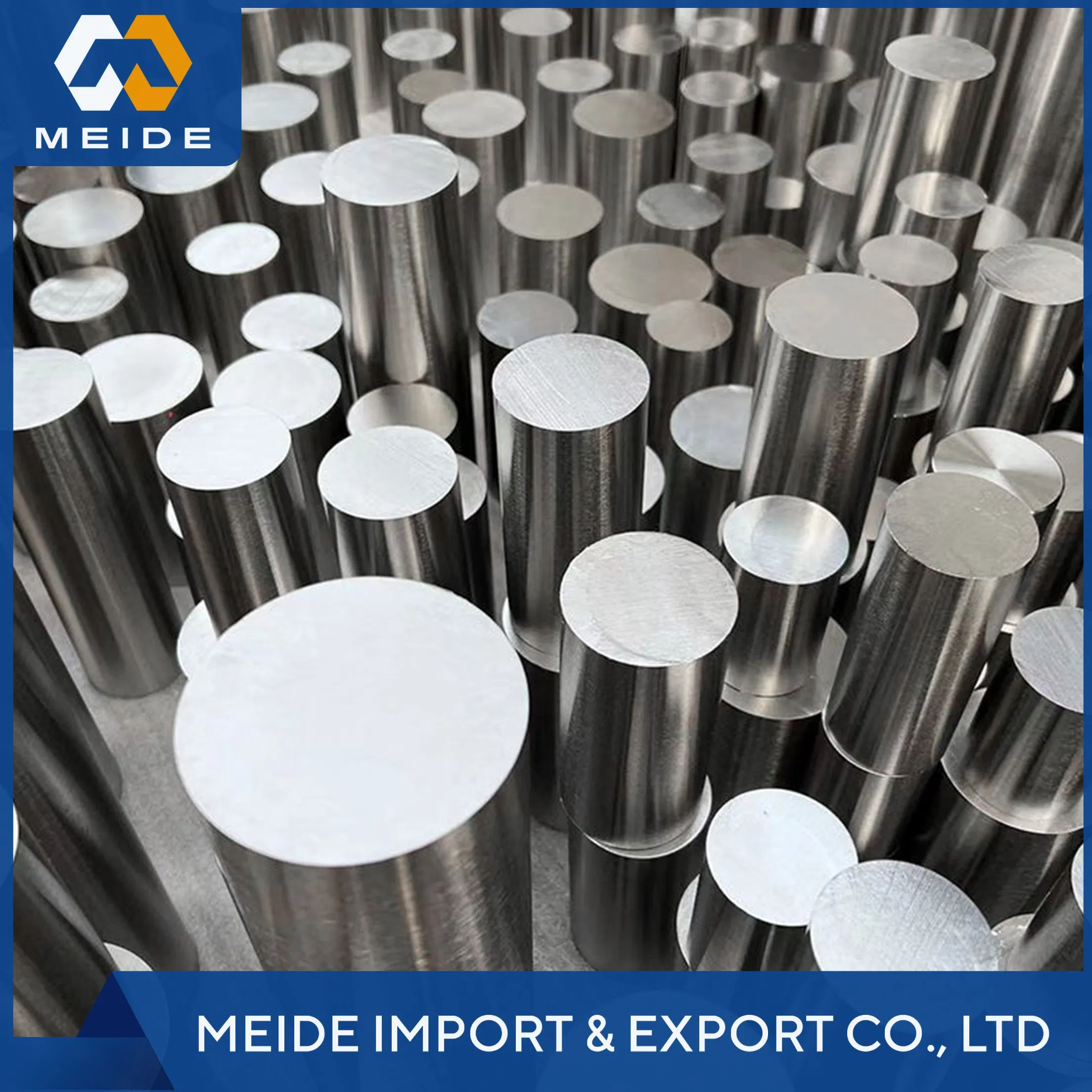

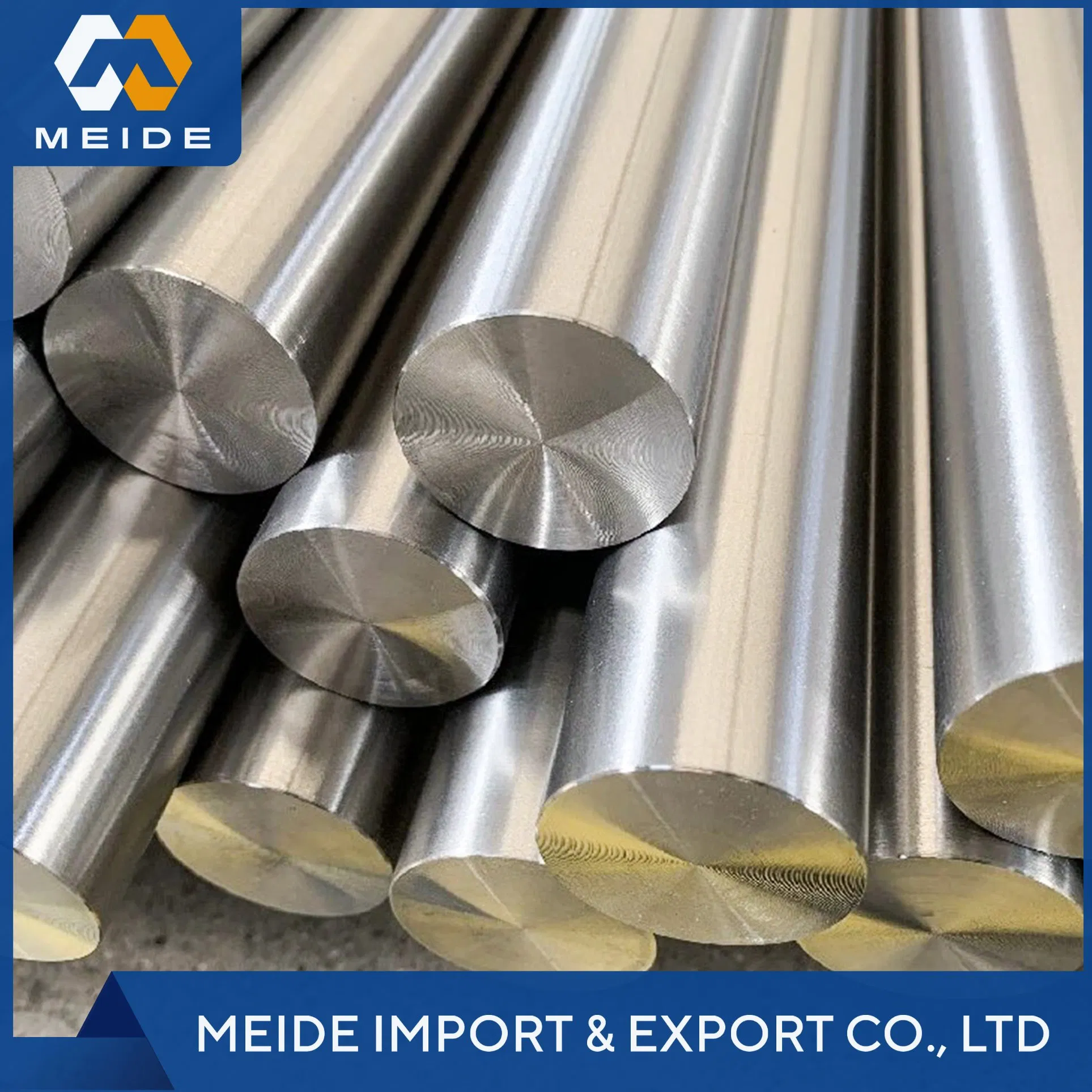

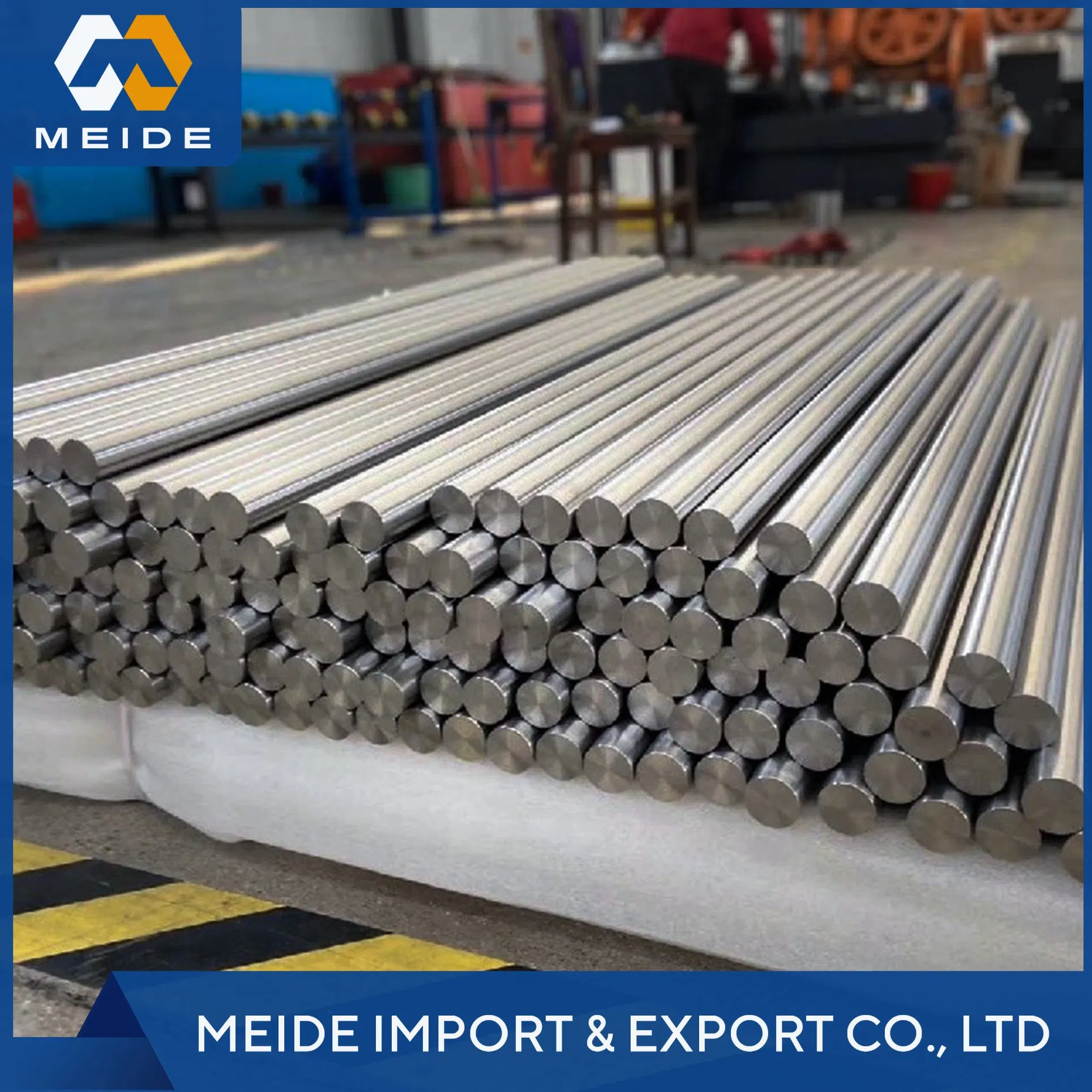

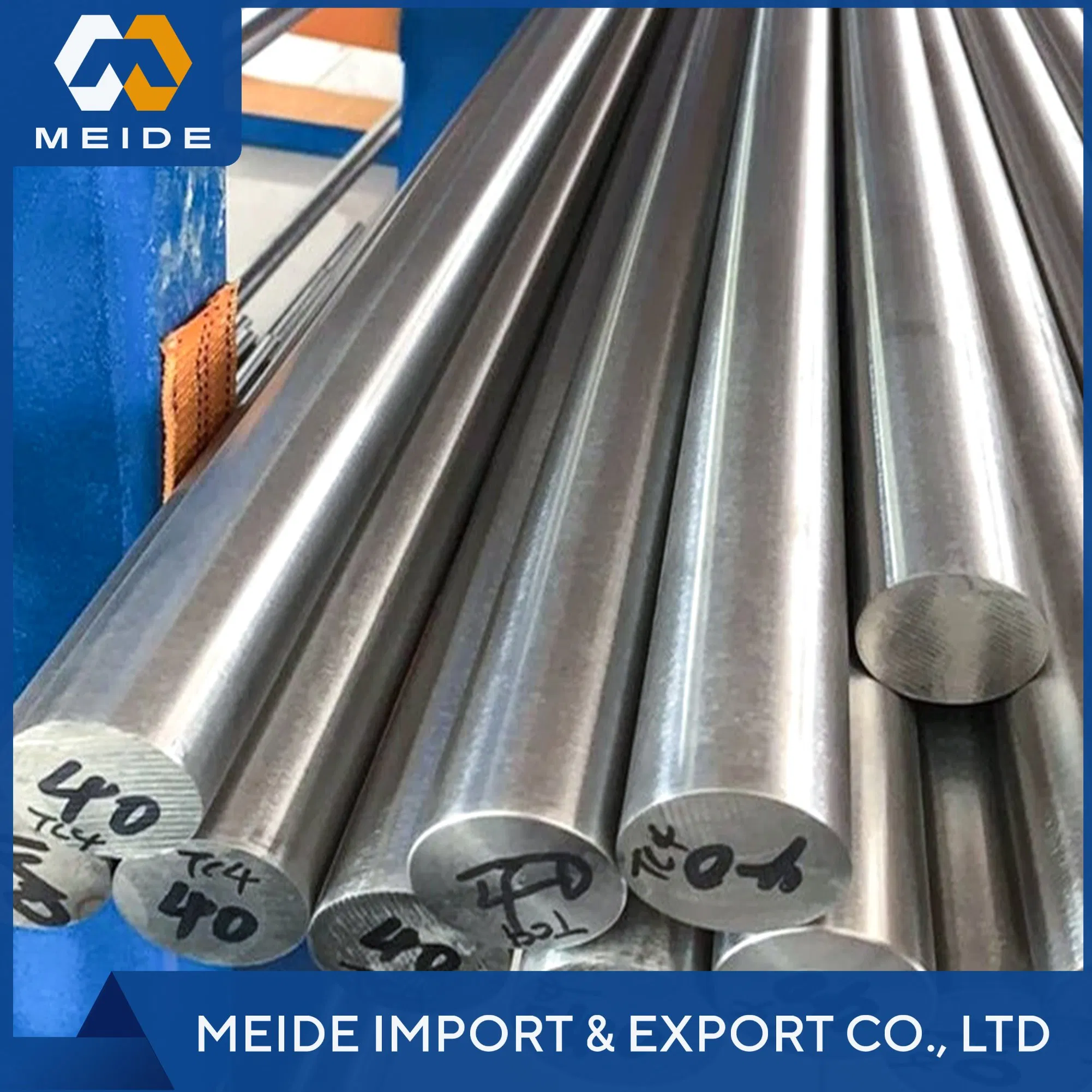

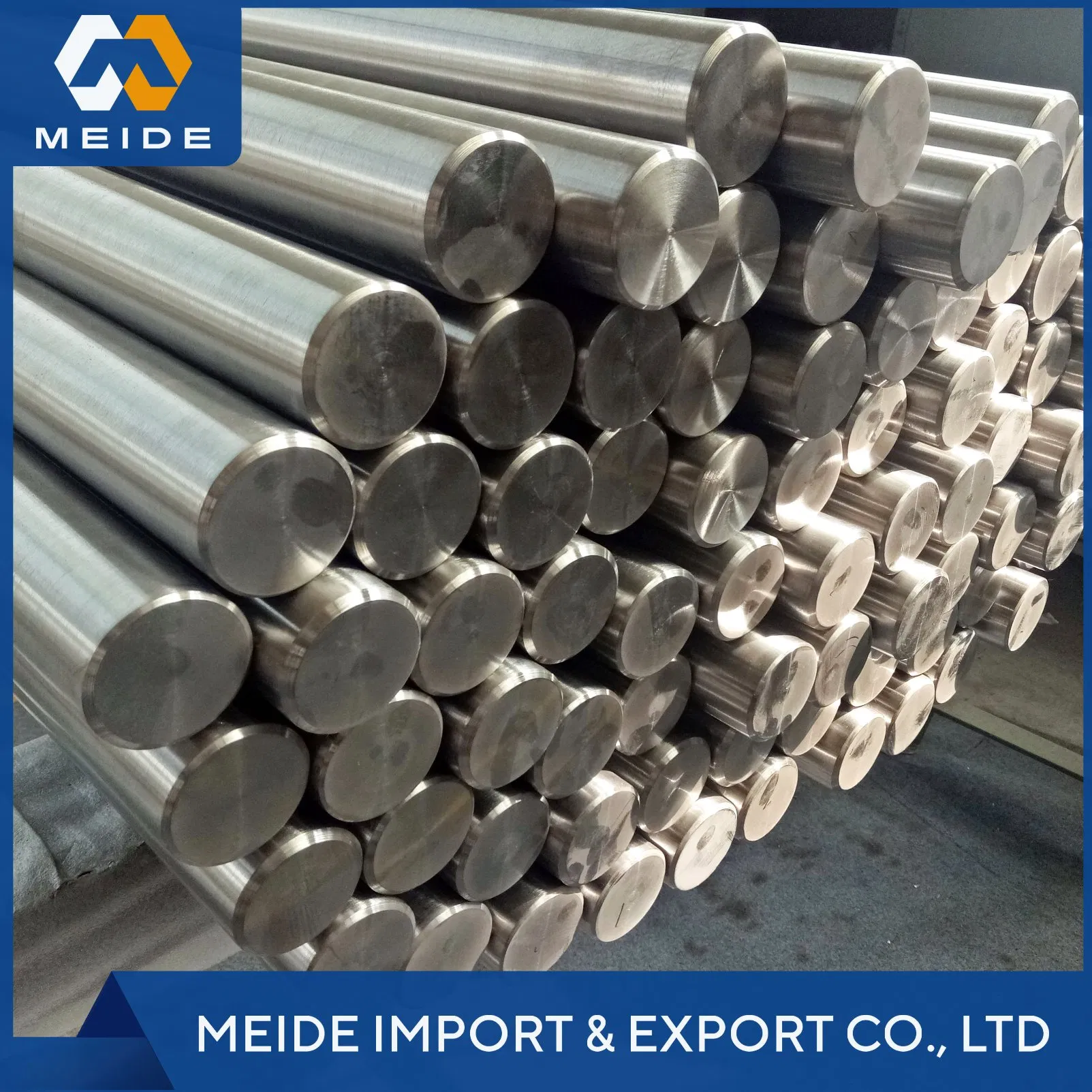

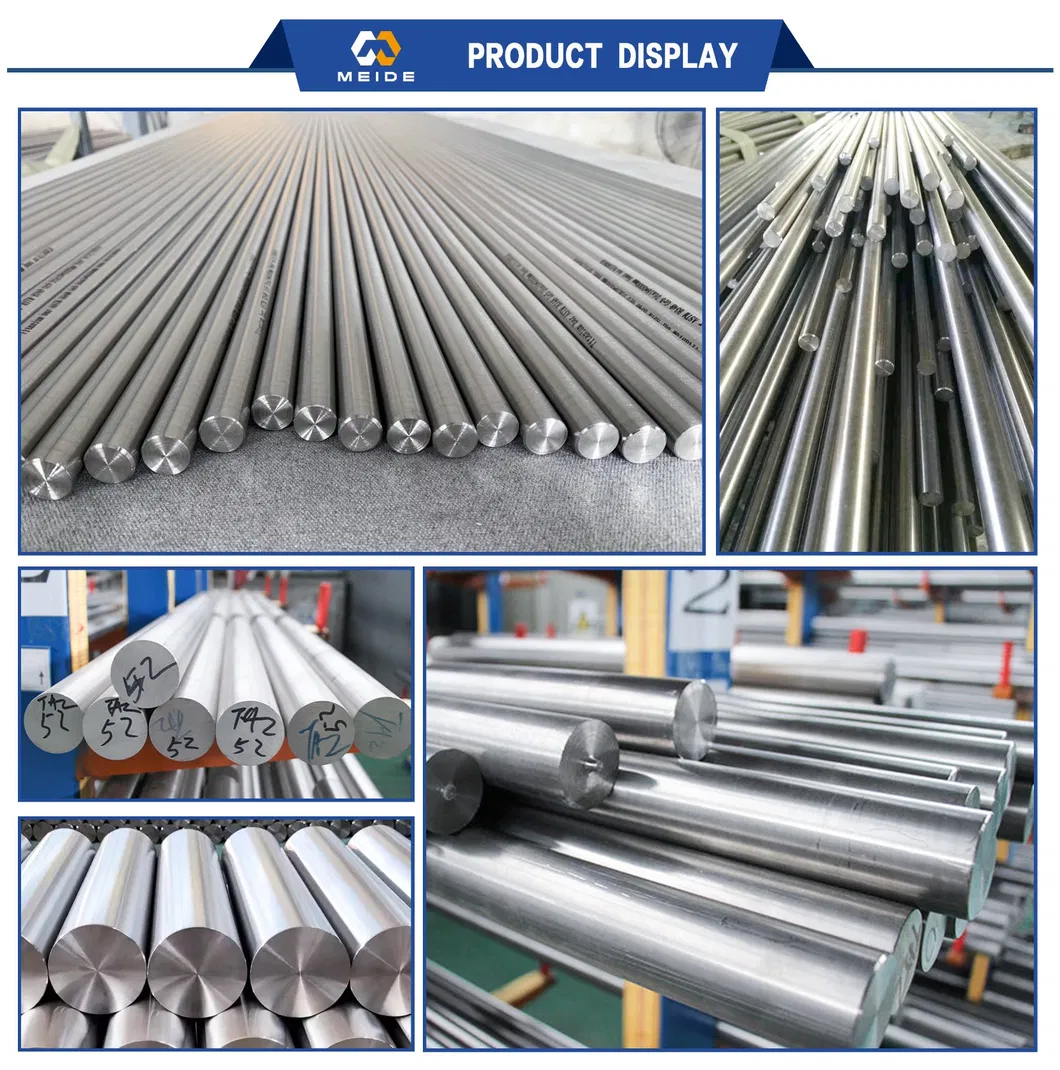

Titanium Round Bars and Rods:
Round bar is available in diameters ranging from small wire for welding to large 14" diameters for industrial components like clutches and flywheels. Small-diameter bars are extensively used in the medical field for implants and dental appliances.
Standards & Grades:
ASTM B/SB 348, ASTM B/SB 381, ASTM F136, ASTM F67, AMS4928, ISO5832. Available in Grades 1 through 36.
| Specifications for Titanium Round Bar |
| Standard | AISI, ASTM, EN, BS, GB, DIN, JIS |
| Diameter | 3mm-500mm |
| Dia Tolerance | H9 / H11 / H13, or custom requirement |
| Surface | Polished bright, Black, Grinding |
| Inspection | ISO, BV, SGS, MTC |
| Supply Ability | 1000 metric tons/month |
Chemical Composition (%)
| Grade | N | C | H | Fe | O | Al | V | Ti |
| GR1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | bal |
| GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | bal |
| GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | bal |
| GR9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | bal |
Mechanical Property
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
| GR1 | 240 | 138 | 24 |
| GR2 | 345 | 275 | 20 |
| GR5 | 895 | 828 | 10 |
| GR23 | 828 | 760 | 10 |
Product Characteristics
Titanium (Ti, atomic number 22) is a lustrous transition metal characterized by low density, high strength, and a distinct silver color. It provides exceptional resistance to corrosion in harsh environments such as sea water, aqua regia, and chlorine.
Product Application
■
Aerospace: High tensile strength-to-density ratio and corrosion resistance make it ideal for aircraft, armor plating, and spacecraft.
■
Industrial: Used in engine rotors, compressor blades, and hydraulic systems. Ti-6AL-4V is the most widely used aviation alloy.
■
Consumer & Architecture: Critical for racing vehicles (cars/motorcycles) where weight reduction and rigidity are essential.
■
Medical: Osseointegration properties allow for dental implants and fasteners that last over 30 years.
Frequently Asked Questions
Are you a manufacturer or a trader?
We are a professional manufacturer with years of extensive production experience in the titanium industry.
Do you accept OEM orders?
Yes, OEM is fully acceptable. We can manufacture products according to your specific drawings or samples.
Can you provide design drawings?
Absolutely. We provide detailed design drawings following order confirmation or prepayment.
What is the standard delivery time and shipping port?
Normal delivery is within 30 days after payment. We ship from major ports including Qingdao, Tianjin, Shanghai, and Guangzhou.
How is the product packaged for export?
We use neutral plywood or wooden box packaging, or we can customize the packaging based on your specific requirements.
What information is needed to receive a price quote?
Please provide the Product Name, Standard, Material Grade (Chemical Composition), Dimensions, and Quantity.
