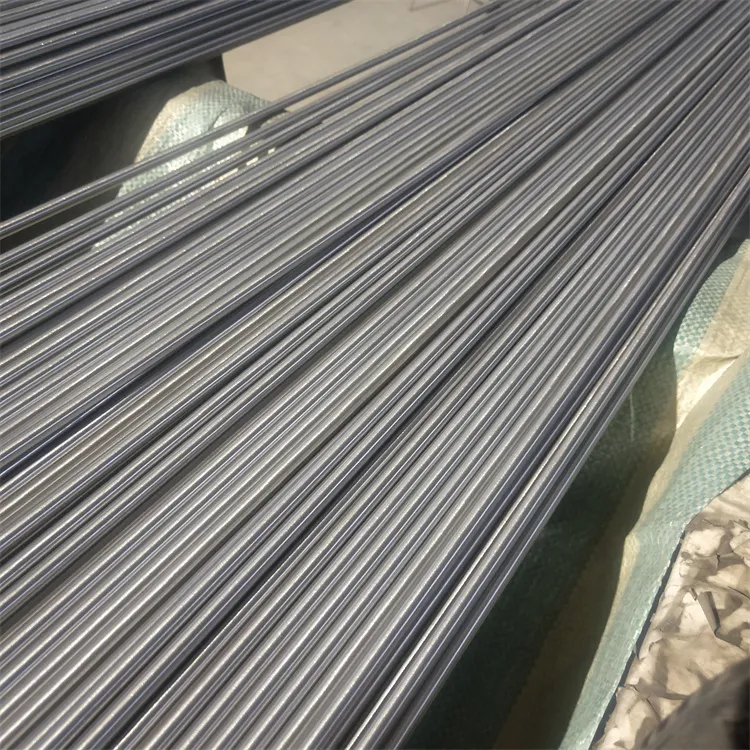

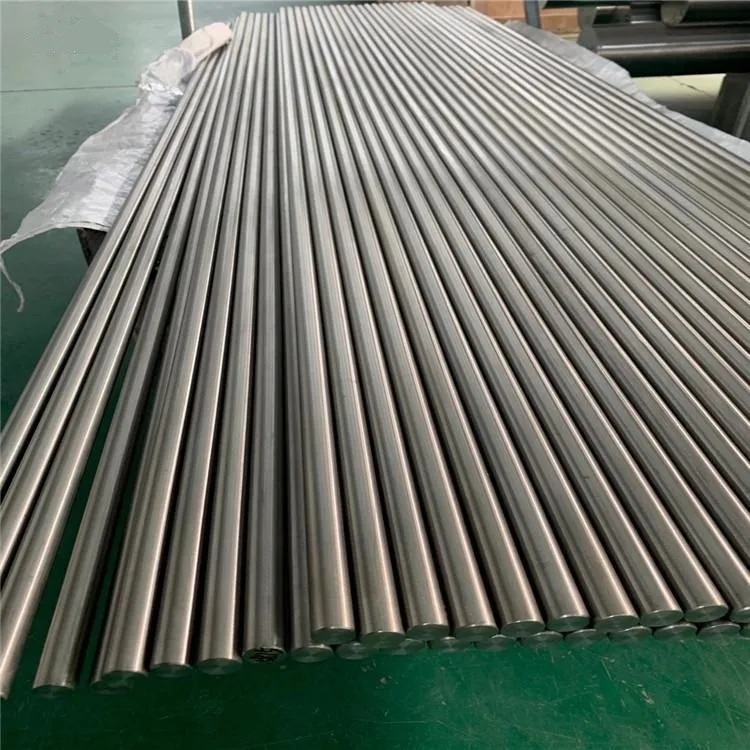

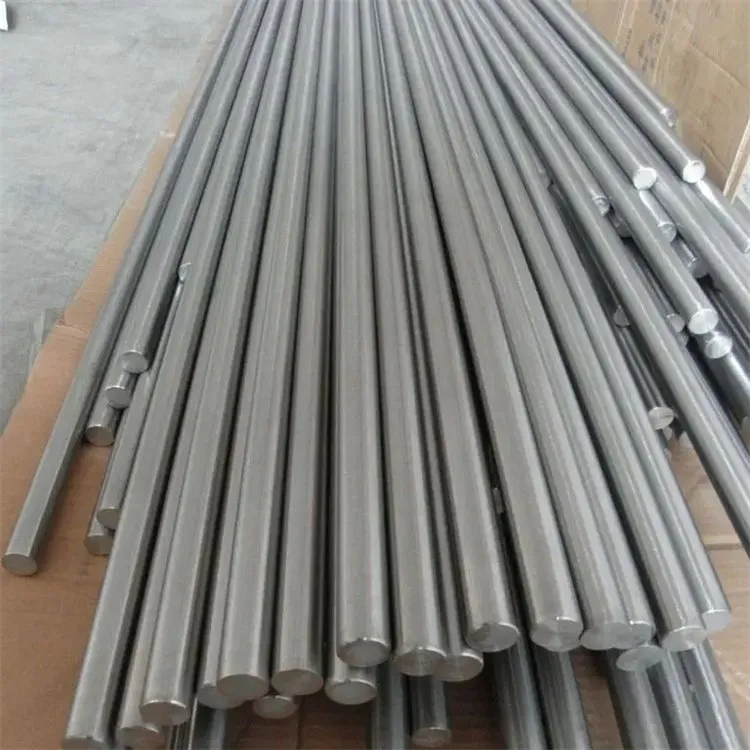

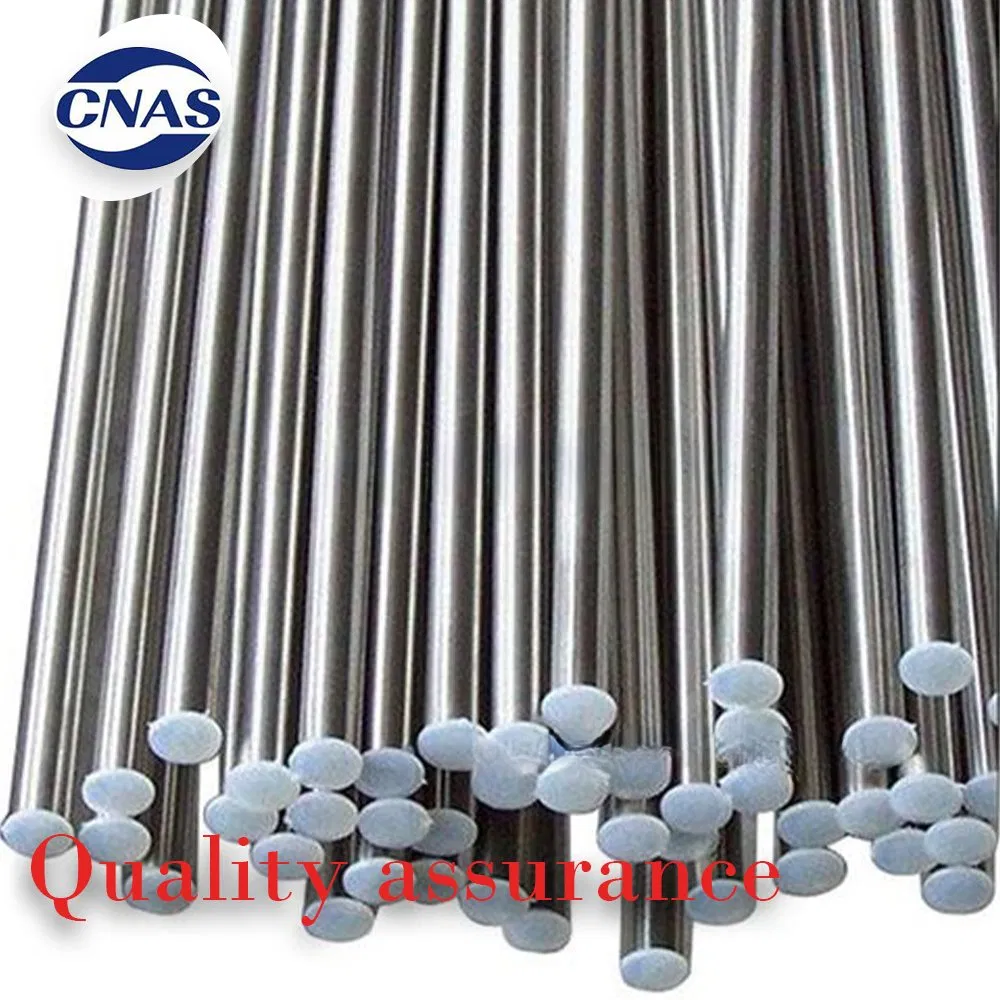

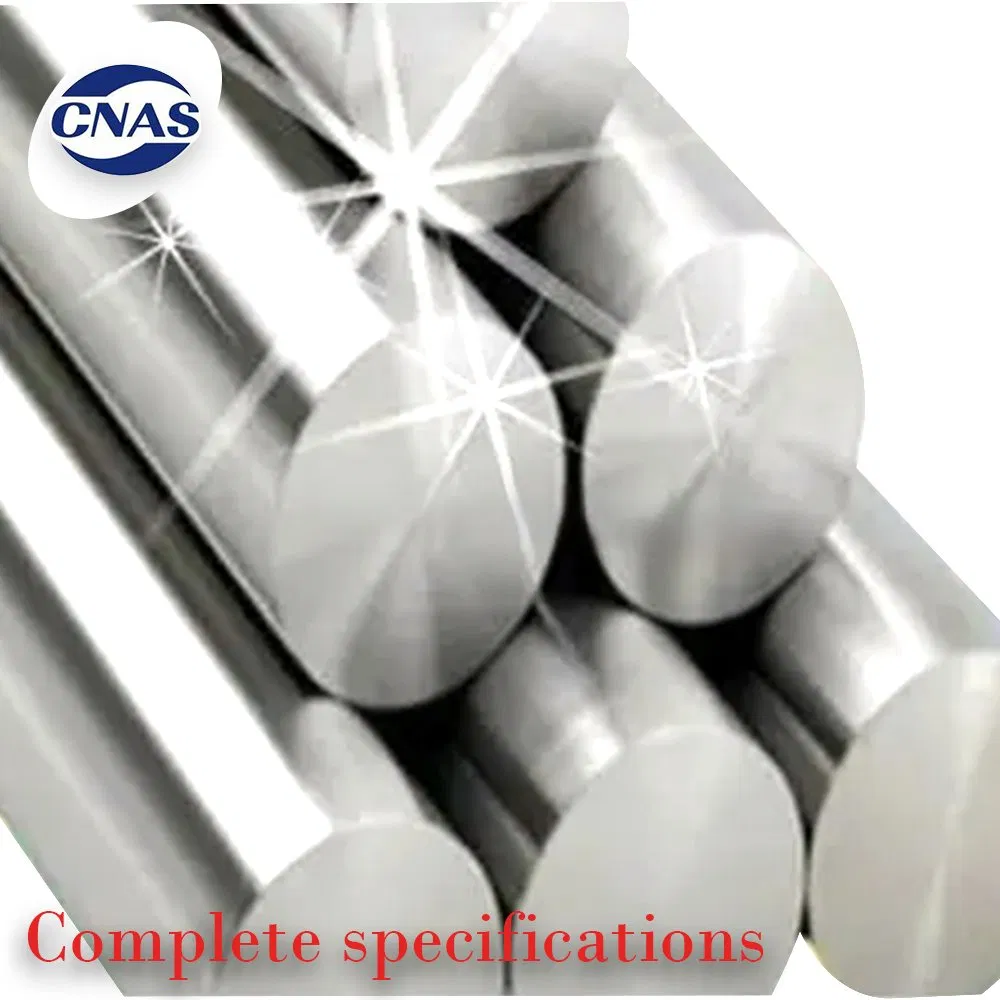

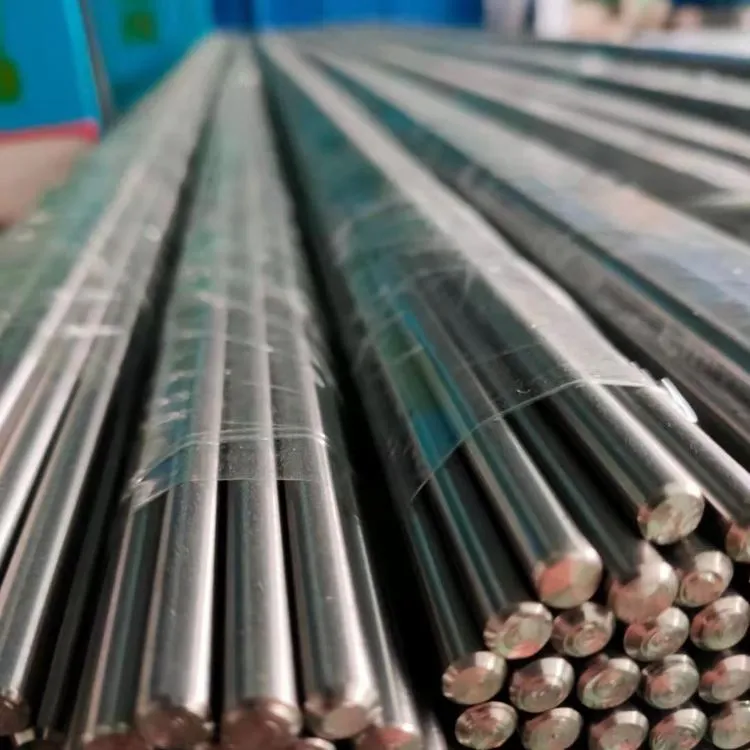

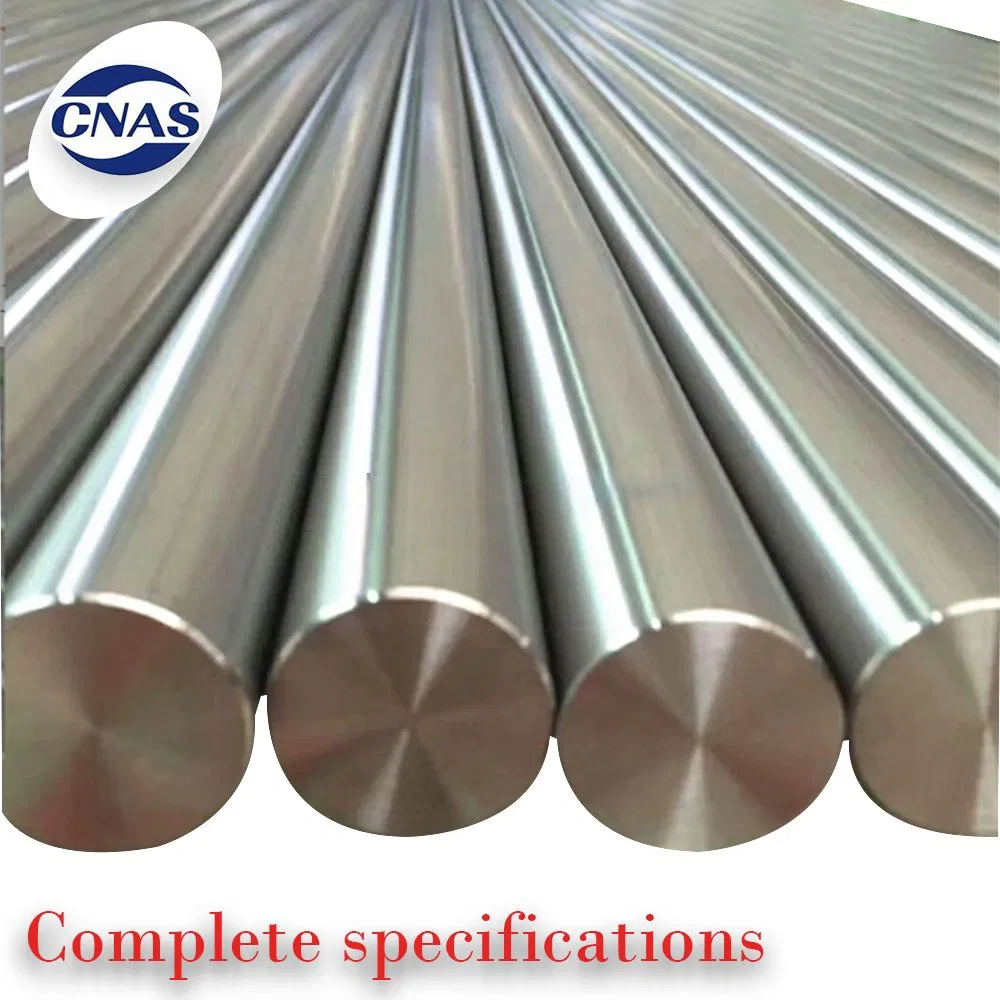

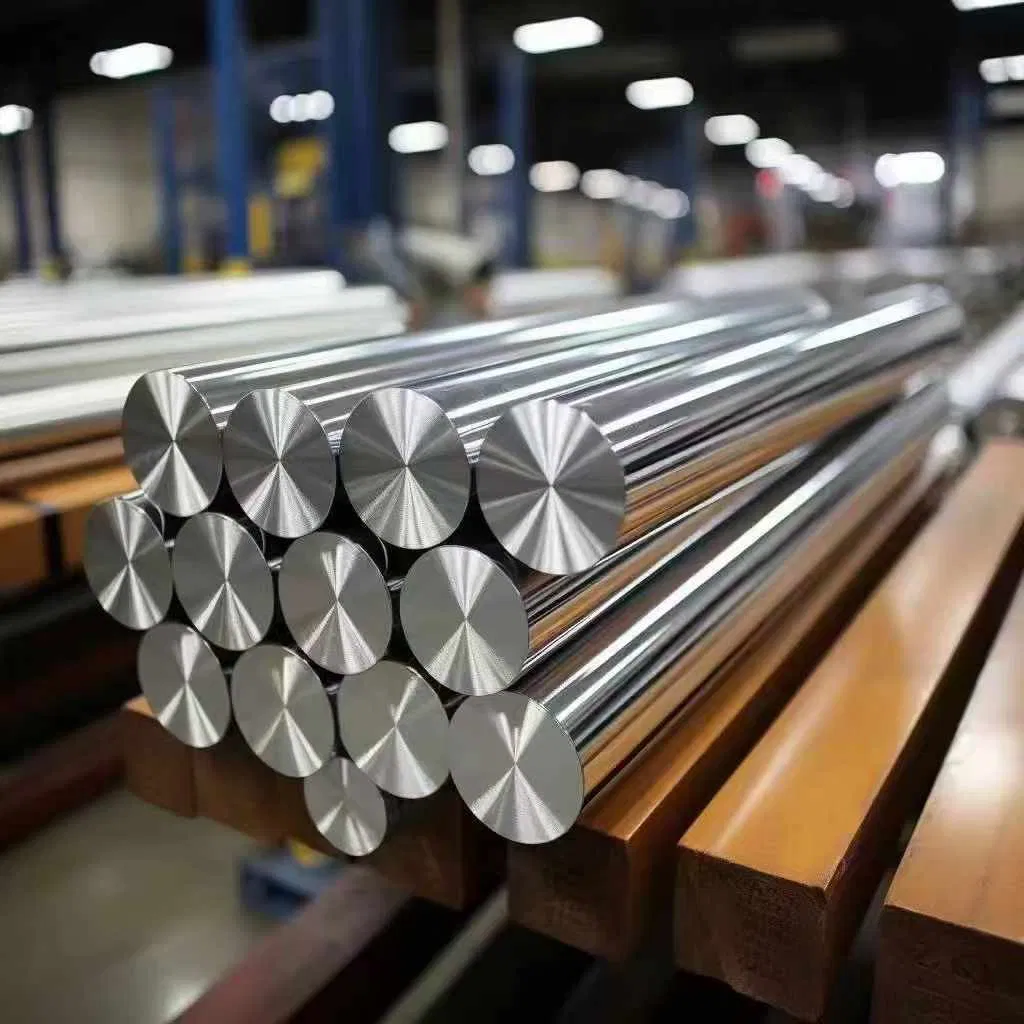

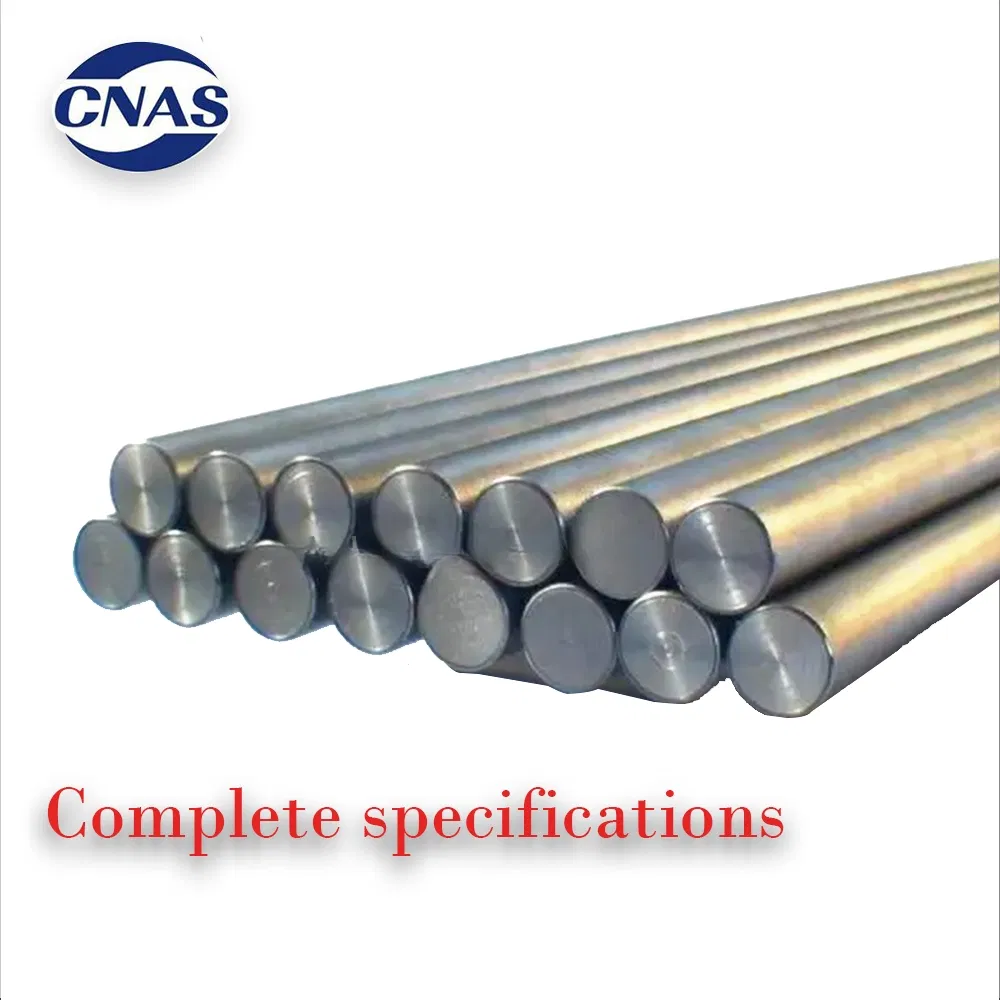

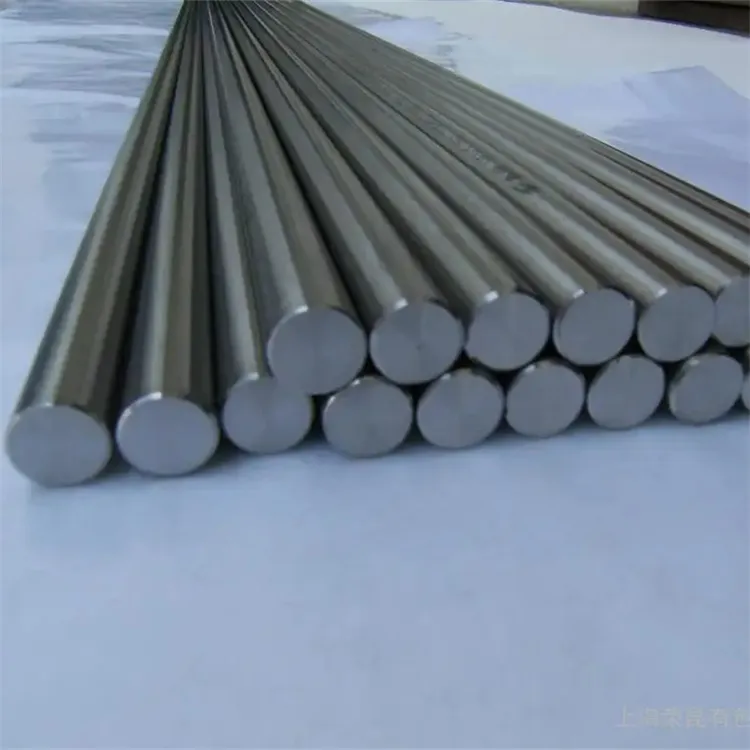

Titanium rod is used to make titanium alloy, titanium metal raw material, it has the characteristics of low density, high strength, good corrosion resistance. It is widely used in the aerospace industry to manufacture aircraft structural components and rocket nozzles. Used in chemical industry as catalyst carrier and electrolyte purification device; It can be used as heat exchanger and condenser material in mechanical industry.
In the metallurgical industry is mainly used in the production of all kinds of pure iron, stainless steel, heat-resistant steel and special alloy steel. In addition, it is also used to manufacture artificial gemstones and artificial rutile zircon crystals, piezoelectric ceramics and precision castings of various shapes for the electronic industry.
| Material | Ti & Ti alloy |
|---|---|
| Specification | Dia5.0-350 * ≤6000mm |
| State | R / Y / M |
| Density | ≥4.51g/cm3 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23 |
| Standard | ASTM B348, ASME SB348, AMS 4928, ASTM F67, ASTM F136 |

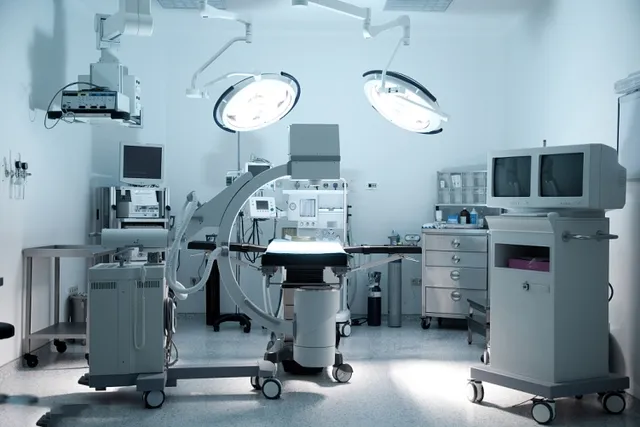

| Application | Mechanical equipment, electroplating, medical, precision parts |
| Chemical Requirements | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| GR1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | bal |

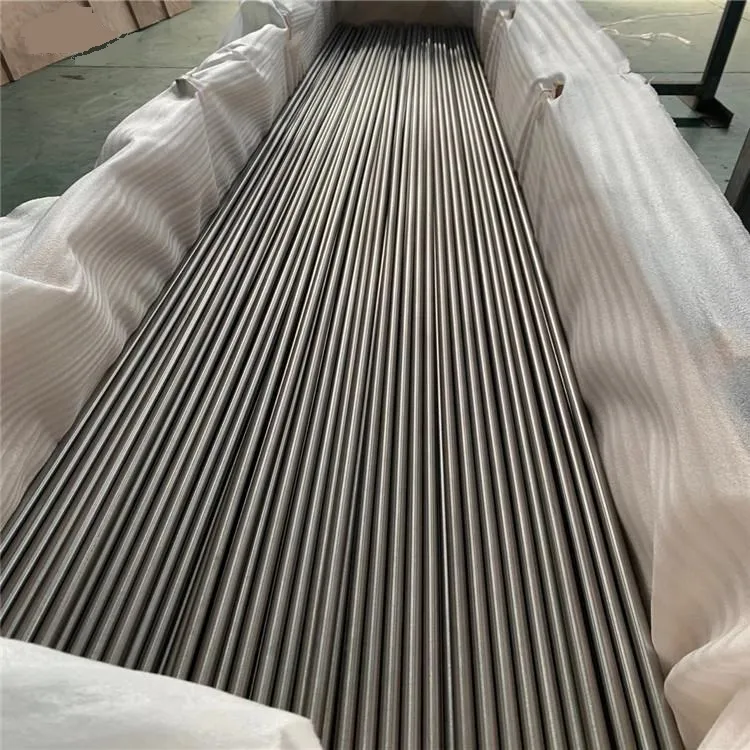

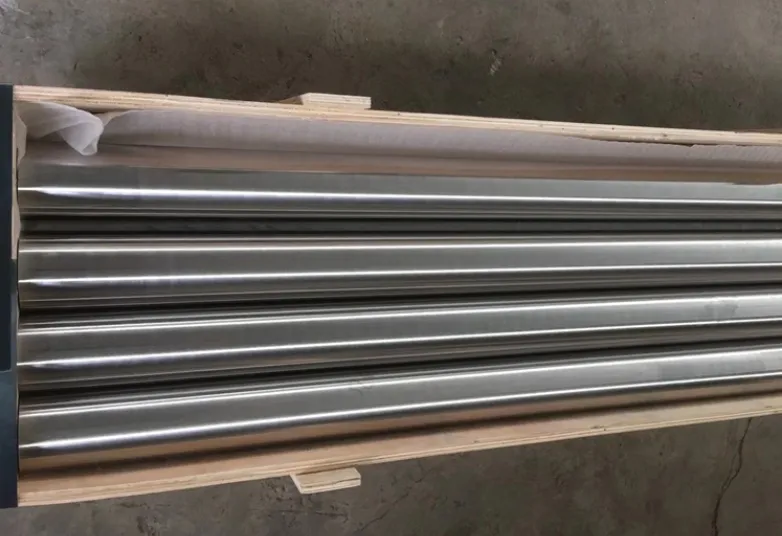

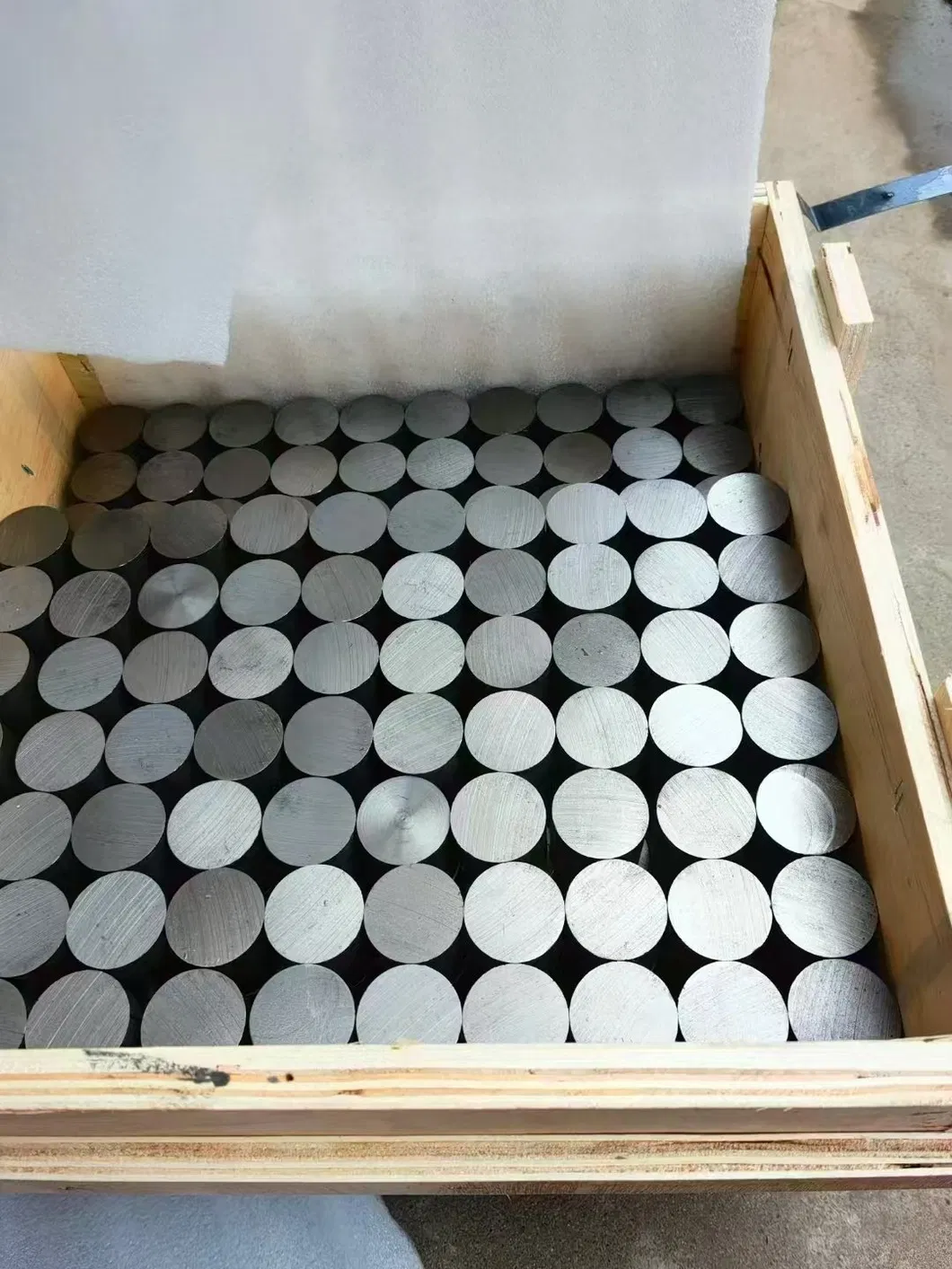

Packing: Film packing; Woven bag winding; Carton packaging; Wooden case packing.
Our group is engaged in titanium and its alloys, zirconium, Monel, Inconel nickel, and other superalloy research and processing. Products cover sheet, strip, profile, bar, wire, pipe, and forged flanges.

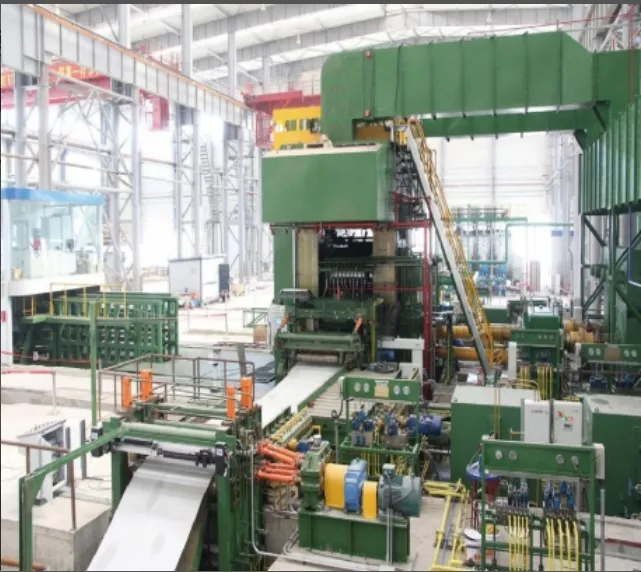

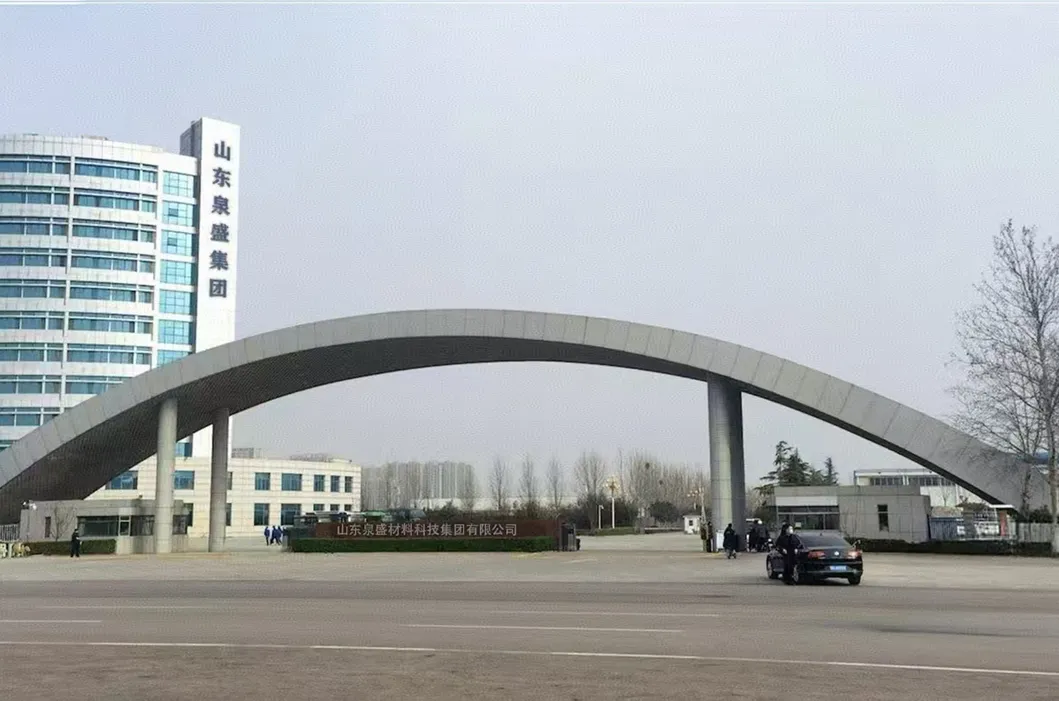

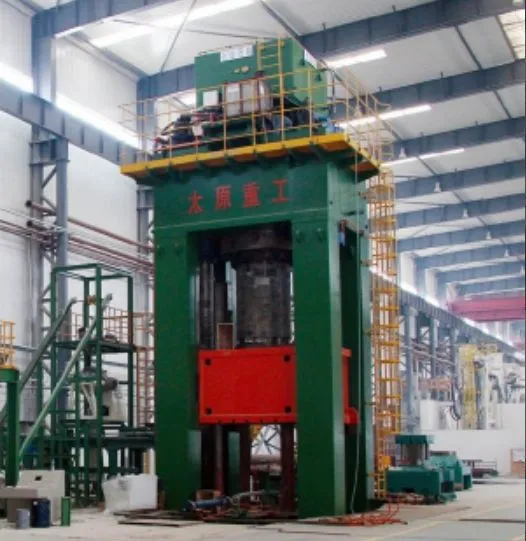

The facility covers 120,000 square meters, equipped with vacuum induction furnaces from the USA, vacuum consumable arc furnaces from Germany, and 2800mm reversible rolling mills. We can produce plates up to 2.6m * 16m and pipes up to 15m. Our laboratory features spectral analyzers, ultrasonic testing, and fatigue testing systems to ensure supreme quality.
