316L SA316L a 316L 304L Sst316L SA316L Stainless Steel

Still deciding? Get samples of $ !
Request Sample

Product Description

📋
Basic Information
Model NO.
300 SERIES
Grade
300 Series
Certification
ISO, RoHS
Shape
Round
Technique
Hot Rolled
Surface Treatment
Bright
Transport Package
Bulk Package
Specification
Dia0.1-500
Origin
China
HS Code
72221100
Production Capacity
500tons/Month
🔍
Product Description

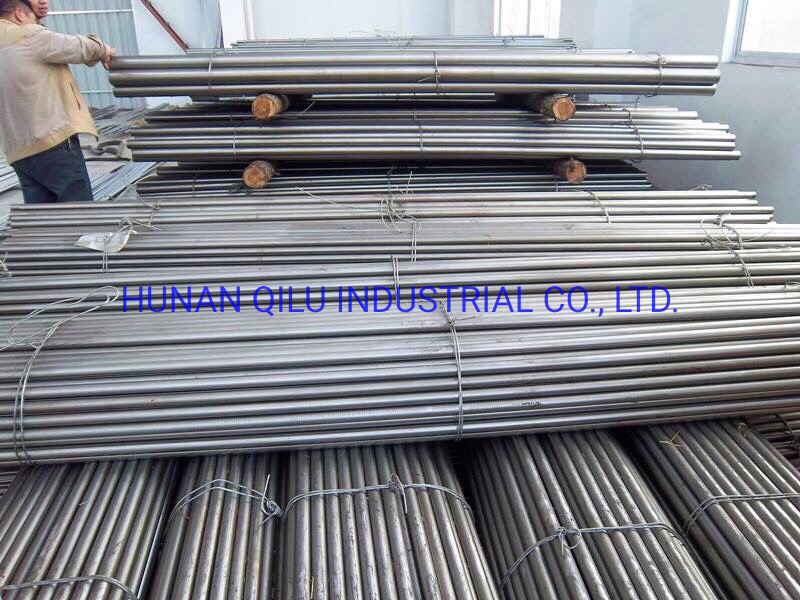

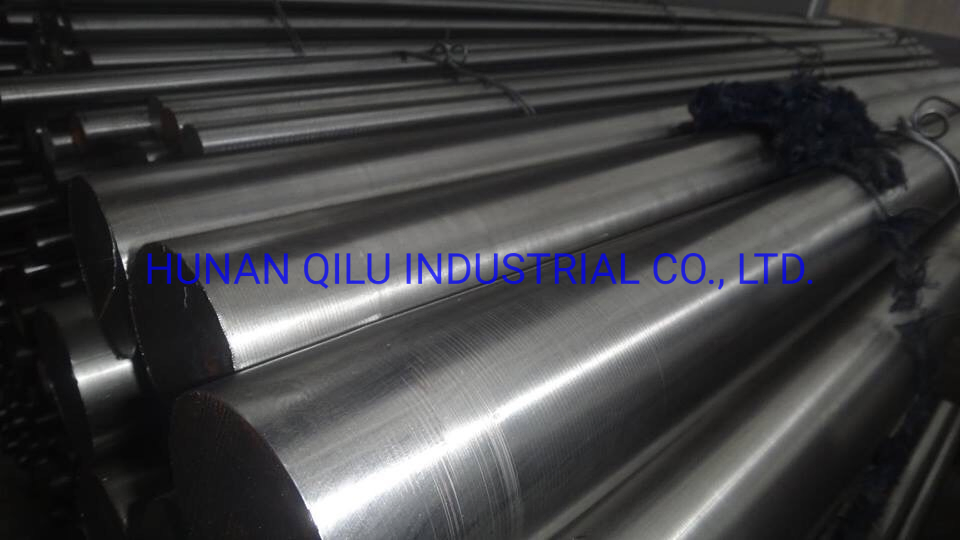

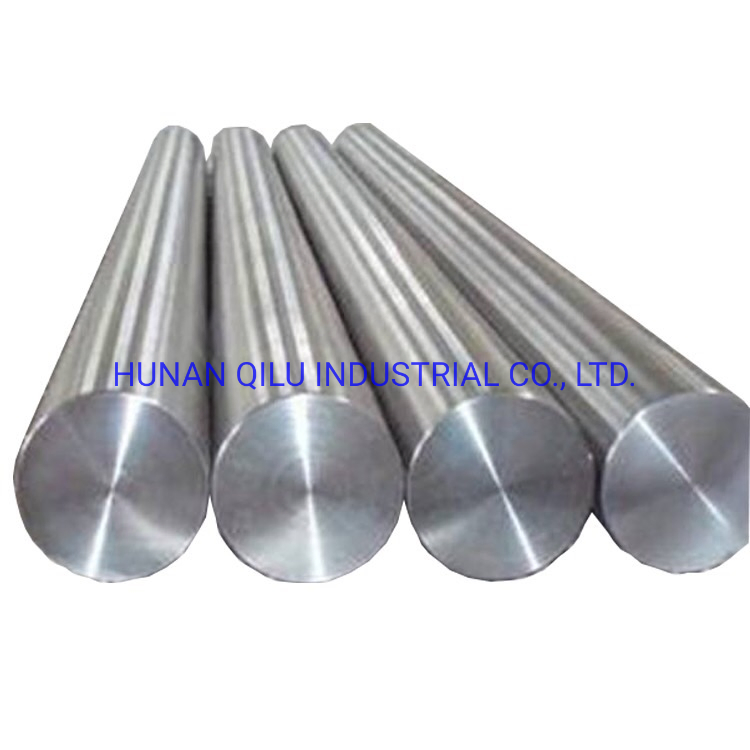

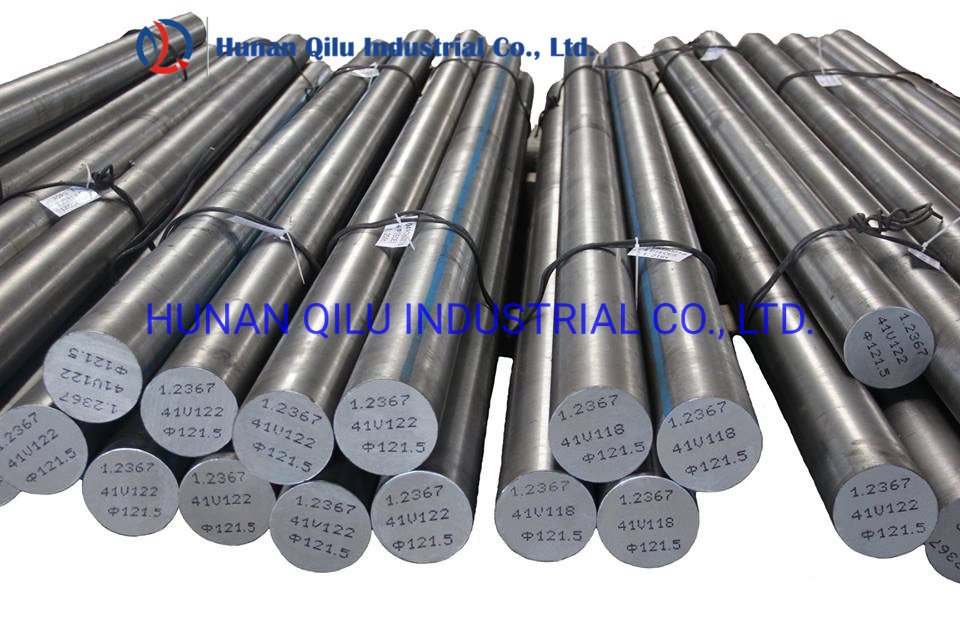

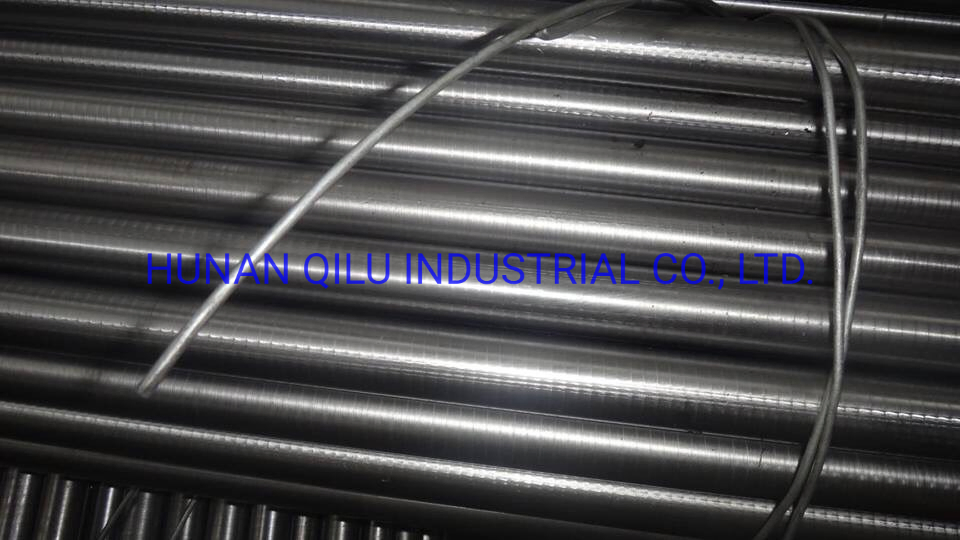

S31603 SUS316 DIN 1.4404 SAE 316L Stainless Steel Round Bar
Stainless Steel Bar Header
💡 1: 316L Steel Introduction

SAE 316L grade stainless steel, sometimes referred to as A4 stainless steel or marine grade stainless steel, is the second most common austenitic stainless steel after 304/A2 stainless steel. Its primary alloying constituents after iron, are chromium (between 16-18%), nickel (10-12%) and molybdenum (2-3%), with small quantities of silicon, phosphorus & sulfur also present. The addition of molybdenum provides greater corrosion resistance than 304, with respect to localized corrosive attack by chlorides and to general corrosion by reducing acids, such as sulfuric acid. 316L grade is the low carbon version of 316 stainless steel. When cold worked, 316 can produce high yield and tensile strengths similar to Duplex stainless grades.

For elevated temperature applications the high carbon variant, 316H stainless steel and the stabilised grade 316Ti stainless steel should be employed.

⚖️
2: 316L Steel Equivalent
Country Japan Germany USA China
Standard JIS DIN ASTM GB/T
Grade SUS316L 1.4436 316L 07Cr17Ni14Mo2
🧪
3: 316L Steel Chemical Composition
Grade C≤ Si≤ Mn≤ P≤ S≤ Cr Mo Ni N≤
316L 0.03 0.75 2.0 0.045 0.04 16-18 2-3 10-14 0.1
1.4436 0.05 1.0 2.0 0.045 0.03 16.5-18.5 2.5-3.0 10.5-13 0.1
⚙️
4: Mechanical Properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as annealed, Solid Solution.
📊
5: 316L Steel Overviews
Size Round Dia 0.1-500mm
Plate/Flat/Block Thickness: 0.3mm-200mm
Width 1mm-2500mm
Heat treatment Annealed ; Solid Solution
Surface condition Black; Peeled; Polished; Machined; Sand blast etc
Delivery condition Forged; Hot rolled; Cold drawn
Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment terms T/T; L/C; Money gram; Paypal
Trade terms FOB; CIF; C&F; etc..
Application Food processing equipment; Brewery equipment; Chemical and petrochemical equipment; Laboratory benches; Coastal architectural panelling; Boat fittings; Heat exchangers; Medical implants.
🚚
6: Delivery Condition
  • Hot Forged Bar: Usually hot forged, annealed/QT, rough turned/Black surface.
  • Hot Rolled Bar: Usually hot rolled, annealed/QT, Black surface.
  • Cold Drawn Bar: Usually cold drawn, annealed/QT, peeled/black surface.
  • Hot Rolled Plate: Usually hot rolled, annealed, milled/black surface.
  • Hot Forged Plate: Usually hot forged, normalized/annealed, milled/black surface.
Separator

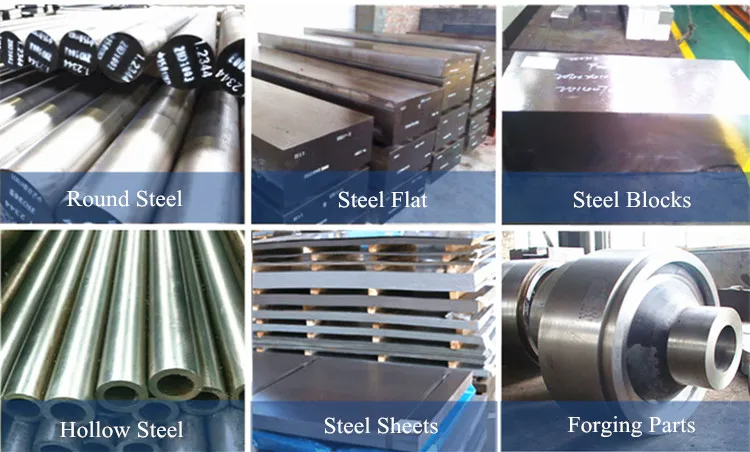

Capacity exists to forge round steel, steel flat, square steel, module, shaft and roller, etc. Main specifications include Φ80-1000mm forging materials and 80-1200mm square billets with maximum piece weight reaching 50T.
Facility 1
Facility 2
Supplying a great variety of hot forged, hot rolled and cold drawn steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, and stainless steel. Specialized heating treatment and machining shops provide heating and cutting services.

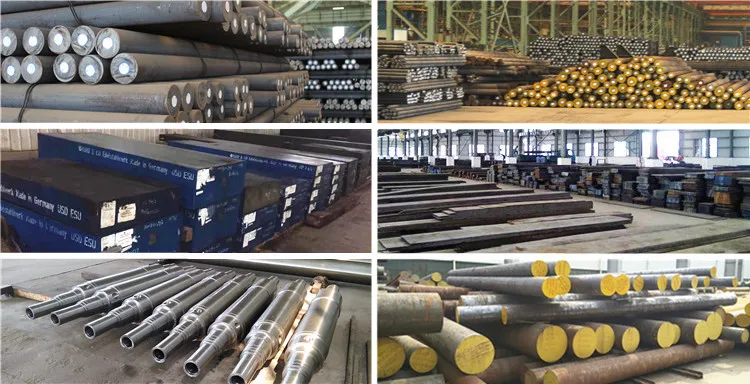

Inventory Separator 2

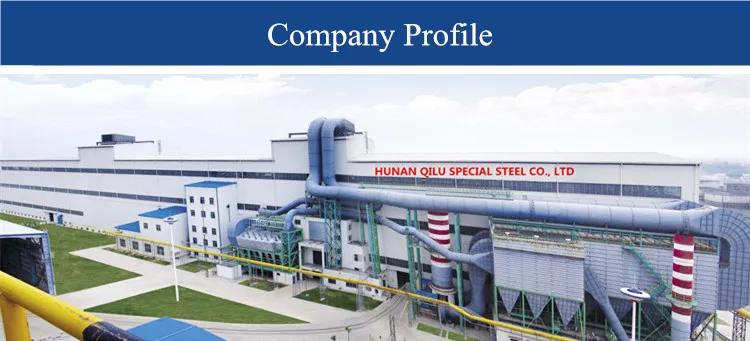

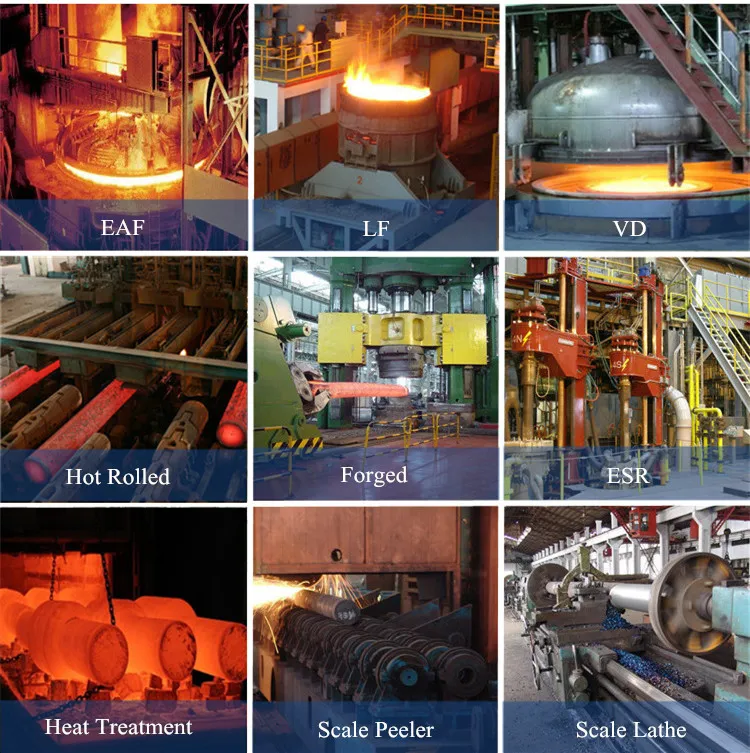

Advanced special steel smelting facilities and forging processing equipment are utilized, including:
  • 2 sets of 50t ultra-high power electric arc furnaces
  • 2 sets of 60t LF refining furnaces
  • 1 set of 60t vacuum degassing refining furnace
  • 4 sets of 1-20t electroslag re-melting furnaces
  • Forging: 3 sets of 5t electro-hydraulic hammers, high-speed forging units of 800t, 1600t, 2000t and 4500t.
Equipment 1
Equipment 2
Equipment 3
Footer Separator
Frequently Asked Questions
What makes 316L stainless steel "marine grade"?
It contains 2-3% molybdenum, which significantly increases resistance to chlorides (like seawater) and localized corrosion compared to standard 304 stainless steel.
What is the difference between 316 and 316L?
The "L" stands for "Low Carbon." 316L has a maximum carbon content of 0.03%, which minimizes harmful carbide precipitation during welding.
What size ranges are available for the round bars?
Round bars are available in diameters ranging from 0.1mm up to 500mm. Forged materials can reach up to 1000mm in diameter.
In what industries is 316L commonly used?
It is widely used in food processing, medical implants, coastal architectural fittings, chemical transportation, and boat fittings due to its superior corrosion resistance.
What surface conditions can I order?
Options include Black, Peeled, Polished, Machined, and Sand blasted surfaces depending on your specific requirements.
Are the products tested for quality?
Yes, products undergo various tests including tensile strength, yield strength, ultrasonic testing (UT), and magnetic particle testing to ensure compliance with standards.
