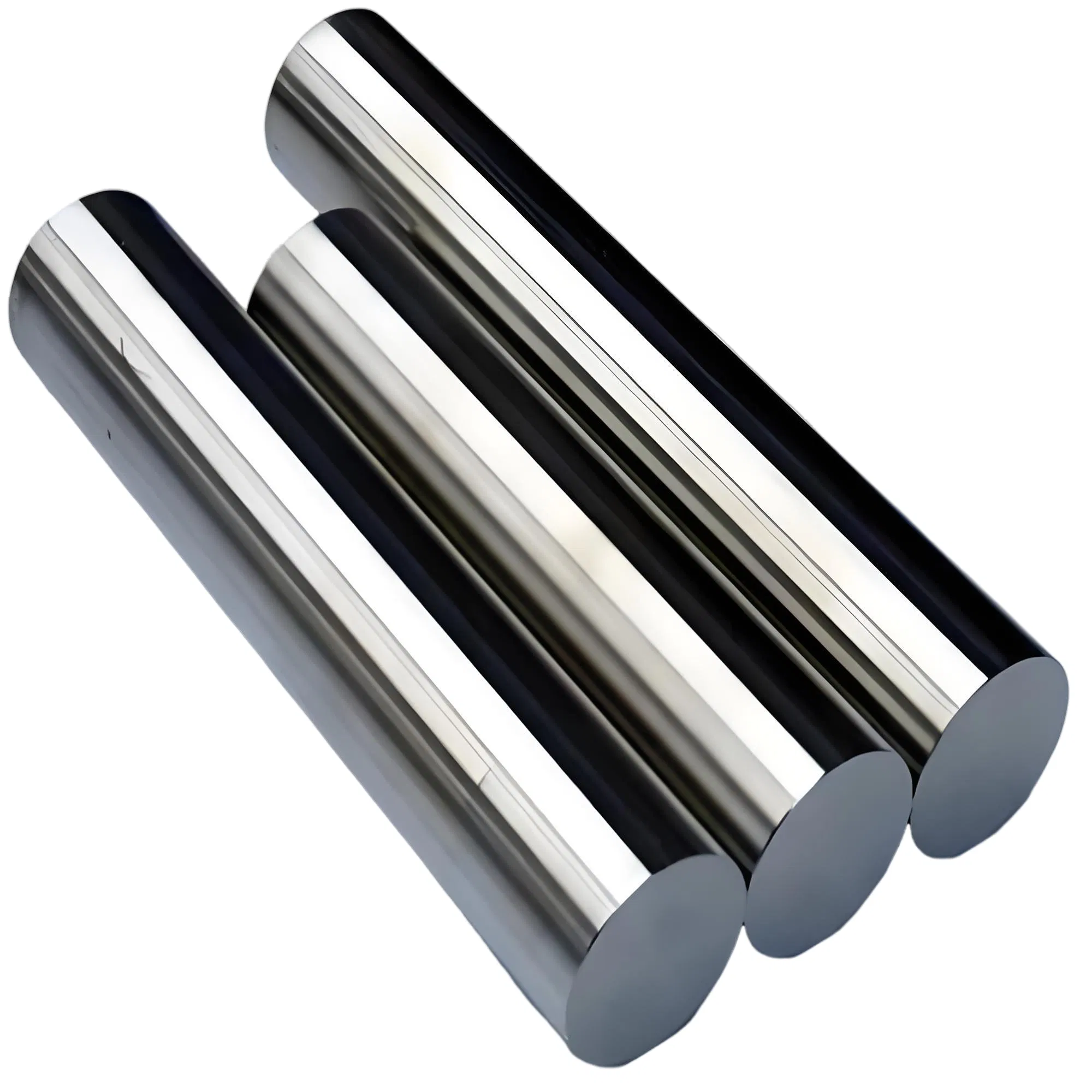

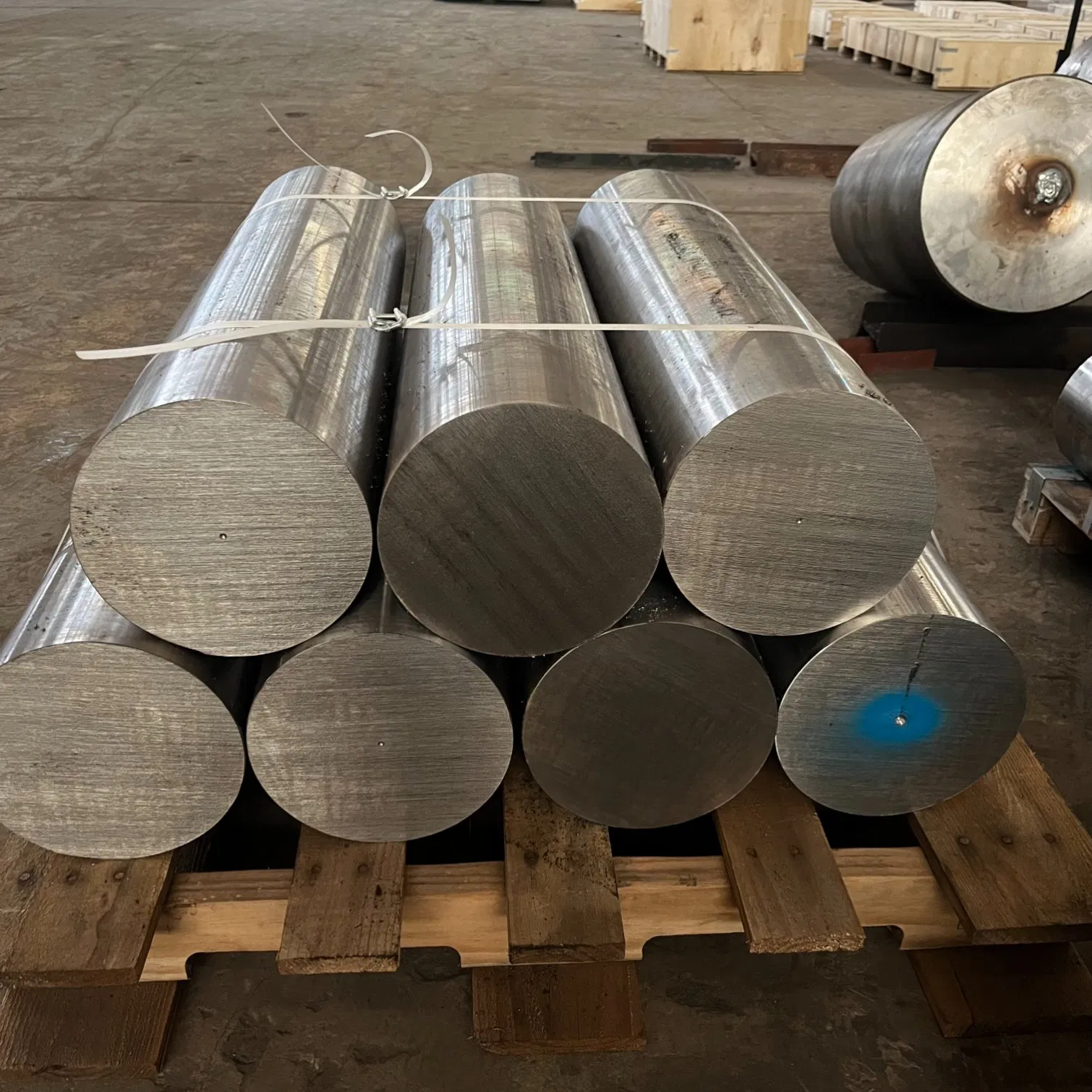

17-4 pH or JIS SUS 630 Forging Precipitation Hardening Stainless Steel

Customization:	Available
Type:	Precipitation Hardening Stainless Steel
Standard:	JIS, GB, Uns,W-Nr

Basic Specifications

Model NO.B-OD300*L6000

Composition17-4 pH

TechniqueForged

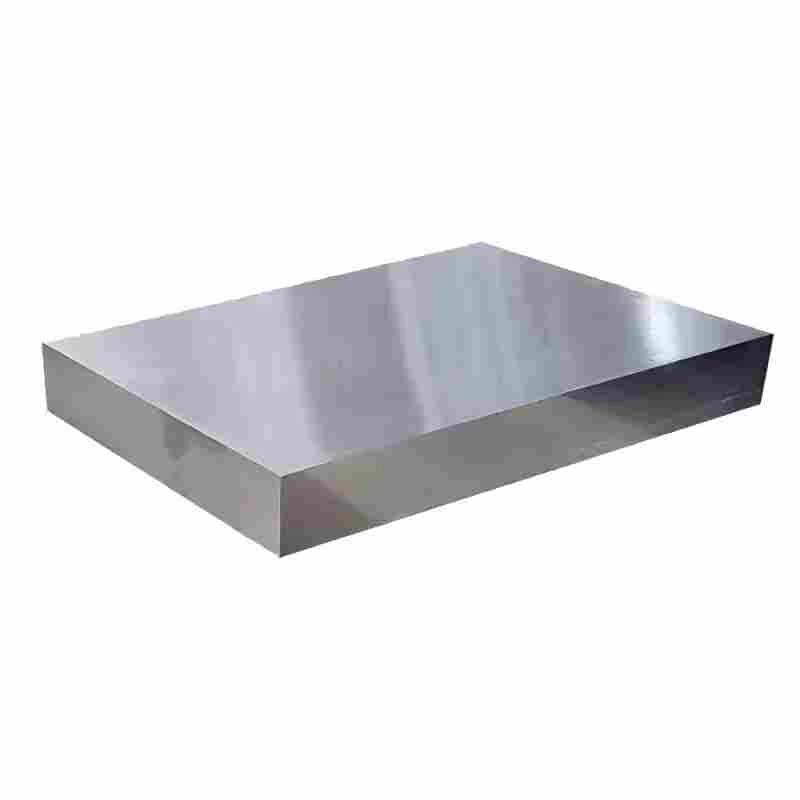

ShapeBar / Plate / Flat

SurfacePolish / Black Surface

Special UsePrecipitation Hardening Stainless Steel

ApplicationRound / Square / Flat Bar

Heat TreatmentAnnealing, Solution, Aging

Production1000 Tons/Month

OriginChina

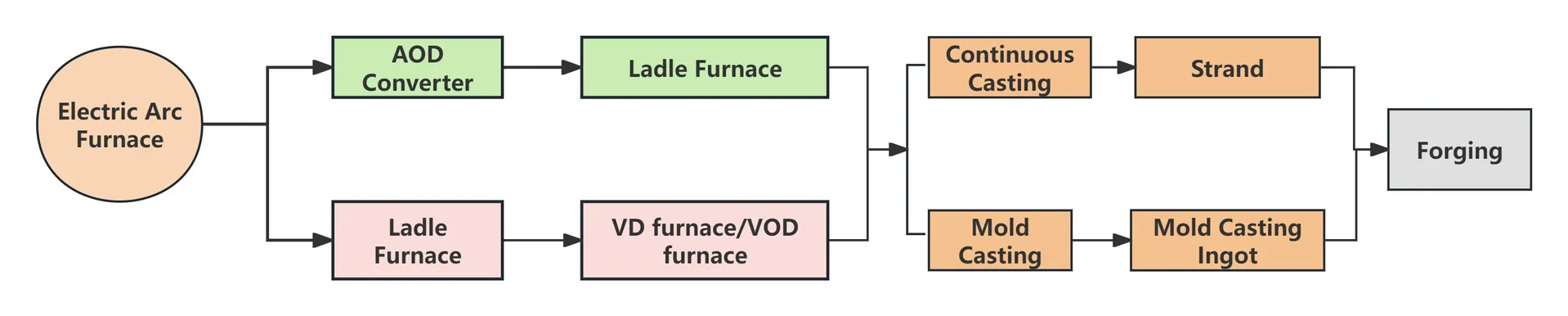

Product Procedure

Material Analysis

17-4 PH Steel Grade Standards

Steel Grade	GB/T (China)	JIS (Japan)	UNS (USA)	W-Nr. (Germany)
17-4 PH	05Cr17Ni4Cu4Nb	SUS 630	S17400	1.4542

Chemical Composition

C	Si	Mn	Cr	Cu	Ni	P	S
≤0.07%	≤1%	≤1%	15-17.5%	3-5%	3-5%	≤0.04%	≤0.03%

Key Features & Usage

17-4PH Characteristics: High strength and corrosion resistance, flexible processing, and heat treatment options with excellent dimensional stability. After solution and aging, tensile strength can reach 1000-1400MPa. Hardness is adjustable (HRC30-45).

Mechanical

Shafts, gears, sleeves, and forgings.

Hydraulic

Cylinder piston rods, valve components.

Aerospace

Landing gear parts, engine components.

Medical

Surgical instruments and implants.

Manufacturing Excellence

Delivery Conditions

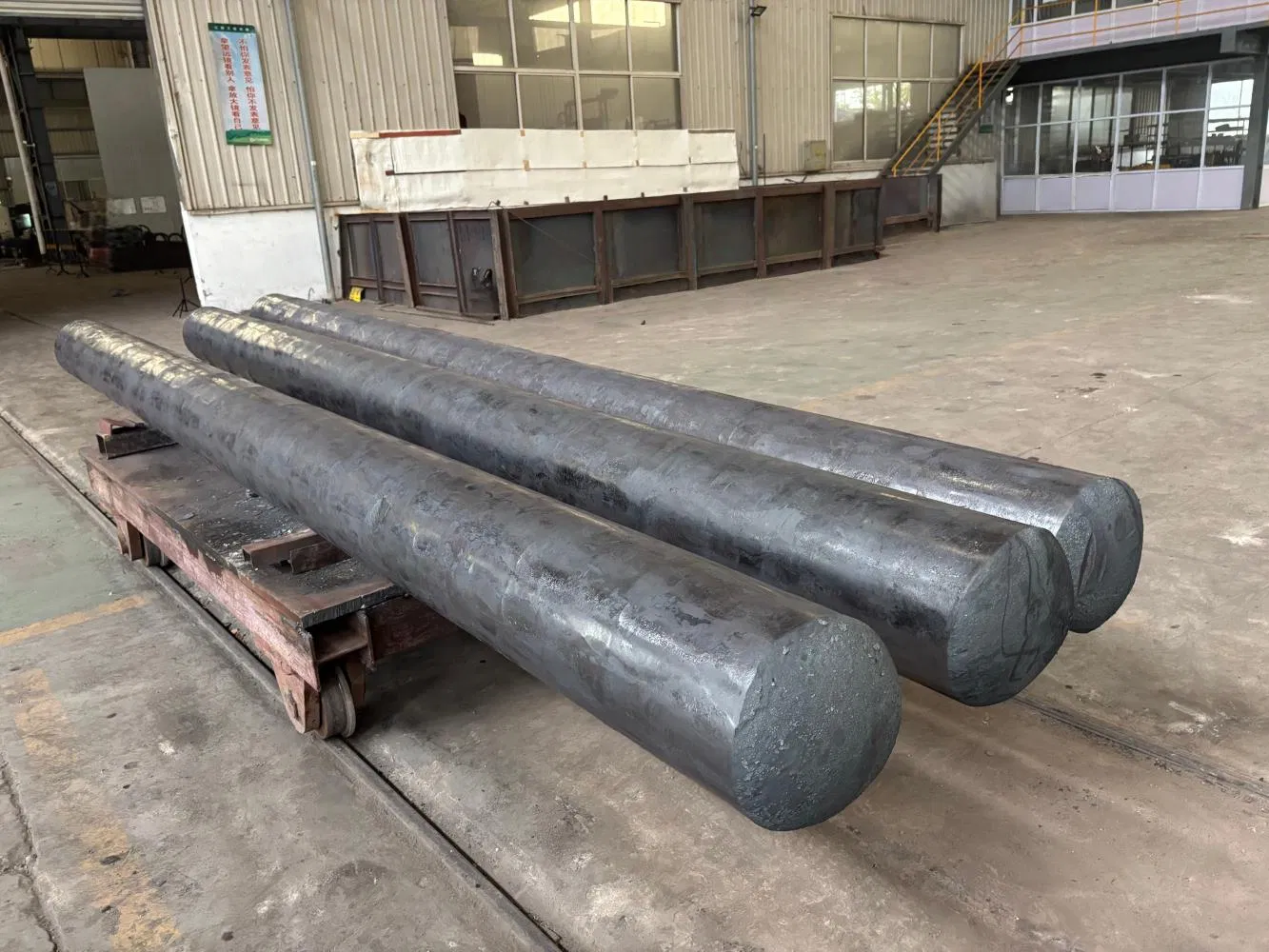

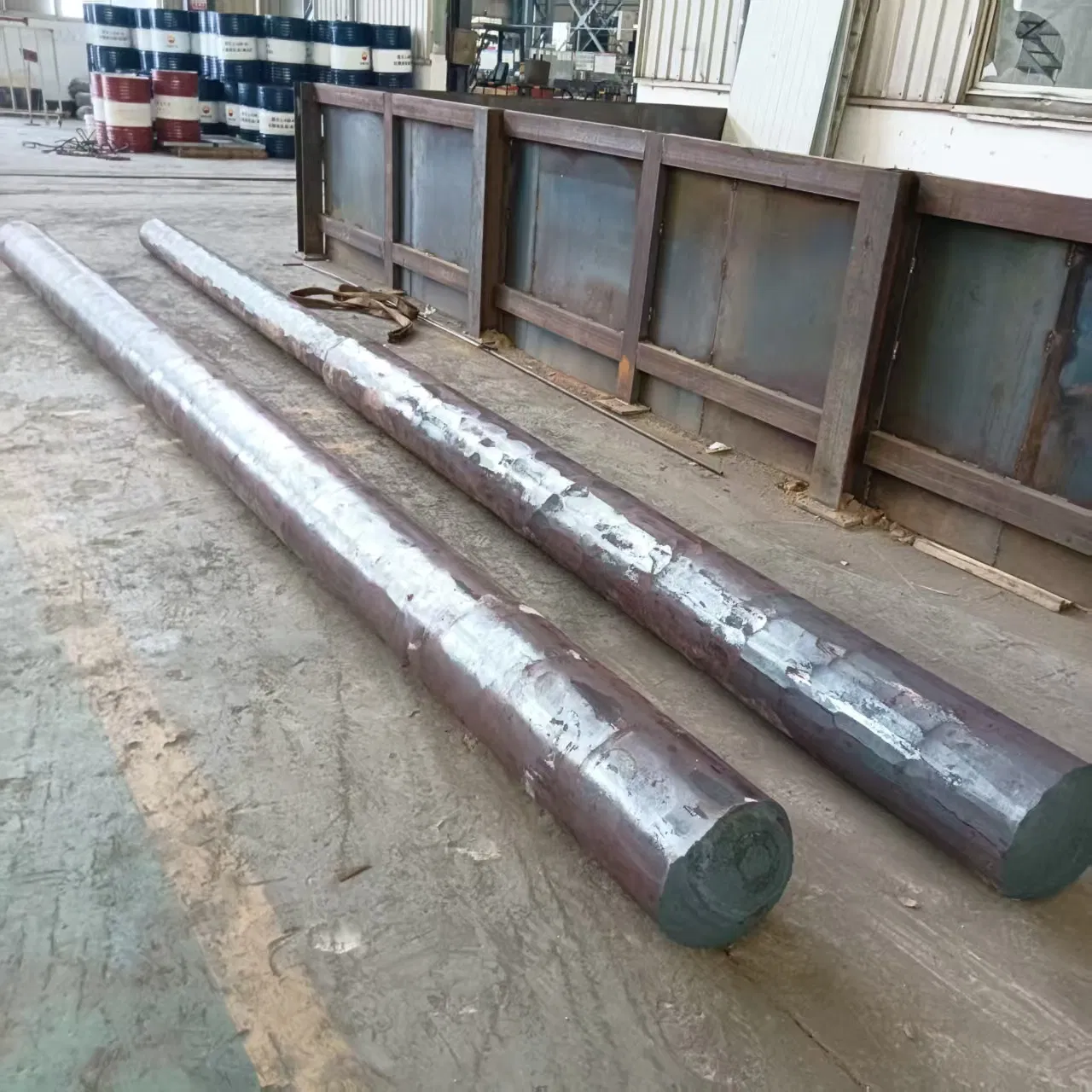

Forged + Annealing + Black Surface
Forged + Annealing + Polished Surface
Forged + Solution + Aging + Black Surface
Forged + Solution + Aging + Polished Surface

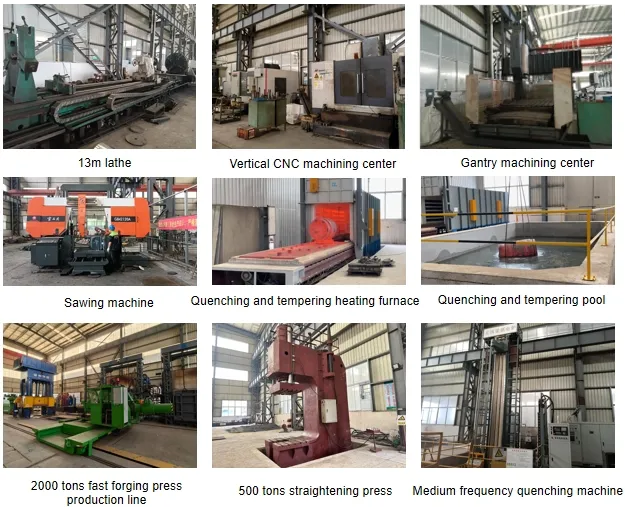

Advanced Facilities

Our heavy-duty workshop spans 8,000 square meters with over 100 sets of advanced machinery including: 2000-ton fast forging press, 10-meter quenching tank, 500-ton straightening machine, and CNC machining centers.

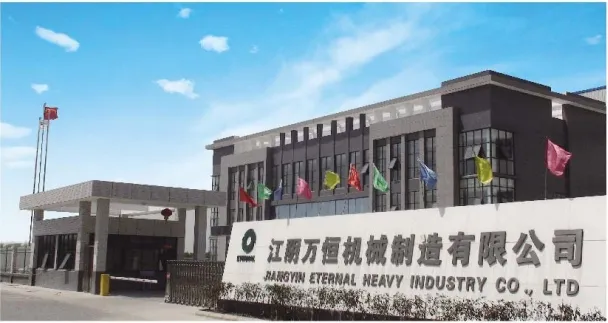

Factory Overview

Established in 2008, our facility specializes in special steel forgings and heavy-duty hydraulic cylinders. Products range from OD150mm to OD1000mm, with lengths up to 12,000mm, serving industries like petroleum, mining, and power generation globally.

Frequently Asked Questions

1. What are the primary benefits of 17-4 PH stainless steel? It offers an excellent combination of high strength, good corrosion resistance (comparable to 304), and simple heat treatment processes to achieve various hardness levels.

2. What is the maximum size of forged bars you can produce? We can produce forged round bars with an outside diameter (OD) from 150mm up to 1000mm, and lengths up to 12,000mm.

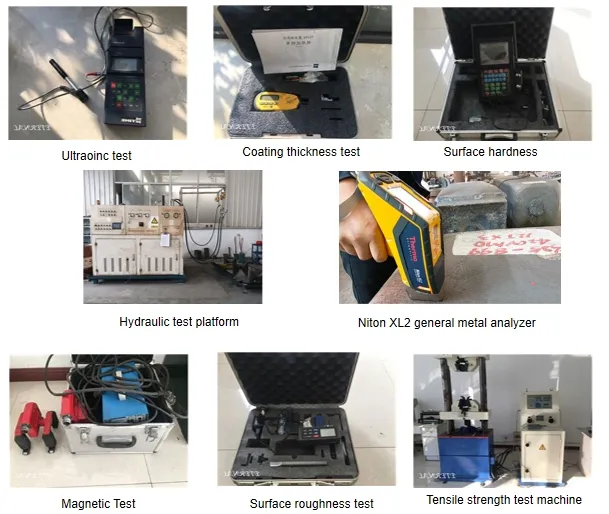

3. How do you ensure the quality of your forgings? We conduct strict quality control including raw material chemical analysis, non-destructive testing (UT/MT), mechanical property tests, and precise size/hardness inspections before shipment.

4. Can the material be customized for specific mechanical properties? Yes, through different heat treatment cycles (annealing, solution, and aging), we can adjust the tensile strength and hardness (HRC 30-45) to meet your specific requirements.

5. Which industries commonly use your forged steel products? Our products are widely used in petroleum machinery, aerospace components, medical device manufacturing, chemical processing, and heavy hydraulic systems.

6. Do you provide international shipping? Yes, we have over 20 years of export experience and have shipped to more than 80 countries, including the USA, Europe, South America, and the Middle East.
