aluminium sheet alloy 8011 for medical packaging

📋

Basic Specifications

Model NO.

8011

Treatment

Mill finish or Lacquer

Thickness

Thick Foil

Surface State

Double light Aluminum Foil

Rolling

Rolling Characteristics

Material

Aluminum

Surface

Mill Finish or Color Lacquered

Package

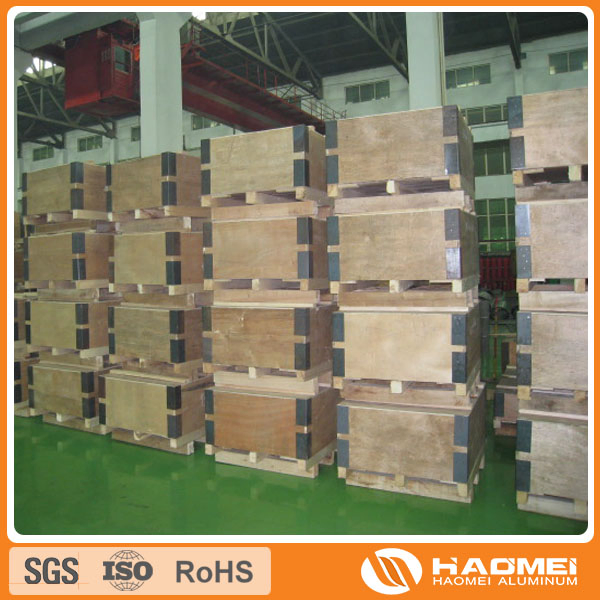

Wooden Case, Wooden Pallet

Specification

Sheet, Coil, Strip

Origin

China

HS Code

76071190

Capacity

4000 tons/Year

🛡️

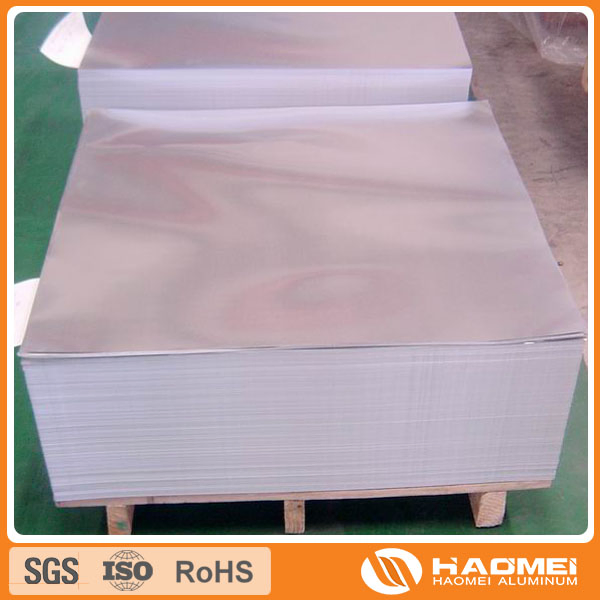

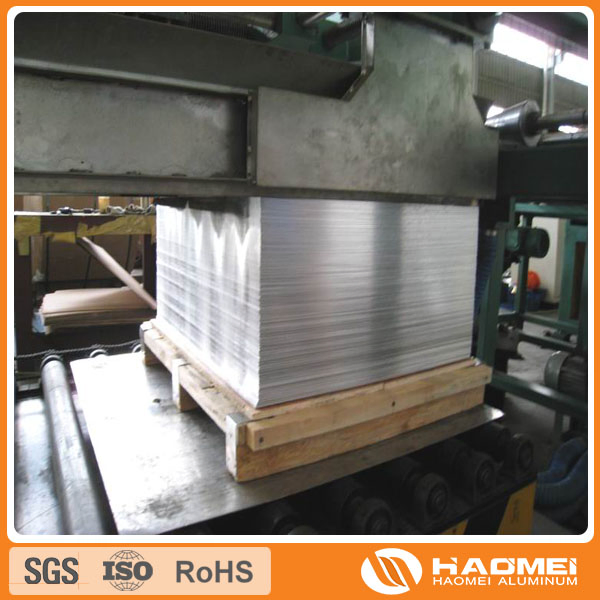

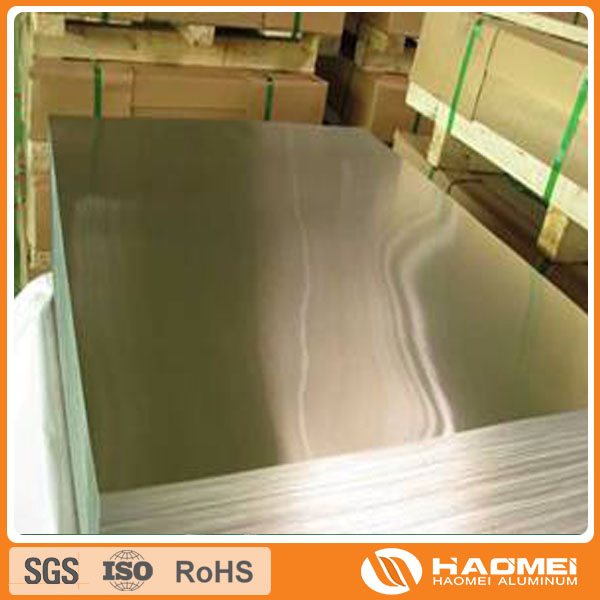

Medical Packaging Aluminum Sheet

Aluminium sheet alloy 8011 is specifically engineered for medical packaging applications, providing excellent barrier properties and formability.

Alloy: 8011, 3105

Temper: H14, H24, H16, H26

Pattern: Rolled, degreased, pre-lubricated, pre-treated, lacquered

Thickness: 0.16 - 0.23mm

Width/Length: 500 ~ 1200mm

Coil ID: 75, 150, 300, 500, etc.

Lead Time: Within 30 days after receiving deposit

Payment: 30% TT advance, 70% balance

✨

Key Performance Features

Complete sizes with clear and beautiful printing patterns.
High temperature resistance without distortion or color change.
Excellent paint adhesion; the coating will not peel off during production.
Mechanical Specs: Tensile Strength 145; Yield Strength 136-137; Elongation 2.0.
Earing Rate: <2%, making it ideal for medicine and wine caps.
Small orders are acceptable for specialized requirements.

📊

Technical Data

Chemical Composition limits (WT.%)
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Al
8011	0.5~0.9	0.6~1.0	0.1	0.2	0.05	0.05	-	0.1	0.08	Remains
3105	0.6	0.7	0.3	0.3~0.8	0.2~0.8	0.2	-	0.4	0.1	Remains

Mechanical Property (8011 H14)

Casting Type

Thickness (mm)

U.T.S (Mpa)

Elongation (%)

Continuous

0.16~0.23

185~205

>=2

Direct

0.16~0.23

125~155

>=2

Manufacturing Tolerance
Thickness	Width	Length	Squareness
±0.005mm	±0.05mm	±0.05mm	≤0.3mm

📸

Product Gallery

💡

Applications & Advantages

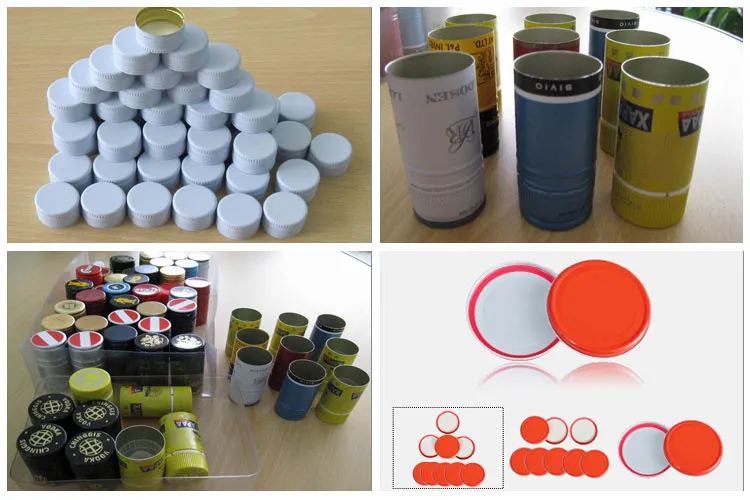

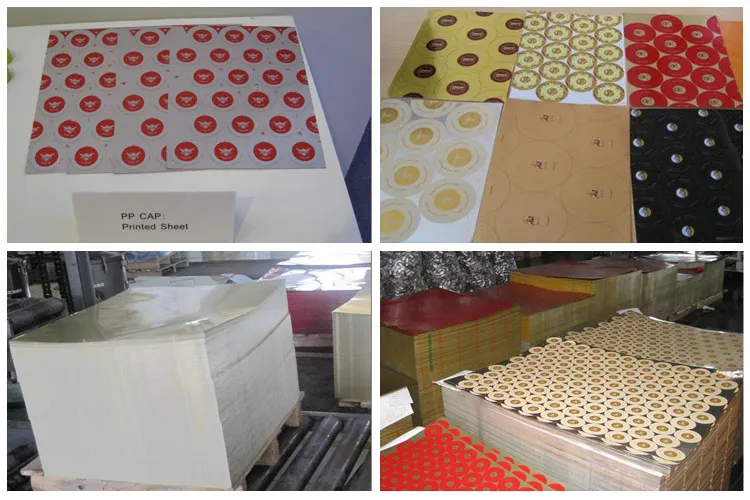

Aluminum sheet and coils are supplied for the manufacture of bottle closures, ranging from screw caps for spirits and beverages to ROPP closures for wine and medical bottles.

Lightweight for reduced transport costs.

Easily and economically recycled.

Superior barrier qualities against light and oxygen.

Excellent formability for deep drawing.

Bright finish perfect for high-quality decoration.

❓

Frequently Asked Questions

What is the main use of 8011 aluminum alloy in this context?

It is primarily used for medical packaging and bottle closures (ROPP caps) for wine, whiskey, and other beverages due to its excellent formability and barrier properties.

What thickness range do you offer for medical packaging foil?

We provide aluminum foil with a thickness ranging from 0.16mm to 0.23mm, suitable for various cap manufacturing needs.

Does the paint peel off during the cap production process?

No, our lacquered and printed aluminum sheets are high-temperature resistant, ensuring the paint remains intact and the color does not change during production.

What surface treatments are available?

The material can be ordered as mill finish, degreased, pre-lubricated, pre-treated, or lacquered/color-coated.

What is the typical lead time for an order?

The standard lead time is within 30 days after the receipt of the deposit.

Why is aluminum preferred for bottle closures?

Aluminum is lightweight, 100% recyclable, offers superior protection for the contents, and provides a bright surface ideal for decorative branding.
