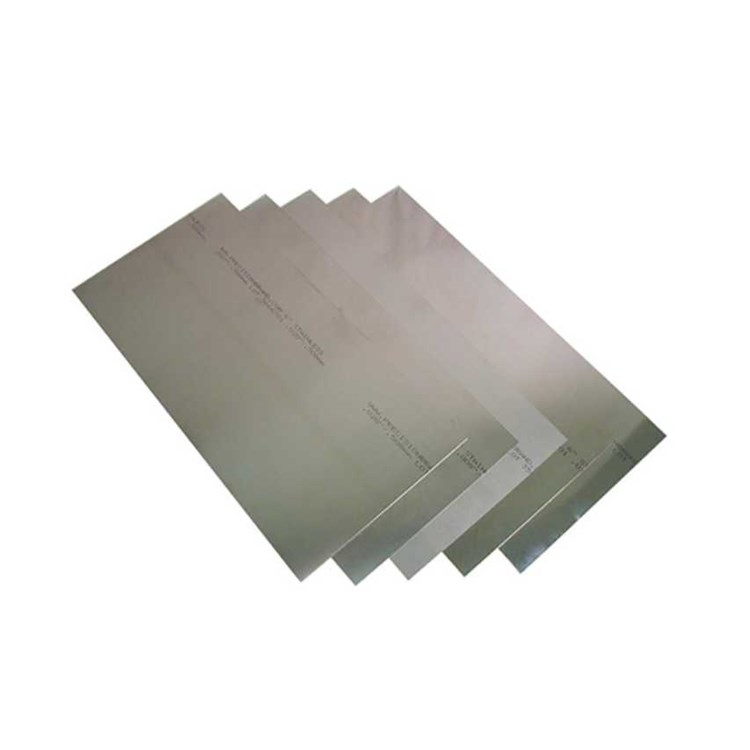

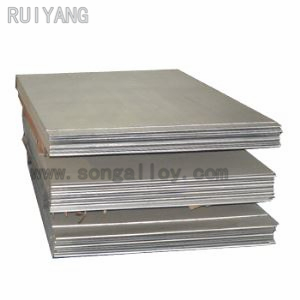

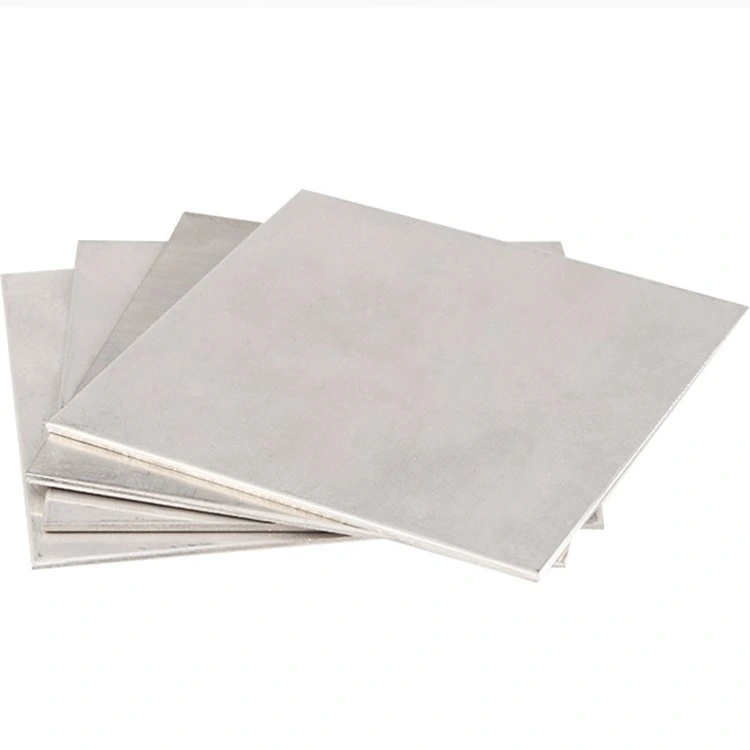

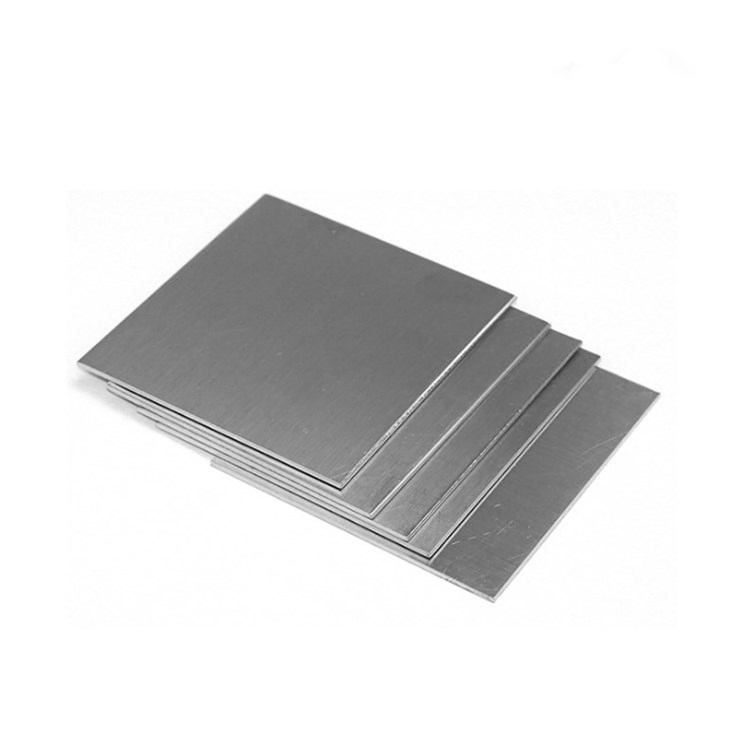

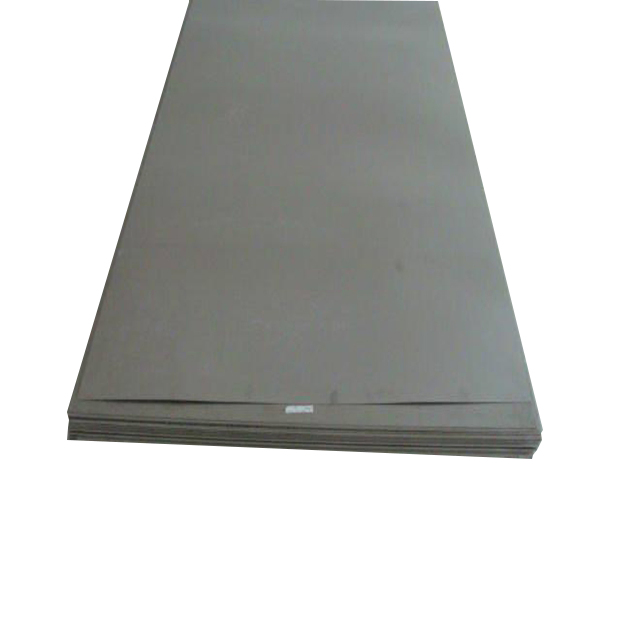

ASTM B265 Gr1 Gr2 Gr5 Ti Alloy of Titanium Strip and Plate for Industrial

Customization:	Available
Shape:	Plate
Cold Roll Thickness:	0.3-4.1mm

i

Basic Specifications

Model NO.

0.3-100mm

Hot Rolled Thickness

4.1-100

Width

Max 3000mm

Length

Customized

Type

Titanium Sheets

Application

Industrial, Medical

Technique

Cold Rolled

Grade

GR2

Origin

China

HS Code

81089090

Capacity

5000 tons/Year

★

Titanium Sheet & Plate Details

Available thickness ranges from 0.3mm up to 100mm in both cold roll and hot roll finishes.

AVAILABLE SIZES: Sheet (0.3mm to 4.1mm thick, up to 1500mm width cold roll); Plate (4.1mm to 100mm thick, up to 3000mm width hot roll).
PROCESSING: Hot rolling and cold rolling techniques utilized for precision.
STANDARDS: ASME SB/B265, AMS 4911, AMS 4919, AMS 4914, ASTM F67, ASTM F136, ASTM F1341, ISO 5832-2, MIL-T-9046.
APPLICATIONS: Fire walls, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, heat shields, rocker shaft stands, jewelry, etc.

⚙

Technical Properties

Grade	Chemical Composition (max %)					Mechanical Properties (min)
Grade	N	C	H	Fe	O	Tensile (Mpa)	Yield (Mpa)	El. %
GR 1	0.03	0.08	0.015	0.2	0.18	240	138	24
GR 2	0.03	0.08	0.015	0.3	0.25	345	275	20
GR 3	0.05	0.08	0.015	0.3	0.35	450	380	18
GR 4	0.05	0.08	0.015	0.5	0.4	550	483	15
GR 5	0.05	0.08	0.015	0.4	0.2	895	828	10
GR 7	0.03	0.08	0.015	0.3	0.25	345	275	20

📋

Supply Scope

GRADE	UNS NO.	WIRE	BAR	SHEET	PLATE	TUBE	PIPE	FORGING
Ti Grade 1	R50250	√	√	√	√	√	√	√
Ti Grade 2	R50400	√	√	√	√	√	√	√
Ti Grade 5	R56400	√	√	√	√	X	X	√
Ti Grade 7	R52400	√	√	√	√	√	√	√
Ti Grade 12	R53400	√	√	√	√	√	√	√

🏭

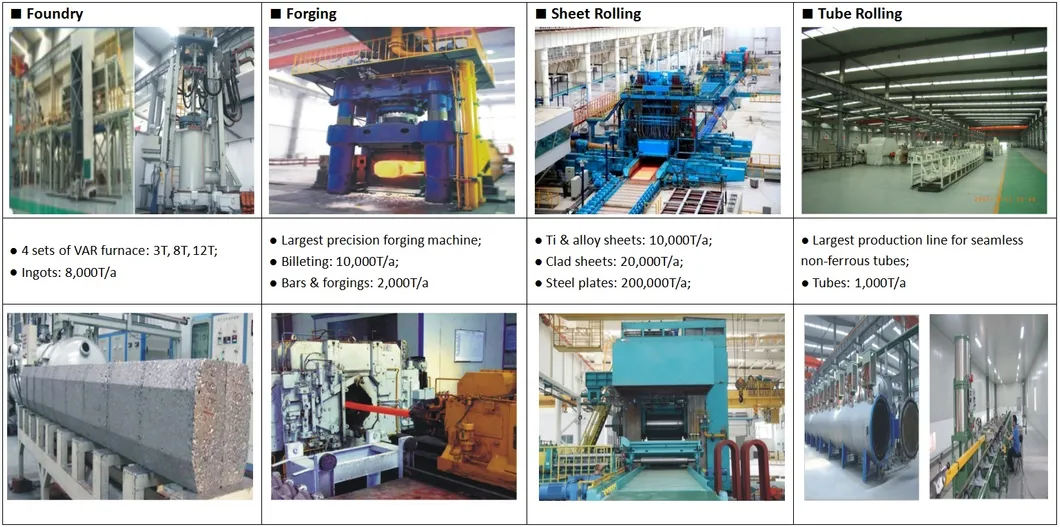

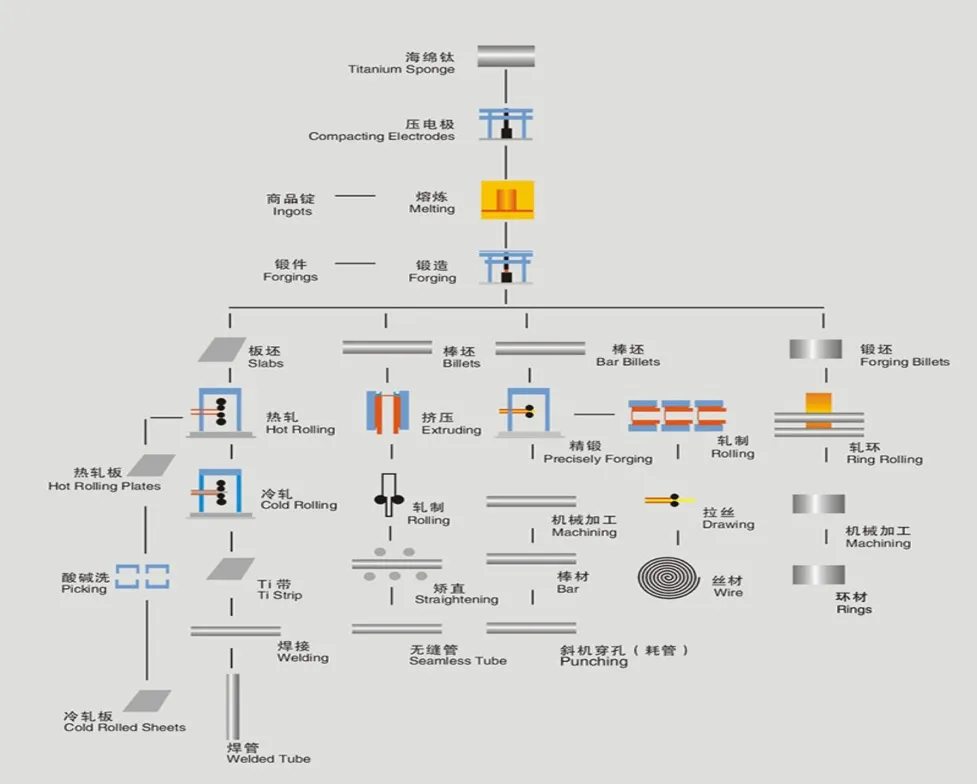

Production Process & Equipment

?

Frequently Asked Questions

1. What is the thickness range for titanium sheets and plates? We offer a comprehensive range from 0.3mm to 4.1mm for cold-rolled sheets and 4.1mm to 100mm for hot-rolled plates.

2. Which international standards do your titanium products comply with? Our products meet several global standards including ASTM B265, ASME SB265, AMS 4911, ASTM F67, and ISO 5832-2.

3. Can the width and length of the plates be customized? Yes, we provide customization for length, and we can supply widths up to 1500mm for sheets and 3000mm for hot-rolled plates.

4. What are the primary applications for Grade 2 titanium? Grade 2 is widely used in industrial and medical applications such as heat shields, valve covers, and driver protection due to its excellent corrosion resistance.

5. What packaging is used for international transport? To ensure safety during transit, all titanium materials are securely packed in sturdy wooden boxes.

6. What is your annual production capacity? We have a robust production capacity of approximately 5000 tons per year to meet global demand.
