Customization:	Available
Shape:	Plate
Cold Roll Thickness:	0.3-4.1mm

Send Inquiry

Product Description

Basic Info

Model NO.

0.3-100mm

Hot Rolled Thickness

4.1-100

Width

Max 3000mm

Length

Customized

Type

Titanium Sheets

Application

Industrial, Medical

Technique

Cold Rolled / Hot Rolled

Grade

GR2 (and others)

Transport Package

Wooden Box

Origin

China

HS Code

81089090

Production Capacity

5000 tons/Year

Product Description

Titanium Sheet & Plate available from 0.3mm to 100mm thick.

Processing includes both Cold Rolling and Hot Rolling techniques to meet diverse industrial requirements.

Available Sizes

Sheet: 0.3mm to 4.1mm thick (Cold Rolled), Width up to 1500mm
Plate: 4.1mm to 100mm thick (Hot Rolled), Width up to 3000mm

Processing Standards

ASME SB/B265, AMS 4911, AMS 4919, AMS 4914, ASTM F67, ASTM F136, ASTM F1341, ISO 5832-2, MIL-T-9046

Example Applications

Fire wall, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, heat shields, rocker shaft stands, jewelry, etc.

Chemical Composition & Mechanical Properties

Grade	UNS No	Chemical Composition (max weight %)					Mechanical Properties (min)
Grade	UNS No	N	C	H	Fe	O	Tensile (Mpa)	Yield (Mpa)	Elong (%)
GR 1	R50250	0.03	0.08	0.015	0.2	0.18	240	138	24
GR 2	R50400	0.03	0.08	0.015	0.3	0.25	345	275	20
GR 3	R50550	0.05	0.08	0.015	0.3	0.35	450	380	18
GR 4	R50700	0.05	0.08	0.015	0.5	0.4	550	483	15
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	895	828	10
GR 7	R52400	0.03	0.08	0.015	0.3	0.25	345	275	20
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	620	483	15

Titanium Materials Supply Scope

Grade	Wire	Bar	Sheet	Plate	Tube	Pipe	Forging
Ti Grade 1	√	√	√	√	√	√	√
Ti Grade 2	√	√	√	√	√	√	√
Ti Grade 5	√	√	√	√	X	X	√
Ti Grade 7	√	√	√	√	√	√	√
Ti Grade 9	√	√	√	√	√	X	√
Ti Grade 23	√	√	√	√	X	X	√

Note: √-Available, X-Unavailable. For other grades like Ti6Al2Sn4Zr2Mo, Ti15V3Cr3Sn3Al, please inquire.

Titanium Plate and Sheet Supplier

Titanium and Alloy Product Specifications

Product Name	Specifications
Titanium Rod & Bar	Ф3mm~Ф1020mm, max weight 12t
Titanium Slab	(80~400)mm × (~1500)mm × (~2600)mm
Titanium Forgings	Weight per piece ≤ 2000kg
Titanium Hot-rolled Plates	(4~100)mm × (800~2600)mm × (2000~12000)mm
Titanium Cold-rolled Sheet	(0.01~4.0)mm × (800~1560)mm × (~6000)mm
Titanium Foil / Strips	(0.01~2.0)mm × (800~1560)mm × L
Titanium Tubes / Pipes	Ф(3~114)mm × (0.2~5)mm × (~15000)mm

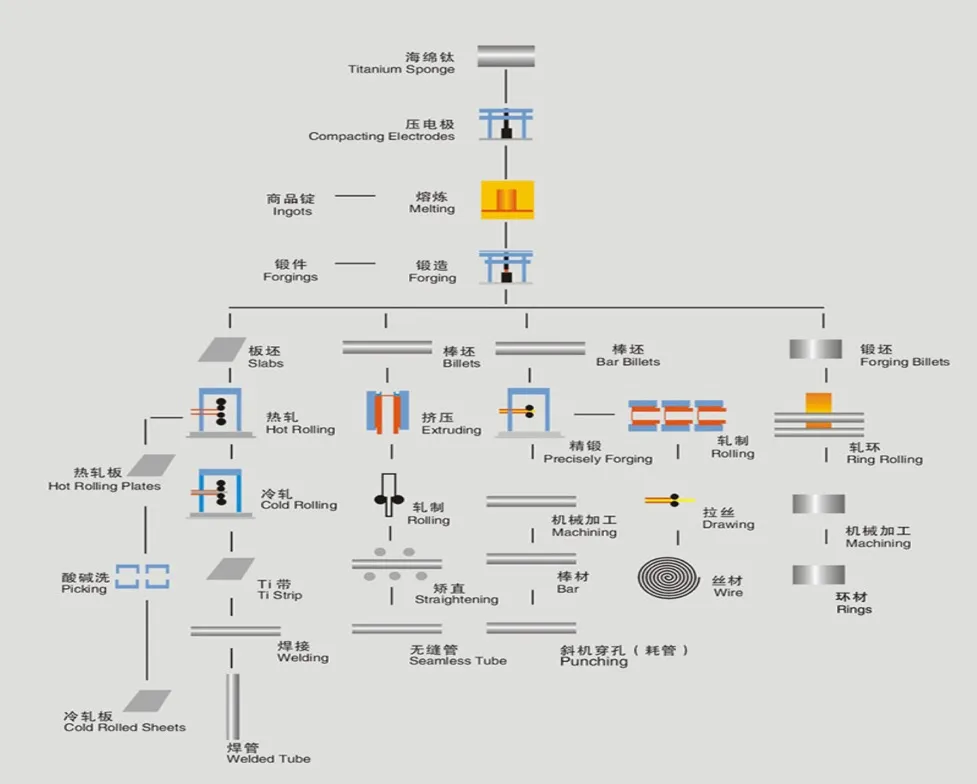

Titanium Production Process

Titanium Production Process

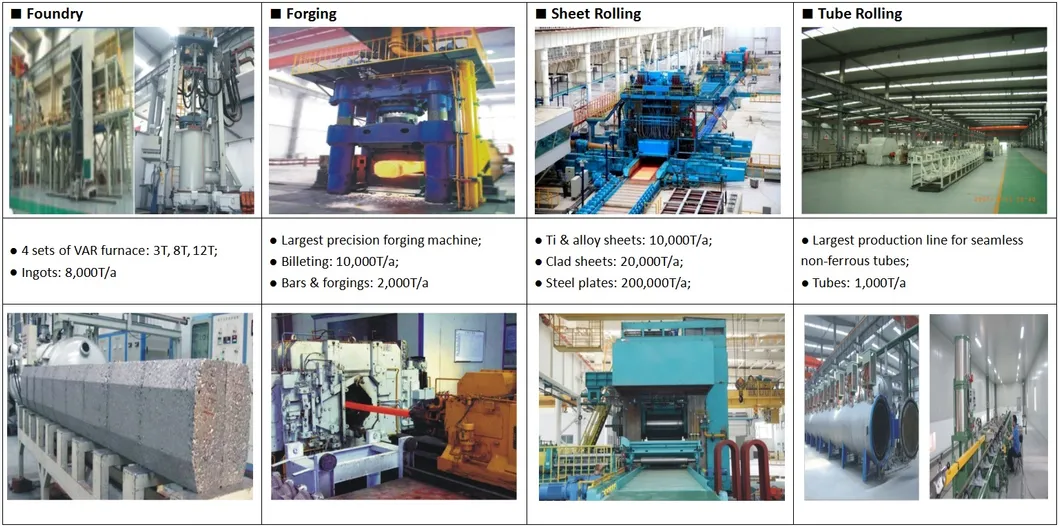

Titanium Production Equipment

Titanium Production Equipment

Frequently Asked Questions (FAQ)

What is the thickness range for your titanium sheets and plates?

We offer a wide range of thicknesses from 0.3mm to 4.1mm for cold-rolled sheets and 4.1mm to 100mm for hot-rolled plates.

Which titanium grades are available for supply?

We supply various grades including GR1, GR2, GR3, GR4, GR5 (6Al 4V), GR7, GR9, GR12, and GR23. Other specialized grades are available upon request.

What processing standards do your products comply with?

Our titanium products meet international standards such as ASTM B265, ASME SB265, AMS 4911, ASTM F67, ASTM F136, and ISO 5832-2.

What are the common applications for titanium plates?

Titanium plates are widely used in fire walls, driver protection, medical implants, industrial heat shields, valve covers, and high-end jewelry.

How are the titanium products packaged for international shipping?

To ensure safe delivery and prevent damage during transport, all products are securely packed in professional wooden boxes.

Do you provide titanium in forms other than sheets and plates?

Yes, our supply scope includes titanium wires, bars, rods, tubes, pipes, forgings, and foil strips in various dimensions.
