Pure Titanium And Titanium Alloy Sheet, Strip, Bar, Tube, Extrusion

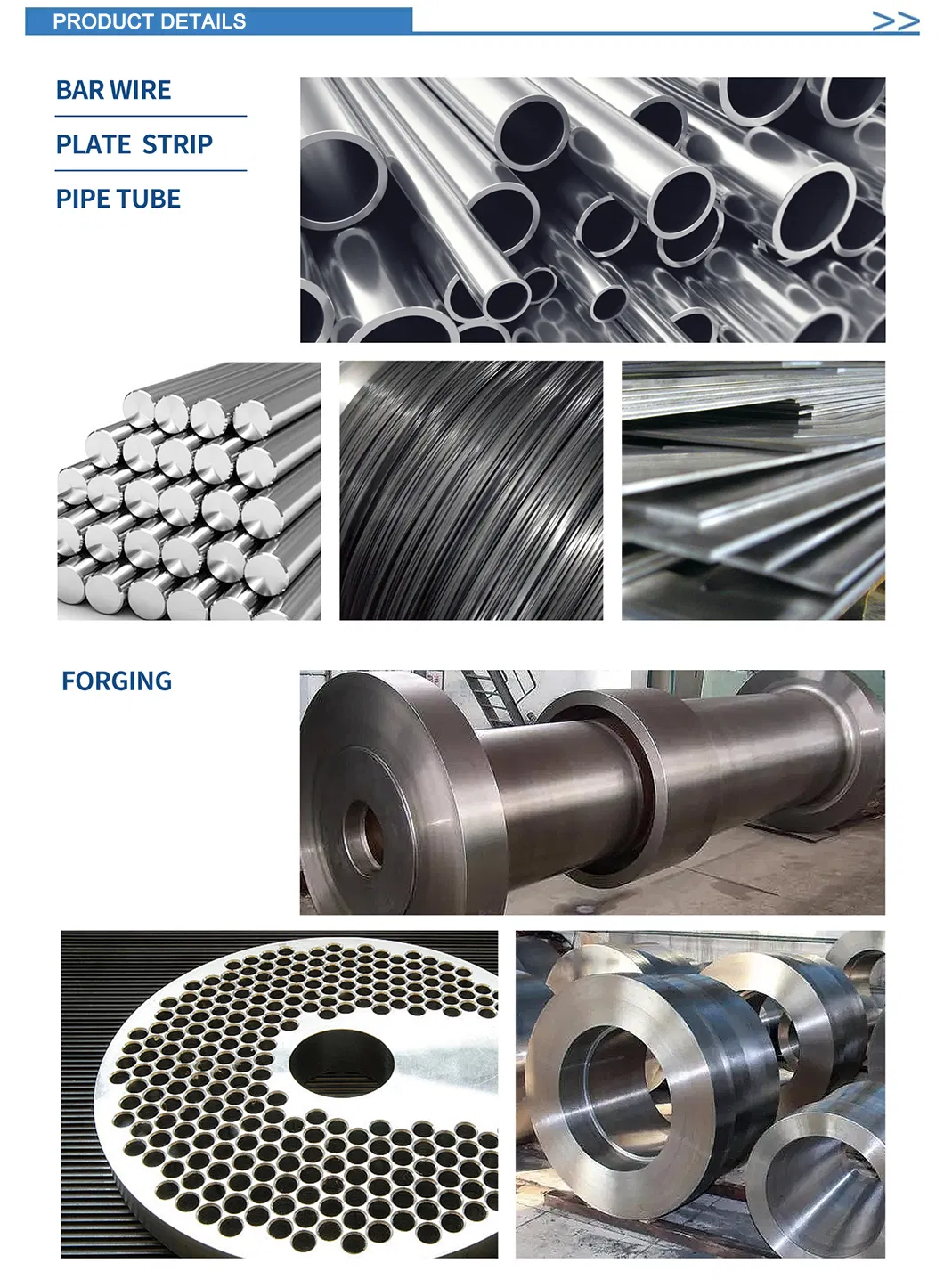

A complete range of titanium and titanium alloy mill products available in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. Processing services include hot-forming (e.g. super plastic forming), extrusion, seamless pipe production, water jet and saw cutting, and machining.
| Product Name | Specifications / Dimensions |
|---|---|

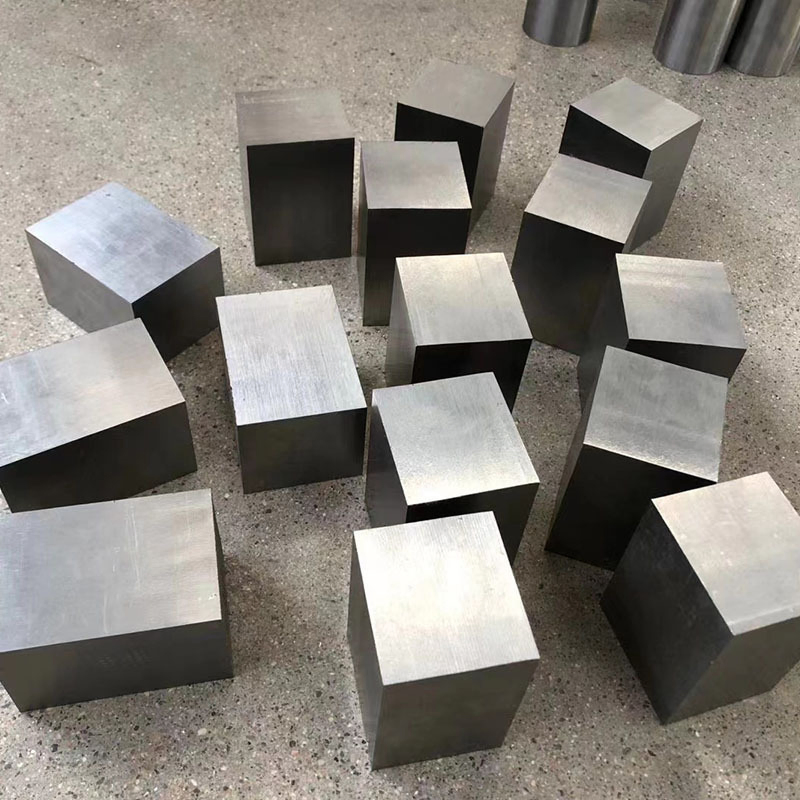

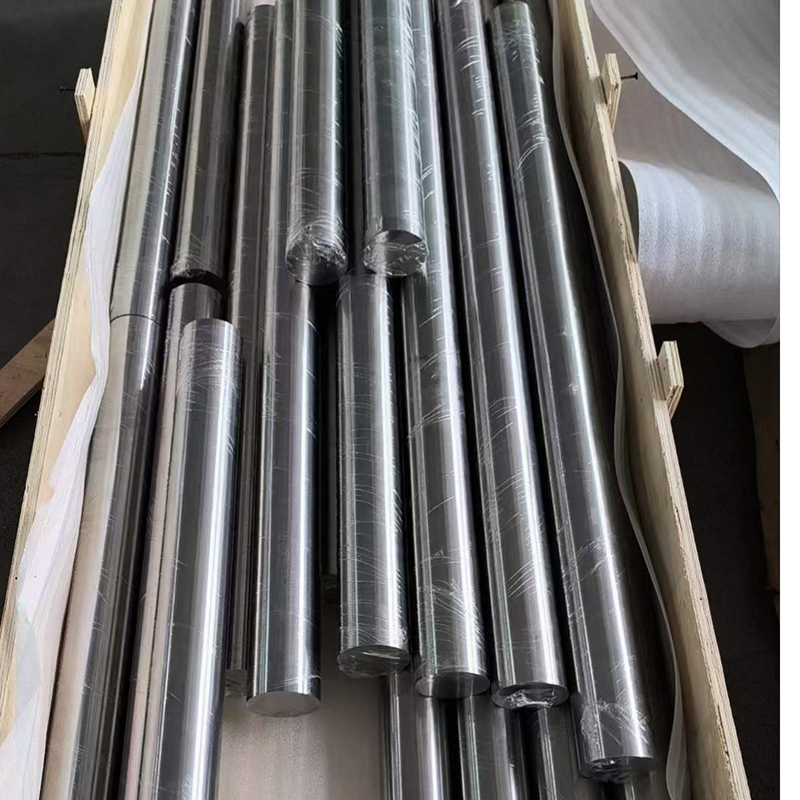

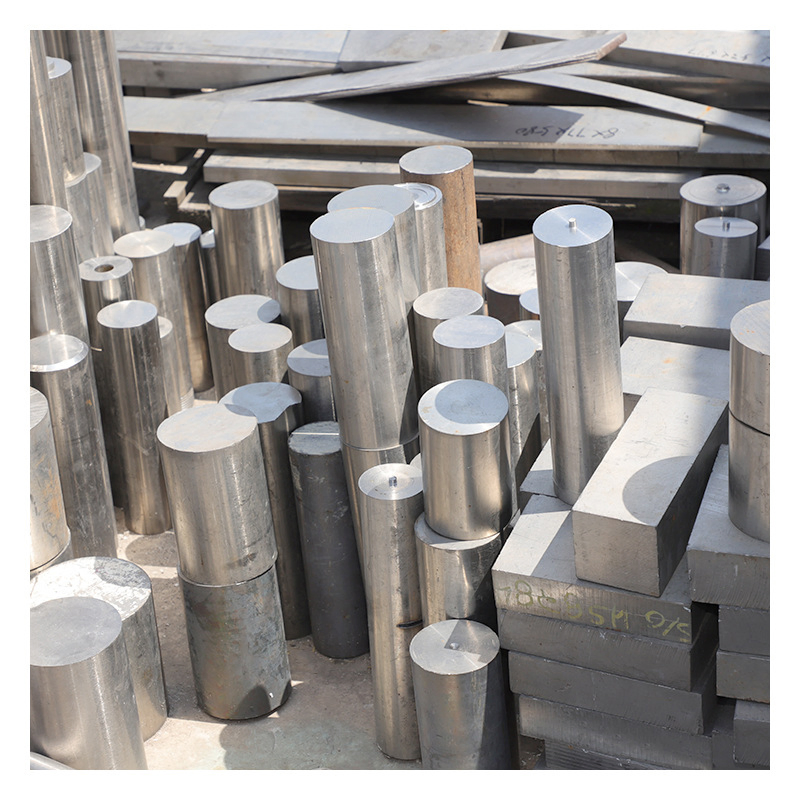

| Titanium Bars/ Rods/Ingots | Ф3mm~Ф1020mm, max weight up to 12t |
| Titanium Slab | (80~400)mm × (~1500)mm × (~2600)mm |

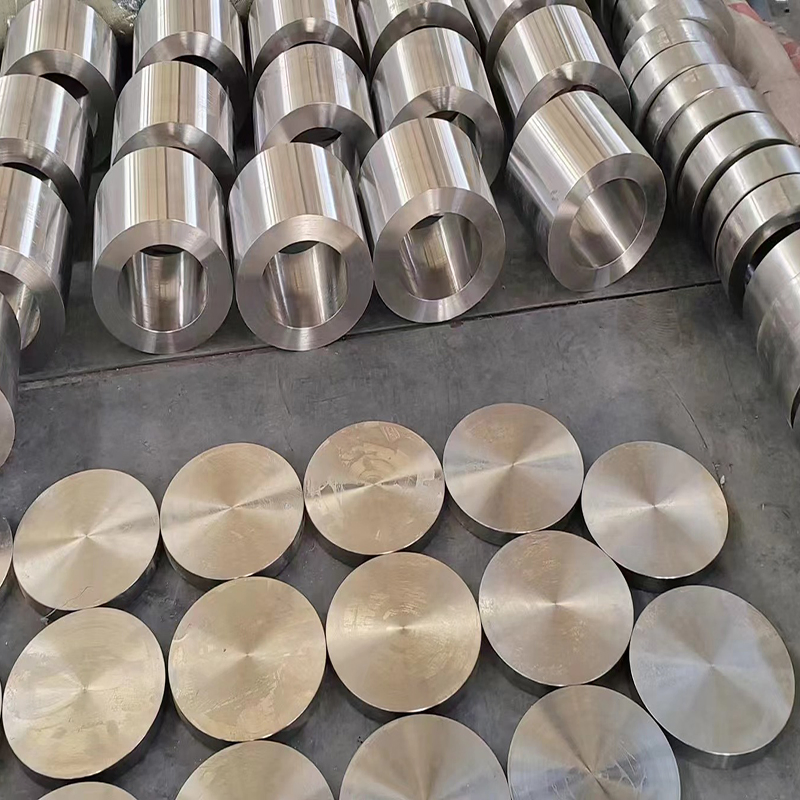

| Titanium Forgings | Weight per piece ≤ 2000kg |
| Hot-rolled plates | (4~100)mm × (800~2600)mm × (2000~12000)mm |
| Cold-rolled plates | (0.01~4.0)mm × (800~1560)mm × (~6000)mm |
| Titanium Strips | (0.01~2.0)mm × (800~1560)mm × L |

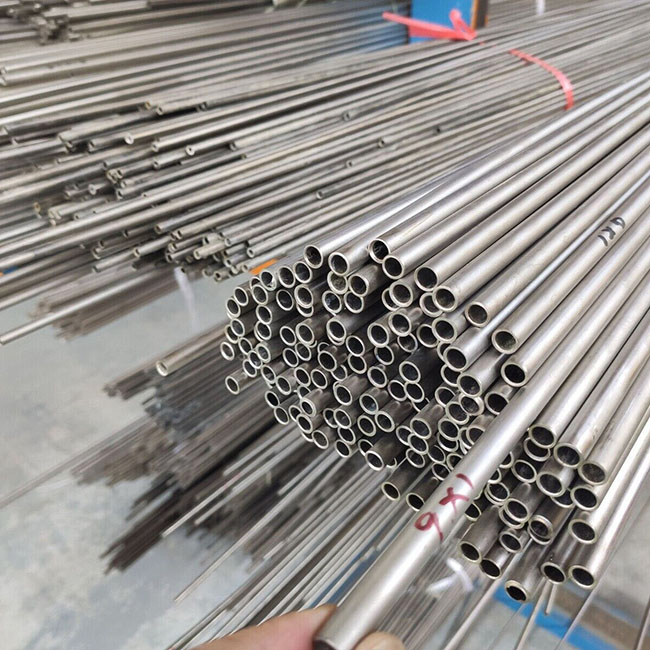

| Tubes / Pipes | Ф(3~114)mm × (0.2~5)mm × (~15000)mm |
| Standards | GB, GJB, ASTM, AMS, BS, DIN, DMS, JIS, ГОСт |
| Grade | C | O | N | H | Fe | Al | V | Pd | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | - | - | - |
| 2 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 5 | ≤0.08 | ≤0.20 | ≤0.05 | ≤0.015 | ≤0.40 | 5.5~6.75 | 3.5~4.5 | - | - | - |
| 7 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.12~0.25 | - | - |
| 12 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | 0.6~0.9 | 0.2~0.4 |
| Category | Material | Specification |
|---|---|---|
| Ingots & Bars | CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-0.2Pd, Ti-6Al-7Nb, etc. | ASTM B348 |
| Forgings | ASTM B381 | |
| Plates & Strips | ASTM B265 | |
| Seamless Tubes | ASTM B861 |
