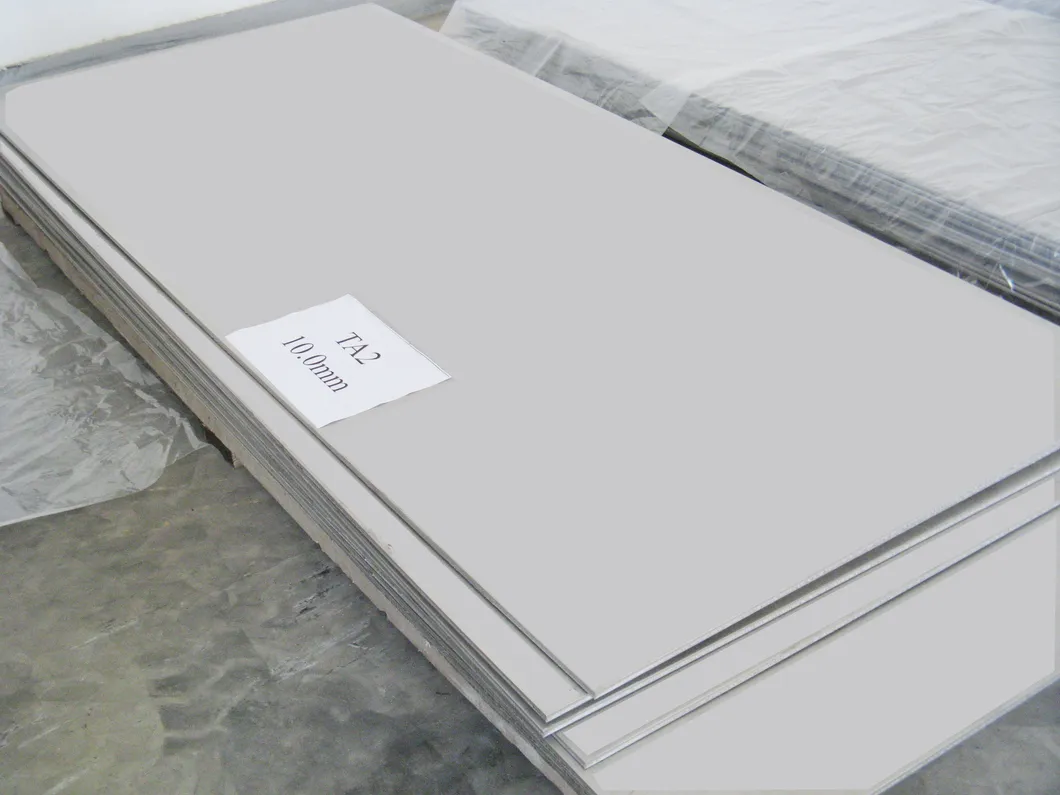

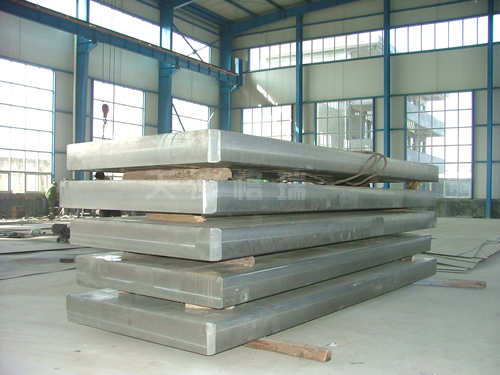

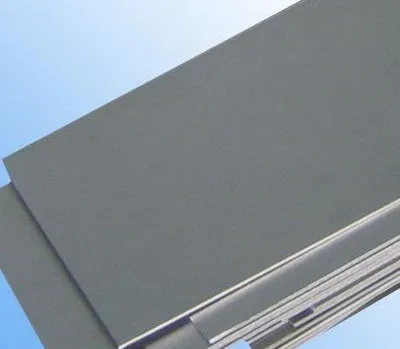

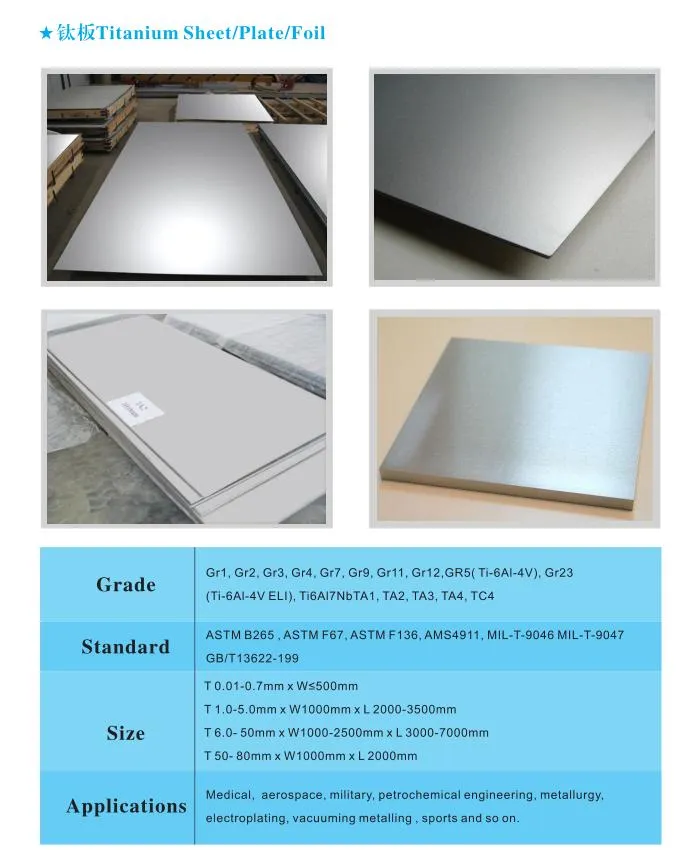

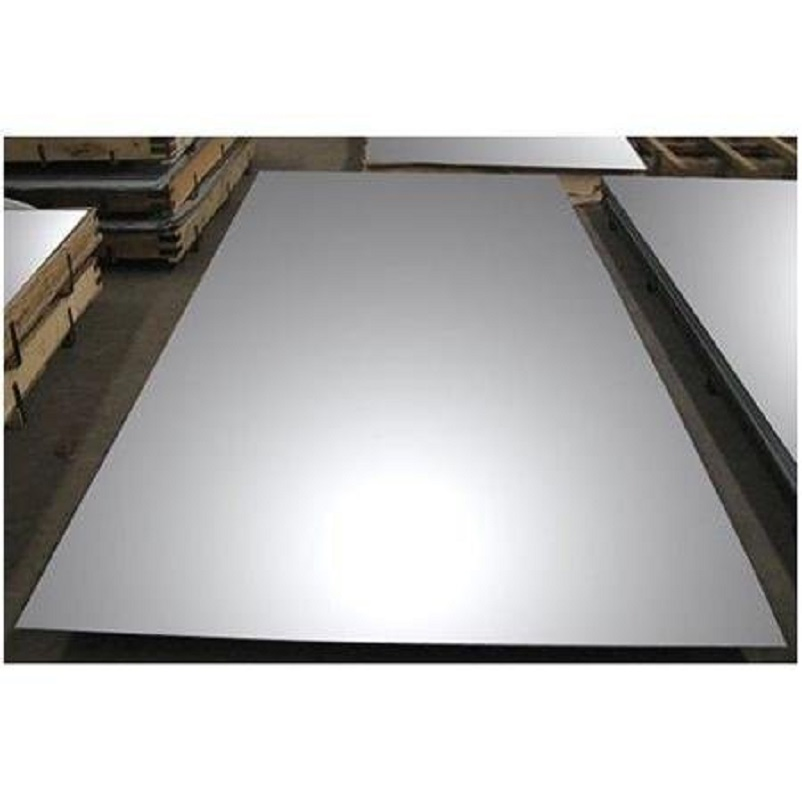

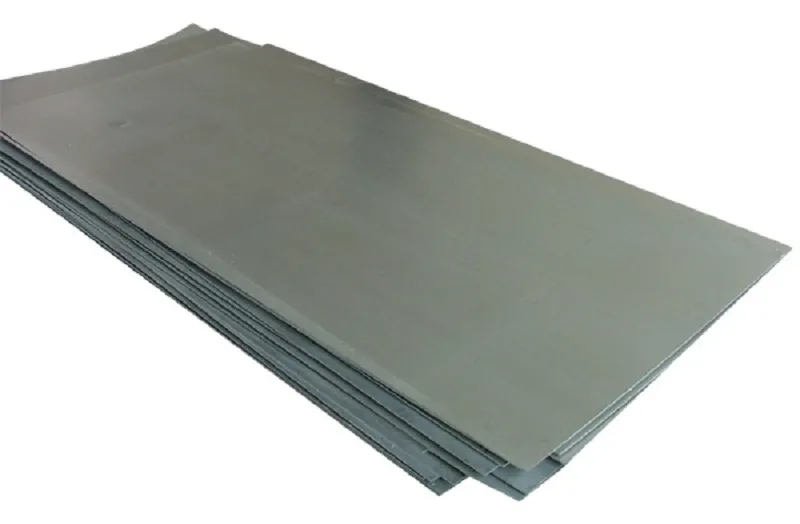

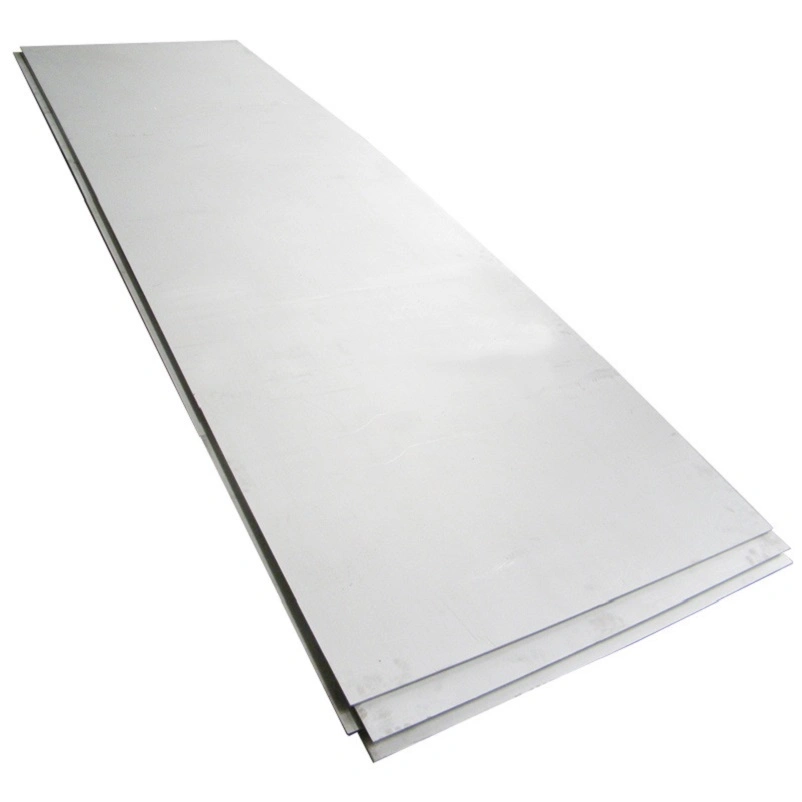

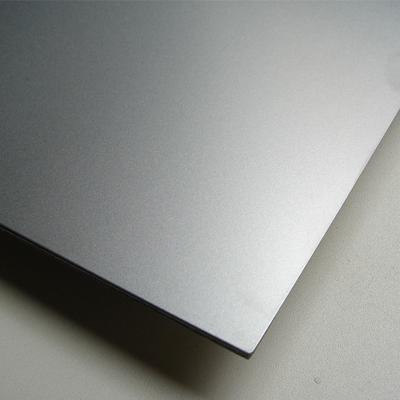

| Titanium Sheet / Plate / Foil Details | |
|---|---|
| Grade | Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr11, Gr12, GR5(Ti-6A1-4V), GR23(Ti-6A1-4VELI), Ti6A17Nb, TA1, TA2, TA3, TA4, TC4 |
| Standard | ASTM B265, ASTM F67, ASTMF136, AMS4911, MIL-T-9046 MIL-T-9047, GB/T13622-199 |
| Size Range | T 0.01-0.7mm x W≤500mm T 1.0-5.0mm x W1000mm x L 2000-3500mm T 6.0-50mm x W1000-2500mm x L 3000-7000mm T 50-80mm x W1000mm x L 2000mm |
| Applications | Medical, aerospace, military, petrochemical engineering, metallurgy, electroplating, vacuuming metalling, sports, etc. |
| Specified Thickness (mm) | Permissible Variations (+/- mm) |
|---|---|
| 3.71 to 4.76 | 0.36 |
| 3.33 to 3.68 | 0.31 |
| 2.92 to 3.30 | 0.25 |
| 2.51 to 2.90 | 0.23 |
| 2.13 to 2.49 | 0.20 |
| 1.50 to 1.83 | 0.15 |
| 0.69 to 1.02 | 0.10 |
| 0.20 to 0.41 | 0.05 |
| 0.13 | 0.03 |
We are a high-tech enterprise specialized in the machining, producing, and marketing of titanium, nickel, tungsten, molybdenum, tantalum, and niobium. Our product range includes ingots, bars, forgings, sheets, tubes, wires, tee joints, flanges, and fasteners.
Our materials are widely utilized in Industrial, Chemical, Medical, Aerospace, and Military sectors. With 80% of products exported to Europe, North America, and Southeast Asia, we maintain strict quality control as the company's lifeline, holding ISO9001:2000 certification and specialized manufacture licenses for pressure vessels and titanium materials.
| Titanium rod/bar | Titanium sheet/plate & foil | Titanium pipe fittings |
| Titanium mesh | Titanium standard parts | Titanium clad metal Materials |
| Target Materials | Titanium products | Nickel Materials |
| Zirconium Materials | Tungsten Materials | Tantalum Materials |
Rich Experience: 10 years in machining with a global reputation.
Good Service: 24-hour response time and full after-sales responsibility.
Low Price: Reasonable pricing with bulk discounts.
Perfect Quality: Strict control from production to delivery with a highly educated technical team.
