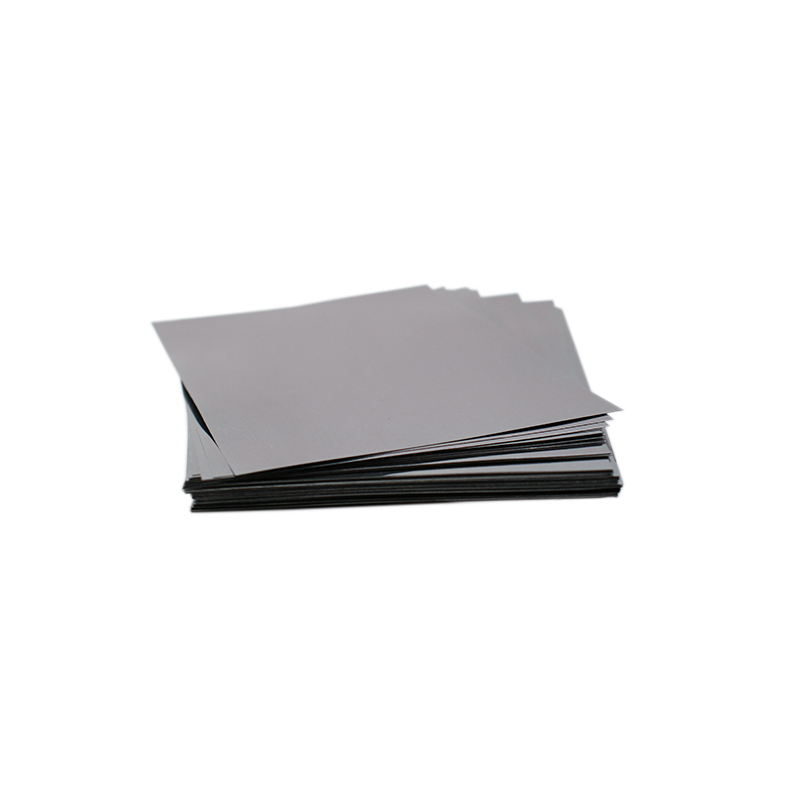

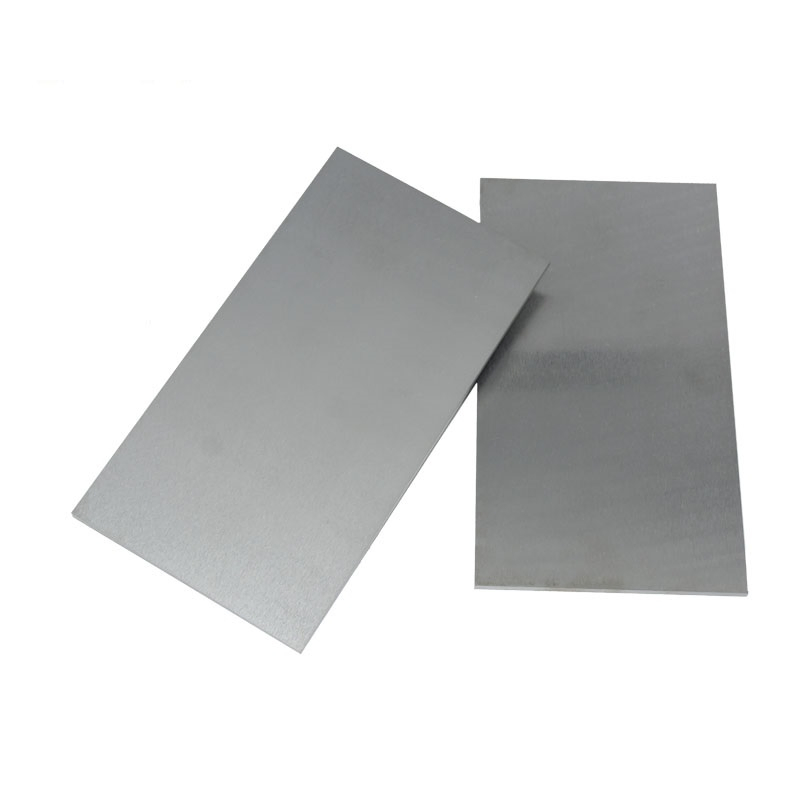

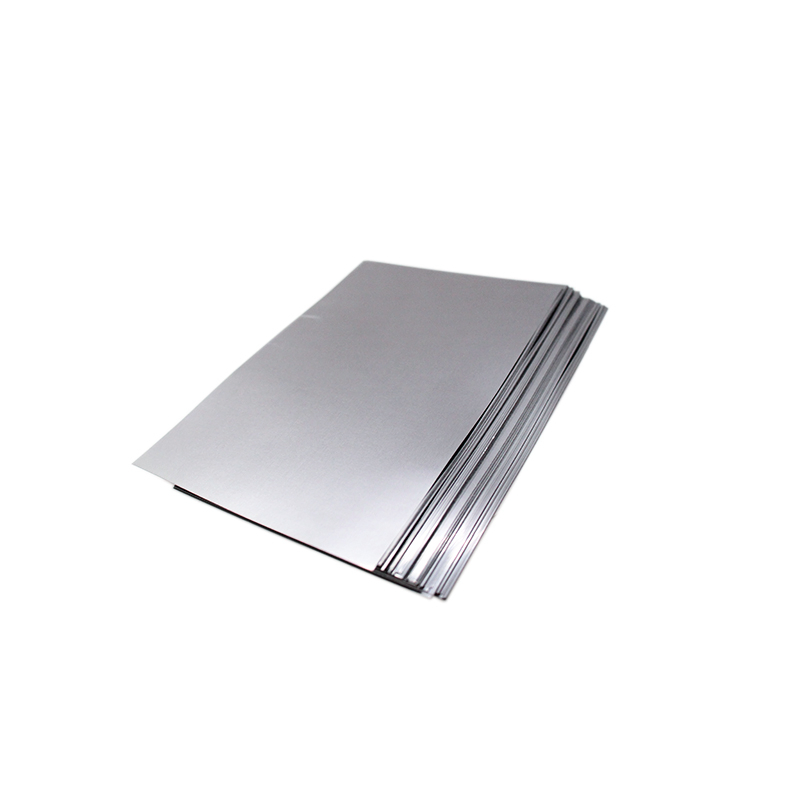

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

1 / 5

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Mirror Polished R05255 R5052 Tantalum Sheet for Electronic Industry

Customization:	Available
Characteristic:	Stable Electrical Behavior, Low Weight, High Capacitance
Protection:	Resistance to Corrosion, High Melting Point

Send Inquiry

Product Description

Basic Specifications

Usage:Alloys, Electronics

Concentrate:Non-concentrate

Density:16.65g/cm3

Purity:99.95%Min

Melting Point:3017°C

Processing:Forging, Hot-Rolling, Cold-Rolling

Grade:Ta1, Ta2, R05200, R05400

Regular Sizes:0.05mm, 0.1mm, 0.5mm

Condition:Hot Rolled, Cold Rolled, Annealed, Mirror

Transport:Wooden Box

HS Code:810390190

Capacity:30 Tons/Month

Mirror Polished Tantalum Sheet

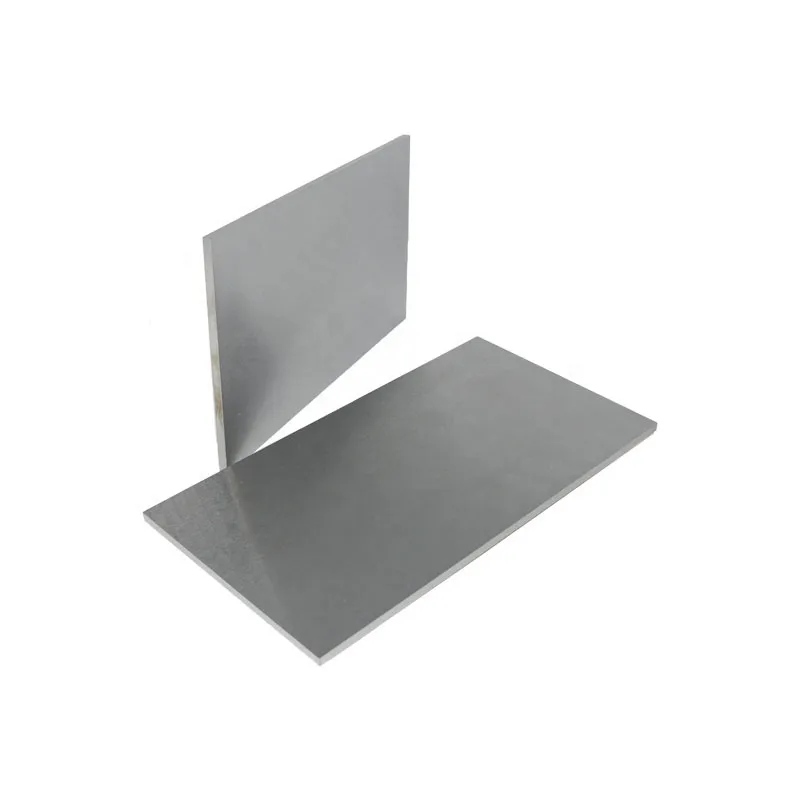

Tantalum Sheet for Electronic Industry

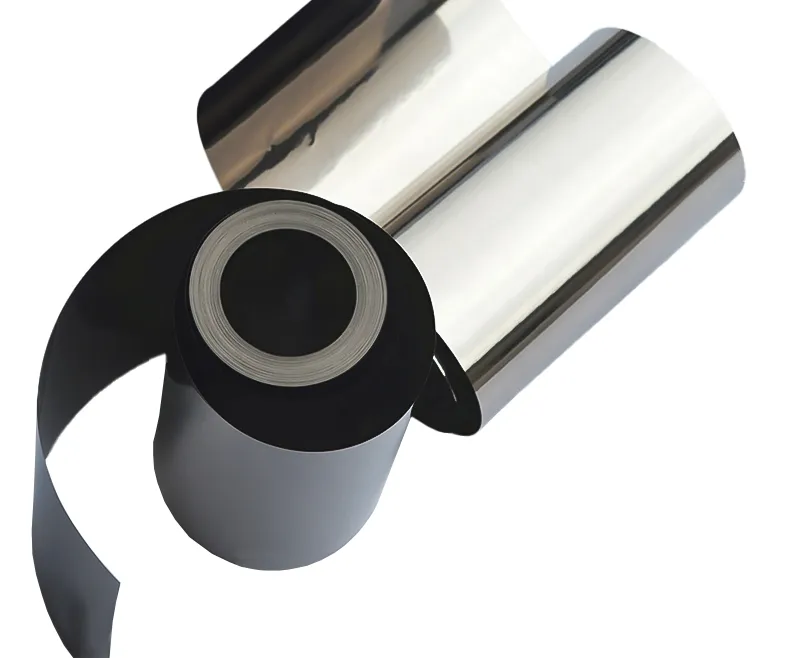

Tantalum Sheet Processing

Size Standards (ASTM B708, GB/T 3629)
Item	Thickness (mm)	Width (mm)	Length (mm)
Foil	0.01-0.09	30-150	>200
Sheet	0.1-0.5	30-610	30-1000
Plate	0.5-1.0	20-1200	50-2000

Mechanical Property (Annealed)
Grade	T. Strength min PSI(MPa)	Y. Strength min PSI(MPa)	EL. min %
Pure Ta (R05200)	30000 (207)	20000 (138)	20
Ta-10W (R05255)	70000 (482)	60000 (414)	15
Ta-2.5W (R05252)	40000 (276)	30000 (207)	20
Ta-40Nb (R05240)	35000 (241)	20000 (138)	23

Key Features

✔ Good ductility & machinability

✔ High melting point (3017°C)

✔ Excellent corrosion resistance

✔ Low thermal expansion coefficient

✔ Superior biocompatibility

Applications

★ Electronic Instruments

★ Chemical & Steel Industry

★ Aerospace & Atomic Energy

★ Medical Treatment & Carbide

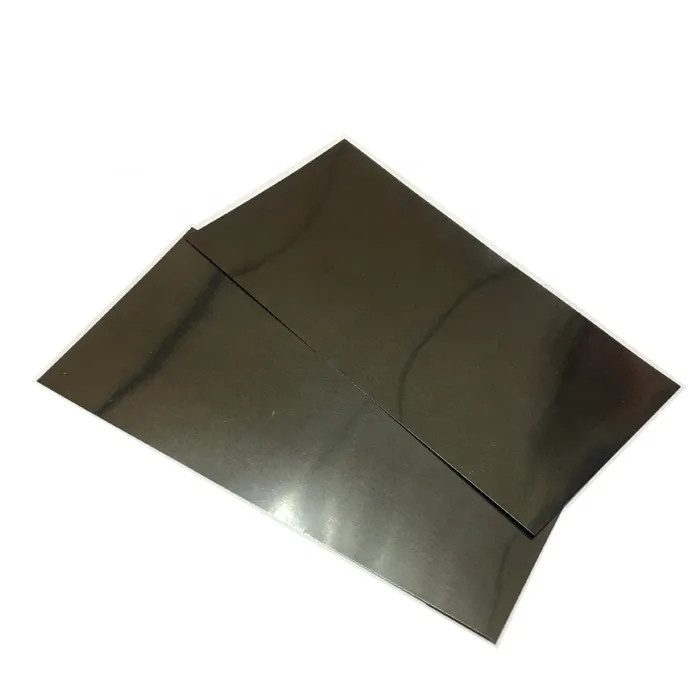

Tantalum Product Details

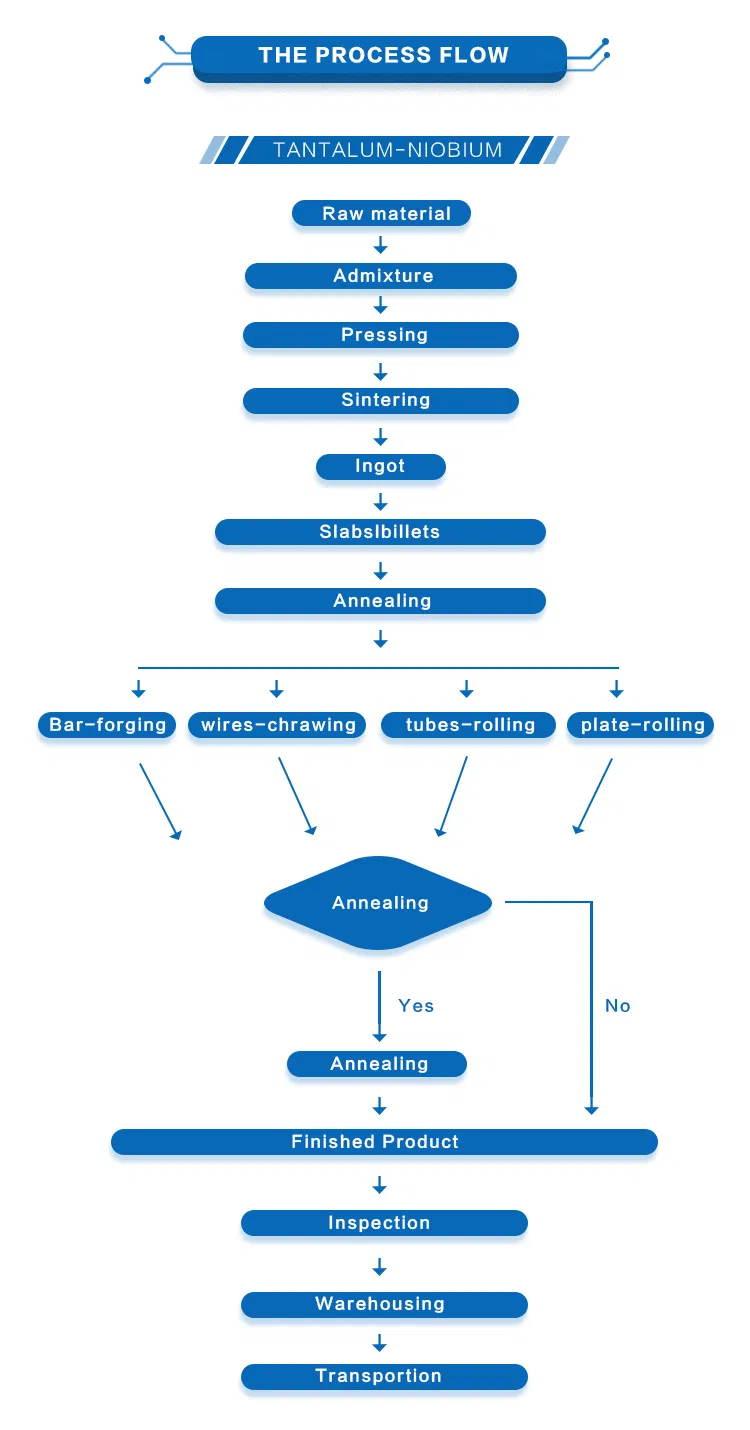

Tantalum Production View 1

Tantalum Production View 2

Tantalum Sheet Surface

Tantalum Material Quality

Finished Tantalum Plates

Frequently Asked Questions

1. What is the minimum purity of your tantalum sheets?

The minimum purity for our Tantalum sheets and plates is 99.95%.

2. Which grades are available for order?

We offer a variety of grades including R05200, R05400, R05255 (Ta-10W), R05252 (Ta-2.5W), and R05240 (Ta-40Nb).

3. What industries use these tantalum products?

They are widely used in the electronic industry, chemical processing, aerospace aviation, medical treatments, and the steel industry.

4. What is the melting point of this metal?

Tantalum is a high melting point metal with a melting point of 3017°C.

5. What size ranges do you provide?

We provide Tantalum foils (0.01-0.09mm), sheets (0.1-0.5mm), and plates (0.5-1.0mm) in various widths and lengths.

6. How are the products packaged for transport?

All products are securely packed in wooden boxes to ensure safety during transport.
