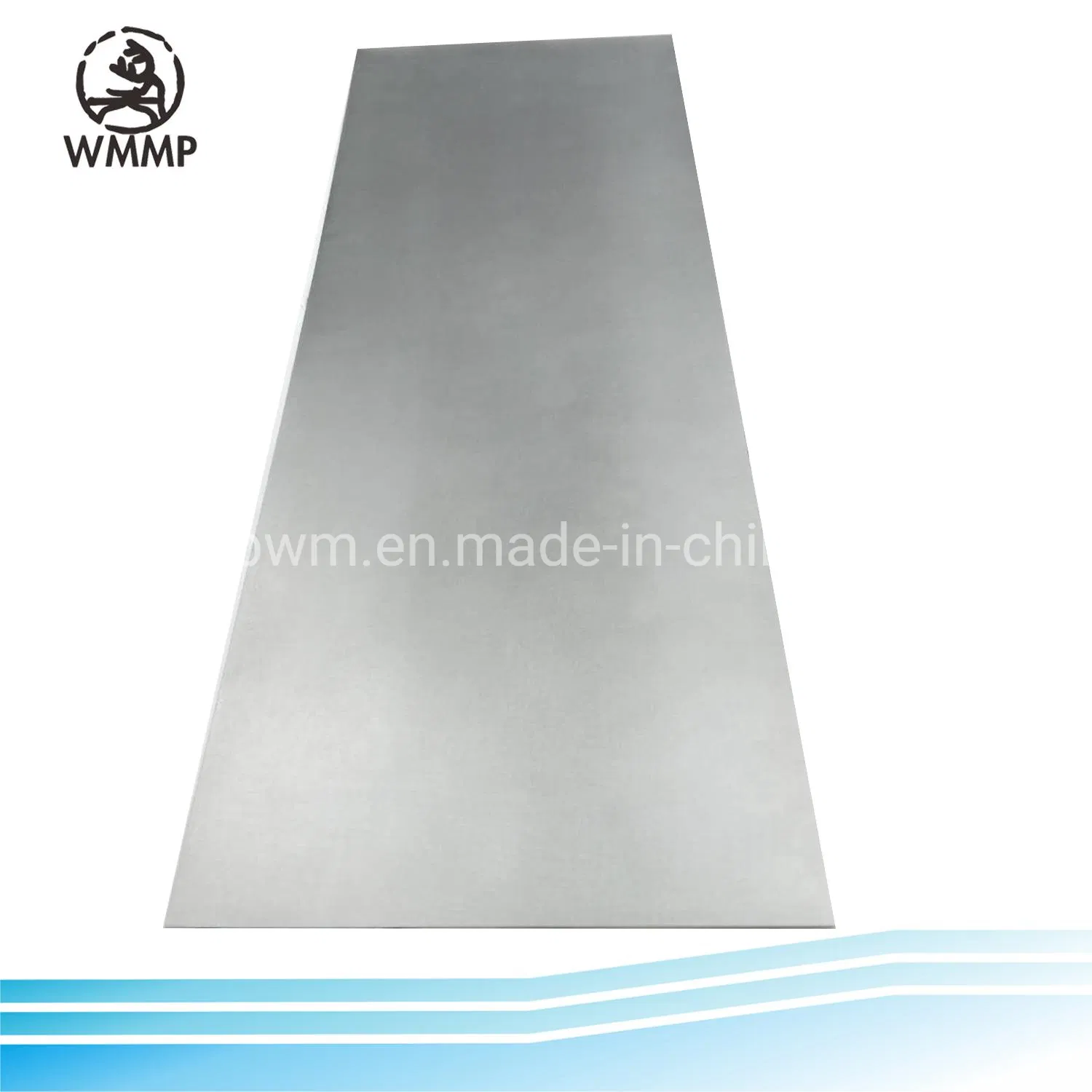

Pure Niobium Sheet Thickness 0.05-10.0mm Used in Medical

1 / 5

Pure Niobium Sheet Thickness 0.05-10.0mm Used in Medical

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Nb sheet

Purity

>99.95%

Shape

Square

Alloy

Non-alloy

Secondary

Nb1 Nb2 RO4200 RO4210

HS Code

8112994000

Package

Foamed in Exporting Wooden Case

Capacity

5000kg/Month

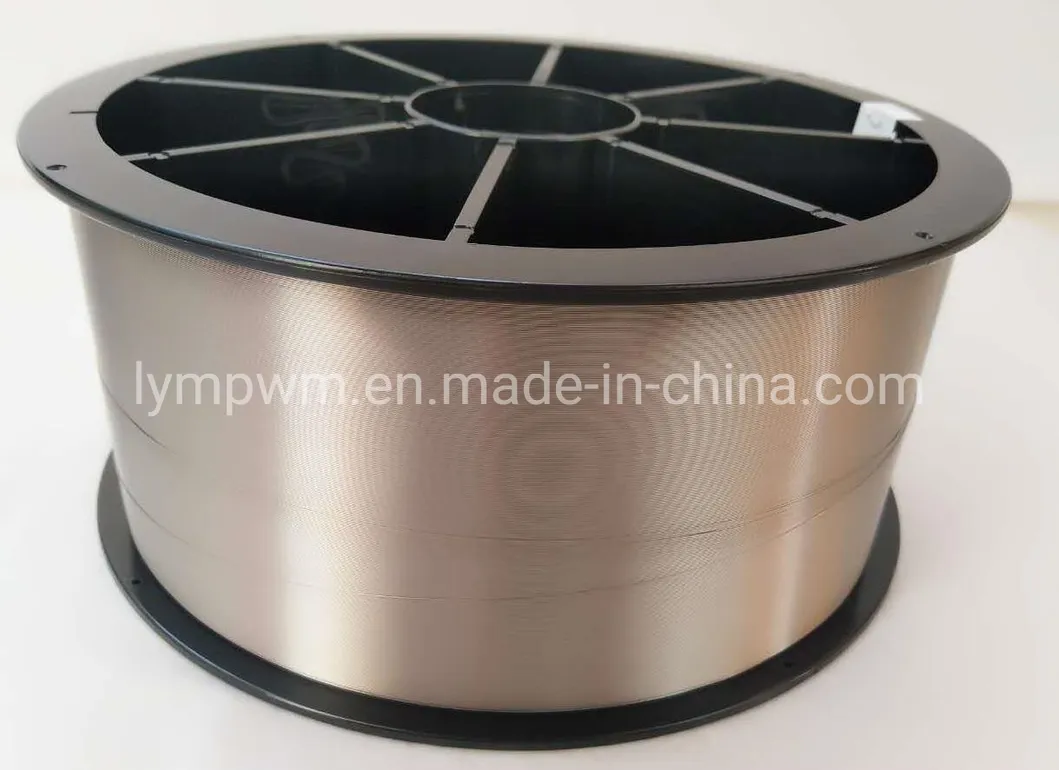

High Quality Niobium Wire

Technical Parameters

Material: RO4200-1, RO4210-2A
Size: Dia 0.25mm - 3mm
Standard: ASTM B392-98
Purity: 99.95%

Grade	Tensile strength δbpsi (MPa), ≥	Yield strength δ0.2, psi (MPa), ≥	Elongation %, ≥
RO4200-1 / RO4210-2	18000 (125)	10500 (73)	25

Application: Primarily used in Niobium electronics manufacturing.

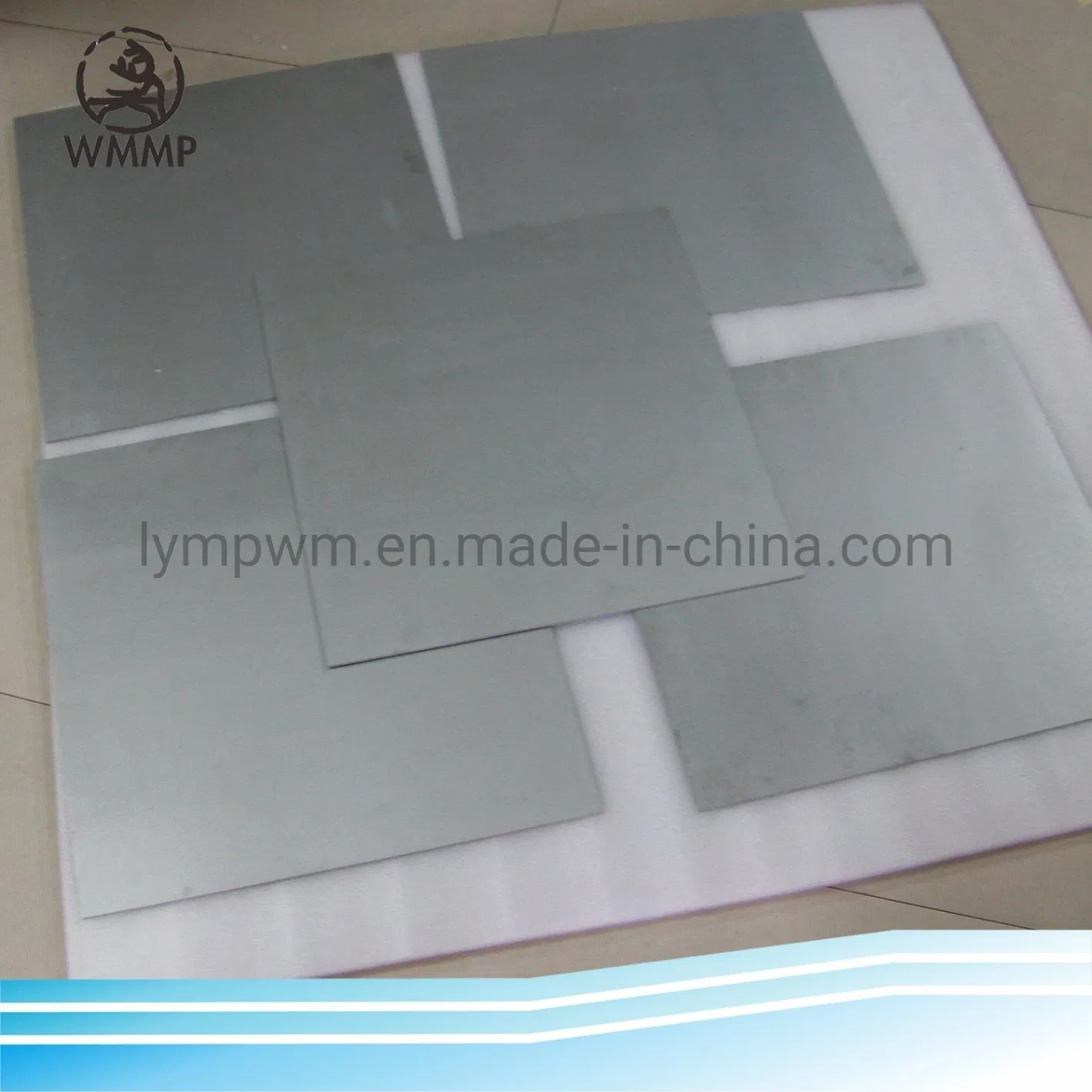

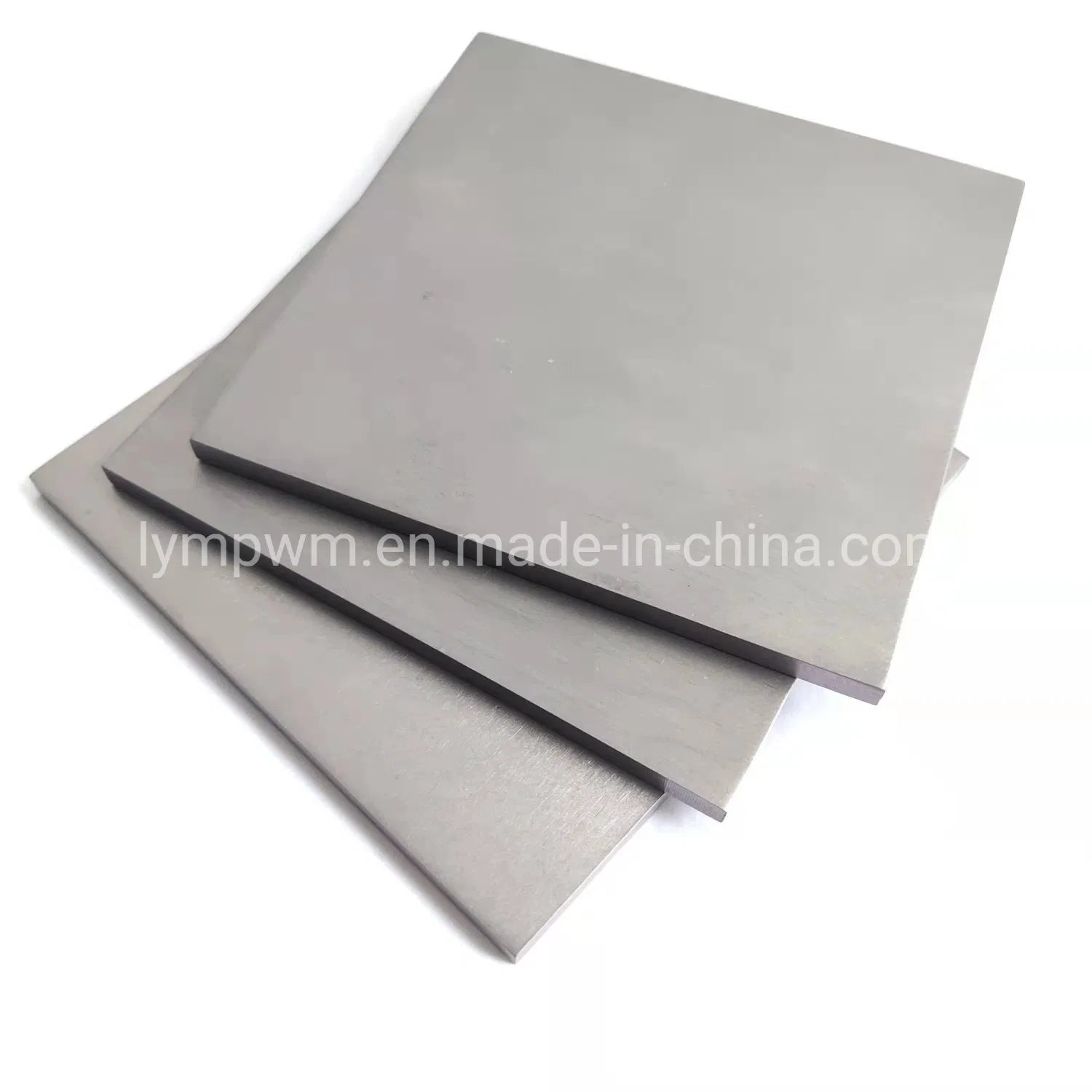

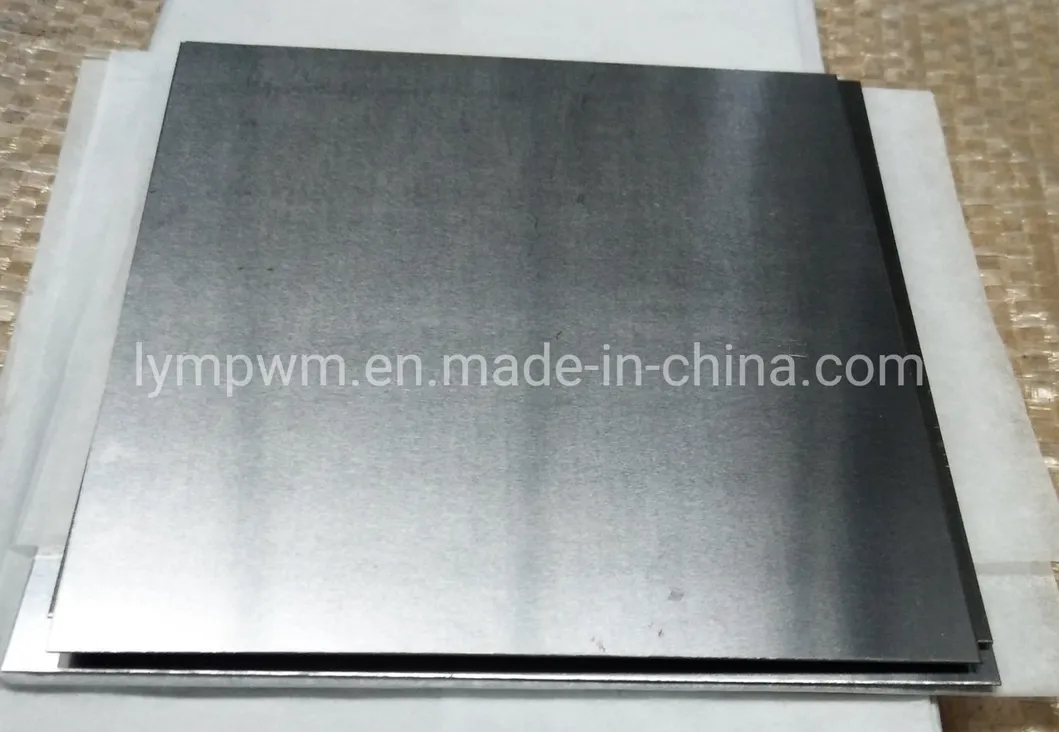

Niobium Foil, Sheet & Plate

Material: RO4200-1, RO4210-2 | Standard: ASTM B393-98 | Purity: >99.95%

Niobium Foil: Thickness (0.03-0.09mm) * Width (30-300mm) * Length >50mm
Niobium Sheet: Thickness (0.1-0.5mm) * Width (30-800mm) * Length (30-2000mm)
Niobium Plate: Thickness (0.5-10mm) * Width (50-1000mm) * Length (50-3000mm)

Application: Machinery and Chemical Processing industries.

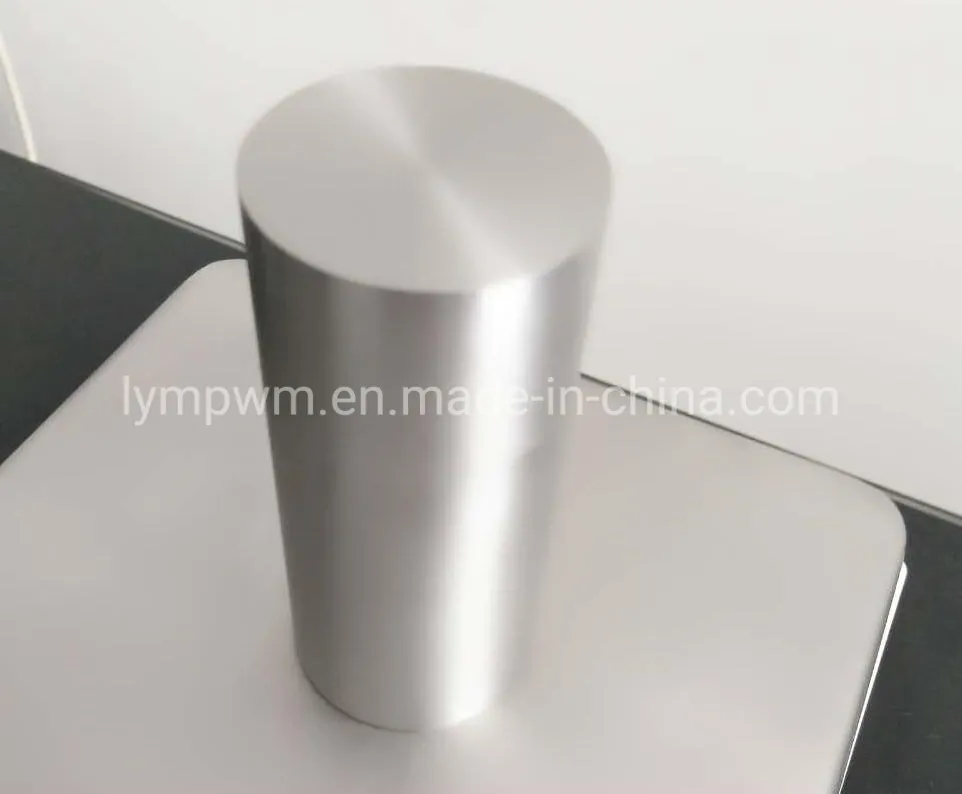

Niobium Rod & Bars

Material: RO4200-1, RO4210-2 | Diameter: 3-120mm | Standard: ASTM B392-98

Grade	Tensile strength δbpsi (MPa), ≥	Yield strength δ0.2, psi (MPa), ≥	Elongation %, ≥
RO4200-1 / RO4210-2	18000 (125)	10500 (73)	25

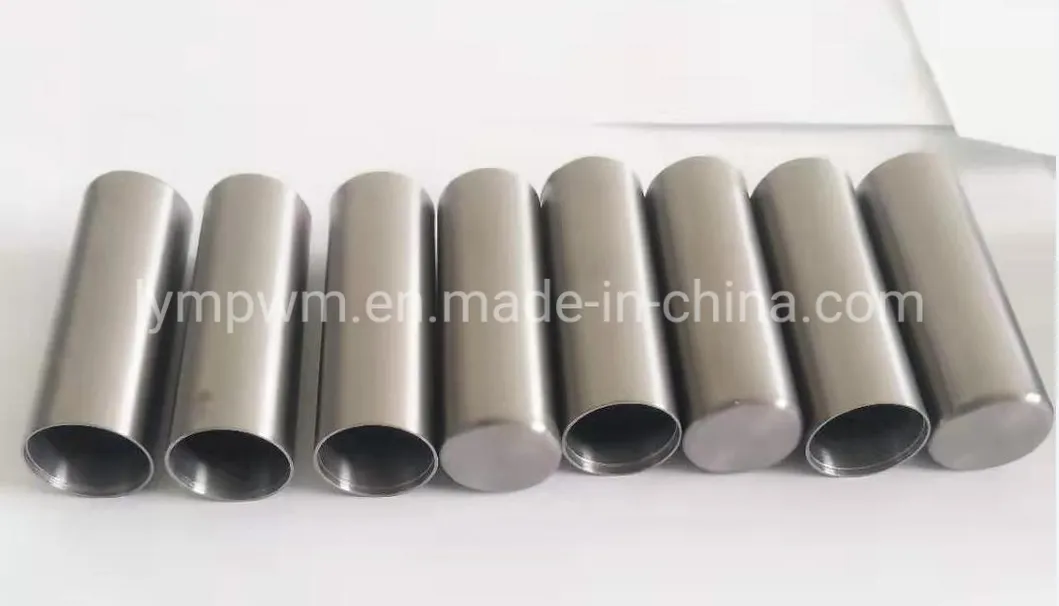

Niobium Tube

Diameter

1.0 - 100mm

Thickness

0.2 - 5.0mm

Length

200mm - 9000mm

Type

Seamless & Welding

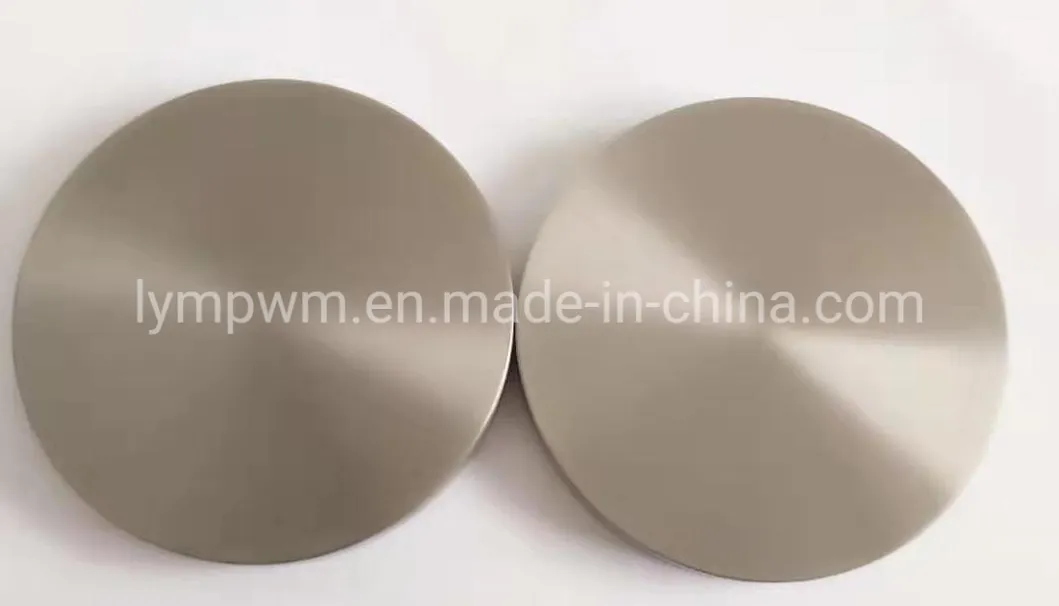

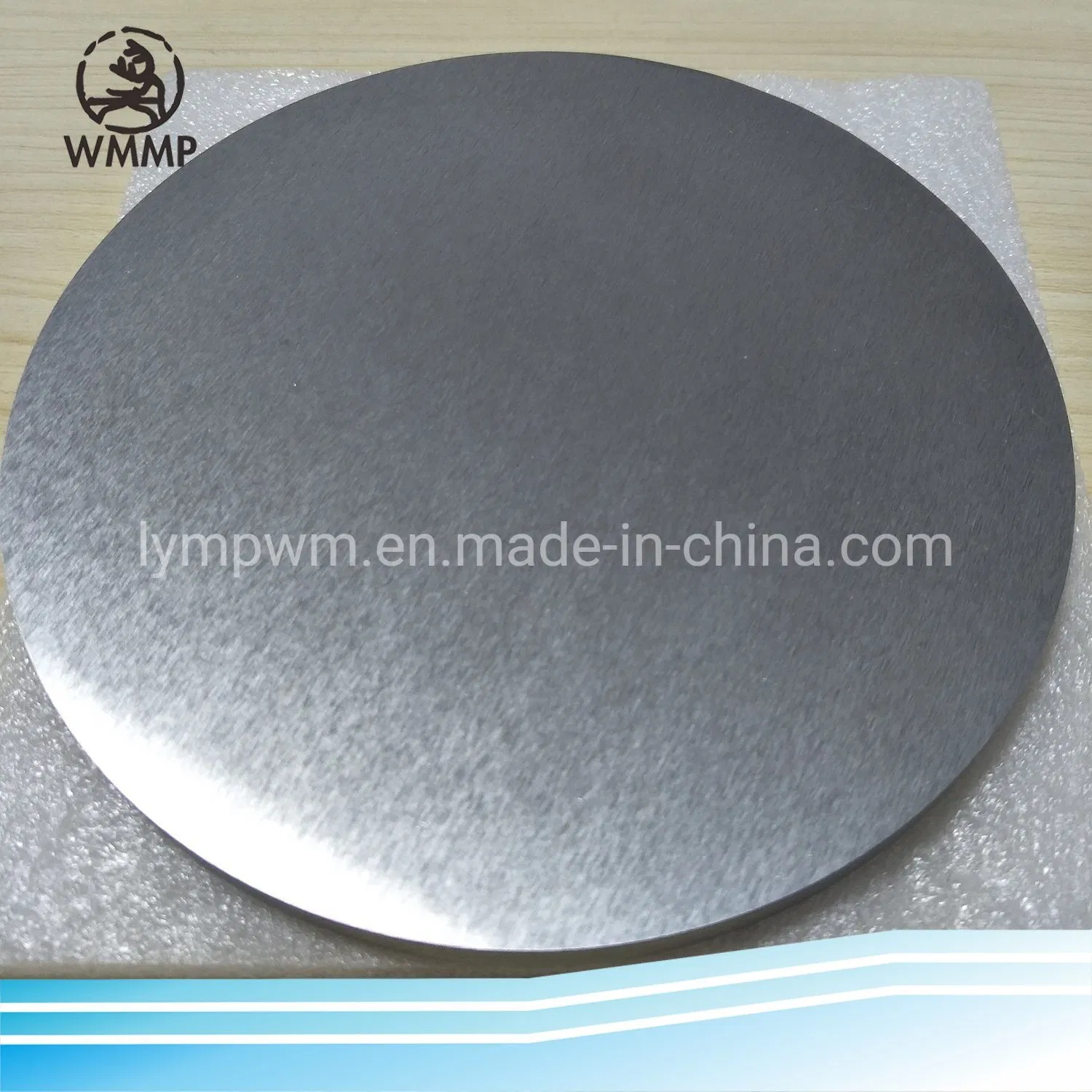

Niobium Target & Disc

Purity: 99.95%

Circular Targets: Diameter 10mm-400mm x Thickness 2mm-30mm
Rectangular Targets: Thickness 1mm-20 x Width <800mm x Length <3000mm

Technical Properties	Specification
Recrystallization	95% min
Grain size	ASTM 4 or finer
Surface finish	16 Rms max. or Ra 0.4 (RMS64 or better)
Flatness	0.1mm or 0.15% max
Tolerance	+/-0.010" on all dimensions

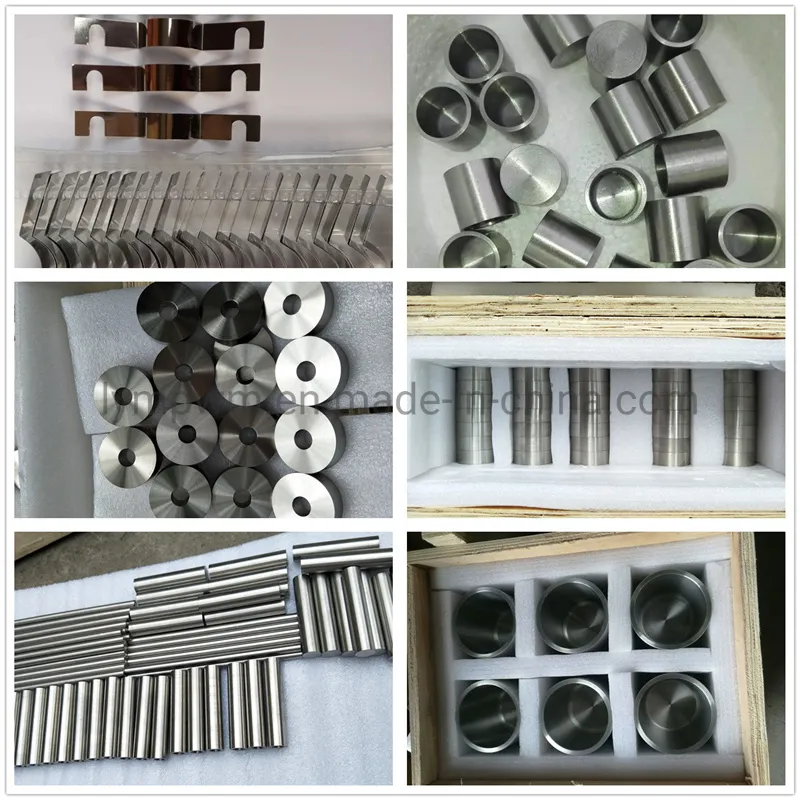

Other Refractory Materials

We also supply high-quality Tantalum, Tungsten, Molybdenum, and Titanium materials.

$Refractory Metals$

Frequently Asked Questions

What is the standard purity of your Niobium products?

Our Niobium materials, including wire, sheets, and targets, maintain a high purity level of over 99.95%.

Which international standards do your Niobium products comply with?

Our products are manufactured according to ASTM standards, specifically ASTM B392-98 for wire/rods, ASTM B393-98 for sheets, and ASTM B394-98 for tubes.

What are the primary applications for Niobium electronics targets?

Niobium targets are widely used in the electronics industry, specifically for thin-film coating and semiconductor applications requiring high recrystallization and fine grain size.

Do you offer both seamless and welded Niobium tubes?

Yes, we provide both seamless and welded Niobium tubes with diameters ranging from 1.0mm to 100mm.

What other materials can you supply besides Niobium?

In addition to Niobium, we specialize in other refractory metals such as Tantalum, Tungsten, Molybdenum, and Titanium in various forms.

What is the maximum size for Niobium plates?

Our Niobium plates can be produced up to 10mm in thickness, 1000mm in width, and 3000mm in length.
