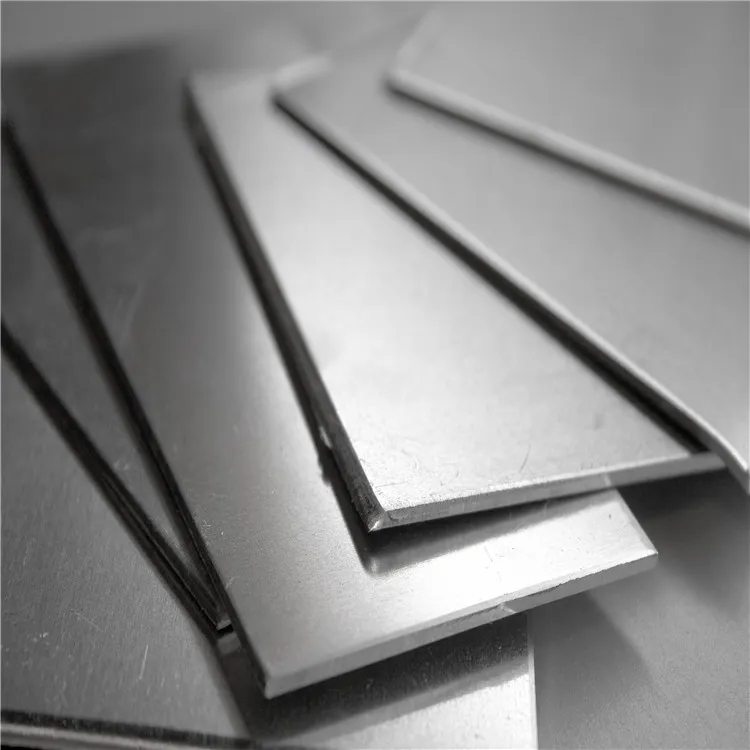

Premium Durable Inconel 625 Industrial Sheets for Global Buyers

1 / 5

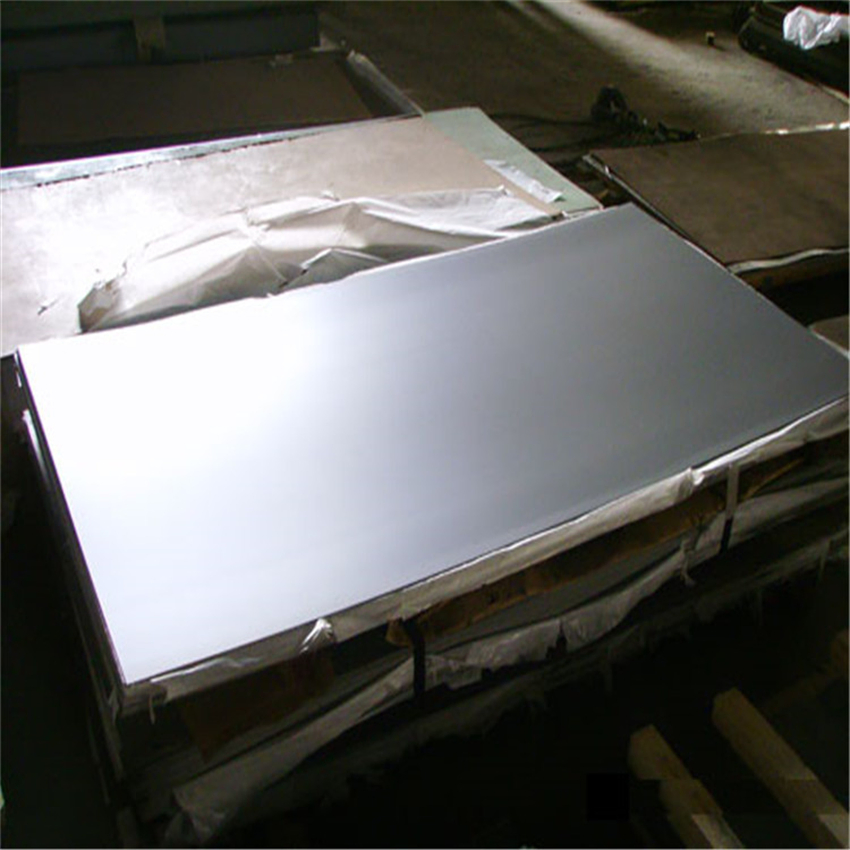

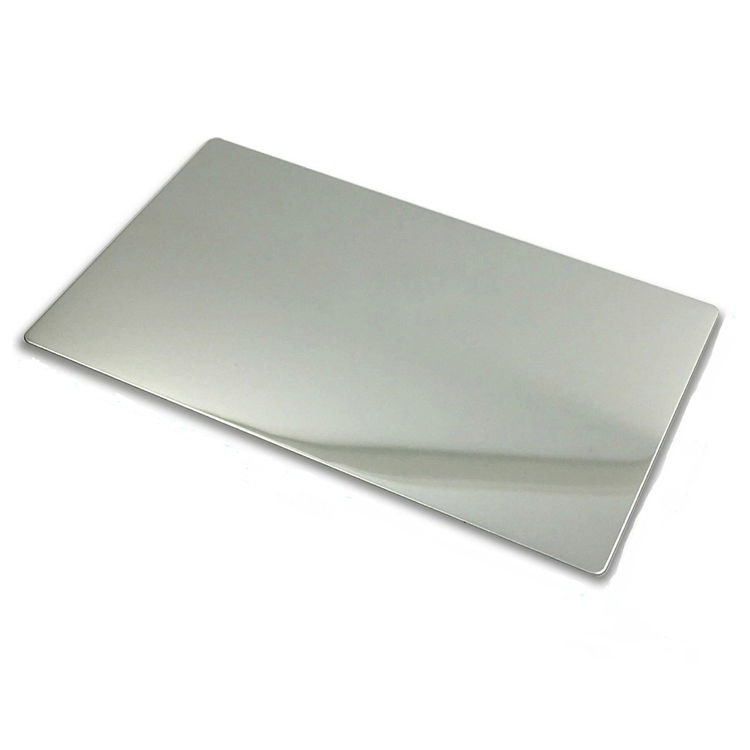

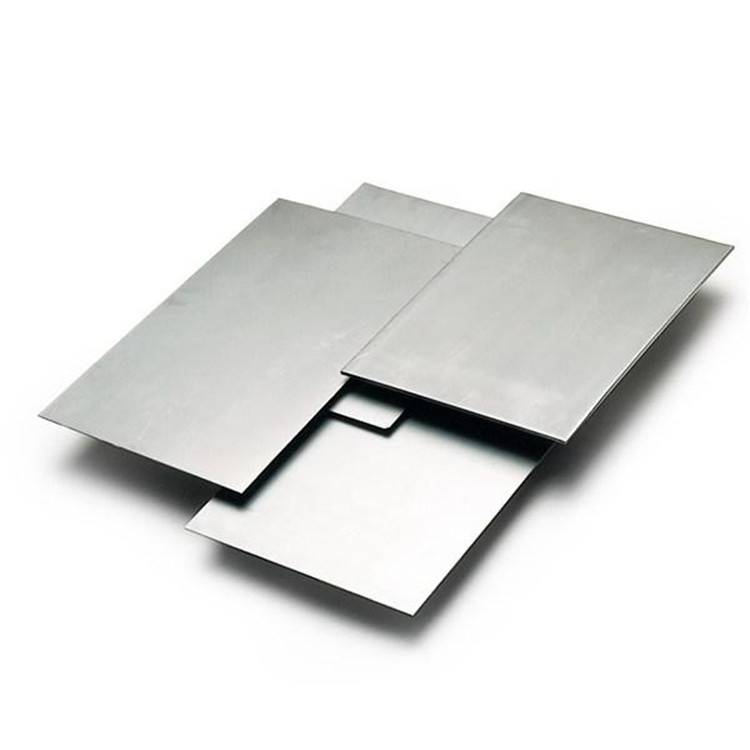

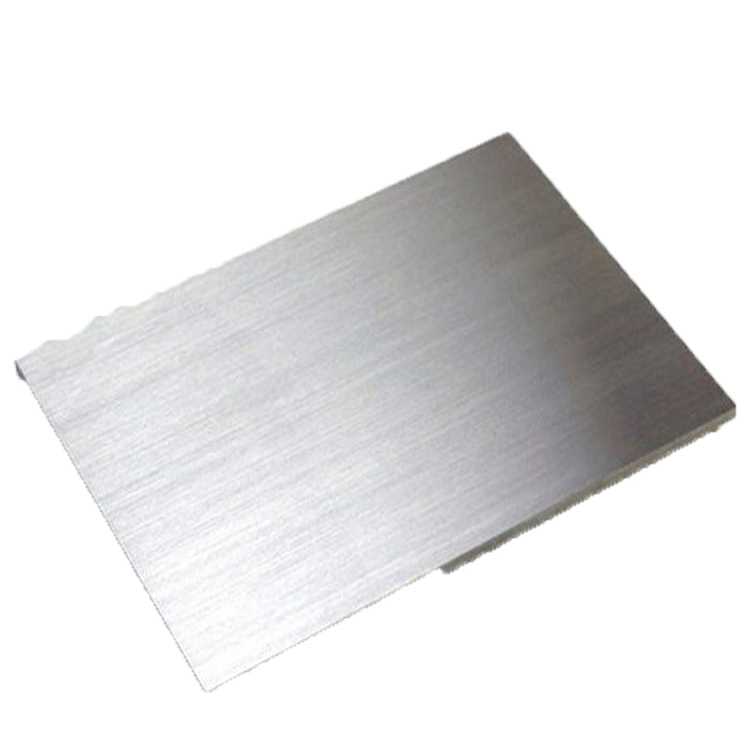

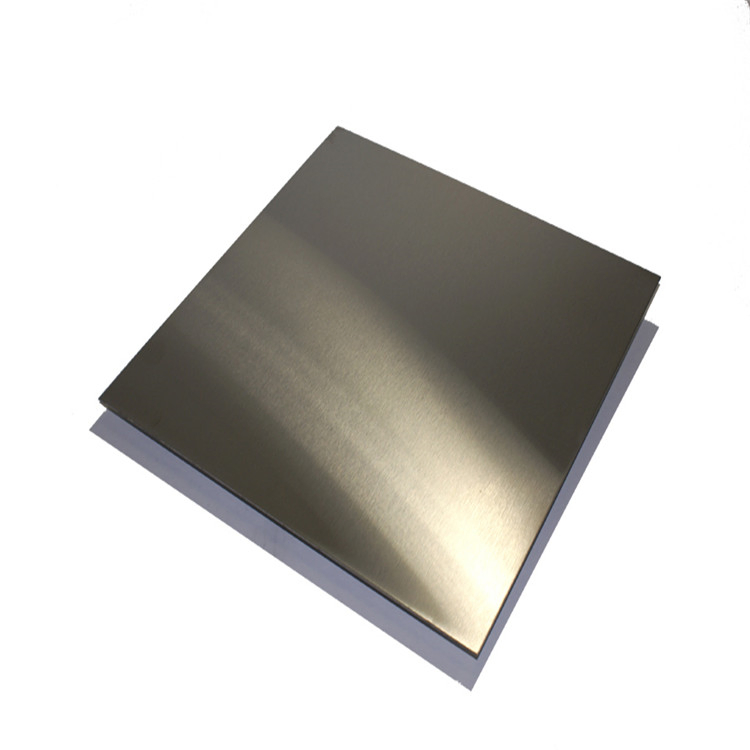

Premium Durable Inconel 625 Industrial Sheets for Global Buyers

Customization:	Available
Application:	Aviation, Electronics, Industrial, Medical, Chemical
Standard:	JIS, GB, DIN, ASTM, AISI

Send Inquiry

Product Description

📊

Basic Information

Model NO.

Inconel 625

Purity

58%

Alloy

Type

Nickel Plate

Powder

Not Powder

Thickness

0.4-8mm

Width

1000/1219/1500mm

Length

2000-6000mm

MOQ

100kgs

Sample

Free-Sample

Surface

2b, No.1

Technique

Cold Rolled, Hot Rolled

Mtc

En 10204 Type 3.1

Stock

in Stock

T.S.(≥ MPa)

827

Key Words

625 Nickel Alloy Sheet

Transport Package

Wooden Package

Origin

China

HS Code

7502200000

Production Capacity

50000kg/Month

🛠️

Product Description

Anti-corrosion Wear resistance Nickel-based Super alloy Inconel 625 Steel for Chemical process industry

Material	Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape	Round, Forging, Ring, Coil, Flange, Disc, Foil, Spherical, Ribbon, Square, Bar, Pipe, Sheet
Grade Highlights	Duplex: 2205, 2507, S32760, 904L; Hastelloy: B-2, C22, C276; Inconel: 600, 601, 625, 718; Monel: 400, K500
Specifications	Wire: 0.01-10mm; Strip: 0.05-5.0mm; Bar: φ4-50mm; Pipe: φ6-273mm; Sheet: 0.8-36mm Thickness
Characteristics	1. Available as deformation, casting, and powder metallurgy superalloys. 2. Strengthening modes: Solid solution, precipitation, oxide dispersion, and fiber strengthening.
Standard	GB, AISI, ASTM, DIN, EN, SUS, UNS etc
Application	High temperature components (turbine blades, disks), aviation, naval, and industrial gas turbines.

🔬

Technical Properties of Inconel 625

Inconel 625 is a nickel-based super alloy with excellent resistance to oxidation and corrosion. It maintains outstanding strength and toughness from cryogenic temperatures up to 2000°F (1093°C).

🧪

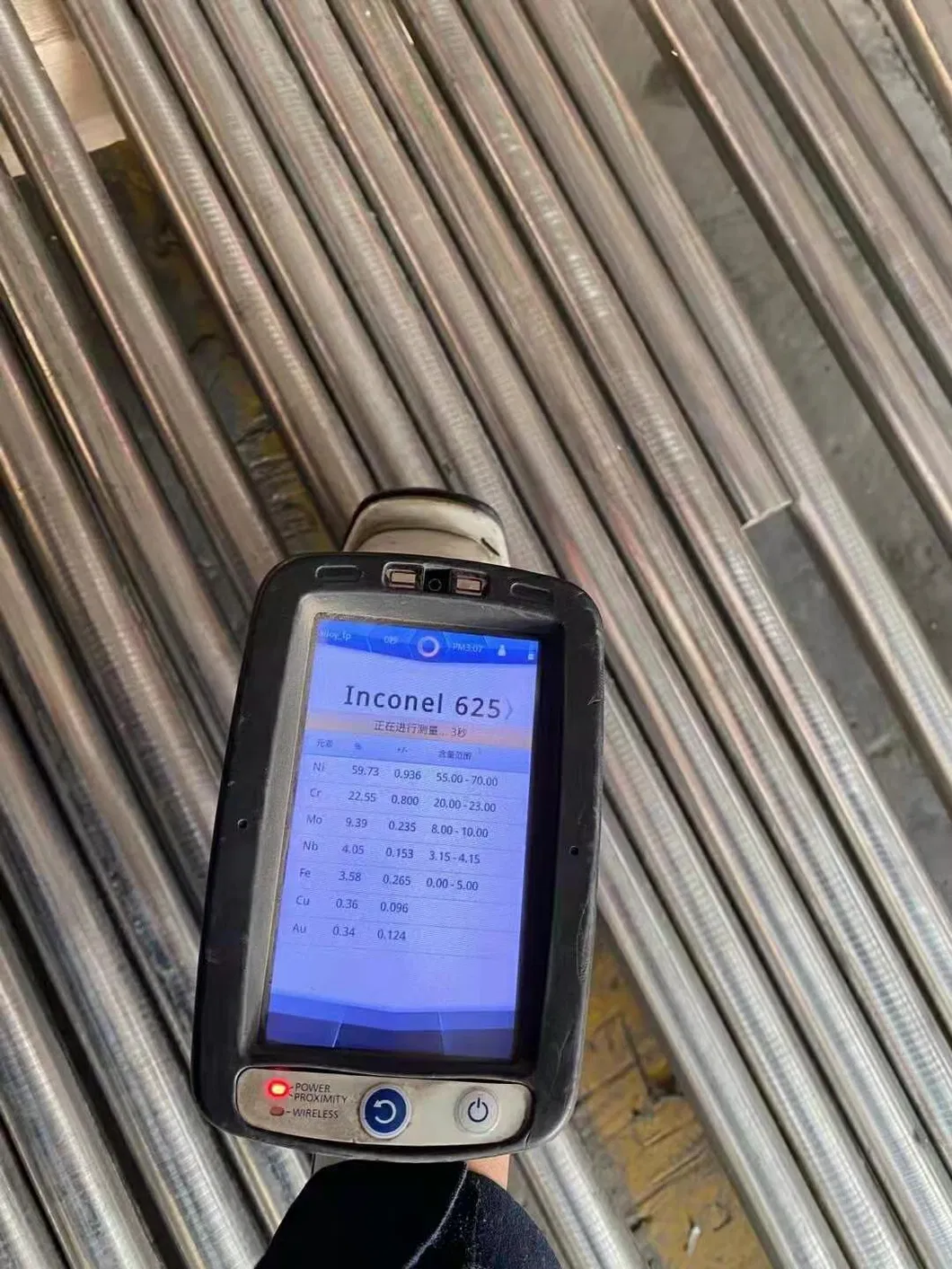

Chemical Composition

Element	Percentage
Carbon / Manganese	0.010 max / 0.50 max
Chromium	20.00 - 23.00
Nickel	Balance
Molybdenum	8.00 - 10.00
Iron	5.00 max
Titanium / Aluminum	0.40 max each

⚙️

Physical Properties

Density: 0.303 lb/in3 (8.44 g/cm3)
Melting Range: 2350 - 2460°F (1280 - 1350°C)
Specific Heat: 0.098 Btu/lb x °F
Magnetic Permeability: 1.0006

🌡️

Thermal Conductivity

Temp (°C)	Temp (°F)	W/m·K	Btu/(hr/ft²/in/°F)
21	70	9.9	5.7
204	400	12.6	7.3
538	1000	17.5	10.1
871	1600	22.8	13.2

⚡

Electrical Resistivity

Temperature (°C)	Temperature (°F)	microhm-cm
21	70	128.9
427	800	135.9
1093	2000	133.9

❓

Frequently Asked Questions

What are the primary applications of Inconel 625?

Inconel 625 is typically used in jet engines, chemical processing equipment, aviation, and industrial gas turbines due to its high-temperature strength and corrosion resistance.

What makes Inconel 625 resistant to corrosion?

The high level of chromium and molybdenum provides excellent resistance to pitting and crevice corrosion in chloride-contaminated media like sea water and neutral salts.

What temperature range can Inconel 625 handle?

It maintains exceptional strength and toughness from cryogenic temperatures up to 2000°F (1093°C).

What forms and shapes are available for this alloy?

It is available in various forms including Round bars, Forgings, Rings, Coils, Flanges, Discs, Foils, Sheets, and Pipes.

What standards does the Inconel 625 material comply with?

Our Inconel 625 is supplied to AMS 5599 and UNS Designation N06625, following GB, AISI, ASTM, DIN, and EN standards.

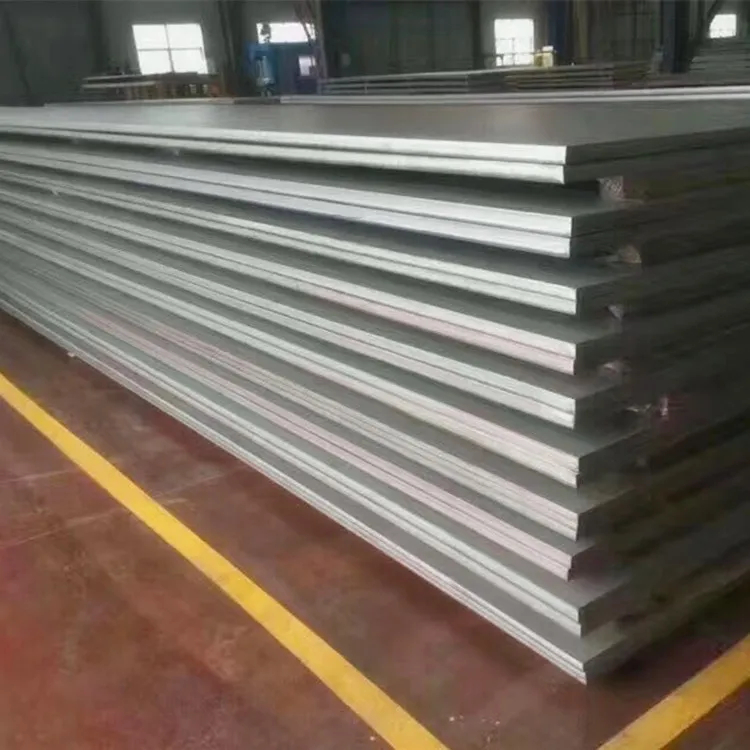

How is the product packaged for international transport?

Standard packaging includes wooden cases, paper packaging, plastic, or foam packaging depending on the specific product and customer requirements.
