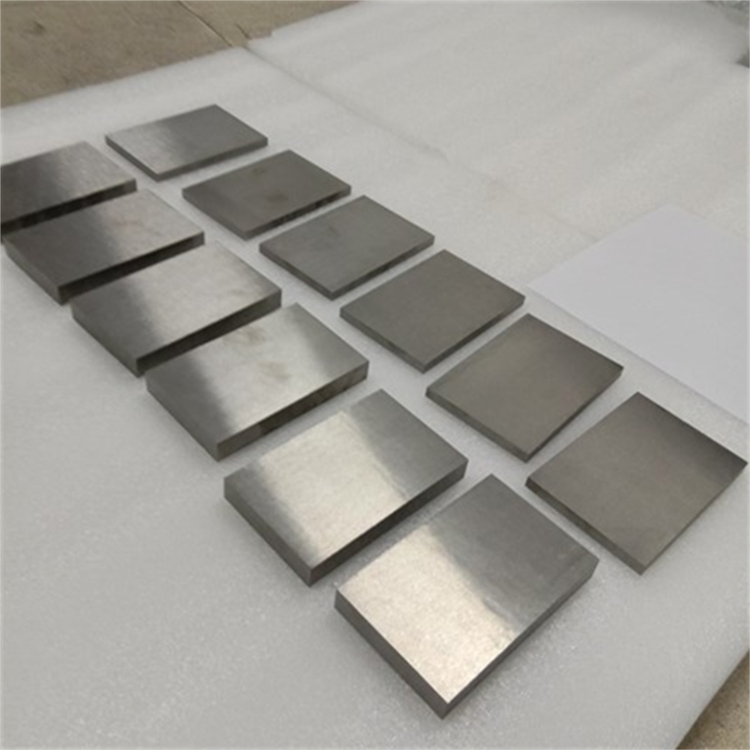

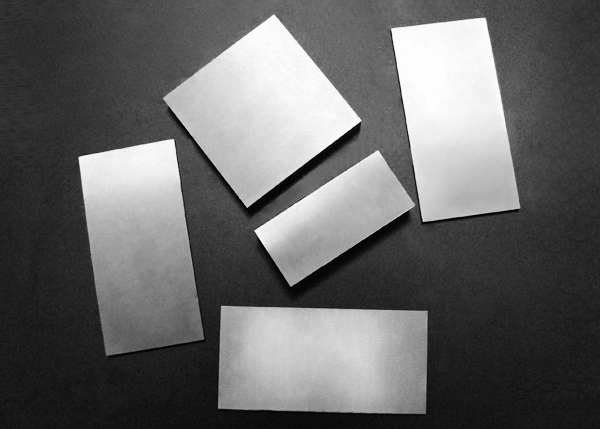

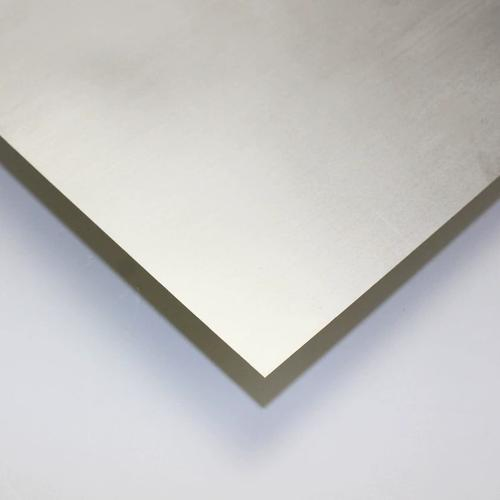

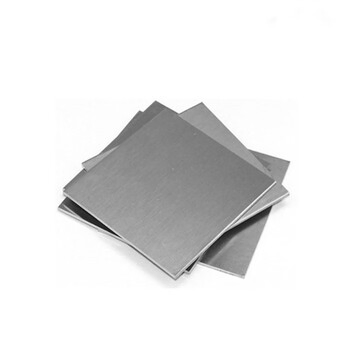

High Temperature High Purity Factory Grade Molybdenum Plates Sheet for MIM Process

Customization:	Available
Application:	Industrial
Standard:	GB

Send Inquiry

Product Description

Basic Information

Model NO.

ZT-1800

Purity

>99.95%

Alloy

Non-alloy

Type

Molybdenum Plate

Density

10.2g/cm3

Melting Point

2620ºC

Thickness

0.1mm (Min)

Width

600mm (Max)

Material

Pure Molybdenum

Production Capacity

22 ton/Month

★

Product Description

Molybdenum is very hard and soft. It is more ductile than tungsten. Molybdenum has a high elastic modulus, tungsten, tantalum, only has a high melting point. Molybdenum plates are used in many specialty steels. Some other common uses are molybdenum electrodes, vacuum furnace applications and aircraft parts. The thickness ranges from 0.1mm to 3 inches and is listed as molybdenum plate.

Molybdenum plates are widely used in mold and parts furnace construction, and component manufacturing in the electronics and semiconductor industries. Our High Temperature high purity molybdenum plates are ideal for MIM (Metal Injection Molding) processes.

✚

Key Features

Molybdenum content ≥99.95%, melting point: 2610ºC
High temperature resistant & high tensile strength
Outstanding thermal conductivity & low thermal expansion coefficient
Low vapor pressure and superior wear resistance
Strong anti-oxidation and anti-corrosion properties

⚙

Technical Parameters

Width (mm)	Thickness (mm)	Thickness Deviation (Min/mm)	Flatness (%)
<300mm	>0.13mm	±0.0025mm	4%
≥300mm	>0.25mm	±0.06mm	5%~8%

Chemical Composition (Impurities max %)

Ag	Ni	P	Cu	Pb	Fe	Mo
<0.0001	<0.0005	<0.001	<0.0001	<0.0001	<0.0016	>99.97

▲

Applications

Parts of Electric Light Source and Electron Tube
Medical Facilities
Radiation Shielding and Interference Protection
Heat Shields and Heating Elements for High Temperature Furnaces
Structural components of High Temperature Furnaces
Evaporation Boats

📷

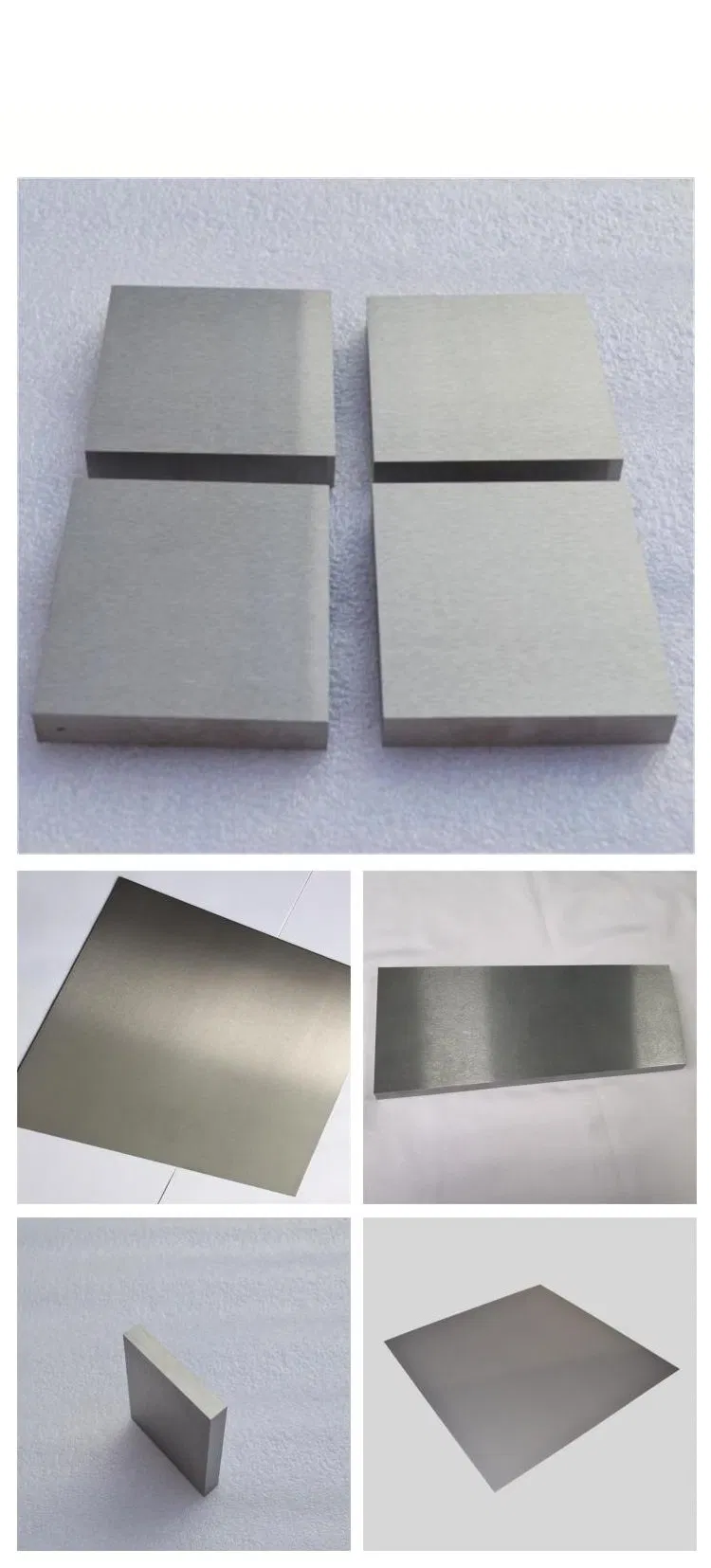

Detailed Product Gallery

📦

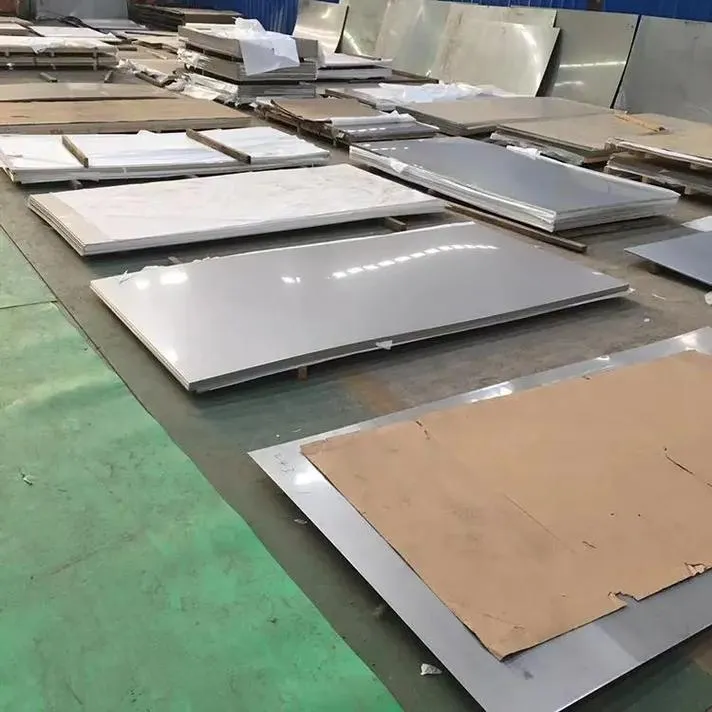

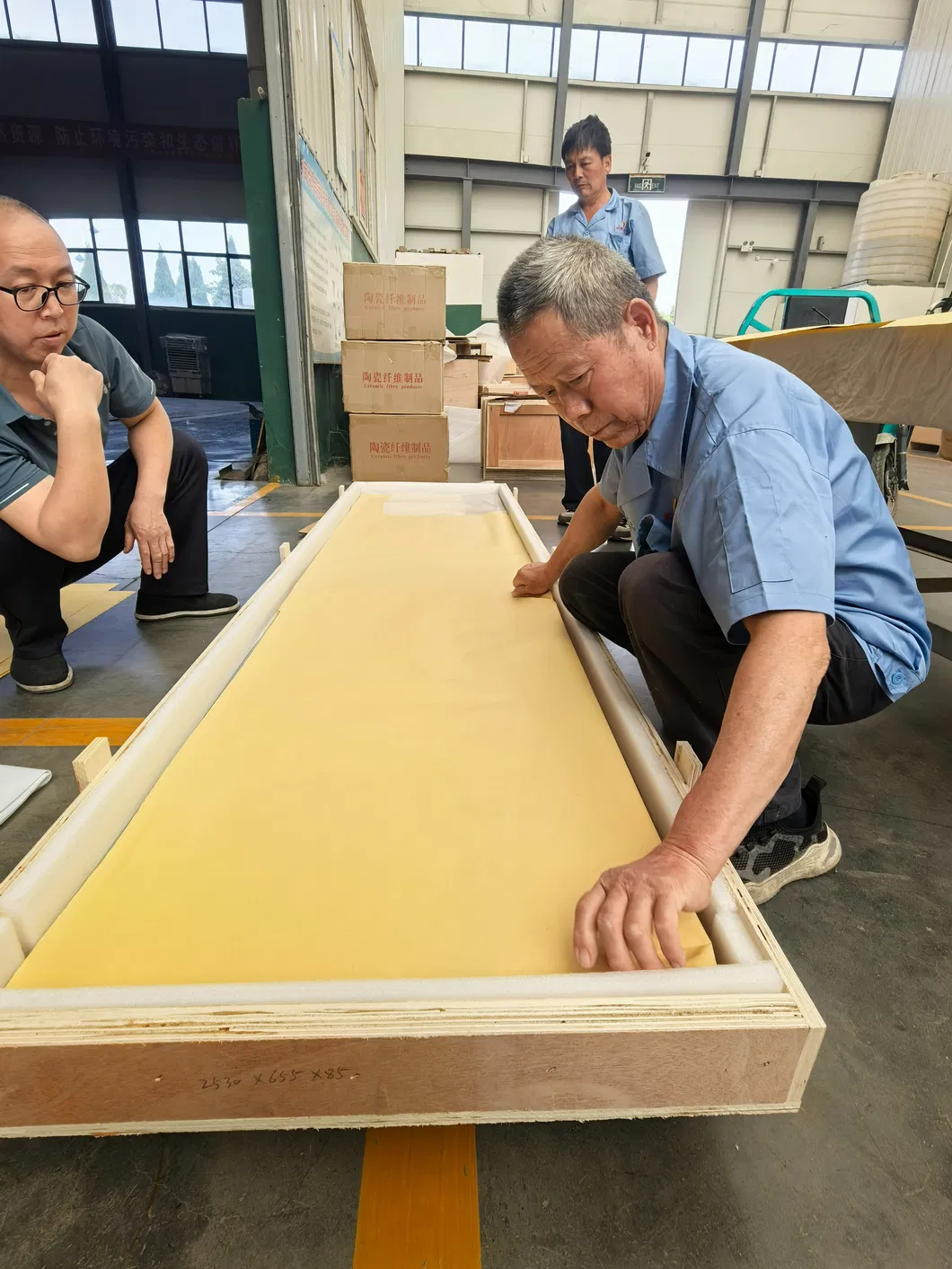

Packaging & Shipping

Shipping from stock is completed within 10 days
Over 100,000 tons of products maintained in stock
Fast customization for specific size requirements
Production cycles starting from 2 weeks for custom volumes

Frequently Asked Questions

Q1: What is the purity of your molybdenum plates? Our standard molybdenum plates offer a purity of ≥99.95%, ensuring excellent performance in high-vacuum and high-temperature environments.

Q2: What is the maximum size available for these plates? We can provide molybdenum plates with a maximum width of 600mm and lengths ranging from 100mm to 3000mm.

Q3: Are these plates suitable for vacuum furnace applications? Yes, due to their high melting point (2610ºC) and low vapor pressure, they are ideal for heating elements and heat shields in vacuum furnaces.

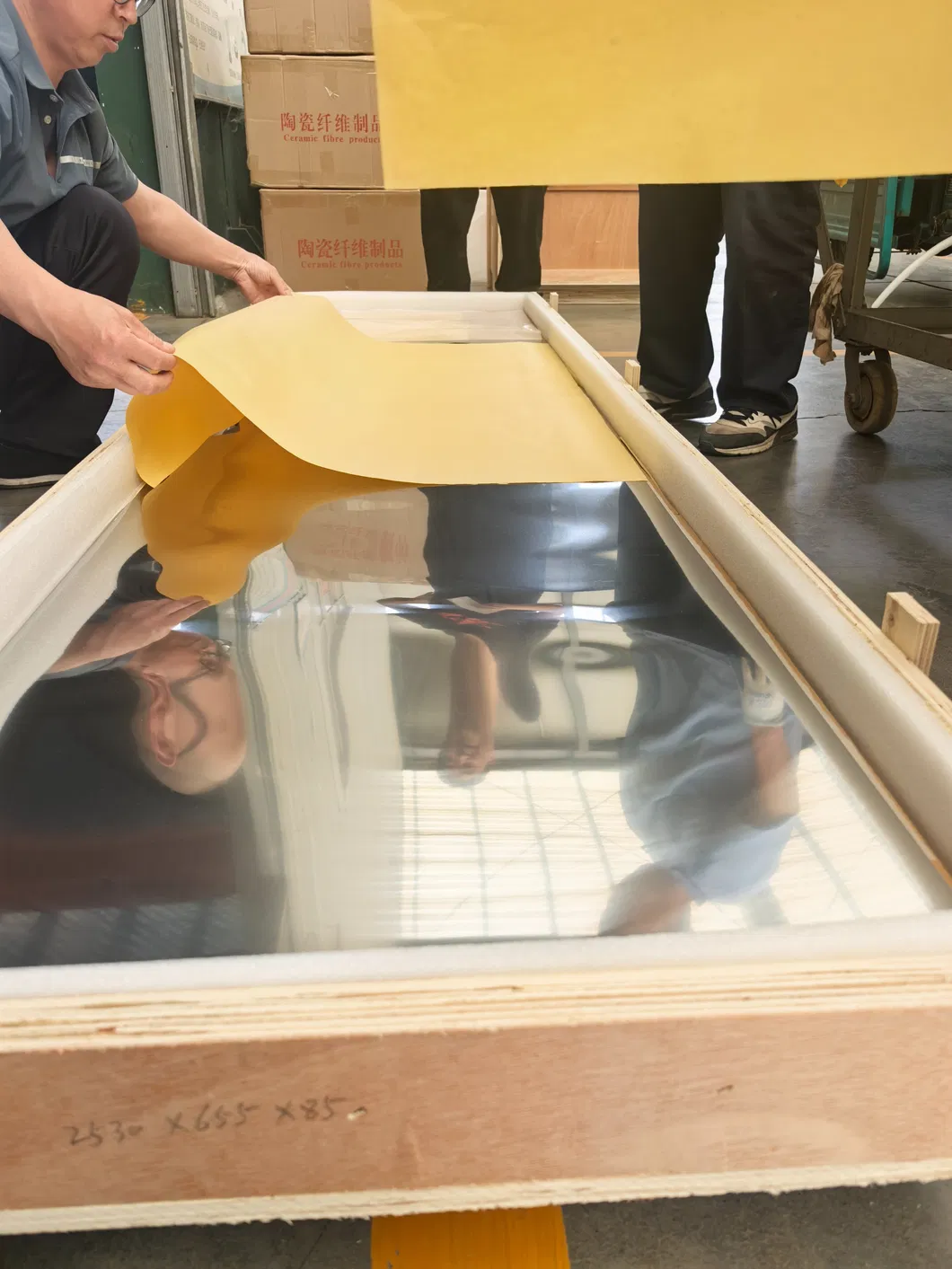

Q4: How do you handle shipping to ensure the product is not damaged? All molybdenum plates are securely packed in professional wooden boxes to prevent bending or surface scratches during transit.

Q5: Can I request custom thicknesses for specific MIM processes? Absolutely. While our minimum thickness starts at 0.1mm, we offer fast customization services for any specific size and volume.

Q6: What are the main benefits of molybdenum over tungsten? Molybdenum is more ductile and easier to process than tungsten, while still maintaining a very high elastic modulus and exceptional heat resistance.
