Product Description

Basic Specifications

Model NO.Nb sheet

Purity>99.95%

ShapeSquare

AlloyNon-alloy

SecondaryNb1 Nb2 RO4200 RO4210

Transport PackageFoamed in Exporting Wooden Case

OriginChina

HS Code8112994000

Production Capacity5000kg/Month

Product Details

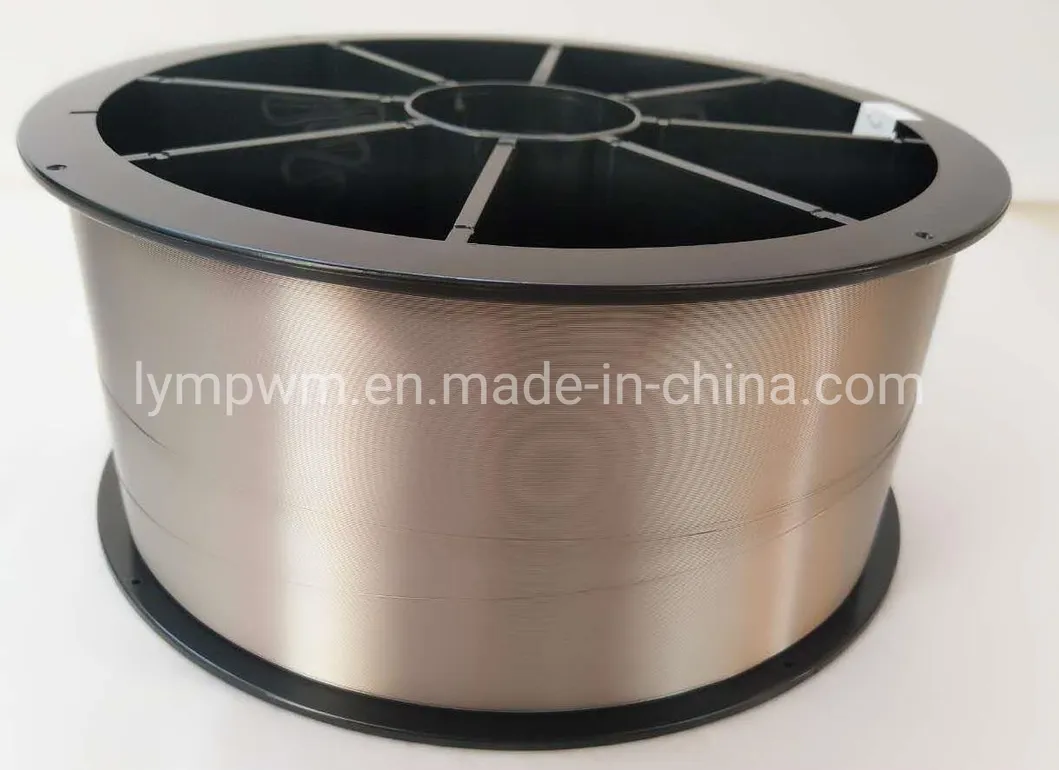

Niobium Wire

High quality Niobium wire for electronic applications. Manufactured under strict quality control standards.

Material: RO4200-1, RO4210-2A
Size: Dia 0.25mm - 3mm
Standard: ASTM B392-98
Purity: 99.95%

Grade	Tensile strength δbpsi (MPa)	Yield strength δ0.2, psi (MPa)	Elongation (1"/2"), %
RO4200-1 / RO4210-2	18000 (125)	10500 (73)	25

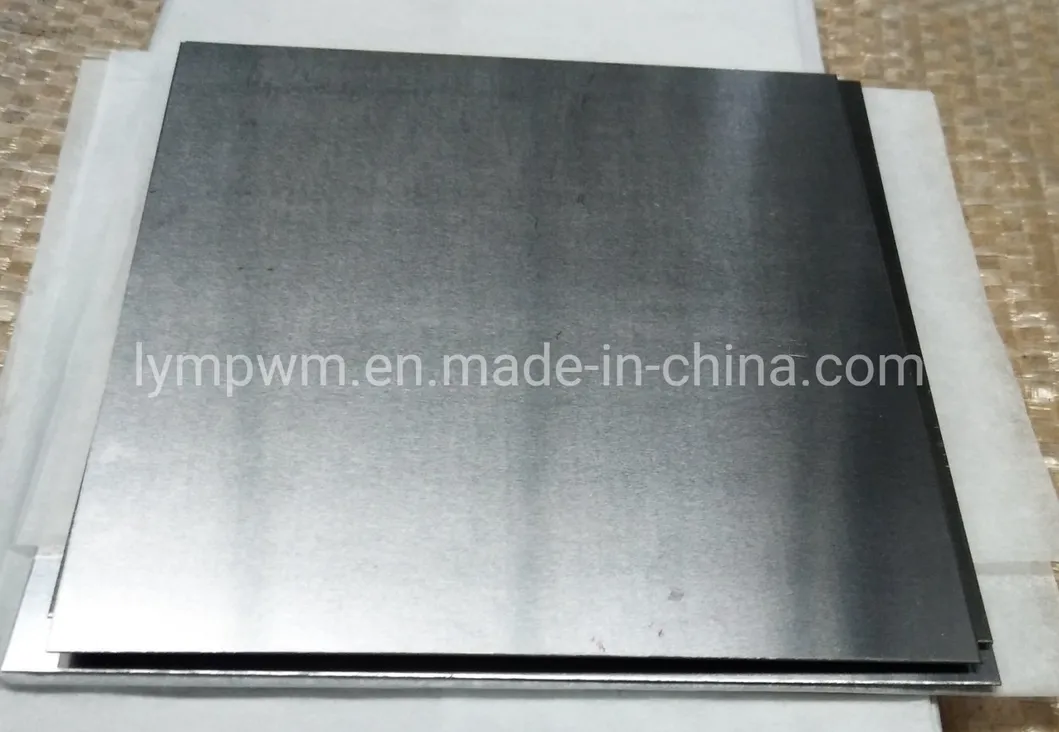

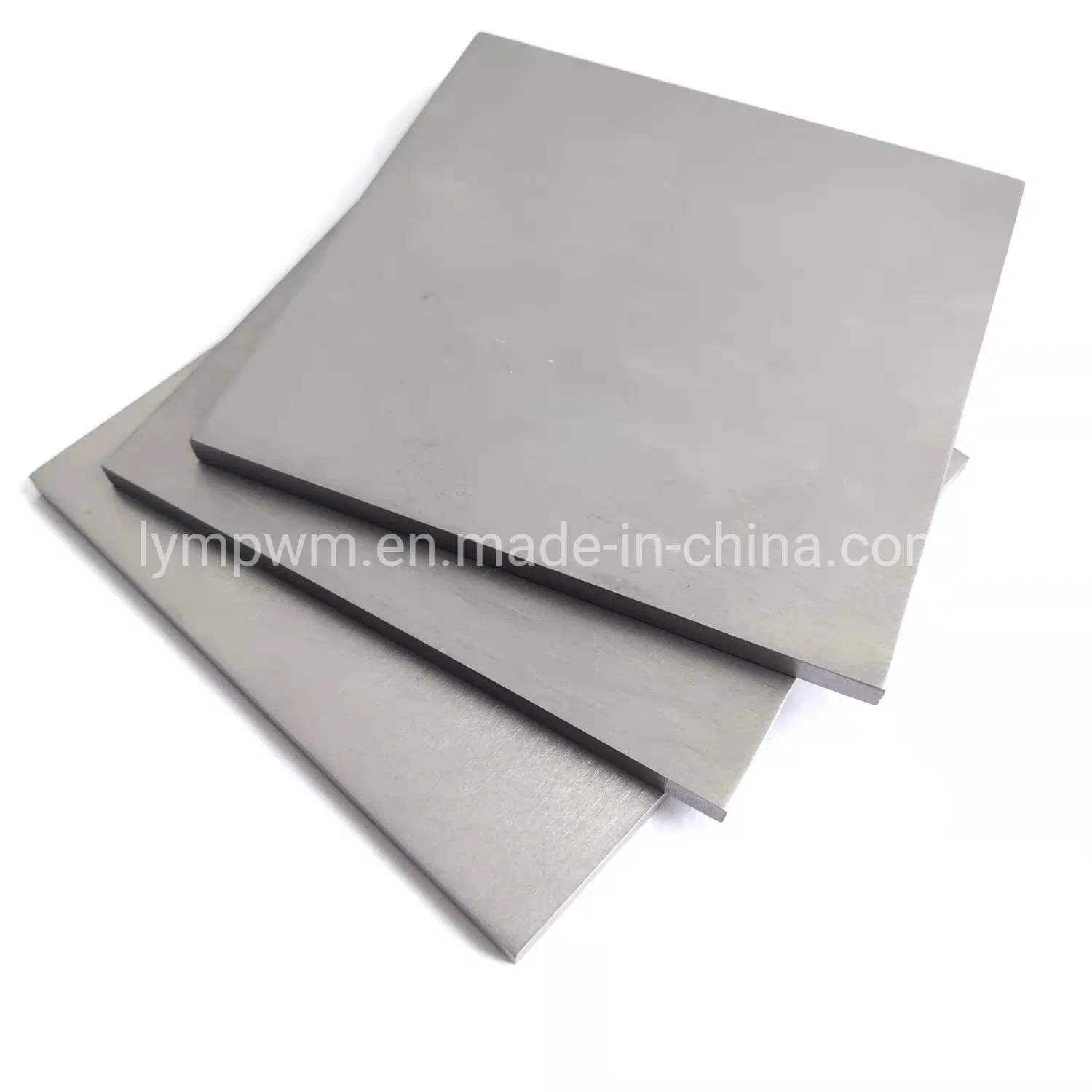

Niobium Foil, Sheet & Plate

Utilized extensively in machinery and chemical processing industries due to high corrosion resistance.

Foil: Thickness(0.03-0.09mm) * Width(30-300mm)
Sheet: Thickness(0.1-0.5mm) * Width(30-800mm)
Plate: Thickness(0.5-10mm) * Width(50-1000mm)
Standard: ASTM B393-98 | Purity: >99.95%

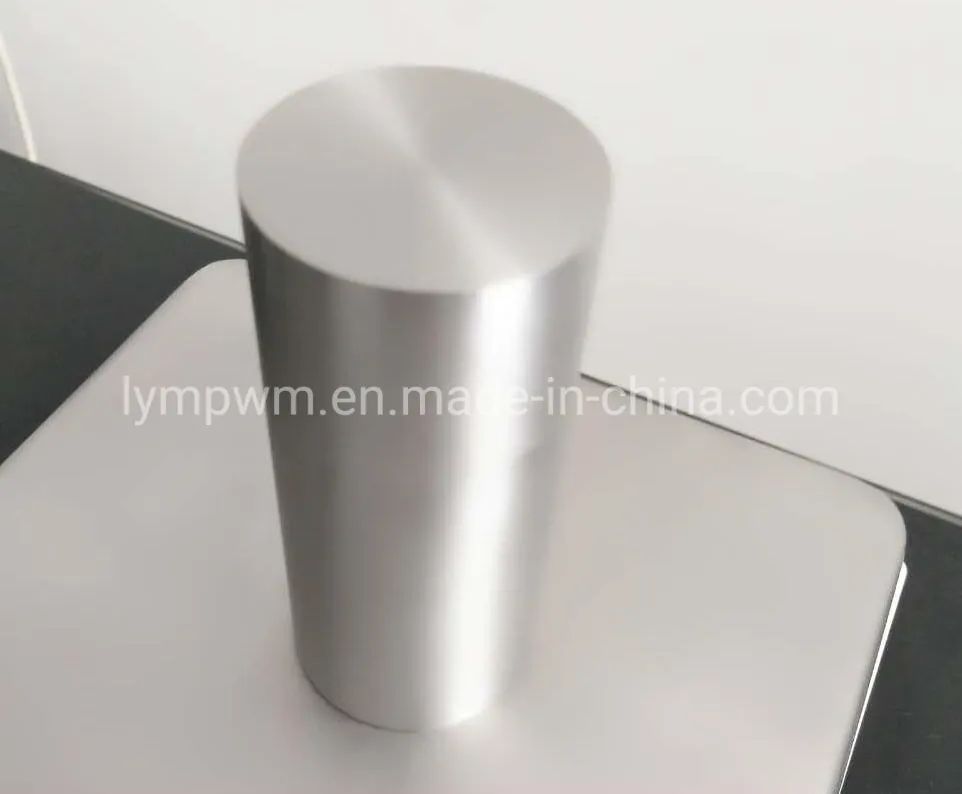

Niobium Rod & Bars

Material: RO4200-1, RO4210-2
Size: Diameter 3-120mm
Standard: ASTM B392-98

Grade	Tensile strength δbpsi (MPa)	Yield strength δ0.2, psi (MPa)	Elongation, %
RO4200-1 / RO4210-2	18000 (125)	10500 (73)	25

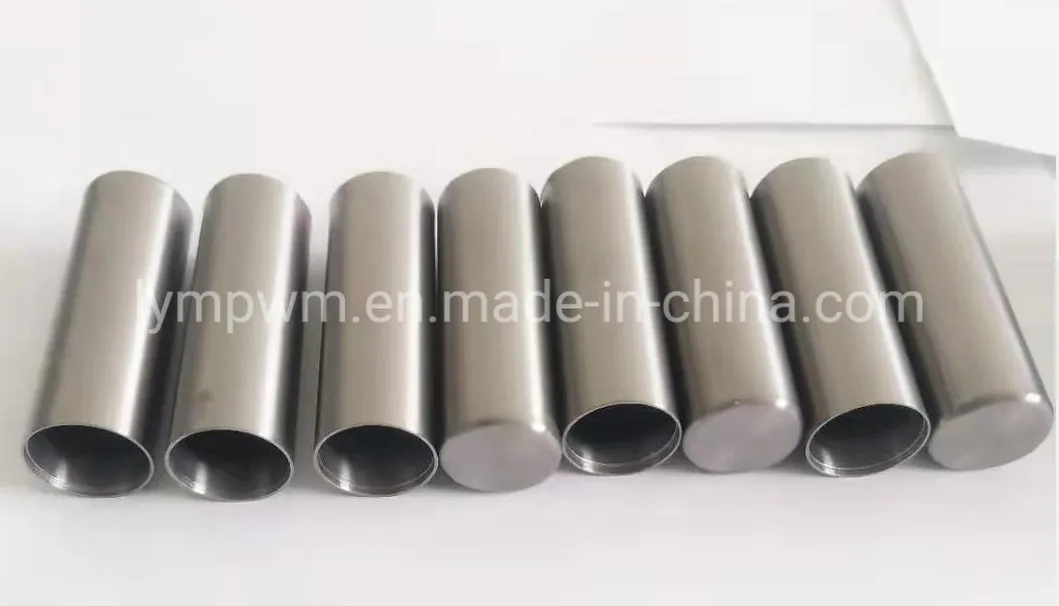

Niobium Tube (Seamless & Welding)

Size: Diameter 1.0-100mm | Thickness: 0.2-5.0mm
Standard: ASTM B394-98 | Purity: >99.95%

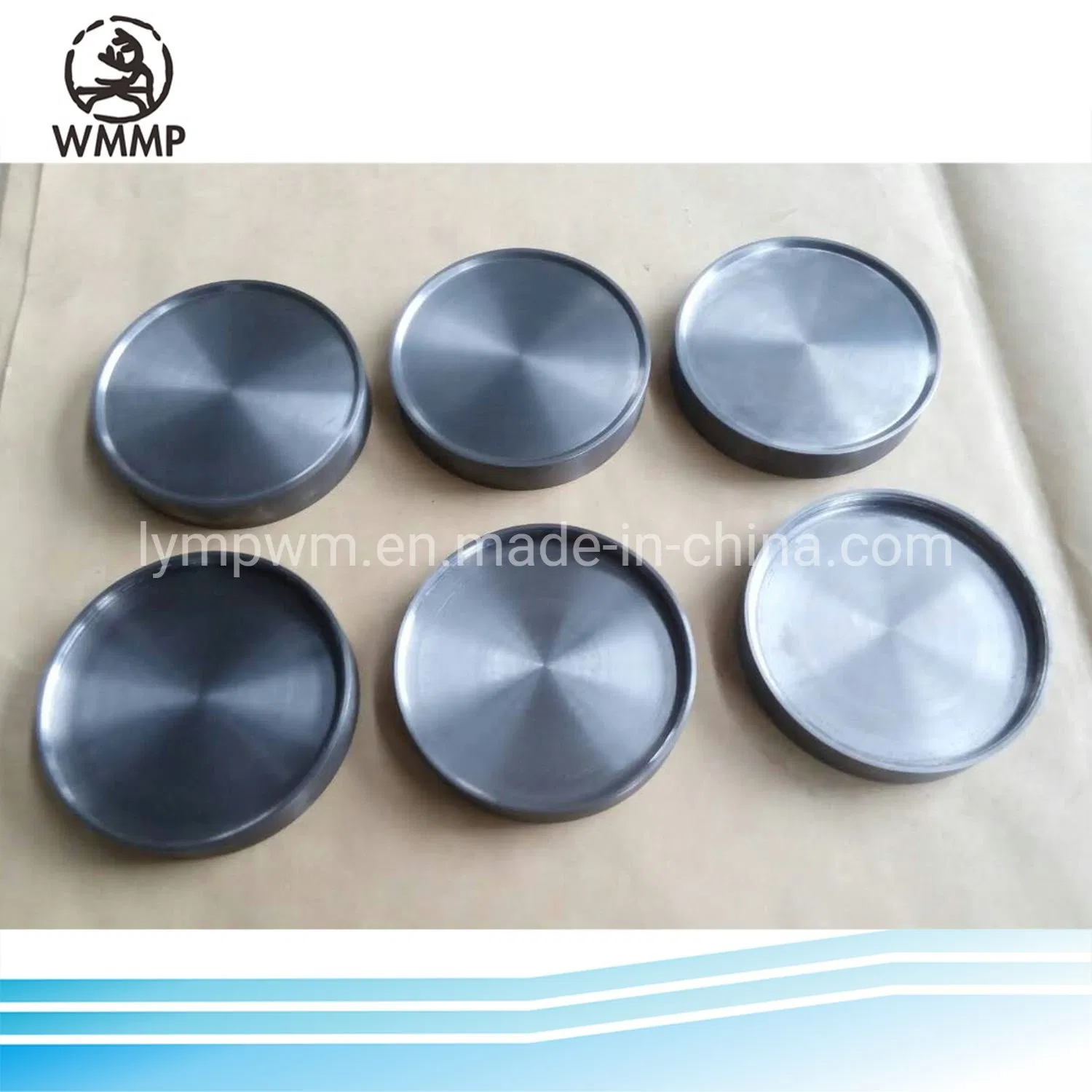

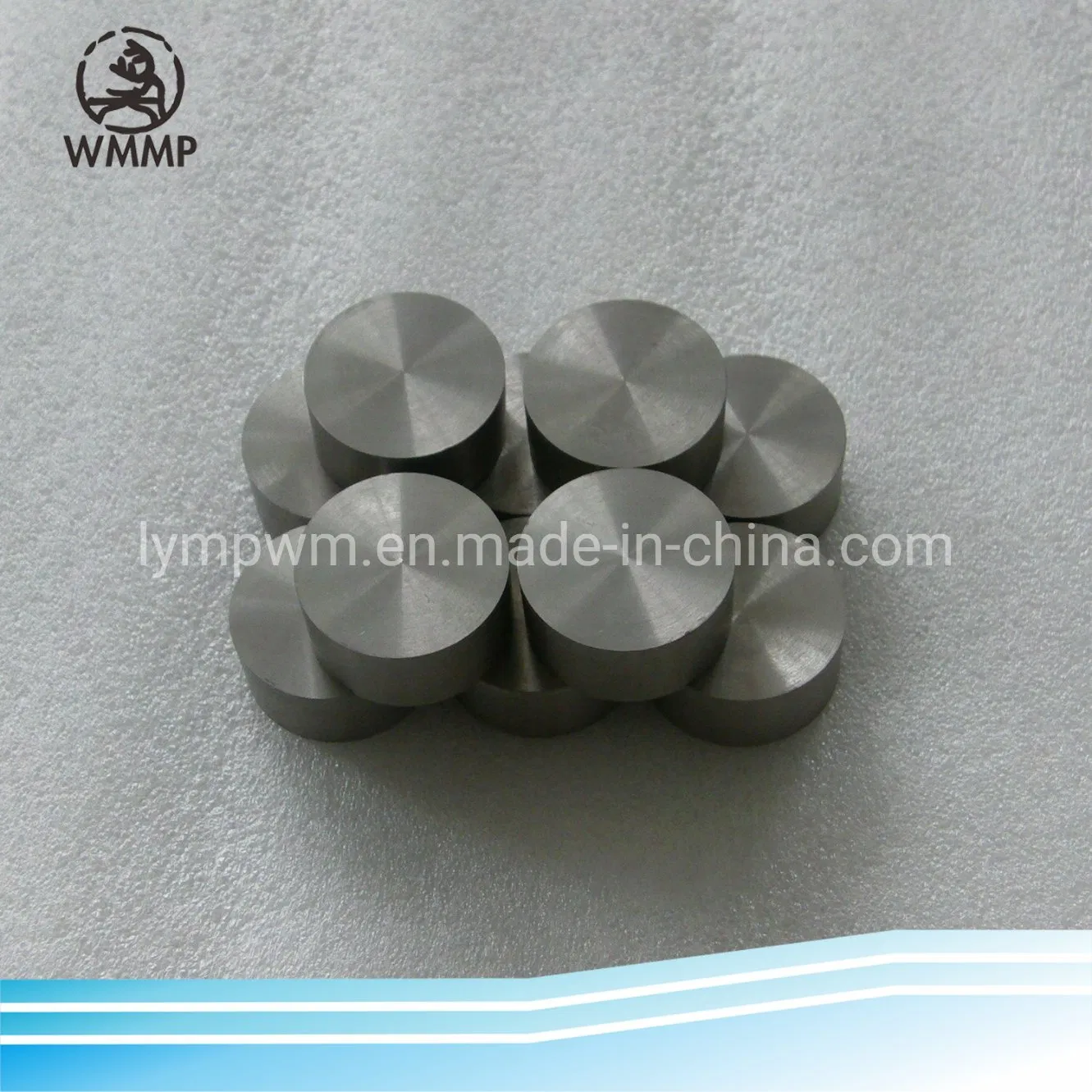

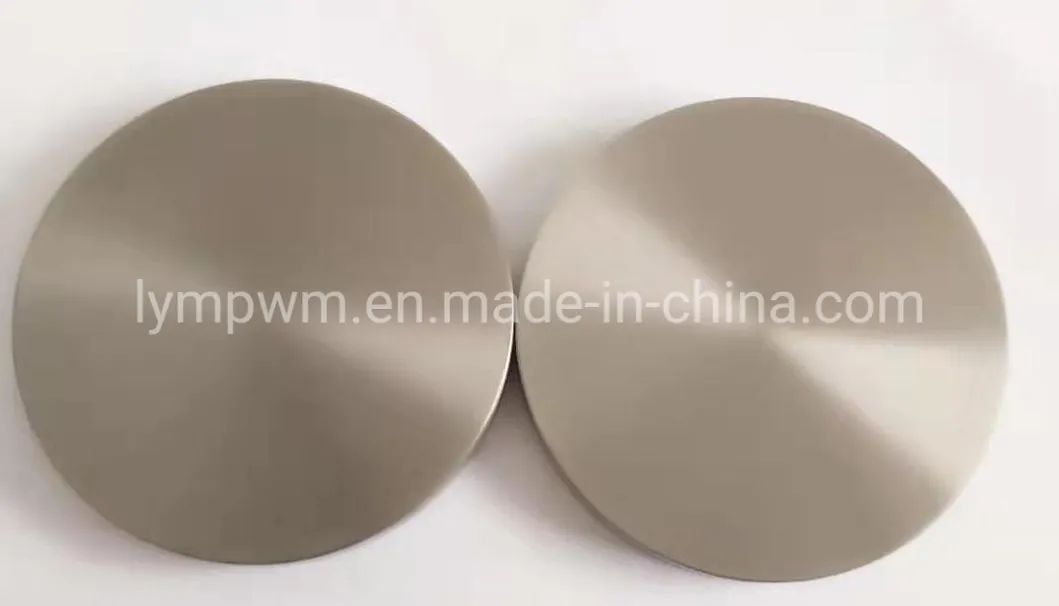

Niobium Target & Disc

Property	Technical Specification
Recrystallization	95% min
Grain size	ASTM 4 or finer
Surface finish	16Rms max. or Ra 0.4
Flatness	0.1mm or 0.15% max
Tolerance	+/-0.010" on all dimensions

Frequently Asked Questions

What is the standard purity of your Niobium products?

All our Niobium materials, including sheets, wires, and targets, maintain a high purity level of at least 99.95%.

Which international standards do your Niobium materials follow?

Our products are manufactured according to ASTM standards, specifically ASTM B392-98 for wire/rods, ASTM B393-98 for sheets, and ASTM B394-98 for tubes.

What are the primary applications for Niobium sheets and wires?

Niobium is widely used in electronic components, high-temperature machinery, and chemical processing equipment due to its excellent superconductivity and corrosion resistance.

Do you offer different shapes for Niobium targets?

Yes, we provide both circular targets (Diameter 10mm-400mm) and rectangular targets (Length up to 3000mm) to meet various industrial needs.

What is the production capacity for Niobium materials?

Our facility has a stable production capacity of approximately 5000kg per month for Niobium products.

How are the products packaged for international shipping?

Products are securely foamed and packed in export-standard wooden cases to ensure safe delivery and prevent damage during transit.
