ASTM B363 Grade 12 Titanium Fitting Ti Alloy for Industrial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model

Titanium Fitting

Certification

En10204-3.1b

Condition

Annealed

Surface

Pickled, Polished, Sandblasted

Application

Industrial, Medical

Technique

Seamless & Welded

Grade

GR12

Specification

NPS 1/2 - 48

Production

500 Tons /Year

Origin

China

📏 Available Sizes & Standards

ASTM B363 Gr.12 Titanium Fitting (NPS 1/2 to 48) with thickness ranging from Sch5s to Sch160.

Seamless: NPS 1/2 - 4
Welded: NPS 5 - 48
Forged: 1/8 - 24
Compliance Standards: ANSI/ASME B16.9, MSS SP-43, EN 10253, GB/T-27684, MSS SP-97, ASME B16.11

🛠️ Product Types

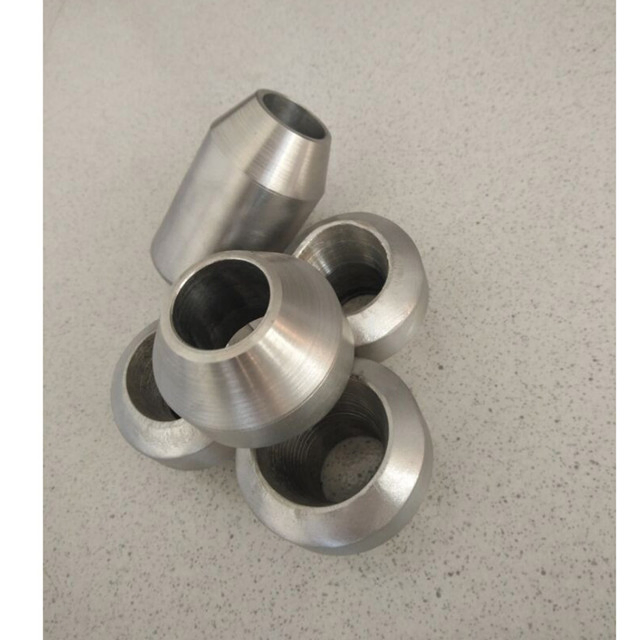

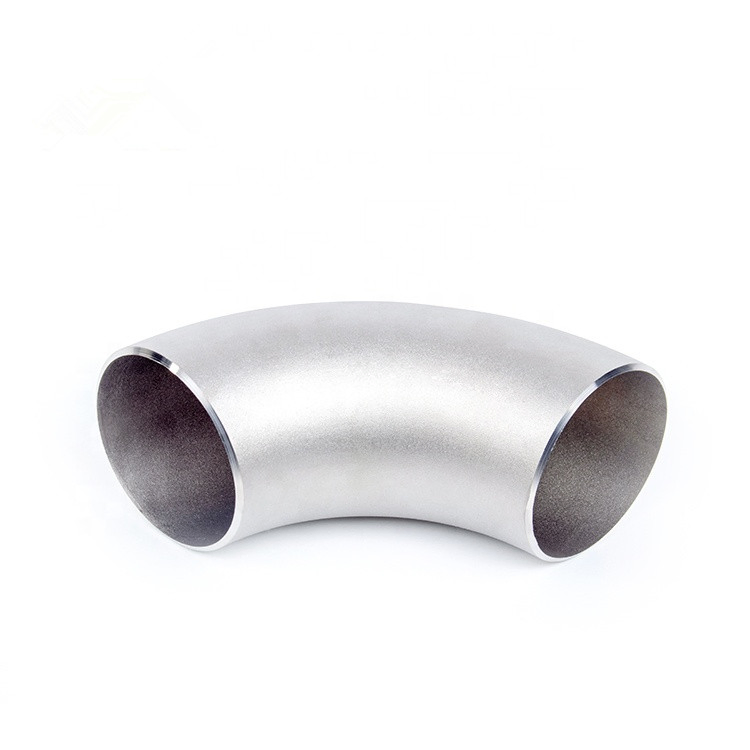

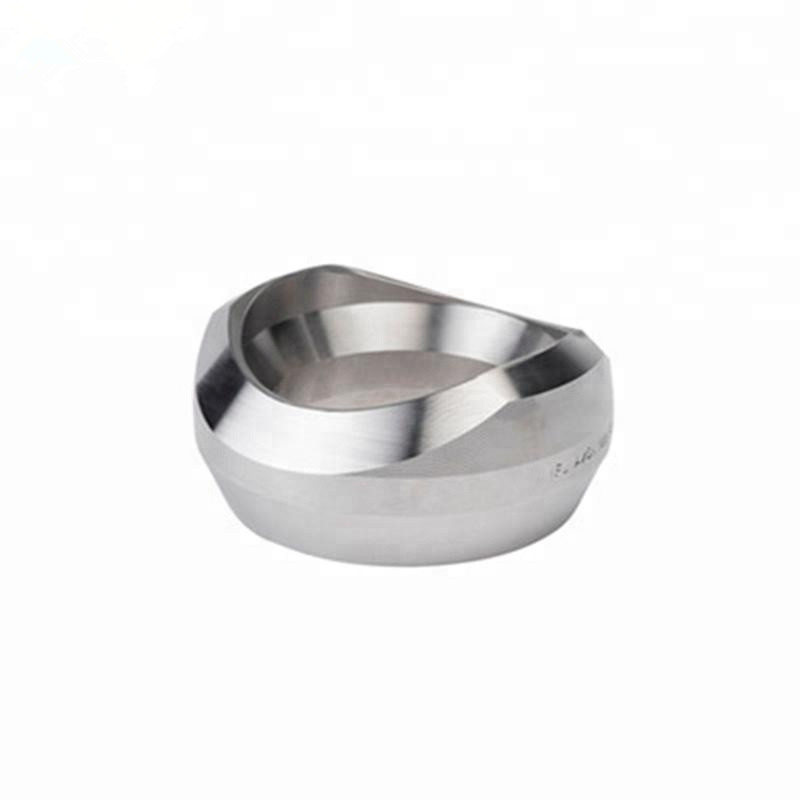

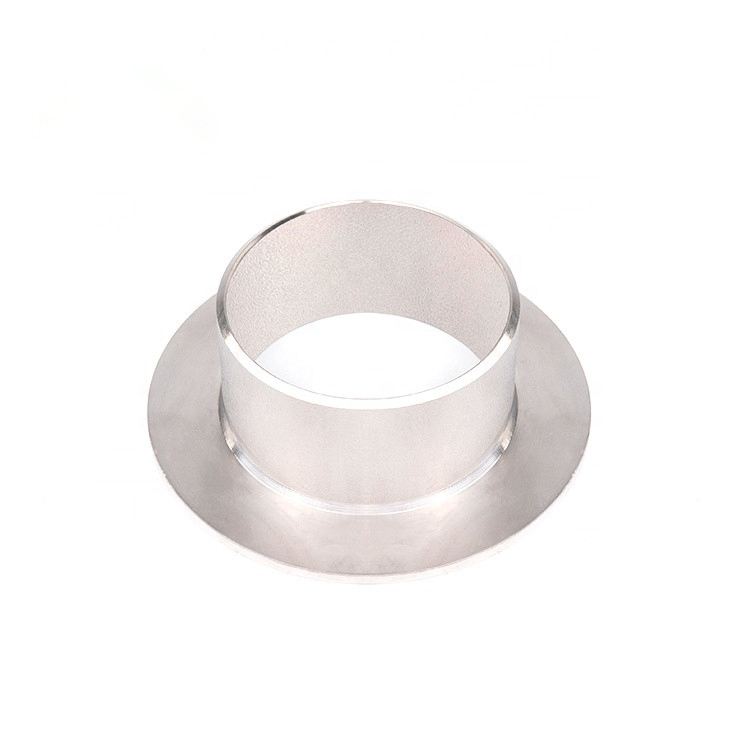

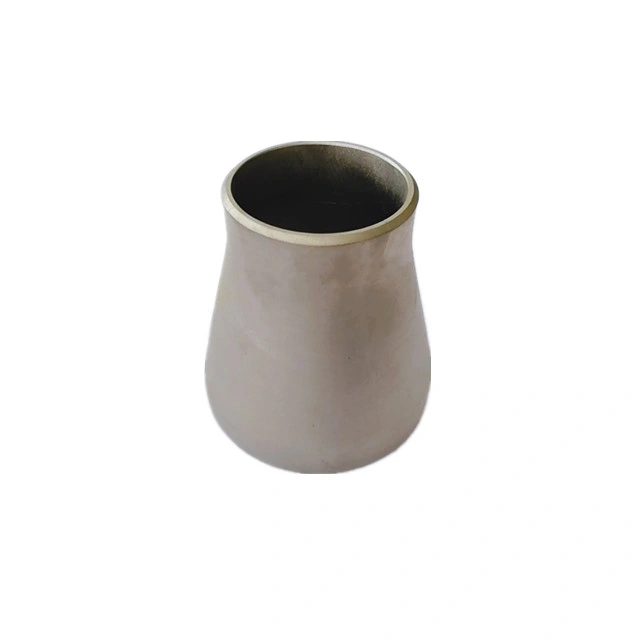

Elbow, Tee, Reducer, Stub End, Cap, Return, Cross, Weldolets, Couplings, Caps, Plugs, Bushings.

🏭 Example Applications

Chemical industry, water/oil/gas transportation, electric power, construction, natural gas, ship building, marine, paper making, metallurgy, boiler systems, and more.

Chemical Composition & Mechanical Properties

Grade	UNS No	Chemical Composition (max %)					Mechanical Properties (min)
Grade	UNS No	N	C	H	Fe	O	Tensile (Mpa)	Yield (Mpa)	El. (%)	Red. (%)
GR 1	R50250	0.03	0.08	0.015	0.2	0.18	240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25	345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35	450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4	550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25	345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	828	759	10	15

Product Gallery

Frequently Asked Questions

1. What are the available sizes for Titanium Fittings?

We provide fittings in sizes ranging from NPS 1/2 to 48. Specifically, NPS 1/2 - 4 are seamless, while NPS 5 - 48 are welded. Forged options are available from 1/8 to 24.

2. Which standards do these fittings comply with?

Our products are manufactured according to ANSI/ASME B16.9, MSS SP-43, EN 10253, GB/T-27684, MSS SP-97, and ASME B16.11.

3. What is the main application for Grade 12 Titanium fittings?

They are widely used in chemical industries, natural gas transportation, marine engineering, power plants, and medical applications due to their high corrosion resistance and strength.

4. What surface treatments are provided?

Typical surface conditions include Pickled, Polished, or Sandblasted, depending on the specific industrial requirement.

5. Can you supply other grades besides GR12?

Yes, we supply a wide scope of titanium materials including Grade 1, 2, 3, 4, 5 (6Al 4V), 7, 9, 11, 17, and 23 (6Al 4V Eli).

6. What types of fitting shapes are available?

Our product line includes Elbows, Tees, Reducers, Stub Ends, Caps, Returns, Crosses, Weldolets, Couplings, Plugs, and Bushings.
