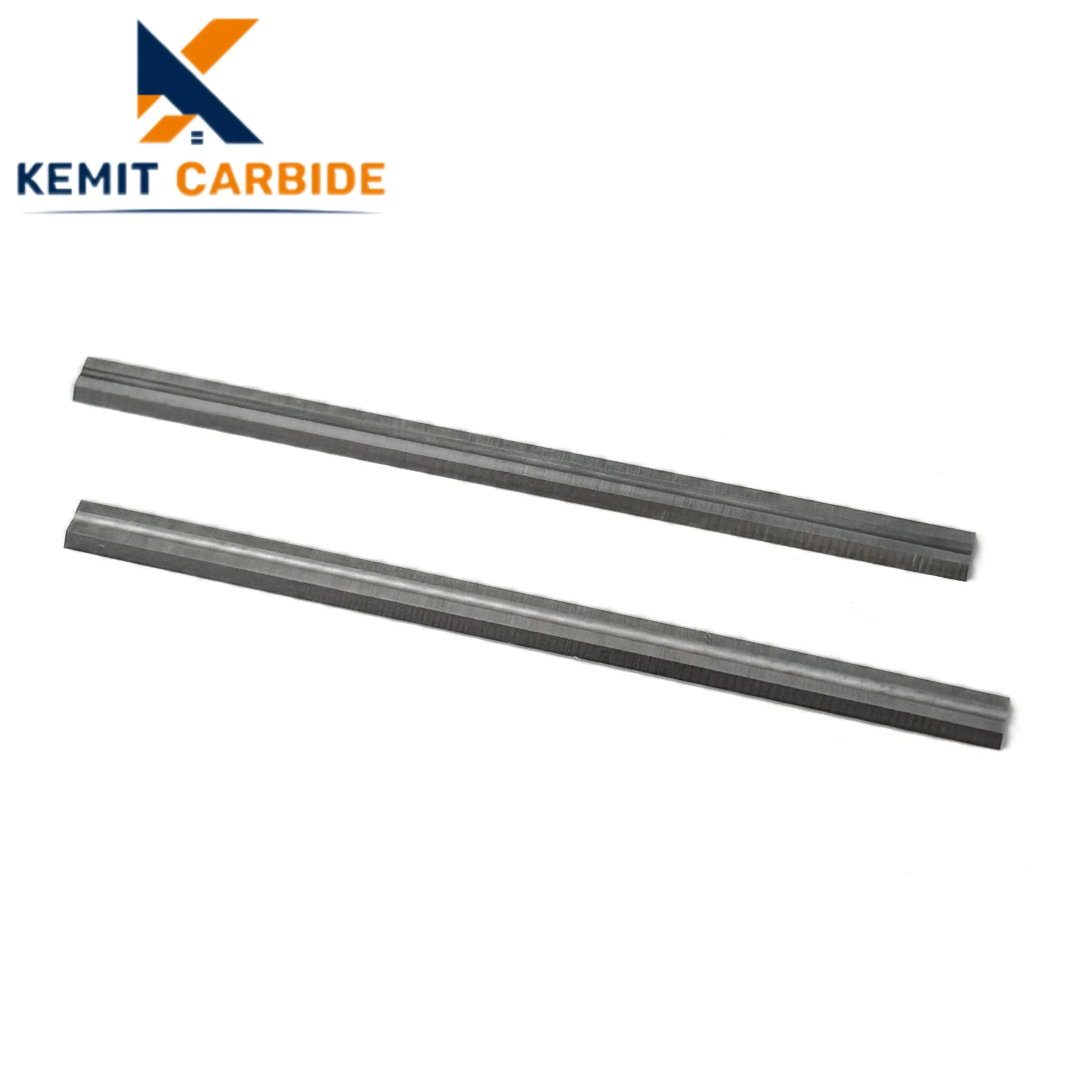

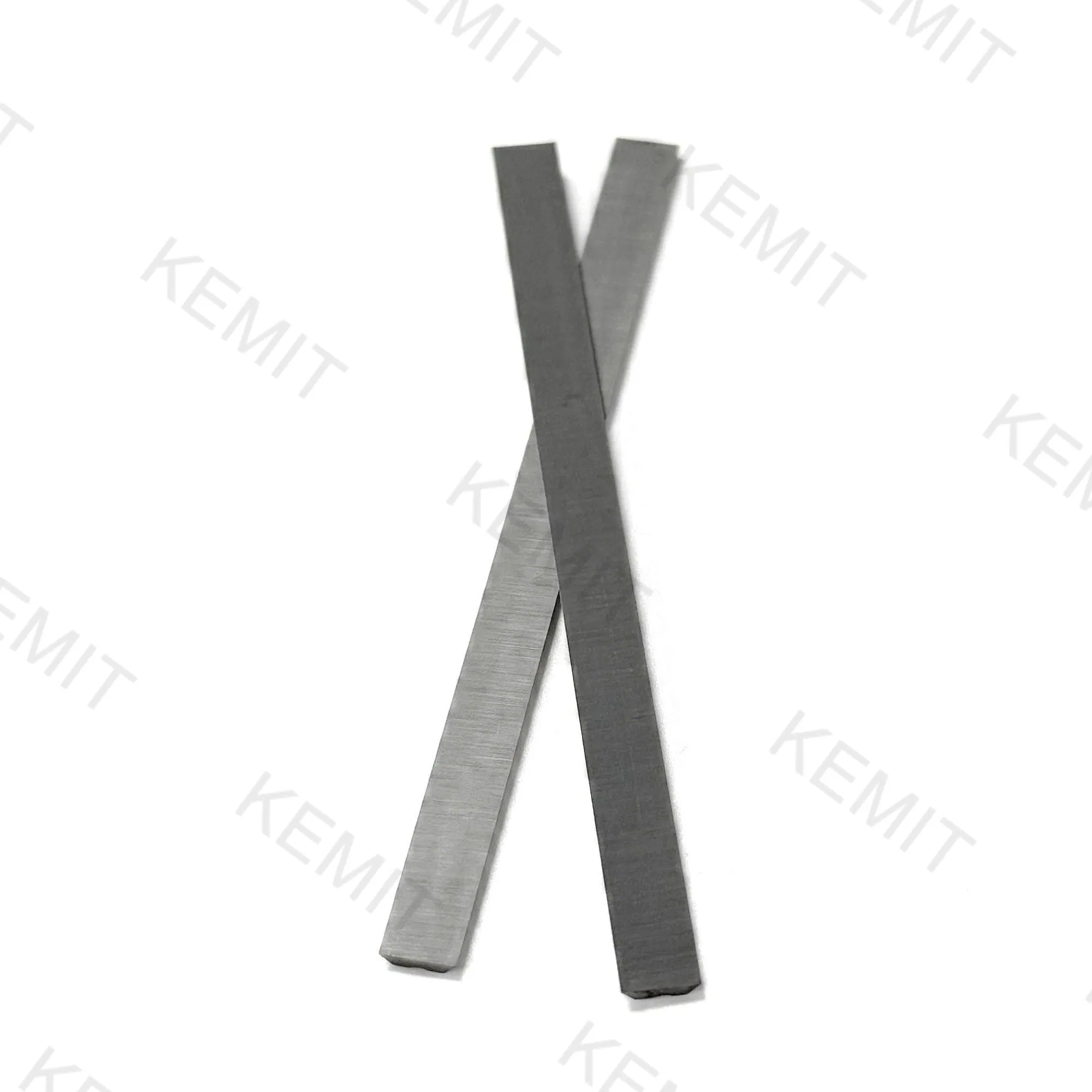

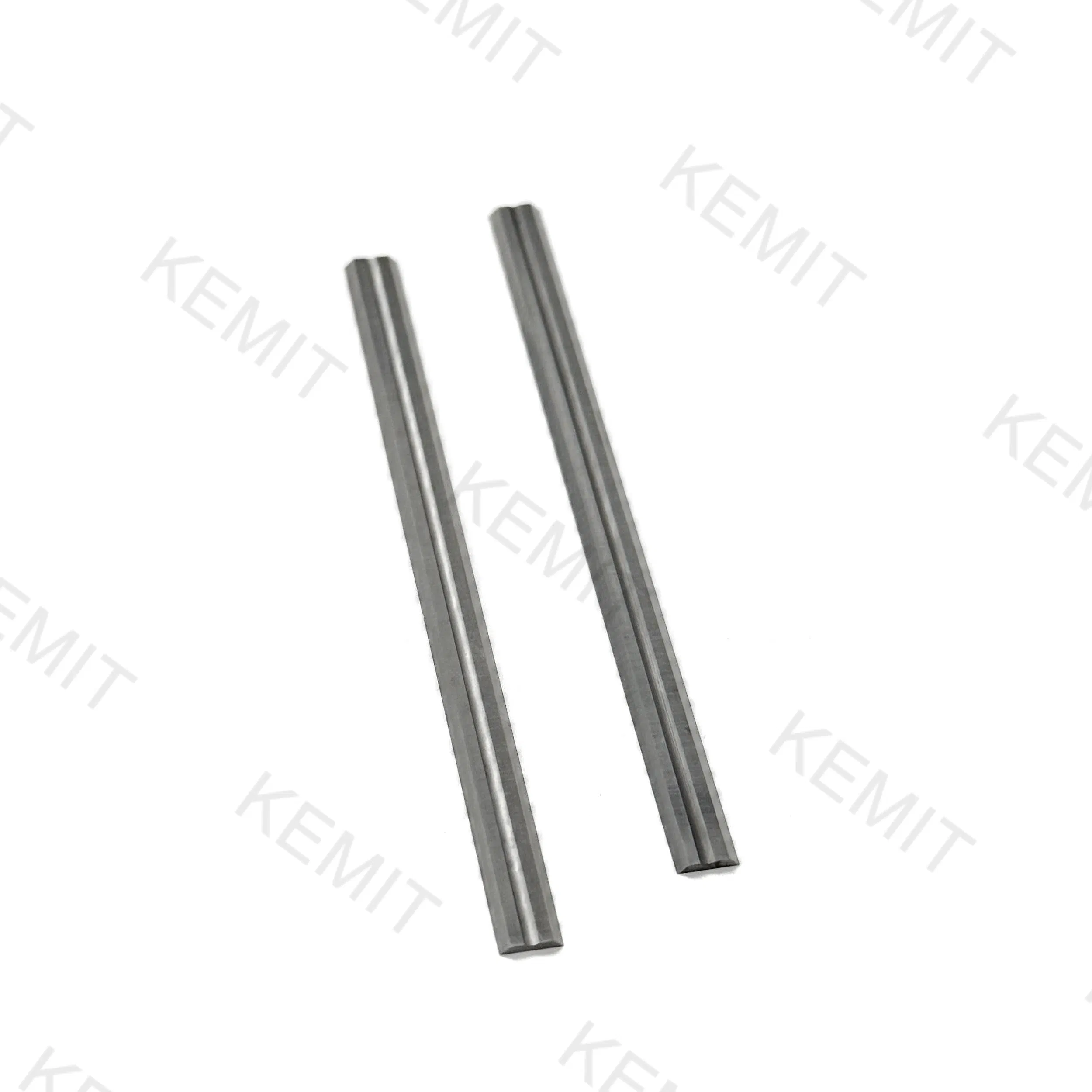

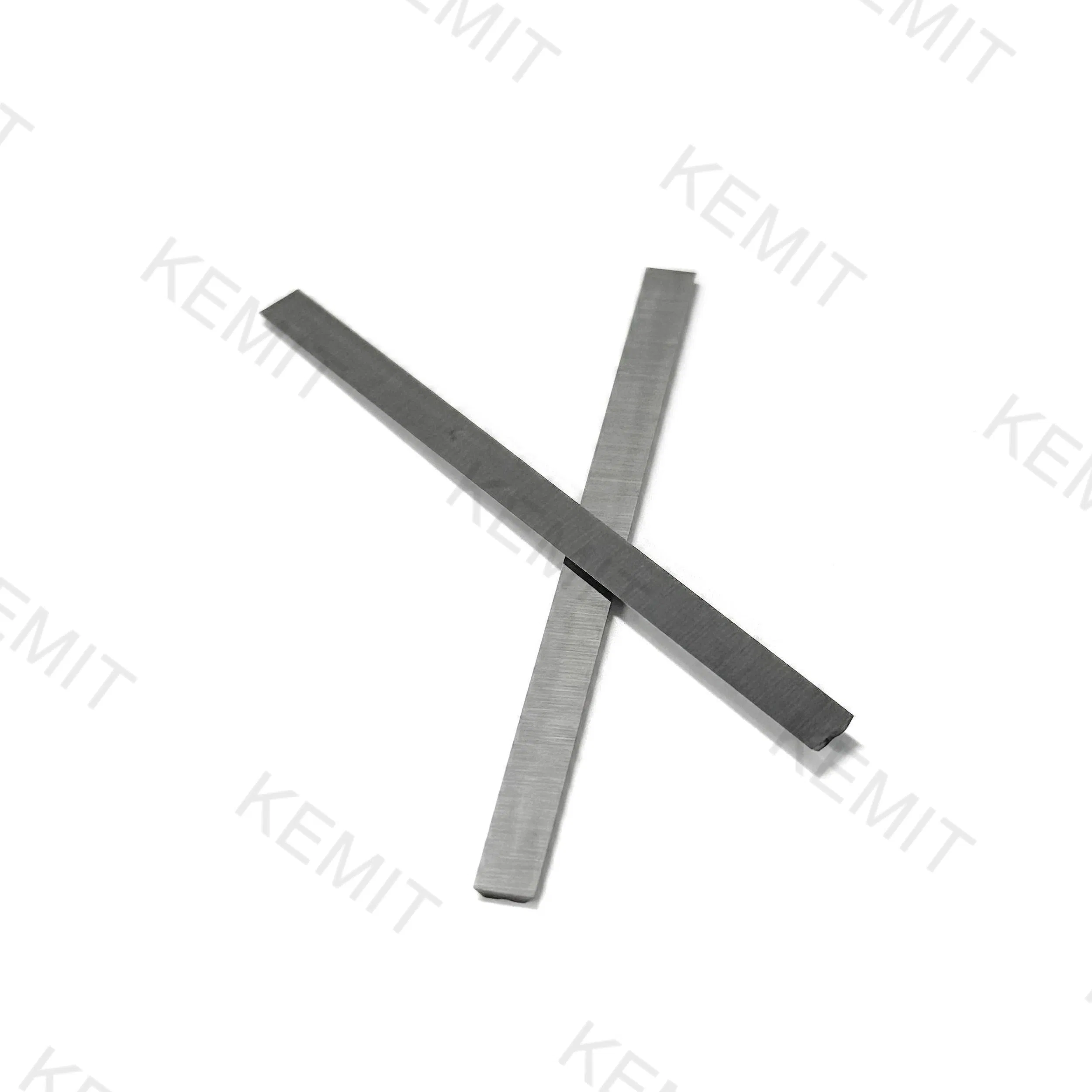

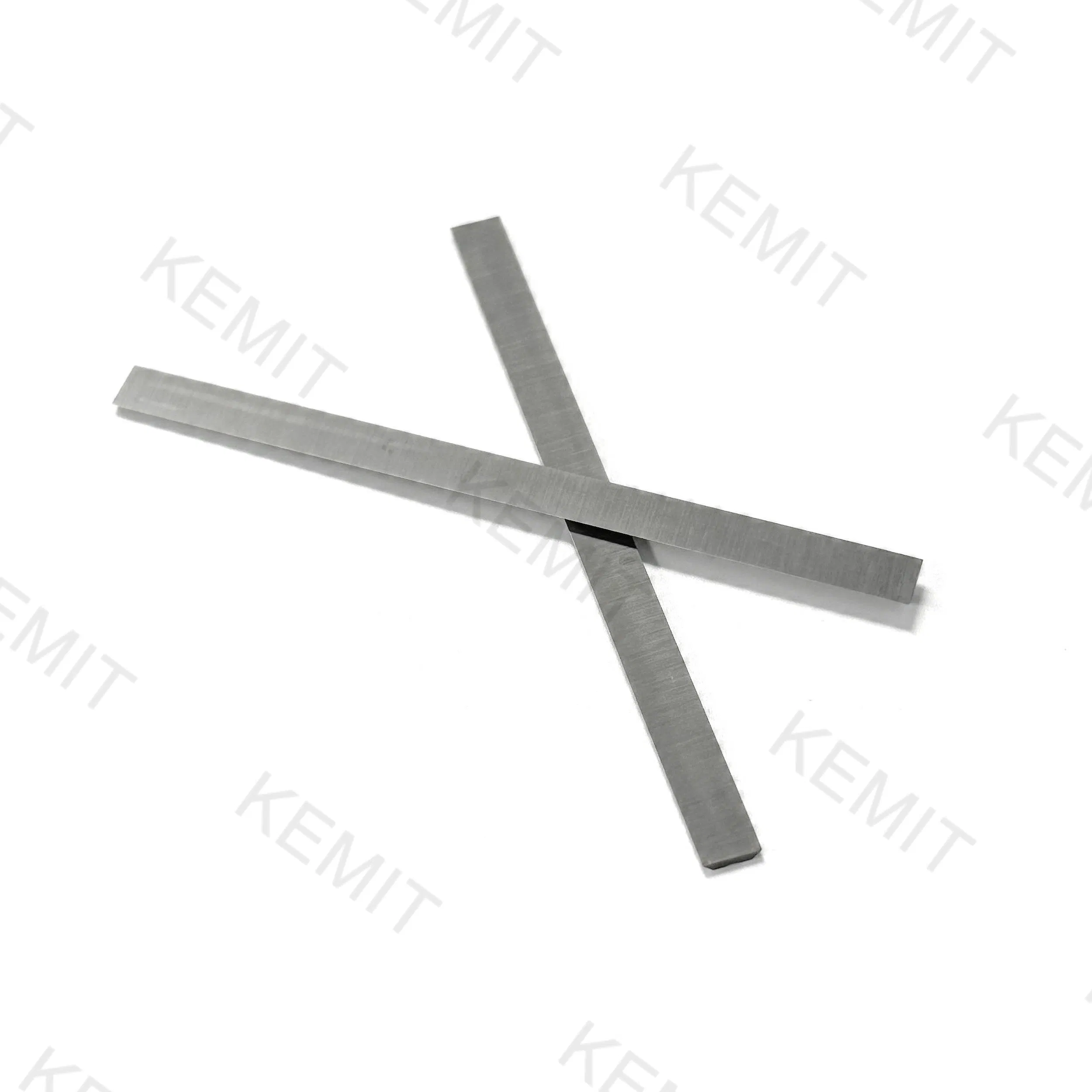

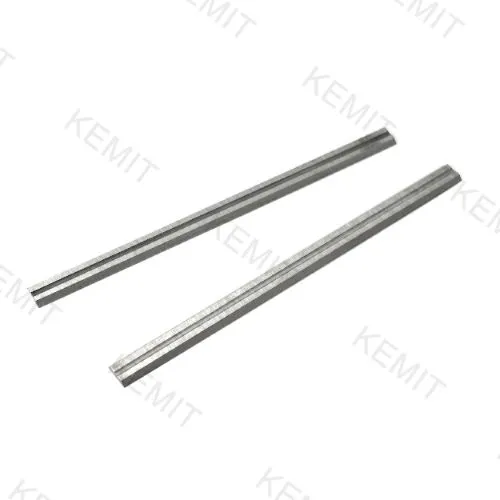

Carbide planer blades are core cutting tools specifically designed for efficient planing operations. Made from high-purity tungsten carbide-based alloys through powder metallurgy sintering and precision grinding processes, they combine ultra-high hardness with excellent impact resistance. Their cutting edges, treated with fine grinding, are sharp and wear-resistant, easily handling planing needs of various materials such as solid wood, density board, metal sheets, and composite materials.
| Common Size (mm) | Length (mm) | Width (mm) | Thickness (mm) | Angle (a°) |
|---|---|---|---|---|
| 56.1×5.5×1.1 | 56.1 | 5.5 | 1.1 | 36° |
| 56×5.5×1.1 | 56 | 5.5 | 1.1 | 45° |
| 20×5.5×1.1 | 20 | 5.5 | 1.1 | 35° |
| 82×5.65×1.2 | 82 | 5.65 | 1.2 | 40° |
| 82×5.5×1.1 | 82 | 5.5 | 1.1 | 35° |
| Grade | ISO Category | Density (g/cm³) | Hardness (HRA) | Application Details |
|---|---|---|---|---|
| YG6X | K10 | 14.8-15.1 | ≥91 | Finishing of chilled hard alloy cast iron and heat resistant steel. |
| YG6 | K10 | 14.7-15.1 | ≥91 | Semi-finishing and finishing of cast iron and non-ferrous metals. |
| YG8 | K20-K30 | 14.5-14.9 | ≥90 | Roughing of cast iron, non-ferrous alloys, and non-metallic materials. |
| YG10 | K30 | 14.3-14.7 | ≥89 | Excellent strength for wear parts and stamping cores. |
Ideal for turning, milling, and drilling complex precision parts such as engine blocks and aviation blades.
High-speed cutting and slotting for furniture production, ensuring smooth cuts without burrs on solid panels.
Used for cutting marble and granite for building decoration and high-precision architectural components.
Fine cutting of copper-clad boards and tiny guide hole drilling in the PCB production process.

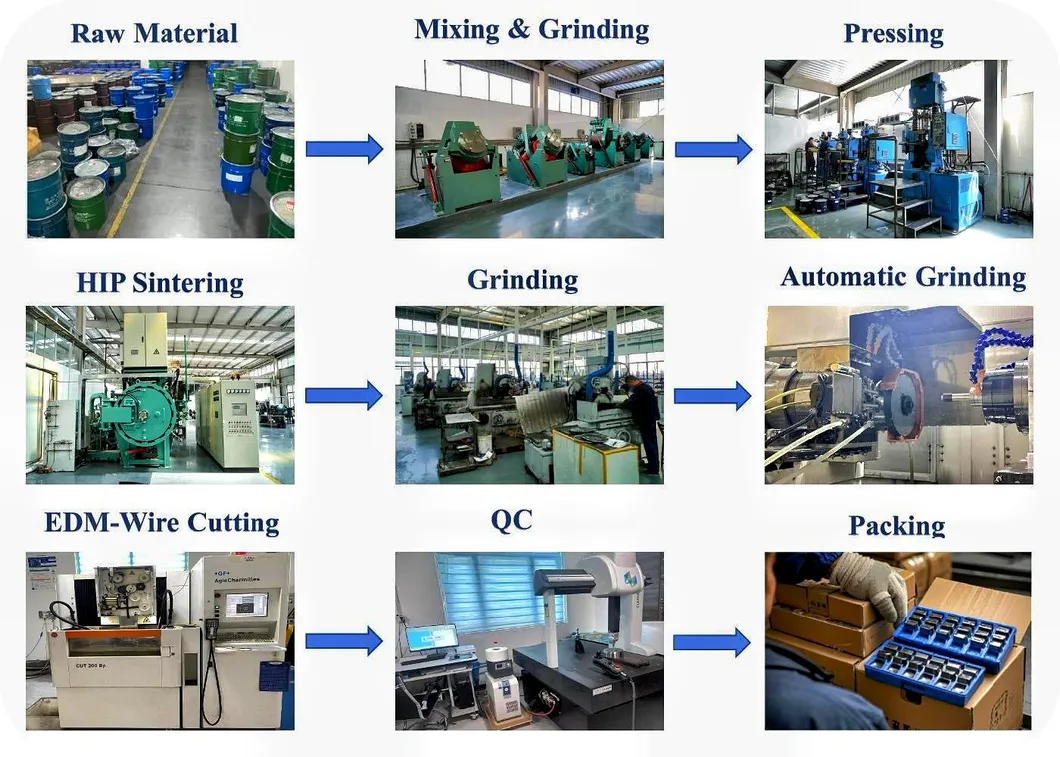

Manufacturing Flow

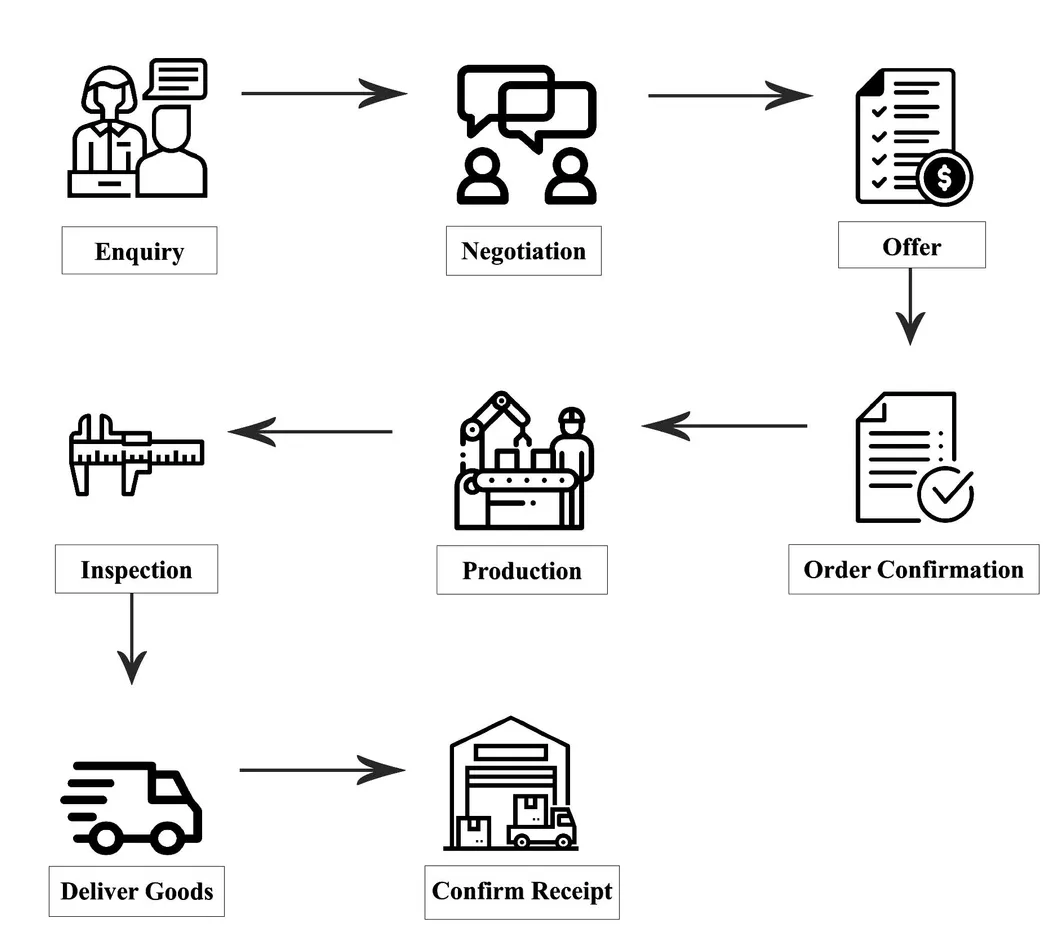

Service Flowchart
1. Secure Packaging: We choose safe packaging tailored to the characteristics of Cemented Carbide to ensure safety during transit.
2. Neutral or Customized: Neutral packaging or customized options with specific logos are available.
3. Flexible Shipping: Options include Sea Freight, Air Freight, and Express services (UPS, DHL, FedEx).
